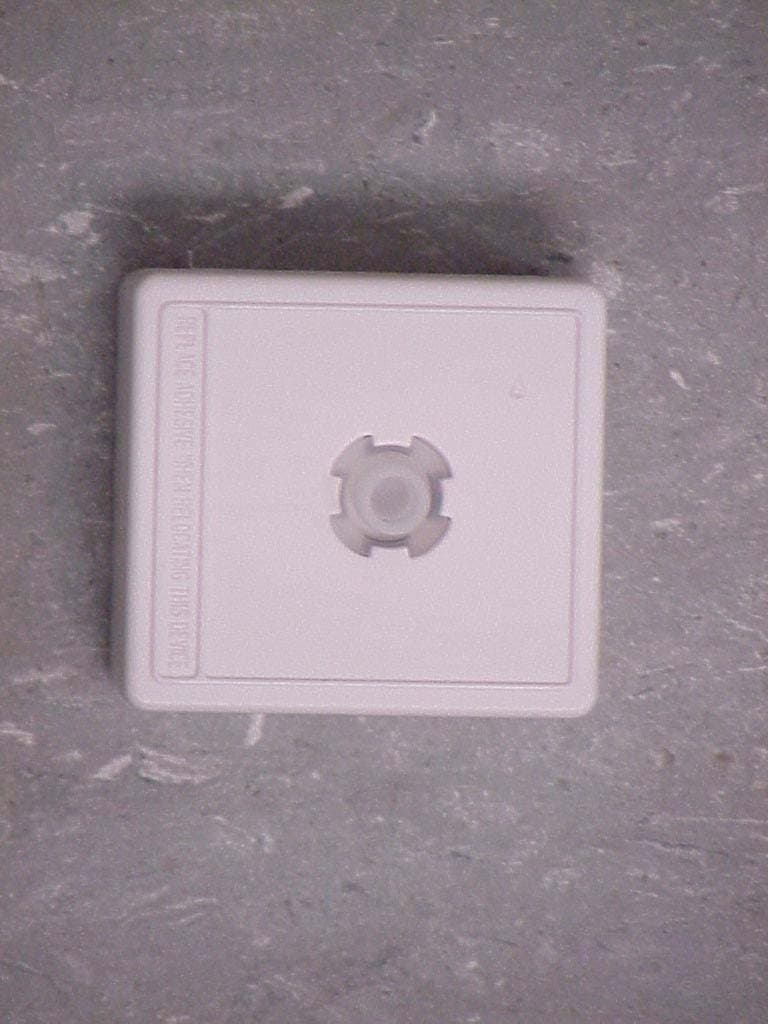

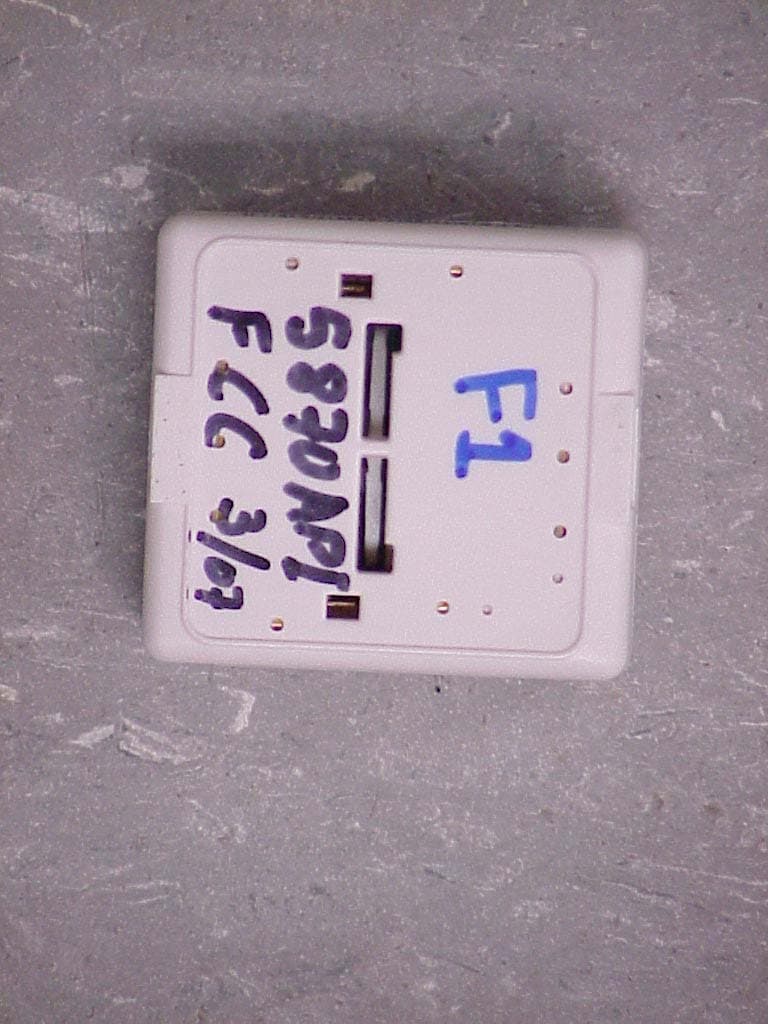

CFS8DL5870APIIndoor Asset Protection Device

K14379 4/07 Rev. A ADEMCO 5 ADEMCO 5ADEMCO 5 ADEMCO 5870API 870API870API 870API Wireless Indoor Asset Protection Device Wireless Indoor Asset Protection DeviceWireless Indoor Asset Protection Device Wireless Indoor Asset Protection Device INSTALLATION AND SETUP GUIDE GENERAL INFORMATION The ADEMCO 5870API is a wireless, supervised asset protection device that uses patented Micro-Electro- Mechanical System (MEMS) technology, which references the Earth’s gravitational field. When affixed to a protected high-value asset the device will trigger an alarm if an attempt is made to move or disturb the asset. ADEMCO VISTA P-series control panels (VISTA-10P, 15P and 20P) provide configurable zone types that allow the installer to customize a zone for asset protection (i.e., 24 hour supervisory alarm, trouble by day/alarm by night, etc.) Refer to the control panel installation instruction for full details. The 5870API is intended for use in systems that support 5800 series devices. Each transmitter has its own unique serial number, assigned during manufacture, which must be “enrolled” in the control panel before the device can be used with the system. Refer to the control panel's Installation and Setup Guide for programming details. One 5870API is required for each asset that will be protected. Typical Protected Assets The 5870API can be used for many residential and commercial applications such as: Residential Commercial • Electronic equipment • Office Equipment • Jewelry boxes • Museum Art • Paintings and Art • Laboratory Equipment • Entertainment devices • House or Gun Safe • Antiques and Collectables ! The 5870API sensor is for use on objects that do not move frequently or vibrate. Mounting the sensor near sources of vibration may cause false alarm conditions to occur. Operating Modes The 5870API is equipped with three programming options. A three minute inhibit prevents excessive RF transmissions and preserves battery life by transmitting alarm signals three minutes apart. Short Travel Time Detection (Loop 1) – This is a high-security, minimum movement mode in which the sensor detects the movement of the device over a short time period and sends an alarm signal after one second of continuous movement. When the motion has stopped for period of three seconds, a restore signal is sent. Long Travel Time Detection (Loop 2) – The sensor detects the movement of the device over a longer time period in this mode and sends an alarm signal after five seconds of continuous movement. When the motion has stopped for period of three seconds, a restore signal is sent. Open/Close Sensor (Loop 3) – This mode is intended for boxes with lids that can be opened (e.g.; jewelry boxes). The sensor detects tilt with respect to the horizon. If the unit is tilted more than 30° of tilt with respect to the Earth the sensor will send an alarm signal. If the unit is tilted back to less than 15° a restore signal will be sent. ! The 5870API is not watertight, and therefore should not be used in damp locations. Do not use the device in applications that may be exposed to moisture. The device may be used in garages, sheds, etc., as long as it is not at risk from rain, snow, humidity or condensation. The device should not be installed in locations where temperatures may drop below 14° F. OPERATION Upon initial battery power up, the unit will transmit every time it is faulted or restored, which enables you to program and test the device. To conserve battery life the sensor’s normal operating mode has a three-minute lockout on Loops 1, 2 and 3. Once a restore has been sent on any loop, further transmissions on that loop are inhibited for three minutes. Other loops are not affected. The sensor automatically switches from installer test mode to normal mode after the first supervisory transmission is sent. This will occur approximately 72 minutes after the last fault/restore message has been sent. To return to the installer test mode remove and reinstall the battery. TAMPER SUPERVISION The 5870API tamper supervision feature (Loop 4) causes a trouble signal to be sent to the control if the sensor is removed from the asset being protected or if the unit’s cover is removed from the base. The tamper switch is also used to program the unit’s serial number and loop assignments to the control panel. SETTING THE OPERATING MODE You must enroll the 5870API serial number in the control panel during zone programming. The control panel's Installation and Setup Guide provides detailed program- ming procedures. Table 1 provides a list of the various operating modes of the 5870API with the respective Loop numbers for each. Before programming, perform the following: 1. To cause the transmitter to transmit, remove the “PULL TO CONNECT BATTERY” tab (see Figure 1). (For additional transmissions, move or rotate the sensor.) 2. When the battery is connected the sensor powers up in the installer test mode. In this mode the sensor will transmit fault and restore messages on all loops when it detects the corresponding motion (or lack thereof). - 2 - 5870API-002-V0 PULLTOCONNECTBATTERY K5867 PULL TAB SENSOR Figure 1 - 5870API Battery Tab PROGRAMMING THE UNIT If you are enrolling this device on a LYNXR-Series control panel refer to the *56 Enhanced Zone Programming Mode section in the LYNXR Installation Guide for programming information. Once you have selected an operating mode you must enroll the transmitter in the control panel. When programming the transmitter in the control panel, note that you must program a separate zone for each loop you are using on the transmitter. To program: 1. Enter the control’s Zone Programming mode. 2. Enter the zone number to be programmed. If the asset being protected should not be moved (i.e., a painting) it can be programmed as a 24 hour zone type. If the asset will occasionally be moved, when the system is disarmed, it can be programmed as a perimeter zone type . 3. When prompted, enter zone type. 4. When prompted, enter In…

Text truncated - open the document above for the full version.

EXHIBIT 2-2 BLOCK DIAGRAM CFS8DL5870API / 573F-5870API SECTION 2.1033(b) SECTION 2.1033(b) (3) Block Diagram.

5870API COVER LETTER TO ATCB CFS8DL5870API / 573F-5870API Tim, You wrote; I respond: Regards, Greg Barbato 1) Is anything considered confidential and need to be filed as such (i.e. block diagram, schematic, etc.?). If so, please include appropriate letter for this or confirm that confidentiality is not necessary. Confidentiality is not necessary. 2) Please note that IC requires 3 items on the label, (model, applicant, and Certification No. as Certified). The label does not appear to show applicant and model for this application. Please revise or let us know how to you wish to continue. Note that while RSS-GEN may allow: “If the device size is too small to put a label, the label can be included in the user’s manual, upon agreement with Industry Canada.” However, please note that we have already determined that they will require us to confirm with Canada in each instance. Please note that our device is only 1.5" X 1.5" = (3.8cm X 3.8cm) and the only place to place a label is under the battery which is a CR123 3V Lithium cell. so the area available for a label is only: 3.5 cm X 1.6 cm. Please see the attached drawing (on page 2) it also has dimensions. 3) It is not clear if this devices transmits once during alarm (meets 5 second requirement) or for the duration of the alarm condition. Please clarify. This device only transmits once during an alarm. 4) Typically the 2 part statement can only be placed in the manual if the devices size is less that 8x10 cm. Please comment on the size of this device. 8 cm = (3.15") & 10 cm = (3.9") our device is only 3.8cm X 3.8cm = (1.5" X 1.5")

EXHIBIT 8 THE FCC / IC LABEL CFS8DL5870API / 573F-5870API SECTION 2.1033 (c) and Part 15.21 & 15.19 SECTION 2.1033 (c) Label and label location - A photo showing the identification label clearly (you must be able to see the name and FCC ID number), and the location on the device. In lieu of a photo for this, you may submit a engineer’s drawing. Part 15.21 Statement - for all intentional and unintentional radiators is also printed on the label. All devices shall bear the following statement in a conspicuous location on the device: “ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “ 15.19(a)(5) When the device is so small or for such use that it is not practicable to place the Statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. In this case we have placed the statements in the users manual. Engineers drawing of label location & label text. PLEASE NOTE THAT THERE ARE INSTRUCTIONS IN THE USERS MANUAL (II) THAT INSTRUCT THE USER WHERE TO LOOK FOR THE FCC & IC ID’S (I.E.; UNDER THE BATTERY) DUE TO THE SMALL SIZE THE FCC / IC STATEMENTS ARE ALSO PLACED IN THE MANUAL.

EXHIBIT 1 FUNCTIONAL DESCRIPTION CFS8DL5870API / 573F-5870API SECTION 2.1033(b) SECTION 2.1033(b) (2a). For Part 15 a brief description of the circuit functions of the device. The 5870API is a battery powered physical motion sensor that, when moved, sends an alarm via its transmitter to provide asset protection and is part of a wireless-alarm system. The message s are standard alarm messages transmitted at 345Mhz +/-82Khz using on-off keyed AM modulation. The 5870API sends a regular supervision or check-in message, no more often than once per hour.

EXHIBIT 2-1 CIRCUIT DESCRIPTION CFS8DL5870API / 573F-5870API SECTION 2.1033(b) SECTION 2.1033(b) (2a). For Part 15 a statement describing how the device operates. The 5870API senses motion via the motion sensor chip U4. When motion is detected the micro-controller U1 enables the single Chip transmitter U2, U1 also supply’s the modulation to U2. U2 is a single chip PLL transmitter with a fixed divide ratio of 32, Whose FDE is crystal YL3, 10.78125 MHz ( 10.78125 MHz X 32 = 345 MHz ) L1, C14, L2, C15, C16, C17, tune U2’s output and provide a match for the antenna ANT1.

EXHIBIT 3-1 TIMING / DUTY CYCLE CALCULATION CFS8DL5870API / 573F-5870API Section 15.255(b) Section 15.255(b), when the radiated emission limits are expressed in terms of the average value of the emission, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. The exact method of calculating the average field strength shall be submitted with any application for certification. 5870API Duty Cycle Calculation Message protocol, timing and duty cycle calculation: The data output is phase-encoded Manchester that has inherent 50% duty cycle and consists of 64 bits per word sent at a nominal data rate of 3.7 kb/s (3.2kb/s min to 4.2kb/s max). Therefore the duty cycle is calculation is as follows: The word format consists of 64 bits, The duration of each bit is 312.5 uSec max. The duty cycle over a 100 mSec measuring period is calculated as follows: Duty cycle = Actual RF transmission ON time / 100 mSec Actual transmission ON time = 64 bits X 50% X 312.5 uSec = 10 mSec Therefore duty cycle = 10 / 100 mSec = .10 = 10%, and peak to average field strength is 20 db. Total on-air time for a supervision transmission is: 64 X 312.5 uSec + (5 X 150 mSec) = 0.77 seconds The group of six transmissions is repeated twice, with the second group delayed from the first by a max time of 2 seconds. The worst case on-air time is 1.54 + 2 = 3.54 seconds Summary: - Duty cycle = 10% On airtime = 3.54 seconds

EXHIBIT 3-2 TIMING DIAGRAM CFS8DL5870API / 573F-5870API Section 15.255(b) Section 15.255(b), when the radiated emission limits are expressed in terms of the average value of the emission, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. The exact method of calculating the average field strength shall be submitted with any application for certification. SEE THE NEXT PAGE

EXHIBIT 5-1 CFS8DL5870API Report of Measurements. Measurements were made at Honeywells Measurement Facility at 160 Eileen Way , Syosset , NY 11791 , FCC Registration number : 90421. Measurements were made in accordance with the procedures and reporting requirements of ANSI C63.4-2004. The Test Set-Up (C63.4 section 10.1.3) is shown in the attached drawing. The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation with the EUT positioned on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height was re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. See Exhibit 6 for list of test equipment (C63.4 section 10.1.4). Note, Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth set greater than RBW) - For occupied bandwidth measurements, RBW = 100kHz, (This is in accordance with the minimum RBW allowed by C63.4, which requires RBW greater than 5% of the FCC required occupied bandwidth spec of 0.25% of center frequency). - For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. - For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. OCCUPIED BANDWIDTH is shown on attached plot. RADIATED EMISSIONS are recorded on attached sheet.

HONEYWELL SECURITY & CUSTOM ELECTRONICS 165 EILEEN WA Y SYOSSET, NY 11791EXHIBIT 5-3 FCC ID # CFS8DL5870API Date : 3/14/2007 Tested by :Y. Mohammed Approved by :K.Addy Test Sample (model) : 5870API Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C Notes: (1) Fo = 345MHz. (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) 30 CABLE "A"BICONILOG729 345H66.301.314.5012735.010.0%1273.57292 690H38.001.718.90851.110.0%85.1729 1035H38.002.222.501364.610.0%136.5500 1380H30.002.525.40785.210.0%78.5500 1725H28.002.927.70851.110.0%85.1729 2070H28.003.229.901135.010.0%113.5729 2415H28.003.431.801445.410.0%144.5729 2760 H28.00 3.5 32.401566.810.0%156.7500 3105H28.003.732.001531.110.0%153.1729 3450H28.003.932.601678.810.0%167.9729 4000 CABLE "A"BICONILOG

5870API OCCUPIED BANDWIDTH (625 KHz)

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5870API / 573F-5870API Section 15.231 and ANSI C63.4 Section 15.231, per C63.4. This is a list of all test equipment used. Test Equipment list 1. Antenna: BICONOLOG S/N: 00045682 Cal. on: 04/24/06 Cal. due: 04/23/07 2. Spectrum Analyzer TEK 2784 S/N: B010165 Cal. on: 10/16/06 Cal. due: 10/15/07

EXHIBIT 5-2 PICTURES OF THE TEST SETUP CFS8DL5870API / 573F-5870API SECTION 2.1093 (c) SECTION 2.1093 (c) Photo of the test setup shall be provided. UUT: HORS. SENSE: HORS UUT: VERT SENSE: HORS UUT: OBLQ SENSE: HORS UUT: HORS. SENSE: VERT UUT: VERT SENSE: VERT UUT: OBLQ SENSE: VERT UUT: CLOSE-UP TEST TECH: TEST SITE & SHED:
