CFS8DL5870API1Wireless Indoor Asset Protecction Device

K14379V3 7/11 Rev. A 5 55 5870API 870API870API 870API Wireless Indoor Asset Protection Device Wireless Indoor Asset Protection DeviceWireless Indoor Asset Protection Device Wireless Indoor Asset Protection Device INSTALLATION AND SETUP GUIDE QUICK INSTALLATION Peel here Step 1. Select Location Step 2. Select Operating Mode (refer to table 1) Step 5. Test System Step 3. Program Device (refer to Programming Section) 1-3 Seconds 30 O Painting Jewelry Box LOOP 3 LOOP 3 LOOP 3 LOOP 2 LOOP 1 4. Press down firmly for 5 sec. 3. Rotate into position Step 4. Install Device Paintings Computers Gun Case/Safe Large Screen TV 2. Enter Zone Number, Zone Type, Input Type at Keypad Enroll Serial Number (press tamper switch) Enter Loop Number at Keypad (use Loop 2 unless Fast Trigger or Tilt is required) 30 O MOUNT HORIZONTALLY ONLY (LOOP 3 ONLY) NORMAL FAULT 30 O OR Jewelry Box Avoid sources of vibration (i.e. speakers, fans, motors) Choose a stable, clean, flat surface Mount in an inconspicuous area. 2. Peel tape backing before installing. Place onto asset. High Security (Fast Trigger) Mode (Loop 1) Standard Security Mode (Loop 2) Tilt Mode (Loop 3) 5-8 Seconds Large Screen TV (Asset) Mounting Surface PULL TO CONNECT BATTERY Pull tab TAB SENSOR Greater than 30 O 1. Clean mounting surface (refer to mounting notes) Valuables LOOP 1 is for High Security (Fast Trigger) applications and should ONLY be used if the asset will NOT be subject to external vibration. Loop 2 (Standard Security mode) should be used in most cases. 1. Pull tab to activate battery - 2 - GENERAL INFORMATION 5870API is a wireless, supervised asset protection device that is compatible with systems that support 5800 series devices. When affixed to a high-value asset, the device will trigger an alarm if an attempt is made to move or disturb the asset. UL ULUL UL For commercial applications, the 5870API must be used in conjunction with the 5881ENHC receiver and compatible control panel. ! 5870API is for use on objects that do not move frequently or vibrate. Mounting the sensor near sources of vibration may cause false alarm conditions to occur. OPERATING MODES 5870API provides three programming options (loops). • High Security (Fast Trigger) Mode (Loop 1) • Standard Security Mode (Loop 2) • Tilt Mode (Loop 3) ! Loop 1 is for high security applications and should ONLY be used if the asset will NOT be subject to external vibration. Loop 2 (Standard Security mode) should be used in most cases. Selecting the Operating Mode Table 1 provides a list of 5870API’s various operating modes, with the respective Loop numbers for each. Tamper Supervision 5870API’s tamper supervision feature (Loop 4) causes a trouble signal to be sent to the control if the sensor is removed from the asset being protected or if the unit’s cover is removed from the base. The tamper switch is also used to program the unit’s serial number and loop assignments in the control panel. OPERATION Installer Test Mode- Upon initial battery power up, the unit will transmit each time it is faulted or restored, which enables you to enroll and test the device. After the sensor transmits its first supervisory message (about 70- 80 minutes after power-up), it switches to normal mode. Normal Mode - In normal mode there is a 3-minute lockout between transmissions, to help conserve battery life. To return to the installer test mode, remove and reinstall the battery. Before enrolling the device, perform the following: 1. Remove the “PULL TO CONNECT BATTERY” tab This will allow the device to transmit. For additional transmissions, move or rotate the sensor. When the battery is connected the sensor powers up in the installer test mode. In this mode the sensor transmits fault and restore messages on all loops when it detects motion (or lack thereof). UL ULUL UL When configured for use with the UL approved control panels (refer to UL Approved Compatible Control Panel list), the panel must be programmed not to transmit off-premises for the 5870API zone only. PROGRAMMING Each transmitter has its own unique serial number, assigned during manufacture, which must be “enrolled” in the control panel before the device can be used with the system. Please refer to the control panel’s installation instructions for details on device enrollment. Please note that you must program a separate zone for each loop you are using on the transmitter. If the asset being protected will not be moved under normal circumstances (i.e., a painting), it can be programmed as a 24 hour zone type. If the asset will occasionally be moved when the system is disarmed, it can be programmed as a perimeter zone type. MOUNTING The 5870API is mounted directly to the asset being protected via 3M VHB double-sided tape. The device should be mounted in an inconspicuous place on the asset. Refer to Mounting Notes section for additional information. When installing the 5870API, select an area on the asset that is stable, clean and flat. Avoid areas that are subject to vibration (i.e.; speaker grills) When using Loop 3 the device must be mounted horizontally. 1. Determine the optimum mounting location taking care to avoid damp locations. To maximize the transmitter’s range, avoid mounting the device to metal objects, if possible. 2. Temporarily mount the device to the asset to be pro- tected using masking tape or any suitable method. 3. Before the transmitter is permanently mounted, conduct Go/No Go tests (refer to the Control Panel’s instructions) to verify adequate signal strength from the mounting location. 4. Always verify range by holding the sensor in the approximate mounting location and moving the asset. The panel (in test mode) should respond to the trans- missions. If not, move the asset sensor to a more suitable mounting location. 5. Remove the tape backing paper and firmly press the sensor in the desired mounting location. Apply firm pressure for 5 seconds. 6. Verify operation by moving the asset. Always check the alarm panel keypad …

Text truncated - open the document above for the full version.

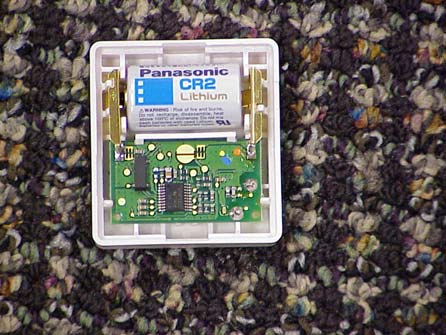

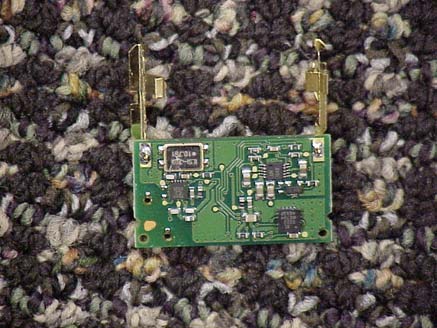

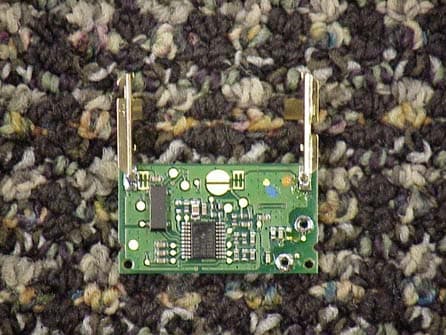

EXHIBIT 4 EXTERNAL AND INTERNAL PHOTOS CFS8DL5870API1 / 573F-5870API1 47 CFR §2.1033 Application For Certification. 47 CFR §2.1033 (b)(7 ) (b) Applications for equipment operating under Parts 11, 15 and 18 of the rules shall be accompanied by a technical report containing the following information: (b)(7) A sufficient number of photographs to clearly show the exterior appearance, the construction, the component placement on the chassis, and the chassis assembly. The exterior views shall show the overall appearance EXTERNAL – TOP EXTERNAL - BOTTOM INTERNAL - PCB IN PLASTIC INTERNAL - PCB TOP INTERNAL - PCB BOTTOM

PLEASE NOTE THAT THERE ARE INSTRUCTIONS IN THE USERS MANUAL (II) THAT INSTRUCT THE USER WHERE TO LOOK FOR THE FCC & IC ID’S (I.E.; UNDER THE BATTERY) DUE TO THE SMALL SIZE THE FCC / IC STATEMENTS ARE ALSO PLACED IN THE MANUAL.

EXHIBIT 4 EXTERNAL AND INTERNAL PHOTOS CFS8DL5870API1 / 573F-5870API1 47 CFR §2.1033 Application For Certification. 47 CFR §2.1033 (b)(7 ) (b) Applications for equipment operating under Parts 11, 15 and 18 of the rules shall be accompanied by a technical report containing the following information: (b)(7) A sufficient number of photographs to clearly show the exterior appearance, the construction, the component placement on the chassis, and the chassis assembly. The exterior views shall show the overall appearance EXTERNAL – TOP EXTERNAL - BOTTOM INTERNAL - PCB IN PLASTIC INTERNAL - PCB TOP INTERNAL - PCB BOTTOM

EXHIBIT 5-1 CFS8DL5870API1 / 573F-5870API1 Report of Measurements Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at a height of 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". RECEIVER RADIATED EMISSIONS are recorded in "EXHIBIT 5-5". LINE CONDUCTED EMISSIONS are recorded in "EXHIBIT 5-6". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV 2011A 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC ID: Date :2011Tested by:G. BARBATOApproved by: K. Eskildsen 5870API1 Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 8 Notes: (1)Fo:344.94 Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) Antenna Polarity (V/H) UUT ORIENTATION Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) 30 LAST CAL 15 JAN 10 CABLE C LAST CAL 09-SEP-10 BICONILOG S/N:00045682 729h 344.94VV58.272.314.805868.110.0%586.87292 689.88VV42.153.219.801809.310.0%180.9729 1034.82VH23.054.423.84366.910.0%36.7500 1379.76VH21.194.926.08406.010.0%40.6500 1724.70VV22.075.528.69650.110.0%65.0729 2069.64VH22.526.430.28912.010.0%91.2729 2414.58VV22.666.931.511131.110.0%113.1729 2759.52 VV 22.977.4 31.561248.810.0%124.9500 3104.46VV22.577.931.931318.310.0%131.8729 3449.40VV23.869.233.442113.510.0%211.3729 4000 LAST CAL 15 JAN 10 CABLE C LAST CAL 09-SEP-10 BICONILOG S/N:00045682 (2) Detector = Peak (3) Frequency range scanned to 4 GHz. CFS8DL5870API1 Test Sample (model): 31-May

EXHIBIT 5-4 CFS8DL5870API1 / 573F-5870API1 OCCUPIED BANDWIDTH BANDWIDTH OF THE 5870API1 IS: 190.38 KHz

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5870API1 / 573F-5870API1 Part 15.231, ANSI C63.4 , RSS 210 This is a list of all test equipment used. Test Equipment list for Honeywell OATS & Conducted Line: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/19/10 10/19/11 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 09/09/10 09/09/11 PLEASE SEE PAGE 2-7 F OR TEST EQUIPMENT TRACEABILITY If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 PICTURES OF THE TEST SET-UP CFS8DL5870API / 573F-5870API 47 CFR §2.948 Description Of Measurement Facilities. 47 CFR §2.948(b)(2) Physical description of the test site accompanied by photographs. Measurements for the Intentional Radiator, and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. SENSE HORZ, UUT HORZ SENSE HORZ, UUT VERT SENSE HORZ, UUT OBLIQUE SENSE VERT, UUT HORZ SENSE VERT, UUT VERT SENSE VERT, UUT OBLIQUE
