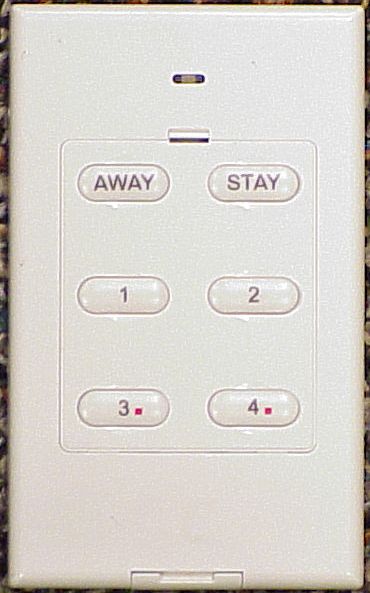

K14347 4/06 Rev. A - ADEMCO 5878 Wireless Wall Transmitter INSTALLATION AND SETUP GUIDE GENERAL INFORMATION The 5878 is a compact, six-button, eight-loop wall mountable wireless transmitter intended for use only with wireless alarm systems that support 5800 series receivers. Individual buttons on the transmitter may be programmed for any zone response, but are typically used for arming/disarming and for home automation functions. Optional function buttons are provided with the 5878. ! Do not use for system disarming in an area that requires security. This device supports both Standard and High-Security (encrypted) modes. The latter sends rolling-code encrypted messaging to the RF receiver. This device must be used with a receiver or control that supports high security mode i.e.: 5881EN, 5883, 6150RF, or 6160RF receiver or a LYNXR Series control panel (Revision 13 or higher if you intend to use it in high security mode). The 5878 is powered by one replaceable lithium battery de- signed to provide up to four years of life. For battery installation, see Replacing the Battery. 5878-001-V1 SERIAL #1 LOOP 3 SERIAL #2 LOOP 3 SERIAL #1 LOOP 4 LED SERIAL #1 LOOP 2 SERIAL #2 LOOP 2 SERIAL #1 LOOP 1 STAY AWAY 12 3 4 5878 WALL TRANSMITTER* * SERIAL #2 - LOOP 1 = AWAY + 4 BUTTON LOOP 4 = 3 + 4 BUTTONS Figure 1 - 5878 Button Designations PROGRAMMING The 5878 is assigned two unique serial numbers during manufacture and each button, or button combination on the unit also has a distinct "loop" number (refer to Figure 1) that must be programmed into the control panel during installation. Assign each button, or button combination, to one of eight individual zones and designate the Input Type as "BR" (Button Type RF). 1. When prompted, enter the serial number either by: Pressing and releasing the button (or buttons) that you are programming twice (wait about 5 seconds between button activations).or Manually through the keypad. Notes: (1) To activate the transmitter, the 5878 buttons must be pressed and held for at least one-half second. (2) Serial #2 is one (1) digit higher than serial #1, which is printed on the rear of the transmitter. Loop 4 Setup Both of the Loop 4 buttons must be enrolled in the control, even if they will not be used. If one or both of the loops is not being used, program it as Zone Type 23 (No Alarm Response). Otherwise assign it to the desired zone type. 2. Exit Programming Mode after programming is complete. For complete details on how to program the transmitter's serial number at the control panel, see the control unit's installation instructions. Assigning a 5878 to a User On most control panels, if the wall transmitter is assigned to arm and disarm the system, you must assign it to a user in order for it to operate. This is accomplished through User Code programming at the control panel. See the control panel’s Installation and Setup Guide for specific instructions on programming User Codes. If you are programming arming and disarming functions on both serial numbers, each serial number must be assigned to a separate user. SELECTING STANDARD OR HIGH-SECURITY MODE For use with LYNXR Series controls earlier than Revision 13, the Standard Mode must be selected. To select Standard Mode, simultaneously press and hold the STAY, 1 and 2 buttons for three seconds. To select High-Security Mode, simultaneously press and hold the AWAY, 1 and 2 buttons for three seconds. The LED flashes green when transmitting in Standard Mode and red when transmitting in High-Security Mode. ACTIVATING HIGH-SECURITY MODE To ensure proper functionality, the 5878 must be synced to the security system. 1. After selecting High-Security mode, put the system in Go/No Go Test mode. 2. To enroll the transmitter in the receiver, simultaneously press and hold the AWAY, STAY, 1, and 2 buttons until the panel beeps (see Figure 1). For LYNXR Series controls proceed to step 4. Note: The LYNXR Series panels will confirm the enrollment by sounding two beeps. 3. To sync the device in High Security Mode, press either the AWAY, STAY, 1, or 2 button ONCE, until the panel beeps indicating receipt. 4. To enroll the second serial number of the wireless key in the receiver, simultaneously press and hold the 1, 2, 3, and 4 buttons until the panel beeps. 5. To sync the device in High Security Mode, press the 3 or 4 button ONCE, and hold until the panel beeps indicating receipt. For LYNXR Series controls proceed to step 6. Note: If no beep is heard, exit Go/No Go mode, and repeat Steps 1 - 5. 6. Exit Go/No Go mode by entering user code + 1 (OFF). USING TWO RECEIVERS IN HIGH-SECURITY MODE If the control supports two receivers and you plan to use them in the high-security mode perform the following: 1. Enroll the transmitters into the receivers one at a time, by disconnecting Receiver #2, and enrolling as described in “Activating High Security Mode” (above).

EXHIBIT 4-1 CFS8DL5878-1 / 573F-58781 EXTERNAL PHOTOS: TOP (FRONT) PLASTIC: BOTTOM (BACK) PLASTIC:

EXHIBIT 8 CFS8DL5878-1 / 573F-58781 LABEL INFORMATION: ENGINEERS DRAWING OF THE LABEL: LABEL ON THE BACK PLASTIC: EXACT LOCATION OF THE LABEL:

EXHIBIT 4-2 CFS8DL5878-1 / 573F-58781 INTERNAL PHOTOS: PCB IN PLASTIC: TOP OF PCB: BOTTOM OF PCB:

EXHIBIT 5-1 CFS8DL5878-1 / 573F-58781 Report of Measurements Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at a height of 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". IF REQUIRED RECEIVER RADIATED EMISSIONS are recorded in "EXHIBIT 5-5". IF REQUIRED LINE CONDUCTED EMISSIONS are recorded in "EXHIBIT 5-6". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV 2011D 2 Corporate Center Drive Melville, NY 11747 EXHIBIT 5-3FCC ID:CFS8DL5878-1 Date :6-Sep 2011Tested by:Approved by K. Eskildsen 5878-1 Notes: (1)Fo:344.94 (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz): Sense Antenna Polarity (V/H): THE ORENTATION OF THE UUT Meter Reading (dB uV): Cable/Amp Factor (dB): Antenna Factor (dB/m): Conv. Reading (uV/M): Duty Cycle (%): Corr. Reading (uV/M): Limit @ 3M (uV/M): HV 344.94HH72.0722.314.92 29,147.4 10.0% 2914.77288 689.88HH34.5233.220.12780.110.0%78.0729 1034.82HH15.7924.422.89142.610.0%14.3500 1379.76HH16.2094.925.71219.310.0%21.9500 1724.70HH16.3925.528.58333.910.0%33.4729 2069.64HH16.9826.432.39614.610.0%61.5729 2414.58HH16.3426.930.49486.010.0%48.6729 2759.52 HH16.396 7.4 32.33640.210.0%64.0500 3104.46HH16.6067.932.63719.110.0%71.9729 3449.40HH15.9829.231.94718.010.0%71.8729 4000 LAST CAL 05 FEB 11 CABLE C LAST CAL 17-MAY-11 BICONILOG S/N:00029390 G. Barbato Test Sample (model): Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 8 Test method: ANSI C63.4 - 2004

EXHIBIT 5-4 CFS8DL5878-1 / 573F-58781 OBW = 420.84 KHz

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5878-1 / 573F-58781 Part 15.231, ANSI C63.4 , RSS 210 This is a list of all test equipment used. Test Equipment list for Honeywell OATS & Conducted Line: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/19/10 10/19 /11 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 09/09/10 09 /09/11 PLEASE SEE PAGE 2-7 FOR TEST EQUIPMENT TRACEABILITY If you need any additional informatio n from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 CFS8DL5878-1 / 573F-58781 PICTURES OF THE TEST SETUP SENSE HORZ, UUT VERT SENSE HORZ, UUT HORZ SENSE HORZ, UUT OBLQ SENSE VERT, UUT VERT SENSE VERT, UUT HORZ SENSE VERT, UUT OBLQ THE OATS SITE: THE PHYSICAL LOCATION IS: 2 Corporate Center Drive Melville, NY 11747
