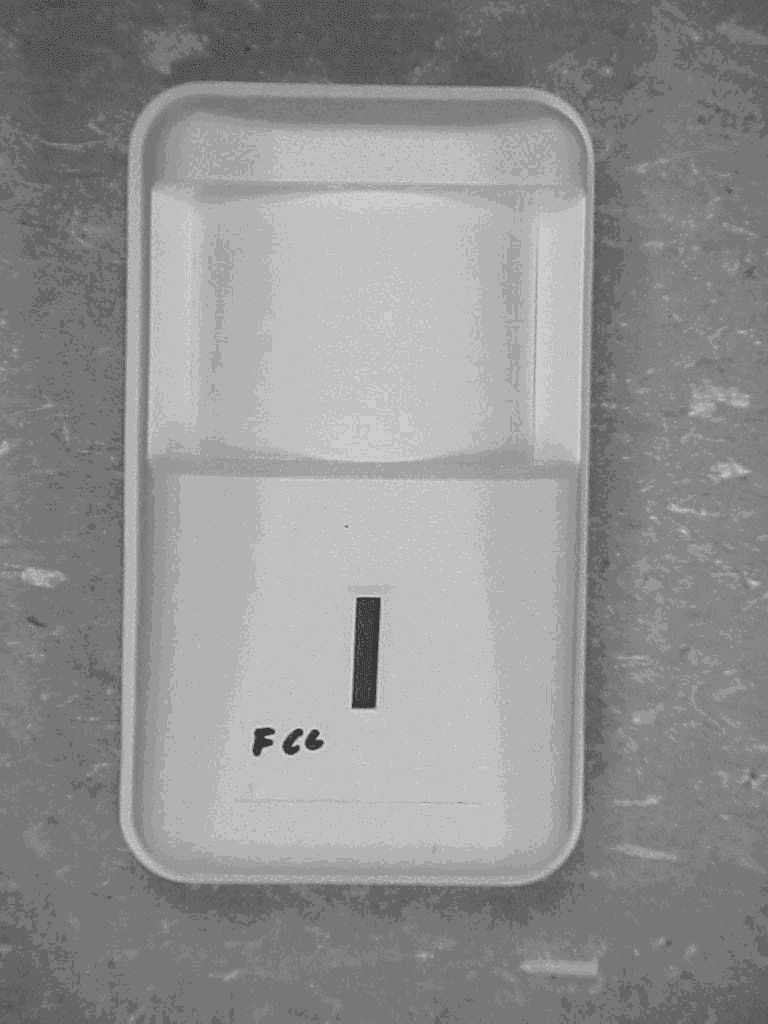

CFS8DL5890APPIR Security Transmitter

N5987-2V1 10/99 Rev. B $'(0&23, 3$66,9(,1)5$5('027,21'(7(&72575$160,77(5 INSTALLATION INSTRUCTIONS GENERAL INFORMATION The 5890AP Passive Infrared Motion Detector/Transmitter is a battery-operated wireless device intended for use as part of a 5800 series wireless alarm system. Designed for use in commercial and residential installations, the 5890PI is a wall-mounted unit with a standard lens that provides wide-angle protection up to a range of 35 ft (10.6m). For best coverage, mount the detector so that the likely direction of intruder motion is across the pattern. When installed per the guidelines, the Split- Zone Optics technology in the 5890AP provides reasonable false alarm protection against pets and other animals up to 40 lbs. This document provides installation instructions for the 5890AP, but the installer must be familiar with the installation instructions for the 5800 Wireless Alarm System with which the 5890AP is intended to be used. FEATURES • Split-Zone Optics provides pet immunity against animals up to 40 lbs. • Wireless operation for fast installation. • Dual-element pyroelectric sensor provides positive protection while minimizing false alarms. • Alternate-polarity pulse count option offers greater stability in adverse environments. • Provision to turn LED on while Walk Testing (LED is turned off after testing). • Tamper-protected cover; unit transmits message if cover is removed. • Wall or corner mounting options. SYSTEM DESCRIPTION Optical System Uses efficiently designed Fresnel lenses with Split-Zone Optics. Radio Transmitter The built-in transmitter serves only as the communication link to the alarm system's Receiver/Control, and can send alarm, tamper, supervisory, and battery status messages to the system's receiver/control. The transmitter is not used for detection purposes. Each detector has a unique ID code permanently assigned at the factory. You must enroll this ID into the control system at the time of installation. This allows each detector used in the system to be uniquely identified. You must program the control to enroll the 5890AP as an "RF" type unit (i.e., supervised RF). To conserve battery life during normal operation, no more than one transmission sequence will occur within a 3-minute period. There is no such time restriction in Test mode. Alternate-Polarity Pulse Count Two jumper-selectable detection response modes are provided: Instant response (Pulse Count OFF) and Alternate-Polarity Pulse Count (Pulse Count ON). With Pulse Count OFF, any detected change in infrared energy triggers an immediate alarm signal. This mode is recommended when the detector is used to monitor a narrow hallway where coverage is provided by only a single zone. Use the Pulse Count ON mode when the detector is installed in areas where periodic changes in infrared energy levels are normal (for example, where forced-air heating ducts are present). In this mode, at least two changes in infrared energy must be detected within a short period before an alarm is triggered. Important Note: For pet immune applications, Pulse Count ON is recommended. SPECIFICATIONS Pet Immune Lens : 35 ft x 45 ft (10.6m x 13.7m). 30 zones (8 long, 7 over 7 inter- mediate, 4 over 4 short-range). Pulse Count: Installer-selectable On/Off link. Detectable Walk Rate: 0.5–10 ft/Sec (0.15–1.5m/Sec). Mtg. Height: 7.0 ft recommended (2.1m), but may be mounted at other heights (see Table 1). Walk Test Indicator: Red LED with Test/Normal (disable) link. Batteries: Two 3-volt Lithium batteries. Use only ADEMCO No. 466, Duracell DL123A, Panasonic CR123A, Sanyo CR123A, or Varta CR123A. 0perating Temperature: 32°F – 122°F (0°C - 50°C). Operating Humidity: Up to 95% RH (max.), non- condensing. Dimensions: 2-11/16"W x 5"H x 1-7/8"D 68mm x 127mm x 48mm. ALTERNATE COUNT POLARITY EACH ZONE CONSISTS OF 2 FIELDS 0 25' (7.6m) 25' (7.6m) 10' (3m) 20' (6m) 30' (9m) 35' (10.6m) 0 7.5' (2.3m) 0 10' (3m) 20' (6m) 30' (9m) 35' (10.6m) Figure 1. Protection Pattern BATTERY INSTALLATION 1. Remove front cover by inserting a large screwdriver blade (or small coin) in groove between cover and base at the location shown in Figure 2; rotate blade to override snap fit, then lift cover off. 2. Observing correct polarity, install the two Lithium batteries (supplied) into the battery holders, as shown in Figure 5. Make sure the batteries are firmly seated. 3. Replace the cover (snap fit). Battery Caution Risk of fire, explosion, and burns. Do not recharge, disassemble, heat above 100°C, or incinerate. Dispose of used batteries promptly. Keep away from children. Programming Note: If you have not programmed the detector’s ID into the system (i.e., this is an initial detector installation), refer to the PROGRAMMING section below and perform the ID enrolling procedure before mounting or testing the detector. PROGRAMMING You must enroll the detector’s ID during installation of the system. You should program the 5890PI as an “RF” type unit (i.e., supervised RF), and the "Loop" number as "1." To program the detector, place the LED jumper in the TEST position (see Figure 5), the Pulse Count jumper in the OFF position, batteries installed and cover on. Temporarily cover the lens (a cloth will do) to prevent any activation by the detector. When prompted for the device’s serial number, you may either manually enter it or transmit from the unit (remove the cloth cover and motion your hand over the lens to activate the detector, press the tamper switch, etc.). Refer to the control panel installation instructions for programming details. Return LED jumper to the NORMAL position after it is enrolled in the control. INSTALLATION Installation Hints • Do not install where the detector is exposed to direct sunlight or directly above strong sources of heat. • Make sure the detection area does not have obstructions (curtains, screens, large pieces of furniture, plants, etc.) that may block the pattern of coverage. • Avoid locating a unit in areas tha…

Text truncated - open the document above for the full version.

N5987-2V1 10/99 Rev. B $'(0&23, 3$66,9(,1)5$5('027,21'(7(&72575$160,77(5 INSTALLATION INSTRUCTIONS GENERAL INFORMATION The 5890AP Passive Infrared Motion Detector/Transmitter is a battery-operated wireless device intended for use as part of a 5800 series wireless alarm system. Designed for use in commercial and residential installations, the 5890PI is a wall-mounted unit with a standard lens that provides wide-angle protection up to a range of 35 ft (10.6m). For best coverage, mount the detector so that the likely direction of intruder motion is across the pattern. When installed per the guidelines, the Split- Zone Optics technology in the 5890AP provides reasonable false alarm protection against pets and other animals up to 40 lbs. This document provides installation instructions for the 5890AP, but the installer must be familiar with the installation instructions for the 5800 Wireless Alarm System with which the 5890AP is intended to be used. FEATURES • Split-Zone Optics provides pet immunity against animals up to 40 lbs. • Wireless operation for fast installation. • Dual-element pyroelectric sensor provides positive protection while minimizing false alarms. • Alternate-polarity pulse count option offers greater stability in adverse environments. • Provision to turn LED on while Walk Testing (LED is turned off after testing). • Tamper-protected cover; unit transmits message if cover is removed. • Wall or corner mounting options. SYSTEM DESCRIPTION Optical System Uses efficiently designed Fresnel lenses with Split-Zone Optics. Radio Transmitter The built-in transmitter serves only as the communication link to the alarm system's Receiver/Control, and can send alarm, tamper, supervisory, and battery status messages to the system's receiver/control. The transmitter is not used for detection purposes. Each detector has a unique ID code permanently assigned at the factory. You must enroll this ID into the control system at the time of installation. This allows each detector used in the system to be uniquely identified. You must program the control to enroll the 5890AP as an "RF" type unit (i.e., supervised RF). To conserve battery life during normal operation, no more than one transmission sequence will occur within a 3-minute period. There is no such time restriction in Test mode. Alternate-Polarity Pulse Count Two jumper-selectable detection response modes are provided: Instant response (Pulse Count OFF) and Alternate-Polarity Pulse Count (Pulse Count ON). With Pulse Count OFF, any detected change in infrared energy triggers an immediate alarm signal. This mode is recommended when the detector is used to monitor a narrow hallway where coverage is provided by only a single zone. Use the Pulse Count ON mode when the detector is installed in areas where periodic changes in infrared energy levels are normal (for example, where forced-air heating ducts are present). In this mode, at least two changes in infrared energy must be detected within a short period before an alarm is triggered. Important Note: For pet immune applications, Pulse Count ON is recommended. SPECIFICATIONS Pet Immune Lens : 35 ft x 45 ft (10.6m x 13.7m). 30 zones (8 long, 7 over 7 inter- mediate, 4 over 4 short-range). Pulse Count: Installer-selectable On/Off link. Detectable Walk Rate: 0.5–10 ft/Sec (0.15–1.5m/Sec). Mtg. Height: 7.0 ft recommended (2.1m), but may be mounted at other heights (see Table 1). Walk Test Indicator: Red LED with Test/Normal (disable) link. Batteries: Two 3-volt Lithium batteries. Use only ADEMCO No. 466, Duracell DL123A, Panasonic CR123A, Sanyo CR123A, or Varta CR123A. 0perating Temperature: 32°F – 122°F (0°C - 50°C). Operating Humidity: Up to 95% RH (max.), non- condensing. Dimensions: 2-11/16"W x 5"H x 1-7/8"D 68mm x 127mm x 48mm. ALTERNATE COUNT POLARITY EACH ZONE CONSISTS OF 2 FIELDS 0 25' (7.6m) 25' (7.6m) 10' (3m) 20' (6m) 30' (9m) 35' (10.6m) 0 7.5' (2.3m) 0 10' (3m) 20' (6m) 30' (9m) 35' (10.6m) Figure 1. Protection Pattern BATTERY INSTALLATION 1. Remove front cover by inserting a large screwdriver blade (or small coin) in groove between cover and base at the location shown in Figure 2; rotate blade to override snap fit, then lift cover off. 2. Observing correct polarity, install the two Lithium batteries (supplied) into the battery holders, as shown in Figure 5. Make sure the batteries are firmly seated. 3. Replace the cover (snap fit). Battery Caution Risk of fire, explosion, and burns. Do not recharge, disassemble, heat above 100°C, or incinerate. Dispose of used batteries promptly. Keep away from children. Programming Note: If you have not programmed the detector’s ID into the system (i.e., this is an initial detector installation), refer to the PROGRAMMING section below and perform the ID enrolling procedure before mounting or testing the detector. PROGRAMMING You must enroll the detector’s ID during installation of the system. You should program the 5890PI as an “RF” type unit (i.e., supervised RF), and the "Loop" number as "1." To program the detector, place the LED jumper in the TEST position (see Figure 5), the Pulse Count jumper in the OFF position, batteries installed and cover on. Temporarily cover the lens (a cloth will do) to prevent any activation by the detector. When prompted for the device’s serial number, you may either manually enter it or transmit from the unit (remove the cloth cover and motion your hand over the lens to activate the detector, press the tamper switch, etc.). Refer to the control panel installation instructions for programming details. Return LED jumper to the NORMAL position after it is enrolled in the control. INSTALLATION Installation Hints • Do not install where the detector is exposed to direct sunlight or directly above strong sources of heat. • Make sure the detection area does not have obstructions (curtains, screens, large pieces of furniture, plants, etc.) that may block the pattern of coverage. • Avoid locating a unit in areas tha…

Text truncated - open the document above for the full version.

Federal Communications Commission Honeywell International Inc. Equipment Approval Services Radio Engineering PO BOX 358315 160 Eileen Way Pittsburgh, PA 15251 5315 Syosset, NY 11791 December, 02, 2005 Subject: Application for Certification of Honeywell’s Security Device type 5890AP FCC ID: CFS8DL5890AP Dear Sir or Madam: Please find up-loaded (e-filed) a copy of this letter, a 731 application form, and 159 ( with credit card payment) form for submittal of this product. The following exhibits were also uploaded to your site: • functional description (EXHIBIT 1) • circuit description (EXHIBIT 2-1) • block diagram (EXHIBIT 2-2) • schematic (EXHIBIT 2-3) • duty cycle / timing calculation (EXHIBIT 3-1) • timing diagram (EXHIBIT 3-2) • external and internal photos (EXHIBIT 4-1 thru 4-5) • product test report (EXHIBIT 5-1 thru 5-4 & EXHIBIT 6) • users manual (EXHIBIT 7) • label (EXHIBIT 8) This is for the certification of Honeywell’s 5890AP transmitter under FCC rules and regulations Part 15. If you have any questions or require additional information, please contact me at 516-921-6704 Ext. 6920 Regards, Greg Barbato for Ken Addy Director Radio Engineering

. Ms Linda Elliott, Please find uploaded to your website: " EXHIBIT 8.PDF " regarding FCC Label as per Section 2.925(a)(1). This is in reply to Your Correspondence Reference Number: 30123 Best Regards, Greg Barbato for Ken Addy .

EXHIBIT 2-1 CFS8DL5890AP The 5890AP PIR transmitter is a 315 MHz version of our 5890 & 5890PI it consists of a message encoding chip (U1) , a SAW - stabilized Colpits oscillator (Q2) , and PA stage (Q3). The message encoding chip is responsible for: 1. generating the zone alarm message 2. generating the tamper and supervision messages. 3. performing all watchdog functions. When sending a message, the message encoder chip turns on the SAW oscillator (Q2) using Q1 to apply VCC , R7 and R8 bias Q2 on, SAW device Y1 sets the frequency, capacitors C10 and C11 set the feedback , R9 sets the current through the oscillator, and C13 couples the RF into the PA. The encoder chip then uses transistors Q4 - 5 to key the PA (Q3). This is on / off AM modulation (FCC Type 100KK1 modulation )C19 and L1 tune the PA, C15, RL27, suppress harmonics, and C17 / C18 tune the antenna to resonance.

EXHIBIT 3 CFS8DL5890AP 5890AP - Duty Cycle Calculation Message protocol, timing and duty cycle calculation. The data output is phase-encoded Manchester that has inherent 50% duty cycle and consists of 64 bits per word A supervision transmission is six identical words separated by (start to start) by nominal 125mSec (100 mSec min, 150 mSec max). Each message has a nominal data rate of 3.7 kb/s (3.2kb/s min to 4.2kb/s max). Therefore the duty cycle is calculation is as follows: The word format consists of 64 bits, The duration of each bit is 312.5 uSec max. The duty cycle over a 100 mSec measuring period is calculated as follows: Duty cycle = Actual RF transmission ON time / 100 mSec Actual transmission ON time = 64 bits X 50% X 312.5 uSec = 10 mSec Therefore duty cycle = 10 / 100 mSec = .10 = 10%, and peak to average field strength is 20 db. Total on-air time for a supervision transmission is: 64 X 312.5 uSec + (5 X 150 mSec) = 0.77 seconds In the case of an alarm transmission, the group of six transmissions is repeated twice, with the second group delayed from the first by a max time of 2 seconds. The worst case on-air time is 2 X (supervision time) + 2 = 3.54 seconds The worst case Duty cycle is : 10%

EXHIBIT 5-1 CFS8DL5890AP Report of Measurements. Measurements were made at Honeywells Measurement Facility at 160 Eileen Way , Syosset , NY 11791 , FCC Registration number : 90421. Measurements were made in accordance with the procedures and reporting requirements of ANSI C63.4-1992. The Test Set-Up (C63.4 section 10.1.3) is shown in the attached drawing. The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation with the EUT positioned on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height was re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. See Exhibit 6 for list of test equipment (C63.4 section 10.1.4). Note, Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth set greater than RBW) - For occupied bandwidth measurements, RBW = 100kHz, (This is in accordance with the minimum RBW allowed by C63.4, which requires RBW greater than 5% of the FCC required occupied bandwidth spec of 0.25% of center frequency). - For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. - For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. OCCUPIED BANDWIDTH is shown on attached plot. RADIATED EMISSIONS are recorded on attached sheet.

EXHIBIT 5-3 CFS8DL5890AP Section 15.231 (Periodic operation above 70 MHz.) In addition to the provisions of Section 15.205, the field strength of emissions from intentional radiators operated under this Section shall not exceed the following: Frequency Fundamental Spurious (MHz) (microvolts/meter) (microvolts/meter) 260 - 470 3,750 to 12,500 ** 375 to 1,250 ** NOTE: ** linear interpolations NOTES: (1) The above field strength limits are specified at a distance of 3 meters. The tighter limits apply at the band edges. (2) Intentional radiators operating under the provisions of this Section shall demonstrate compliance with the limits on the field strength of emissions, as shown in the above table, based on the average value of the measured emissions. As an alternative, compliance with the limits in the above table may be based on the use of measurement instrumentation with a CISPR quasi-peak detector. The specific method of measurement employed shall be specified in the application for equipment authorization. If average emission measurements are employed, the provisions in Section 15.35 for averaging pulsed emissions and for limiting peak emissions apply. Further, compliance with the provisions of Section 15.205 shall be demonstrated using the measurement instrumentation specified in that section. (3) The limits on the field strength of the spurious emissions in the above table are based on the fundamental frequency of the intentional radiator. Spurious emissions shall be attenuated to the average (or, alternatively, CISPR quasi-peak) limits shown in this table or to the general limits shown in Section 15.209, whichever limit permits a higher field strength. (4) Fo = 315MHz. (5) Detector = Peak (6) Frequency range scanned to 4 GHz. (Emissions not reported were more than 20dB below the specified limit). [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (7) Conv. Reading = 10 (8) Corr. Reading = Conv. Reading X Duty Cycle (9) Date : 5/10/2005 Tested by : Y. Mohammed Approved by : Ken Addy Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/M) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) 30 CABLE "A"BICONOLOG604.0 315h77.391.2013.6240785.010.0%4078.56042.0 630h50.351.6019.663806.310.0%380.6604.2 945h45.592.2021.602947.810.0%294.8604.2 1260h43.492.9024.403463.410.0%346.3500.0 1575h39.393.1026.402782.910.0%278.3604.2 1890h42.893.8028.405682.010.0%568.2604.2 2205h32.494.0029.151914.310.0%191.4500.0 2520 h 22.004.10 29.70616.610.0%61.7604.2 2835h28.954.1032.001788.510.0%178.9500.0 3150h15.005.7031.75419.310.0%41.9604.2 4000h CABLE "A"BICONOLOG

EXHIBIT 5-4 CFS8DL5890AP 5890AP Occupied Bandwidth (464.9 KHz)

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5890AP Section 15.231 and ANSI C63.4 Section 15.231, per C63.4 section 10.1.4. This is a list of all test equipment used. Test Equipment list 1. Antenna: BICONOLOG S/N: 00029290 Cal. on: 09/14/04 Cal. due: 09/14/05 2. Spectrum Analyzer H. P. 8563E S/N:3246A00232 Cal. on: 08/23/04 Cal. due: 08/23/05

EXHIBIT 5-3 CFS8DL5890AP Section 15.231 (Periodic operation above 70 MHz.) In addition to the provisions of Section 15.205, the field strength of emissions from intentional radiators operated under this Section shall not exceed the following: Frequency Fundamental Spurious (MHz) (microvolts/meter) (microvolts/meter) 260 - 470 3,750 to 12,500 ** 375 to 1,250 ** NOTE: ** linear interpolations NOTES: (1) The above field strength limits are specified at a distance of 3 meters. The tighter limits apply at the band edges. (2) Intentional radiators operating under the provisions of this Section shall demonstrate compliance with the limits on the field strength of emissions, as shown in the above table, based on the average value of the measured emissions. As an alternative, compliance with the limits in the above table may be based on the use of measurement instrumentation with a CISPR quasi-peak detector. The specific method of measurement employed shall be specified in the application for equipment authorization. If average emission measurements are employed, the provisions in Section 15.35 for averaging pulsed emissions and for limiting peak emissions apply. Further, compliance with the provisions of Section 15.205 shall be demonstrated using the measurement instrumentation specified in that section. (3) The limits on the field strength of the spurious emissions in the above table are based on the fundamental frequency of the intentional radiator. Spurious emissions shall be attenuated to the average (or, alternatively, CISPR quasi-peak) limits shown in this table or to the general limits shown in Section 15.209, whichever limit permits a higher field strength. (4) Fo = 315MHz. (5) Detector = Peak (6) Frequency range scanned to 4 GHz. (Emissions not reported were more than 20dB below the specified limit). [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (7) Conv. Reading = 10 (8) Corr. Reading = Conv. Reading X Duty Cycle (9) Date : 5/10/2005 Tested by : Y. Mohammed Approved by : Ken Addy Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/M) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) 30 CABLE "A"BICONOLOG604.0 315h77.391.2013.6240785.010.0%4078.56042.0 630h50.351.6019.663806.310.0%380.6604.2 945h45.592.2021.602947.810.0%294.8604.2 1260h43.492.9024.403463.410.0%346.3500.0 1575h39.393.1026.402782.910.0%278.3604.2 1890h42.893.8028.405682.010.0%568.2604.2 2205h32.494.0029.151914.310.0%191.4500.0 2520 h 22.004.10 29.70616.610.0%61.7604.2 2835h28.954.1032.001788.510.0%178.9500.0 3150h15.005.7031.75419.310.0%41.9604.2 4000h CABLE "A"BICONOLOG

EXHIBIT 5-4 CFS8DL5890AP 5890AP Occupied Bandwidth (464.9 KHz)

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL5890AP Section 15.231 and ANSI C63.4 Section 15.231, per C63.4 section 10.1.4. This is a list of all test equipment used. Test Equipment list 1. Antenna: BICONOLOG S/N: 00029290 Cal. on: 09/14/04 Cal. due: 09/14/05 2. Spectrum Analyzer H. P. 8563E S/N:3246A00232 Cal. on: 08/23/04 Cal. due: 08/23/05

EXHIBIT 5-2 PICTURE OF THE TEST SETUP CFS8DL5890AP SECTION 2.1093 (c) SECTION 2.1093 (c) Photo of the test setup shall be provided.

EXHIBIT 5-2 PICTURE OF THE TEST SETUP CFS8DL5890AP SECTION 2.1093 (c) SECTION 2.1093 (c) Photo of the test setup shall be provided.
