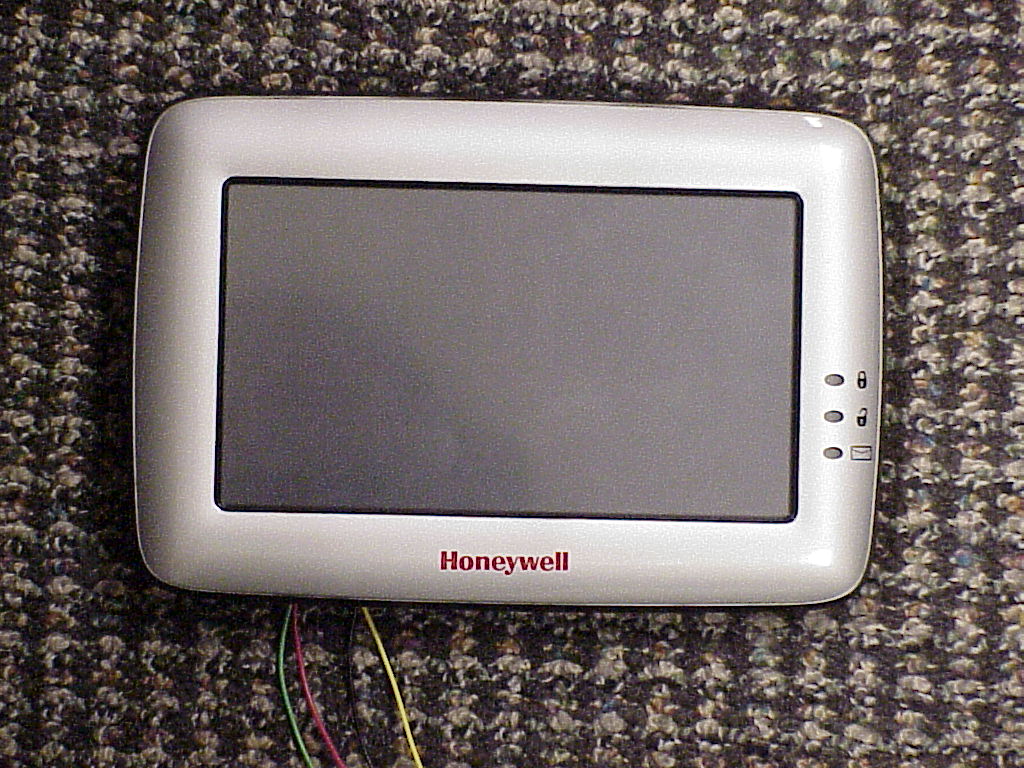

EXHIBIT 4-1 CFS8DL6280Z / 573F-6280Z EXTERNAL PICTURES TOP PLASTIC: BOTTOM PLASTIC:

NOT TO SCALE EXHIBIT 8 (CONT) CFS8DL6280Z / 573F-6280Z EXACT LABEL LOCATION ( ON BOTTOM PLASTIC )

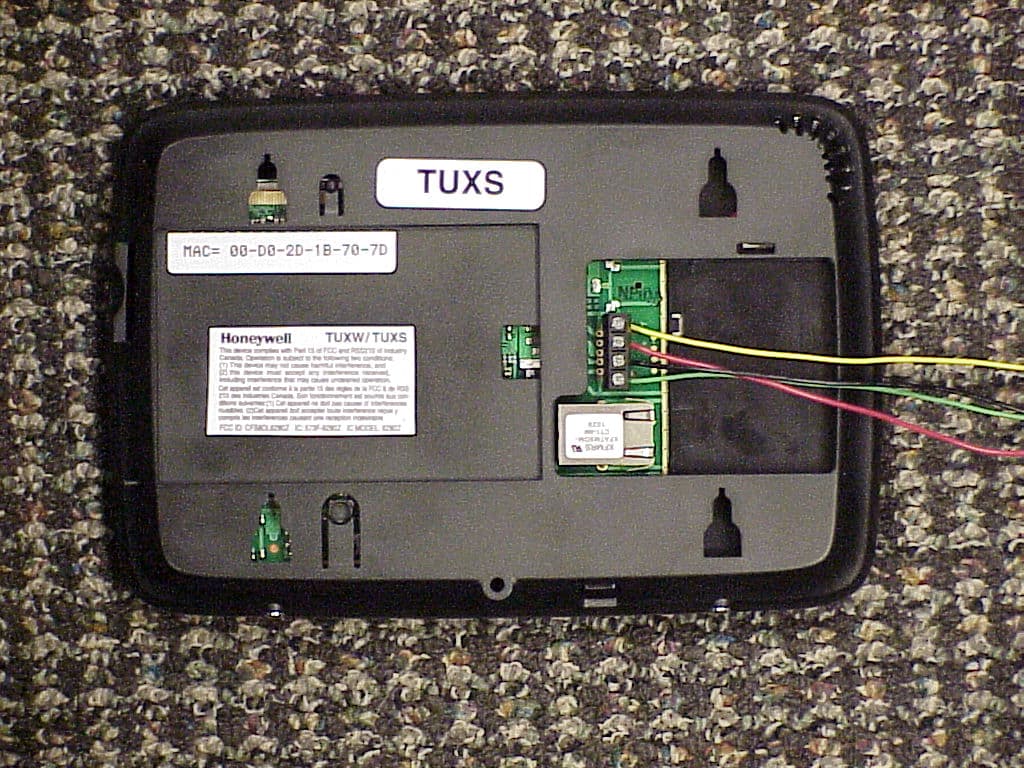

EXHIBIT 4-2 CFS8DL6280Z / 573F-6280Z INTERNAL PHOTOS OPENING UP THE UNIT (MAIN BOARD): EXHIBIT 4-2 (CONT) CFS8DL6280Z / 573F-6280Z INTERNAL PHOTOS Z-WAVE DAUGHTER BOARD: TOP OF PCB: BOTTOM OF PCB:

EXHIBIT 5-1 CFS8DL6280Z / 573F-6280Z Report of Measurements Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurem ents were made in accordance with the procedure and reporting requirements of ANSI C63.4-2004. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at a height of 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". IF REQUIRED RECEIVER RADIATED EMISSIONS are recorded in "EXHIBIT 5-5". IF REQUIRED LINE CONDUCTED EMISSIONS are recorded in "EXHIBIT 5-6". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV M SEPT 2011 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC ID: CFS8DL6280Z Date : 09/01/2011 Tested by : G. BARBATO Approved by : K. Eskildsen Test Sample (model) : Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15.249, and RSS 210 , Issue 8 Notes: (1) Fo = 908.42 MHz. (2) Detector = Peak (3) Frequency range scanned to 10 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) USE FILTER: Antenna Polarity (V/H) UUT Orientation (V/H/O) Meter Reading (dB uV) Cable Loss & Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Corr. Reading ( mV/M ) Limit @ 3M VERIFY BEFORE USE BICONOLOG Model: 3149 s/n: 00045682 CAL 21 Aug 11 908.42NONEVV65.673.3022.63-------38.050 mV/M 1,816.84AVV15.67-27.6026.195.2-------500 uV/M 2,725.26A VO27.50-27.1528.5727.9-------500 uV/M 3,633.68B VH31.17-27.1030.8255.5-------500 uV/M 4,542.10C VV17.17-24.6531.8016.4-------500 uV/M 5,450.52C VV15.67-23.9233.9919.4-------500 uV/M 6,358.94C VV14.57-23.1734.8020.4-------500 uV/M 7,267.36C VV 16.15 -22.3336.1231.4-------500 uV/M 8,175.78D VV11.23-20.3636.7824.1-------500 uV/M 9,084.20D VV12.21-20.1237.6330.6-------500 uV/M VERIFY BEFORE USE RGA 60 HORN S/N: 3127 LAST CAL 10 APR 11 with 0.9 inch antenna extension power set to: 0x29 6280Z

EXHIBIT 5-4 CFS8DL6280Z / 573F-6280Z OBW = 160 KHz

EXHIBIT 5-4B CFS8DL6280Z / 573F-6280Z BAND EDGE EMISSIONS DELTA BETWEEN MARKER 1 (PEAK) & MARKER 2 ( 902 MHZ ) IS 70.4 db

EXHIBIT 5-5 CFS8DL6280Z / 573F-6280Z PLOT OF PEAK & QUASI-PEAK EMISSIONS: Honeywell EMC Radiated Emissions - 3 m chamber Class B vertical and horizontal 10.00M100.00M1.00G Frequency MHz 0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 Amplitude dBμV Control #: 628012:29:08 PM, Tuesday, March 15, 2011 C:\Tile4\Greg_B\6280.TIL Operator: greg Control # - 6280 Product type - 6280 Model # - 6280 Sample # - Aux equipment - Vertical Horizontal Vertical quasi-peak Horiz quasi-peak FCC_B TABLE OF PEAK EMISSIONS: Radiated Emissions 30 - 1000 MHz Honeywell Operator: greg , Control #: 6280 C:\Tile4\Greg_B\6280.TIL 12:03:49 PM, Tuesday, March 15, 2011 FCC B Horz peak Quasi peak Margin FCC B Vert peak Quasi peak Margin Frequency Limit (dBμV/m) (dBμV/m) (dB) Frequency Limit (dBμV/m) (dBμV/m) (dB) 30.0 MHz 40 NAN NAN NAN 30.0 MHz 40 NAN NAN NAN 88.0 MHz 40 NAN NAN NAN 48.218 MHz 40 30.751 25.991 -14.009 88.0 MHz 43.52 NAN NAN NAN 88.0 MHz 40 NAN NAN NAN 139 MHz 43.52 43.743 32.163 -11.357 88.0 MHz 43.52 NAN NAN NAN 153 MHz 43.52 37.939 28.329 -15.191 126.67 MHz 43.52 33.557 28.437 -15.083 155 MHz 43.52 42.979 36.509 -7.011 139.28 MHz 43.52 43.317 31.277 -12.243 167 MHz 43.52 24.545 28.795 -14.725 157.82 MHz 43.52 28.421 22.221 -21.299 212 MHz 43.52 29.546 28.886 -14.634 170.23 MHz 43.52 37.451 25.171 -18.349 212 MHz 43.52 24.384 28.324 -15.196 180.91 MHz 43.52 32.968 24.138 -19.382 216 MHz 43.52 NAN NAN NAN 181.13 MHz 43.52 27.92 23.4 -20.12 216 MHz 46.02 NAN NAN NAN 210.93 MHz 43.52 39.11 31.07 -12.45 230 MHz 46.02 39.858 28.638 -17.382 216.0 MHz 43.52 NAN NAN NAN 238 MHz 46.02 38.257 36.877 -9.143 216.0 MHz 46.02 NAN NAN NAN 257 MHz 46.02 28.352 26.162 -19.858 257.21 MHz 46.02 34.494 27.214 -18.806 260 MHz 46.02 27.139 28.729 -17.291 281.79 MHz 46.02 28.278 21.018 -25.002 960.0 MHz 46.02 NAN NAN NAN 960.0 MHz 46.02 NAN NAN NAN 960.0 MHz 53.98 NAN NAN NAN 960.0 MHz 53.98 NAN NAN NAN 5.0 GHz 53.98 NAN NAN NAN 5.0 GHz 53.98 NAN NAN NAN

EXHIBIT 5-6 CFS8DL6280Z / 573F-6280Z LINE CONDUCTED EMISSIONS Honeywell EN 55022, Class B Line 1 Peak Readings 100.0K1.0M10.0M100.0M Frequency MHz 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 Amplitude dBμV Project #: 6280Z12:52:16 PM, Wednesday, November 02, 2011 C:\Tile4\Honeywell Emissions Profiles\Master_Cond_Emissions_B ETS.TIL Operator: PAT C 6280Z 6280Z 6280Z CISPR Class B QP Limit CISPR Class B Avg Limit Peak Scan CISPRA_QP CISPRA_AV Honeywell EN 55022, Class B Neutral Peak Readings 100.0K1.0M10.0M100.0M Frequency 0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 Amplitude Project #: 6280Z01:01:03 PM, Wednesday, November 02, 2011 C:\Tile4\Honeywell Emissions Profiles\Master_Cond_Emissions_B ETS.TIL Operator: PAT C 6280Z 6280Z 6280Z CISPRB_QP CISPRB_AV C_Neutral CISPRA_QP CISPRA_AV NOTE: DATA SHOWN IS PEAK, BOTH PEAK AND AVERAGE ARE BETTER THAN 10 DB MARGIN SO TILE SOFTWARE RETURNS 'NULL' DATA.

EXHIBIT 6 TEST EQUIPMENT USED CFS8DL6280Z / 573F-6280Z Part 15.231, ANSI C63.4 , RSS 210 This is a list of all test equipment used. Test Equipment list for Ho neywell OATS & Conducted Line: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer HP 8563E 10/18/10 10/18/11 Spectrum Analyzer Rohde & Schwarz FSEA20 10/19/10 10/19/11 Antenna (‘Biconilog’ ) ETS (EMCO)Lindgren 3149 08/22/11 0 8/22/12 Antenna (HORN) ElectroMetrics RGA60 04/20/11 04/20/12 Surge Suppressor Agilent (HP) HP11947A 05/12/11 05/12/12 LISN Com-Power LI-115 10/21/10 10/21/11 LNA 1 to 26 GHz MITEQ AFS42-00102650 ------VERIFY BEFORE USE------- 1.5 to 12 GHz HPF'S MICROLAB HIGH PASS FILTERS ------VERIFY BEFORE USE------- PLEASE SEE PAGE 2-7 FOR TEST EQUIPMENT TRACEABILITY If you need any additional informatio n from Honeywell please contact: Greg Barbato RF Engineer (Acting fo r Ken Eskildsen) Phone (Direct): (516) 577-5 863 Email: [email protected] Cert l.D.: 86798 An ESCO Technologies Company 1301 Arrow Point Drive Cedar Park, Texas 78613 (512) 531-6498 Operating Range: 80 MHz - 6 GHz Instrument Type: Biconilog (Type 5) Date Code: Afternate lD: 11242 Customer: HONEYWELL (NY) 26 - 1000 MHz, +/-0.9 dB; 1000 - 2000 MHz, +L0.8 dB; 2000 - 6000 MHz, +l-1 .2 dB 26 - 1000 MHz, +/-0.9 dB; 1000 - 2000 MHz, +10.8 dB; 2000 - 6000 MHz, +f l .3 dB 26 - 1000 MHz, +/-'1 .0 dB; 1000 - 2000 MHz, +l-1 .4 dgi 2000 - 6000 MHz, +12.3 dB Manufacturer: Model Number: ETS-Lindgren 31 49. s 000023192 22-Aug-11 3 meter, Horizontal and Vertical N'Jl,,r. K S\ETS.LINDGREIU- ;.:::;lii,-:,..,; *ffil"+ IACCREDITEDI Calibr.tlon taboreio.y Codltlc.to 1207,01 Certificate of Cal i bration Conformance Page I of 5 The instrument identifed below has been individually calibrated in compliance with the following standard(s): SAE, ARP-958 - 2003, Electromagnetic lnterference Measurement Antennas; Standard Calibration Method, Society of Automotive Engineers, Aerospace Recommended Practice. Fixed height, three antenna rotation, 1 meter separation. 3 meter separation performed per Annex C. Vertical calibration performed per above listed methodology. Environment: Laboratory MTE is maintained in a temperature controlled environment with ambient conditions from 18 to 28 C, relative humidity less than 90%. The instrument under test has been calibrated on an open air test site (OATS) with environment temperature conditions ranging from 0 to 40 C which has no known influences on measurement quality. Serial Number/ lD: 00045682 Tracking Number: Date Completed: Test Type: CalibrationUncertainty: 01m k=2, (95ok Confidence Level) 03m Test Remarks: Calibrated down to 26 MHz per customer request. Calibration Traceability: All Measuring and Test Equipment (MffE) identified below are traceable to the Sl units through the National lnstitute for Standards and Technology (NIST). Calibraiion Laboratory and Quality System controls are compliant with ISO/lEC 17025-2005 and ANSI/NCSL 2540-1 -1994. Standards and Equipment Used: Make / Model / Name / S/N / Recall Date Condition of Instrument Upon Receipt: In Tolerance to Internal Qualitv Standards On Release: In Tolerance to Internal Qualitv Standards Anritsu MS4623A Network Analyzer 99220119-Mar-12 This document provides traceability of measurements to recognized national standards using contrblled processes at the ETS-L|ndgren Calibration Laboratory. UncertaintieslistedarederivedfromthemethodsdescribedbyNlSTTechNotel29T. Thiscertificateandreportmaynotbereproduced,exceptinfull,withoutthe written approval of ETS-Lindgren Calibration Laboratory in accordance with ISO/IEC 1 7025-2005 and ANSI/NCSL 2540-1 -1994. QAF 1 1 27 (03/1 1 ) Calibration and fssued on 22-Aug-1 fssue Date:5l11l2AU General Calibration, Inc. 2 Mars Court, Boonton, New Jersey 07005 Phone (973)299-2950 Fax (973) 2994595 Certificate g; MR-18671 Purchase Order: 524758'2 Work Order #: MR450 Customer #: 0014,64 GENERAL CALIBMTION, INC. 2 MARS COURT 096188 Manufacturer: HP Description: TRANSIENTLIMITER D-epe rtm.enl;_".," "." T-epp,/RH;...." "_ ca],.lnlerya|.'- . c^af.-Qatp; ,- .,05"l1ila9j1 HONEYWELL SECURTTY (001464) 2 CORPORATE CENTER DRIVE MELVILLE. NY 11747 Asset Tag No.: 10131 ModelNumber: 119474 SerialNumber: 3107402782 22Ct45% tnspsetsd.Pyr .* *" UBl Jgb-Ide,..... --_ " _".[ilEnAmgSI 9slihrpli-o:Ssgu.lf; .** PA$"$HP -QaL,Due P"etp-;--^ ". -**0 111?3"12 12 MONTHS BOONTON. NJ O7OO5 Found In Tolerance and Left In 04t06t2012 GENERALCALIBRATION 503 SPECTRUM ANALYZER 04t1212012 GENERAL CALIBMTION 688 LEVEL GENEMTOR 03t14t2012 The above instrument has been checked and calibrated against the above working standard(s) which are,traceable to the NIST. The test limits stated in the report correspond to the published specifications of the equipment, at the points tested. Also, the collective uncertainties of measurement standards do not exceed 25olo of the tolerance- oj tle gngFqtgristics being^caljlgle_d, wheg,possible. The metrology procedures utitized conform to and satisry the requirements set forth in ANSI/NCSL 2540-1-1994, 10 CFR part 21, ISO 9001-2008, ISO 10012-2003, and M|L-STD 456624. Approved By t&do*na",& tWM:*"."*.,^-** General Calibration, Inc. - Q. A. Manager

EXHIBIT 5-2 CFS8DL6280Z / 573F-6280Z PICTURES OF THE TEST SETUP SENSE HORZ , UUT HORZ SENSE HORZ , UUT VERT SENSE HORZ , UUT OBQ SENSE VERT , UUT HORZ SENSE VERT , UUT VERT SENSE VERT , UUT OBQ THE OATS SITE: THE PHYSICAL LOCATION IS: 2 Corporate Center Drive Melville, NY 11747 EXHIBIT 5-2 ( CONT )
