DT8035V Dual Technology Motion Sensor Détecteur de mouvement à double technologie Sensor de movimiento de tecnología dual Sensor de movimento de tecnologia dupla Quick Installation Guide Guide d’installation rapide Guía Rápida de instalación Guia rápido de instalação 1 > 6' (1,8 m) Optimal Optimal Optimo Ótimo 6' 9" - 8' 9" (2.1 - 2.7 m) 7' 6" (2.3 m) ≤ 100 lbs / 45 kg Pet applications vary, walk test to determine attainable pet immunity level. L'immunité aux petits animaux peut varier. Réaliser un test de détection afin de vérifier le niveau d'immunité. Para aplicaciones con mascotas, utilice el test de andado para determinar el nivel de inmunidad contra mascotas alcanzable. Para aplicativos para animais de estimação, use o teste de caminhada para determinar o nível de imunidade do animal de estimação atingível. 2 3 2 1 1 4 MW SENSITIVITY MAX MIN * LOOKDOWN ON OFF MINMAX MW LEDPI * ON OFF DT8035V *Enabled *Activé *Habilitado *Habilitado Disabled Désactivé Deshabilitado Deshabilitado ON OFF Pet Immunity Insensibilité aux animaux Tolerancia a mascotas Pet-Imunidade * Microwave Range Adjustment Réglage de la portée des micro-ondes Ajuste del rango de detección Microondas Ajuste de Alcance Microondas * Factory default / Valeurs par défaut du fabricant / Defecto de fábrica / Padrão de fábrica PI LED ON OFF (Sensibilité micro-ondes) (Sensibilidad de Microonda) (Sensibilidade da Microonda) ON OFF PILED + OFF - 2 - TCV - V + TNC 5 Ground +12V Zone # Zone COM Zone # Zone COM Tamper 30 mA 25 VDC Power 17 mA 9-15 VDC (UL: 9.5-15 VDC) Alarm 30 mA 25 VDC 642 153 22-20 AWG (0.31-0.52mm 2 ) 2 2 1 TCV - V + TNC 642 153 Panel / Panneau / Panel / Controle Sensor / Détecteur / Sensor / Sensor 30 sec 30 0 45 20 10 6 ON PI LED 1/2 sec. hold 4x < 4’ (1.2m) Walk Test Reset DT8035V-006-V0 MW SENSITIVITY MAX MIN * 6 1. Close the sensor and apply power. Initialization is complete when the LED stops flashing slowly (about 30 seconds). 2. Turn the microwave sensitivity counterclockwise to reduce the microwave range (minimum = 16.4’ / 5m) and close the sensor. 3. Walk through the detection area and observe the LED. 4. Adjust the microwave range as necessary to meet installation requirements. LED Power Up Walk Test Normal Fault Red Slow Blink ON Alarm ON Alarm Fast Blink Yellow OFF ON Microwave ON Microwave OFF Green OFF ON PIR ON PIR OFF Walk test mode is active for 10 minutes, then automatically exits test mode, disables the LED and enters normal operation mode. For an additional 10 minute walk test, enable walk test mode again with the flashlight feature (see Walk Test Reset above). Note: During power up and walk test modes the LED is active regardless of the LED Enable/Disable DIP switch setting. 7 PLAN VIEW ALL ZONES Top View Vue de dessus Vista Desde Arriba Vista Superior Side View Vue de coté Vista Lateral Vista Lateral DT8035V-007-V0 Zones / Zones / Zonas / Zonas A 2 Look-down / Basses / Vista Zona 0 / Vigilância inferior B 18 Lower / Courtes / Cercana/ Mais baixas C 46 Intermediate / Intermédiaires / Intermedia / D 36 Long / Longues / Largo Alcance / Longo alcance 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 1 2 3 7 6 5 4 8 9 10 11 12 16 15 14 13 17 18 19 20 21 25 24 23 22 26 27 28 29 30 34 33 32 31 35 36 37 38 40 39 41 42 43 44 45 46 47 48 49 5 0 50 800-15504 B C D MASK LENS Intermédias ABCD - 3 - SPECIFICATIONS Operating Temperature: .................................................................................................................................................... 14° to 131°F / -10° to 55°C Relative Humidity: .................................................................................................................................. 5 to 93% (UL tested at 93%); non-condensing Dimensions: ........................................................................................................................................................ 3.86 x 2.24 x 1.69in / 98 x 57 x 43mm Tamper: .................................................................................................................................................................... Cover and Wall Tamper Protection Electrical Power: .......................................................................................................................................... 15mA (normal use); 17mA (maximum use) Microwave Frequency: ................................................................................................................................................................................ 10.525GHz Range: ........................................................................................................................................ Cone shape detection area of 40 x 56ft (12.2 x 17.1m) Pet Immunity: ................................................................................................................................................................................... Up to 100lb / 45kg) TROUBLESHOOTING TROUBLE* NORMAL Self-Test Failure 1 Alarm Relay Closed Open Red LED Off Flashing *TROUBLE CONDITIONS 1 Self-Test Failure conditions: • Microwave supervision failure: The sensor is operating in PIR mode only. • PIR self-test failure: The sensor is disabled. • Temperature compensation failure: The temperature compensation is disabled. Depending on the Trouble condition, take the following corrective actions: • Verify the power supply is sufficient (at least 9V at the sensor). • Cycle power to the sensor. • Walk test the sensor. If the Trouble condition does not clear, replace the sensor. APPROVAL LISTINGS • FCC part 15, Class B verified • IC ICES-003, Class B verified • UL 639 • ULC S306-03 • SIA-PIR-01 Passive Infrared detector standard features for false alarm immunity. Product must be tested at least once each year / Le fonctionnement du produit doit être vérifié au moins une fois par année / El producto…

Text truncated - open the document above for the full version.

DT8050V Dual Technology Motion Sensor Détecteur de mouvement à double technologie Sensor de movimiento de tecnología dual Sensor de movimento de tecnologia dupla Quick Installation Guide Guide d’installation rapide Guía Rápida de instalación Guia rápido de instalação 1 Optimal Optimal Optimo Ótimo PIR_VE-001-V0 6' 9" - 8' 9" (2.1 - 2.7 m) 7' 6" (2.3 m) 2 3 2 1 1 4 LOOKDOWN ON OFF * ON OFF DT8050V *Factory default / Valeurs par défaut du fabricant / Defecto de fábrica / Padrão de fábrica Not Used Non utilisé No utilzado Não usado ON OFF * LED LED ON OFF MINMAX MW MW SENSITIVITY MAX MIN * Microwave Range Adjustment Réglage de la portée des micro-ondes Ajuste del rango de detección Microondas Ajuste de Alcance Microondas (Sensibilité micro-ondes) (Sensibilidad de Microonda) (Sensibilidade da Microonda) DT8050V_004_V0 - 2 - TCV - V + TNC 5 Ground +12V Zone # Zone COM Zone # Zone COM Tamper 30 mA 25 VDC Power 17 mA 9-15 VDC (UL: 9.5-15 VDC) Alarm 30 mA 25 VDC 642 153 22-20 AWG (0.31-0.52mm 2 ) 2 2 1 TCV - V + TNC 642 153 Panel / Panneau / Panel / Controle Sensor / Détecteur / Sensor / Sensor MW SENSITIVITY MAX MIN * 30 sec 30 0 45 20 10 ON LED 1/2 sec. hold 4x < 4’ (1.2m) Walk Test Reset 6 1. Close the sensor and apply power. Initialization is complete when the LED stops flashing slowly (about 30 seconds). 2. Turn the microwave sensitivity counterclockwise to reduce the microwave range (minimum = 16.4’ / 5m) and close the sensor. 3. Walk through the detection area and observe the LED. 4. Adjust the microwave range as necessary to meet installation requirements. LED Power Up Walk Test Normal Fault Red Slow Blink ON Alarm ON Alarm Fast Blink Yellow OFF ON Microwave ON Microwave OFF Green OFF ON PIR ON PIR OFF Walk test mode is active for 10 minutes, then automatically exits test mode, disables the LED and enters normal operation mode. For an additional 10 minute walk test, enable walk test mode again with the flashlight feature (see Walk Test Reset above). Note: During power up and walk test modes the LED is active regardless of the LED Enable/Disable DIP switch setting. 7 PLAN VIEW ALL ZONES Top View Vue de dessus Vista Desde Arriba Vista Superior Side View Vue de coté Vista Lateral Vista Lateral DT8050V-007-V0 Zones / Zones / Zonas / Zonas A 2 Look-down / Basses / Vista Zona 0 / Vigilância inferior B 18 Lower / Courtes / Cercana/ Mais baixas C 20 Intermediate / Intermédiaires / Intermedia / D 54 Long / Longues / Largo Alcance / Longo alcance Intermédias A B C D B C D MASK LENS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 38 39 40 41 42 43 44 45 1 2 3 7 6 5 4 8 9 10 11 12 16 15 14 13 17 18 19 20 21 25 24 23 22 26 27 28 29 30 34 33 32 31 35 36 37 38 40 39 41 42 43 44 45 46 4 6 800-15505 33 34 35 36 37 - 3 - SPECIFICATIONS Operating Temperature: .................................................................................................................................................... 14° to 131°F / -10° to 55°C Relative Humidity: .................................................................................................................................. 5 to 93% (UL tested at 93%); non-condensing Dimensions: ........................................................................................................................................................ 3.86 x 2.24 x 1.69in / 98 x 57 x 43mm Tamper: .................................................................................................................................................................... Cover and Wall Tamper Protection Electrical Power: .......................................................................................................................................... 15mA (normal use); 17mA (maximum use) Microwave Frequency: ................................................................................................................................................................................ 10.525GHz Range: .............................................................................................................................................. Cone shape detection area of 53 x 72ft (16 x 22m) TROUBLESHOOTING TROUBLE* NORMAL Self-Test Failure 1 Alarm Relay Closed Open Red LED Off Flashing *TROUBLE CONDITIONS 1 Self-Test Failure conditions: • Microwave supervision failure: The sensor is operating in PIR mode only. • PIR self-test failure: The sensor is disabled. • Temperature compensation failure: The temperature compensation is disabled. Depending on the Trouble condition, take the following corrective actions: • Verify the power supply is sufficient (at least 9V at the sensor). • Cycle power to the sensor. • Walk test the sensor. If the Trouble condition does not clear, replace the sensor. APPROVAL LISTINGS • FCC part 15, Class B verified • IC ICES-003, Class B verified • UL 639 • ULC S306-03 • SIA-PIR-01 Passive Infrared detector standard features for false alarm immunity. Product must be tested at least once each year / Le fonctionnement du produit doit être vérifié au moins une fois par année / El producto debe ser probado al menos una vez al año / O produto deve ser testado pelo menos uma vez por ano All wiring must be in accordance with: the National Electrical Code (ANSI/NFPA70); the Canadian Electrical Code, Part I (where applicable); UL681, Standard for Installation and Classification of Burglar and Holdup Alarm Systems; ULC-S302, Standard for Installation and Classification of Burglar Alarm Systems for Financial and Commercial Premises, Safes and Vaults; ULC-S310, Standard for Installation and Classification of Residential Burglar Alarm Systems; local codes and the authorities having jurisdiction. The products are intended to be powered by a power-limited output of a UL/CUL Listed Burglar Alarm control unit, or via a Listed UL603/ULC- S318 power-limited power supply that provides 4 hours of standby power. The sensor must be mounted indo…

Text truncated - open the document above for the full version.

2 Corporate Center Drive Melville, NY 11747 516-577-2000 CFS8DLDT80XXV FCC COVER LETTER Date: 07/28/2020 To Whom It May Concern: This letter is to inform you of our request for a new certification for our transceiver known as CFS8DLDT80XXV. The transceiver will operate under Part 15.245. Models DT8035V and DT8050V are both certified under this application. Only the DT8050V, however, was fully tested. The DT8035V is considered compliant based on similarities. The only difference between the two models is the lens – the DT8035V contains a lens that allows for a 35' range and the DT8050V uses a lens that is good for 50'. Regards, X Michael Antola

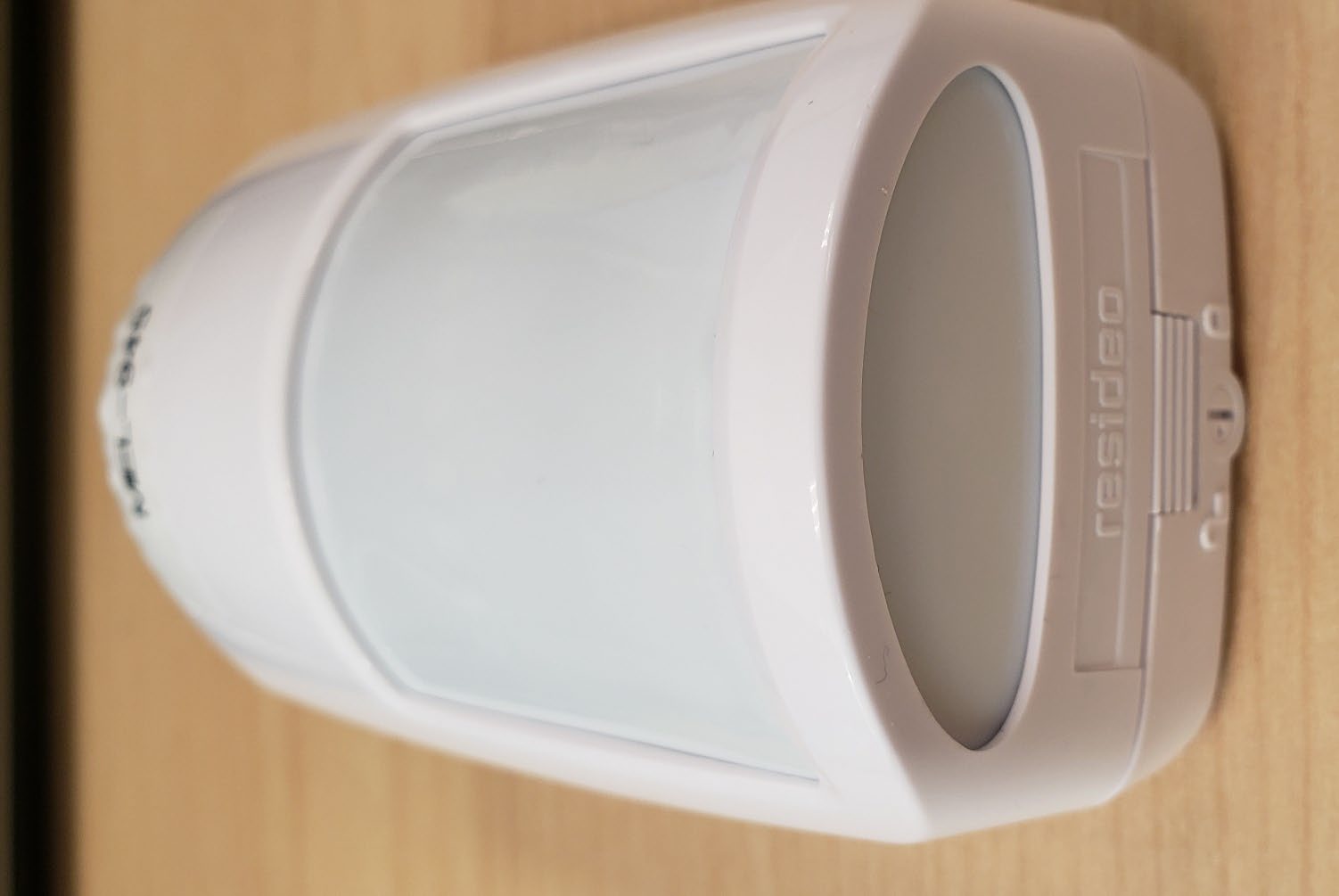

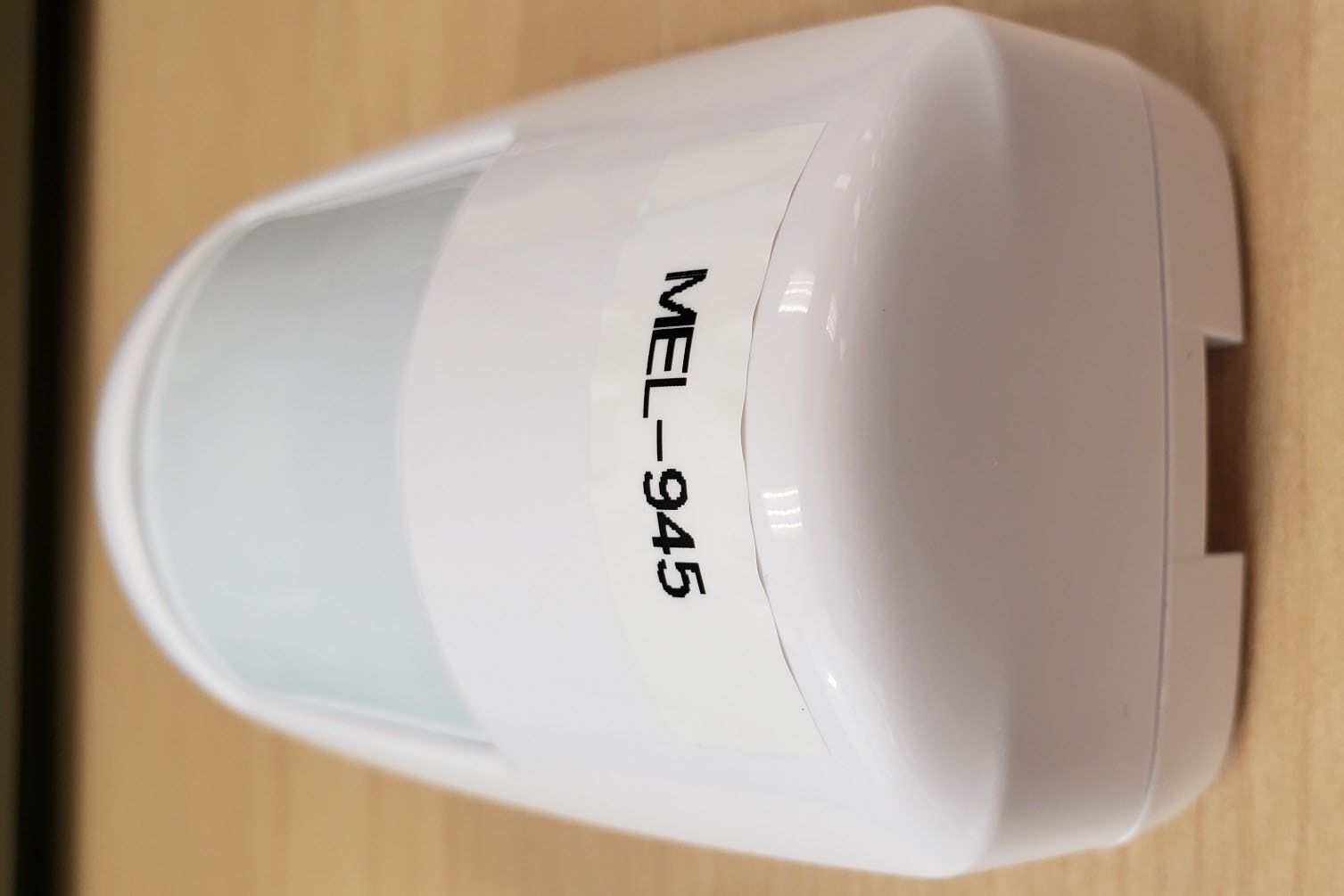

EXHIBIT 4-1 External Photos CFS8DLDT80XXV / 573F-DT80XXV Page 1 of 4 DT8035V / DT8050V EXTERNAL PHOTOS CASE EXTERIOR FRONT EXHIBIT 4-1 External Photos CFS8DLDT80XXV / 573F-DT80XXV Page 2 of 4 BACK EXHIBIT 4-1 External Photos CFS8DLDT80XXV / 573F-DT80XXV Page 3 of 4 TOP EXHIBIT 4-1 External Photos CFS8DLDT80XXV / 573F-DT80XXV Page 4 of 4 BOTTOM

EXHIBIT 6 Label Information CFS8DLDT80XXV / 573F-DT80XXV Page 1 of 2 LABEL INFORMATION EXACT LOCATION OF THE LABEL: Label is located on the rear plastic case cover in the location shown: Label location Part 15.19 statement, molded into plastic EXHIBIT 6 Label Information CFS8DLDT80XXV / 573F-DT80XXV Page 2 of 2 LABEL

EXHIBIT 4-2 Internal Photos CFS8DLDT80XXV / 573F-DT80XXV Page 1 of 10 DT8035V / DT8050V INTERNAL PHOTOS BACK COVER REMOVED EXHIBIT 4-2 Internal Photos CFS8DLDT80XXV / 573F-DT80XXV Page 2 of 10 FRONT & BACK COVER, INTERIOR EXHIBIT 4-2 Internal Photos CFS8DLDT80XXV / 573F-DT80XXV Page 3 of 10 TOP MAIN PCB, WITH COVER EXHIBIT 4-2 Internal Photos CFS8DLDT80XXV / 573F-DT80XXV Page 4 of 10 BOTTOM MAIN PCB EXHIBIT 4-2 Internal Photos CFS8DLDT80XXV / 573F-DT80XXV Page 5 of 10 INTERIOR MAIN PCB TOP COVER EXHIBIT 4-2 Internal Photos CFS8DLDT80XXV / 573F-DT80XXV Page 6 of 10 TOP MAIN PCB W/O COVER EXHIBIT 4-2 Internal Photos CFS8DLDT80XXV / 573F-DT80XXV Page 7 of 10 BOTTOM MAIN PCB W/MICROWAVE MODULE REMOVED EXHIBIT 4-2 Internal Photos CFS8DLDT80XXV / 573F-DT80XXV Page 8 of 10 MICROWAVE MODULE, TOP EXHIBIT 4-2 Internal Photos CFS8DLDT80XXV / 573F-DT80XXV Page 9 of 10 MICROWAVE MODULE, BOTTOM W/COVER EXHIBIT 4-2 Internal Photos CFS8DLDT80XXV / 573F-DT80XXV Page 10 of 10 MICROWAVE MODULE, BOTTOM W/O COVER TX Antenna RX Antenna

TEST REPORT Report Number: R13340164-E1 Applicant : Resideo 2 Corporate Center Drive Melville, NY 11749-3265, USA Model : DT8050V/DT8035V FCC ID : CFS8DLDT80XXV IC : 573F-DT80XXV EUT Description : Motion Sensor Test Standard(s) : FCC 47 CFR Part 15 Subpart C ISED RSS-2 10 Issue 10 ISED RSS-GEN Issue 5 Date Of Issue: 2020-08-13 Prepared by: UL LLC 12 Laboratory Dr. Research Triangle Park, NC 27709 U.S.A. TEL: (919) 549-1400 REPORT NO: R13340164-E1 DATE: 2020-08-13 FCC ID: CFS8DLDT80XXV IC: 573F-DT80XXV Page 2 of 36 UL LLC 12 Laboratory Dr., RTP, NC 27709, USA TEL:(919)549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. REPORT REVISION HISTORY Ver. Issue Date Revisions Revised By 1 2020-07-27 Initial Issue Brian T. Kiewra 2 2020-08-13 Added chamber for >40GHz testing on p. 5. Revised frequency of operation in Section 6.1. Added test method for 20dB BW in Section 7. Added note for limit calculation for >40GHz testing. Separated test setup photos. Brian T. Kiewra REPORT NO: R13340164-E1 DATE: 2020-08-13 FCC ID: CFS8DLDT80XXV IC: 573F-DT80XXV Page 3 of 36 UL LLC 12 Laboratory Dr., RTP, NC 27709, USA TEL:(919)549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS REPORT REVISION HISTORY ..................................................................................................2 TABLE OF CONTENTS .............................................................................................................3 ATTESTATION OF TEST RESULTS ..................................................................................4 TEST RESULTS SUMMARY ...............................................................................................5 TEST METHODOLOGY ......................................................................................................5 FACILITIES AND ACCREDITATION ..................................................................................5 DECISION RULES AND MEASUREMENT UNCERTAINTY ...............................................6 METROLOGICAL TRACEABILITY ...............................................................................6 DECISION RULES ........................................................................................................6 MEASUREMENT UNCERTAINTY ................................................................................6 SAMPLE CALCULATION .............................................................................................6 EQUIPMENT UNDER TEST ................................................................................................7 EUT DESCRIPTION .....................................................................................................7 MAXIMUM FUNDAMENTAL FIELD STRENGTH ..........................................................7 DESCRIPTION OF AVAILABLE ANTENNAS ...............................................................7 SOFTWARE AND FIRMWARE .....................................................................................7 WORST-CASE CONFIGURATION AND MODE ...........................................................7 DESCRIPTION OF TEST SETUP .................................................................................8 MEASUREMENT METHOD.................................................................................................9 TEST AND MEASUREMENT EQUIPMENT ......................................................................10 DUTY CYCLE AND ON TIME ............................................................................................13 OCCUPIED BANDWIDTH..............................................................................................14 RADIATED TEST RESULTS .........................................................................................15 LIMITS AND PROCEDURE ........................................................................................15 FUNDAMENTAL .........................................................................................................17 HARMONICS AND SPURIOUS EMISSIONS (9kHz – 30MHz) ...................................19 HARMONICS AND SPURIOUS EMISSIONS (30 – 1000MHz) ...................................20 HARMONICS AND SPURIOUS EMISSIONS (1 – 18GHz) .........................................22 HARMONICS AND SPURIOUS EMISSIONS (18 – 26GHz) .......................................24 HARMONICS AND SPURIOUS EMISSIONS (26 - 40GHz) ........................................26 HARMONICS AND SPURIOUS EMISSIONS (40 - 53GHz) ........................................28 AC MAINS LINE CONDUCTED EMISSIONS ................................................................33 SETUP PHOTOS ...........................................................................................................36 END OF TEST REPORT ..........................................................................................................36 REPORT NO: R13340164-E1 DATE: 2020-08-13 FCC ID: CFS8DLDT80XXV IC: 573F-DT80XXV Page 4 of 36 UL LLC 12 Laboratory Dr., RTP, NC 27709, USA TEL:(919)549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. ATTESTATION OF TEST RESULTS COMPANY NAME: Resideo 2 Corporate Center Drive Melville, NY 11749-3265, USA EUT DESCRIPTION: Motion Sensor MODEL: DT8050V/DT8035V SERIAL NUMBER: MEL-949 DATE TESTED: 2020-06-22 to 2020-07-09 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Complies ISED RSS-210 Issue 10 Complies ISED RSS-GEN Issue 5 Complies UL LLC tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. It is the manufacturer's responsibility to ass…
