CFS8DLIPCAMWOC2HD Wi-Fi Outdoor Camera

This radio transmitter [IC: 573F-IPCAMWOC2] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. Le présent émetteur radio [IC: 573F-IPCAMWOC2] a été approuvé par Innovation, Sciences et Développement économique Canada pour fonctionner avec les types d'antenne énumérés ci dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué pour tout type figurant sur la liste, sont strictement interdits pour l'exploitation de l'émetteur. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d'autres canaux n'est pas possible.

Ademco Inc. 2 Corporate Center Drive, Melville, NY 11747, United States Confidentiality Request Letter Date: June 15, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 FCC ID: CFS8DLIPCAMWOC2 Permanent Confidentiality Request Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematic Diagram 3. Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Applicant : Ademco Inc. Address : 2 Corporate Center Drive Suite 100, Melville, New York 11747, United States Signature : _________________________________ Name : Divya Venkat E- mail : [email protected] Te l . : 763 777 4602

Ademco Inc. 2 Corporate Center Drive, Melville, NY 11747, United States Power of Attorney Date: June 15, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: CFS8DLIPCAMWOC2 Product Name: HD Wi-Fi Outdoor Camera To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan Name : Leo Huang Job Title : Manager e- mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Ademco Inc. Address : 2 Corporate Center Drive Suite 100, Melville, New York 11747, United States Signature : _________________________________ Name : Divya Venkat E- mail : [email protected] Te l . : 763 777 4602

Ademco Inc. 2 Corporate Center Drive, Melville, NY 11747, United States Date: June 15, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Declaration of composite/rated equipment f or FCC ID: CFS8DLIPCAMWOC2 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Class B personal computers and peripherals has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : Ademco Inc. Address : 2 Corporate Center Drive Suite 100, Melville, New York 11747, United States Signature : _________________________________ Name : Divya Venkat E- mail : [email protected] Te l . : 763 777 4602

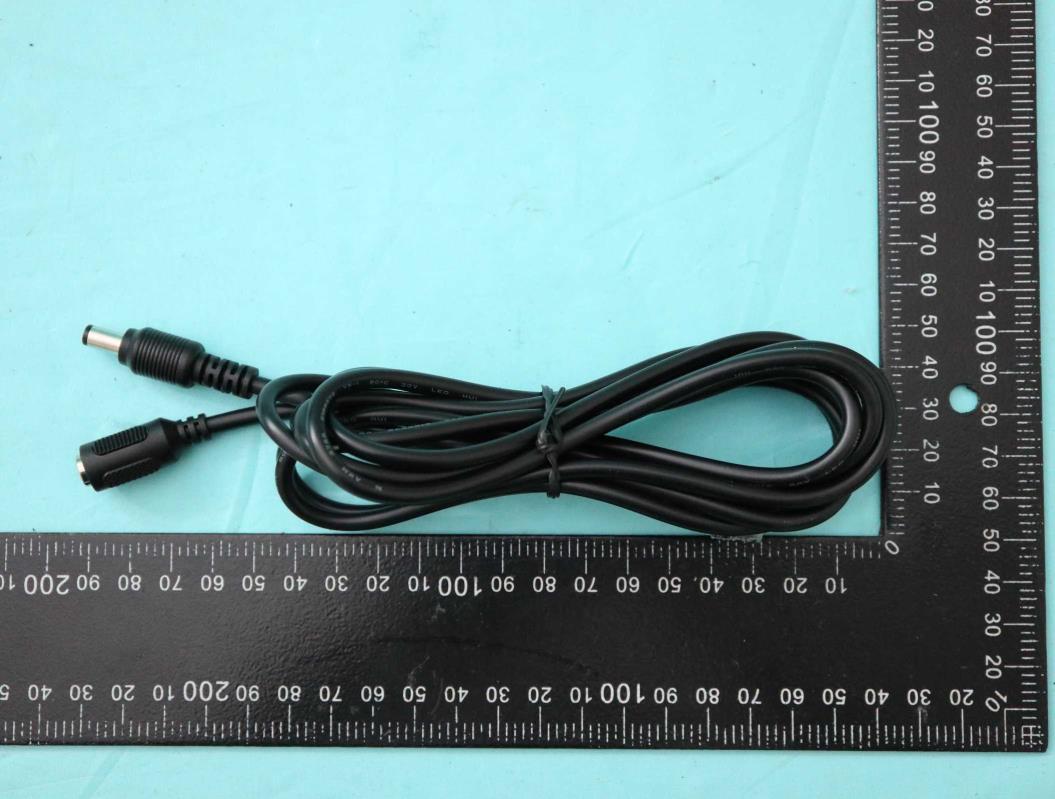

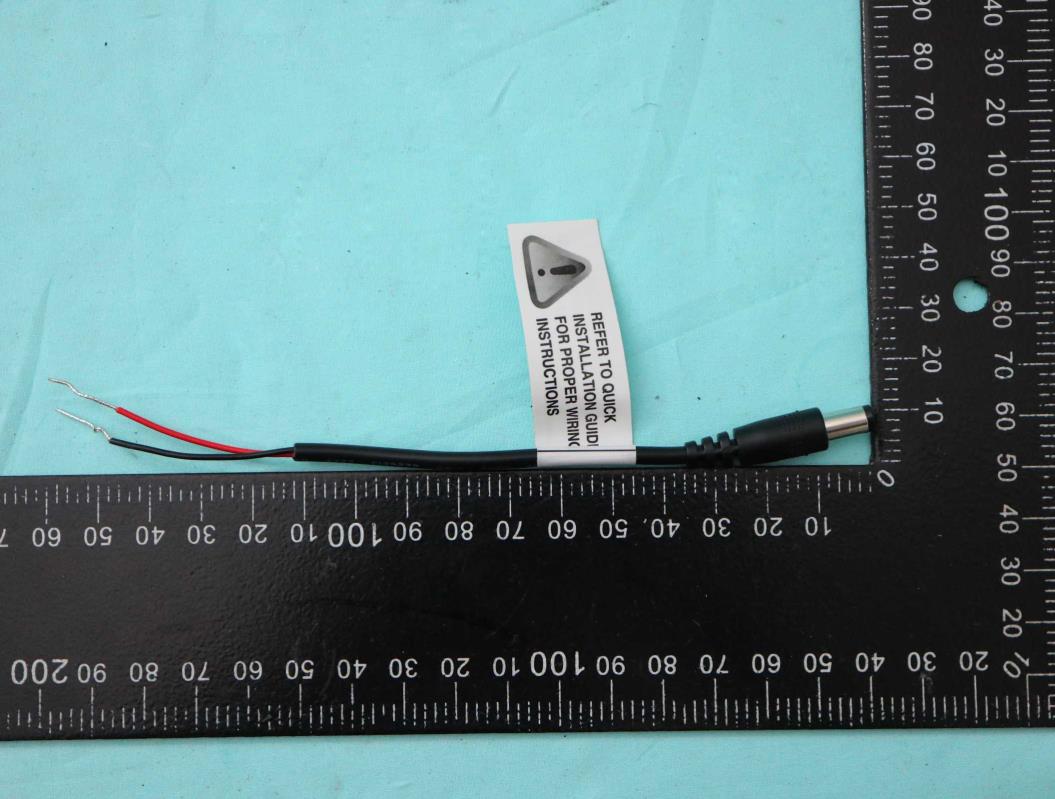

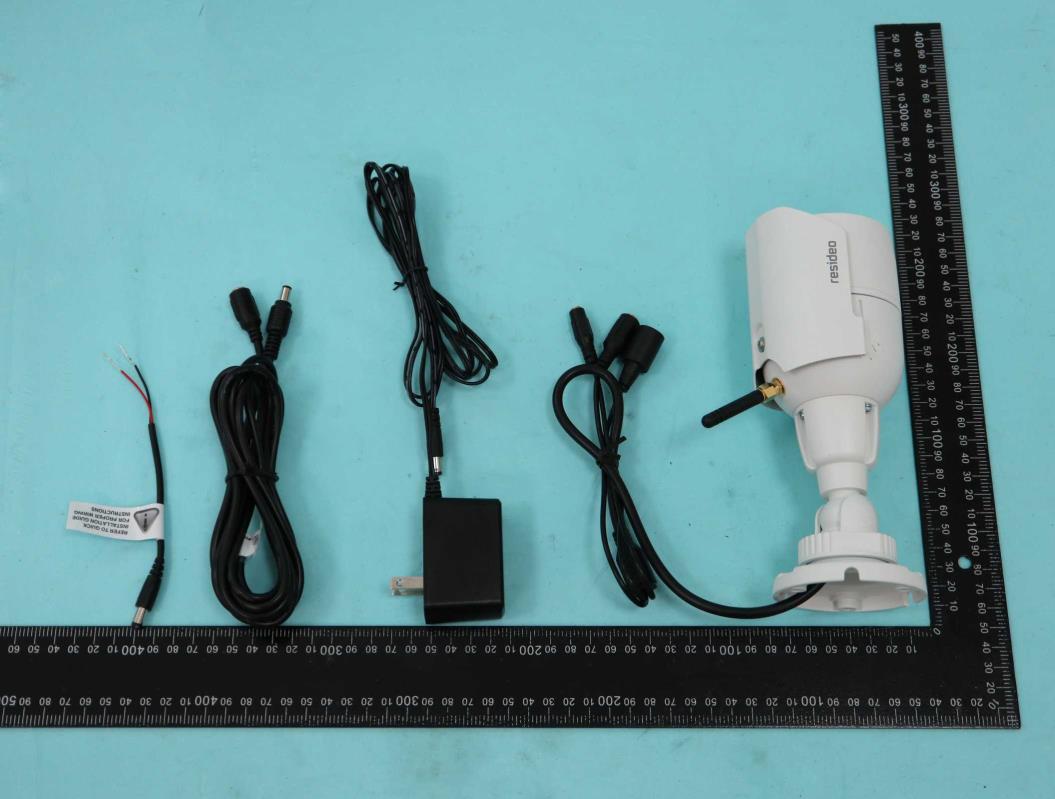

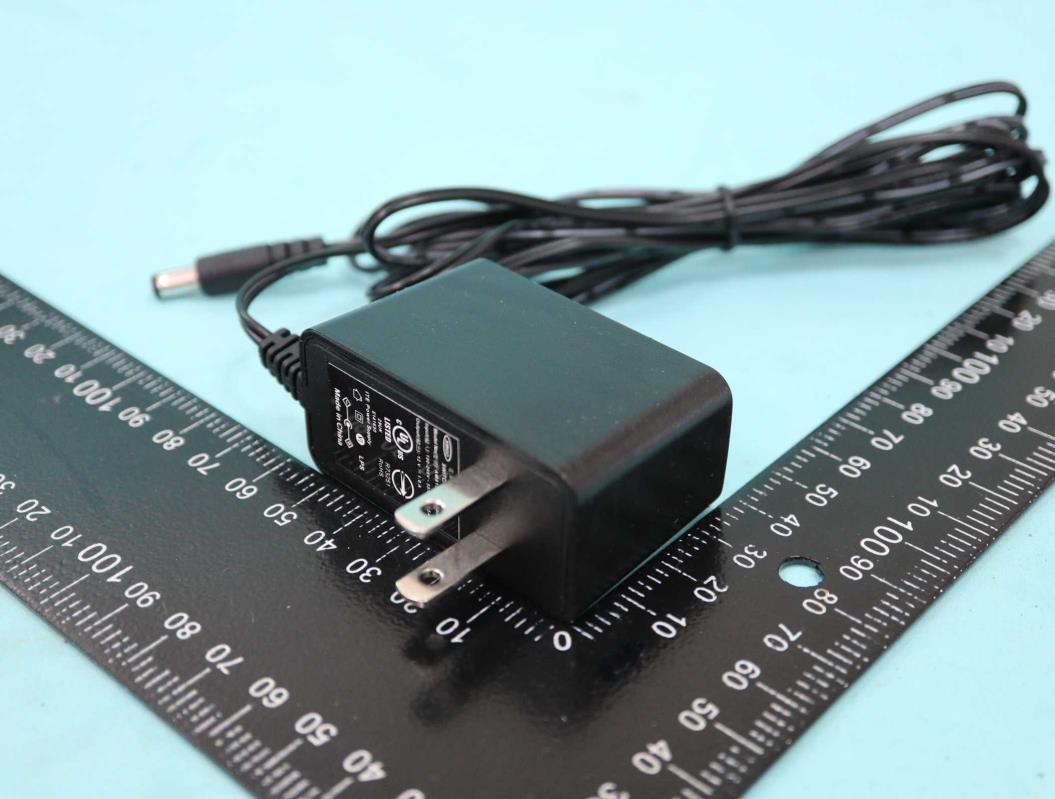

Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 1 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 2 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 3 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 4 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 25 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 26 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 27 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 28 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 29 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 30 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 ─────THE END────

Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 5 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 6 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 7 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 8 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 9 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 10 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 11 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 12 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 13 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 14 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 15 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 16 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 17 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 18 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 19 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 20 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 21 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 22 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 23 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 24 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021 Photographs of EUT Report No. : EP121717 SPORTON International Inc. Page No. : 25 of 30 EP Report Version : Rev. 01 Issued Date : Jun. 10, 2021

Radio Exposure Evaluation Report Report No. : FA121717 TEL : 886-3-327-3456 Page Number : 1 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 Radio Exposure Evaluation Report FCC ID : CFS8DLIPCAMWOC2 Equipment : HD Wi-Fi Outdoor Camera Brand Name : Resideo Model Name : IPCAM-WOC2 Applicant : Ademco Inc. 2 Corporate Center Drive, Suite 100 Melville, NY 11747 Manufacturer : EDIMAX TECHNOLOGY CO., LTD. No.278, Xinhu 1st Rd., Neihu Dist., Taipei City, Taiwan Standard : 47 CFR FCC Part 2 Subpart J, section 2.1091 The product was received on Apr. 30, 2021, and testing was started from May 07, 2021 and completed on May 13, 2021. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR FCC Part 2 Subpart J, section 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA121717 TEL : 886-3-327-3456 Page Number : 2 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Location ..................................................................................................................................... 6 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 7 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 7 2.2 MPE Calculation Method ........................................................................................................................ 7 2.3 Calculated Result and Limit .................................................................................................................... 8 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA121717 TEL : 886-3-327-3456 Page Number : 3 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 History of this test report Report No. Version Description Issued Date FA121717 01 Initial issue of report Jun. 10, 2021 Radio Exposure Evaluation Report Report No. : FA121717 TEL : 886-3-327-3456 Page Number : 4 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None Reviewed by: Sam Tsai Report Producer: Debby Hung Radio Exposure Evaluation Report Report No. : FA121717 TEL : 886-3-327-3456 Page Number : 5 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 1 General Description 1.1 Information 1.1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) Bluetooth 2400-2483.5 2402-2480 LE: DSSS (GFSK) 1.1.2 Antenna Information Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 MasterWave 98865MRSX004 Dipole antenna Reversed-SMA 2.0 For 2.4GHz function: For IEEE 802.11 b/g/n mode (1TX/1RX) Ant. 1 (port 1) could transmit/receive. For BT function: For IEEE 802.15.1 Bluetooth mode (1TX/1RX) Ant. 1 (port 1) could transmit/receive. 1.1.3 Accessories Accessories AC Adapter Brand Name AMIGO Model Name AMS159A-1201000FU Power Rating I/P: 100-240 Vac, O/P: 12 Vdc, 1A Power Cord 2.438 meter, non-shielded cable, w/o ferrite core Reminder: Regarding to more detail and other information, please refer to user manual. Radio Exposure Evaluation Report Report No. : FA121717 TEL : 886-3-327-3456 Page Number : 6 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 1.2 Testing Location Test Lab.：Sporton International Inc. Hsinhua Laboratory Hsinhua ADD: No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) (TAF: 3785) TEL: 886-3-327-3456 FAX: 886-3-327-0973 Test site Designation No. TW3785 with FCC. Wen 33rd.St. ADD: No.14-1, Ln. 19, Wen 33rd St., Guishan Dist., Taoyuan City 333010, Taiwan (R.O.C.) (TAF: 3785) TEL: 886-3-318-0787 FAX: 886-3-318-0287 Test site Designation No. TW0008 with FCC. Radio Exposure Evaluation Report Report No. : FA121717 TEL : 886-3-327-3456 Page Number : 7 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for O…

Text truncated - open the document above for the full version.

FCC Radio Test Report Report No. :FR121717AC TEL : 886-3-3273456 Page Number : 1 of 26 FAX : 886-3-3270973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-C8 Ver4.2 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 FCC Radio Test Report FCC ID : CFS8DLIPCAMWOC2 Equipment : HD Wi-Fi Outdoor Camera Brand Name : Resideo Model Name : IPCAM-WOC2 Applicant : Ademco Inc. 2 Corporate Center Drive, Suite 100 Melville, NY 11747 Manufacturer : EDIMAX TECHNOLOGY CO., LTD. No.278, Xinhu 1st Rd., Neihu Dist., Taipei City, Taiwan Standard : 47 CFR FCC Part 15.247 The product was received on Apr. 30, 2021, and testing was started from May 07, 2021 and completed on May 13, 2021. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) FCC Radio Test Report Report No. :FR121717AC TEL : 886-3-3273456 Page Number : 2 of 26 FAX : 886-3-3270973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-C8 Ver4.2 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 Test Channel Mode ................................................................................................................................ 9 2.2 The Worst Case Measurement Configuration ...................................................................................... 10 2.3 Accessories .......................................................................................................................................... 11 2.4 Support Equipment ............................................................................................................................... 11 2.5 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 DTS Bandwidth..................................................................................................................................... 16 3.3 Maximum Conducted Output Power .................................................................................................... 17 3.4 Power Spectral Density ........................................................................................................................ 19 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 20 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 21 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 25 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF DTS BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS APPENDIX F. TEST RESULTS OF EMISSIONS IN RESTRICTED FREQUENCY BANDS APPENDIX G. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Radio Test Report Report No. :FR121717AC TEL : 886-3-3273456 Page Number : 3 of 26 FAX : 886-3-3270973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-C8 Ver4.2 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 History of this test report Report No. Version Description Issued Date FR121717AC 01 Initial issue of report Jun. 10, 2021 FCC Radio Test Report Report No. :FR121717AC TEL : 886-3-3273456 Page Number : 4 of 26 FAX : 886-3-3270973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-C8 Ver4.2 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 Summary of Test Result Report Clause Ref. Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a) DTS Bandwidth PASS - 3.3 15.247(b) Maximum Conducted Output Power PASS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PASS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PASS - Declaration of Conformity…

Text truncated - open the document above for the full version.

FCC Radio Test Report Report No. : FR121717AL TEL : 886-3-3273456 Page Number : 1 of 26 FAX : 886-3-3270973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-C10 Ver4.1 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 FCC Radio Test Report FCC ID : CFS8DLIPCAMWOC2 Equipment : HD Wi-Fi Outdoor Camera Brand Name : Resideo Model Name : IPCAM-WOC2 Applicant : Ademco Inc. 2 Corporate Center Drive, Suite 100 Melville, NY 11747 Manufacturer : EDIMAX TECHNOLOGY CO., LTD. No.278, Xinhu 1st Rd., Neihu Dist., Taipei City, Taiwan Standard : 47 CFR FCC Part 15.247 The product was received on Apr. 30, 2021, and testing was started from May 08, 2021 and completed on May 13, 2021. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. __________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) FCC Radio Test Report Report No. : FR121717AL TEL : 886-3-3273456 Page Number : 2 of 26 FAX : 886-3-3270973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-C10 Ver4.1 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 Test Channel Mode ................................................................................................................................ 9 2.2 The Worst Case Measurement Configuration ...................................................................................... 10 2.3 Accessories .......................................................................................................................................... 11 2.4 Support Equipment ............................................................................................................................... 11 2.5 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 DTS Bandwidth..................................................................................................................................... 16 3.3 Maximum Conducted Output Power .................................................................................................... 17 3.4 Power Spectral Density ........................................................................................................................ 19 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 20 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 21 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 25 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF DTS BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS APPENDIX F. TEST RESULTS OF EMISSIONS IN RESTRICTED FREQUENCY BANDS APPENDIX G. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Radio Test Report Report No. : FR121717AL TEL : 886-3-3273456 Page Number : 3 of 26 FAX : 886-3-3270973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-C10 Ver4.1 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 History of this test report Report No. Version Description Issued Date FR121717AL 01 Initial issue of report Jun. 10, 2021 FCC Radio Test Report Report No. : FR121717AL TEL : 886-3-3273456 Page Number : 4 of 26 FAX : 886-3-3270973 Issued Date : Jun. 10, 2021 Report Template No.: HE1-C10 Ver4.1 Report Version : 01 FCC ID: CFS8DLIPCAMWOC2 Summary of Test Result Report Clause Ref.Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a) DTS Bandwidth PASS - 3.3 15.247(b) Maximum Conducted Output Power PASS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PASS - 3.6 15.247(d) Emission…

Text truncated - open the document above for the full version.

Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G1 of G4 1. Photographs of Conducted Emissions Test Configuration Front view Side view Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G2 of G4 Under table view Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G3 of G4 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Front view Rear view Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G4 of G4 For radiated emissions above 1GHz Front view Rear view ─────THE END─────

Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G1 of G4 1. Photographs of Conducted Emissions Test Configuration Front view Side view Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G2 of G4 Under table view Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G3 of G4 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Front view Rear view Test Photos Appendix G SPORTON INTERNATIONAL INC. Page number : G4 of G4 For radiated emissions above 1GHz Front view Rear view ─────THE END─────
