CFS8DLLYNXPLUSWireless Control / Communicator

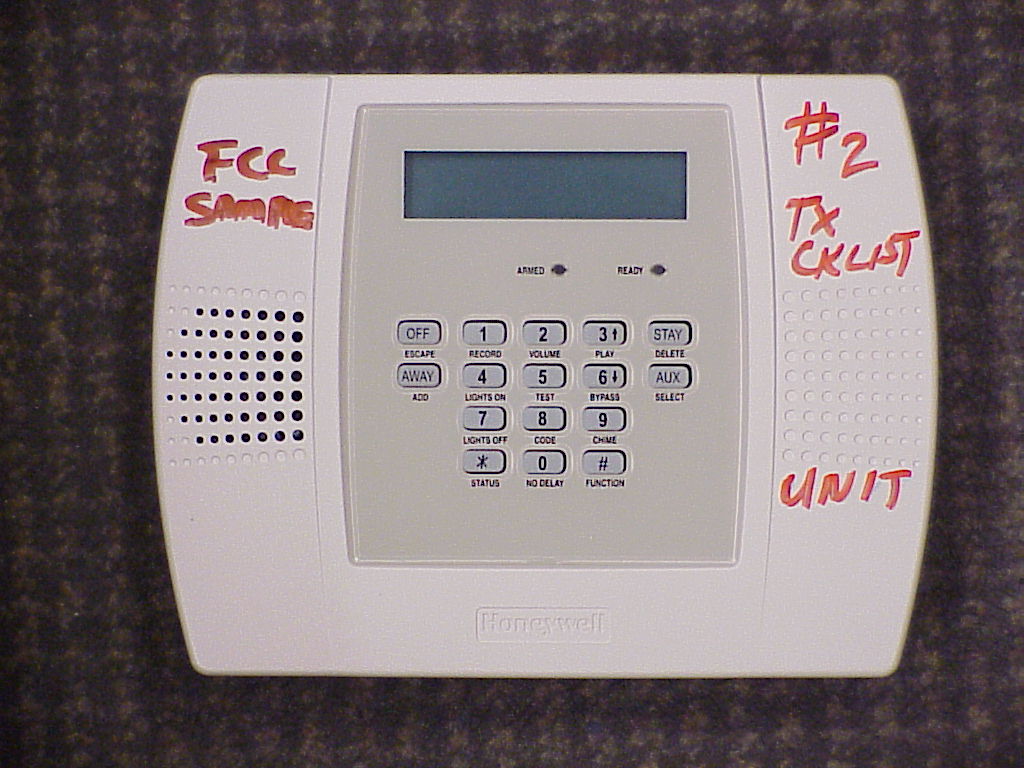

EXHIBIT 4-1 CFS8DLLYNXPLUS / 573F-LYNXPLUS EXTERNAL PICTURES TOP PLASTIC: EXHIBIT 4-1 (CONT) CFS8DLLYNXPLUS / 573F-LYNXPLUS EXTERNAL PICTURES (CONT) BOTTOM PLASTIC:

EXHIBIT 8-1B (CONT.) LABELS ON THE CINTERION MODULE (CONT.) CFS8DLLYNXPLUS / 573F-LYNXPLUS THIS IS THE LOCATION OF THE AUXILIARY LABEL OVER THE MAIN LABEL TO INDICATE PRESENTS’ OF THE MODULE: THIS IS THE MAIN LABEL: THIS IS THE AUXILIARY LABEL:     THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES AND RSS 210 OF INDUSTRY CANADA. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 800-04399 9/09 Rev A LYNX PLUS SERIES TEXT: BLACK 800-04399 9/09 Rev A COMPLIES WITH FCC RULES, PART 68 FCC REGISTRATION NO.: 5GBUSA-25623-AL-E RINGER EQUIVALENCE: 0.6B    2.00" 2.25" TEXT: BLACK 800-05190V1 12/09 Rev A 2.0" 0.75" CONTAINS TRANSMITTER MODULE IC: 7830A-MC55I FCC ID: QIPMC55I 800-05190V1 12/09 Rev A FCC ID: CFS8DLLYNXPLUS IC: 573F-LYNXPLUS LYNX PLUS SERIES IC MODEL: LYNXPLUS1

EXHIBIT 4-2 CFS8DLLYNXPLUS / 573F-LYNXPLUS INTERNAL PICTURES THE PCB IN PLASTIC: EXHIBIT 4-2 (CONT) CFS8DLLYNXPLUS / 573F-LYNXPLUS INTERNAL PICTURES (CONT) TOP OF THE PCB: EXHIBIT 4-2 (CONT) CFS8DLLYNXPLUS / 573F-LYNXPLUS INTERNAL PICTURES (CONT) BOTTOM OF THE PCB: EXHIBIT 4-2 (CONT) CFS8DLLYNXPLUS / 573F-LYNXPLUS INTERNAL PICTURES (CONT) PCB IN PLASTIC WITH THE GSM MODULE: EXHIBIT 4-2 (CONT) CFS8DLLYNXPLUS / 573F-LYNXPLUS INTERNAL PICTURES (CONT) TOP OF THE GSM MODULE: EXHIBIT 4-2 (CONT) CFS8DLLYNXPLUS / 573F-LYNXPLUS INTERNAL PICTURES (CONT) BOTTOM OF THE GSM MODULE:

EXHIBIT 8-1B LABELS ON THE CINTERION MODULE CFS8DLLYNXPLUS / 573F-LYNXPLUS THE CINTERION MODULE IS LABELED FROM THE MANUFACTURER WITH THE MODULE FCC & IC ID’S: THE MODULE AND ITS ANTENNA ARE MOUNTED ON A DAUGHTER BOARD: WHEN THE PRODUCT IS OPEN THIS IS WHAT YOU WILL SEE: EXHIBIT 8-1B (CONT.) LABELS ON THE CINTERION MODULE (CONT.) CFS8DLLYNXPLUS / 573F-LYNXPLUS THE DAUGHTER BOARD WITH THE GSM MODULE MOUNTED ON THE RIGHT SIDE OF THE INSIDE REAR PLASTIC

CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May HONE2_004_09001 Page 1 of 5 © Copyright by CETECOM Manufacturer Honeywell Model GSMVLP CTIA Request # 18791 Serial Number/ESN/IMEI 012129.00.000077.05 FCC ID Number QIPMC55i Hardware Version 3, MC55i: B2.1.2 Software Version 2; MC55i: Revision 01.201 Configuration of Primary Mechanical Mode N/A CTIA Test Plan Revision 2.2.2 Test date 11/16/09 – 11/18/09 TABLE: B1 SUMMATION TEST REPORT - GSM Band Channel Frequency (MHz) Conducted Power (dBm) TRP (dBm) NHPRP ±45° (dBm) NHPRP ±30° (dBm) FS SAM FS SAM FS SAM GSM 850 128 824.20 N/A 28.16 L:N/A R:N/A 26.98 L:N/A R:N/A 25.58 L:N/A R:N/A 190 836.60 N/A 28.57 L:N/A R:N/A 27.40 L:N/A R:N/A 26.08 L:N/A R:N/A 251 848.80 N/A 29.06 L:N/A R:N/A 27.94 L:N/A R:N/A 26.69 L:N/A R:N/A Band Channel Frequency (MHz) Conducted Power (dBm) TRP (dBm) NHPRP ±45° (dBm) NHPRP ±30° (dBm) FS SAM FS SAM FS SAM GSM 1900 512 1850.20 N/A 28.64 L:N/A R:N/A 26.72 L:N/A R:N/A 25.09 L:N/A R:N/A 661 1880.00 N/A 28.77 L:N/A R:N/A 26.86 L:N/A R:N/A 25.31 L:N/A R:N/A 810 1909.80 N/A 28.86 L:N/A R:N/A 27.09 L:N/A R:N/A 25.54 L:N/A R:N/A Band Channel Frequency (MHz) Conducted Sensitivity (dBm) TIS (dBm) NHPIS ±45° (dBm) NHPIS ±30° (dBm) FS SAM FS SAM FS SAM GSM 850 128 869.20 N/A -105.54 L:N/A R:N/A -104.81 L:N/A R:N/A -103.73 L:N/A R:N/A 190 881.60 N/A -104.78 L:N/A R:N/A -103.77 L:N/A R:N/A -102.70 L:N/A R:N/A 251 893.80 N/A -105.43 L:N/A R:N/A -104.55 L:N/A R:N/A -103.52 L:N/A R:N/A CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May HONE2_004_09001 Page 2 of 5 © Copyright by CETECOM Band Channel Frequency (MHz) Conducted Sensitivity (dBm) TIS (dBm) NHPIS ±45° (dBm) NHPIS ±30° (dBm) FS SAM FS SAM FS SAM GSM 1900 512 1930.20 N/A -106.11 L:N/A R:N/A -104.69 L:N/A R:N/A -102.94 L:N/A R:N/A 661 1960.00 N/A -105.55 L:N/A R:N/A -104.16 L:N/A R:N/A -102.43 L:N/A R:N/A 810 1989.80 N/A -104.34 L:N/A R:N/A -103.00 L:N/A R:N/A -101.32 L:N/A R:N/A TABLE: B2 SUMMATION TEST REPORT - GPRS Band Channel Frequency (MHz) Conducted Power (dBm) TRP (dBm) NHPRP ±45° (dBm) NHPRP ±30° (dBm) FS SAM FS SAM FS SAM GPRS 850 128 824.20 N/A 28.40 L:N/A R:N/A 27.22 L:N/A R:N/A 25.82 L:N/A R:N/A 190 836.60 N/A 28.89 L:N/A R:N/A 27.72 L:N/A R:N/A 26.40 L:N/A R:N/A 251 848.80 N/A 29.59 L:N/A R:N/A 28.47 L:N/A R:N/A 27.22 L:N/A R:N/A Band Channel Frequency (MHz) Conducted Power (dBm) TRP (dBm) NHPRP ±45° (dBm) NHPRP ±30° (dBm) FS SAM FS SAM FS SAM GPRS 1900 512 1850.20 N/A 28.26 L:N/A R:N/A 26.34 L:N/A R:N/A 24.71 L:N/A R:N/A 661 1880.00 N/A 28.60 L:N/A R:N/A 26.69 L:N/A R:N/A 25.14 L:N/A R:N/A 810 1909.80 N/A 28.48 L:N/A R:N/A 26.71 L:N/A R:N/A 25.16 L:N/A R:N/A Band Channel Frequency (MHz) Conducted Sensitivity (dBm) TIS (dBm) NHPIS ±45° (dBm) NHPIS ±30° (dBm) FS SAM FS SAM FS SAM GPRS 850 128 869.20 N/A -108.67 L:N/A R:N/A -107.94 L:N/A R:N/A -106.86 L:N/A R:N/A 190 881.60 N/A -108.45 L:N/A R:N/A -107.44 L:N/A R:N/A -106.37 L:N/A R:N/A 251 893.80 N/A -107.73 L:N/A R:N/A -106.85 L:N/A R:N/A -105.82 L:N/A R:N/A CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May HONE2_004_09001 Page 3 of 5 © Copyright by CETECOM Band Channel Frequency (MHz) Conducted Sensitivity (dBm) TIS (dBm) NHPIS ±45° (dBm) NHPIS ±30° (dBm) FS SAM FS SAM FS SAM GPRS 1900 512 1930.20 N/A -107.94 L:N/A R:N/A -106.52 L:N/A R:N/A -104.78 L:N/A R:N/A 661 1960.00 N/A -107.08 L:N/A R:N/A -105.69 L:N/A R:N/A -103.96 L:N/A R:N/A 810 1989.80 N/A -106.51 L:N/A R:N/A -105.17 L:N/A R:N/A -103.48 L:N/A R:N/A TABLE: B3 INTERMEDIATE CHANNEL RELATIVE SENSITIVITY - GSM Intermediate Channel Relative Sensitivity GSM Internal Antenna Band Intermediate Channels Free Space SAM Left Ear SAM Right Ear Low PASS N/A N/A Mid PASS N/A N/A 850 High PASS N/A N/A Intermediate Channel Relative Sensitivity GSM Internal Antenna Band Intermediate Channels Free Space SAM Left Ear SAM Right Ear Low PASS N/A N/A Mid PASS N/A N/A 1900 High PASS N/A N/A TABLE: B4 INTERMEDIATE CHANNEL RELATIVE SENSITIVITY - GPRS Intermediate Channel Relative Sensitivity GPRS Internal Antenna Band Intermediate Channels Free Space SAM Left Ear SAM Right Ear Low PASS N/A N/A Mid PASS N/A N/A 850 High PASS N/A N/A Intermediate Channel Relative Sensitivity GPRS Internal Antenna Band Intermediate Channels Free Space SAM Left Ear SAM Right Ear Low PASS N/A N/A Mid PASS N/A N/A 1900 High PASS N/A N/A CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May HONE2_004_09001 Page 4 of 5 © Copyright by CETECOM T ABLE : B5 P ASS F AIL R ESULTS TRP TIS TRP Limits (dBm) Pass / Fail / Informational Only TIS Limits (dBm) Pass / Fail / Informational Only Protocol/Band Device Power Class Free Space SAM Head FS SAM Head Free Space SAM Head FS SAM Head GSM850 Class 4 TBD TBD Informational Only Informational Only TBD TBD Informational Only Informational Only GSM1900 Class 1 TBD TBD Informational Only Informational Only TBD TBD Informational Only Informational Only GPRS850 Class 4 TBD TBD Informational Only Informational Only TBD TB…

Text truncated - open the document above for the full version.

EXHIBIT 5-1 CFS8DLLYNXPLUS / 573F-LYNXPLUS Report of Measurements . Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". RECEIVER RADIATED EMISSIONS are recorded in "EXHIBIT 5-5". LINE CONDUCTED EMISSIONS are recorded in "EXHIBIT 5-6". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV J JULY 09 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC IDCFS8DLLYNXPLUS Date : 11/23/2009 Tested by : G. Barbato Approved by : K. Eskildsen Test Sample (model) : 344.94 MHz Classic Lynx Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 7 Notes: (1) Fo = 345MHz. (2) Detector = Peak (3) Frequency range scanned to 4 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable/Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Duty Cycle (%) Corr. Reading (uV/M) Limit @ 3M (uV/M) 30 LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682 729 345v76.122.314.3743601.415.0%6540.27292 690v28.563.219.66372.415.0%55.9729 1035v30.804.425.221049.515.0%157.4500 1380v26.844.926.35802.615.0%120.4500 1725v26.175.527.49907.815.0%136.2729 2070v24.566.431.341303.215.0%195.5729 2415v26.016.931.811721.915.0%258.3729 2760 v 24.527.4 31.561492.815.0%223.9500 3105v25.277.932.341885.815.0%282.9729 3450v24.929.233.092293.515.0%344.0729 4000 LAST CAL 16 FEB 09 CABLE C LAST CAL 10 JUL 09 BICONILOG S/N:00045682

EXHIBIT 5-4 OCCUPIED BANDWIDTH MEASUREMENT CFS8DLLYNXPLUS / 573F-LYNXPLUS LYNXPLUS OCCUPIED BANDWIDTH: 184.4 KHz

EXHIBIT 5-5 CFS8DLLYNXPLUS / 573F-LYNXPLUS RADIATED EMISSIONS Honeywell EMC Radiated Emissions - 3 m chamber Class B vertical and horizontal 10.00M100.00M1.00G Frequency MHz 0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 Amplitude dBμV Control #: CLASSIC LYNX11:08:25 AM, Thursday, September 10, 2009 C:\Tile4\GREG5881\CLASSIC LYNX.TIL Operator: Greg Control # - CLASSIC LYNX Product type - CLASSIC LYNX Model # - Sample # - Aux equipment - Vertical Horizontal Vertical QP Horiz QP CISPR 22 Class B

EXHIBIT 5-6 CFS8DLLYNXPLUS / 573F-LYNXPLUS LINE CONDUCTED EMISSIONS Honeywell EN 55022, Class A/B Neutral Line 100.0K1.0M10.0M100.0M Frequency MHz 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 Amplitude dBμV Project #: CLASSIC LYNX11:35:08 AM, Thursday, September 10, 2009 C:\Tile4\GREG5881\CLASSIC LYNX COND.TIL Operator: GREG CLASSIC LYNX CLASSIC LYNX CLASSIC LYNX Neutral Scan Final_L2_QP Final_L2_Avg Quasi Pk Average Honeywell EN 55022, Class A/B Phase line 100.0K1.0M10.0M100.0M Frequency MHz 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 Amplitude dBμV Project #: CLASSIC LYNX11:25:59 AM, Thursday, September 10, 2009 C:\Tile4\GREG5881\CLASSIC LYNX COND.TIL Operator: GREG CLASSIC LYNX CLASSIC LYNX CLASSIC LYNX Phase Scan Final_L1_QP Final_L1_Avg CISPRB_QP CISPRB_AV EXHIBIT 5-6 CFS8DLLYNXPLUS / 573F-LYNXPLUS LINE CONDUCTED EMISSIONS (CONT.) NOTE: ‘NAN’ is returned by the test software if the value was greater than 20 db below the limit. LINE 1: 133.64 KHz NAN 51.280 NAN 25.365 NAN 135.51 KHz NAN 51.080 NAN 25.240 NAN 139.48 KHz NAN 50.720 NAN 24.758 NAN 145.55 KHz NAN 49.970 NAN 24.473 NAN 150.81 KHz 65.98 49.610 -16.367 23.980 -31.997 151.83 KHz 65.95 49.820 -16.128 23.770 -32.178 158.93 KHz 65.74 49.630 -16.115 22.970 -32.775 159.05 KHz 65.74 49.130 -16.611 23.230 -32.511 161.53 KHz 65.67 49.470 -16.201 23.163 -32.508 169.61 KHz 65.44 49.200 -16.240 22.710 -32.730 161.53 KHz 65.67 49.470 -16.201 23.163 -32.508 159.05 KHz 65.74 49.130 -16.611 23.230 -32.511 158.93 KHz 65.74 49.630 -16.115 22.970 -32.775 151.83 KHz 65.95 49.820 -16.128 23.770 -32.178 150.81 KHz 65.98 49.610 -16.367 23.980 -31.997 145.55 KHz NAN 49.970 NAN 24.473 NAN 139.48 KHz NAN 50.720 NAN 24.758 NAN 135.51 KHz NAN 51.080 NAN 25.240 NAN 133.64 KHz NAN 51.280 NAN 25.365 NAN LINE 2: 140.63 KHz NAN 50.700 NAN 24.660 NAN 145.09 KHz NAN 50.190 NAN 24.370 NAN 147.47 KHz NAN 50.170 NAN 24.245 NAN 148.46 KHz NAN 49.950 NAN 24.313 NAN 156.59 KHz 65.81 50.060 -15.752 23.550 -32.262 161.63 KHz 65.67 49.830 -15.838 23.280 -32.388 172.51 KHz 65.36 49.510 -15.847 22.988 -32.369 173.77 KHz 65.32 49.810 -15.511 22.828 -32.493 174.62 KHz 65.30 49.830 -15.467 22.950 -32.347 176.24 KHz 65.25 49.530 -15.720 22.907 -32.343 174.62 KHz 65.30 49.830 -15.467 22.950 -32.347 173.77 KHz 65.32 49.810 -15.511 22.828 -32.493 172.51 KHz 65.36 49.510 -15.847 22.988 -32.369 161.63 KHz 65.67 49.830 -15.838 23.280 -32.388 156.59 KHz 65.81 50.060 -15.752 23.550 -32.262 148.46 KHz NAN 49.950 NAN 24.313 NAN 147.47 KHz NAN 50.170 NAN 24.245 NAN 145.09 KHz NAN 50.190 NAN 24.370 NAN 140.63 KHz NAN 50.700 NAN 24.660 NAN

EXHIBIT 6 TEST EQUIPMENT USED CFS8DLLYNXPLUS / 573F-LYNXPLUS Section 15.231 and ANSI C63.4 This is a list of all test equipment used. Test Equipment list for Honeywell OATS: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer Rohde & Schwarz FSEA20 10/12/09 10/12/10 Spectrum Analyzer Rohde & Schwarz FSEA20 10/14/08 10/14/09 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 07/10/09 07/10/10 Transient Limiter HP 11947A 05/12/09 05/12/10 LISN EMCO 3825/2 10/16/09 10/19/10 LISN EMCO 3825/2 10/17/08 10/17/09 PLEASE SEE PAGE 2-5 FOR TEST EQUIPMENT TRACEABILITY If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 PICTURES OF THE TEST SETUP CFS8DLLYNXPLUS / 573F-LYNXPLUS SECTION 2.1093 (c) Photo of the test setup shall be provided. HONEYWELL’S OATS MEASUREMENT FACILITY AT: 2 CORPORATE CENTER DRIVE MELVILLE, NY 11747 SENSE ANT: HORZ, UUT VERT SENSE ANT: HORZ, UUT HORZ SENSE ANT: HORZ, UUT OBLQ SENSE ANT: VERT, UUT VERT SENSE ANT: VERT, UUT HORZ SENSE ANT: VERT, UUT OBLQ
