800-10225 Rev. A 10/11 L5000-Wi-Fi Communications Module INSTALLATION GUIDE About the Communications Module The L5000-W-Fi communications module is intended to provide compatible Honeywell LYNX Touch control panels with a Wi-Fi connection. Compatible Controls Control Firmware Level Field Update Rev Installation Guide LYNX Touch TBD 800-10614 QuickConnect Touch TBD TBD TBD The module connects directly to the control panel and is powered via the control panel’s connection. Mounting the Module Mount the module component side up in the control panel as shown in Figure 1. Ensure that module’s receptacle is securely seated on the control’s edge connector. 5000-100-205-V0 LYNX TOUCH RECEPTACLE EDGE CONNECTOR L5000-WiFi Figure 1. Installing the L5000-Wi-Fi Communications Module Programming Notes Programming associated with the L5000-Wi-Fi module is accomplished as part of the Control Panel Programming. Refer to the Control Panel Installation and Setup Guide for additional information. 1. The Remote Access Serial option must be set to “Enabled”. 2. The Multi Mode Serial option must be set to “Enhanced Reports”. Specifications Board Dimensions: 1.25” W x 2.875” L x 0.3125” D Current Drain: TBDmA nominal; TBDmA max Input Voltage: TBDVDC Wire Run Length: TBD ft max with TBD AWG unshielded wire Temperature: 32°F (0°C) to 140°F (60°C) REFER TO THE INSTALLATION AND SETUP GUIDE FOR THE CONTROL WITH WHICH THIS DEVICE IS USED FOR WARRANTY INFORMATION AND LIMITATIONS OF THE ENTIRE SYSTEM. FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENTS The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. FCC CLASS B STATEMENT This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information: This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • If using an indoor antenna, have a quality outdoor antenna installed. • Reorient the receiving antenna until interference is reduced or eliminated. • Move the radio or television receiver away from the receiver/control. • Move the antenna leads away from any wire runs to the receiver/control. • Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits. • Consult the dealer or an experienced radio/TV technician for help. INDUSTRY CANADA CLASS B STATEMENT ICES-003 Class B Notice - Avis NMB-003, Classe B This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC / IC STATEMENT This device complies with Part 15 of the FCC Rules, and RSS 210 of IC. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS 210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d' interferences nuisibles. (2) Cet appareil doit accepter toute interference reçue y compris les interferences causant une reception indésirable. RF Exposure WARNING: The L5000-Wi-Fi must be installed to provide a separation distance of at least 20 cm from all persons. 2 Corporate Center Drive, Suite 100 P.O. Box 9040, Melville, NY 11747 Copyright © 2011 Honeywell International Inc. www.honeywell.com/security Ê800-10225lŠ 800-10225 10/11 Rev. A

IN REGARDS TO ITEM C: We are applying for a Limited Modular Approval for the 573F-WIFI because the only host device which will house this module is our 573F-LYNXTOUCH2. The 573F-LYNXTOUCH2 supplies all necessary regulated voltages to the module to ensure compliance. IN REGARDS TO ITEM E: We are applying for a Limited Modular Approval for the 573F-WIFI because the only host device which will house this module is our 573F-LYNXTOUCH2. The 573F-LYNXTOUCH2 supplies all its digital control signals over a high speed SPI interface which cannot support a 10cm extension, additionally; the 573F-WIFI uses a connector unique to the 573F-LYNXTOUCH2. Modular Approval Checklist: Modular approval requirement Yes / No * * Please provide a detailed explanation if the answer is “No.” YES NO ( A ) . The radio elements must have the radio frequency circuitry shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. X . ( B ) . The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. X . . ( C ) . The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. X . ( D ) . The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. X . ( E ) . The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. . X . ( F ) . The module shall comply with the Category I equipment labeling requirements. . X . ( G ) . The module shall comply with applicable RSS-102 exposure requirements, which are based on the intended use/configurations. . . X . ( H ) . Is the modular device for an Industry Canada licensed exempt service? . X . 3.2.3 Limited Modular Approval (LMA) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured.

2 Corporate Center Drive Melville, NY 11747 516-577-2000 FCC COVER LETTER RE: FCC ID: CFS8DL6280ZW and FCC ID: CFS8DLWIFI To Whom It May Concern, During a recent audit of our CFS8DL6280ZW Wifi product we discovered that on two occasions when reports cited peak power we had inadvertently submitted average power readings. We have corrected our internal procedures to avoid this in the future and rewritten our: 15.247(b) Peak Power Exhibit's 1.1310, & 1.1307(b) MPE Exhibit's Since these corrections affect the reporting of power and MPE we wish to correct this error as soon as possible, and therefore ask that you set aside the grants so that we can update the information and grants. S incerely, Greg Barbato (516) 577-5863 Honeywell

EXHIBIT 4-1 CFS8DLWIFI / 573F-WIFI EXTERNAL PHOTOS ( NOTE: WIFI MODULE IS LOCATED INSIDE THE TOUCH2 ) TOP PLASTIC: BOTTOM PLASTIC:

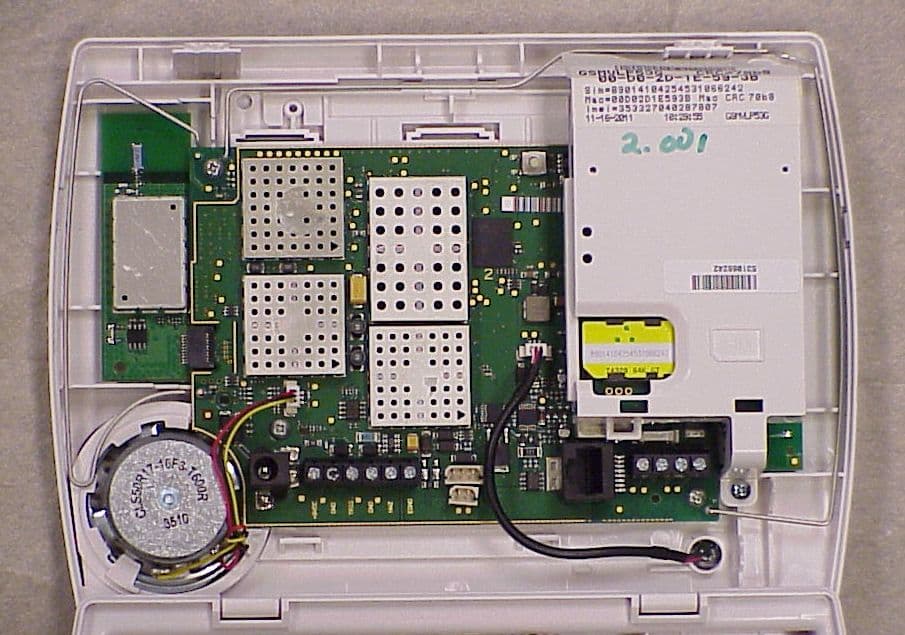

EXHIBIT 4-2A CFS8DLWIFI / 573F-WIFI WIFI MODULE INTERNAL PHOTOS THE WIFI MODULE IS A 'DROP-IN MODULE FOR USE IN THE LYNXTOUCH2: THIS IS THE MODULE (DAUGHTER BOARD) MOUNTED ON THE LYNXTOUCH2 (MOTHERBOARD): EXHIBIT 4-2A (CONT.) CFS8DLWIFI / 573F-WIFI WIFI MODULE INTERNAL PHOTOS (CONT.) TOP OF WIFI PCB: BOTTOM OF WIFI PCB:

EXHIBIT 8B CFS8DLWIFI / 573F-WIFI LABEL LOCATION AND INFORMATION: 1. PHOTO OF THE EXACT LABEL LOCATION ON THE BACK PLASTIC: EXHIBIT 8B ( CONT. ) CFS8DLWIFI / 573F-WIFI LABEL LOCATION AND INFORMATION ( CONT. ): EXACT LOCATION OF LABEL ON WIFI PCB

EXHIBIT 4-2B CFS8DLWIFI / 573F-WIFI WIFI MODULE INTERNAL PHOTOS THE WIFI MODULE IS A 'DROP-IN MODULE FOR USE IN THE LYNXTOUCH2: THIS IS THE MODULE (DAUGHTER BOARD) MOUNTED ON THE LYNXTOUCH2 (MOTHERBOARD): EXHIBIT 4-2B ( CONT. ) CFS8DLWIFI / 573F-WIFI TOP OF WIFI PCB: BOTTOM OF WIFI PCB: EXHIBIT 4-2B ( CONT. ) CFS8DLWIFI / 573F-WIFI TOP VIEW OF WIFI PCB WITH SHIELD REMOVED:

General Population/Uncontrolled Limits(mw/cm^2) Freq. = 2400 MHz Limit (S) = 1 <---- Self Calculating Enter Data in Log Units Gain = 1.35 Numeric 1.3 dBi Power = 44.06 mW 16.44 dBm EIRP = 59.43 mW 59.43 mW R (cm) = 2.17467854 cm S (20 cm)= 0.012 Uncontroll e

General Population/Uncontrolled Limits(mw/cm^2) Freq. = 2400 MHz Limit (S) = 1 <---- Self Calculating Enter Data in Log Units Gain = 1.35 Numeric 1.3 dBi Power = 45.50 mW 16.58 dBm EIRP = 61.38 mW 61.38 mW R (cm) = 2.21001422 cm S (20 cm)= 0.012 Uncontrolled

EXHIBIT 5-4A CONDUCTED RF MINIMUM 6DB BAND WIDTH CFS8DLWIFI / 573F-WIFI § 15.247 (2) Operation within the 2400–2483.5 MHz band. Systems using digital modulation techniques may operate in the 2400–2483.5 MHz band; provided that the minimum 6 dB bandwidth is at least 500 kHz. CHANNEL 1: The minimum 6 db bandwidth: 802.11b mode (11 Mbp) 802.11g mode (54 Mbp) 802.11n mode (65 Mbp) 10.2204 MHz 16.7134 MHz 17.8557 MHz CHANNEL 6: The minimum 6 db bandwidth: 802.11b mode (11 Mbp) 802.11g mode (54 Mbp) 802.11n mode (65 Mbp) 10.0400 MHz 16.6533 MHz 17.8557 MHz CHANNEL 11: The minimum 6 db bandwidth: 802.11b mode (11 Mbp) 802.11g mode (54 Mbp) 802.11n mode (65 Mbp) 10.1603 MHz 16.6533 MHz 17.9158 MHz

CHANNELS 1, 6, 11 WERE TESTED AND WORST CASE POWER SPECTRAL DENSITY REPORTED CHANNEL 6, 11 Mbp: -12.01 dbm CHANNEL 6, 54 Mbp: -22.34 dbm CHANNEL 6, 65 Mbp: -25.25 dbm

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.247 Intentional Radiated Emissions Test Report Test Lab: Rhein Tech Laboratories, Inc. Tel: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant: Honeywell International 2 Corporate Center Drive Tel: 516-577-5863 Melville, NY 11747 Contact: Greg Barbato FCC ID: IC ID: CFS8DLWIFI 573F-WIFI Test Report Date December 21, 2011 Platform N/A RTL Work Order Number 2011199 Model # WIFI RTL Quote Number QRTL11-295 American National Standard Institute ANSI C63.4-2003: Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz American National Standard Institute ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices FCC Classification DTS – Part 15 Digital Transmission System FCC Rule Part(s) FCC Rules Part 15.247: Operation within the bands 920-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Direct Sequence System (10-01-10) (Guidance per DA 00-705) I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 15 and, ANSI C63.4. Signature: Date: December 21, 2011 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories and Honeywell International. The test results relate only to the item(s) tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Honeywell International 360 Herndon Parkway Model #: WIFI Suite 1400 Standards: FCC 15.247 Herndon, VA 20170 FCC/IC ID: CFS8DLWIFI/573F-WIFI http://www.rheintech.com Report #: 2011199 Page 2 of 17 Table of Contents 1 General Information ............................................................................................................................... 4 1.1 Scope ................................................................................................................................................ 4 1.2 Description of EUT ............................................................................................................................ 4 1.3 Test Facility ....................................................................................................................................... 4 1.4 Related Submittal(s)/Grant(s) ........................................................................................................... 4 1.5 Modifications ..................................................................................................................................... 4 2 Test Information ..................................................................................................................................... 5 2.1 Description of Test Modes ................................................................................................................ 5 2.2 Exercising the EUT ........................................................................................................................... 5 2.3 Test Result Summary ........................................................................................................................ 5 2.4 Test System Details .......................................................................................................................... 6 2.5 Configuration of Tested System ........................................................................................................ 6 3 Radiated Emissions – FCC 15.209 ........................................................................................................ 7 3.1 Limits of Radiated Emissions Measurement ..................................................................................... 7 3.2 Radiated Emissions Measurement Test Procedure ......................................................................... 7 3.3 Radiated Emissions Test Results ..................................................................................................... 9 3.3.1 Radiated Emissions Harmonics/Spurious ................................................................................. 9 4 Conclusion ........................................................................................................................................... 15 Rhein Tech Laboratories, Inc. Client: Honeywell International 360 Herndon Parkway Model #: WIFI Suite 1400 Standards: FCC 15.247 Herndon, VA 20170 FCC/IC ID: CFS8DLWIFI/573F-WIFI http://www.rheintech.com Report #: 2011199 Page 3 of 17 Table Index Table 2-1: Frequencies Tested .............................................................................................................. 5 Table 2-2: Test Result Summary – FCC Part 15, Subpart C (Section 15.247) ...................................... 5 Table 2-3: Equipment Under Test .......................................................................................................... 6 Table 3-1: Radiated Emissions Test Equipment .................................................................................... 8 Table 3-2: 2412 MHz; 802.11b; 11 mbps; Channel 1; Average Mode ................................................... 9 Table 3-3: 2437 MHz; 802.11b; 11 mbps; Channel 6; Average Mode .................................................…

Text truncated - open the document above for the full version.

From: "Barbato, Greg (S&FS)" <[email protected]> To: Tim Johnson <[email protected]> Date: Wed, 21 Dec 2011 16:45:17 -0500 Subject: RE: Bandedge on CFS8DLWIFI Thread-Topic: Bandedge on CFS8DLWIFI Thread-Index: AQHMwCjvdjkuucivyk2e4oJAQzF+kJXm0tsQ Accept-Language: en-US X-MS-Exchange-Organization-AuthAs: Anonymous X-MS-Exchange-Organization-AuthSource: SERVER5.atcb4.atcb.com X-MS-Has-Attach: X-MS-Exchange-Organization-SCL: 0 X-MS-Exchange-Organization-PCL: 2 X-MS-TNEF-Correlator: acceptlanguage: en-US x-originating-ip: [158.100.89.48] x-ironport-av: E=Sophos;i="4.71,390,1320649200"; d="scan'208";a="60203254" x-ironport-anti-spam-filtered: true x-ironport-anti-spam-result: AogAAHxS8k4K2A45/2dsb2JhbABAA5tKkFeBBYFyAQEBBDpLAgICAQUDDQQEAQELFAkHGxcUCQgCBBMIv1YEiGyCPGMEmm6MRA x-sbrs: None Tim, Understood, and we will do a tabulation next time. Thank You, Greg -----Original Message----- From: Timothy R. Johnson [mailto:[email protected] ] Sent: Wednesday, December 21, 2011 4:39 PM To: Barbato, Greg (S&FS) Subject: Bandedge on CFS8DLWIFI Greg, This is an FYI...Kindly note that there is fundamental radiated data from Rhientech for Low/High channels. You also showed data for a delta on the bandedges. I have compared all the data and it does support compliance using a bandedge delta method. However to the typical reader, it is not obvious without looking at 2 different data sets, calculating the data, and then calculating the final bandedge delta level which would be compared to the 54 or 74 dBuV/m limits. While current comparison and further evaluation by the reader does show compliance, I would kindly ask that in the future this information is tabulated so that the average reader does not have to calculate everything out to determine if compliance is met. As an outside observer - remember the job of the data/reports is to SHOW compliance. The reader should normally not have to absorb and calculate the data to determine it was met. Thank You, Timothy R. Johnson, iNARTE Certified EMC Engineer (No. EMC-002205-NE) Examining Engineer American Certification Body, Inc. 6731 Whittier Ave., C110 McLean, VA 22101 email: [email protected] alternate email: [email protected] USA direct number: 404-414-8071 USA corporate phone: 703-847-4700 USA corporate fax: 703-84 7-6888 Page 1 of 1Barbato, Greg (SFS), 04:45 PM 12/21/2011 -0500, RE: Bandedge on CFS8DLWIFI 12/23/2011Printed for "Timothy R. Johnson" <[email protected]>

EXHIBIT 5-1 CFS8DLWIFI / 573F-WIFI Report of Measurements Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were m ade in accordance with the procedure and reporting requirements of ANSI C63.4-2004. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at a height of 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 100KH z. Fo r radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TX RF CONDUCTED is recorded in "EXHIBIT 5-3" OCCUPIED BANDWIDTH & BAND EDGES are recorded in "EXHIBIT 5-4". TX & RX UNINTENTIONAL RADIATED EMISSIONS are recorded in "EXHIBIT 5-5". LINE CONDUCTED EMISSIONS are recorded in "EXHIBIT 5-6". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

EXHIBIT 5-3A CONDUCTED PEAK POWER OUTPUT CFS8DLWIFI / 573F-WIFI Section 15.247(b) – Power output. This is an RF conducted test. Use a direct connection between the antenna port of the transmitter and the spectrum analyzer, through suitable attenuation. There are two options- either option can be used for DTS devices. Power Output Option 1 is a peak measurement. Power Output Option 1: Set the RBW greater than 6 dB bandwidth of the emission or use a peak power meter. Note: Since the 6 dB bandwidth of the emission is greater than 18 MHz, and the maximum Spectrum Analyzer RBW is 3 MHz, we will use a peak power meter. Test Setup: CHANNEL: DATA RATE: No: FREQUENCY: 11M 54M 65M 1 2.412 16.44 dbm 16.02 dbm 16.15 dbm 6 2.437 14.77 dbm 14.83 dbm 14.82 dbm 11 2.462 14.01 dbm 14.01 dbm 13.96 dbm

EXHIBIT 5-4A BAND EDGES CFS8DLWIFI / 573F-WIFI CH1 @ 11M CH1 @ 54M CH1 @ 65M EXHIBIT 5-4A BAND EDGES CFS8DLWIFI / 573F-WIFI CH11 @ 11M CH11 @ 54M CH11 @ 65M

EXHIBIT 5-5 CFS8DLWIFI 4573F-WIFI CLASS B RADIATED EMISSIONS Honeywell EMC Radiated Emissions Class B vertical and horizontal 10.00M100.00M1.00G Frequency MHz 0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 Amplitude dBμV Control #: honeywell-wifi-zwave-3G04:02:59 PM, Wednesday, December 07, 2011 C:\Tile4\Greg_B\honeywell-wifi-zwave-3G.TIL Operator: Greg Control # - honeywell-wifi-zwave-3G Product type - honeywell-wifi-zwave-3G Model # - Sample # - Contact - honeywell-wifi-zwave-3G Vertical Horizontal Vertical QP Horiz QP CISPR 22 Class B C:\Tile4\Greg_B\honeywell-wifi-zwave-3G.TIL 03:36:40 PM, Wednesday, December 07, 2011 Honeywell - 3 m Radiated Emissions 30 - 1000 MHz Top Vertical Control #: honeywell-wifi-zwave-3G Frequency Class B Vert peaks Quasi-peak Margin Turntable Mast Result MHz: limit dbμV dBμV/m dBμV/m (dB) angle (°) (cm) PF_vert 45.104 MHz 40.5 36.293 31.593 -8.867 295 163.9 PASS 88.387 MHz 40.5 28.923 26.913 -13.547 214 133 PASS 161.51 MHz 40.5 33.58 32.82 -7.64 235 113.7 PASS 165.54 MHz 40.5 32.856 26.696 -13.764 234 136.8 PASS 166.23 MHz 40.5 35.42 32.08 -8.38 236 129 PASS 172.23 MHz 40.5 27.575 20.325 -20.135 353 103 PASS 300.01 MHz 47.5 30.573 29.913 -17.547 282 103.8 PASS 372.0 MHz 47.5 40.009 38.649 -8.811 322 123.9 PASS 384.0 MHz 47.5 37.296 34.846 -12.614 313 117.2 PASS 798.0 MHz 47.5 41.459 37.709 -9.751 105 103.5 PASS Honeywell - 3 m Radiated Emissions 30 - 1000 MHz Top Horizontal Control #: honeywell-wifi-zwave-3G Frequency Class B Hor Pks Hor QP Margin Turntable Mast Result MHz: limit dBμV dBμV/M dBμV/M (dB) angle (°) (cm) PF_hor 159 MHz 40.5 34.156 28.806 -11.654 351 154.3 PASS 162 MHz 40.5 39.834 39.074 -1.386 159 169.1 PASS 164 MHz 40.5 27.368 30.148 -10.312 20 163.2 PASS 176 MHz 40.5 26.918 27.908 -12.552 164 129.3 PASS 532 MHz 47.5 39.221 34.361 -13.099 347 119.8 PASS 624 MHz 47.5 35.369 29.229 -18.231 271 104.8 PASS 798 MHz 47.5 39.152 36.732 -10.728 77 127 PASS 957 MHz 47.5 19.914 16.534 -30.926 262 118.3 PASS 984 MHz 47.5 40.046 29.316 -18.144 192 100.2 PASS 996 MHz 47.5 41.058 40.238 -7.222 195 100.7 PASS

EXHIBIT 5-6 CFS8DLWIFI 4573F-WIFI CLASS B CONDUCTED EMISSIONS PHASE LINE: Honeywell EN 55022, Class A/B Phase line 100.0K1.0M10.0M100.0M Frequency MHz 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 Amplitude dBμV Project #: TOUCH2 ALL MODULES04:15:46 PM, Wednesday, December 07, 2011 C:\Tile4\Greg_B\honeywell-wifi-zwave-3G-COND.TIL Operator: GREG TOUCH2 ALL MODULES TOUCH2 ALL MODULES TOUCH2 ALL MODULES Phase Scan Final_L1_QP Final_L1_Avg CISPRB_QP CISPRB_AV NEUTRAL LINE: Honeywell EN 55022, Class A/B Neutral Line 100.0K1.0M10.0M100.0M Frequency MHz 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 Amplitude dBμV Project #: TOUCH2 ALL MODULES04:17:27 PM, Wednesday, December 07, 2011 C:\Tile4\Greg_B\honeywell-wifi-zwave-3G-COND.TIL Operator: GREG TOUCH2 ALL MODULES TOUCH2 ALL MODULES TOUCH2 ALL MODULES Neutral Scan Final_L2_QP Final_L2_Avg Quasi Pk Average NOTE: THERE IS NO DATA TABLE FOR THE CLASS B CONDUCTED EMISSIONS BECAUSE THE PROGRAM RETURNS 'NULL DATA' WHEN ALL EMISSIONS ARE GREATER THAN 15 DB BELOW THE LIMIT.

EXHIBIT 6 TEST EQUIPMENT USED . Part 15.247, ANSI C63.4 , RSS 210 This is a list o f all test equipment used. Test Equipment list for Honeywell OATS & Conducted Line: Equipm ent Mfg Model Cal Date Cal Due Spectrum Analyzer HP 8563E 10/18/11 10/18/12 Spectrum Analyzer Rohde & Schwarz FSEA20 10/19/11 10/19/12 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 0 8/22/11 08/22/12 Antenna (HORN) ElectroMetrics RGA60 04/20/11 04/20/12 Surge Suppressor Agilent (HP) HP11947A 05/12/11 05/12/12 LISN Com-Power LI-115 10/20/11 10/20/12 Power Meter Gigatronics 8541 10/20/11 10/20/12 Peak Power Sensor(to 26 GHz) Gigatronics 80353A 10/20/11 10/20/12 LNA 1 to 26 GHz MITEQ AFS42-00102650 ------VERIFY BEFORE USE------- 1.5 to 12 GHz HPF'S MICROLAB HIGH PASS FILTERS ------VERIFY BEFORE USE------- PLEASE SEE PAGE 2-7 FOR TEST EQUIPMENT TRACEABILITY If you need any additional information from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected] Cert l.D.: 86798 An ESCO Technologies Company 1301 Arrow Point Drive Cedar Park, Texas 78613 (512) 531-6498 Operating Range: 80 MHz - 6 GHz Instrument Type: Biconilog (Type 5) Date Code: Afternate lD: 11242 Customer: HONEYWELL (NY) 26 - 1000 MHz, +/-0.9 dB; 1000 - 2000 MHz, +L0.8 dB; 2000 - 6000 MHz, +l-1 .2 dB 26 - 1000 MHz, +/-0.9 dB; 1000 - 2000 MHz, +10.8 dB; 2000 - 6000 MHz, +f l .3 dB 26 - 1000 MHz, +/-'1 .0 dB; 1000 - 2000 MHz, +l-1 .4 dgi 2000 - 6000 MHz, +12.3 dB Manufacturer: Model Number: ETS-Lindgren 31 49. s 000023192 22-Aug-11 3 meter, Horizontal and Vertical N'Jl,,r. K S\ETS.LINDGREIU- ;.:::;lii,-:,..,; *ffil"+ IACCREDITEDI Calibr.tlon taboreio.y Codltlc.to 1207,01 Certificate of Cal i bration Conformance Page I of 5 The instrument identifed below has been individually calibrated in compliance with the following standard(s): SAE, ARP-958 - 2003, Electromagnetic lnterference Measurement Antennas; Standard Calibration Method, Society of Automotive Engineers, Aerospace Recommended Practice. Fixed height, three antenna rotation, 1 meter separation. 3 meter separation performed per Annex C. Vertical calibration performed per above listed methodology. Environment: Laboratory MTE is maintained in a temperature controlled environment with ambient conditions from 18 to 28 C, relative humidity less than 90%. The instrument under test has been calibrated on an open air test site (OATS) with environment temperature conditions ranging from 0 to 40 C which has no known influences on measurement quality. Serial Number/ lD: 00045682 Tracking Number: Date Completed: Test Type: CalibrationUncertainty: 01m k=2, (95ok Confidence Level) 03m Test Remarks: Calibrated down to 26 MHz per customer request. Calibration Traceability: All Measuring and Test Equipment (MffE) identified below are traceable to the Sl units through the National lnstitute for Standards and Technology (NIST). Calibraiion Laboratory and Quality System controls are compliant with ISO/lEC 17025-2005 and ANSI/NCSL 2540-1 -1994. Standards and Equipment Used: Make / Model / Name / S/N / Recall Date Condition of Instrument Upon Receipt: In Tolerance to Internal Qualitv Standards On Release: In Tolerance to Internal Qualitv Standards Anritsu MS4623A Network Analyzer 99220119-Mar-12 This document provides traceability of measurements to recognized national standards using contrblled processes at the ETS-L|ndgren Calibration Laboratory. UncertaintieslistedarederivedfromthemethodsdescribedbyNlSTTechNotel29T. Thiscertificateandreportmaynotbereproduced,exceptinfull,withoutthe written approval of ETS-Lindgren Calibration Laboratory in accordance with ISO/IEC 1 7025-2005 and ANSI/NCSL 2540-1 -1994. QAF 1 1 27 (03/1 1 ) Calibration and fssued on 22-Aug-1
