CFS8DLWLE200N2WIRELESS-BGN 2X2 NETWORK MINI PCIE ADAPTER

Superior Performance for Multimedia Networking WLE200N2 is an 802.11n Single-Band wireless mini pci express Half Mini Card based on Atheros AR9287 chipset. It supports 2T2R (2- stream) function, which provides maximum data rate up to 300Mbps and improves the overall Wi-Fi coverage area. Secure Wireless Connection This Mini PCIe wireless card, WLE200N2, incorporated advanced security encryption, such as WPA, and WPA2, to help prevent users’ devices from malicious attacks. Half PCIe MINI CARD WLE200N2 WIRELESS-BGN 2 x 2 NETWORK MINIPCIE ADAPTER Features • Atheros HB97 reference design • IEEE 802.11n compliant and backward compatible with 802.11b/g • 2.4GHz Single-band 2 x 2 MIMO spatial multiplexing technique • Output Power up to 16dBm • Supports up to 300Mbps physical data rates • Multi-Country Roaming Supported • 2 x U.FL Antenna Connector • Complaint with PCI-Express Mini Card 1.1 Standard • Enhanced wireless security: WEP, WPA, WPA2 • Support Windows XP/ Vista, Win 7, Android by request Ordering Informaion ① Model Code Chipset Form Factor CARD INFORMATIONS WLE200N2 6A0000 AR9287 Half Size 802.11 b/g/n PCIe mini card c Configurations are subject to change without notice Please contact Compex sales representatives for other available configurations Technical Specifications Chipset AR9287 Host Interface PCI–Express 1.1 Standard Operating Voltage DC 3.3 V±9% Power Consumption Continue TX 570mA Continue Rx 530mA Antenna Connector 2 x U.FL Antenna Connector Output Power (2T) 802.11b: 16dBm ± 1.5dBm@11Mbps 802.11g: 11dBm ± 1.5dBm@54Mbps 802.11gn HT20: 12dBm ± 1.5dBm@MCS7 802.11gn HT40: 11dBm ± 1.5dBm@MCS7 Receive Sensitivity (2R) 802.11b: -88dBm ± 2dBm@11Mbps 802.11g: -70dBm ± 2dBm@54Mbps 802.11gn HT20: -67dBm ± 2dBm@MCS7 802.11gn HT40: -65dBm ± 2dBm@MCS7 IEEE 802.11b : 11Mbps 5.5Mbps2Mbps 1Mbps 54Mbps 48Mbps36Mbps24Mbps 18Mbps 12Mbps 9Mbps 6Mbps automatically IEEE 802.11g : Fallback to 5.5Mbps, 2Mbps, 1Mbps 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.) 20MHZ 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.) 1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.) Standards IEEE 802.11n : 40MHz 2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.) 2.412GHz ~ 2.462GHz (US & Canada) 2.412GHz ~ 2.472GHz (Europe) Frequency Range IEEE 802.11b/g/n: 2.412GHz ~ 2.484GHz (Japan) Modulation Techniques OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK Environment Specifications Operating: -20ºC to 70ºC Storage: -40ºC to 90ºC Humidity 5% to 95% (non-condensing) Weight ≤9g Dimension 30mm x 26.8mm x 3.45mm DIMENSIONS DRAWING Compex Systems Pte Ltd Compex (Suzhou) Co. Ltd 135 Joo Seng Road, PM Industrial Building #08-01, Singapore 368363 Tel: (65) 6286 2086 Fax: (65) 6280-9947 Email: [email protected] No. 12, ChuangTou Industrial Square, LouFeng North, Suzhou Industrial Park, Suzhou, Jiangsu Province, China 21122 Tel: (86)-512-62950031 Fax: (86)-512-62950032 Copyright © 2010 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to change without notice. DS: V1.0.1 Alex 120823 For more information, visit www.compex.com.sg IC Radiation Exposure Statement for Canada This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent is otropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. User manuals for transmitters equipped with detachable antennas shall also contain the following notice in a conspicuous location: This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste,ou dont le gain est supérieur au gain maximal indiqué, son…

Text truncated - open the document above for the full version.

Module approval cover letter I: The module have its own RF shielding II: The module must have buffered modulation/data inputs-Kindly refer the detailed description on the block diagram. III: The module have its own power supply regulation and kindly refer section 3.1 of the manual which detailed the power supply regulation. IV: The module have its own antenna. Kindly refer to the antenna list below: Frequency Band (GHz) Type Model No. Antenna Gain (dBi) 2.4 ~ 2.5 Dual Band Omni Directional Antenna SAA04-22008A 4.5 2.4 ~ 2.5 Omni Directional Antenna WD12020124G 2.0 For the N connector was reverse thread antenna, and the SMA connector was reverse connection, as show below: V: The module is tested in a stand-alone configuration via a test-kit. Please see section photographs of test configuration in the test report. VI: The module labeled with its permanently affixed FCC ID; VII: The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; VIII: The module comply with RF exposure requirements Sincerely, __________________ Mark Schmidt / Manager, Engineering Honeywell International Inc.

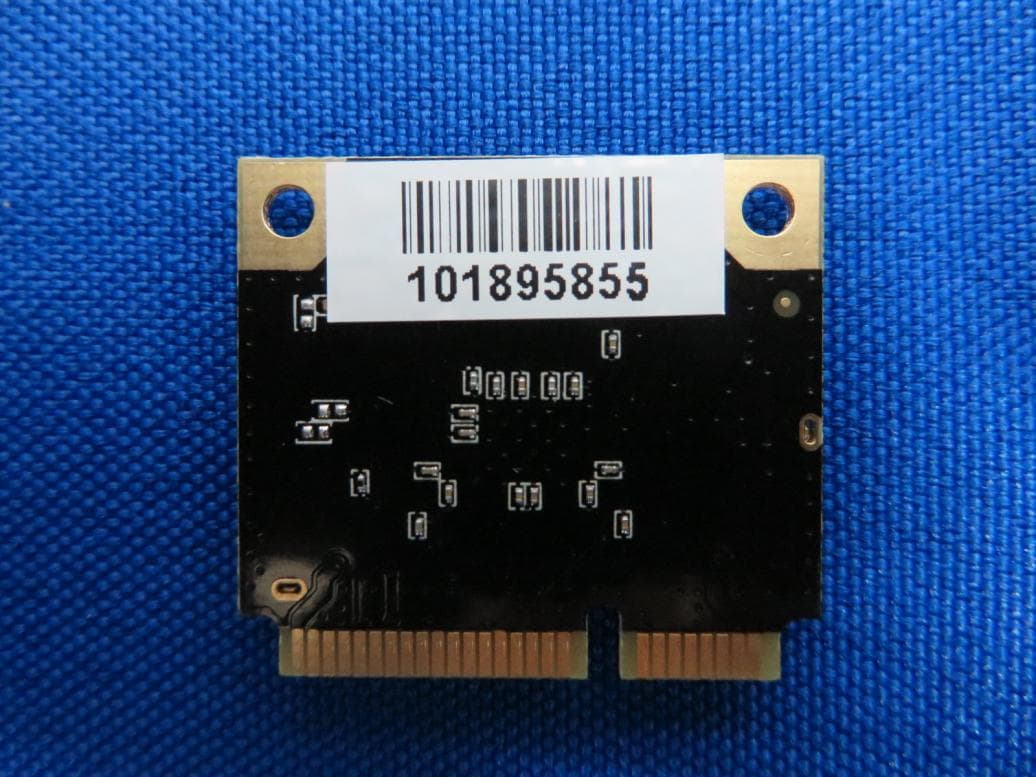

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (Antenna SAA04-22008A) (4) EUT Photo (Antenna WD12020124G)

Label Label Location

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1405RSU01002 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 05-19-2014 Web: www.mrt-cert.com FCC ID: CFS8DLWLE200N2 Page Number: 1 of 4 RF Exposure Evaluation Declaration FCC ID: CFS8DLWLE200N2 APPLICANT: Honeywell International Inc. Application Type: Certification Product: WIRELESS-BGN 2X2 NETWORK MINI PCIE ADAPTER Model No.: WLE200N2 Brand Name: Honeywell FCC Classification: Digital Transmission System (DTS) Test Date: February 07 ~ 17, 2014 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1405RSU01002 FCC ID: CFS8DLWLE200N2 Page Number: 2 of 4 Revision History Report No. Version Description Issue Date 1405RSU01002 Rev. 01 Initial report 05-19-2014 Report No.: 1405RSU01002 FCC ID: CFS8DLWLE200N2 Page Number: 3 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: P d = (P out *G)/(4*pi*r 2 ) Where P d = power density in mW/cm 2 P out = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm (The minimum distance is 20cm) P d is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1405RSU01002 FCC ID: CFS8DLWLE200N2 Page Number: 4 of 4 1.2. Test Result of RF Exposure Evaluation Product WIRELESS-BGN 2X2 NETWORK MINI PCIE ADAPTER Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.5dBi for 2.4GHz in logarithm scale. Output Average Power into Antenna: Test Mode Frequency Range (MHz) Maximum Average Output Power (dBm) Power Density at r = 20 cm (mW/cm 2 ) Limit of Power Density S(mW/cm 2 ) 802.11b/g/n-HT20 2412~2462 20.35 0.061 1 802.11n-HT40 2422~2452 20.42 0.062 1 Note: Antenna to user separation ≥ 20cm The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1405RSU01001 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 05-19-2014 Web: www.mrt-cert.com FCC ID: CFS8DLWLE200N2 Page Number: 1 of 205 MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11 b/g/n FCC ID: CFS8DLWLE200N2 APPLICANT: Honeywell International Inc. Application Type: Certification Product: WIRELESS-BGN 2X2 NETWORK MINI PCIE ADAPTER Model No.: WLE200N2 Brand Name: Honeywell FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009 KDB 558074 D01v03r01, KDB 662911 D01v02r01 Test Date: February 07 ~ 17, 2014 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1405RSU01001 FCC ID: CFS8DLWLE200N2 Page Number: 2 of 205 CONTENTS Description Page Revision History............................................................................................................................. 4 §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Description of Available Antennas ................................................................................ 7 2.3. Frequency / Channel Opreation .................................................................................... 7 2.4. Device Capabilities ....................................................................................................... 8 2.5. Test Configuration ........................................................................................................ 8 2.6. Test Software ............................................................................................................... 9 2.7. EMI Suppression Device(s)/Modifications ..................................................................... 9 2.8. Labeling Requirements ................................................................................................. 9 3. DESCRIPTION OF TEST ...................................................................................................... 10 3.1. Evaluation Procedure ................................................................................................. 10 3.2. AC Line Conducted Emissions ................................................................................... 10 3.3. Radiated Emissions ..................................................................................................... 11 4. ANTENNA REQUIREMENTS ................................................................................................ 12 5. TEST EQUIPMENT CALIBRATION DATA ............................................................................ 13 6. MEASUREMENT UNCERTAINTY ......................................................................................... 14 7. TEST RESULT ...................................................................................................................... 15 7.1. Summary .................................................................................................................... 15 7.2. 6dB Bandwidth Measurement ..................................................................................... 16 7.2.1. Test Limit ................................................................................................................ 16 7.2.2. Test Procedure used ............................................................................................... 16 7.2.3. Test Setting ............................................................................................................. 16 7.2.4. Test Setup ............................................................................................................... 16 7.2.5. Test Result .............................................................................................................. 17 7.3. Output Power Measurement ....................................................................................... 29 7.3.1. Test Limit ................................................................................................................ 29 7.3.2. Test Procedure Used .............................................................................................. 29 Report No.: 1405RSU01001 FCC ID: CFS8DLWLE200N2 Page Number: 3 of 205 7.3.3. Test Setting ............................................................................................................. 29 7.3.4. Test Setup ............................................................................................................... 29 7.3.5. Test Result .............................................................................................................. 30 7.4. Power Spectral Density Measurement ........................................................................ 34 7.4.1. Test Limit ........…

Text truncated - open the document above for the full version.

Report No.: 1405RSU01001 FCC ID: CFS8DLWLE200N2 Page Number: 86 of 205 7.6. Radiated Band Edge and Spurious Emission Measurement 7.6.1. Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [V/m] Measured Distance [Meters] 0.009 – 0.490 2400/F (kHz) 300 0.490 – 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2. Test Procedure Used KDB 558074 D01v03r01 – Section 12.2.3 (quasi-peak measurements) KDB 558074 D01v03r01 – Section 12.2.4 (peak power measurements) KDB 558074 D01v03r01 – Section 12.2.5 (average power measurements) 7.6.3. Test Setting Peak Field Strength Measurements per Section 12.2.4 of KDB 558074 D01v03r01 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Report No.: 1405RSU01001 FCC ID: CFS8DLWLE200N2 Page Number: 87 of 205 Average Field Strength Measurements per Section 12.2.5.1 of KDB 558074 D01v03r01 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = power average (RMS) 5. Number of measurement points = 1001 (Number of points must be > 2 x span/RBW) 6. Sweep time = auto 7. Trace (RMS) averaging was performed over at least 100 traces 7.6.4. Test Setup 9kHz ~ 30MHz Test Setup: 30MHz ~ 1GHz Test Setup: Report No.: 1405RSU01001 FCC ID: CFS8DLWLE200N2 Page Number: 88 of 205 1GHz ~18GHz Test Setup: 18GHz ~40GHz Test Setup: Report No.: 1405RSU01001 FCC ID: CFS8DLWLE200N2 Page Number: 89 of 205 7.6.5. Test Result of Radiated Spurious Emission Test Mode: 802.11b – Chain 0 Test Site: AC1 Test Channel: 01 Test Engineer: Roy Cheng Remark: 1. There is the ambient noise within frequency range 9kHz~30MHz and 18GHz~25GHz, the permissible value is not show in the report. 2. Average measurement was not performed if peak level lower than average limit. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 3187.6 36.0 3.6 39.6 87.1 -47.5 Peak Horizontal * 3597.2 37.1 4.0 41.1 87.1 -46.0 Peak Horizontal 4824.0 37.4 6.4 43.8 74.0 -30.2 Peak Horizontal 7258.0 36.2 13.9 50.1 74.0 -23.9 Peak Horizontal * 3218.5 39.8 3.5 43.3 87.1 -43.8 Peak Vertical * 3547.8 36.1 4.1 40.2 87.1 -46.9 Peak Vertical 4825.0 41.0 6.4 47.4 74.0 -26.6 Peak Vertical 7258.0 35.7 13.9 49.6 74.0 -24.4 Peak Vertical Note: 1. “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (107.1dBμV/m). 2. Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB) Report No.: 1405RSU01001 FCC ID: CFS8DLWLE200N2 Page Number: 90 of 205 Test Mode: 802.11b – Chain 0 Test Site: AC1 Test Channel: 06 Test Engineer: Roy Cheng Remark: 1. There is the ambient noise within frequency range 9kHz~30MHz and 18GHz~25GHz, the permissible value is not show in the report. 2. Average measurement was not performed if peak level lower than average limit. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 3183.5 35.7 3.6 39.3 87.3 -48.0 Peak Horizontal * 3497.3 36.7 3.9 40.6 87.3 -46.7 Peak Horizontal 4874.0 36.0 6.6 42.6 74.0 -31.4 Peak Horizontal 7311.0 34.3 14.0 48.3 74.0 -25.7 Peak Horizontal * 3217.5 36.1 3.5 39.6 87.3 -47.7 Peak Vertical * 3573.5 36.1 4.0 40.1 87.3 -47.2 Peak Vertical 4876.0 43.9 6.6 50.5 74.0 -23.5 Peak Vertical 7311.0 34.3 14.0 48.3 74.0 -25.7 Peak Vertical Note: 1. “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (107.3dBμV/m). 2. Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB) Report No.: 1405RSU01001 FCC ID: CFS8DLWLE200N2 Page Number: 91 of 205 Test Mode: 802.11b – Chain 0 Test Site: AC1 Test Channel: 11 Test Engineer: Roy Cheng Remark: 1. There is the ambient noise within frequency range 9kHz~30MHz and 18GHz~25GHz, the permissible value is not show in the report. 2. Average measurement was not performed if peak level lower than average limit. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 3185.4 35.6 3.6 39.2 87.5 -48.3 Peak Horizontal * 3590.2 36.1 4.0 40.1 87.5 -47.4 Peak Horizontal 4924.0 36.7 6.7 43.4 74.0 -30.6 Peak Horizontal 7386.0 34.3 14.1 48.4 74.0 -25.6 Peak Horizontal * 3286.5 39.1 3.2 42.3 87.5 -45.2 Peak Vertical * 3579.6 36.1 4.0 40.1 87.5 -47.4 Peak Vertical 4927.0 46.2 6.7 52.9 74.0 -21.1 Peak Vertical 7386.0 34.6 14.1 48.7 74.0 -25.3 Peak Vertical Note: 1. “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (107.5dBμV/m). 2. Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB) Report No.: 1405RSU01001 FCC ID: CFS8DLWLE200N2 Page Number: 92 of 205 Test Mode: 802.11b – Chain 1 Test Site: AC1 Test Channel: 01 Test Engineer: Roy Cheng Remark: 1. There is the ambient noise within frequency range 9kHz~30MHz and 18GHz~25GHz, the permissible value is not show in the report. 2. Average measurement was not performed if peak level lower than average limit. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 3183.6 35.0 3.6 38.6 89.3 -50.7 Peak Horizontal * 3590.5 35.9 4.0 39.9 89.3 -49.4 Peak Horizontal 4824.0 36.8 6.4 43.2 74.0 -30.8 Peak Horizontal 7256.0 36.7 13.9 50.6 74.0 -23.4 Peak Horizontal * 3218.5 38.6 3.5 42.1 89.3 -47.2 Peak Vertical * 3588.…

Text truncated - open the document above for the full version.

1 of 3 Test Setup Photo Description: Front view of Conducted Emission Test Setup Description: Back view of Conducted Emission Test Setup Description: Radiated Emission Test Setup for Below 30MHz Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for 1~18GHz Description: Radiated Emission Test Setup for Above 18GHz
