800-08932 5/11 Rev. A - 1 - 5800ZBRIDGE Z-Bridge Module INSTALLATION AND SETUP GUIDE GENERAL INFORMATION 5800ZBRIDGE is a wireless, intelligent energy management device that provides an interface between Z-Wave Modules and Honeywell LYNX Security Systems and VISTA Control Panels that are equipped with RF keypads. Note: The 5800ZBridge is not compatible with the 5800TM module. Features • Automatically set back Z-Wave enabled thermostat when security system is Armed AWAY. • Automatically turns lights off when security system is Armed AWAY. • Sends run command to Z-Wave enabled thermostat when security system is Disarmed. • Automatically turns lights on when security system is Disarmed. • Alarm Status light: Ready, Armed Away and Stay. • Will function with any Z-Wave device MOUNTING 1. Determine the optimum mounting location taking care to avoid damp locations. To maximize the transmitter’s range, avoid mounting the device to metal objects, if possible. The module should be located a maximum of 6 feet from an unswitched 120VAC outlet. 2. Open the 5800ZBRIDGE case as shown in Figure 1. 3. Mount the 5800ZBRIDGE using the provided screws. (Refer to Figure 2) 5800Z-002-V0 Figure 1. Opening the 5800ZBRIDGE POWER UP MODULE 1. Plug in 12VDC power supply, LED flashes ORANGE 3 times and then goes out. (Refer to Figure 2) PROGRAMMING Enroll 5800TM Code into Module 1. Press SW5 LEARN switch for 1 second and release. LED will begin flashing ORANGE. 2. Disarm or Arm the control panel (with 5800TM code turned on). The LED will stop flashing ORANGE and the color will follow status of the control panel. Note: The module will time out of program mode after 3 minutes if no TM code is enrolled. Table 1 - 5800ZBRIDGE LED Indications Indication Meaning Flashing Red Armed AWAY Steady Red Armed STAY Solid Green Ready Flashing Orange ALARM/Panic Note: Following an alarm, the User Code must be entered twice and the keypad must go to ready in order for the Z-Bridge Module to release thermostat setback and/or turn on lights. Enroll (include) Devices in Z-Wave Modules into 5800ZBRIDGE module 1. Press the corresponding switch (SW1 through 4) for 1 second and release for any combination of four Thermostats or Lights. (Refer to Figure 2) 2. The 5800ZBRIDGE LED will begin flashing Green. 3. Press button on the respective Z-Wave device to learn (include) the device. The 5800ZBRIDGE LED will stop flashing GREEN and return to status of control panel. 4. Repeat for each Z-Wave device as applicable. Note: The module will time out of program mode after 2 minutes if no Z-Wave device in enrolled (included). Reset 5800ZBRIDGE Module 1. Disconnect the 12VDC power supply. 2. Press and hold SW5 LEARN switch and then plug in 12VDC power supply. LED flashes Orange 5 times and then goes out. 3. Release switch SW5. TM code has been deleted and 5800ZBRIDGE has been deleted (excluded) from the Z-Wave network. - 2 - 4. Unplug the 12VDC power supply and plug it back in to the 5800ZBRIDGE. 5. Program the 5800ZBRIDGE in accordance with the PROGRAMMING section. Deleting (excluding) Z-Wave modules/devices Delete (exclude) Z-wave modules/devices from the 5800ZBRIDGE when they are no longer required. 1. Press and hold (5 seconds) the SW1, SW2, SW3 or SW4 switch as applicable to remove a device. 2. Release the switch. 3. The 5800ZBRIDGE LED will begin flashing RED. 4. Press the Z-Wave device to allow host to delete (exclude) the module. 5. The LED will stop flashing RED and return to status of security panel. Include/Exclude/Receive Primary Role of 5800ZBRIDGE to/from another Z-Wave Network 1. Set another Z-Wave controller into Include, Exclude, or Controller Shift mode. 2. Press and hold SW1 and SW2 on the 5800ZBRIDGE for 5 seconds, LED will blink between GREEN and ORANGE. Note: The LED will blink until process finishes or times out (5 seconds). 3. If the process: - is successful, the LED will turn GREEN - times out, the LED stops blinking - fails, the LED will turn RED Note: If the Z-Bridge has been removed from a network it is recommended the user/installer rest the Z-Bridge device. Relinquish (shift) Primary Role to another control within a Z-Wave Network 1. Press and Hold SW3 and SW4 on the 5800ZBRIDGE for 5 Seconds, LED will alternately blink RED and ORANGE. 2. Put other Z-Wave controller into Learn Mode Note: The LED will blink until process finishes or times out (30 seconds). 3. If the process: - is successful, the LED will turn GREEN - times out, the LED stops blinking - fails, the LED will turn RED TESTING 1. Test each device by arming and disarming security system. Armed AWAY = Thermostat Set back/ Energy Save mode Lights OFF Armed STAY = Thermostat normal/run mode Lights ON Disarm = Thermostat normal/run mode Lights ON MANUAL OPERATION Connect a jumper wire between screw terminals on the 5800ZBRIDGE. This will activate the device and send the Z-Wave setback command. 5800Z-001-V0 SW1 to SW4 TERMINALS MOUNTING HOLES (2) SW5 12 VDC POWER SUPPLY RECEPTACLE FIGURE 2. 5800ZBRIDGE FREQUENTLY ASKED QUESTIONS AND TROUBLESHOOTING Question Answer How many devices can the 5800ZBRIDGE control? 5800ZBRIDGE can control up to four (4) Z-Wave devices When I press the first 5800ZBRIDGE button the light flashes red one time and stops? Unplug the unit and plug it back in. After the System goes into alarm I entered the code but the 5800ZBRIDGE still blinks orange? The System needs to have a green ready on the keypad, you need to disarm the system again to clear the memory. - 3 - SPECIFICATIONS Dimensions: 4.5" H x 2.75" W x 0.25" D (114.3 mm x 69.85 mm x 6.35 mm) Power: 12VDC Power Supply Environmental Conditions: 14° to 122°F (-10° to 50°C) <90% RH (non-condensing) Frequency 345 MHz (from 5800 Series TM Code receiver) 908.42 MHz (from Z-Wave controller) Range Up to 100 feet (30.48 m) from 5800TM device and 75 feet (22.86 m) from Z-Wave device. Supports: Any combination of up to four Z-Wave enabled thermostats or Z-Wave enabled light devices Compatibility: …

Text truncated - open the document above for the full version.

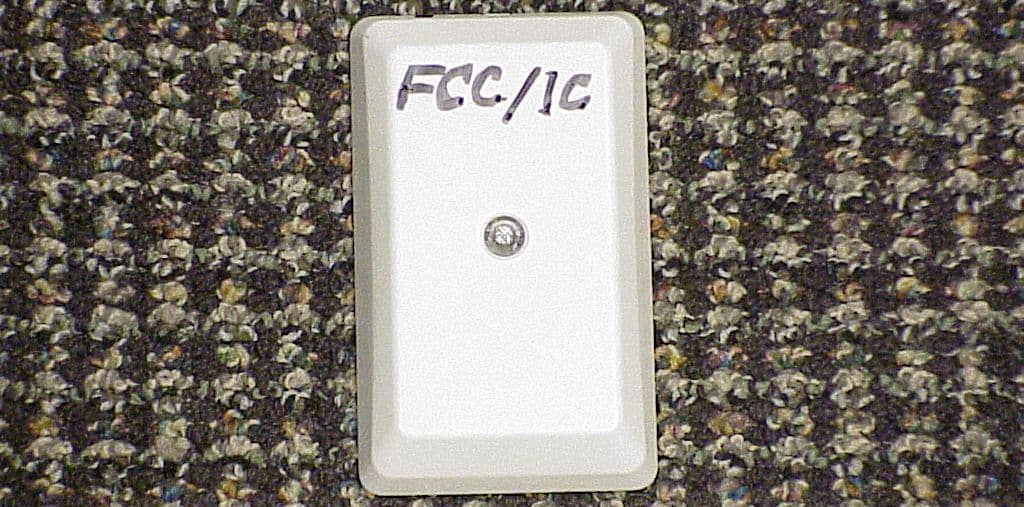

EXHIBIT 4-1 EXTERNAL PHOTOS CFS8DLZBDG / 573F-ZBDG TOP PLASTIC: BOTTOM PLASTIC:

EXHIBIT 8 LABEL CFS8DLZBDG / 573F-ZBDG SECTION 2.1033 (c) and Part 15.21 SECTION 2.1033 (c) Label and label location - A photo showing the identification label clearly (you must be able to see the name and FCC ID number), and the location on the device. In lieu of a photo for this, you may submit a engineer’s drawing. Part 15.21 & RSS 210 Statement - for all intentional and unintentional radiators is also printed on the label. All devices shall bear the following statement in a conspicuous location on the device: “ This device complies with Part 15 of the FCC Rules and RSS 210 of Industry Canada . Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “ The Label will also display the IC ID and IC Model Number. EXHIBIT 8 (CONT.) LABEL CFS8DLZBDG / 573F-ZBDG ENGINEERS DRAWING OF LABEL & LOCATION ON BACK PLASTIC

EXHIBIT 4-1 EXTERNAL PHOTOS CFS8DLZBDG / 573F-ZBDG PCB IN PLASTIC: TOP PCB: BOTTOM PCB:

EXHIBIT 5-1 CFS8DLZBDG / 573F-ZBDG Report of Measurements . Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2003. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no furt her increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". RECEIVER RADIATED EMISSIONS are recorded in "EXHIBIT 5-5". LINE CONDUCTED EMISSIONS are recorded in "EXHIBIT 5-6". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV L JULY 10 2 Corporate Center Drive Melville, NY 11747EXHIBIT 5-3FCC ID: Date : 03/18/2011 Tested by : G. BARBATO Approved by : K. Eskildsen Test Sample (model) : Z-WAVE BRIDGE Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 8 Notes: (1) Fo = 908.45 MHz. (2) Detector = Peak (3) Frequency range scanned to 10 GHz. Emissions not reported were more than 20dB below the specified unit. [(Meter reading + Cable/Amp factor + Antenna factor) / 20 )] (4) Conv. Reading = 10 (5) Corr. Reading = Conv. Reading X Duty Cycle (6) Six Highest Emissions Recorded Freq. (MHz) Antenna Polarity (V/H) Meter Reading (dB uV) Cable Loss & Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Corr. Reading ( mV/M ) Limit @ 3M CAL'ED BEFORE USE BICONOLOG . . 908.45v84.88-22.228.00-------34.250 mV/M 1,816.80v26.08-22.229.1344.7-------500 uV/M 2,725.20v36.32-15.832.00422.7-------500 uV/M 3,633.60v21.50-14.132.0093.9-------500 uV/M 4,542.00v23.27-11.831.81146.0-------500 uV/M 5,450.40v22.81-25.233.6036.3-------500 uV/M 6,358.80v28.57-23.934.0686.4-------500 uV/M 7,267.20 v 27.93 -23.635.71100.5-------500 uV/M 8,175.60v28.01-22.836.53122.2-------500 uV/M 9,084.50v28.05-19.636.74181.8-------500 uV/M CAL'ED BEFORE USE HORN . .

EXHIBIT 5-4 ZWAVE BRIDGE OBW PER: § 15.215 (c) Intentional radiators operating under the alternative provisions to the general emission limits, as contained in §§ 15.217 through 15.257 and in Subpart E of this part, must be designed to ensure that the 20 dB bandwidth of the emission, or whatever bandwidth may otherwise be specified in the specific rule section under which the equipment operates, is contained within the frequency band designated in the rule section under which the equipment is operated. The requirement to contain the designated bandwidth of the emission within the specified frequency band includes the effects from frequency sweeping, frequency hopping and other modulation techniques that may be employed as well as the frequency stability of the transmitter over expected variations in temperature and supply voltage. If a frequency stability is not specified in the regulations, it is recommended that the fundamental emission be kept within at least the central 80% of the permitted band in order to minimize the possibility of out-of-band operation. Since no specific bandwidth is called out in § 15.249 for the 902 to 928 MHz Band we are required by default to keep within the center 80 % of the 902 to 928 MHz band. Thus: 928 MHz - 902 MHz = 26 MHz X 20% = 5.2 MHz thus 2.6 MHz is equal to 10%. so the lower edge is 904.6 MHz and the upper edge is 925.4 MHz.

EXHIBIT 5-6 Z-WAVE BRIDGE CLASS B EMISSIONS: Honeywell EMC Radiated Emissions - 3 m chamber Class B vertical and horizontal 10.00M100.00M1.00G Frequency MHz 0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 Amplitude dBμV Control #: ZWAVE BRIDGE09:18:28 AM, Monday, March 21, 2011 C:\Tile4\Greg_B\ZWAVE-BRIDGE.TIL Operator: greg Control # - ZWAVE BRIDGE Product type - Transceiver Model # - ZWAVE BRIDGE Sample # - 03-21-2011 Aux equipment - Vertical Horizontal Vertical quasi-peak Horiz quasi-peak FCC_B NOTE: THERE IS NO DATA TABLE BECAUSE TEST PROGRAM RETURNS A "NULL-DATA" STATEMENT IF UNIT PASSES BY MORE THAN 10 DB.

EXHIBIT 5-6 Z-WAVE BRIDGE CONDUCTED LINE EMISSIONS: PHASE LINE: Honeywell EN 55022, Class A/B Phase line 100.0K1.0M10.0M100.0M Frequency MHz 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 Amplitude dBμV Project #: ZWAVE BRIDGE09:38:41 AM, Monday, March 21, 2011 C:\Tile4\Greg_B\ZWAVE-BRIDGE-COND.TIL Operator: GREG ZWAVE BRIDGE Transceiver ZWAVE BRIDGE Phase Scan Final_L1_QP Final_L1_Avg CISPRB_QP CISPRB_AV NEUTRAL LINE: Honeywell EN 55022, Class A/B Neutral Line 100.0K1.0M10.0M100.0M Frequency MHz 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 Amplitude dBμV Project #: ZWAVE BRIDGE09:40:18 AM, Monday, March 21, 2011 C:\Tile4\Greg_B\ZWAVE-BRIDGE-COND.TIL Operator: GREG ZWAVE BRIDGE Transceiver ZWAVE BRIDGE Neutral Scan Final_L2_QP Final_L2_Avg Quasi Pk Average NOTE: THERE IS NO DATA TABLE BECAUSE TEST PROGRAM RETURNS A "NULL-DATA" STATEMENT IF UNIT PASSES BY MORE THAN 10 DB.

EXHIBIT 6 TEST EQUIPMENT USED CFS8DLZBDG / 573F-ZBDG Part 15.231, ANSI C63.4 , RSS 210 This is a list of all test equipment used. Test Equipment list for Honeywell OATS & Conducted Line: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer HP 8563E 10/18/10 10/18/11 Spectrum Analyzer Rohde & Schwarz FSEA20 10/1 9/10 10/19/11 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 04/28/10 04/28/11 Antenna (HORN) ElectroMetrics RGA60 04/19/10 04/19/11 Surge Suppressor Agilent (HP) HP11947A 05/12/10 05/12/11 LISN Com-Power LI-115 10/21/10 10/21/11 LNA 2 to 22 GHz HP 8449A ------CAL BEFORE USE------- 1.5 to 12 GHz HPF'S MICROLAB HIGH PASS FILTERS ------CAL BEFORE USE------- PLEASE SEE PAGE 2-7 F OR TEST EQUIPMENT TRACEABILITY If you need any additional i nformation from Honeywell please contact: Greg Ba rbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577-5863 Email: [email protected]

EXHIBIT 5-2 PICTURES OF THE TEST SETUP CFS8DLZBDG / 573F-ZBDG SECTION 2.1093 (c) SECTION 2.1093 (c) Photo of the test setup shall be provided. SENSE: VERT UUT: VERT SENSE: VERT UUT HORZ SENSE: VERT UUT: OBK SENSE: HORZ UUT: VERT SENSE: HORZ UUT HORZ SENSE: HORZ UUT: OBK AT HONEYWELL’S OATS MEASUREMENT FACILITY AT: 2 CORPORATE CENTER DRIVE MELVILLE, NY 11747

EXHIBIT 5-2c CFS8DLZBDG / 573F-ZBDG PICTURE OF CONDUCTED (LISN) TEST SETUP NOTES: UUT LOCATED 80cm ABOVE THE FLOOR AND 40cm FROM EACH WALL

Tim, The photos were taken after setup had started to be taken down. There was a power cord connection during the testing. Greg From: Timothy R. Johnson [mailto:[email protected]] Sent: Friday, May 20, 2011 3:39 PM To: Barbato, Greg (S&FS) Subject: Starting test report the following was noted: 1) The device does not appear to be tested with any cables. The users manual supports the use of AC power adapter. Please review. 2) Test Photos for AC powerline do not appear to be provided. (although I'm still going through report and may not have seen yet...) Timothy R. Johnson, iNARTE Certified EMC Engineer (No. EMC-002205-NE) Examining Engineer American Certification Body, Inc. 6731 Whittier Ave., C110 McLean, VA 22101 email: [email protected] alternate email: [email protected] USA direct number: 404-414-8071 USA corporate phone: 703-847-4700 USA corporate fax: 703-847-6888 From: "Barbato, Greg (S&FS)" <[email protected]> To: Tim Johnson <[email protected]> Sub ject: RE: Starting test report Page 1 of 1In 5/20/2011Printed for "Timothy R. Johnson" <[email protected]>
