CFS8DLZWMZ-wave Module

2 Corporate Center Drive Melville, NY 11747 516-577-2000 To whom it may concern, The following information is being provided per the requirements of 15.212 regarding LIMITED MODULAR APPROVAL of part 15 devices. This transceiver is a complete RF Module with an integral reference oscillator ( please see EXHIBIT 2-2 & 2-3 ). All connections for power and data come from the CFS8DLLYNXTOUCH2 Mother Board. The following numbered items correspond to similarly numbered paragraphs in 15.212. each item is a response to the requirements of that document. 1. The module has integrated RF Shielding to isolate it from the surrounding equipment and the larger environment in general. 2. All inputs are processed as data or control come from the microprocessor on the CFS8DLLYNXTOUCH2 Mother Board. The outside user has no direct control over transmit modulation. 3. All supply voltages come from the CFS8DLLYNXTOUCH2 Mother Board, and are well regulated. ( please see EXHIBIT 2-2 & 2-3 ). 4. The antenna is a trace antenna integrated into the board, and was used in the certification of this module; as the antenna is integral to the module board there is no other antenna option. This is in accordance with 15.203. 5. Since we are applying for a LIMITED MODULAR APPROVAL we did not test in the stand alone configuration. Furthermore; it is impossible to use this module with any device except the CFS8DLLYNXTOUCH2 Mother Board. LMA testing showed our compliance with Part 15 regulations. 6. An FCC ID Label is applied to each module at the time of manufacture. Information is also clearly presented in the user guide about labeling requirements for the final assembly. 7. This unit is compliant with 15.24 9. Installation and other requirem ents presented in the user guide to allow the unit to be correct ly installed. 8. The unit is compliant with the RF Exposure requirements of Parts 15.249 and 2.1091 Furthe r information may be obtained from Honeywell International Inc. Sincerely, Greg Barbato Greg Barbato ( for Ken Eskildsen )

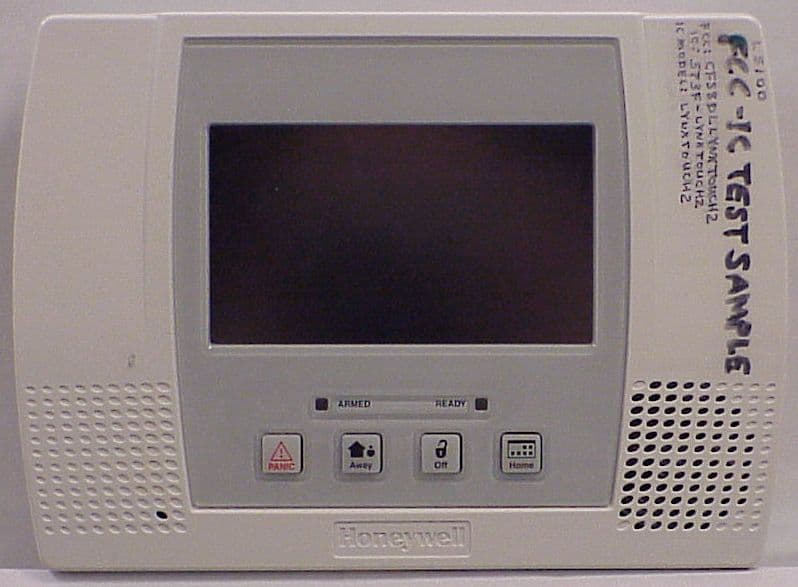

EXHIBIT 4-1 CFS8DLZWM / 573F-ZWM EXTERNAL PHOTOS: TOP PLASTIC: BOTTOM PLASTIC:

EXHIBIT 8 CFS8DLZWM / 573F-ZWM TOP OF MODULE SHOWING MODULE LABEL: MODULE LOCATION ON MOTHER BOARD: EXHIBIT 8 CFS8DLZWM / 573F-ZWM LABEL INFORMATION ( CONT. ) EXACT LOCATION OF THE MAIN AND AUXILIARY LABELS: ENGINEERS DRAWINGS OF THE MAIN AND AUXILIARY MODULE LABELS:

EXHIBIT 4-2 CFS8DLZWM / 573F-ZWM INTERNAL PHOTOS: PCB IN PLASTIC: TOP OF PCB: BOTTOM OF PCB:

EXHIBIT 5-1 CFS8DLZWM / 573F-ZWM Report of Measurements Measurements for the Intentional Radiator,and OBW were made in accordance with the procedures and reporting requirements at: Honeywell's OATS ( FCC No: 152762 & IC No:573F-1 ) which is located at: 2 Corporate Center Drive, Melville, NY 11747. Measurements were made in accordance with the procedure and reporting requirements of ANSI C63.4-2004. The Test Set-Up (C63.4 section 10.1.3) is shown in EXHIBIT 5-2; "Test Setup Photos". The sequence of testing (C63.4 section 10.1.7) for radiated emissions is as follows: A preliminary scan was conducted with the receiver antenna close to the EUT in order to identify the emission characteristics of the EUT (C63.4 section 8.3.1.1). The antenna and EUT were then placed at the proper separation ( 3 Meters) with the EUT positioned at a height of 80 cm on a non-conducting turntable. The EUT was rotated on the turntable to maximize the received signal strength, then the receiver antenna height was varied between one (1) and four (4) Meters to further maximize the received reading. Thereafter, the device was again rotated to a peak output position and the antenna height wa s re-adjusted for maximum received signal. This procedure was re-iterated until there was no further increase in signal level. This procedure was performed with the EUT rotating in three orthogonal planes (C63.4 section 13.1.4.1) to generate a final maximum reading which is recorded on the radiated emissions result sheet. Similar measurements were made on the receiver to ensure compliance as an unintentional radiator. Note, The Spectrum Analyzer resolution bandwidths set as follows; (Video Bandwidth is always set 3X greater than RBW) For occupied bandwidth measurements, RBW = 30KHz and VBW = 100KHz. For radiated emissions below 1 GHz, the RBW = 100kHz. Detector function set to peak. For radiated emissions above 1 GHz, the RBW = 1MHz. Detector function set to peak. TRANSMITTER RADIATED EMISSIONS are recorded in "EXHIBIT 5-3". OCCUPIED BANDWIDTH is recorded in "EXHIBIT 5-4". IF REQUIRED RECEIVER RADIATED EMISSIONS are recorded in "EXHIBIT 5-5". IF REQUIRED LINE CONDUCTED EMISSIONS are recorded in "EXHIBIT 5-6". TEST EQUIPMENT ( per C63.4 section 10.1.4) is recorded in "EXHIBIT 6".

HONEYWELL SECURITY & CUSTOM ELECTRONICSREV M SEPT 2011 2 Corporate Center Drive Melville, NY 11747FCC ID: Date : 01/20/2012 Tested by : G. BARBATO Approved by : K. Eskildsen Test Sample (model) : Test method: ANSI C63.4 - 2004 Test specification: FCC Part 15, Sub-part C and RSS 210 , Issue 8 Notes: (1) Fo = 908.4 2 MHz. (2) Detector = Peak (3) Frequency range scanned to 10 GHz. PRESCAN:Emissions not reported were more than 20dB below the specified unit. V/V 62.83 H/V 55.67 (4) Conv. Reading = 10 V/H 58.00 (5) Six Highest Emissions Recorded H/H 63.67 V/O 58.17 H/O 60.33 Freq. (MHz) FILTER USED: USE LNA?: CABLE USED?: Antenna Polarity (V/H) UUT Orientation (V/H/O) Meter Reading (dB uV) READING NOTES: Cable Loss & Amp Factor (dB) Antenna Factor (dB/m) Conv. Reading (uV/M) Conv. Reading ( mV/M ) Limit @ 3M . VERIFIED BEFORE USE BICONOLOG Model: 3149 s/n: 00045682 CAL 21 Aug 11 908.45NONE NOEHH63.67FUND.4.4121.59-------30.450 mV/M 1,816.80NONE NOEHH12.67NOISE FLOOR4.8728.23194.3------- 500 uV/M 2,725.20NONE NOEHH10.17NOISE FLOOR6.5332.83299.6------- 500 uV/M 3,633.60BYESEHO34.83VISIBLE-25.6731.90113.0------- 500 uV/M 4,542.00CYESEHO28.83NOISE FLOOR-24.0731.9668.5------- 500 uV/M 5,450.40CYESEHH31.17NOISE FLOOR-23.2933.47116.8------- 500 uV/M 6,358.80CYESEHV32.07NOISE FLOOR-21.7134.51175.2------- 500 uV/M 7,267.20 CYESE HH 32.21 NOISE FLOOR-21.7035.96210.6------- 500 uV/M 8,175.60CYESEHH31.87NOISE FLOOR-19.5736.54276.7------- 500 uV/M 9,084.50DYESEHH33.17NOISE FLOOR-19.8537.18335.0------- 500 uV/M VERIFIED BEFORE USE RGA 60 HORN S/N: 3127 LAST CAL 10 APR 11 ZWM CFS8DLZWM EXHIBIT 5-3B

EXHIBIT 5-4 CFS8DLZWM / 573F-ZWM ZWM OCCUPIED BANDWIDTH: 114.22 KHz

EXHIBIT 5-5 CFS8DLZWM / 573F-ZWM CLASS B RADIATED EMISSIONS

EXHIBIT 5-6 CFS8DLZWM / 573F-ZWM CLASS B CONDUCTED EMISSIONS PHASE LINE: Honeywell EN 55022, Class A/B Phase line 100.0K1.0M10.0M100.0M Frequency MHz 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 Amplitude dBμV Project #: TOUCH2 ALL MODULES04:15:46 PM, Wednesday, December 07, 2011 C:\Tile4\Greg_B\honeywell-wifi-zwave-3G-COND.TIL Operator: GREG TOUCH2 ALL MODULES TOUCH2 ALL MODULES TOUCH2 ALL MODULES Phase Scan Final_L1_QP Final_L1_Avg CISPRB_QP CISPRB_AV NEUTRAL LINE: Honeywell EN 55022, Class A/B Neutral Line 100.0K1.0M10.0M100.0M Frequency MHz 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 Amplitude dBμV Project #: TOUCH2 ALL MODULES04:17:27 PM, Wednesday, December 07, 2011 C:\Tile4\Greg_B\honeywell-wifi-zwave-3G-COND.TIL Operator: GREG TOUCH2 ALL MODULES TOUCH2 ALL MODULES TOUCH2 ALL MODULES Neutral Scan Final_L2_QP Final_L2_Avg Quasi Pk Average NOTE: THERE IS NO DATA TABLE FOR THE CLASS B CONDUCTED EMISSIONS BECAUSE THE PROGRAM RETURNS 'NULL DATA' WHEN ALL EMISSIONS ARE GREATER THAN 15 DB BELOW THE LIMIT.

EXHIBIT 6 TEST EQUIPMENT USED . Part 15.231, ANSI C63.4 , RSS 210 This is a list of all test equipment used. Test Equipment list for Ho neywell OATS & Conducted Line: Equipment Mfg Model Cal Date Cal Due Spectrum Analyzer HP 8563E 10/18/11 10/18/12 Spectrum Analyzer Rohde & Schwarz FSEA20 10/19/11 10/19/12 Antenna (‘Biconilog’) ETS (EMCO)Lindgren 3149 08/22/1 1 08/22/12 Antenna (HORN) ElectroMetrics RGA60 04/20/11 04/20/12 Surge Suppressor Agilent (HP) HP11947A 05/12/11 05/12/12 LISN Com-Power LI-115 10/20 /11 10/20/12 LNA 1 to 26 GHz MITEQ AFS42-00102650 ------VERIFY BEFORE USE------- 1.5 to 12 GHz HPF'S MICROLAB HIGH PASS FILTERS ------VERIFY BEFORE USE------- PLEASE SEE PAGE 2-7 FOR TEST EQUIPMENT TRACEABILITY If you need any additional in formation from Honeywell please contact: Greg Barbato RF Engineer (Acting for Ken Eskildsen) Phone (Direct): (516) 577 -5863 Email: greg.barbato@honey well.com Cert l.D.: 86798 An ESCO Technologies Company 1301 Arrow Point Drive Cedar Park, Texas 78613 (512) 531-6498 Operating Range: 80 MHz - 6 GHz Instrument Type: Biconilog (Type 5) Date Code: Afternate lD: 11242 Customer: HONEYWELL (NY) 26 - 1000 MHz, +/-0.9 dB; 1000 - 2000 MHz, +L0.8 dB; 2000 - 6000 MHz, +l-1 .2 dB 26 - 1000 MHz, +/-0.9 dB; 1000 - 2000 MHz, +10.8 dB; 2000 - 6000 MHz, +f l .3 dB 26 - 1000 MHz, +/-'1 .0 dB; 1000 - 2000 MHz, +l-1 .4 dgi 2000 - 6000 MHz, +12.3 dB Manufacturer: Model Number: ETS-Lindgren 31 49. s 000023192 22-Aug-11 3 meter, Horizontal and Vertical N'Jl,,r. K S\ETS.LINDGREIU- ;.:::;lii,-:,..,; *ffil"+ IACCREDITEDI Calibr.tlon taboreio.y Codltlc.to 1207,01 Certificate of Cal i bration Conformance Page I of 5 The instrument identifed below has been individually calibrated in compliance with the following standard(s): SAE, ARP-958 - 2003, Electromagnetic lnterference Measurement Antennas; Standard Calibration Method, Society of Automotive Engineers, Aerospace Recommended Practice. Fixed height, three antenna rotation, 1 meter separation. 3 meter separation performed per Annex C. Vertical calibration performed per above listed methodology. Environment: Laboratory MTE is maintained in a temperature controlled environment with ambient conditions from 18 to 28 C, relative humidity less than 90%. The instrument under test has been calibrated on an open air test site (OATS) with environment temperature conditions ranging from 0 to 40 C which has no known influences on measurement quality. Serial Number/ lD: 00045682 Tracking Number: Date Completed: Test Type: CalibrationUncertainty: 01m k=2, (95ok Confidence Level) 03m Test Remarks: Calibrated down to 26 MHz per customer request. Calibration Traceability: All Measuring and Test Equipment (MffE) identified below are traceable to the Sl units through the National lnstitute for Standards and Technology (NIST). Calibraiion Laboratory and Quality System controls are compliant with ISO/lEC 17025-2005 and ANSI/NCSL 2540-1 -1994. Standards and Equipment Used: Make / Model / Name / S/N / Recall Date Condition of Instrument Upon Receipt: In Tolerance to Internal Qualitv Standards On Release: In Tolerance to Internal Qualitv Standards Anritsu MS4623A Network Analyzer 99220119-Mar-12 This document provides traceability of measurements to recognized national standards using contrblled processes at the ETS-L|ndgren Calibration Laboratory. UncertaintieslistedarederivedfromthemethodsdescribedbyNlSTTechNotel29T. Thiscertificateandreportmaynotbereproduced,exceptinfull,withoutthe written approval of ETS-Lindgren Calibration Laboratory in accordance with ISO/IEC 1 7025-2005 and ANSI/NCSL 2540-1 -1994. QAF 1 1 27 (03/1 1 ) Calibration and fssued on 22-Aug-1 fssue Date:5l11l2AU General Calibration, Inc. 2 Mars Court, Boonton, New Jersey 07005 Phone (973)299-2950 Fax (973) 2994595 Certificate g; MR-18671 Purchase Order: 524758'2 Work Order #: MR450 Customer #: 0014,64 GENERAL CALIBMTION, INC. 2 MARS COURT 096188 Manufacturer: HP Description: TRANSIENTLIMITER D-epe rtm.enl;_".," "." T-epp,/RH;...." "_ ca],.lnlerya|.'- . c^af.-Qatp; ,- .,05"l1ila9j1 HONEYWELL SECURTTY (001464) 2 CORPORATE CENTER DRIVE MELVILLE. NY 11747 Asset Tag No.: 10131 ModelNumber: 119474 SerialNumber: 3107402782 22Ct45% tnspsetsd.Pyr .* *" UBl Jgb-Ide,..... --_ " _".[ilEnAmgSI 9slihrpli-o:Ssgu.lf; .** PA$"$HP -QaL,Due P"etp-;--^ ". -**0 111?3"12 12 MONTHS BOONTON. NJ O7OO5 Found In Tolerance and Left In 04t06t2012 GENERALCALIBRATION 503 SPECTRUM ANALYZER 04t1212012 GENERAL CALIBMTION 688 LEVEL GENEMTOR 03t14t2012 The above instrument has been checked and calibrated against the above working standard(s) which are,traceable to the NIST. The test limits stated in the report correspond to the published specifications of the equipment, at the points tested. Also, the collective uncertainties of measurement standards do not exceed 25olo of the tolerance- oj tle gngFqtgristics being^caljlgle_d, wheg,possible. The metrology procedures utitized conform to and satisry the requirements set forth in ANSI/NCSL 2540-1-1994, 10 CFR part 21, ISO 9001-2008, ISO 10012-2003, and M|L-STD 456624. Approved By t&do*na",& tWM:*"."*.,^-** General Calibration, Inc. - Q. A. Manager // .lilii.i(sffi s&lnnrrrrlS$s.N:uittl GENERAL CALIBRANON, INC. 2MARS COURT BOONTONNJOTOO5 ,,.:,.r;'f ll.tt,i.llWi Job No.: 076905 Manufaclu1gr: COM-POWER GENERAL CALIBRATION GENERAL CALIBRATION General Calibration, Inc. 2 Mars Court, Boonton, New Jersey 07005 Phone (973) 299-2950 Fax (973) 299-0595 DIGITAL MULTIMETER DIGITAL MULTIMETER Certihcate #: MR-19821 Work Order#: MR504 Customer #z 001464 :s.i.;lllt|l': wl r; (001464) #iiiiiiiilililliii.l 2 CORPORATE CENTER DRTVE MELVILLE,NY I1747 t.rlltrltit,tttuluuti,llliiliiiiliiiiilliii l||lllll$ffi b:i6$ssi*lltl'rl$tift{ ilrr,,,,,,rrtrt,tttitii::iiiiiiiitilltiiiiiliil* Asset Tag No.: Model Number: LI-l15 r1262 cal.Interval: 12 MONTH$_ . calibration Re_sull: ._PASSED 418 700 ',liilililltiiliiiiiiliiiliiitilitillllllllllllill$i'r;'..,',,l1'r'llllltlllllllltrlrl'rl.lii$i.lriiidiliff…

Text truncated - open the document above for the full version.

EXHIBIT 5-2 CFS8DLZWM / 573F-ZWM PICTURES OF THE ZWM UNDER TEST ( INSIDE A LYNX TOUCH ) SENSE ANT HORZ, UUT HORZ. SENSE ANT HORZ, UUT VERT. SENSE ANT HORZ, UUT OBLQ. SENSE ANT VERT, UUT HORZ. SENSE ANT VERT, UUT VERT. SENSE ANT VERT, UUT OBLQ. PICTURE OF THE SITE AT: 2 CORPORATE CENTER DRIVE MELVILLE, NY 11747 EXHIBIT 5-2-A CFS8DLZWM / 573F-ZWM PICTURE OF ZWB LINE CONDUCTED EMISSIONS TEST ( INSIDE A LYNX TOUCH )
