CGD-SF2Inductive Card Reader

Hardware components for VC4/VC5 Single Feeder 1 / Single Feeder 2 FEEDING PROM CPS4FSS CONTENTS page 1 General 1 2 Operation 2 3 Installation 3 4 Set Address 5 5 Adjust antenna 6 6 Output Configuration 7 7 Display values 8 8 Internal test menu 9 9 Trouble shooting 11 Fig. 1 Overview T/R SF model 1 PCB 12 Fig. 1a Overview T/R Single Feeder model 2 PCB 13 Fig. 2 SF model 1 Feeder cable connections 14 Fig. 2a Single Feeder model 2 cable connections 15 Fig. 3 Display menu CPS4FSS 16 4- 2012 Nedap Agri D300F.eng version 0.6 4/2012 T/R Single Feeding VC4 - 0 - D300F Version 0.6 FCC ID: CGD-SF2 IC: 1444A-SF2 Compliance statements (Part 15.19) This device complies with Part 15 of the FCC Rules and to RSS210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil se conforme aux normes RSS210 exemptés de license du Industry Canada. L'opération est soumis aux deux conditions suivantes: (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n'importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Warning (Part 15.21) Changes or modifications not expressly approved by party responsible for compliance could void the user’s authority to operate the equipment. This in particular is applicable for the antenna which can be delivered with this System. D300F T/R Single Feeding VC4 4/2012 Version 0.6 This documentation is part of the service manual VC4 CattleCode D300. Documentation version 0.6, replacing the last edition completely. Modifications since last documentation version : - FCC text added PROM overview CPS4FSS CPS4FSI 0.04 first release with inverse motor contact CPS4FSS 1.00 motor installation menu added CPS4FSS 2.00 - Menu of the Self test (St) is automatically adjusted to the found values during the output configuration test (Oc). - Modification of motor routine, analogue in stead of digital. - Modification for factory test : by pushing the button during start up the menu for tuning the HF-field will appear automatically. After pushing the button the responder test menu will appear. This function can also be used at installation/test. - Modification for single feeder 2 : extra in- and output squelch menu, SF depending on type CPS4FSS 3.00 Identification : The prom is capable to identify future phase-code activity responders. Feedmotor : The feedmotor may consume a higher current before the transmitter receiver signals an error. St Menu : The test menu will not jump automatically to the next menu item after testing an in- or output Relay output : When an output is configured as a relay output it is possible to block the feeding temporarily. The transmitter receiver will always first read the input before the output is activated. The program will only then continue to activate the outputs when the blocking input is ‘high’ (no connection with I-). Responder Selection : An AM code (X-ponder and Respactor) and a PM code (earbutton and phase code activity) can not be identified simultaneously. A selection item is introduced in the HF menu of the Single 2 transmitter receiver to select one of these modes. This selection item is called rS (responder select). You can make a choice between either rA, for AM code carriers, or rP voor de PM code carriers. Squelch : The adjustment of the squelch in four levels is re- introduced (0,-1,-2,-3 instead of on/of). The default value for the squelch level depends on the transmitter receiver type and the choice of code carrier. CPS4FSS 3.05 - Suitable for HC11E1 micro processor (yellow sticker) - SF2 with 4 outputs: operation of motor on output 4 improved - Menu settings for neutrodynistation have been added. - When overloaded, the time after which the transmitter/receiver switches the output off, is set higher. This means that during congestion or blockade of the auger the motor remains switched on longer. CPS4FSS 3.08 2-hour activity added (Lactivator) CPS4FSS 4.00 Program change for use with SF model 2, 3 and 4 4/2012 T/R Single Feeding VC4 - 1 - D300F Version 0.6 1 General The Transmitter/Receiver Single Feeding (T/R SF) is used for identifying and feeding animals in a feed station. Three or four motors can be connected. • 3 outputs T/R art. nr. 9845062 • 4 outputs T/R art. nr. 9863397 This transmitter/receiver can also be used for a floor antenna in the feed station for leg respactors, see special chapter at the end. CPS4FSS The name of the EPROM for the standard feed station is CPS4FSS x.xx. Description of the code : Cattlecode Poiesz Single feeder VC4 Feed Station Standard, x.xx = version number. This VC4 Transmitter / Receiver can only identify responders with a fast code (X- ponders and respactors) T/R-single 1 and T/R-single 2 The T/R-single 2 is the new generation hardware for the T/R-single. The PCB has been re-designed in order to meet the new EMC demands in Europe. Furthermore, the board has been extended with a 4th motor connection. The motor connections are now fully protected against over-voltage and short circuiting. In this module, the existing generation Single feeder hardware will be referenced as T/R-single 1, to distinguish it from the redesigned version, the T/R-single 2. T/R-single 2 : new motor brake circuit On the T/R-single 2 PCB the motor control circuitry has been changed. The new motor connections include a common brake circuitry, that is used to slow motors down quickly. When an T/R-single 1 board is replaced by a T/R-single 2 board, please check the parking-position of the motors that are connected. For every motor connection (output), the use of the new brake circuit has to be enabled. This can be done by means of the “brake jumpers”. These jumpers to the left (“BRAKE” or “BR”) enables the brake system for the corresponding motor. The brake system …

Text truncated - open the document above for the full version.

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 24 April 2012 Subject: Attestation of Similarity FCC ID: CGD-SF2 Dear Mrs. Bosley, The device with Model: VC4 SF2 as mentioned in report “12_12021502.fcc01_VC4 SF2_FCC-IC_report CGD-SF2.pdf” is a transceiver operating on 134.2 kHz for the identification of animals. Model: VC4 SF2 is delivered by Nedap directly to its dealers and/or end users. Nedap also delivers 1 more Model: VC4 SF2 GEA, which is electronically as well as mechanically the same as the Model: VC4 SF2 only the color of the enclosure differs and the Brand name GEA is printed on the enclosure. This Model: VC4 SF2 GEA is delivered to GEA who in turn deliver it to its their dealer and/or end users. I thereby wish to request whether you can add this model to the list of approved systems. I hope you can honor our request Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap” Jacques Hulshof Approbation Management

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Groenlo, 25 April 2012 Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Dear Mrs. Bosley, We, N.V. Nederlandsche Apparatenfabriek "Nedap", we hereby would like to apply for FCC certification of the following device: FCC ID : CGD-SF2 FRN : 0007696149 Brands : Nedap and GEA Models : VC4 SF2 and VC4 SF2 GEA Description : 134.2 kHz Inductive RFID Card Reader with an integral antenna and external antennas The following PDF files (exhibits) are electronically submitted: 1. Cover letter (this document) 2. Request of confidentiality 3. Form 731 4. Antenna information 5. Bill of material transmitter 6. Circuit diagram transmitter 7. Block diagram 8. Interior photograph report 9. Exterior photograph report 10. FCC ID Label artwork and Label location 11. Technical description and block diagram of the system including description. 12. Test report in conformity with 47 CFR Part 15 13. Test setup photographs 14. User manual 15. Attestation of Similarity 16. Schematics of the system Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap“ Jacques Hulshof Approbation Management

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 25 April 2012 Subject: Request of Confidentiality FCC ID: CGD-SF2 Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules we herewith request the following exhibits, related to this application for Description : 134.2 kHz Inductive RFID Card Reader with integral and external antennas FCC ID : CGD-SF2 IC : 1444A-SF2 Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brands : Nedap and GEA Models : VC4 SF2 and VC4 SF2 GEA to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than N.V. Nederlandsche Apparatenfabriek "NEDAP" and TÜV Rheinland Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. Theory of operation (technical description) The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, N.V. Nederlandsche Apparatenfebriek “Nedap” Jacques Hulshof Approbation Management

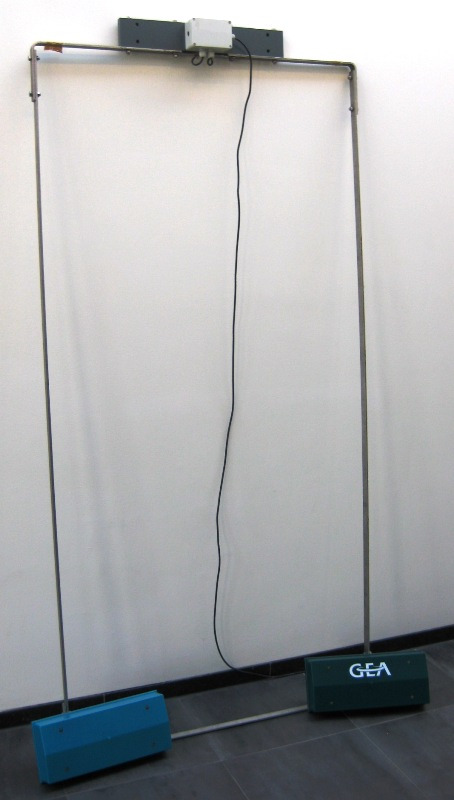

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Groenlo, 25 April 2012 Antenna information Description : 134.2 kHz Inductive RFID Card Reader with integral and external antennas FCC ID : CGD-SF2 IC : 1444A-SF2 Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brands : Nedap and GEA Models : VC4 SF2 and VC4 SF2 GEA 1. Integral Antenna Type : Inductive O-Antenna Material : Copper Wire Number of turns : 32 Wire thickness : 0.45 mm Dimensions : 340 x 120 mm See the diagram below. N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. 2. External Floor Antenna Type : Inductive O-Antenna Material : Steel Number of turns : 1 Material dimension : 20 x 5 mm Dimensions : 1200 x 800 mm See the diagram below N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. 3. External Walk Through Antenna Type : Inductive O-Antenna Material : Steel Number of turns : 1 Material dimension : 25 x 6 mm Dimensions : 1948 x 988 mm Jacques Hulshof 1984 mm 988 mm

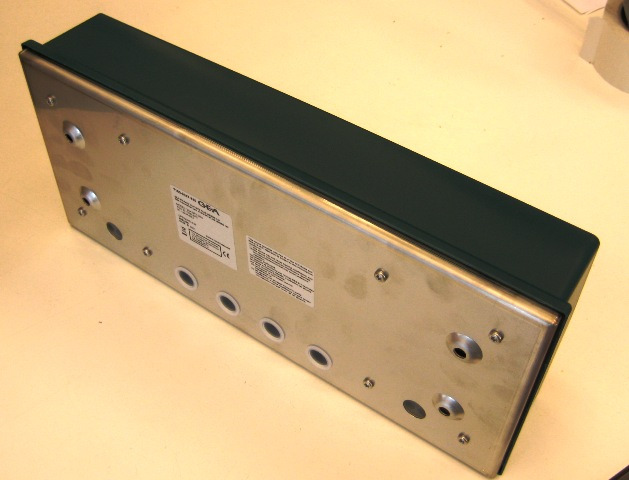

Page 1 of 6 Inductive RFID Proximity Card Reader operating on 134.2 kHz Brands Nedap and GEA Models VC4 SF2 and VC4 SF2 GEA Exterior Photographs Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA1103 CGD-SF2 1444A-SF2 Page 2 of 6 Description of item Description of EUT : Inductive RFID Proximity Card Reader operating on 134.2 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap and GEA Models : VC4 SF2 and VC4 SF2 GEA FCC ID CGD-SF2 IC 1444A-SF2 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 24 April 2012 Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA1103 CGD-SF2 1444A-SF2 Page 3 of 6 Table of contents 1 SYSTEM OVERVIEW INCLUDING THE ANTENNAS ............................................................................................................. 4 1.1 VC4 SF2 AND WALK THROUGH ANTENNA ..................................................................................................................................... 4 1.2 VC4 SF2 WALK OVER ANTENNA ................................................................................................................................................... 5 1.3 VC4 SF2 WITH THE INTEGRAL ANTENNA ...................................................................................................................................... 5 2 VC4 SF2 ENCLOSURE ..................................................................................................................................................................... 6 2.1 FRONT SIDE ................................................................................................................................................................................... 6 2.2 BACK SIDE ..................................................................................................................................................................................... 6 Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA1103 CGD-SF2 1444A-SF2 Page 4 of 6 1 System overview including the antennas 1.1 VC4 SF2 and walk through antenna Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA1103 CGD-SF2 1444A-SF2 Page 5 of 6 1.2 VC4 SF2 walk over antenna 1.3 VC4 SF2 with the integral antenna Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA1103 CGD-SF2 1444A-SF2 Page 6 of 6 2 VC4 SF2 enclosure 2.1 Front side 2.2 Back side

Page 1 of 8 Inductive RFID Proximity Card Reader operating on 134.2 kHz Brands Nedap and GEA Models VC4 SF2 and VC4 SF2 GEA Label Location and artwork Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 2 of 8 Description of item Description of EUT : Inductive RFID Proximity Card Reader operating on 134.2 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brands : Nedap and GEA Models : VC4 SF2 and VC4 SF2 GEA FCC ID CGD-SF2 IC 1444A-SF2 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 24 April 2012 Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 3 of 8 Table of contents 1 LABEL LOCATION VC4 SF2 ................................................................................................................................................ 4 2 ID, MODEL AND WARNING LABELS ................................................................................................................................ 4 2.1 MODEL VC4 SF2 ................................................................................................................................................................. 4 2.2 MODEL VV4 SF2 GEA ........................................................................................................................................................ 5 2.3 FCC ID, IC AND MODEL NUMBER LABEL VC4 SF2 .............................................................................................................. 5 2.4 FCC ID, IC AND MODEL NUMBER LABEL VC4 SF2 .............................................................................................................. 6 2.5 COMPLIANCE - OR WARNING STATEMENT ON THE VC4 SF2 ............................................................................................... 6 3 ARTWORK ............................................................................................................................................................................... 7 3.1 ARTWORK OF THE VC4 SF2 ................................................................................................................................................. 7 3.2 ARTWORK VC4 SF2 GEA .................................................................................................................................................... 7 3.3 ARTWORK OF THE COMPLIANCE STATEMENT ....................................................................................................................... 8 Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 4 of 8 1 Label location VC4 SF2 2 ID, Model and Warning labels 2.1 Model VC4 SF2 Model, IC and FCC ID Compliance statement Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 5 of 8 2.2 Model VV4 SF2 GEA 2.3 FCC ID, IC and model number label VC4 SF2 Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 6 of 8 2.4 FCC ID, IC and model number label VC4 SF2 2.5 Compliance - or Warning Statement on the VC4 SF2 Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 7 of 8 3 Artwork 3.1 Artwork of the VC4 SF2 3.2 Artwork VC4 SF2 GEA Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 8 of 8 3.3 Artwork of the compliance statement

Page 1 of 6 Inductive RFID Proximity Card Reader operating on 134.2 kHz Brands Nedap and GEA Models VC4 SF2 and VC4 SF2 GEA Interior Photographs Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 2 of 6 Description of item Description of EUT : Inductive RFID Proximity Card Reader operating on 134.2 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap and GEA Models : VC4 SF2 and VC4 SF2 GEA FCC ID CGD-SF2 IC 1444A-SF2 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 24 April 2012 Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 3 of 6 Table of contents 1 FRONT SIDE OF THE VC4 SF2 ENCLOSURE ...................................................................................................................... 4 2 INTERNAL COMPONENTS ...................................................................................................................................................... 4 2.1 PHOTO TAKEN FROM THE ELECTRONICS SIDE OF THE VC4 SF2 ............................................................................................... 4 2.2 DETAILED PHOTO OF THE ELECTRONICS ................................................................................................................................... 5 3 THE TRANSMITTER RECEIVER MODULE ........................................................................................................................ 5 3.1 FRONT SIDE TOP ........................................................................................................................................................................ 5 3.2 BACK SIDE OF THE TRANSMITTER ............................................................................................................................................. 6 Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 4 of 6 1 Front side of the VC4 SF2 enclosure 2 Internal components 2.1 Photo taken from the electronics side of the VC4 SF2 Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 5 of 6 2.2 Detailed photo of the electronics 3 The transmitter receiver module 3.1 Front side top Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 SF2 and VC4 SF2 GEA CGD-SF2 1444A-SF2 Page 6 of 6 3.2 Back side of the transmitter

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 37 9350 AA Leek (NL) Eiberkamp 10 9351 VT Leek (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.tuv-eps.com Project number: 12021502.fcc01_Rev01 Page 1 of 19 TEST REPORT CONCERNING THE COMPLIANCE OF A INDUCTIVE PROXIMITY TAG READER OPERATING AT 134.2 kHz INCLUDING A MOTOR AND SENSOR CONTROL UNIT BRAND Nedap, MODEL VC4 SINGLE 2 ISO FDX-B WITH 47 CFR PART 15 (10-1-09) AND THE REQUIREMENTS OF INDUSTRY CANADA: RSS-GEN (ISSUE 3, DECEMBER 2010) AND RSS-210 (ISSUE 8, DECEMBER 2010). 12021502.fcc01_Rev01 June 28, 2012 FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-2 R-1518, C-1598 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15 134.2 kHz Inductive RFID Tag Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VC4 SINGLE 2 ISO FDX-B CGD-SF2 1444A-SF2 Project number : 12021502.fcc01_Rev01 Page 2 of 19 MEASUREMENT/TECHNICAL REPORT N.V. Nederlandsche Apparatenfabriek “Nedap” Model: VC4 SINGLE 2 ISO FDX-B FCC ID: CGD-SF2 IC: 1444A-SF2 This report concerns: Original grant/certification Class 2 change Verification Equipment type: Inductive RFID tag reader Report prepared by: Name : R.A. van der Meer Company name : TÜV Rheinland EPS B.V. Address : Eiberkamp 10 Postal code/city : 9351 VT Leek Mailing address : P.O. Box 37 Postal code/city : 9350 AA Leek Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 (10-1-09 edition), RSS-GEN, RSS-210 and the measurement procedures of ANSI C63.4-2009. TÜV Rheinland EPS B.V. at Leek, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: June 28, 2012 Signature: O. Hoekstra Senior Engineer Telecom TÜV Rheinland EPS B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15 134.2 kHz Inductive RFID Tag Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VC4 SINGLE 2 ISO FDX-B CGD-SF2 1444A-SF2 Project number : 12021502.fcc01_Rev01 Page 3 of 19 Summary The device under test does: fulfill the general approval requirements as identified in this test report o not fulfill the general approval requirements as identified in this test report Description of test item Test item : Inductive RFID tag reader, operating on 134.2 kHz including a motor and sensor control unit. Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : VC4 SINGLE 2 ISO FDX-B Serial number : C125 D 0001 FCC ID : CGD-SF2 IC : 1444A-SF2 Applicant information Applicant's representative : Mr. J. Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo Country : The Netherlands Telephone number : +31 544 471 162 Telefax number : +31 544 466 475 Test(s) performed Location : Leek Test(s) started : March 9, 2012 Test(s) completed : March 23, 2012 Purpose of test(s) : Equipment Authorization (Original grant/certification) Test specification(s) : 47 CFR Part 15 (10-1-09 Edition) and RSS-GEN (ISSUE 3, DECEMBER 2010) AND RSS-210 (ISSUE 8, DECEMBER 2010) Test engineer(s) : M.C. Edwards van Muyen / R.A. van der Meer Report written by : R.A. van der Meer Report date : June 28, 2012 This report shall not be reproduced, except in full, without the written permission of TÜV Rheinland EPS B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15 134.2 kHz Inductive RFID Tag Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VC4 SINGLE 2 ISO FDX-B CGD-SF2 1444A-SF2 Project number : 12021502.fcc01_Rev01 Page 4 of 19 Table of contents 1 General information. .............................................................................................................................................. 5 1.1 Product description. ........................................................................................................................................ 5 1.1.1 Introduction. ............................................................................................................................................ 5 1.2 Related submittal(s) and/or Grant(s). ............................................................................................................. 5 1.2.1 General. .................................................................................................................................................. 5 1.3 Tested system details. .................................................................................................................................... 5 1.4 Test Summary ................................................................................................................................................ 7 1.4.1 Description of input and output ports. ..................................................................................................... 8 1.5 Test methodology. ...........................................................................................…

Text truncated - open the document above for the full version.
