CGD-TF2Inductive Card Reader

Hardware components for VC4/VC5 Twin Feeder 2 SEPARATION SEPARATION/WEIGHING CPT4SBS CONTENTS page 1 General 2 2 Operation 2 3 Installation 3 4 Set address 4 5 Adjust antenna with EWA transformer 7 6 Airflow Installation 8 7 Adjustment weigh computer 9 8 Display values 11 9 Internal test menu 12 10 Software settings 14 11 Trouble shooting 15 12 Spare part list 16 Enclosure : Figures 17 4 - 2012 Nedap Agri D300X.eng version 0.8 ________________________________________________________________________ ______________________________________________________________________________________________ D300X T/R Twin Separation - 1 - Version 0.8 This documentation is part of the service manual VC4 CattleCode D300. Documentation version 0.2, first edition. Documentation version 0.3, weighing added Documentation version 0.4, Eprom version 0.13 added Documentation version 0.5, Welvaarts weighbridge added Documentation version 0.6, Eprom version 4.00 added Documentation version 0.7, Figure 2 : sensors connected to M+ instead of +23V Documentation version 0.8, FCC text added PROM overview CPT4SBS TwinFeeder CPT4SBS 0.10 First field version CPT4SBS 0.11 Weighing option added CPT4SBS 0.12 Internal test menu : ROM/RAM test was not displayed CPT4SBS 0.13 Identification : responder valid time shorter 1-2006 CPT4SBS 4.00 - Suitable for TF model 2 and 4 - 2 hour activity added (Lacitvator, VC5 only) FCC ID: CGD-TF2 IC: 1444A-TF2 Compliance statements (Part 15.19) This device complies with Part 15 of the FCC Rules and to RSS210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil se conforme aux normes RSS210 exemptés de license du Industry Canada. L'opération est soumis aux deux conditions suivantes: (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n'importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Warning (Part 15.21) Changes or modifications not expressly approved by party responsible for compliance could void the user’s authority to operate the equipment. This in particular is applicable for the antenna which can be delivered with this System. ________________________________________________________________________ ______________________________________________________________________________________________ D300X T/R Twin Separation - 2 - Version 0.8 ________________________________________________________________________ ______________________________________________________________________________________________ D300X T/R Twin Separation - 3 - Version 0.8 1 General This document contains the description of the software CPT4SBS in combination with the T/R-Twin hardware for a separationbox. The Transmitter/Receiver Separation Box Standard is used for identifying, separating or separating/weighing of cows. The separation system uses one antenna. CPT4SBS The name of the EPROM is CPT4SBS x.xx. Description of the code : Cattlecode Poiesz Twin VC4 Separation Box Standard. 2 Operation Operation sequence • Every cow is stopped at the hold-gate • After identification of the responder the T/R sends a request for separation-data • If weigh computer is connected, wait for weigh data • When weigh data is received and separation data is received the separation gates are set, the hold gate will open • After hold gate is open the twin is waiting for IR2 (only if responder is out of the antenna) • As long as IR2 is activated the hold gate will not close • When IR2 is free the hold gate will close • When IR2 is free, IR3 is already activated • Station is ready for the next cow as soon as IR3 is free Operation sequence cow with no responder • Cow is stopped at the hold-gate • IR1 is activated, twin remains waiting for responder number • After maximum ID time the cow will be sent to the default exit ________________________________________________________________________ ______________________________________________________________________________________________ D300X T/R Twin Separation - 4 - Version 0.8 3 Installation The Nedap guarantee-regulations are only valid when the T/R is mounted and installed as indicated in this chapter. The following is important : • operating temperatures -10ºC .... +40ºC • storage temperatures -25ºC .... +70ºC • tightness IP 65, cover and cables mounted correctly • input voltage 28 VDC +10% / - 20%, power supply at least 40 W (continuous) • abs. max. voltage (+/-) 40 V DC, 35 V RMS, protected against reverse polarity - never change a PROM when the power to the T/R is still switched on ! - shut off the power when service is needed for the station ! Antenna construction The antenna must be installed around the station (see figure 5). When the HF-field is adjusted correctly, the cows inside the station must be identified easily when they are walking through the station. Jumper settings To install the T/R Twin correct, some jumper settings must be checked or changed. Jumper J7 must be set to the left (LED is ON) Jumpers J1 – J6 must be set to the right (brake off) Antenna jumpers must be set to the lowest position (external adjust) Wiring the T/R Figure 2 shows an overview of the T/R-Twin cable-connections. Cable C = coax, in this case it is important the shielding is connected to HF- Max. cable-lengths, wire-ø's and cable colours The cable-overviews in the figures all show Lmax. at wire-ø = 0.8 mm. cable colour C white The values for Lmax at ø=1.0 and ø=1.2 : D yellow Lmax.(ø=1.0) = 1.5 x Lmax.(ø=0.8) - black Lmax.(ø=1.2) = 2.0 x Lmax.(ø=0.8) + red Shielding, grounding In order to protect the VC-System for over-voltages, due to severe thunderstorms, cable A in figure 2 must be a shielded cable. The cable-shield however may not be used as a wire for current-supply. The cable-shield of cable A is…

Text truncated - open the document above for the full version.

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 25 April 2012 Subject: Attestation of Similarity FCC ID: CGD-TF2 Dear Mrs. Bosley, The device with Model: VC4 TF2 as mentioned in report “12_12021502.fcc02_VC4 TF2_FCC-IC_report CGD-TF2.pdf” is a transceiver operating on 134.2 kHz for the identification of animals. Model: VC4 TF2 is delivered by Nedap directly to its dealers and/or end users. Nedap also delivers 1 more Model: VC4 TF2 GEA, which is electronically as well as mechanically the same as the Model: VC4 SF2 only the Brand name GEA is printed on the enclosure. This Model: VC4 TF2 GEA is delivered to GEA who in turn delivers it to their dealers and/or end users. I thereby wish to request whether you can add this model to the list of approved systems. I hope you can honor our request Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap” Jacques Hulshof Approbation Management

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Groenlo, 26 April 2012 Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Dear Mrs. Bosley, We, N.V. Nederlandsche Apparatenfabriek "Nedap", we hereby would like to apply for FCC certification of the following device: Description : 134.2 kHz Inductive RFID Card Reader with external antennas FCC ID : CGD-TF2 FRN : 0007696149 Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brands : Nedap and GEA Models : VC4 TF2 and VC4 TF2 GEA The following PDF files (exhibits) are electronically submitted: 1. Cover letter (this document) 2. Request of confidentiality 3. Form 731 4. Antenna information 5. Bill of material transmitter 6. Circuit diagram transmitter 7. Block diagram 8. Interior photograph report 9. Exterior photograph report 10. FCC ID Label artwork and Label location 11. Technical description and block diagram of the system including description. 12. Test report in conformity with 47 CFR Part 15 13. Test setup photographs 14. User manual 15. Attestation of Similarity 16. Schematics of the system Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap“ Jacques Hulshof Approbation Management

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 26 April 2012 Subject: Request of Confidentiality FCC ID: CGD-TF2 Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules we herewith request the following exhibits, related to this application for Description : 134.2 kHz Inductive RFID Card Reader with external antennas FCC ID : CGD-TF2 Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brands : Nedap and GEA Models : VC4 TF2 and VC4 TF2 GEA to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than N.V. Nederlandsche Apparatenfabriek "NEDAP" and TÜV Rheinland Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. Theory of operation (technical description) The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, N.V. Nederlandsche Apparatenfebriek “Nedap” Jacques Hulshof Approbation Management

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Groenlo, 26 April 2012 Antenna information Description : 134.2 kHz Inductive RFID Card Reader with external antennas FCC ID : CGD-TF2 IC : 1444A-TF2 Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brands : Nedap and GEA Models : VC4 TF2 and VC4 TF2 GEA 1. External Floor Antenna see diagram below Type : Inductive O-Antenna Material : Steel Number of turns : 1 Material dimension : 20 x 5 mm Dimensions : 1200 x 800 mm N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. 2. External Walk Through Antenna, see diagram below Type : Inductive O-Antenna Material : Steel Number of turns : 1 Material dimension : 25 x 6 mm Dimensions : 1948 x 988 mm Jacques Hulshof 1984 mm 988 mm

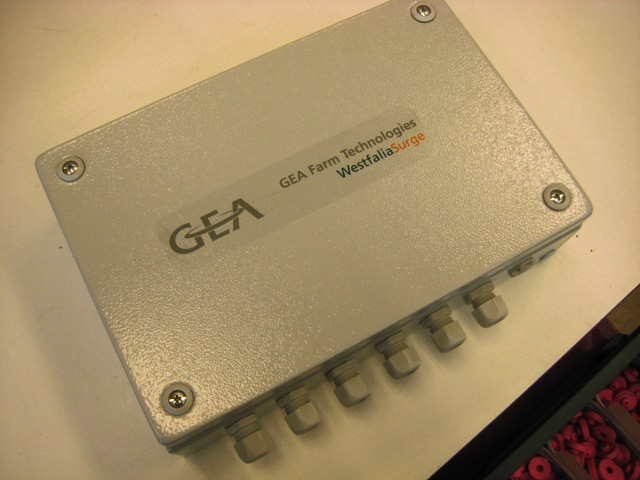

Page 1 of 6 Inductive RFID Proximity Card Reader operating on 134.2 kHz Brands Nedap and GEA Models VC4 TF2 and VC4 TF2 GEA Exterior Photographs Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA1103 CGD-TF2 1444A-TF2 Page 2 of 6 Description of item Description of EUT : Inductive RFID Proximity Card Reader operating on 134.2 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap and GEA Models : VC4 TF2 and VC4 TF2 GEA FCC ID CGD-TF2 IC 1444A-TF2 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 25 April 2012 Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA1103 CGD-TF2 1444A-TF2 Page 3 of 6 Table of contents 1 SYSTEM OVERVIEW INCLUDING THE ANTENNAS ............................................................................................................. 4 1.1 VC4 TF2 AND WALK THROUGH ANTENNA .................................................................................................................................... 4 1.2 VC4 TF2 WALK OVER ANTENNA ................................................................................................................................................... 5 2 VC4 TF2 ENCLOSURE .................................................................................................................................................................... 6 2.1 FRONT SIDE ................................................................................................................................................................................... 6 2.2 BACK SIDE ..................................................................................................................................................................................... 6 Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA1103 CGD-TF2 1444A-TF2 Page 4 of 6 1 System overview including the antennas 1.1 VC4 TF2 and walk through antenna Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA1103 CGD-TF2 1444A-TF2 Page 5 of 6 1.2 VC4 TF2 walk over antenna Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA1103 CGD-TF2 1444A-TF2 Page 6 of 6 2 VC4 TF2 enclosure 2.1 Front side 2.2 Back side

Page 1 of 7 Inductive RFID Proximity Card Reader operating on 134.2 kHz Brands Nedap and GEA Models VC4 TF2 and VC4 TF2 GEA Label Location and artwork Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA CGD-TF2 1444A-TF2 Page 2 of 7 Description of item Description of EUT : Inductive RFID Proximity Card Reader operating on 134.2 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brands : Nedap and GEA Models : VC4 TF2 and VC4 TF2 GEA FCC ID CGD-TF2 IC 1444A-TF2 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 25 April 2012 Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA CGD-TF2 1444A-TF2 Page 3 of 7 Table of contents 1 LABEL LOCATION VC4 TF2 ................................................................................................................................................ 4 2 ID, MODEL AND WARNING LABELS ................................................................................................................................ 5 2.1 MODEL VC4 TF2 ................................................................................................................................................................. 5 2.2 MODEL VV4 TF2 GEA ........................................................................................................................................................ 6 3 ARTWORK ............................................................................................................................................................................... 6 3.1 ARTWORK OF THE VC4 TF2 ................................................................................................................................................. 6 3.2 ARTWORK VC4 TF2 GEA ................................................................................................................................................... 7 3.3 ARTWORK OF THE COMPLIANCE STATEMENT ....................................................................................................................... 7 Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA CGD-TF2 1444A-TF2 Page 4 of 7 1 Label location VC4 TF2 Model, IC and FCC ID Compliance statement Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA CGD-TF2 1444A-TF2 Page 5 of 7 2 ID, Model and Warning labels 2.1 Model VC4 TF2 Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA CGD-TF2 1444A-TF2 Page 6 of 7 2.2 Model VV4 TF2 GEA 3 Artwork 3.1 Artwork of the VC4 TF2 Description of EUT: Manufacturer: Brand marks: Models: FCC ID IC Inductive RFID Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA CGD-TF2 1444A-TF2 Page 7 of 7 3.2 Artwork VC4 TF2 GEA 3.3 Artwork of the compliance statement

Page 1 of 6 Inductive RFID Proximity Card Reader operating on 134.2 kHz Brands Nedap and GEA Models VC4 TF2 and VC4 TF2 GEA Interior Photographs Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA CGD-TF2 1444A-TF2 Page 2 of 6 Description of item Description of EUT : Inductive RFID Proximity Card Reader operating on 134.2 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap and GEA Models : VC4 TF2 and VC4 T2 GEA FCC ID CGD-TF2 IC 1444A-TF2 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 25 April 2012 Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA CGD-TF2 1444A-TF2 Page 3 of 6 Table of contents 1 FRONT SIDE OF THE VC4 TF2 ENCLOSURE .................................................................................................................. 4 2 INTERNAL COMPONENTS .................................................................................................................................................. 4 2.1 PHOTO TAKEN FROM THE ELECTRONICS SIDE OF THE VC4 TF2 ............................................................................................ 4 2.2 DETAILED PHOTO OF THE ELECTRONICS ............................................................................................................................... 5 3 THE TRANSMITTER RECEIVER MODULE ..................................................................................................................... 5 3.1 FRONT SIDE TOP ................................................................................................................................................................... 5 3.2 BACK SIDE OF THE TRANSMITTER ......................................................................................................................................... 6 Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA CGD-TF2 1444A-TF2 Page 4 of 6 1 Front side of the VC4 TF2 enclosure 2 Internal components 2.1 Photo taken from the electronics side of the VC4 TF2 Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA CGD-TF2 1444A-TF2 Page 5 of 6 2.2 Detailed photo of the electronics 3 The transmitter receiver module 3.1 Front side top Description of EUT: Manufacturer: Brand mark: Models: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap and GEA VC4 TF2 and VC4 TF2 GEA CGD-TF2 1444A-TF2 Page 6 of 6 3.2 Back side of the transmitter

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. Eiberkamp 10 9351VT Leek The Netherlands Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv.com/nl E-mail: [email protected] Project number: 12021502.p02_Rev01 Page 1 of 7 PHOTOGRAPHS OF THE TESTSETUP OF A INDUCTIVE PROXIMITY TAG READER OPERATING AT 134.2 kHz INCLUDING A MOTOR AND SENSOR CONTROL UNIT BRAND Nedap, MODEL VC4 TWIN 2 ISO FDX-B 12021502.p02_Rev01 June 28, 2012 FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-2 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: 134.2 kHz Inductive RFID Tag Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VC4 TWIN 2 ISO FDX-B CGD-TF2 1444A-TF2 Project number: 12021502.p02_Rev01 Page 2 of 7 Description of test item Test item : Inductive RFID tag reader, operating on 134.2 kHz including a motor and sensor control unit. Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : VC4 TWIN 2 ISO FDX-B Serial number : C125 C 0001 FCC ID : CGD-TF2 IC : 1444A-TF2 Applicant information Applicant's representative : Mr. J. Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo Country : The Netherlands Telephone number : +31 544 471 162 Telefax number : +31 544 466 475 Report written by : R. van der Meer Report date : June 28, 2012 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: 134.2 kHz Inductive RFID Tag Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VC4 TWIN 2 ISO FDX-B CGD-TF2 1444A-TF2 Project number: 12021502.p02_Rev01 Page 3 of 7 Table of contents 1 PHOTOGRAPHS OF THE TESTSETUP. ....................................................................................................................... 4 1.1 RADIATED EMISSIONS..................................................................................................................................................... 4 1.1.1 Radiated emissions setup .................................................................................................................................. 4 1.1.2 Radiated emissions setup detail ........................................................................................................................ 5 1.2 CONDUCTED EMISSIONS ................................................................................................................................................ 6 1.2.1 Conducted emissions testsetup overview ........................................................................................................ 6 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: 134.2 kHz Inductive RFID Tag Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VC4 TWIN 2 ISO FDX-B CGD-TF2 1444A-TF2 Project number: 12021502.p02_Rev01 Page 4 of 7 1 Photographs of the testsetup. 1.1 Radiated emissions. 1.1.1 Radiated emissions setup Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: 134.2 kHz Inductive RFID Tag Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VC4 TWIN 2 ISO FDX-B CGD-TF2 1444A-TF2 Project number: 12021502.p02_Rev01 Page 5 of 7 1.1.2 Radiated emissions setup detail Setup showing EUT in combination with Single Loop Walk Trough antenna Setup showing EUT in combination with Single Loop Over Trough antenna Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: 134.2 kHz Inductive RFID Tag Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VC4 TWIN 2 ISO FDX-B CGD-TF2 1444A-TF2 Project number: 12021502.p02_Rev01 Page 6 of 7 1.2 Conducted emissions 1.2.1 Conducted emissions testsetup overview Photo . Basic test set-up conducted emission Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: 134.2 kHz Inductive RFID Tag Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VC4 TWIN 2 ISO FDX-B CGD-TF2 1444A-TF2 Project number: 12021502.p02_Rev01 Page 7 of 7 Photo . Detail test set-up conducted emission Photo . dummy load instead of antenna
