CGDCONVEXSInductive Proximity RFID Card Reader

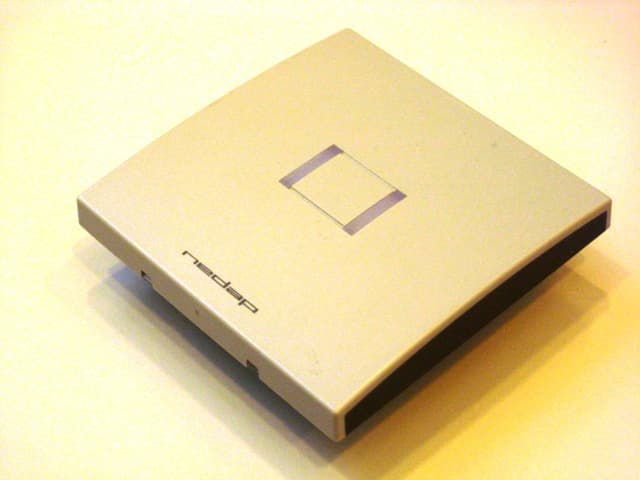

Date : 11 April 2011 Version: 7 This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no licence under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifications and availability of goods mentioned in it are subject to change without notice; it is not to be reproduced in any way, in whole or in part, without the written consent of the publisher. © Nedap N.V., IDEAS P.O. Box 103 NL-7140 AC GROENLO The Netherlands Page 1 of 4 Part.no.: 5268656 48 28 28 41 8,5 4.5 Convexs 80 Nedap Mifare dual technology readers GENERAL The Convexs reader enables smooth migration to Mifare card technology in existing Nedap XS, Nedap AEOS and third party systems. The Convexs MN80 reads both Mifare and Nedap cards, the Convexs M80 Mifare cards only. The Convexs output can be set to either Wiegand, XS RF modulation or (encrypted) RS485 protocol. The Convexs MD80 reads Mifare DESFire cards. Functionality and output is determined by the configuration of the Convexs reader. The configuration is defined using the programm AEreco, and deployed by the configuration card or via AEmon. (More information about configurations can be found in the Convexs_Invexs_InstallGuide_E.) Three LED’s (red, green, blue) and beeper are included. The Convexs 80F can be flush mounted (indoor / outdoor) in a electrical mounting box. Light (Gray) and Dark (Charcoal) fronts are available. Dimensions: Convexs 80: 80 x 80 x 32 mm, Convexs 80F: 80 x 80 x 27 mm. MOUNTING PROCEDURE CONVEXS For mounting the Convexs the removable backside must be placed on a wall. For removing the backside of the Convexs gently push the two lips at top and bottom towards the middle and remove the backside. After the cable is connected to the front (see ‘Connections’) the front of the Convexs has to be clicked on the backside. MOUNTING PROCEDURE CONVEXS F The Convexs F is opened by using the 2 small holes at the bottom and then lifting the bottom side up. It can be mounted in a electrical mounting box. Take care of the additional foam gasket and mounting direction (drain for releasing eventually collected moisture must be on bottom side). Attention: Don’t mount the Convexs F in a metal environment (Mifare detection and Nedap AM detection can fail). For these applications use the Convexs with the additional Protectors. ® Installation sheet 80 80 Convexs 80 32 Convexs Convexs F 11 16 Ǿ 62.8 Convexs 80F 62.8 Ǿ 3.2 3.4x5.5 60 Convexs 80 series © Nedap N.V. Convexs 80 series Installation sheet Page 2 of 4 R GND UL*/NA* / BEEP CONNECTIONS The Convexs is not hot-swappable, so when making or changing connections be sure the power is switched Off. Remark: Cable shield must be connected to Power GND of Convexs (A2) and GND of external device (or metal case). If connected to a 120kHz RF device (AEOS Nedap reader AEpack or XS device) the power is supplied by the Convexs adapters (AX1014 for AEpacks, AB350 for the XS device). Existing antenna cabling can then be reused for connecting the ConveXS. UL*, NA* and BEEP are Open Collector to GND. If the Convexs adapters are used, the original UL and NA signals are converted to the UL* and NA*. LED INDICATORS REARSIDE There are two LED’s available: Blue for Status (of the application), Green for Identification LED INDICATORS FRONTSIDE At the front a three colour LED is positioned at the middle of the Convexs. Depending of the used configuration the function of these LED’s can differ: Green LED: Card is been authorised (UL led) Red LED: Card is not authorised (NA led), controller is stand-by Blue LED: Blinks fast: No configuration is availabele at this Convexs (present Configuration card or load Configuration first). Continuously ON: Determined by configuration: E.g. Reader stand-by. (Blue LED is activated if UL is OFF and NA is more than 1 sec OFF) Remark: Function of LED’s and Beeper is controlled by used application settings of Convexs. Green and Red LED can be controlled by hardware signals (A8 and A10) or RS485NR, Blue LED indirectly by UL and NA, if this setting is activated (configuration). Beeper can be controlled by hardware signal (A7), RS485NR or software (configuration). ID (green) Blinking Card detected ST: STATUS (blue) Slow blinking Application running (operating) Fast blinking Downloading or error during loading 2 short flashes Application present but not active 3 short flashes No application present Convexs Function A1 Power / XSMOD Power in (10-30VDC) / XS modulator (120kHz) A2 POWER GND/Shield Power Ground A3 A (-) RS485 A4 B (+) RS485 A5 D0 Wiegand Data 0 A6 D1 Wiegand Data 1 A7 BEEP Beep input A8 UL* UL led input A9 GND Led Common Ground A10 NA* NA led input Convexs Rear view Convexs 80 series © Nedap N.V. Convexs 80 series Installation sheet Page 3 of 4 FIRMWARE Pay attention that the firmware loaded in the Convexs together with the configuration determines functionality and protocols. Default (from factory) the Convexs handles the credentials on several simultaneously ways: XS cards as: RS485NR, RF badge Mifare cards (CSN) as: RS485NR, RF data SYSTEM CONFIGURATIONS (how to connect Convexs readers) Remark: Configurations can be determined by using the configuration card. Attention: Check the Convexs_Invexs_InstallGuide chapter 10 vailable reader Firmware) for the compatibility for the used readers. TAMPER SWITCH This tamper switch is an optical device, which is triggered by the amount of light. Depending on the applied configuration the result of activating the tamper switch can differ. BEEPER INDICATIONS Beeper is also used for indication of loading the configuration: High sound beep (‘happy sound’): Configuration is loaded correct, second high sound beep indicates that this configuration can be used at this Convexs Low sound beep (‘unhappy sound’): Configuration is not correct loaded or no configuration available at startup. Convexs uses existing antenna cabling (Coax + 3*0,25qmm for LE…

Text truncated - open the document above for the full version.

11 April 2011 Version 9 This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no licence under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifica- tions and availability of goods mentioned in it are subject to change without notice; it is not to be reproduced in any way, in whole or in part, without the written consent of the publisher. © Nedap N.V., IDEAS P.O. Box 103 NL-7140 AC GROENLO The Netherlands Page 1 of 21 Nedap Readers Convexs & Invexs Installation Guide and User Manual ® 1 2 3 4 5 6 7 8 9 C 0 E 1 2 3 4 5 6 7 8 9 C 0 E © Nedap N.V. Nedap Readers Installation Guide Page 2 of 21 0 CONTENTS 1. Nedap Readers General Information ______________________________________________________ 4 1.1. Nedap readers principle ____________________________________________________________ 4 1.2. Availability Convexs 80 readers: ____________________________________________________ 4 1.3. Availability Invexs 170 readers: _____________________________________________________ 4 1.4. Availability Invexs 190 readers: _____________________________________________________ 5 1.5. Functionality ____________________________________________________________________ 5 2. Cards read by Convexs/Invexs ___________________________________________________________ 7 2.1. Nedap cards _____________________________________________________________________ 7 2.2. Mifare cards ____________________________________________________________________ 7 3. Convexs/Invexs Protocols ______________________________________________________________ 8 3.1. RS485NR (including RS485NR2) ___________________________________________________ 8 3.2. RF output _______________________________________________________________________ 8 3.2.1. RF output to AX1014 on AEpacks ____________________________________________ 8 3.2.2. RF output to Nedap XS readers for AEOS integration _____________________________ 9 3.2.3. RF output to Nedap XS readers at a WinXS system _______________________________ 9 3.3. Wiegand _______________________________________________________________________ 9 3.3.1. Wiegand formats _________________________________________________________ 10 3.3.2. Wiegand timing __________________________________________________________ 10 3.3.3. Wiegand 26 _____________________________________________________________ 10 3.3.4. Wiegand 32 _____________________________________________________________ 11 3.3.5. Wiegand 32bin __________________________________________________________ 11 3.3.6. Wiegand 37 _____________________________________________________________ 11 3.3.7. Wiegand 64bin __________________________________________________________ 11 3.3.8. Wiegand 128bin _________________________________________________________ 11 3.4. Serial RS485 (RS485 Ascii) _______________________________________________________ 12 3.4.1. Default settings __________________________________________________________ 12 3.4.2. Data format _____________________________________________________________ 12 3.5. USB Desktop reader _____________________________________________________________ 12 3.5.1. Default settings __________________________________________________________ 12 3.5.2. Data format _____________________________________________________________ 12 4. Convexs/Invexs connections ___________________________________________________________ 13 4.1. Convexs Connections ____________________________________________________________ 13 4.2. Invexs 170 Connections __________________________________________________________ 13 4.3. Invexs 190 Connections __________________________________________________________ 13 4.4. Connections using RS485 _________________________________________________________ 14 4.5. Connections using RF output ______________________________________________________ 14 4.6. Wiegand ______________________________________________________________________ 15 Convexs MN80(F)X, Convexs MND80(F)X (X is G or C) with FCC ID: CGDCONVEXS Convexs MND80G with IC ID: 1444A-CONVEXS This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada. Operating is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by party responsible for compliance could void the user’s authority to operate the equipment. Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L'opération est soumis aux deux conditions suivantes (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n'importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. © Nedap N.V. Nedap Readers Installation Guide Page 3 of 21 5. Convexs/Invexs LED and Beeper control _________________________________________________ 16 5.1. User LED’s ____________________________________________________________________ 16 5.2. Beeper ________________________________________________________________________ 16 5.3. Status LED’s ___________________________________________________________________ 16 6. Invexs PIN modes ___________________________________________________________________ 16 6.1. RS485NR _____________________________________________________________________ 16 6.2. Wiegand ______________________________________________________________________ 16 7. Configuring the Convexs/Invexs ________________________________________________________ 17 7.1. Nedap reader Configuration file ____________________________________________________ 17 7.2. Configuration card _______________________________________________________________ 18 8. Updating firmware of the Convexs/Invexs _________________________________________________ 18 9. Default settings of the Convexs/Inv…

Text truncated - open the document above for the full version.

Declaration of similarity Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 11 April 2011 Subject : Several model numbers FCC ID: CGDCONVEXS Dear Mrs. Bosley, The Convexs MN80 as mentioned in the test reports with numbers 09070602.fcc01_Rev02 (13.56 MHz part) and 09070602.fcc02_Rev01 (120 kHz part) should actually read Convexs MN80G and represents one device of a series of the Convexs RFID systems and consists of a 120 kHz and a 13.56 MHz transceiver. This Convexs MN80G is able to read cards on different frequencies as there are the 120 kHz Nedap card and 13.56 MHz Mifare card. Another card called Convexs MND80G operating on 120 kHz and 13.56 next to the fact it can read 120 kHz Nedap and 13.56 MHz Mifare cards, it can also read so called DES (=Data Encryption Standard) fire cards. This card has more security on board. To read this type of card a firmware change in the Convexs MN80G is needed. As mentioned already this card is called MND80G. We market models in two color types : Gray (=G) and Charcoal (=C). Also we can deliver surface mounted - (no letter) and Flush (=F) devices, see also pictures below. The model numbers of the different types of devices are: 1. 120 kHz Nedap - and 13.56 MHz Cards Convexs MN80C, Convexs MN80G, Convexs MN80FC and Convexs MN80FG. 2. 120 kHz Nedap - , 13.56 MHz Cards - and 13.56 MHz DES Cards Convexs MND80C, Convexs MND80G, Convexs MND80FC and Convexs MND80FG. For example: MND80FG: M=Mifare, N=Nedap, D=DESfire, F=Flush and G=Gray We, N.V. Nederlandsche Apparatenfabriek “Nedap”, declare that the model that has been tested and mentioned in the test reports is represents a the Convexs family regarding radio testing. I thereby wish to request whether you can authorize us to apply the same FCC ID: CGDCONVEXS to all the model numbers mentioned above. I hope you can honor our request Best regards, N.V. Nederlandsche Apparatenfebriek “Nedap” Jacques Hulshof Approbation Management Surface mounted Flush mounted

Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 11 April 2011 Subject: Request of permanent confidentiality FCC ID: CGDCONVEXS Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules N.V . Nederlandsche Apparatenfabriek “Nedap” herewith request the following exhibits, related to this application for FCC ID : CGDCONVEXS Manufacurer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Models : Convexs MN80x and Convexs MND80x. x is G, C, FG or FC G=Gray, C=Charcoal and Surface mounted, F=Flush mounted M=Mifare, N=Nedap and D=Desfire as permanently confidential, be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. The contents of these exhibits may not be disclosed to other parties than N.V. Nederlandsche Apparatenfabriek "Nedap" and TÜV Rheinland Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. Theory of operation (technical description) Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap” Jacques Hulshof Approbation Management

Page 1 of 6 Inductive Proximity Card reader Brand Nedap Models Convexs MND80G and MND80FG Exterior Photographs Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Convexs MND80G and MND80FG Page 2 of 6 Description of item Description of EUT : Inductive Proximity Card reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Models : Convexs MND80G and MND80FG FCC ID : CGDSCONVEXS Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 19 January 2011 Revised March 25, 2011. Photographs added and replaced Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Convexs MND80G and MND80FG Page 3 of 6 Table of contents 1 PHOTOGRAPHS OF THE CONVEXS MND80G ........................................................................................................... 4 1.1 TOP VIEW OF THE CONVEXS MND80G ......................................................................................................................... 4 1.2 SIDE VIEW OF THE CONVEXS MND80G ........................................................................................................................ 4 1.3 BOTTOM VIEW OF THE CONVEXS MND80G .................................................................................................................. 5 2 PHOTOGRAPHS OF THE CONVEXS MND80FG ........................................................................................................ 5 2.1 TOP VIEW OF THE CONVEXS MND80FG ...................................................................................................................... 5 2.2 SIDE VIEW OF THE CONVEXS MND80FG ..................................................................................................................... 6 2.3 BOTTOM VIEW OF THE CONVEXS MND80FG ............................................................................................................... 6 Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Convexs MND80G and MND80FG Page 4 of 6 Photographs of the Convexs MND80G 1.1 Top view of the Convexs MND80G 1.2 Side view of the Convexs MND80G Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Convexs MND80G and MND80FG Page 5 of 6 1.3 Bottom view of the Convexs MND80G 2 Photographs of the Convexs MND80FG 2.1 Top view of the Convexs MND80FG Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Convexs MND80G and MND80FG Page 6 of 6 2.2 Side view of the Convexs MND80FG 2.3 Bottom view of the Convexs MND80FG

Page 1 of 7 Inductive Proximity Card reader Brand Nedap Models Convexs MND80G and MND80FG Label Location and Label artwork Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Convexs MND80G and MND80FG Page 2 of 7 Description of item Description of EUT : Inductive Proximity Card reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : Convexs MND80G and MND80FG FCC ID : CGDCONVEXS Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 19 January 2011 29 March 2011 Revised: Flush mounted photo and artwork of labels added. Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Convexs MND80G and MND80FG Page 3 of 7 Table of contents 1 Photographs of the Convexs MND80G .................................................................................................................................. 4 1.1 ID position ...................................................................................................................................................................... 4 1.2 Text on label ................................................................................................................................................................... 4 2 Photographs of the Flush mounted device Convexs MND80FG ........................................................................................... 5 2.1 ID position ...................................................................................................................................................................... 5 2.2 Text on label ................................................................................................................................................................... 5 3 Drawing of artwork Label text MND80G .............................................................................................................................. 6 3.1 Normal size .................................................................................................................................................................... 6 3.2 Enlarged to 400 % .......................................................................................................................................................... 6 4 Drawing of artwork Label text MND80FG ............................................................................................................................ 7 4.1 Normal size .................................................................................................................................................................... 7 4.2 Enlarged to 400 % .......................................................................................................................................................... 7 Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Convexs MND80G and MND80FG Page 4 of 7 1 Photographs of the Convexs MND80G 1.1 ID position 1.2 Text on label Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Convexs MND80G and MND80FG Page 5 of 7 2 Photographs of the Flush mounted device Convexs MND80FG 2.1 ID position 2.2 Text on label Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Convexs MND80G and MND80FG Page 6 of 7 3 Drawing of artwork Label text MND80G 3.1 Normal size 3.2 Enlarged to 400 % Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Convexs MND80G and MND80FG Page 7 of 7 4 Drawing of artwork Label text MND80FG 4.1 Normal size 4.2 Enlarged to 400 %

Page 1 of 7 Inductive Proximity Card reader Brand Nedap Model Convexs MND80G Interior Photographs Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Convexs MND80G Page 2 of 7 Description of item Description of EUT : Inductive Proximity Card reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : Convexs MND80G FCC ID : CGDSCONVEXS Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 19 January 2011 Revised March 25, 2011. Photographs added Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Convexs MND80G Page 3 of 7 Table of contents 1 PHOTOGRAPHS OF THE CONVEXS MN80 ...................................................................................................................... 4 1.1 FRONT VIEW ......................................................................................................................................................................... 4 1.2 REAR VIEW .......................................................................................................................................................................... 4 1.3 INTERNAL VIEW 1 ................................................................................................................................................................. 5 1.4 INTERNAL VIEW 2 ................................................................................................................................................................. 5 1.5 INTERNAL VIEW 3 ................................................................................................................................................................. 6 1.6 SHIELDING REMOVED ........................................................................................................................................................... 6 1.7 ANTENNA SHAPE COMPONENT SIDE ...................................................................................................................................... 7 1.8 ANTENNA SHAPE SOLDER SIDE ............................................................................................................................................. 7 Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Convexs MND80G Page 4 of 7 1 Photographs of the Convexs MN80 1.1 Front view 1.2 Rear view Internal view 1 Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Convexs MND80G Page 5 of 7 1.3 Internal view 1 1.4 Internal view 2 Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Convexs MND80G Page 6 of 7 1.5 Internal view 3 1.6 Shielding removed Description of EUT: Manufacturer: Brand mark: Model: Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Convexs MND80G Page 7 of 7 1.7 Antenna shape component side 1.8 Antenna shape solder side

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.tuv-eps.com Project number: 09070602.fcc01_Rev01 (13.56MHz part) Page 1 of 15 TEST REPORT CONCERNING THE COMPLIANCE OF A RFID Cardreader, BRAND NEDAP, MODEL Convexs MN80 WITH 47 CFR PART 15 (JULY 10, 2008). 09070602.fcc01_Rev01 (13.56 MHz part) February 12, 2010 FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: FCC Part 15 RFID Cardreader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Convexs MN80 CGDCONVEXS Project number : 09070602.fcc01_Rev01 (13.56MHz part) Page 2 of 15 MEASUREMENT/TECHNICAL REPORT N.V. Nederlandsche Apparatenfabriek “Nedap” Model : Convexs MN80 FCC ID: CGDCONVEXS February 12, 2010 This report concerns: Original grant/certification Class 2 change Verification Equipment type: 120 kHz and 13.56 MHz Inductive Proximity Card Reader (This report deals with the 13.56 MHz part) Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No n.a. Report prepared by: Name : Richard van der Meer Company name : TÜV Rheinland EPS B.V. Address : Smidshornerweg 18 Postal code/city : 9822 TL Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 ZG Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 (july 10, 2008) and the measurement procedures of ANSI C63.4-2003. TÜV Rheinland EPS B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: February 12, 2010 Signature: O. Hoekstra Senior Engineer Telecom TÜV Rheinland EPS B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: FCC Part 15 RFID Cardreader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Convexs MN80 CGDCONVEXS Project number : 09070602.fcc01_Rev01 (13.56MHz part) Page 3 of 15 Description of test item Test item : RFID Cardreader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model(s) : Convexs MN80 Serial number(s) : 0030973117 Receipt date : August 10, 2009 Applicant information Applicant's representative : Mr. J. Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo Country : The Netherlands Telephone number : +31 544 471 162 Telefax number : +31 544 466 475 Test(s) performed Location : Niekerk Test(s) started : August 11, 2009 Test(s) completed : November 05, 2009 Purpose of test(s) : Equipment Authorization (Original grant/certification) Test specification(s) : 47 CFR Part 15 (July 10, 2008) Test engineer(s) : R. van der Meer Report written by : R. van der Meer Report date : February 12, 2010 This report is in conformity with NEN-EN-ISO/IEC 17025: 2005 This report shall not be reproduced, except in full, without the written permission of TÜV Rheinland EPS B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: FCC Part 15 RFID Cardreader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Convexs MN80 CGDCONVEXS Project …
