CGDDVD31356Inductive RFID Card Reader

PHYSICAL SPECIFICATIONS Article number: Dependant on function, color Dimensions (cm): Trolley (Book + A/V Media): ca. 73 x 53 x 173 (l x w x h) CD/DVD Trolley: ca. 110 x 53 x 173 (l x w x h) Material: Metal, Wood Standard color: Wood Red U225; Metal Ral 7016 Optional Color: Any RAL color at extra costs Weight: Book Trolley: ca. 42 kg CD/DVD Trolley: ca. 57 kg Function: Check-in ELECTRICAL SPECIFICATIONS Supply voltage: 100 - 230 V ac, 50-60 Hz. Working voltage: Reader: 24 V - 12 V Power consumption: Max. 100 Watt Length power cable: Column: 1.8 m HARDWARE SPECIFICATIONS RFID Reader: Model: Nedap high perf. reader (art. nr. 9926798) Frequency: 13.56 MHz Identifies: ISO 15693 / ISO 18000-3.1 EAS function: Yes, EAS-bits and/or AFI Multiplexer model: Nedap model 8-channel multiplexer Practical information: Book Trolley CD/DVD Trolley Number of shelve(s): 3 4 Max. nr of books: 64 0 Max. nr. of CDs / DVDs: 0 30 Check in of CDs/DVDs: No Yes Length cable to column: 4 m total, 3 m effective 4 m total, 3 m effective RF antenna power: 37 μW. ENVIRONMENTAL SPECIFICATIONS Operational temperature: +10 / +45 °C Storage temperature: 0 / +55 °C WARRANTY / CERTIFICATES Certificate: CE / EMC Warranty: 1 year Approvals of the power adaptor: - c UL us according to UL/CSA 60950-1 - Japan PSE - CE according to EN60950-1 - FCC compliant Version 1.0 Specifications are subject to change without notice contact Nedap Librix | Parallelweg 2d | 7141 DC Groenlo P.O. Box 102 | 7140 AC Groenlo | The Netherlands T +31 (0) 544 47 11 11 | F +31 (0) 544 46 58 14 E [email protected] | www.nedaplibrix.com intelligent book and cd/dvd trolley beyond the book infocolumn and intelligent trolley self-service check-in checking in books can be done via our self-service stations. to enhance the logistical processes and workflows in your library, we also have developed solutions that are designed just for check-in purposes. intelligent trolley Our intelligent trolleys are especially designed for checking-in items. The trolleys are placed at the entrance of your library. Whenever a lender returns his or her book in the trolley, the item is automatically recognized by the system and flagged as checked-in in your Library Management System. quick and easy intelligent trolley Returning an item does not take more than just placing the item on the trolley. Anywhere. That’s it. No more queues, no more waiting in line. direct link to lms Through our direct link with your Library Management System, every item that is returned is automatically checked-in. No patron card that needs to be scanned. Just drop and go. security For all items that are returned in the intelligent trolley, security is automatically switched on. This way, if somebody takes the item from the trolley and walks between the security gates after it has been returned, the Nedap security gates will sound an alarm. info terminal The intelligent trolleys are connected to a stylish info terminal. This terminal is available in versions that can either accommodate one or two trolleys at once. A simple click- mechanism enables you to detach full trolleys and attach an empty one in a split second. move it Whenever one of your intelligent trolleys is nearly full, you simply un-click it from the info terminal and roll it into your library where you can return the books to the shelves or make the trolley available in the ‘just-returned’ section. In the meantime you just click an empty trolley into the info terminal so your customers can return books again! direct check-out Libraries that move their full trolleys to a ‘just-returned’ section, see that over 25% of all books returned are checked-out on the same day. So you improve your service and have less work. We like to make your work easy. fcc and ic certifications for the connected transceiver FCC for USA according to Part 15 with FCC ID: CGDDVD31356 IC for Canada according to RS-210 with IC: 1444A-DVD31356 386 1730 424,5 125 104,05 104,05 324 648 Book trolley: CD/DVD trolley: NOTE: Do not use these drawings for installation purposes. Ask your local supplier for technical drawings. 386 1730 424,65 125 960 343 Part 15.19(3) and RSS_Gen Labelling This device complies with part 15 of the FCC Rules and to RSS-210 of Industry Canada. Operating is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L’opération est soumis aux deux conditions suivantes : (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n’importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Warning (part15.21) Changes or modifications not expressly approved by party responsible for compliance could void the user’s authority to operate the equipment.

pg 45 antenna beyond the book antenna systems the architect’s favorite it is hard to believe we have managed to fit this much performance into something as thin as this. our antennae are especially designed to blend into your library whilst maintaining the open character of your building. with its sleek design (only 20mm width) and high performance, the fully transparent gates are an absolute must-have for every library. quality All our antennae are fully produced in-house and are checked to make sure performance is always top notch. Where necessary, our highly qualified installation teams can even adjust the antennae on-site to adjust for external disturbances in terms of metal or other electronic fields. options - Visual alarm, light - Integral customer counter benefits - Attractive design - Inconspicious - Easy to install - High detection rates fcc and ic certifications for the conected transceiver FCC for USA according to Part 15 with FCC ID: CGDDVD31356 IC for Canada according to RS-210 with IC: 1444A-DVD31356 Part 15.19(3) and RSS_Gen Labelling This device complies with part 15 of the FCC Rules and to RSS-210 of Industry Canada. Operating is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L’opération est soumis aux deux conditions suivantes : (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n’importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Warning (part15.21) Changes or modifications not expressly approved by party responsible for compliance could void the user’s authority to operate the equipment. contact Nedap Librix Parallelweg 2d 7141 DC Groenlo The Netherlands T +31 (0) 544 47 11 11 F +31 (0) 544 46 58 14 E [email protected] www.nedaplibrix.com pg 13.56 mhz antenna articles which contain a label with an activated anti-theft function will cause an alarm to sound if a borrower or visitor carrying the articles walks between the antennae. since the anti-theft function is deactivated when books are checked out in the correct manner these articles do not cause a false alarm. The anti-theft (EAS) antenna system consists of at least two antennae installed to form a passageway of more than one meter wide. The standard systems can be expanded to a maximum of four antennae for use with wide entrances and exits. Systems with more than four antennae are also available on request. visual alarm Our gates can be equipped with an integrated visual alarm. When the alarm goes off, a red light that is built into each antenna will flash. Not only will this enable you to notify the hearing impaired of the alarm, but this will also create greater awareness with your staff and other visitors. integrated customer counting The numbers tell the tale. With integrated customer counting and a direct link into Librix Online, you can get direct insight into how many visitors you have had in your library. Because of the fact that the customer counting units are only installed 93cm from the floor, children are also counted. how much service do you provide? With our interactive tool Librix Online, you can even make a distinction between people that have entered your library and the number of unique members that actually have lent a book. As a result, this great tool provides you with a clear overview of how many people visit your library just to read a newspaper, do research or enjoy other services you provide. Because you want to get credit for what you do. relay All antennae-readers are equipped with a relay which enables connection to external hardware, like lights, doors and/or gates. be flexible Sometimes you need to be able to easily remove an antenna because of logistics. Especially for these situations, we can provide you with an optional foot which allows you to connect and deconnect an antenna, just like you would remove a computer from a docking station. Quick, easy and safe. PHYSICAL SPECIFICATIONS OF THE PG45 ANTENNA Article numbers: 9940448 / 9940456 (2 loop / 3 loop) Dimensions (mm): 1665 x 480 x 100 (l x w x h) Material: Metal / Plexiglas Color: Transparent Weight: ca. 29 kg Function: Detects labels with EAS = on / AFI 07 HEX Optional expansions: - Light alarm, integral - Integral customer counter Identification %: Dependant on label quality / environmental influences ELECTRICAL SPECIFICATIONS READER Article number: 9926798 Supply voltage: 100 - 230 V ac, 50-60 Hz Operating voltage: 24 V Power consumption: 45 Watt Length power cable: 1.8 m. CONNECTION SPECIFICATIONS RF connection: 50 Ohm BNC coax ENVIRONMENTAL SPECIFICATIONS Operating temperature: +10 / +45 °C Storage temperature: -10 / +55 °C Max. distance between two antennas: 1.05 m RFID SPECIFICATIONS Technology: RFiD Frequency: Standard: 13.56 MHz Antenna power (electrical): Max. 8 Watt RF antenna power: 37 μW Identifies: ISO 15693 / ISO 18000-3.1 EAS-function: Yes, based on EAS-bits and/or AFI WARRANTY / CERTIFICATES Certificate: CE / EMC Warranty: 1 year Approvals of the power adaptor: - c UL us according to UL/CSA 60950-1 - Japan PSE - CE according to EN60950-1 - FCC compliant Version 1.0 Specifications are subject to change without notice 20 181.5 1665 428 143 480 NOTE: Do not use these drawings for installation purposes. Ask your local supplier for technical drawings. www.nedaplibrix.com

[Installation Guide] Installation Guide Version 1.1 | 12 May 2011 2 [email protected] Nedap Librix Parallelweg 2d Groenlo The Netherlands Nedap Librix P.O. box 102 7140 AC Groenlo The Netherlands Tel: +31(0)544 47 15 09 Fax: +31(0)544 46 58 14 ©Nedap Librix Netherlands Parallelweg 2d, 7141 DC Groenlo The software / hardware described in this document / file is furnished under a license agreement and may be used only in accordance with the terms of agreement. Documentation Installation Guide PG45-13.56MHz Copyright Notice Any technical documentation that is made available by Nedap Librix is the copyrighted work of Nedap Librix and is owned by Nedap Librix. NO WARRANTY. The technical documentation is being delivered to you and Nedap Librix makes no warranty as to its accuracy or use. Any use of the technical documentation or the information contained herein is at the risk of the user. Documentation may include technical or other inaccuracies or typographical errors. Nedap Librix has the right to make changes without prior notice. No part of this publication may be copied without the express written permission of Nedap Librix, Parallelweg 2d, 7141 DC Groenlo, The Netherlands. Trademarks Nedap, the Nedap and Librix logo are registered trademarks of N.V. Nederlandsche Apparatenfabriek “Nedap”, Parallelweg 2, 7141 DC Groenlo, The Netherlands. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Printed in the Netherlands. 3 Date Version Description 18-04-2011 1.0 First version 12-05-2011 1.1 Added text to FCC section 4 1.1 Notices 04 ||||||||||||||||||||||||||||||||||||||||||||||||||| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| 5 This Quick Installation Guide describes the installation of the PG45-PCC-13.56. The used antenna images may differ from the ones you will be installing. However, the installation procedure remains the same. All measurements in this guide are based on past experiences. However, local environment properties may cause the need to change them. The quality of the used labels also influences the detection capabilities. 1. The distance between two antennas must be approximately 1050 mm. 2. In a range of 2 meters within the EAS- antennas there may not be any labeled articles. If there are labels within this distance then a shielding must be placed. 3. The distance between the antenna and door when opened is minimal 300 mm. Consider this before installing the tubes in the floor. 6 Panel distance ca. 105cm 2 loop antenna 3 loop antenna Reader unit Model: DVD31356 Network Power: 100/230Vac 1 ferrite core per cable Coax RG-58 (for cable length see LIBRIX support site) 2x (diameter 5mm) 2 way splitter 7 Panel distance ca. 105cm 2 loop antenna 3 loop antenna 3 loop antenna 3 loop antenna 2 loop antenna 2 loop antenna or or Reader unit Model: DVD31356 Network Power 100/230Vac 3 way splitter Coax RG-58 (for cable length see LIBRIX support site) 3x (diameter 5mm) 8 STEP 1: Mark the holes used for mounting the antennas. Keep the following dimensions in mind: STEP 2: Drill the marked holes using a hammer drill supplied with a 13 mm drill. The holes need to be approximately 90 mm deep. STEP 3: Clean the holes and place the anchors (which the antennas will be bolted to) according to anchor specification. 9 STEP 4: Use (the told) conduits for wiring the antennas. STEP 5: Install the antenna by using the anchors and supplied materials. STEP 6: Connect the antenna wires to the electronics as shown. 10 FCC for USA according to Part 15a with FCC ID: CGDDVD31356 IC for Canada according to RS-210 with IC: 1444A-DVD31356 Part 15.19(3) and RSS_Gen Labelling This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada. Operating is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L'opération est soumis aux deux conditions suivantes : (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n'importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Warning (part15.21) Changes or modifications not expressly approved by party responsible for compliance could void the user’s authority to operate the equipment. 11 Article numbers: PG 45; 2 loop / 3 loop: 9940448 / 9940456 Dimensions (mm): PG 45: 1665 x 480 x 100 (l x w x h) Material: PG 45: Metal / Plexiglas Color: PG 45: Transparent Weight: PG 45: ca. 29 kg Function: Detects labels with EAS = on / AFI 07 HEX Optional expansions: - Light alarm, integral, - Integral customer counter Identification %: Dependent on label quality / environmental influences Article number: 9926798 Supply voltage: 100_230 V, 50-60Hz Operating voltage: 24 V Power consumption: 45 Watt Length power cable: 1.8 m. RF connection: 50 Ohm BNC coax Operating temperature: +10 / +45 °C Storage temperature: -10 / +55 °C Max. distance between two antennas: PG 45: 1.05 m Technology: RFID Frequency: Standard: 13.56 MHz Antenna power (electrical): Max. 8 Watt RF antenna power: 37μWatt Identifies: ISO 15693 / ISO 18000-3.1 EAS-function: Yes, based on EAS-bits and/or AFI Certificate: CE / EMC / FCC Warranty: 1 year 12 This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no license under any patent or other right, nor does the publisher assume liability for any consequence of its use; …

Text truncated - open the document above for the full version.

[Installation Guide] Installation Guide Version 1.1 | 12 May 2011 2 3 [email protected] Nedap Librix Parallelweg 2d Groenlo The Netherlands Nedap Librix P.O. box 102 7140 AC Groenlo The Netherlands Tel: +31(0)544 47 15 09 Fax: +31(0)544 46 58 14 ©Nedap Librix Netherlands Parallelweg 2d, 7141 DC Groenlo The software / hardware described in this document / file is furnished under a license agreement and may be used only in accordance with the terms of agreement. Documentation Installation Guide Copyright Notice Any technical documentation that is made available by Nedap Librix is the copyrighted work of Nedap Librix and is owned by Nedap Librix. NO WARRANTY. The technical documentation is being delivered to you and Nedap Librix makes no warranty as to its accuracy or use. Any use of the technical documentation or the information contained herein is at the risk of the user. Documentation may include technical or other inaccuracies or typographical errors. Nedap Librix has the right to make changes without prior notice. No part of this publication may be copied without the express written permission of Nedap Librix, Parallelweg 2d, 7141 DC Groenlo, The Netherlands. Trademarks Nedap and the Nedap logo are registered trademarks of N.V. Nederlandsche Apparatenfabriek “Nedap”, Parallelweg 2, 7141 DC Groenlo, The Netherlands. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Printed in the Netherlands. 4 Date Version Description 12-04-2011 1.0 First version 12-05-2011 1.1 Added text to FCC section 5 6 The following safety instructions and precautions should be observed during normal use, service and repair. Do not change anything regarding the dvd reader or the installation procedure. Always switch off the power (by disconnecting the power plug) before you remove the cover. Always apply the brake to the trolley when it is not moved. 7 The intelligent book- and cd trolley can be used for checking in books and cd‟s. The trolleys are equipped with 13.56MHz inductive antennas, which are connected to a DVD 13.56MHz transceiver. The transceiver is connected to a pc inside a flexdesk. When an item with an RFID tag is placed inside the trolley, it is detected by the antennas and transceiver. The Bibliocheck4Intelligentshelf software processes the new item by checking it in into an external 3 rd party database. This document describes the hardware and software installation for an intelligent book- or cd trolley. The following items are included: 1x [A] Infodesk with pre-installed embedded pc, touchscreen, DVD 13.56MHz transceiver, network switch, optionally multiplexer 1x [B] Book or CD/DVD trolley (any combination possible, dependent of your order) 1x [C] 2M UTP network cable A B or C D E F G 8 1x [D] USB keyboard 1x [E] USB mouse 1x [F] Power cable with European connector 1x [G] Disconnectable antenna cable (included in [A] flexdesk) 9 Installation scheme: Step 1: Connect the Infodesk [A] to the wall socket with power cable [F] and to the UTP wall socket with UTP cable [C]. Connectors are located on the back of the Info desk and Step 2: Insert the antenna cable into the receptable at the back of the trolley. The cable is already connected to the Infodesk. 10 Step 3: Turn on the power switch at the back of the Infodesk and proceed to SOFTWARE INSTRUCTIONS 11 Refer to the document „Bibliocheck4 man_intelligent_shelf.pdf‟ for detailed software installation instructions of Bibliocheck4IntelligentShelf. 12 FCC for USA according to Part 15 with FCC ID: CGDDVD31356 IC for Canada according to RS-210 with IC: 1444A-DVD31356 Part 15.19(3) and RSS_Gen Labelling This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada. Operating is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L'opération est soumis aux deux conditions suivantes : (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n'importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Warning (part15.21) Changes or modifications not expressly approved by party responsible for compliance could void the user‟s authority to operate the equipment. 13 Article number: Dependant on function, color Dimensions (cm): Column: ca. 70 x 70 x 138 (l x w x h) Trolley: ca. 73 x 53 x 173 (l x w x h) CD-trolley: ca. 110 x 53 x 173 (l x w x h) Material: Metal, Wood Standard color: Wood Red U225; Metal Ral 7016 Optional Color: Any RAL color at extra costs Weight: Trolley /Column: ca. 42 kg / ca. 65 kg CD/DVD trolley: ca. 57 kg Function: Check-in Check in of CDs/DVDs: Yes, only on special trolley Supply voltage: 100_230 V , 50-60Hz Working voltage: Reader: 24 V – 12 V Power consumption: Max. 100 Watt Length power cable: Column: 1.8 m User interface: Touchscreen 15 inch PC: Type: Industrial PC or Touch PC Operating system: XP Embedded SP3 Connections: USB, Lan, VGA, Serial, Audio Communication cable: Standard UTP Compatibility (software): Bibliocheck4 intelligent shelf RFID Reader: Model: Nedap DVD3 reader (art. nr. 9926798) Frequency: 13.56 MHz Identifies: ISO 15693 / ISO 18000-3.1 EAS function: Yes, EAS-bits and/or AFI Book Trolley: Cable to column: 4 m total, 3 m effective Shelve(s): 3 Sorting: No sorting Max. number of books: 65 Check in of CDs/DVDs: No Operational temperature: +10 / +45 °C Storage temperature: 0 / +55 °C Certificate: CE / EMC / FCC Warranty: 1 year 14 This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no license under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifications…

Text truncated - open the document above for the full version.

Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 28 April 2011 Subject: Request of permanent confidentiality FCC ID: CGDDVD31356 Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules N.V . Nederlandsche Apparatenfabriek “Nedap” herewith request the following exhibits, related to this application for FCC ID : CGDDVD31356 Manufacurer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Models : DVD31356 Description : 13.56 MHz Inductive RFID Card reader. as permanently confidential, be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. The contents of these exhibits may not be disclosed to other parties than N.V. Nederlandsche Apparatenfabriek "Nedap" and TÜV Rheinland Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. Theory of operation (technical description) Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap” Jacques Hulshof Approbation Management

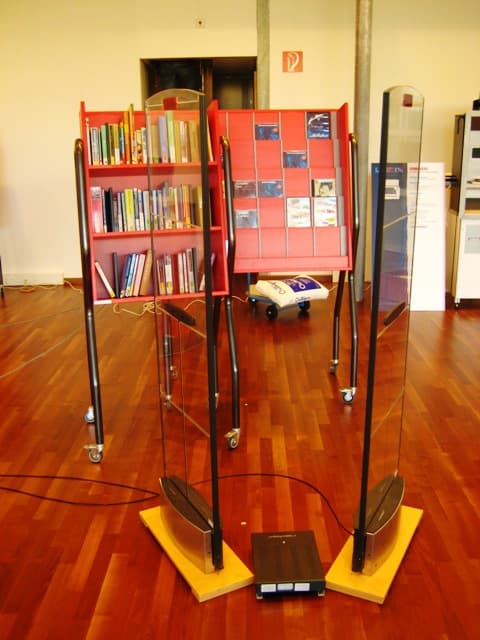

Page 1 of 6 13.56 MHz Inductive RFID Card reader Brand Nedap Model DVD31356 Exterior Photographs Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP DVD31356 Page 2 of 6 Description of item Description of EUT : 13.56 MHz Inductive RFID Card reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : DVD31356 FCC ID : CGDDVD31356 IC ID : 1444A- DVD31356 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 April 2011 Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP DVD31356 Page 3 of 6 Table of contents 1 PHOTOGRAPHS OF THE DVD31356 INCLUDING THE ANTENNAS ..................................................................... 4 2 EXTERIOR PHOTOGRAPHS OF THE DVD31356 ....................................................................................................... 5 2.1 FRONT VIEW OF THE DVD31356 ..................................................................................................................................... 5 2.2 BOTTOM VIEW OF THE DVD31356 ................................................................................................................................ 5 2.3 TOP AND SIDE VIEW OF THE DVD31356 ....................................................................................................................... 6 Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP DVD31356 Page 4 of 6 1 Photographs of the DVD31356 including the antennas Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP DVD31356 Page 5 of 6 2 Exterior Photographs of the DVD31356 2.1 Front view of the DVD31356 2.2 Bottom view of the DVD31356 Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP DVD31356 Page 6 of 6 2.3 Top and side view of the DVD31356

Page 1 of 7 13.56 MHz Inductive RFID Card reader Brand Nedap Model DVD31356 Label Location, labels and artwork Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP DVD31356 Page 2 of 7 Description of item Description of EUT : 13.56 MHz Inductive RFID Card reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : DVD31356 FCC ID : CGDDVD31356 IC ID : 1444A-DVD31356 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 26 April 2011 Revised 13 May 2011 Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP DVD31356 Page 3 of 7 Table of contents 1 Photographs of the DVD31356 .............................................................................................................................................. 4 1.1 Label location in relevance to the device ....................................................................................................................... 4 1.2 Labels location overview ................................................................................................................................................ 4 2 Photographs of the text on the labels ...................................................................................................................................... 5 2.1 ID label text .................................................................................................................................................................... 5 2.2 Warning text English ...................................................................................................................................................... 5 2.3 Warning Text French ...................................................................................................................................................... 6 3 Label artwork ......................................................................................................................................................................... 6 3.1 ID label ........................................................................................................................................................................... 6 3.2 English warning text artwork ......................................................................................................................................... 7 3.3 French warning text artwork .......................................................................................................................................... 7 Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP DVD31356 Page 4 of 7 1 Photographs of the DVD31356 1.1 Label location in relevance to the device 1.2 Labels location overview Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP DVD31356 Page 5 of 7 2 Photographs of the text on the labels 2.1 ID label text 2.2 Warning text English Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP DVD31356 Page 6 of 7 2.3 Warning Text French 3 Label artwork 3.1 ID label Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive RFID Card reader…

Text truncated - open the document above for the full version.
