CGDINVEXS190Inductive Proximity Card Reader

Date : 08 April 2013 Version 6 This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no licence under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifications and availability of goods mentioned in it are subject to change without notice; it is not to be reproduced in any way, in whole or in part, without the written consent of the publisher. © Nedap N.V. P.O. Box 6 NL-7140 AC GROENLO The Netherlands Page 1 of 4 Part.no.: 5281121 Invexs 190 readers Mifare DESfire dual technology mullion readers GENERAL The Invexs 190 reader series is capable of reading (simultaneously) Mifare and DESFire credentials due to its dual reader technology. The Invexs 190 is designed to be used on door pillars (mullion) and suitable for outside and inside use. A model with keypad is also available. The Invexs output must be set to RS485 protocol (encrypted). Functionality and output are determined by the configuration of the Invexs reader. The configuration is defined using the programm AEreco, and deployed by the configuration card or via AEmon. Three LEDs (red, green, blue) and beeper are included. LEDs around the keypad ciphers light up only in case a PIN code is requested. The pigtail cable can be lead directly backwards or when using the additional spacer (art. nr . 9949887) to the top or bottom. DIMENSIONS MOUNTING PROCEDURE INVEXS For mounting the Invexs 190, the mounting plate must be placed on the wall first. For removing the mounting plate from the Invexs 190, unscrew the screw (1) (Torx, M5) at the bottom of the Invexs and push the Invexs 190 slightly up (2). The plate can be mounted using the 4 holes . Place the cable to the correct position and replace the Invexs 190. ® Install Manual Dimensions: 7.52 x 2 x 1.2 in. 4 mounting holes available at 1.26 x 6.1in Cable pigtail: 10 x 26AWG shielded, 10 ft Optional spacer (max thickness 0.4 in) is available for other cable outlet (top or bottom) Un screw Push up 2 1 Mounting plate 1 191 30 10 x 26AWG Shield 32 155 12 40 14.5 50 4 x 5 75 Note: drawing dimensions are in mm Invexs 190 readers © Nedap N.V. Invexs 190 readers Install Manual Page 2 of 4 SAM cover CONNECTIONS Invexs is not hot-swappable, so when making or changing connections, power must be switched Off. Remark: Cable shield (wire 11) must be connected to the metal case of the external device LED INDICATORS INSIDE / BACKSIDE There are two LED’s available: Blue for Status (of application), Green for Identification (both visible behind the SAM cover at the back side) Wire Colour Function 1 Red Power in (12-30VDC) 2 Black Power Ground 3 Grey RS485 A (-) 4 Violet RS485 B (+) 5 Green Do not connect Reserved for future use 6 White 7 Yellow 8 Pink 9 Blue 10 Brown 11 Shield / Metal EM shield (connected to power ground) ID (green) Blinking Card detected ST: STATUS (blue) Slow blinking Application running (operating) Fast blinking Downloading or error during loading 2 short flashes Application present but not active 3 short flashes No application present Invexs 190 readers © Nedap N.V. Invexs 190 readers Install Manual Page 3 of 4 LED INDICATORS FRONT At the front a three colour LED is positioned at the middle of the Invexs Depending of the used configuration the function of these LEDs can differ: • Green LED: Card is been authorised (UL led) • Red LED: Card is not authorised (NA led), controller is stand-by • Blue LED: Blinks fast: No configuration is availabele at this Invexs (present Configuration card or load Configuration first). Continuously ON: Determined by configuration: E.g. Reader stand-by. (Blue LED is activated if UL is OFF and NA is more than 1 sec OFF) Remark: Function of LEDs and Beeper is controlled by used application settings of Invexs. FIRMWARE Pay attention that the firmware loaded in the Invexs together with the Invexs type and configuration determines functionality and protocols. Default (from factory) the Invexs handles the credentials on several ways simultaneously: Mifare cards (CSN) as: RS485NR, RF data Remark: The Invexs 190 requires dedicated firmware (not identical to the Invexs 170 firmware) SYSTEM CONFIGURATIONS (how to connect Invexs readers) Remark: Configurations can be determined by the AEreco (loaded by AEmon or configuration card). BEEPER INDICATIONS Beeper is also used for indication of loading the configuration: • High sound beep (‘happy sound’): Configuration is loaded correct, second high sound beep indicates that this configuration can be used with this Invexs • Low sound beep (‘unhappy sound’): Configuration is not correct loaded or no configuration available at startup To AP4x03 readers with RS485 special encrypted protocol. (LED’s, Beeper, Keys and Display are controlled over the RS485 communication) AEOS RS485 interface Invexs 190 readers © Nedap N.V. Invexs 190 readers Install Manual Page 4 of 4 SPECIFICATIONS Invexs 190 Product numbers see table below: Invexs 190 Reader Invexs 190 Reader + Keypad Credentials Invexs M190 9945512 Invexs MK190 9948422 Mifare Invexs MD190 9948406 Invexs MDK190 9948457 Mifare + DESFire Dimensions: 7.52 x 2 x 1.2 in Protection: IP65 Weight: ± 0.78 lb Power Supply: 12VDC – 30VDC Power consumption: M/MD190: 60mA@12VDC, 35mA@24VDC MK/MDK190: 90mA@12VDC, 45mA@24VDC Environment: Temperature: Operating and Storage: -31°F to +150°F Relative humidity: 10 – 93% non condensing Communication: RS485 (Encrypted AEOS protocol to AP4x03, (firmware APx003rs485NR). Indicators: UL (green) NA (red) ,MD (blue) Antennas (internal): 13.56 MHz, Mifare compatible Detection distance Mifare card: 1.5 in R&TTE: Hereby, Nedap N.V., declares that these products comply with the essential requirements and provisions of the Directive 1999/5/EC of the European Parliament and of the council of March 9, 1999 on Radio equipment and Telecommunications Terminal Equipment and the mutual recognition of their conformity and with the provisions …

Text truncated - open the document above for the full version.

Date: 08 April 2013 Version: B This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no licence under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifications and availability of goods mentioned in it are subject to change without Part.no.: 9209735 Cube Card Reader 190 Nedap Mifare readers GENERAL The Cube card reader 190 series is capable of reading Mifare and DESFire credentials due to its dual reader technology. The Cube card reader 190 is designed to be used on door pillars (mullion) and suitable for outside and inside use. A model with keypad is also available. Functionality and output is determined by the configuration of the Cube card reader. The configuration is defined using the programm AEmon, and deployed via AEmon. Three LEDs (red, green, blue) and beeper are included. LEDs around the keypad ciphers light up only in case a PIN code is requested. The pigtail cable can be lead directly backwards. DIMENSIONS MOUNTING PROCEDURE 190 For mounting the Cube card reader 190, the mounting plate must be placed on the wall first. For removing the mounting plate from the Cube card reader 190, unscrew the screw (1) (Torx, M5) at the bottom of the Cube card reader 190 and push the Cube card reader 190 slightly up (2). The plate can be mounted using the 4 holes . Place the cable to the correct position and replace the Cube card reader 190. ® Install manual Dimensions: 7.52 x 2 x 1.2 in. 4 mounting holes available at 1.26 x 6.1in Cable pigtail: 10 x 26AWG shielded, 10 ft Optional spacer (max thickness 0.4 in) is available for other cable outlet (top or bottom) Un screw Push up 2 1 Mounting plate 1 191 30 10 x 26AWG Shield 32 155 12 40 14.5 50 4 x 5 75 Note: drawing dimensions are in mm Cube card reader 190 SAM cover CONNECTIONS Cube card reader 190 is not hot-swappable, so when making or changing connections, power must be switched Off. Remark: Cable shield (wire 11) must be connected to the metal case of the external device LED INDICATORS INSIDE / BACKSIDE There are two LED’s available: Blue for Status (of application), Green for Identification (both visible behind the SAM cover at the back side) Wire Colour Function 1 Red Power in (12-30VDC) 2 Black Power Ground 3 Grey RS485 A (-) 4 Violet RS485 B (+) 5 Green Do not connect Reserved for future use 6 White 7 Yellow 8 Pink 9 Blue 10 Brown 11 Shield / Metal EM shield (connected to power ground) ID (green) Blinking Card detected ST: STATUS (blue) Slow blinking Application running (operating) Fast blinking Downloading or error during loading 2 short flashes Application present but not active 3 short flashes No application present Cube card reader 190 LED INDICATORS FRONT At the front a three colour LED is positioned at the middle of the Cube card reader 190 Depending of the used configuration the function of these LEDs can differ: • Green LED: Card is been authorised (UL led) • Red LED: Card is not authorised (NA led), controller is stand-by • Blue LED: Blinks fast: No configuration is available at this Cube card reader (load Configuration first). Continuously ON: Determined by configuration: E.g. Reader stand-by. (Blue LED is activated if UL is OFF and NA is more than 1 sec OFF) Remark: Function of LEDs and Beeper is controlled by used application settings of Cube card reader. FIRMWARE Pay attention that the firmware loaded in the Cube card reader 190 together with the Cube card reader 190 type and configuration determines functionality and protocols. Remark: The Cube card reader 190 requires dedicated firmware (not identical to the Cube card reader MK170 firmware) SYSTEM CONFIGURATIONS (how to connect Cube card reader 190) To CUBE Core or CUBE Access Plus with RS485 special encrypted protocol. (LED’s, Beeper and Keys are controlled over the RS485 communication) Cube card reader 190 SPECIFICATIONS Cube card reader 190 : Product number: 9205543 CUBE card reader M190 9205527 CUBE card reader MK190 Dimensions: 7.52 x 2 x 1.2 in Protection: IP65 Weight: ± 0.78 lb Power Supply: 12VDC – 30VDC Power consumption: M190: 60mA@12VDC, 35mA@24VDC MK190: 90mA@12VDC, 45mA@24VDC Environment: Temperature: Operating and Storage: -31°F to +150°F Relative humidity: 10 – 93% non condensing Communication: RS485 (Encrypted AEOS protocol to AP4x03, (firmware APx003rs485NR). Indicators: UL (green) NA (red) ,MD (blue) Antennas (internal): 13.56 MHz, Mifare compatible Detection distance Mifare card: 1.5 in R&TTE: Hereby, Nedap N.V., declares that these products comply with the essential requirements and provisions of the Directive 1999/5/EC of the European Parliament and of the council of March 9, 1999 on Radio equipment and Telecommunications Terminal Equipment and the mutual recognition of their conformity and with the provisions of Annex IV (Conformity Assessment procedure referred to in article 10). CABLE SPECIFICATIONS 10 wire shielded cable of approx. 10 ft length included (pig tail). Extensions can be made: RS485: 22AWG twisted pairs, shielded, max cable length: 3280 ft, cable capacity <= 33pF/ft. Power: 22AWG twisted pairs, shielded, max cable length: 160 ft. MORE INFORMATION: For more detailed information contact your local Nedap supplier or check the internet site. FCC and IC CERTIFICATIONS This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L'opération est soumis aux deux conditions suivantes: (1) cet appareil ne doit causer aucune interférence, et (2) cet…

Text truncated - open the document above for the full version.

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Groenlo, 04 April 2013 Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Dear Mrs. Bosley, We, N.V. Nederlandsche Apparatenfabriek "Nedap", hereby would like to apply for FCC certification of the following device: FCC ID : CGDINVEXS190 FRN : 0007696149 Brand : Nedap Models : INVEXS M190, INVEXS MD190, INVEXS MK190, INVEXS MDK190, CUBE Card reader M190, CUBE Card reader MK190 Type of Service : New Application Description : 13.56 MHz Inductive Proximity Card reader. The following PDF files (exhibits) are electronically submitted: 1. Cover letter (this document) 2. Request of confidentiality 3. Application form 731 4. Bill of material 5. Circuit diagrams 6. Block diagram 7. Interior photograph report 8. Exterior photograph report 9. Label location incl. label 10. Theory of Operation 11. Test report in conformity with 47 CFR Part 15 12. Test setup photographs 13. Installation Sheet (13a and 13b) 14. Attestation of similarity 15. Brochure Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap“ Jacques Hulshof Approbation Management

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Attestation of similarity Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 04 April 2013 Subject : Attestation of Similarity of INVEXS190 series FCC ID: CGDINVEXS190 Dear Mrs. Bosley, The INVEXS MD190 and INVEXS MDK190 as mentioned in test report “11_12100801.fcc01_INVEXS190_testreport_FCC CGDINVEX190.pdf” are low power communication devices operating on 13.56 MHz, the INVEXS MD190 without keyboard and the INVEXS MDK190 with keyboard. There are several models of devices that are electrically, radio and hard ware wise the same only the names and the software in the models differ. All models are listed below: 1. Model : INVEXS M190, 2. Model : INVEXS MD190, 3. Model : INVEXS MK190, 4. Model : INVEXS MDK190, 5. Model : CUBE Card reader M190, 6. Model : CUBE Card reader MK190. The letters stand for M=Mifare, D=DES and K=Keyboard. DES stands for Data Encryption Standard card. This card has more security on board. The card readers are also applied by the “CUBE” system within our company. Instead of “INVEXS” it is named “CUBE Card reader” but the letters and figures behind the names have the same meaning and there for are the same products. We, N.V. Nederlandsche Apparatenfabriek “Nedap”, declare that the model that has been tested and mentioned in the test reports is similar as the models mentioned above regarding radio testing. I hope you can honor this request. Best regards, N.V. Nederlandsche Apparatenfebriek “Nedap” Jacques Hulshof Approbation Management

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 04 April 2013 Subject: Request of permanent confidentiality FCC ID: CGDINVEXS190 Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules N.V. Nederlandsche Apparatenfabriek “Nedap” herewith request the following exhibits, related to this application for: FCC ID : CGDINVEXS190 Manufacurer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Models : INVEXS M190, INVEXS MD190, INVEXS MK190, INVEXS MDK190, CUBE Card reader M190, CUBE Card reader MK190 as permanently confidential, be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. The contents of these exhibits may not be disclosed to other parties than N.V. Nederlandsche Apparatenfabriek "Nedap" and TÜV Rheinland Nederland B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. Theory of operation (technical description) Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap” Jacques Hulshof Approbation Management

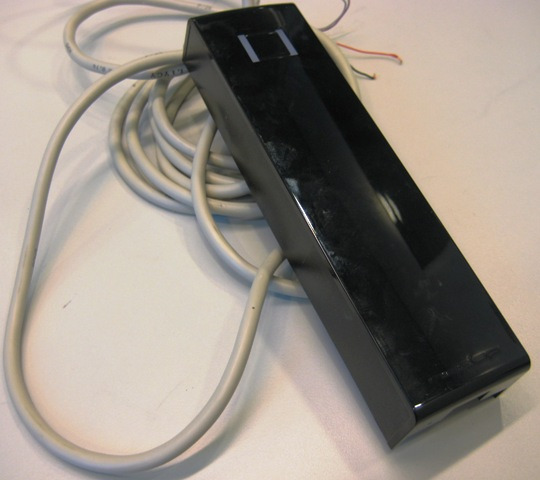

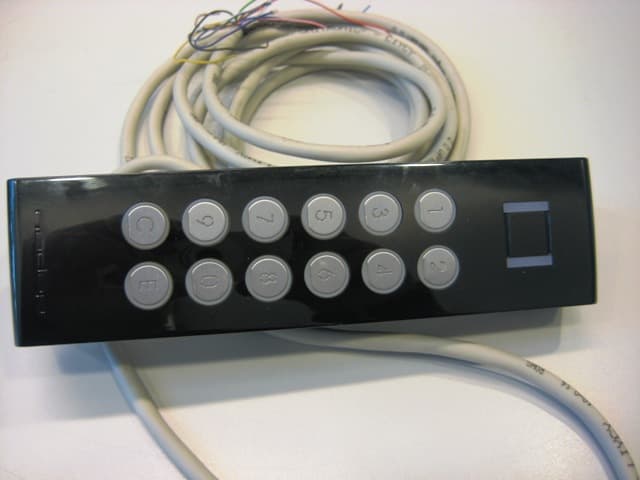

Page 1 of 6 Inductive Proximity Card reader Brand Nedap Models Invexs 170 series Exterior Photographs Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of Application Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Invexs190 series CGDINVEXS190 1444A-INVEXS190 New Application Page 2 of 6 Description of item Description of EUT : Inductive Proximity Card reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Models : INVEXS M190, INVEXS MK190, INVEXS MD190, INVEXS MDK190, CUBE Card reader M190, CUBE Card reader MK190 FCC ID : CGDINVEXS190 IC : 1444A-INVEXS190 Type of Service : New Application Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 04 April 2013 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of Application Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Invexs190 series CGDINVEXS190 1444A-INVEXS190 New Application Page 3 of 6 Table of contents 1 PHOTOGRAPHS OF THE INVEXS M190 ...................................................................................................................... 4 1.1 FRONT VIEW .................................................................................................................................................................... 4 1.2 REAR VIEW WITH MOUNTING PLATE ................................................................................................................................ 4 1.3 REAR VIEW ELECTRONICS MOUNTING PLATE REMOVED .................................................................................................. 5 2 PHOTOGRAPHS OF THE INVEXS MK190 ................................................................................................................... 5 2.1 FRONT VIEW .................................................................................................................................................................... 5 2.2 REAR VIEW WITH MOUNTING PLATE ................................................................................................................................ 6 2.3 REAR VIEW MOUNTING PLATE REMOVED ........................................................................................................................ 6 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of Application Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Invexs190 series CGDINVEXS190 1444A-INVEXS190 New Application Page 4 of 6 1 Photographs of the INVEXS M190 1.1 Front view 1.2 Rear view with mounting plate Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of Application Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Invexs190 series CGDINVEXS190 1444A-INVEXS190 New Application Page 5 of 6 1.3 Rear view electronics mounting plate removed 2 Photographs of the INVEXS MK190 2.1 Front view Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of Application Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap Invexs190 series CGDINVEXS190 1444A-INVEXS190 New Application Page 6 of 6 2.2 Rear view with mounting plate 2.3 Rear view mounting plate removed

Page 1 of 7 Inductive Proximity Card reader Brand Nedap Model Invexs190 series Label Location and Label photographs Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Type of Service: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Invxexs190 series CGDINVEXS190 1444A-INVEXS190 New Application Page 2 of 7 Description of item Description of EUT : Inductive Proximity Card reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : INVEXS M190, INVEXS MD190, INVEXS MK190, INVEXS MDK190, CUBE Card reader M190, CUBE Card reader MK190 FCC ID : CGDINVEXS190 IC 1444A-INVEXS190 Type of Service New Application Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 04 April 2013 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Type of Service: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Invxexs190 series CGDINVEXS190 1444A-INVEXS190 New Application Page 3 of 7 Table of contents 1 INVEXS M190 series .................................................................................................................................................................. 4 1.1 Location of the label ............................................................................................................................................................ 4 1.2 INVEXS M190 .................................................................................................................................................................... 4 1.3 INVEXS MD190 ................................................................................................................................................................. 5 1.4 CUBE Card reader M190 .................................................................................................................................................... 5 2 INVEXS MK190 series ............................................................................................................................................................... 5 2.1 Location of the label ............................................................................................................................................................ 5 2.2 INVEXS MK190 ................................................................................................................................................................. 6 2.3 INVEXS 190 MDK190 ....................................................................................................................................................... 6 2.4 CUBE Card reader MK190 ................................................................................................................................................. 7 3 Warning label .............................................................................................................................................................................. 7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Type of Service: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Invxexs190 series CGDINVEXS190 1444A-INVEXS190 New Application Page 4 of 7 1 INVEXS M190 series 1.1 Location of the label 1.2 INVEXS M190 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Type of Service: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Invxexs190 series CGDINVEXS190 1444A-INVEXS190 New Application Page 5 of 7 1.3 INVEXS MD190 1.4 CUBE Card reader M190 2 INVEXS MK190 series 2.1 Location of the label Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Type of Service: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Invxexs190 series CGDINVEXS190 1444A-INVEXS190 New Application Page 6 of 7 2.2 INVEXS MK190 2.3 INVEXS 190 MDK190 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Type of Service: Inductive Proximity Card reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap Invxexs190 series CGDINVEXS190 1444A-INVEXS190 New Application Page 7 of 7 2.4 CUBE Card reader MK190 3 Warning label

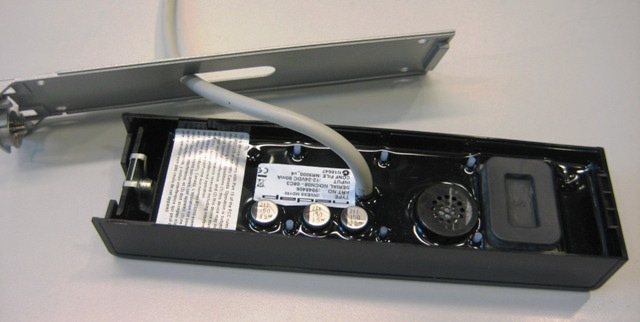

Page 1 of 10 Inductive Proximity Card reader Brand Nedap Model Invexs190 series Interior Photographs Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of Service Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap INVEXS 190 series CGDINVEXS190 1444A-INVEXS190 New application Page 2 of 10 Description of item Description of EUT : Inductive Proximity Card reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Models : INVEXS M190, INVEXS MD190, INVEXS MK190, INVEXS MDK190, CUBE Card reader M190, CUBE Card reader MK190 FCC ID : CGDINVEXS190 IC : 1444A-INVEXS190 Type of Service : New Application Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 04 April 2013 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of Service Inductive Proximity Cardreader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap INVEXS 190 series CGDINVEXS190 1444A-INVEXS190 New application Page 3 of 10 Table of contents 1 PHOTOGRAPHS OF THE INVEXS M190 ........................................................................................................................... 4 1.1 EXTERNAL PHOTOS .............................................................................................................................................................. 4 1.1.1 Front view.................................................................................................................................................................... 4 1.1.2 Rear view ..................................................................................................................................................................... 4 1.2 INTERNAL VIEW PHOTOS ...................................................................................................................................................... 5 1.2.1 Removed cover back side ............................................................................................................................................. 5 1.2.2 Passive antenna Printed Circuit Board mounted on mains board .............................................................................. 5 1.2.3 Passive antenna Printed Circuit board ....................................................................................................................... 6 1.2.4 Backside printed circuit board .................................................................................................................................... 6 1.2.5 Front side printed circuit board .................................................................................................................................. 6 2 PHOTOGRAPHS OF THE INVEXS MK190 ........................................................................................................................ 7 2.1 EXTERNAL PHOTOS .............................................................................................................................................................. 7 2.1.1 Front view.................................................................................................................................................................... 7 2.1.2 Rear view ..................................................................................................................................................................... 7 2.2 INTERNAL VIEW PHOTOS ...................................................................................................................................................... 8 2.2.1 Removed cover back side ............................................................................................................................................. 8 2.2.2 Passive antenna Printed Circuit Board mounted on mains board .............................................................................. 8 2.2.3 Keyboard ..................................................................................................................................................................... 9 2.2.4 Keyboard removed..................................................................................................................................................... 10 2.2.5 Backside printed circuit board ..........................…
