CGDPROX1356Inductive Proximity RFID Card Reader

PHYSICAL SPECIFICATIONS SHIELDED READER Article numbers: 9929193 / 9924485 Dimensions (mm): Reader: 315 x 310 x 125 (l x w x h) Antenna: 275 x 275 x 15 (l x w x h) Material: Metal / Trespa Colour: White Weight: 1.5 kg Function: Check-in / check-out / staff-station Mounting: Underneath table / desk ELECTRICAL SPECIFICATIONS Supply voltage: 100- 230 V ac, 50-60 Hz. Working voltage: 9 V Power consumption: Max. 30 Watt Length power cable: 1.5 m CONNECTION / COMMUNICATION SPECIFICATIONS Communication ports: RS232 / UTP Max. length communication cable: RS232: 10 m / UTP: 90 m Software installation procedure: CD Min. system requirements OS: Windows 2000 / XP with .Net2 sp2 Other: CD / DVD-drive Compatibility (Software Nedap Librix): Bibliocheck4 Conversion / Lite / Selfservice ENVIRONMENTAL SPECIFICATIONS Operational temperature: +10 / +40 °C Storage temperature: -10 / +55 °C Min. distance between two antennae: 50 cm Do not mount near: Metal (not applicable for shielded reader) Do not mount up / under: Metal desk / table or desk / table with metal frame RFID SPECIFICATIONS Technology: RFID Frequency: 13.56 MHz Antenna power (electrical): Max. 1 Watt RF antenna power: 1.4 μW. Identifies: ISO 15693, ISO 18000-3.1 Dimensions detection field: Approx. 20 cm above antenna EAS-function: Using EAS Bit (NXP-IC) / AFI WARRANTY / CERTIFICATES Certificate: CE / EMC Warranty: 1 year FCC / IC: CGDRROX1356, 1444A-PROX1356 Approvals of the power adaptor: - c UL us according to UL/CSA 60950-1 - Japan PSE - CE according to EN60950-1 - FCC compliant Version 1.0 Specifications are subject to change without notice proximity reader 13.56 mhz beyond the book proximity reader 13,56 mhz replacing barcode scanners the staff station functionally replaces the barcode scanner. the unit enables staff to identify all rfid-labeled items. out-of-view installation This RFID reader offers a specially developed shielded reader. This reader can be installed under a desk or table. Because of the shielding, the reader only works in a defined area. It will not be influenced by metal that is placed nearby. software The Bibliocheck4 Lite software makes it possible for the reader to co-operate without any adjustments to your existing Library Management System. Besides that Nedap Librix offers software for libraries to fully integrate the reader in the LMS. Books, CDs, DVDs and other materials containing an RFID-label can be converted online or offline using the Bibliocheck4 Conversion software package. Optional expansions are available as well. benefits - Easy to install - Network or serial Connection - Remote supervision - EAS-activation / deactivation - Multi-label ID contact Nedap Librix Parallelweg 2d 7141 DC Groenlo The Netherlands T +31 (0) 544 47 11 11 F +31 (0) 544 46 58 14 E [email protected] www.nedaplibrix.com 220 355 40 310 NOTE: Do not use these drawings for installation purposes. Ask your local supplier for technical drawings. fcc and ic certifications FCC for USA according to Part 15 with FCC ID: CGDPROX1356 IC for Canada according to RS-210 with IC: 1444A-PROX1356 Part 15.19(3) and RSS_Gen Labelling This device complies with part 15 of the FCC Rules and to RSS-210 of Industry Canada. Operating is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L’opération est soumis aux deux conditions suivantes : (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n’importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Warning (part15.21) Changes or modifications not expressly approved by party responsible for compliance could void the user’s authority to operate the equipment.

PHYSICAL SPECIFICATIONS Article number: 9927786 Dimensions (cm): Standard furniture: ca. 100 x 83 x 130 (l x w x h) Height desk: ca. 75 Height ring (optional): 10 or 20 Material: Metal, MDF, vulkanit Standard color: Wood Red U-225 Metal Ral 7016 Optional color: Any color at extra costs Weight: ca. 70 kg Function: Check-in, -out, combi Check in of CDs/DVDs: Yes ELECTRICAL SPECIFICATIONS Supply voltage: 110 - 230 V, 50 - 60 Hz Working voltage: Reader: 24 V - 12 V - 9 V Power consumption: Max. 100 Watt Length power cable: 1.8 m HARDWARE SPECIFICATIONS User interface: Touchscreen 15 inch PC: Type: Industrial PC or Touch PC Operating system: XP Embedded SP3 Connections: USB, Lan, VGA, Serial, Audio Communication cable: Standard UTP Printer: Thermal, paper 80 mm Compatibility: Software: Bibliocheck4 Selfservice Reader: Nedap Prox. Reader, art. nr. 9934634 Antenna power (electrical): Max. 1 Watt RF antenna power: 1.4 μW Technology: RFID Frequency: 13.56 MHz Identifies: ISO 15693 / ISO 18000-3.1 EAS function: Yes, EAS-bits and/or AFI Patron identification: Barcode card reader ENVIRONMENTAL SPECIFICATIONS Operational temperature: +10 / +45 °C Storage temperature: 0 / +55 °C WARRANTY / CERTIFICATES Certificate: CE / EMC / FCC Warranty: 1 year Approvals of the power adaptor: - c UL us according to UL/CSA 60950-1 - Japan PSE - CE according to EN60950-1 - FCC compliant Version 1.0 Specifications are subject to change without notice flexdesk beyond the book flexdesk a new self-service experience the flexdesk provides your library with a new self-service experience. it contains a barcode, mifare or rfid reader to identify the user, an rfid- reader for the check-in/out process and a touch screen for user interaction. additionally, the flexdesk contains a printer for the receipts. check-in and check-out The Flexdesk can function as a check-in, check-out or combi station. This way you can facilitate the whole lend and return process with just one desk. The Flexdesk is equipped with a table-top reader. The reader is produced in such a way that only items that are on top of the antenna are processed. user-friendly Because of the use of touch screens and user-friendly software, the Flexdesk can easily be used by all ages. It enables the user to lend out and return books by completing a few simple steps. meeting your demands The Flexdesk can be delivered in several colours and shapes, to meet your specific demands. benefits - Check-in / Check-out or combined - Simple user interface - Several color and appearance options - Robust; use of industrial electronics - Remote service and support contact Nedap Librix Parallelweg 2d 7141 DC Groenlo The Neterlands T +31 (0) 544 47 11 11 F +31 (0) 544 46 58 14 E [email protected] www.nedaplibrix.com 541 750 / 850 / 950 699 Flexdesk front:Flexdesk side: 4 types of desks: NOTE: Do not use these drawings for installation purposes. Ask your local supplier for technical drawings. 675675 675 675 1000 1000 1000 1000 fcc and ic certifications This device contains PROX READER with FCC-ID: CGDPROX1356 and IC: 1444A- PROX1356 Part 15.19(3) and RSS_Gen Labelling This device complies with part 15 of the FCC Rules and to RSS-210 of Industry Canada. Operating is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L’opération est soumis aux deux conditions suivantes : (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n’importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Warning (part15.21) Changes or modifications not expressly approved by party responsible for compliance could void the user’s authority to operate the equipment.

[Installation Guide] Installation Guide Version 3.2 | 12 May 2011 2 3 [email protected] Nedap Librix Parallelweg 2d Groenlo The Netherlands Nedap Librix P.O. box 102 7140 AC Groenlo The Netherlands Tel: +31(0)544 47 15 09 Fax: +31(0)544 46 58 14 ©Nedap Librix Netherlands Parallelweg 2d, 7141 DC Groenlo The software / hardware described in this document / file is furnished under a license agreement and may be used only in accordance with the terms of agreement. Documentation Installation Guide Copyright Notice Any technical documentation that is made available by Nedap Librix is the copyrighted work of Nedap Librix and is owned by Nedap Librix. NO WARRANTY. The technical documentation is being delivered to you and Nedap Librix makes no warranty as to its accuracy or use. Any use of the technical documentation or the information contained herein is at the risk of the user. Documentation may include technical or other inaccuracies or typographical errors. Nedap Librix has the right to make changes without prior notice. No part of this publication may be copied without the express written permission of Nedap Librix, Parallelweg 2d, 7141 DC Groenlo, The Netherlands. Trademarks Nedap and the Nedap logo are registered trademarks of N.V. Nederlandsche Apparatenfabriek “Nedap”, Parallelweg 2, 7141 DC Groenlo, The Netherlands. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Printed in the Netherlands. 4 Date Version Description 27-10-2006 1.0 First version 21-09-2010 2.0 Changed layout to librix style 03-03-2011 3.0 Changed screenshots 18-04-2011 3.1 Added FCC section 12-05-2011 3.2 Add text to FCC section 5 1.1. Steps 07 2.1. Steps 09 2.2. Contact & support 13 6 The staff station can, in principle, replace barcode scanners. The unit enables the staff to identify all articles with an RFiD-label. The standard staff station consists of an RFID reader positioned on the counter/desk (tabletop model). The reader is connected to the existing hardware (PC) and/or library automation system. The BiblioCheck 4 Lite software is designed for the simple use of the reader in combination with your current database management system. Included: 1x [A] Proximity Reader 1x [B] Power cable 1x [C] RS232-cable 1x [D] Nedap installation CD 4x [E] Screw for mounting the proximity reader Not Included: 1x Cross point-screwdriver 1x Computer with CD/DVD-drive 1x Item containing a RFiD-Label If no serial-port is available on the computer, a Serial-to-USB convertor needs to ordered to make this product work. The following safety instructions and precautions should be observed during normal use, service and repair. Do not change anything regarding the proximity reader or the installation procedure. Always switch off the power (by disconnecting the power plug) before you remove the cover. Do not mount the proximity under a table with an metal frame or under metal tables. 7 Installation scheme: Step 1: Remove the cover of the proximity reader [A] by removing the two screws which hold the cover in place. Step 2: Connect the RS232-cable [C] to the proximity reader [A]. Step 3: Connect the RS232-cable [C] to the serial-port of the computer. The serial-port is most likely located on the back of the computer. Step 4: Connect the power cable [B] to the proximity reader [A]. The side with the screws needs to be up. This way, you will insert the plug the correct way. DO NOT ACTIVATE THE POWER BEFORE YOU HAVE COMPLETED STEP 5! ProximityReader 13.56MHz (A) 8 Step 5: Replace the proximity reader‟s cover. Make sure you also put the screws back in their original place. Step 6: Mount the proximity reader [A] using the supplied screws [E]. Keep in mind that the center spot in the circle is the center of the antenna‟s detection field. Step 7: Activate the power by putting the plug of the power cable [B] in an electric point Step 8: Proceed to the SOFTWARE INSTRUCTIONS. 9 Notice: The screenshots in this guide may differ from what the computer is displaying. However, the procedure remains the same. Minimal system requirements: - Operating system: o Windows 2000, XP Professional SP3, Vista Business and 7 Business o Windows Installer 3.1 o Microsoft .NET framework 2 sp2 - CD/DVD-drive Step 1: Start up the computer. Log in with „administrator rights‟. Step 2: Insert the installation-CD [D]. Step 3: Normally, the CD will run automatically. When this does not occur: Go to: Start > My Computer > CD/DVD-drive (Now called: Nedap Librix). Step 4: Enter the folder „BiblioCheck4Lite‟. Step 5: Run „BiblioCheck4LiteSetup.msi‟. Step 6: Read the instructions and click on „Next >‟. 10 Step 7: Make sure „Run Configuration‟ is checked and click „Next >‟. Step 8: Make sure „Everyone‟ is checked so Bibliocheck4Lite is installed for all accounts using the computer. Click „Next>‟ Step 9: Click „Next >‟ to start the installation. Step 10: The installation progress will be displayed. Wait for the installation to be finished. Step 11: Click „Close‟ to finish the installation. Step 12: The configuration tool will start up. 11 STEP 13 At the configuration tool: If the „+‟ is clicked, it will expand the menu. In the configuration tool. Go to: Bibliocheck4Lite > local > Bibliocheck4Lite > Hostsettings > NedapRFRetryReader. Step 14: On the right side, click on the arrow nex to RFconnection, and choose „RS232Connection‟ from the dropdown-menu. Step 15: Click „Save‟. Step 16: Select the correct COM-Port as the the proximity- reader is connected to. Step 17: Click „Save‟. Step 18: Click „Test Node‟. Step 19: Click „Run Test‟. 12 Step 20: If the right COM-Port is selected it will display the message: „OK‟. [1] If the wrong COM-Port is selected it will display the message „ERROR‟. [2] If an „ERROR‟-message occurs; repeat STEP 16 to 21 until the right COM-Port is selected. Example: Switch from COM-Port 1 to COM-Port 2 (or COM-Port 2 to 3, etc) and test the connection again. Repeat …

Text truncated - open the document above for the full version.

[Installation Guide] Installation Guide Version 1.1 | 12 May 2011 2 3 [email protected] Nedap Librix Parallelweg 2d Groenlo The Netherlands Nedap Librix P.O. box 102 7140 AC Groenlo The Netherlands Tel: +31(0)544 47 15 09 Fax: +31(0)544 46 58 14 ©Nedap Librix Netherlands Parallelweg 2d, 7141 DC Groenlo The software / hardware described in this document / file is furnished under a license agreement and may be used only in accordance with the terms of agreement. Documentation Installation Guide Flexdesk Copyright Notice Any technical documentation that is made available by Nedap Librix is the copyrighted work of Nedap Librix and is owned by Nedap Librix. NO WARRANTY. The technical documentation is being delivered to you and Nedap Librix makes no warranty as to its accuracy or use. Any use of the technical documentation or the information contained herein is at the risk of the user. Documentation may include technical or other inaccuracies or typographical errors. Nedap Librix has the right to make changes without prior notice. No part of this publication may be copied without the express written permission of Nedap Librix, Parallelweg 2d, 7141 DC Groenlo, The Netherlands. Trademarks Nedap and the Nedap logo are registered trademarks of N.V. Nederlandsche Apparatenfabriek “Nedap”, Parallelweg 2, 7141 DC Groenlo, The Netherlands. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Printed in the Netherlands. 4 Date Version Description 21-04-2011 1.0 First version 12-05-2011 1.1 Added text to FCC section 5 6 The following safety instructions and precautions should be observed during normal use, service and repair. Do not change anything regarding the prox reader or the installation procedure. Always switch off the power (by disconnecting the power plug) before you remove the cover. 7 The flexdesk can be used for checking out and/or in books and cd‟s. A prox 13.56MHz reader is pre-installed inside the desk. The prox is connected to a pc inside a flexdesk. The pre-installed software Bibliocheck4Selfservice can be configured to operate in checkin, checkout or combi mode. The software can connect to the library management system (LMS) over the SIP2 or NCIP protocol. An integrated ticket printer can be used to issue tickets to a patron. This document describes the hardware and software installation for a flexdesk. The following items are included: 1x [A] flexdesk with pre-installed embedded pc, touchscreen, PROX 13.56MHz transceiver 1x [B] 2M UTP network cable 1x [C] USB keyboard 1x [D] USB mouse 1x [E] Power cable with European connector A B D E C 8 The flexdesk is pre-installed with all required hardware and software. The hardware only needs to be connected to a power source, and to the network over a UTP cable. Figure 1 - power and network connector 1. Connect the power cable [E] to the power connector on the back of the flexdesk. 2. Connect the UTP network cable [A] to the UTP connector on the back of the flexdesk that is labeled „ PC‟ . 3. Switch on the power of the flexdesk by pushing the red power switch. 4. The PC inside the flexdesk will automatically start when power is applied to it. 5. If the screen stays black, only the screen must be turned on manually. This can be done by pressing the power button on the right side of the screen () The software running on the flexdesk is Bibliocheck4Selfservice. Refer to the manual for this software package for more information about the installation and configuration of this program. Power Network 9 This device contains PROX1356 with FCC-ID: CGDPROX1356 and IC: 1444A-PROX1356 Part 15.19(3) and RSS_Gen Labelling This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada. Operating is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L'opération est soumis aux deux conditions suivantes : (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n'importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Warning (part15.21) Changes or modifications not expressly approved by party responsible for compliance could void the user‟s authority to operate the equipment. 10 Article number: 9927786 / 9930400 Dimensions (cm): Standard furniture: ca. 100 x 83 x 130 (l x w x h) Height desk: ca. 75 Height ring (optional): 10 or 20 Material: Metal, MDF, vulkanit Standard color: Wood Red U-225 Metal Ral 7016 Optional color: Any color at extra costs Weight: ca. 70 kg Function: Check-in, -out, combi Check in of CDs/DVDs: Yes Supply voltage: 110_230 V, 50-60Hz Working voltage: Reader: 24 V - 12 V - 9 V Power consumption: Max. 100 Watt Length power cable: 1.8 m User interface: Touchscreen 15 inch PC: Type: Industrial PC or Touch PC Operating system: XP Embedded SP3 Connections: USB, Lan, VGA, Serial, Audio Communication cable: Standard UTP Printer: Thermal, paper 80 mm Compatibility: Software: Bibliocheck4 Selfservice Reader: Nedap Prox. Reader, art. nr. 9934634 Antenna power: Max. 1 Watt Technology: RFID Frequency: 13.56 MHz Identifies: ISO 15693 / ISO 18000-3.1 EAS function: Yes, EAS-bits and/or AFI Patron card reader: Standard : Barcode card reader or RFID/Mifare card reader Optional: Magnetic card Operational temperature: +10 / +45 °C Storage temperature: 0 / +55 °C Certificate: CE / EMC / FCC Warranty: 1 year 11 This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no license under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifications and availability of goods mentioned in it are subject to ch…

Text truncated - open the document above for the full version.

Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 27 April 2011 Subject: Request of permanent confidentiality FCC ID: CGDPROX1356 Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules N.V . Nederlandsche Apparatenfabriek “Nedap” herewith request the following exhibits, related to this application for FCC ID : CGDPROX1356 Manufacurer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : PROX1356 Description : 13.56 MHz Inductive Proximity RFID Card reader. as permanently confidential, be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. The contents of these exhibits may not be disclosed to other parties than N.V. Nederlandsche Apparatenfabriek "Nedap" and TÜV Rheinland Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. Theory of operation (technical description) Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap” Jacques Hulshof Approbation Management

Page 1 of 7 13.56 MHz Inductive Proximity RFID Card reader Brand Nedap Model PROX1356 Label Location incl. text Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive Proximity RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP PROX1356 Page 2 of 7 Description of item Description of EUT : 13.56 MHz Inductive RFID Card reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : PROX1356 FCC ID : CGDPROX1356 IC ID : 1444A-PROX1356 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 26 April 2011 Revised 13 May 2011 Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive Proximity RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP PROX1356 Page 3 of 7 Table of contents 1 Label location on the device ................................................................................................................................................... 4 2 Photographs of the label text .................................................................................................................................................. 5 2.1 ID label text .................................................................................................................................................................... 5 2.2 Warning text English ...................................................................................................................................................... 5 2.3 Warning Text French ...................................................................................................................................................... 6 3 Label artwork ......................................................................................................................................................................... 6 3.1 ID label ........................................................................................................................................................................... 6 3.2 English warning text artwork ......................................................................................................................................... 7 3.3 French warning text artwork .......................................................................................................................................... 7 Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive Proximity RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP PROX1356 Page 4 of 7 1 Label location on the device Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive Proximity RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP PROX1356 Page 5 of 7 2 Photographs of the label text 2.1 ID label text 2.2 Warning text English Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive Proximity RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP PROX1356 Page 6 of 7 2.3 Warning Text French 3 Label artwork 3.1 ID label Description of EUT: Manufacturer: Brand mark: Model: 13.56 MHz Inductive Proximity RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP PROX1356 Page 7 of 7 3.2 English warning text artwork 3.3 French warning text artwork

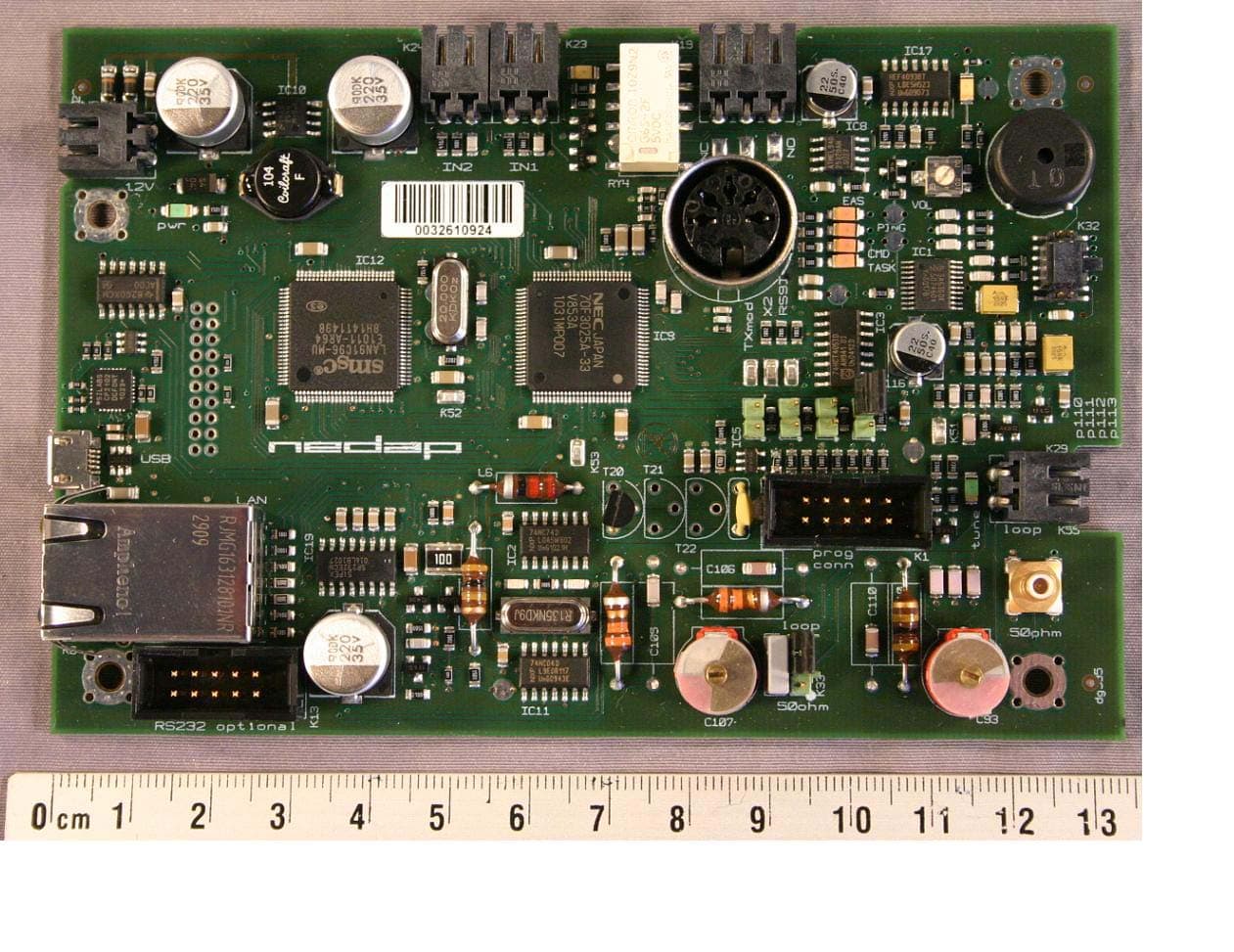

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 10082308.p02 Page 1 of 8 PHOTOGRAPHS OF THE INTERIOR OF AN INDUCTIVE PROXIMITY CARD READER, OPERATING ON 13.56 MHz BRAND Nedap, MODEL PROX1356 10082308.p02 May 12, 2011 FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Inductive Proximity Card Reader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap PROX1356 CGDPROX1356 1444A-PROX1356 Project number: 10082308.p02 Page 2 of 8 Description of test item Test item (EUT) : Inductive Proximity Card Reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model(s) : PROX1356 Serial number(s) : -- FCC ID : CGDPROX1356 IC : 1444A-PROX1356 Applicant information Applicant's representative : Mr. J.A.M. Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo Country : The Netherlands Telephone number : +31 544 471 162 Telefax number : +31 544 463 475 E-mail : [email protected] Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Inductive Proximity Card Reader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap PROX1356 CGDPROX1356 1444A-PROX1356 Project number: 10082308.p02 Page 3 of 8 Table of contents 1 MULTIPLEXER. ................................................................................................................................................................... 4 1.1 CARD READER TOP VIEW WITH LID. ................................................................................................................................ 4 1.2 CARD READER TOP VIEW WITHOUT LID. ......................................................................................................................... 5 1.3 CARD READER BOTTOM PANEL WITH COIL. .................................................................................................................... 6 1.4 CARD READER PCB TOP VIEW....................................................................................................................................... 7 1.5 CARD READER PCB BOTTOM VIEW. .............................................................................................................................. 8 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Inductive Proximity Card Reader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap PROX1356 CGDPROX1356 1444A-PROX1356 Project number: 10082308.p02 Page 4 of 8 1 Multiplexer. 1.1 Card reader top view with lid. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Inductive Proximity Card Reader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap PROX1356 CGDPROX1356 1444A-PROX1356 Project number: 10082308.p02 Page 5 of 8 1.2 Card reader top view without lid. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Inductive Proximity Card Reader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap PROX1356 CGDPROX1356 1444A-PROX1356 Project number: 10082308.p02 Page 6 of 8 1.3 Card reader bottom panel with coil. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Inductive Proximity Card Reader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap PROX1356 CGDPROX1356 1444A-PROX1356 Project number: 10082308.p02 Page 7 of 8 1.4 Card reader PCB top view. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: Inductive Proximity Card Reader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap PROX1356 CGDPROX1356 1444A-PROX1356 Project number: 10082308.p02 Page 8 of 8 1.5 Card reader PCB bottom view.

Testing and certification electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.tuv-eps.com Project number: 10082308.fcc01_Rev01 Page 1 of 20 TEST REPORT CONCERNING THE COMPLIANCE OF AN INDUCTIVE PROXIMITY CARD READER, OPERATING ON 13.56 MHz BRAND Nedap, MODEL PROX1356 WITH 47 CFR PART 15 (10-1-09 EDITION) AND THE REQUIREMENTS OF INDUSTRY CANADA: RSS-GEN AND RSS-210 (ISSUE 8, DECEMBER 2010) 10082308.fcc01_Rev01 May 12, 2011 FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-GEN, RSS-210 Inductive Proximity Card Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap PROX1356 CGDPROX1356 1444A-PROX1356 Project number : 10082308.fcc01_Rev01 Page 2 of 20 MEASUREMENT/TECHNICAL REPORT N.V. Nederlandsche Apparatenfabriek “Nedap” Brand: Nedap Model: PROX1356 FCC ID: CGDPROX1356 IC: 1444A-PROX1356 May 12, 2011 This report concerns: Original grant/certification Class 2 Permissive Change Verification Equipment type: Inductive Proximity Card Reader Report prepared by: Name : Richard van der Meer Company name : TÜV Rheinland EPS B.V. Add…
