CGDUPRO1356Inductive Proximity RFID Cardreader

PHYSICAL SPECIFICATIONS SHIELDED READER Article numbers: 9964657 Dimensions (mm): Reader: 240 x 118 x 53,5 (l x w x h) Antenna: 275 x 275 x 15 (l x w x h) Material: Metal / Trespa Colour: Dark grey Weight: 1.5 kg Function: Check-in / check-out / staff-station Mounting: Underneath table / desk ELECTRICAL SPECIFICATIONS Supply voltage: 100- 230 V ac, 50-60 Hz. Working voltage: 9 V Power consumption: Max. 5 Watt Length power cable: 1.5 m CONNECTION / COMMUNICATION SPECIFICATIONS Communication ports: USB / UTP Max. length communication cable: USB: 10 m / UTP: 90 m Software installation procedure: CD Min. system requirements OS: Windows 7 / XP with .Net2 sp3 Other: CD / DVD-drive Compatibility (Software Nedap Librix): Bibliocheck4 Conversion / Lite / Selfservice ENVIRONMENTAL SPECIFICATIONS Operational temperature: +10 / +40 °C Storage temperature: -10 / +55 °C Min. distance between two antennae: 50 cm Do not mount near: Metal Do not mount up / under: Metal desk / table or desk / table with metal frame RFID SPECIFICATIONS Technology: RFID Frequency: 13.56 MHz Antenna power (electrical): Max. 1 mW. Identifies: ISO 15693, ISO 18000-3.1 Dimensions detection field: Approx. 30 cm above antenna EAS-function: Using EAS Bit (NXP-IC) / AFI WARRANTY / CERTIFICATES Certificate: CE / FCC / IC Warranty: 1 year FCC / IC identification: CGDUPRO1356, 1444A-UPRO1356 Approvals of the power adaptor: - c UL us according to UL/CSA 60950-1 - Japan PSE - CE according to EN60950-1 - FCC compliant Version 1.0 Specifications are subject to change without notice proximity reader 13.56 mhz beyond the book proximity reader 13.56 mhz replacing barcode scanners the staff station functionally replaces the barcode scanner. the unit enables staff to identify all rfid-labeled items. out-of-view installation This RFID reader offers a specially developed unshielded reader. This reader can be installed on a desk or table. The reader can be connected to existing hardware (PC) and/or Library Management Systems. software The Bibliocheck4 Lite software makes it possible for the reader to co-operate without any adjustments to your existing Library Management System. Besides that Nedap Librix offers software for libraries to fully integrate the reader in the LMS. Books, CDs, DVDs and other materials containing an RFID-label can be converted online or offline using the Bibliocheck4 Conversion software package. Optional expansions are available as well. benefits - Easy to install - Network or USB Connection - Remote supervision - EAS-activation / deactivation - Multi-label ID contact Nedap Librix Parallelweg 2d 7141 DC Groenlo The Netherlands T +31 (0) 544 47 11 11 F +31 (0) 544 46 58 14 E [email protected] www.nedaplibrix.com NOTE: Do not use these drawings for installation purposes. Ask your local supplier for technical drawings. fcc and ic certifications FCC for USA according to Part 15 with FCC ID: CGDUPRO1356 IC for Canada according to RS-210 with IC: 1444A-UPRO1356 Part 15.19(3) and RSS_Gen Labelling This device complies with part 15 of the FCC Rules and to RSS-210 of Industry Canada. Operating is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L’opération est soumis aux deux conditions suivantes : (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n’importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Warning (part15.21) Changes or modifications not expressly approved by party responsible for compliance could void the user’s authority to operate the equipment. Tabletop reader: Antenna (Tabletop): 172,5 12,5 240 118 53,5 88 210 210 14,4

[Installation Guide] quick installation guide: unshielded proximity reader 13.56 mhz Quick Installation Guide Version 3.2 | 23 rd February 2012 2 3 technical support email address [email protected] visitors address Nedap Librix Parallelweg 2d Groenlo The Netherlands postal address Nedap Librix P.O. box 102 7140 AC Groenlo The Netherlands tel & fax Tel: +31(0)544 47 15 09 Fax: +31(0)544 46 58 14 ©Nedap Librix Netherlands Parallelweg 2d, 7141 DC Groenlo The software / hardware described in this document / file is furnished under a license agreement and may be used only in accordance with the terms of agreement. Documentation Installation Guide Copyright Notice Any technical documentation that is made available by Nedap Librix is the copyrighted work of Nedap Librix and is owned by Nedap Librix. NO WARRANTY. The technical documentation is being delivered to you and Nedap Librix makes no warranty as to its accuracy or use. Any use of the technical documentation or the information contained herein is at the risk of the user. Documentation may include technical or other inaccuracies or typographical errors. Nedap Librix has the right to make changes without prior notice. No part of this publication may be copied without the express written permission of Nedap Librix, Parallelweg 2d, 7141 DC Groenlo, The Netherlands. Trademarks Nedap and the Nedap logo are registered trademarks of Nedap N.V. Groenlo. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Printed in the Netherlands. 4 change history Date Version Description 27-10-2006 1.0 First version 21-09-2010 2.0 Changed layout to librix style 03-03-2011 3.0 Changed screenshots 01-02-2012 3.1 FCC related changes 23-02-2012 3.2 Added EMC requirement about ring cores 5 contents chapter 1: hardware instructions |||||||||||||||||||||||||||||||||07 1.1. Steps 07 chapter 2: software instructions||||||||||||||||||||||||||||||||||09 2.1. Steps 09 2.2. Contact & support 13 chapter 3: frequently asked questons||||||||||||||||||||||||||||||14 chapter 4: fcc and ic declaration|||||||||||||||||||||||||||||||||15 chapter 5. disclaimer|||||||||||||||||||||||||||||||||||||||||||||15 note The staff station can, in principle, replace barcode scanners. The unit enables the staff to identify all articles with an RFID-label. The standard staff station consists of an RFID reader positioned on the counter/desk (tabletop model). The reader is connected to the existing hardware (PC) and/or library automation system. The BiblioCheck 4 Lite software is designed for the simple use of the reader in combination with your current database management system. Included: 1x [A-1] Proximity Reader with [A-2] preinstalled antenna 1x [B] Power cable 1x [C] USB-cable 1x [D] Nedap installation CD 4x [E] Screw for mounting the proximity reader Not Included: 1x Cross point-screwdriver 1x Computer with CD/DVD-drive 1x Item containing an RFID-Label safety instructions & precautions The following safety instructions and precautions should be observed during normal use, service and repair. • Do not change anything regarding the proximity reader or the installation procedure. • Always switch off the power (by disconnecting the power plug) before you remove the cover. • Do not mount the proximity under a table with an metal frame or under metal tables. • Do not remove ferrite cores. Required for EMC suppression. chapter 1: hardware instructions Installation scheme: 1.1 steps Step 1: Remove the cover of the proximity reader [A-1]. Step 2: Connect the USB-cable [C] to the proximity reader [A-1]. Step 3: Connect the USB-cable [C] to the USB-port of the computer. The USB-port is most likely located on the back of the computer. Step 4: Connect the power cable [B] to the proximity reader [A-1]. The side with the screws needs to be up. This way, you will insert the plug the correct way. DO NOT ACTIVATE THE POWER BEFORE YOU HAVE COMPLETED STEP 5! USB-cable [C] 8 OPTIONAL Mount the proximity reader [A-1] by putting the screws [E] in the premade holes. ATTENTION! Mount the electronics [A-1] at least 15 cm’s (6 inches) away from the antenna[A-2] to make it work properly! Do not mount the electronics under the antenna! Step 5: Replace the proximity reader’s cover. Step 6: Activate the power by putting the plug of the power cable [B] in an electric point. Step 7: Proceed to the SOFTWARE INSTRUCTIONS. 9 chapter 2: software instructions Notice: The screenshots in this guide may differ from what the computer is displaying. However, the procedure remains the same. Minimal system requirements: - Operating system: o Windows 2000, XP Professional SP3, Vista Business and 7 Business o Windows Installer 3.1 o Microsoft .NET framework 2.0 sp2 - CD/DVD-drive 2.1 steps Step 1: Start up the computer. Log in with ‘administrator rights’. Step 2: Insert the installation-CD [D]. Step 3: Normally, the CD will run automatically. When this does not occur: Go to: Start > My Computer > CD/DVD-drive (Now called: Nedap Librix). Step 4: Enter the folder ‘BiblioCheck4Lite’. Step 5: Run ‘BiblioCheck4LiteSetup.msi’. Step 6: Read the instructions and click on ‘Next >’. 10 Step 7: Make sure ‘Run Configuration’ is checked and click ‘Next >’. Step 8: Make sure ‘ Everyone’ is checked so Bibliocheck4Lite is installed for all accounts using the computer. Click ‘Next>’ Step 9: Click ‘Next >’ to start the installation. Step 10: The installation progress will be displayed. Wait for the installation to be finished. Step 11: Click ‘Close’ to finish the installation. Step 12: The configuration tool will start up. 11 STEP 13 At the configuration tool: If the ‘+’ is clicked, it will expand the menu. In the configuration tool. Go to: Bibliocheck4Lite > local > Bibliocheck4Lite > Hostsettings > NedapRFRetryReader. Step 14: On the right side, click on the arrow nex to RFconnection, and choose ‘RS232Connection’ from the dropdown-menu. Step 15: Click ‘Save…

Text truncated - open the document above for the full version.

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 21 February 2012 Subject: Request of permanent confidentiality FCC ID: CGDUPRO1356 Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules N.V . Nederlandsche Apparatenfabriek “Nedap” herewith request the following exhibits, related to this application for FCC ID : CGDUPRO1356 Manufacurer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : READER PROX UNSHIELDED Description : 13.56 MHz Inductive Proximity RFID Card reader as permanently confidential, be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. The contents of these exhibits may not be disclosed to other parties than N.V. Nederlandsche Apparatenfabriek "Nedap" and TÜV Rheinland Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. Theory of operation (technical description) Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap” Jacques Hulshof Approbation Management

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Groenlo, 15 February 2012 Antenna Information Description : 13.56 MHz Inductive Proximity RFID Card Reader FCC ID/IC : CGDUPRO1356/1444A-UPRO1356 Antenna : Inductive loop antenna Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : READER PROX UNSHIELDED The antenna is an out of copper perforated round coil with one loop, 0.5 mm thickness.

Page 1 of 6 13.56 MHz Inductive Proximity RFID Card reader Brand Nedap Model READER PROX SHIELDED Label Location incl. text Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC 13.56 MHz Inductive Proximity RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP READER PROX SHIELDED CGDUPRO1356 1444A-UPRO1356 Page 2 of 6 Description of item Description of EUT : 13.56 MHz Inductive RFID Card reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : PROX1356 FCC ID : CGDUPRO1356 IC ID : 1444A-UPRO1356 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 15 February 2012 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC 13.56 MHz Inductive Proximity RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP READER PROX SHIELDED CGDUPRO1356 1444A-UPRO1356 Page 3 of 6 Table of contents 1 Label location on the device ................................................................................................................................................... 4 2 Photographs of the label text .................................................................................................................................................. 4 2.1 ID label text .................................................................................................................................................................... 4 2.2 Warning text English ...................................................................................................................................................... 5 2.3 Warning Text French ...................................................................................................................................................... 5 3 Label artwork ......................................................................................................................................................................... 6 3.1 ID label ........................................................................................................................................................................... 6 3.2 English warning text artwork ......................................................................................................................................... 6 3.3 French warning text artwork .......................................................................................................................................... 6 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC 13.56 MHz Inductive Proximity RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP READER PROX SHIELDED CGDUPRO1356 1444A-UPRO1356 Page 4 of 6 1 Label location on the device 2 Photographs of the label text 2.1 ID label text Warning labels FCC ID and IC label Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC 13.56 MHz Inductive Proximity RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP READER PROX SHIELDED CGDUPRO1356 1444A-UPRO1356 Page 5 of 6 2.2 Warning text English 2.3 Warning Text French Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC 13.56 MHz Inductive Proximity RFID Card reader N.V. Nederlandsche Apparatenfabriek “NEDAP” NEDAP READER PROX SHIELDED CGDUPRO1356 1444A-UPRO1356 Page 6 of 6 3 Label artwork 3.1 ID label 3.2 English warning text artwork 3.3 French warning text artwork

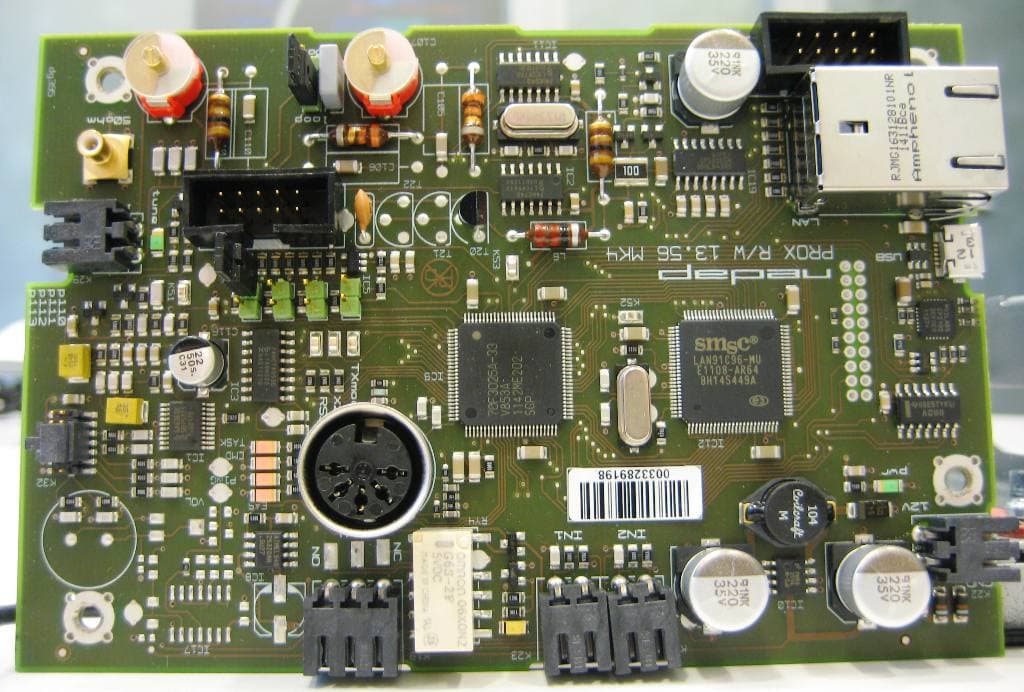

Page 1 of 5 13.56 MHz Inductive Proximity RFID Card Reader Brand Nedap Model READER PROX UNSHIELDED Interior Photographs Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC 13.56 MHzInductive Proximity RFID Card reader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap READER PROX SHIELDED CGDUPRO1356 1444A-UPRO1356 Page 2 of 5 Description of item Description of EUT : 13.56 MHz Inductive Proximity RFID Card Reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : READER PROX UNSHIELDED FCC ID : CGDUPRO1356 IC ID : 1444A-UPRO1356 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 15 February2012 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC 13.56 MHzInductive Proximity RFID Card reader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap READER PROX SHIELDED CGDUPRO1356 1444A-UPRO1356 Page 3 of 5 Table of contents 1 PHOTOGRAPHS OF THE READER PROX UNSHIELDED INCL ANTENNA ............................................................. 4 2 OVERVIEW OF THE TRANSCEIVER READER PROX UNSHIELDED ....................................................................... 4 2.1 TRANSCEIVER IN ENCLOSURE BOTTOM ................................................................................................................................. 4 2.2 TRANSCEIVER COMPONENT PART ....................................................................................................................................... 5 2.3 TRANSCEIVER SOLDER SIDE ................................................................................................................................................. 5 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC 13.56 MHzInductive Proximity RFID Card reader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap READER PROX SHIELDED CGDUPRO1356 1444A-UPRO1356 Page 4 of 5 1 Photographs of the READER PROX UNSHIELDED incl antenna 2 Overview of the transceiver READER PROX UNSHIELDED 2.1 Transceiver in enclosure bottom Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC 13.56 MHzInductive Proximity RFID Card reader N.V. Nederlandse Apparatenfabriek “Nedap” Nedap READER PROX SHIELDED CGDUPRO1356 1444A-UPRO1356 Page 5 of 5 2.2 Transceiver component part 2.3 Transceiver solder side

Testing and certification electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.tuv-eps.com Project number: 12012703.fcc01_Rev01 Page 1 of 16 TEST REPORT CONCERNING THE COMPLIANCE OF A LIBRARY READER, OPERATING ON 13.56 MHz BRAND Nedap, MODEL READER PROX UNSHIELDED WITH 47 CFR PART 15 (10-1-09 EDITION) AND THE REQUIREMENTS OF INDUSTRY CANADA: RSS-GEN AND RSS-210 (ISSUE 8, DECEMBER 2010) 12012703.fcc01_Rev01 February 23, 2012 FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-GEN, RSS-210 Library Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap READER PROX UNSHIELDED CGDUPRO1356 1444A-UPRO1356 Project number : 12012703.fcc01_Rev01 Page 2 of 16 MEASUREMENT/TECHNICAL REPORT N.V. Nederlandsche Apparatenfabriek “Nedap” Brand: Nedap Model: READER PROX UNSHIELDED FCC ID: CGDUPRO1356 IC: 1444A-UPRO1356 February 23, 2012 This report concerns: Original grant/certification Class 2 Permissive Change Verification Equipment type: Library Reader Report prepared by: Name : Onno Hans Hoekstra Company name : TÜV Rheinland EPS B.V. Address : Smidshornerweg 18 Postal code/city : 9822 TL Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 ZG Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 (10-1-09 Edition), RSS-GEN AND RSS-210 and the measurement procedures of ANSI C63.4-2009. TÜV Rheinland EPS B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: February 23, 2012 Signature: P. de Beer Quality and Approvals Manager Telecom TÜV Rheinland EPS B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-GEN, RSS-210 Library Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap READER PROX UNSHIELDED CGDUPRO1356 1444A-UPRO1356 Project number : 12012703.fcc01_Rev01 Page 3 of 16 Summary The device under test does: fulfill the general approval requirements as identified in this test report o not fulfill the general approval requirements as identified in this test report Description of test item Test item (EUT) : Library Reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model(s) : READER PROX UNSHIELDED Serial number(s) : -- FCC ID : CGDUPRO1356 IC : 1444A-UPRO1356 Receipt date : February 14, 2012 Applicant information Applicant's representative : Mr. J. Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo Country : The Netherlands Telephone number : +31 544 471 162 Telefax number : +31 544 466 475 Test(s) performed Location : Niekerk Test(s) started : February 16, 2012 Test(s) completed : February 20, 2012 Purpose of test(s) : Equipment Authorization (Original grant/certification) Test specification(s) : 47 CFR Part 15 [(10-1-09 Edition)] and RSS-GEN AND RSS-210 Compliance statement : The test has demonstrated that this unit complies with stipulated standards. Test engineer(s) : O.H. Hoekstra Report written by : O.H. Hoekstra Report date : February 23, 2012 This report shall not be reproduced, except in full, without the written permission of TÜV Rheinland EPS B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15, RSS-GEN, RSS-210 Library Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap READER PROX UNSHIELDED CGDUPRO1356 1444A-UPRO1356 Project number : 12012703.fcc01_Rev01 Page 4 of 16 Table of contents 1 General information. .............................................................................................................................................. 5 1.1 Product description. ........................................................................................................................................ 5 1.1.1 Introduction. ............................................................................................................................................ 5 1.2 Related submittal(s) and/or Grant(s). ............................................................................................................. 5 1.2.1 General. .................................................................................................................................................. 5 1.3 Tested system details. .................................................................................................................................... 5 1.3.1 Description of input and output ports. ..................................................................................................... 6 1.4 Test Summary ................................................................................................................................................ 7 1.5 Test methodology. .......................................................................................................................................... 8 1.6 Test facility. .................................................................................................................................................... 8 1.7 Test conditions. ..................................................................................................…

Text truncated - open the document above for the full version.

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 12012703.p01 Page 1 of 7 PHOTOGRAPHS OF THE TESTSETUP OF A LIBRARY READER, OPERATING ON 13.56 MHz BRAND Nedap, MODEL READER PROX UNSHIELDED. 12012703.p01 February 20, 2012 FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Description of EUT: Manufacturer: Brand mark: Model: Library Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap READER PROX UNSHIELDED Project number: 12012703.p01 Page 2 of 7 Description of test item Test item (EUT) : Library Reader Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model(s) : READER PROX UNSHIELDED Serial number(s) : -- FCC ID : CGDUPRO1356 IC : 1444A-UPRO1356 Receipt date : February 14, 2012 Applicant information Applicant's representative : Mr. J.A.M. Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo Country : The Netherlands Telephone number : +31 544 471 162 Telefax number : +31 544 463 475 E-mail : [email protected] Description of EUT: Manufacturer: Brand mark: Model: Library Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap READER PROX UNSHIELDED Project number: 12012703.p01 Page 3 of 7 Table of contents 1 PHOTOGRAPHS OF THE TESTSETUP. ............................................................................................................. 4 1.1 RADIATED EMISSIONS SETUP. ............................................................................................................................ 4 1.2 CONDUCTED EMISSIONS SETUP ......................................................................................................................... 6 Description of EUT: Manufacturer: Brand mark: Model: Library Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap READER PROX UNSHIELDED Project number: 12012703.p01 Page 4 of 7 1 Photographs of the testsetup. 1.1 Radiated emissions setup. Radiated emission setup, Electric field Description of EUT: Manufacturer: Brand mark: Model: Library Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap READER PROX UNSHIELDED Project number: 12012703.p01 Page 5 of 7 Radiated emission setup, Magnetic field Description of EUT: Manufacturer: Brand mark: Model: Library Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap READER PROX UNSHIELDED Project number: 12012703.p01 Page 6 of 7 1.2 Conducted emissions setup Conducted emission setup, front view Description of EUT: Manufacturer: Brand mark: Model: Library Reader N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap READER PROX UNSHIELDED Project number: 12012703.p01 Page 7 of 7 Conducted emission setup, rear view
