CGDVELOS2Inductive Proximity Tag Reader

VP1002-200PM-00 ISO Booster 4-2007/1.0 VP1002 ISO-Booster This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no licence under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifications and availability of goods mentioned in it are subject to change without notice; it is not to be reproduced in any way, in whole or in part, without the written consent of the publisher. © Nedap N.V., AGRI P.O. Box 104 NL-7140 AC GROENLO The Netherlands VP1002-200PM-00 ISO Booster 4-2007/1.0 Page 2 of 4 VP1002 ISO-Booster General The ISO Booster or VP1002 is used for improving reading distance of antennas specially in case of using small (ear) tags. The ISO Booster must be connected to a V-pack with identification. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Connections Cable specifications A Min. 0.5 mm 2 L.max 20m B Coax RG 58 L.max 100m. Shield connected to minus. C Coax RG 58 L.max 100m. Shield connected to minus. POWER + Input voltage from V-pack 24 VDC, +20% -20% - Minus of V-pack READER - Not used + To antenna input of V-pack - To minus of antenna input from V-pack (shield of coax cable) ANTENNA - Not used + Antenna - Antenna minus (shield of coax cable) VP1002-200PM-00 ISO Booster 4-2007/1.0 Page 3 of 4 LED indicators POWER Green on Power on Off No power ANT ON Blue Antenna switch on by connected V-pack Off Antenna switch off by connected V-pack PWR LIMIT Red on Antenna power to high, safety circuit activated Off Antenna power ok TUNING Green on Green blinking Antenna adjustment ok Antenna ok and tag identified Red on Antenna not tuned correctly, turn the screw “in” Red on Antenna not tuned correctly, turn the screw “out” Red blinking Antenna error / not connected All off Antenna switch off by the software Adjustment of the VP1002 The adjustment consists of 2 steps. 1. Tuning the antenna 2. Set the antenna power level Step 1 : Tuning the antenna The antenna must be ON for tuning. Check the ANT ON led, blue is OK. If not, set the connected V- pack in “id” mode, see manual of the concerning V-pack. Tuning is done with LT on the antenna, see manual of the concerning antenna. Tuning sequence : - Set the power of the connected V-pack to 50, see manual of the concerning V-pack. - Adjust now with Lt of the antenna until the “TUNING” led on the VP1002 is green. Step 2 : Set the antenna power level The maximum power is set at the connected V-pack. See the manual of the V-pack for details about adjusting the power. If power level is set to high at the connected V-pack the power limiter will be activated. The led PWR LIMIT will be on. After a delay of approximately five seconds ithe VP1002 restarts. If nothing has changed the safety circuit is triggered again until the transmitted powerlevel is lowered. How to set the correct power level : - Set power level AP at maximum 99. - If the PWR LIMIT led is OF and the green TUNING led ON the adjustment is OK. - If the PWR LIMIT led is ON (means safety circuit activated) the power must be lowered. Set the power level to 90 instead of 99 and check again. If this has no result, lower the power level to 80 etc. Final check Switch the power to the connected V-pack of and after 10 seconds on again. All red leds should be switched off. VP1002-200PM-00 ISO Booster 4-2007/1.0 Page 4 of 4 Using a HDPE antenna instead of a V-sense antenna To use a HDPE antenna a HDPE antenna tuner is required. The antenna is adjusted with trimmer Lt. Tuning is the same as described for a V-sense antenna. 1 2 3 50x50 art.no 9887881 40x120 art.no 9886095 60x100 art.no 9886257 4 5 Tuner HDPE antenna Lt art.no 9914293 HDPE Antenna tuner Used to connect a HDPE antenna to a V- pack (or booster and V-pack) 1. Antenna type selection (default on 3) When during antenna tuning the green led does not show up, set the antenna type selector on 1, 2 or 4 and try again. 2. Always use cable ferrules to connect coax 3. Install with swivels downwards 4. Standard antenna cable, do not change length of the coax antenna cable 5. To booster. Coax cable RG 58 max. length 100m WARNING : High voltage Do not touch with power on; switch off when changing type selection or coax cable. Specifications VP 1002 (art.no. 9911022) Dimensions 143 x 120 x 68 mm LxWxH (excluding mounting rail) Weight: ± 360 gr Power Input voltage 25 VDC, +20% -20% Antennas Different types possible Detection distance Varies per antenna Environment Temperature: Operating: -10 – 55 °C, Storage: -25 – 70 °C Relative humidity: 10 – 93% non condensing IP class IP 30. When installed in V-box IP 65 (cover and cables installed correctly !) Cable specifications Antenna Coax RG58. Max. Length depending on antenna type. Always use NEDAP power supply The Nedap guarantee-regulations are only valid when is installed as indicated in this manual. Install data cables at a safe distance from (high) powered cables More information For more detailed information contact your local Nedap supplier or check the internet site. VP1006-200PM-00-OEM ISO Reader 4-2007/1.0 TECHNICAL MANUAL VP1006 OEM ISO-Reader This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no licence under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifications and availability of goods mentioned in it are subject to change without notice; it is not to be reproduced in any way, in whole or in part, without the written consent of the publisher. © Nedap N.V., AGRI P.O. Box 104 NL-7140 AC GROENLO The Netherlands VP1006-200PM-00-OEM ISO Reader 4-2007/1.0 Page 2 of 9 VP1006 OEM ISO-Reader General The VP1006 is a local unit and…

Text truncated - open the document above for the full version.

TNO Electronic Products & Services (EPS) B.V. Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.eps-tno.com T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date March 21, 2007 Our reference 06121202.B03-mod Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands TCB Telefication BV Certification Department Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Sir or Madam: On behalf of our customer N.V. Nederlandsche Apparatenfabriek ìNEDAPî, we hereby would like to apply for FCC certification of the following device: FCC ID : CGDVELOS2 Brand : NEDAP Model : VELOS Description : 134 kHz Inductive proximity tag reader The following PDF files (exhibits) are electronically submitted: 1. Cover letter (this letter). 2. Request for confidentiality 3. Authorization letter 4. Form 731 5. Antenna information 6. Bill of materials 7. Block diagram 8. Circuit diagram 9. Interior photographs 10. Exterior photographs 11. Label information 12. Operational description 13. Test report in conformity with 47 CFR Part 15 14. Test setup photographs 15. User manual Best regards, TNO Electronic Products & Services (EPS) B.V. P. de Beer Approvals & Quality Manager

TNO Electronic Products & Services (EPS) B.V. Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno-eps.com T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date March 21, 2007 Our reference 06121202.B04-mod Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands TCB Telefication BV Certification Department Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Sir or Madam: Pursuant to section 0.457 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: CGDVELOS2, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than N.V. Nederlandsche Apparatenfabriek "NEDAP" and TNO Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. Theory of operation The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TNO Electronic Products & Services (EPS) B.V. P. de Beer Approvals & Quality Manager

;' r---1I-==I. IF==J" 5ecurity5ystems ManagementInfD5ystems ElectiDn5ystems ~ Electronics.MetalandPlastic May1, 2006 Towhomit mayconcern, Thisletterconfirmstheagreementthat TNOElectronicProducts& Services(EPS)B.V. Smidshornerweg18 9822TLNiekerk TheNetherlands is authorizedasanagentfor: NV.NederlandscheApparatenfabriek"NEDAP" Parallelweg2 7141DCGroenlo TheNetherlands andis authorizedtosignapplicationformsandactonbehalfof JAM.Hulshof(N.V.Nederlandsche Apparatenfabriek"NEDAP");andis authorizedtoreceiveandexchange databetweenJAM.Hulshof(N.V. NederlandscheApparatenfabriek"NEDAPjandEuropeanornon-Europeannationalauthoritiesregarding the-certificationof-and/or-arrangingtypeapprovalsfor-product(s)ofN.V.Nederlandsche Apparatenfabriek"NEDAP". ThisauthorizationwillexpireonMay1, 2007oruponearlierwrittennoticefromN.V.Nederlandsche Apparatenfabriek"NEDAP". .. "Hulshof ApprobationManagement Phone:+31544471162 Fax:+31544463475 E-mail:[email protected] E c u Co ~ 'C ~ C N.V.Nederlandsche T+31[OJ54447]]I] ~ ~ ~ Apparatenfabriek"Nedap"F+31[oJ544453475 [email protected] NL-7141DC5roenloHandelsregisteroBo]3B36 P.O.Box5 NL-7]4oAA6roenlo ABN-AMRo59.16.32.330IBANNLB3ABNA059153233oBICABNANL2ABTWNLo064562B5Boi

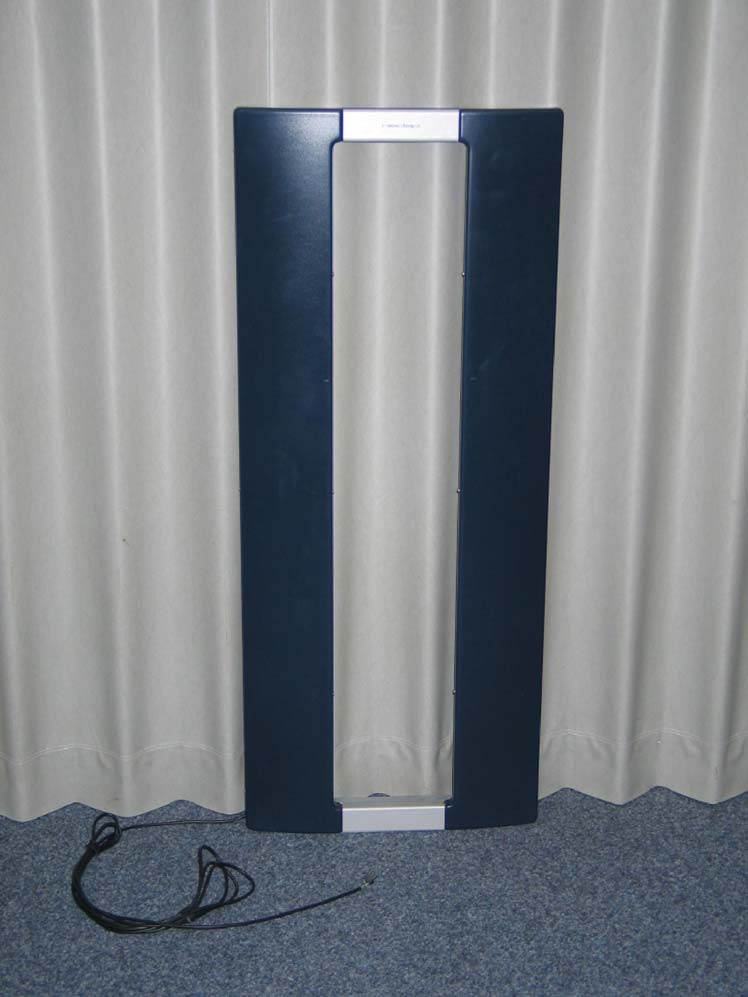

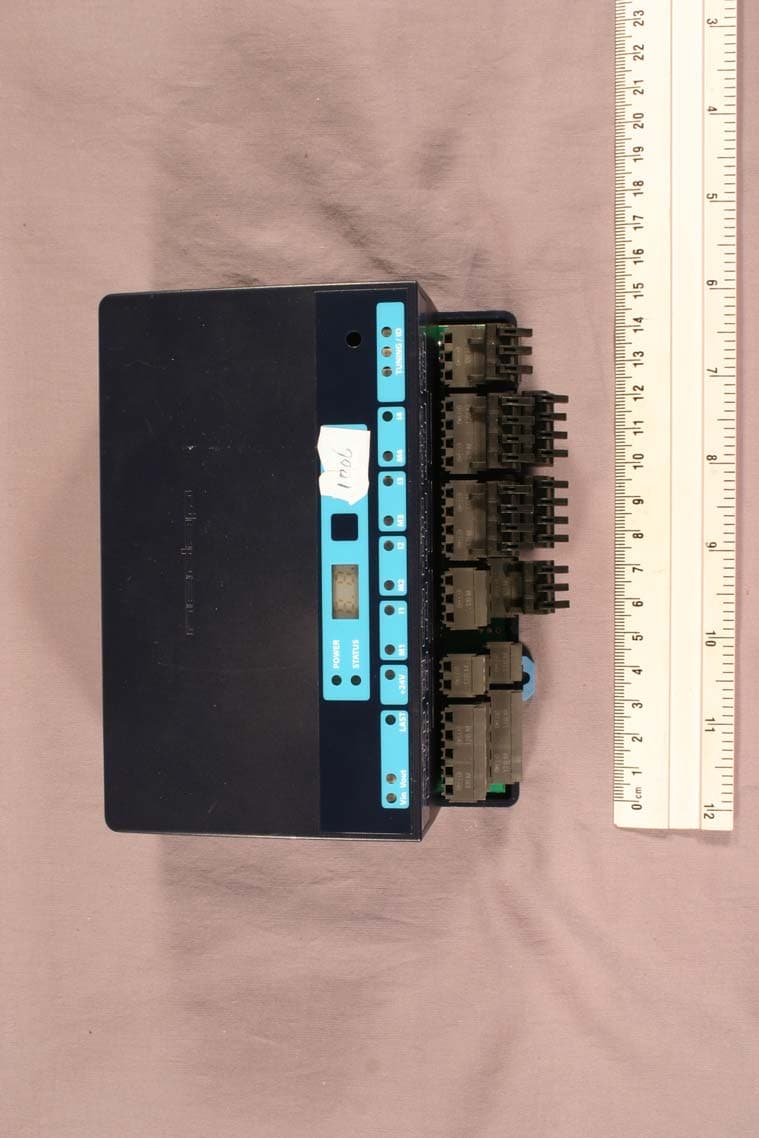

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 06121202.p07 Page 1 of 6 EXTERIOR PHOTOGRAPHS OF A 134 KHZ INDUCTIVE PROXIMITY CARD READER, BRAND NEDAP, MODEL VELOS WITH PARTS VP1006, VP1002, VP6001 FCC listed Industry Canada : : 90828 IC3501 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.p07 Page 2 of 6 Description of test item Test item : 134 kHz Inductive proximity tag reader Manufacturer : N.V. Nederlandsche Apparatenfabriek ìNEDAPî Brand : Nedap Model : Velos Serial number(s) : Not available Revision : Not available Receipt date : Not available Applicant information Applicant's representative : Mr. D. Roosenboom Company : N.V. Nederlandsche Apparatenfabriek ìNEDAPî Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.p07 Page 3 of 6 Table of contents 1 Photographs of the equipment ................................................................................................................................................... 4 1.1 VP6001 external view........................................................................................................................................................ 4 1.2 VP1002 External view ....................................................................................................................................................... 5 1.3 VP1006 external view........................................................................................................................................................ 6 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.p07 Page 4 of 6 1 Photographs of the equipment 1.1 VP6001 external view Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.p07 Page 5 of 6 1.2 VP1002 External view Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.p07 Page 6 of 6 1.3 VP1006 external view

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 06121202.L02 Page 1 of 10 134 KHZ INDUCTIVE PROXIMITY CARD READER, BRAND NEDAP, MODEL VELOS WITH PARTS VP1006, VP1002, VP6001 LABEL INFORMATION FCC listed Industry Canada : : 90828 IC3501 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.L02 Page 2 of 10 Description of test item Test item : 134 kHz Inductive proximity tag reader Manufacturer : N.V. Nederlandsche Apparatenfabriek ìNEDAPî Brand : Nedap Model : Velos Serial number(s) : Not available Revision : Not available Receipt date : Not available Applicant information Applicant's representative : Mr. D. Roosenboom Company : N.V. Nederlandsche Apparatenfabriek ìNEDAPî Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.L02 Page 3 of 10 Table of contents 1 Photographs of the equipment ................................................................................................................................................4 1.1 VP6001 overview label position ....................................................................................................................................4 1.2 VP6001 detail label ........................................................................................................................................................5 1.3 VP1002 and VP1006 label overview..............................................................................................................................6 1.4 VP1002 label ..................................................................................................................................................................7 1.5 VP1006 Label.................................................................................................................................................................8 1.6 Warning text on equipment ............................................................................................................................................9 1.7 Detail warning text .......................................................................................................................................................10 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.L02 Page 4 of 10 1 Photographs of the equipment 1.1 VP6001 overview label position Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.L02 Page 5 of 10 1.2 VP6001 detail label Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.L02 Page 6 of 10 1.3 VP1002 and VP1006 label overview Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.L02 Page 7 of 10 1.4 VP1002 label Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.L02 Page 8 of 10 1.5 VP1006 Label Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.L02 Page 9 of 10 1.6 Warning text on equipment Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202.L02 Page 10 of 10 1.7 Detail warning text

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 06121202_mod1.p06 Page 1 of 10 INTERIOR PHOTOGRAPHS OF A 134 KHZ INDUCTIVE PROXIMITY CARD READER, BRAND NEDAP, MODEL VELOS WITH PARTS VP1006, VP1002, VP6001 FCC listed Industry Canada : : 90828 IC3501 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202_mod1.p06 Page 2 of 10 Description of test item Test item : 134 kHz Inductive proximity tag reader Manufacturer : N.V. Nederlandsche Apparatenfabriek ìNEDAPî Brand : Nedap Model : Velos Serial number(s) : Not available Revision : Not available Receipt date : Not available Applicant information Applicant's representative : Mr. D. Roosenboom Company : N.V. Nederlandsche Apparatenfabriek ìNEDAPî Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202_mod1.p06 Page 3 of 10 Table of contents 1 Photographs of the equipment ................................................................................................................................................4 1.1 VP6001 internal view 1 ..................................................................................................................................................4 1.2 VP6001 internal view 2 ..................................................................................................................................................5 1.3 VP1002 internal view 1 ..................................................................................................................................................6 1.4 VP1002 internal view 2 ..................................................................................................................................................7 1.5 VP1006 internal view 1 ..................................................................................................................................................8 1.6 VP1006 internal view 2 ..................................................................................................................................................9 1.7 VP1006 internal view 3 ................................................................................................................................................10 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202_mod1.p06 Page 4 of 10 1 Photographs of the equipment 1.1 VP6001 internal view 1 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202_mod1.p06 Page 5 of 10 1.2 VP6001 internal view 2 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202_mod1.p06 Page 6 of 10 1.3 VP1002 internal view 1 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202_mod1.p06 Page 7 of 10 1.4 VP1002 internal view 2 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202_mod1.p06 Page 8 of 10 1.5 VP1006 internal view 1 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202_mod1.p06 Page 9 of 10 1.6 VP1006 internal view 2 Description of EUT: Manufacturer: Brand mark: Model: NEDAP VELOS System N.V. Nederlandsche Apparatenfabriek ìNEDAPî NEDAP VP1006, VP1002, VP6001 Project number: 06121202_mod1.p06 Page 10 of 10 1.7 VP1006 internal view 3

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 06121202_mod1.fcc02 Page 1 of 15 TEST REPORT CONCERNING THE COMPLIANCE OF A 134 KHZ INDUCTIVE PROXIMITY TAG READER BRAND NEDAP, MODEL VELOS, VP1006-VP1002; WITH VP6001 ANTENNA, WITH 47 CFR PART 15 (2006-08-14). FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2006-08-14) Inductive proximity tag reader N.V. Nederlandsche Apparatenfabriek ìNEDAPî Nedap VELOS VP1006-VP1002, with VP1006 antenna CGDVELOS2 Project number 06121202_mod1.fcc02 Page 2 of 15 MEASUREMENT/TECHNICAL REPORT Nedap N.V. Model : VELOS VP1006-VP1002 FCC ID: CGDVELOS2 March 21, 2007 (replaces version 06121202.fcc02 of February 22, 2007) This report concerns: Original grant/certification Class 2 change Verification Equipment type: 134 kHz inductive proximity tag reader Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No n.a. Report prepared by: Name : A. van der Valk, B.Sc.E.E. Company name : TNO Electronic Products & Services (EPS) B.V. Address : Smidshornerweg 18 Postal code/city : 9822 TL Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 ZG Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 and the measurement procedures of ANSI C63.4-2003. TNO Electronic Products & Services (EPS) B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: March 21, 2007 Signature: H.J. Pieters Project Manager TNO Electronic Products & Services (EPS) B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2006-08-14) Inductive proximity tag reader N.V. Nederlandsche Apparatenfabriek ìNEDAPî Nedap VELOS VP1006-VP1002, with VP1006 antenna CGDVELOS2 Project number 06121202_mod1.fcc02 Page 3 of 15 Description of test item Test item : 134 kHz Inductive proximity tag reader Manufacturer : N.V. Nederlandsche Apparatenfabriek ìNEDAPî Brand : Nedap Model : Velos VP1006-VP1002 Serial number(s) : Not available Revision : Not available Receipt date : Not available Applicant information Applicant's representative : Mr. D. Roosenboom Company : N.V. Nederlandsche Apparatenfabriek ìNEDAPî Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 Test(s) performed Location : Niekerk Test(s) started : December 6, 2006 Test(s) completed : January 30, 2007 Purpose of test(s) : Equipment Authorisation (Certification). Test specification(s) : 47 CFR Part 15 (2006-08-14) Test engineers : A. van der Valk O.H. Hoekstra Report written by : A. van der Valk Report date : March 21, 2007 (replaces version 06121202.fcc02 of February 22, 2007) This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2006-08-14) Inductive proximity tag reader N.V. Nederlandsche Apparatenfabriek ìNEDAPî Nedap VELOS VP1006-VP1002, with VP1006 antenna CGDVELOS2 Project number 06121202_mod1.fcc02 Page 4 of 15 Table of contents 1 General information. ..............................................................................................................................................................5 1.1 Product description.........................................................................................................................................................5 1.1.1 Introduction. ...........................................................................................................................................................5 1.2 Related submittal(s) and/or Grant(s). .............................................................................................................................5 1.3 Tested system details......................................................................................................................................................5 1.3.1 Description of input and output ports. ....................................................................................................................7 1.4 Test methodology. ..........................................................................................................................................................7 1.5 Test facility.....................................................................................................................................................................7 1.6 Test conditions. ..............................................................................................................................................................8 2 System test configuration. ......................................................................................................................................................9 2.1 Justification. ..................................................................................…

Text truncated - open the document above for the full version.

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.tno-eps.com Project number: 06121202_mod1.p09 Page 1 of 7 47 CFR PART 15 TEST SETUP PHOTOGRAPHS OF A 134 KHZ INDUCTIVE PROXIMITY CARD READER, BRAND NEDAP, MODEL VELOS VP6001, VP1002, VP1006 FCC ID: CGDVELOS2 FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity tag reader N.V. Nederlandsche Apparatenfabriek ìNEDAPî Nedap VELOS CGDVELOS Project number: 06121202_mod1.p09 Page 2 of 7 Description of test item Test item : 134 kHz Inductive proximity tag reader Manufacturer : N.V. Nederlandsche Apparatenfabriek ìNEDAPî Brand : Nedap Model : Velos Serial number(s) : Not available Revision : Not available Receipt date : Not available Applicant information Applicant's representative : Mr. D. Roosenboom Company : N.V. Nederlandsche Apparatenfabriek ìNEDAPî Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity tag reader N.V. Nederlandsche Apparatenfabriek ìNEDAPî Nedap VELOS CGDVELOS Project number: 06121202_mod1.p09 Page 3 of 7 Table of contents 1 Test setup photographs of radiated emission measurements. .................................................................................................4 1.1 VELOS VP1002 VP1006 and VP6001, fro…

Text truncated - open the document above for the full version.
