CGDVELOS5Inductive Proximity Card Reader

VP1004- ISO Reader Multiplexer - Quick start 9-2011 Doc.part.no. 5277434 45.01B 1/ 4 Quick start VP1004 ISO Reader Multiplexer The Velos VP1004 is a Velos component that is used to identify animals. The VP1004 must be installed in a V-box. A VP1004 is connected to the Velos CAN-bus and controlled by a VP8001 (VPU). Inputs / Outputs / Antennas - 8 antennas, auto scanning one by one (max 10x VP1004 per VP8001) - 2 outputs available to activate e.g. lights and 2 inputs for reading e.g. switches FCC ID: CGDVELOS5 and IC: 1444A-VELOS5 Compliance statement (part15.19) This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Déclaration Conformité Cet appareil se conforme aux normes RSS210 exemptés de license du Industry Canada. L'opération est soumis aux deux conditions suivantes: (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n'importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Warning (part15.21) Changes or modifications not expressly approved by party responsible for compliance could void the users authority to operate the equipment. This in particular is applicable for the antenna which can be delivered with the VP4001 System. VP8001 To PC (LAN ethernet) Power Supply VP2001 max 3m VP1004 Antenna 1-8 N e x t V P 1 0 0 4 VP1004 N e x t V P 1 0 0 4 Antenna 17-24 VP1004 Antenna 9-16 VP1004 Antenna 25-32 VP1004- ISO Reader Multiplexer - Quick start 9-2011 Doc.part.no. 5277434 45.01B 2/ 4 Connections Details VP1004 inputs and outputs Vin + Input voltage 24 VDC, +20% -20% - Minus CAN C H CAN high (cable twisted pair with C L ) C L CAN low (cable twisted pair with C H ) Shielding of CAN-bus cable SYNC ~ Synchronisation (no plus or minus, cable must be twisted pair) ~ See above I/O 1 .. 2 + Output max 400mA O Output max 400mA / 1.7A input - Minus for output (O) and minus input (I) I Input ANTENNA + Antenna (core) - Antenna (shield of coax cable) F SYNC FI/FO Frequency synchronisation FI=in FO=out VP1004 VP1004 VP1004 VP8001 (1) VP8001 (2) VP1004 LAN o r a n g e b l u e w h i t e b l u e b l a c k r e d o r a n g e w h i t e Velos cable IN Velos cable OUT (to next VP1004) a n t e n n a o r a n g e b l u e w h i t e b l u e b l a c k r e d o r a n g e w h i t e Velos cable Lmax = 80m Max = 5x VP1004 Velos cable Lmax = 80m Max = 5x VP1004 VP1004- ISO Reader Multiplexer - Quick start 9-2011 Doc.part.no. 5277434 45.01B 3/ 4 Details Velos cable Antennas A VP1004 has an automatic tuning module. The status is shown with LED indicators. Only V-sense antennas types can be used. Not all types are compatible, check compatibility before use. Display menu display push button DISPLAY ADDRESS Shows the actual address SET ADDRESS Change the address ANTENNA POWER Min/max 10 / 99. Normally set to 99. Possible to set a lower value. ANTENNA SENSITIVITY SQUELCH Min/max 9 / 0. Normally set to 0. Possible to set a lower value. SIGNAL LEVEL FDX Shows signal level measured by the FDX receiver SIGNAL LEVEL HDX Shows signal level measured by the HDX receiver TEST IDENTIFICATION Shows last 2 digits of a tag number DISPLAY ERROR Shows error code TEST OUTPUT L1 L5 TEST INPUT I1 i5 SETTINGS TO DEFAULT All HF settings back to factory settings (enter 99) Press button until blinking Press button short To leave menu: press button until display is empty Red (+) Black (-) Blue (C h) Blue/white (C l) Shield Orange (Sync) Orange/white (Sync) Shield Power 1,5 mm 2 Communication 0,34 mm 2 Twisted pair shielded HF Synchronisation 0,34 mm 2 Twisted pair shielded Part No. 7705310 VP1004- ISO Reader Multiplexer - Quick start 9-2011 Doc.part.no. 5277434 45.01B 4/ 4 LED indicators POWER Green on Power on off No power STATUS Blue Slow breathing Fast blinking Operating ok Downloading or error during download Display on Address indicated No communication off Communication status ok V in Green on Input power applied off No power Orange Low power, lower then 20V Orange blinking Wrong CAN-bus connection, Vin and Vout swapped Red Error, plus and minus swapped V out Green on Output power off No power Orange blinking Low power Red blinking Error, plus and minus swapped LAST Green on V-pack is last one on the CAN-bus off V-pack is not last one on the CAN-bus Orange blinking CAN-bus error and last V-pack on CAN-bus Red CAN-bus error Red blinking CAN-bus warning / wrong connected O1 .. O2 Green on Output on off Output off Red blinking Output error / overload I1 .. I2 Green on Input contact open off Input contact closed ID Green one by one Green on Antenna ok Antenna ok and tag identified Red on Antenna error / not connected / not tuned correctly Specifications VP 1004 Dimensions 143 x 120 x 68 mm LxWxH (excluding mounting rail) Weight: ± 360 gr CAN CAN-bus communication 125 kBit Power Input voltage 25 VDC, +20% -20% Min power consumption 300 mA with antenna switched on Protected against reverse connection power supply Software Downloadable by the CAN network Inputs Reading inputs, analog (0-40V) and digital. Suitable for NPN and PNP sensors. Outputs Max. 0.4 Amp by current limiter, short-circuiting protected Antennas 800 μH. Different types possible. Detection distance Varies per antenna Synchronization Synchronization according to ISO 11785 / 24631-6 Environment Temperature: Operating: -10 55 °C, Storage: -25 70 °C Relative humidity: 10 93% non condensing IP class IP 30. When installed in V-box IP 65 (cover and cables installed correctly !) Always use a NEDAP power supply. The Nedap guarantee-regulations are only valid when is installed as indicated in this manual. Install data cables at a safe distance from (high) powered cables For more detailed information contact your local Nedap supplier or check the inte…

Text truncated - open the document above for the full version.

Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 14 October 2011 Subject: Request of Confidentiality FCC ID: CGDVELOS5 Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID : CGDVELOS5 Brand : Nedap Models : VP1004 VELOS and VP1004 GEA Antennas : VP6011, VP6012, VP6020 and VP6030 to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than N.V. Nederlandsche Apparatenfabriek "NEDAP" and TÜV Rheinland Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. Theory of operation (technical description) The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, N.V. Nederlandsche Apparatenfebriek “Nedap” Jacques Hulshof Approbation Management

Groenlo, 13 October 2011 Antenna information Description : 134.2 kHz Inductive RFID Card Reader FCC ID : CGDVELOS5 IC : 1444A-VELOs5 Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model : VP1004 VELOS and VP1004 GEA Antennas : VP6011, VP6012, VP6020 and VP6030 1. Antenna for VP6011 and VP6012 Type : Inductive O-Antenna Material : Copper Wire Number of turns : 4 Wire thickness : 120x0.1 mm, twisted Dimensions : 265x155 mm See the diagram below. 2. Antenna for V-Stick VP6020 Type : Inductive loop antenna Number of turns : 121 Material : Copper wire Thickness : 120 x 0.1 mm, twisted pair Length : 180 Diameter : 40 mm See diagram below 3. Antenna for VP6030 Type : Inductive O-loop antenna Material : Aluminum Number of turns : 1 Thickness : 2 mm Dimensions : 280 by 390 mm Width : 25 mm Drawing : 9926461, Exhibit 4b See diagram below and exhibit 4a Jacques Hulshof

18 17 8 20 21 15 16 DRW: CHCK: 2008-12-22 JZ 2007-11-27 N/A DIM. IN MM ROUGHNESS ACC. ISO 1302 in μM 2008-12-22 JZ GENERAL TOLERANCES SCALE: FORMAT: DRAWING: in a data base or retrieval system without the prior written permission of NEDAP. A B C D E F 6 3 2 1 F E D C B A 56 7 8 A3 VP6030 V-SENSE SAM ALUMIUNIUM 280x390 9926461 a ARTICLE NUMBER REV. ISO A GROENLO HOLLAND SHEET: 4 7 8 5 4 3 2 1 10.01 OF 2 1:2 ± 1° ± 0.2 DESCRIPTION LIN. ANG. N/A JZ Copyright (c) by N.V. Nederlandsche Apparatenfabriek NEDAP. No part of this drawing may be reproduced or distributed in any form or by any means, or stored DSGN: 11 19 7 1 9 14 4 2 6 28 13 10 12 3 3 5 Pos. 8 vastzetten Pos. 7 oprollen en m.b.v. 7 1 8 2008-12-22 2007-11-27 N/A 2008-12-22 ROUGHNESS ACC. ISO 1302 in μM GENERAL TOLERANCES SCALE: FORMAT: DIM. IN MM CHCK: DRAWING: in a data base or retrieval system without the prior written permission of NEDAP. A B C D E F 6 3 2 1 F E D C B A 56 7 8 A3 VP6030 V-SENSE SAM ALUMIUNIUM 280x390 9926461 a ARTICLE NUMBER REV. ISO A GROENLO HOLLAND SHEET: 4 7 8 5 4 3 2 1 10.02 OF 2 1:2 ± 1° ± 0.2 DESCRIPTION LIN. ANG. N/A JZ JZ JZ DRW: Copyright (c) by N.V. Nederlandsche Apparatenfabriek NEDAP. No part of this drawing may be reproduced or distributed in any form or by any means, or stored DSGN: 17 16 9 18 15 (Pos. 17 + 18). Pos. 19 invullen volgens blad 28.01 van T0091-022 19 12 de uiteinden van Pos. 7. Pas op dat tijdens montage en ingieten geen kortsluiting kan ontstaan!! gietmassa ligt. Deze gietmassa uit laten harden. 4 en deze samenstelling solderen aan Pos. 8 vastzetten op Pos. 1 Pos. 7 m.b.v. Uitstekende puntjes van Pos. 5 afknippen (Pos. 15 + 16) tot Pos. 2 onder de Pos. 9 in serie met Pos. 4 solderen 5 Vervolgens Pos. 12 verder vol gieten tot aan de rand met een harde deklaag Pos. 12 vullen met zachte gietmassa 2 8 2 0 6 3 0 3 0 Compnr.ArtikelOmschrijvingAantalTekeningWijz. 7587767ANT.STRIP 1 WIND. ALU VP6030ST1X0001 3050483KERN RM14/I 3C90ST2X0002 5626641SCHIJF HARDPAP.ANT.1 WIND. ALUST3X0003 7601310SPOEL ANTENNE 1 WIND. ALU 1:36ST1X0004 4490584RING NYLON 15X28X2.5ST2X0005 3050505CLIP VOOR KERN RM14/IST2X0006 1231359KABEL COAX M17/028-RG058M3X0007 5020069KABELBINDER 100 X 2,5 NATURELST2X0008 2070090CONDB 1N5 KP 630V 2,5%3063ST1X0009 4420055RING SLUIT M 4 RVS A2 DIN 125ST2X0010 5468787VERSTEVIGINGSBLOKJE ANTENNEST1X0011 5468795DOOS KUNSTSTOF ZWART GEBOORDST1X0012 5475686ANTI-TRILLINGSPLAATJE ANTENNEST1X0013 4220978SCHR DIN 965-H RVS A2 M4X20ST2X0014 1010077GTMA HARS PUR 260/1 145KGKG0,05X0015 1020137GTMA HARDER BAYMIDUR K 88-25KG0,01X0016 1010573GTMA PD 446 ZWARTG80X0017 1010417GTMA HARDER 385 WEVOG18X0018 5252881TEKSTPLAAT MATRIX 38X11 WITST1X0019 1400134DOOS GOLFKARTON 420X372X238ST0,056X0020 5263417TEKSTPLAAT BRADY 70x50 WITST0,056X0021 *** ------------- EINDE ------------ *** 23-11-07 17-12-08 17-12-08 JZ A 111. Documentation released / 9926461 Zwiers G.J. Zwiers G.J. Zwiers G.J. 17-12-08 GROENLO HOLLAND A NEDAP - : : : : : : Wijz. nr.IndexDatumOmschrijving van de wijzigingGet.: Ontw. Get.: Gec. d.d.: d.d.: d.d.: Tekening Blad Artikel Dit document is het eigendom van de N.V. Nederlandsche Apparatenfabriek - NEDAP - en mag zonder toestemming niet aan derden ter inzage worden gegeven of worden gekopieerd. Auteursrecht voorbehouden volgens de wet. VP6030 V-SENSE SAM ALU 280x390

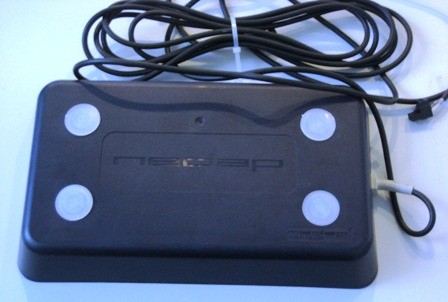

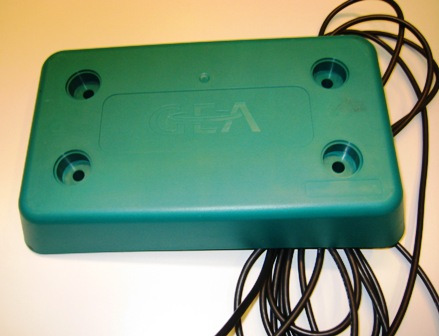

Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 14 October 2011 Subject: Attestation of Similarity FCC ID: CGDVELOS5 Dear Mrs. Bosley, The device with Model: VP1004 VELOS as mentioned in report “12_11041301.fcc02_VP1004_testreport CGDVELOS5.pdf” is a transmitter/receiver for identifying transponders attached to animals and is operating on 134.2 kHz. This Model: VP1004 VELOS is delivered by Nedap directly to its dealers and/or end users. We also deliver a second Model: VP1004 GEA. This unit is electronically as well as mechanically the same as the VP1004 VELOS only it is delivered to the company GEA who delivers it to their dealers and/or end users. Therefore a second Model number is introduced. As shown in the test report the VP1004 VELOS has been measured amongst other with antenna Model: VP6012. The antenna applied in this model number is empotted in a plastic enclosure and consist of 4 turns copper wire (120x0.1 mm, twisted) inductive O-Antenna with dimensions 265x155 mm see “04_Antenna information CGDVELOS5.pdf”. Nedap provides totally 4 different Models with the same antenna inside as there are: 1. Model: VP6012 (as mentioned in the test report) with article number 7594780 is a V-Sense 285x170 mm GEA antenna, with cable outlet on the side and GEA logo on the product. 2. Model: VP6012 with article number 7586191 is a V-Sense 285x170 mm VELOS antenna, with cable outlet on the side and Nedap logo on the product. 3. Model: VP6011 with article number 7587660 is V-Sense 285x170 mm GEA antenna, with cable outlet on the back and GEA logo on the product. 4. Model: VP6011 with article number 7585900 is a V-Sense 285x170 mm VELOS antenna, with cable outlet on the back and Nedap logo on the product. We, N.V. Nederlandsche Apparatenfabriek “Nedap”, declare that the Model: VP1004 VELOS as tested in above mentioned test report is the same as Model: VP1004 GEA with FCC ID: CGDVELOS5 and also that the antenna in the Models mentioned in this letter under item 1 till 4 is the same. I thereby wish to request whether you can add these models to the list of approved systems. I hope you can honor our request Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap” Jacques Hulshof Approbation Management

TCB Question and Answer: TCB: I see that the EUT is capable of supporting many antennas connected at once. Please confirm how many antennas could be connected at one time. Please confirm if the transmission would be emitting from each antenna at the same time. Please confirm if all antennas would need to be the same type or if a mixture of antennas is possible. Please note that FCC Part 15.31(h) and ANSI C63.10 both state: If an intentional radiator incorporates more than one antenna or other radiating source and these radiating sources are designed to emit at the same time, measurements of conducted and radiated emissions shall be performed with all radiating sources that are to be employed emitting. Nedap: The antennas are not all switched on at the same time but are operating successively, so antenna number 1 is switched on and number 2‐8 are switched off, no 2 is on while 1 and 3‐8 are off, etc. The antennas that can be connected are mentioned in the test report.

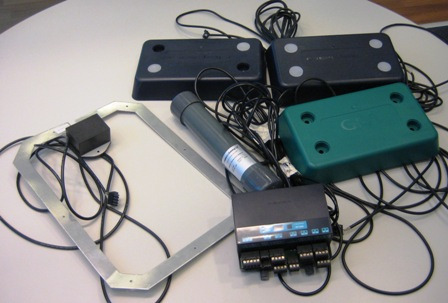

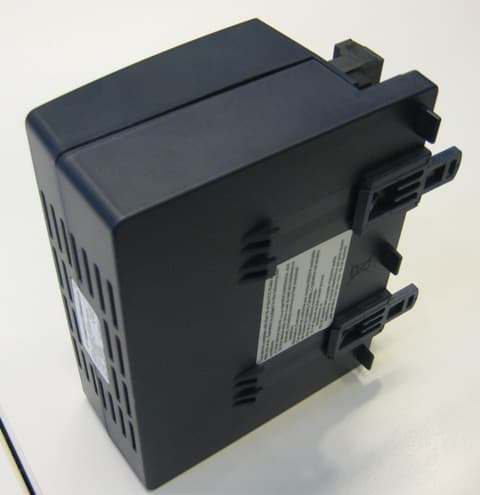

Page 1 of 10 Inductive Proximity Card Reader operating on 134.2 kHz Brand Nedap Model VP1004 Exterior Photographs Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS Page 2 of 10 Description of item Description of EUT : Inductive Proximity Card Reader operating on 134.2 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Models : VP1004 VELOS, VP1004 GEA FCC ID CGDVELOS5 IC 1444A-VELOS5 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 14 October 2011 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS Page 3 of 10 Table of contents 1 TOTAL OVERVIEW OF THE VP1004 INCL. ANTENNAS .............................................................................................. 4 2 OVERVIEW OF THE VP1004 ENCLOSURE ...................................................................................................................... 4 2.1 FRONT SIDE .......................................................................................................................................................................... 4 2.2 TOP AND BACK SIDE ............................................................................................................................................................. 5 2.3 BACK AND BOTTOM SIDE ...................................................................................................................................................... 5 3 ANTENNA OVERVIEW .......................................................................................................................................................... 6 3.1 VP6011 VELOS/NEDAP VERSION ....................................................................................................................................... 6 3.1.1 Front side .................................................................................................................................................................... 6 3.1.2 Backside ...................................................................................................................................................................... 6 3.2 VP6011 GEA VERSION ........................................................................................................................................................ 7 3.2.1 Front side .................................................................................................................................................................... 7 3.2.2 Back side ..................................................................................................................................................................... 7 3.3 VP6012 VELOS/NEDAP VERSION ....................................................................................................................................... 8 3.3.1 Front side .................................................................................................................................................................... 8 3.3.2 Backside ...................................................................................................................................................................... 8 3.4 VP 6012 GEA VERSION ....................................................................................................................................................... 9 3.4.1 Front side .................................................................................................................................................................... 9 3.4.2 Back side ..................................................................................................................................................................... 9 3.5 VP6020 .............................................................................................................................................................................. 10 3.6 VP6030 .............................................................................................................................................................................. 10 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS Page 4 of 10 1 Total overview of the VP1004 incl. antennas 2 Overview of the VP1004 enclosure 2.1 Front side Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS Page 5 of 10 2.2 Top and back side 2.3 Back and bottom side Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS Page 6 of 10 3 Antenna overview 3.1 VP6011 VELOS/Nedap version 3.1.1 Front side 3.1.2 Backside Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS Page 7 of 10 3.2 VP6011 GEA version 3.2.1 Front side 3.2.2 Back side Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS Page 8 of 10 3.3 VP6012 VELOS/Ned…

Text truncated - open the document above for the full version.

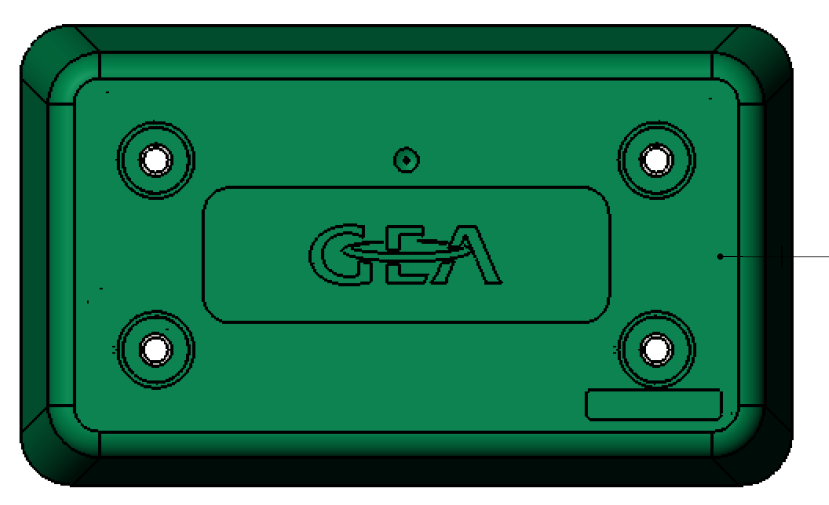

Page 1 of 7 Inductive Proximity Card Reader operating on 134.2 kHz Brand Nedap Model VP1004 Label Location and artwork Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 2 of 7 Description of item Description of EUT : Inductive Proximity Card Reader operating on 134.2 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Models : VP1004 VELOS, VP1004 GEA FCC ID CGDVELOS5 IC 1444A-VELOS5 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 14 October 2011 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 3 of 7 Table of contents 1 LABELING OF THE PRODUCT ........................................................................................................................................... 4 1.1 LOCATION OF THE LABELS ................................................................................................................................................... 4 1.2 FRONT SIDE OF THE VP1004 ................................................................................................................................................ 4 2 COMPLIANCE - OR WARNING STATEMENT ON THE VP1004 .................................................................................. 5 3 LABELING OF THE VP1004 .................................................................................................................................................. 5 3.1 LABELING OF THE VP1004 GEA .......................................................................................................................................... 5 3.2 LABELING OF THE VP1004 VELOS ..................................................................................................................................... 6 4 ARTWORK ............................................................................................................................................................................... 6 4.1 ARTWORK OF THE COMPLIANCE STATEMENT ....................................................................................................................... 6 4.2 ARTWORK OF THE VP1004 GEA LABEL............................................................................................................................... 7 4.3 ARTWORK OF THE VP1004 VELOS LABEL .......................................................................................................................... 7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 4 of 7 1 Labeling of the product 1.1 Location of the labels 1.2 Front side of the VP1004 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 5 of 7 2 Compliance - or Warning Statement on the VP1004 3 Labeling of the VP1004 3.1 Labeling of the VP1004 GEA Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 6 of 7 3.2 Labeling of the VP1004 VELOS 4 Artwork 4.1 Artwork of the compliance statement Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 7 of 7 4.2 Artwork of the VP1004 GEA label 4.3 Artwork of the VP1004 VELOS label

Page 1 of 7 Inductive Proximity Card Reader operating on 134.2 kHz Brand Nedap Model VP1004 Interior Photographs Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 2 of 7 Description of item Description of EUT : Inductive Proximity Card Reader operating on 134.2 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Models : VP1004 VELOS, VP1004 GEA FCC ID CGDVELOS5 IC 1444A-VELOS5 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 Original : 14 October 2011 Revised : 27 October 2011 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 3 of 7 Table of contents 1 OVERVIEW OF THE VP1004 ENCLOSURE ...................................................................................................................... 4 1.1 FRONT SIDE .......................................................................................................................................................................... 4 1.2 TOP AND BACK SIDE ............................................................................................................................................................. 4 2 INTERNAL COMPONENTS .................................................................................................................................................. 5 2.1 COVER DELETED PHOTO TAKEN FROM THE FRONT SIDE ........................................................................................................ 5 2.2 COVER DELETED PHOTO TAKEN FROM THE TOP SIDE ............................................................................................................ 5 2.3 COVER DELETED PHOTO TAKEN FROM THE BACK SIDE ......................................................................................................... 6 3 THE TRANSMITTER RECEIVER MODULE ..................................................................................................................... 6 3.1 FRONT SIDE TOP ................................................................................................................................................................... 6 3.2 FRONT SIDE SIDEWAYS ......................................................................................................................................................... 7 3.3 BACK SIDE ............................................................................................................................................................................ 7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 4 of 7 1 Overview of the VP1004 enclosure 1.1 Front side 1.2 Top and back side Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 5 of 7 2 Internal components 2.1 Cover deleted photo taken from the front side 2.2 Cover deleted photo taken from the top side Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 6 of 7 2.3 Cover deleted photo taken from the back side 3 The transmitter receiver module 3.1 Front side top Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Inductive Proximity Card Reader 134.2 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Nedap VP1004 series CGDVELOS5 1444A-VELOS5 Page 7 of 7 3.2 Front side sideways 3.3 Back side

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.tuv-eps.com Project number: 11041301.CGDVELOS5.fcc02 Page 1 of 23 TEST REPORT CONCERNING THE COMPLIANCE OF A 134 kHz INDUCTIVE RFID TAG READER, BRAND NEDAP, MODEL VP1004 VELOS WITH 47 CFR PART 15 (10-1-09) AND THE REQUIREMENTS OF INDUSTRY CANADA: RSS-GEN AND RSS-210 (ISSUE 8, DECEMBER 2010) 11041301.fcc02_Rev02 November 14, 2011 FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15 134 kHz Inductive RFID Tag Reader N.V. Nederlandsche Appa…
