VP4201- CP Beacon - Quick start 12-2013 Doc.part.no. 9741488 version 1.1 1/ 4 Quick start VP4201 COW POSITIONING BEACON Supplied materials: Beacon 1x Connector (♂+♀) 1x Hex key 1x Needed additionally (not supplied): Tube 33.7 mm (1¼”) + mounting accesoiries 2 core cable (min. 0.75 2 mm) + mounting accesoiries Mounting advice: 2 pers. VP4201- CP Beacon - Quick start 12-2013 Doc.part.no. 9741488 version 1.1 2/ 4 Note: OR 2 L e n gt h of c or ri d or ( m ) 1 L e n gt h of c or ri d or ( m ) 3 L e n gt h of c or ri d or ( m ) 4 L e n gt h of c or ri d or ( m ) 3 - 4 meter ← Max. 100 m. → VP2002 Blue Brown Brown Blue OPEN CLOSE Max. 4 VP2002 Unique ID example 0007 0008 0009 1234 0006 0270 etc. Mount the beacons according to the positions in the dealer farm layout. Example farm building layout Nr of beacons different on other farms. ← Min. 50 cm → UNIQUE ID 1234 VP4201- CP Beacon - Quick start 12-2013 Doc.part.no. 9741488 version 1.1 3/ 4 B Le ng th of co rri d or ( m ) VP2002 5 L e n gt h of c or ri d or ( m ) 6 L e n gt h of c or ri d or ( m ) 8 L e n gt h of c or ri d or ( m ) 7 L e n gt h of c or ri d or ( m ) ← Max. 5 cm → VP2002 A Len gth of cor rid or (m) VP4201- CP Beacon - Quick start 12-2013 Doc.part.no. 9741488 version 1.1 4/ 4 Specifications VP 4201 Dimensions Ø 513,5 x 114 mm (H) Weight: ± 2870 gr. (± 3680 gr. including packaging) Communication UHF communication 100 kbit/s Power Input voltage 25 VDC, ± 20% Power consumption max 12,5W ( max. 500 mA @ 25 VDC ) No polarity when connecting with power supply Software Downloadable by the UHF network Status indication 5 times blue LED Antennas 1: Internal UHF antenna 2: Internal LF beacon antenna Magnetic fieldstrength < 63 dBμA/m @ 10m distance; within CE and FCC regulations Environment Temperature: Operating: -10 – 50 °C, Storage: -25 – 70 °C Relative humidity: 10 –100% IP class IP 65 Always use a NEDAP power supply VP2001 or VP2002. The Nedap guarantee-regulations are only valid when is installed as indicated in this manual. Install cable at a safe distance from (high) powered cables. For more detailed information contact your local Nedap supplier or check the internet site. See Service manual Cow Positioning on Velos Software CD and/or dealer login www.nedap-livestockmanagement.com . 9 L e n gt h of c or ri d or ( m )

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Return address: PO Box 6, 7140 AA Groenlo, The Netherlands ATCB Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 25 December 2013 Subject: Attestation of Similarity FCC ID: CGDVP4201 Dear Mrs. Bosley, The device with Model: VP4201 as mentioned in report “12_13012902.fcc02_Testreport CGDVP4102.pdf” is a transceiver operating on 433 MHz and 54 kHz to detect the position and the activity of cows. Model: VP4201 is the general name of this device. Model: VP4201 NEDAP is delivered by Nedap directly to its dealers and/or end users. Nedap also delivers 3 more models which are electronically as well as mechanically the same as the Model: VP4201 NEDAP only the labeling and it is delivered to other companies as mentioned in the list below who in turn deliver it to their dealers and/or end users, so another name appears on the product. Therefore more following Model numbers are introduced. 1. Model: VP4201 NEDAP 2. Model: VP4201 LELY 3. Model: VP4201 GEA 4. Model: VP4201 BOUMATIC All the products will of course be labeled with FCC ID: CGDVP4201. I thereby wish to request whether you can add these models to the list of approved systems. I hope you can honor our request Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap” Jacques Hulshof Approbation Officer

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Groenlo, 25 December 2013 Return address: PO Box 6, 7140 AA Groenlo, The Netherlands American Certification Board Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Dear Mrs. Bosley, We, N.V. Nederlandsche Apparatenfabriek "Nedap", hereby would like to apply for FCC certification of the following device: FCC ID : CGDVP4201 FRN : 0007696149 Manufacturer : N.V. Nederlandsche Apparatenfabriek ”Nedap” Brands : NEDAP, LELY, GEA, BOUMATIC Models : VP4201 NEDAP, VP4201 LELY, VP4201 GEA, VP4201 BOUMATIC Antenna : Internal, 1/4 λ twisted wire, AWG 20 and inductive loop Description : Beacon for Cow Positioning System operating on 433 MHz and 54 kHz. The following PDF files (exhibits) are electronically submitted: 1. Cover letter (this document) 2. Request of confidentiality 3. Form 731 4. Antenna information 5. Bill of material 6. Circuit diagram 7. Block diagram 8. Interior photograph report 9. Exterior photograph report 10. FCC ID Label artwork and Label location 11. Theory of operation 12. Test report in conformity with 47 CFR Part 15 13. Test setup photographs 14. Users manual 15. Brochure 16. Attestation of similarity 17. EMF Declaration 18. Transmitter ADF7023 datasheet Best regards, N.V. Nederlandsche Apparatenfabriek “Nedap“ Jacques Hulshof Approbation Management

N.V. Nederlandsche Apparatenfabriek “Nedap” Parallelweg 2 NL-7141 DC Groenlo P.O. Box 6 NL-7140 AC Groenlo T +31 (0)544 471 111 F +31 (0) 544 463 475 E [email protected] www.nedap.com Traderegister 08013836 ABN-AMRO 59.16.32.330 IBAN NL83ABNA0591632330 BIC ABNANL2A VAT NL006456285B01 The General Terms & Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website www.nedap.com and can be provided upon request. Return address: PO Box 6, 7140 AA Groenlo, The Netherlands American Certification Body Attn.: Mrs. M. Bosley Certification Department 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA Groenlo, 25 DEcember 2013 Subject: Request of Confidentiality FCC ID: CGDVP4201 Dear Mrs. Bosley, Pursuant to section 0.457(d)(2)(i) and Section 0.459 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID : CGDVP4201 FRN : 0007696149 Manufacturer : N.V. Nederlandsche Apparatenfabriek ”Nedap” Brands : NEDAP, LELY, GEA, BOUMATIC Models : VP4201 NEDAP, VP4201 LELY, VP4201 GEA, VP4201 BOUMATIC Antenna : Internal, 1/4 λ twisted wire, AWG 20 and inductive loop Description : Beacon for Cow Positioning System operating on 433 MHz and 54 kHz. to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than N.V. Nederlandsche Apparatenfabriek "Nedap" and TÜV Rheinland Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. Theory of operation (technical description) The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, N.V. Nederlandsche Apparatenfebriek “Nedap” Jacques Hulshof Approbation Management

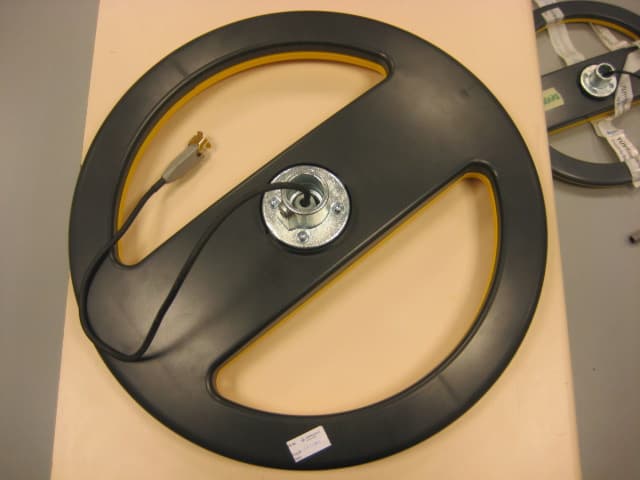

Page 1 of 6 Beacon for Cow Positioning System operating on 433 MHz and 54 kHz Several Brands Model: VP4201 Exterior Photographs Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 2 of 6 Description of item Description of EUT : Beacon for Cow Positioning System operating on 433 MHz and 54 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brands : NEDAP, LELY, GEA, BOUMATIC Model : VP4201 NEDAP, VP4201 LELY, VP4201 GEA, VP4201 BOUMATIC FCC ID : CGDVP4201 IC : Type of service : 1444A-VP4201 New application Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 25 December 2013 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 3 of 6 Table of contents 1 FRONT SIDE VP4201 .............................................................................................................................................................. 4 1.1 VP4201 NEDAP .................................................................................................................................................................. 4 1.2 VP4201 GEA ....................................................................................................................................................................... 4 1.3 VP4201 BOUMATIC .......................................................................................................................................................... 5 1.4 VP4201 LELY ..................................................................................................................................................................... 5 2 BACK SIDE VP4201 ................................................................................................................................................................. 6 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 4 of 6 1 Front side VP4201 1.1 VP4201 NEDAP 1.2 VP4201 GEA Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 5 of 6 1.3 VP4201 BOUMATIC 1.4 VP4201 LELY Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 6 of 6 2 Back side VP4201

Page 1 of 7 Beacon for Cow Positioning System operating on 433 MHz and 54 kHz Several Brands Model: VP4201 Label location and artwork Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 2 of 7 Description of item Description of EUT : Beacon for Cow Positioning System operating on 433 MHz and 54 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brands : NEDAP, LELY, GEA, BOUMATIC Model : VP4201 NEDAP, VP4201 LELY, VP4201 GEA, VP4201 BOUMATIC FCC ID : CGDVP4201 IC : Type of service : 1444A-VP4201 New application Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 25 December 2013 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 3 of 7 Table of contents 1 LABEL LOCATION ................................................................................................................................................................. 4 2 LABELING ARTWORK ......................................................................................................................................................... 4 2.1 VP4201 NEDAP .................................................................................................................................................................. 4 2.1.1 FCC ID_IC and warning ............................................................................................................................................. 4 2.1.2 FCC ID and IC details ................................................................................................................................................ 5 2.2 VP4201 GEA ....................................................................................................................................................................... 5 2.2.1 FCC ID_IC and warning ............................................................................................................................................. 5 2.2.2 FCC ID and IC details ................................................................................................................................................ 5 2.3 VP4201 BOUMATIC .......................................................................................................................................................... 6 2.3.1 FCC ID_IC and warning ............................................................................................................................................. 6 2.3.2 FCC ID and IC details ................................................................................................................................................ 6 2.4 VP4201 LELY ..................................................................................................................................................................... 6 2.4.1 FCC ID_IC and warning ............................................................................................................................................. 6 2.4.2 FCC ID and IC details ................................................................................................................................................ 7 3 WARNING LABEL .................................................................................................................................................................. 7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 4 of 7 1 Label location 2 Labeling artwork 2.1 VP4201 NEDAP 2.1.1 FCC ID_IC and warning FCC ID and IC Warning Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 5 of 7 2.1.2 FCC ID and IC details 2.2 VP4201 GEA 2.2.1 FCC ID_IC and warning 2.2.2 FCC ID and IC details Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 6 of 7 2.3 VP4201 BOUMATIC 2.3.1 FCC ID_IC and warning 2.3.2 FCC ID and IC details 2.4 VP4201 LELY 2.4.1 FCC ID_IC and warning Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 7 of 7 2.4.2 FCC ID and IC details 3 Warning label

Page 1 of 7 Beacon for Cow Positioning System operating on 433 MHz and 54 kHz Several Brands Model: VP4201 Interior Photographs Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 2 of 7 Description of item Description of EUT : Beacon for Cow Positioning System operating on 433 MHz and 54 kHz Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brands : NEDAP, LELY, GEA, BOUMATIC Model : VP4201 NEDAP, VP4201 LELY, VP4201 GEA, VP4201 BOUMATIC FCC ID CGDVP4201 IC 1444A-VP4201 Applicant information Applicant's representative : Mr. Jacques Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo PO-box : 6 Postal code : 7140 AA City : Groenlo Country : The Netherlands Telephone number : +31 (0) 544 471111 Telefax number : +31 (0) 544 463475 25 December 2013 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 3 of 7 Table of contents 1 VP4201 BACK SIDE REMOVED ........................................................................................................................................... 4 2 TRANSCEIVER BOARD AND ANTENNAS ........................................................................................................................ 4 3 TRANSCEIVER BOARD ........................................................................................................................................................ 5 3.1 COMPONENT SIDE ................................................................................................................................................................. 5 3.1.1 Close up lower part ..................................................................................................................................................... 6 3.1.2 Close up top part ......................................................................................................................................................... 6 3.2 BACK SIDE ............................................................................................................................................................................ 7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 4 of 7 1 VP4201 back side removed 2 Transceiver board and antennas Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 5 of 7 3 Transceiver board 3.1 Component side Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 6 of 7 3.1.1 Close up lower part 3.1.2 Close up top part Description of EUT: Manufacturer: Brand mark: Model: FCC ID IC Type of service Beacon for Cow Positioning System operating on 433 MHz and 54 kHz N.V. Nederlandse Apparatenfabriek “Nedap” Several VP4201 CGD VP4201 1444A-VP4201 New application Page 7 of 7 3.2 Back side

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS P.O. Box 37 9350AA Leek Eiberkamp 10 9351VT Leek The Netherlands Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.tuv-eps.com Project number: 13012902.fcc02 Page 1 of 32 TEST REPORT CONCERNING THE COMPLIANCE OF A BEACON FOR A COW POSITIONING SYSTEM, BRAND Nedap , MODEL VP4201 WITH 47 CFR PART 15 (10-1-12) AND THE REQUIREMENTS OF INDUSTRY CANADA: RSS-GEN (ISSUE 3, DECEMBER 2010) AND RSS-210 (ISSUE 8, DECEMBER 2010) 13012902.fcc02 December 17, 2013 FCC listed Industry Canada R&TTE, LVD, EMC Notified Body : : : 90828 2932G-2 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15/RSS Beacon for Cow Positioning System N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VP4201 CGDVP4201 1444A-VP4201 Project number : 13012902.fcc02 Page 2 of 32 MEASUREMENT/TECHNICAL REPORT Brand: Nedap Model: VP4201 FCC ID: CGDVP4201 IC: 1444A-VP4201 This report concerns: Original grant/certification Class 2 Permissive Change Verification Equipment type: DSC Remote Control Transmitter Report prepared by: Name : Richard van der Meer Company name : TÜV Rheinland EPS Address : Eiberkamp 10 Postal code/city : 9351VT / Leek Mailing address : P.O. Box 37 Postal code/city : 9350AA / Leek Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 (10-1-12 edition) RSS-GEN (ISSUE 3, DECEMBER 2010), RSS-210 (ISSUE 8, DECEMBER 2010) and the measurement procedures of ANSI C63.4-2009. TÜV Rheinland EPS B.V. at Leek, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: December 17, 2013 Signature: O. Hoekstra Senior Engineer Telecom TÜV Rheinland EPS Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15/RSS Beacon for Cow Positioning System N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VP4201 CGDVP4201 1444A-VP4201 Project number : 13012902.fcc02 Page 3 of 32 Summary The device under test does:  fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Description of test item Test item (EUT) : Beacon for a Cow Positioning System Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model(s) : VP4201 Serial number(s) : -- Receipt date : November 07, 2013 Applicant information Applicant's representative : Mr. J. Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo Country : The Netherlands Telephone number : +31 544 471 162 Telefax number : +31 544 463 475 Test(s) performed Location : Leek Test(s) started : November 07, 2013 Test(s) completed : December 09, 2013 Purpose of test(s) : Equipment Authorization (Original grant/certification) Test specification(s) : 47 CFR Part 15 (10-1-12 edition) and RSS-GEN (ISSUE 3, DECEMBER 2010) AND RSS-210 (ISSUE 8, DECEMBER 2010) Test engineer(s) : R. van der Meer Report written by : R. van der Meer Report date : December 17, 2013 This report shall not be reproduced, except in full, without the written permission of TÜV Rheinland EPS The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15/RSS Beacon for Cow Positioning System N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VP4201 CGDVP4201 1444A-VP4201 Project number : 13012902.fcc02 Page 4 of 32 Table of contents 1.1 Product description. ........................................................................................................................................ 5 1.1.1 Introduction. ............................................................................................................................................ 5 1.2 Related submittal(s) and/or Grant(s). ............................................................................................................. 5 1.2.1 General. .................................................................................................................................................. 5 1.3 Tested system details. .................................................................................................................................... 5 1.3.1 Special Accessories and Auxiliary Equipment ........................................................................................ 6 1.3.2 Description of input and output ports. ..................................................................................................... 7 1.4 Test summary ............................................................................................................................................... 10 1.5 Test methodology. ........................................................................................................................................ 10 1.6 Test facility. .................................................................................................................................................. 11 1.7 Test conditions. ............................................................................................................................................ 11 2 System test configuration. ................................................................................................................................... 12 2.1 Justification. ..............................................................…

Text truncated - open the document above for the full version.

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS P.O. Box 37 9350AA Leek Eiberkamp 10 9351VT Leek The Netherlands Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 13091101.p02 Page 1 of 8 PHOTOGRAPHS OF THE TESTSETUP OF A BEACON FOR A COW POSITIONING SYSTEM, BRAND Nedap , MODEL VP4201 13012902.p02 December 17, 2013 FCC listed Industry Canada R&TTE, LVD, EMC Notified Body : : : 90828 2932G-2 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15/RSS Beacon for Cow Positioning System N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VP4201 CGDVP4201 1444A-VP4201 Project number: 13012902.p02 Page 2 of 8 Description of test item Test item (EUT) : Beacon for a Cow Positioning System Manufacturer : N.V. Nederlandsche Apparatenfabriek “Nedap” Brand : Nedap Model(s) : VP4201 Serial number(s) : -- Receipt date : November 07, 2013 Applicant information Applicant's representative : Mr. J. Hulshof Company : N.V. Nederlandsche Apparatenfabriek “Nedap” Address : Parallelweg 2 Postal code : 7141 DC City : Groenlo Country : The Netherlands Telephone number : +31 544 471 162 Telefax number : +31 544 463 475 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15/RSS Beacon for Cow Positioning System N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VP4201 CGDVP4201 1444A-VP4201 Project number: 13012902.p02 Page 3 of 8 Table of contents 1 PHOTOGRAPHS OF THE TESTSETUP. ....................................................................................................................... 4 1.1 RADIATED EMISSIONS E-FIELD ....................................................................................................................................... 4 1.1.1 Radiated emissions E-field @3m ...................................................................................................................... 4 1.1.2 Radiated emissions E-field @3m, EUT setup ................................................................................................. 5 1.2 RADIATED EMISSIONS H-FIELD ....................................................................................................................................... 6 1.2.1 Radiated emissions H-field @3m ...................................................................................................................... 6 1.2.2 Radiated emissions H-field @10m .................................................................................................................... 6 2 TESTSETUP CONDUCTED EMISSION ......................................................................................................................... 7 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15/RSS Beacon for Cow Positioning System N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VP4201 CGDVP4201 1444A-VP4201 Project number: 13012902.p02 Page 4 of 8 1 Photographs of the testsetup. 1.1 Radiated emissions E-field 1.1.1 Radiated emissions E-field @3m Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15/RSS Beacon for Cow Positioning System N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VP4201 CGDVP4201 1444A-VP4201 Project number: 13012902.p02 Page 5 of 8 1.1.2 Radiated emissions E-field @3m, EUT setup Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC Part 15/RSS Beacon for Cow Positioning System N.V. Nederlandsche Apparatenfabriek “Nedap” Nedap VP4201 CGDVP4201 1444A-VP4201 Project num…

Text truncated - open the document above for the full version.
