CHXFS90TX915mini touch remote

1 FS-90 2-Way Touch Screen Remote Paging Alarm & Engine Starting System OPERATION INSTRUCTIONS INTRODUCTION CONGRATULATIONS on your choice of the 2-Way Touch Screen Remote Paging Alarm & Remote Engine Starting System by Crimestopper Security Products Inc. The FS-90 operates at 915MHz and features an animated color LCD Touch Screen remote control. It includes voice confirmation of all Alarm and Remote Start functions in both English and Spanish. The remote uses a rechargeable Lithium Ion battery and includes both a car and AC charging adaptor. The system includes Carjack and Panic protection. You can operate 4 vehicles with a Pin Code. There are 7 zones of protection with trigger history of date and time of violation. The remote control includes a Parking Meter, Alarm Clock, and vehicle temperature and battery voltage checks. Remote Start features include, Daily Starting and built in Turbo Timer. A special protective cover is included to protect the Touch Screen remote. There is a built in Photo Cell to sense bright sun light. This changes the icons to black and white for easier viewing. CONTACT INFORMATION: TECHNICAL SUPPORT (800)-998-6880 Monday - Friday 8:00am - 4:30pm Pacific Website: www.crimestopper.com CRIMESTOPPER SECURITY PRODUCTS INC. 1770 S. TAPO STREET SIMI VALLEY, CA. 93063 REV. 04.2010 This device complies with FCC Rules part 15. Operation is subject to the following two conditions: 1) This device may not cause interference, and (2) this device must accept any interference that may be received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. Such modification could void the user's authority to operate the equipment. 2 TABLE OF CONTENTS Operation Cautions & Warnings..............................................................................2 The Remote Controls..........................................................................................3-4 Menu Flow Chart...................................................................................................5 Alternate Sub Menus........................................................................................... 6 Operating Instructions - Alarm...........................................................................7-11 Car Selection / Car Name / Car Logo......................................................................11 Auxiliary Channels..............................................................................................12 Vehicle Status / Voltage / Temperature Check..........................................................12 Time Display / Alarm Clock Settings.....................................................................12 Setting the Clock................................................................................................13 Pin Code............................................................................................................13 Backlight / Vibration / Sound Settings..............................................................13-14 Parking Timer / Park Area Location......................................................................14 Count Down Timer.............................................................................................14 Panic Mode / Carjack Protection..........................................................................15 Remote Engine Starting – Automatic / Manual Transmission..................................16 Remote Start Diagnostics / Idle Down Mode..........................................................17 Turbo Timer Mode..............................................................................................18 Count Down Start / Daily Start / Temperature Start.................................................18 Transmitter Find / Locate Feature....................................................................19-20 Charging Battery / Language Selection.................................................................21 Optional Garage Door Opener..............................................................................21 OPERATION CAUTIONS & WARNINGS CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident resulting from the use of this equipment. This system is designed to be professionally installed into a car or vehicle in good running order. Items, such as parking brake, door switches, and all engine safety features, must be in perfect working condition. DAMAGE resulting from misuse or negligence is NOT covered under warranty and will be subject to repair and / or replacement charges. IT IS ABSOLUTELY THE OWNER’S SOLE RESPONSIBILITY TO: A) Understand the operation of this system and its safety features. B) Check for proper operation of these safety features prior to accepting delivery of the vehicle from the installation facility. C) Check and maintain the condition of the vehicle and all items relative to the proper operation of this system and its safety features. DO NOT remote start the vehicle in a closed garage. Make sure that the vehicle is outdoors, a garage door is open, or there is adequate exhaust ventilation. Failure to observe this rule could result in injury or death from poisonous Carbon Monoxide fumes. This is especially important when using the Timed Self-Start feature of the unit 3 THE REMOTE CONTROLS 1-WAY - SIDEKICK REMOTE: The 1-Way sidekick remote adds flexibility to your system. You can have the convenience of operating your system without needing to carry the larger pager remote. The Sidekick remote has less range and offers all of the same operation features except for page-back confirmation. The 1-Way Sidekick Remote uses two CR-2025 Lithium 3 Volt Batteries. 2-WAY - TOUCH SCREEN PAGER / REMOTE CONTROL: The 2-Way Touch Screen pager remote control is used to send and receive information to and from the vehicle. The vehic…

Text truncated - open the document above for the full version.

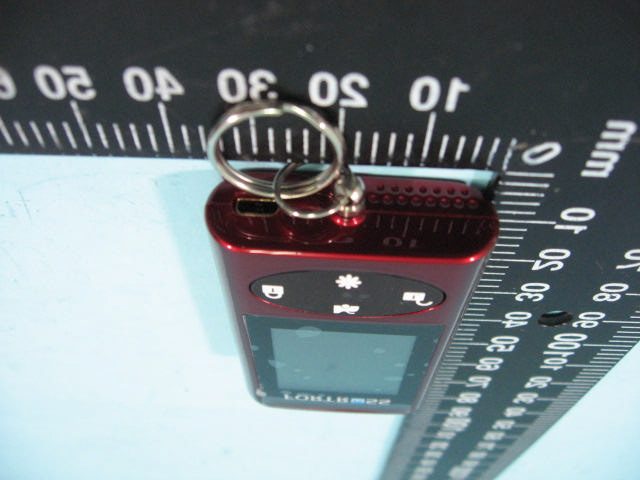

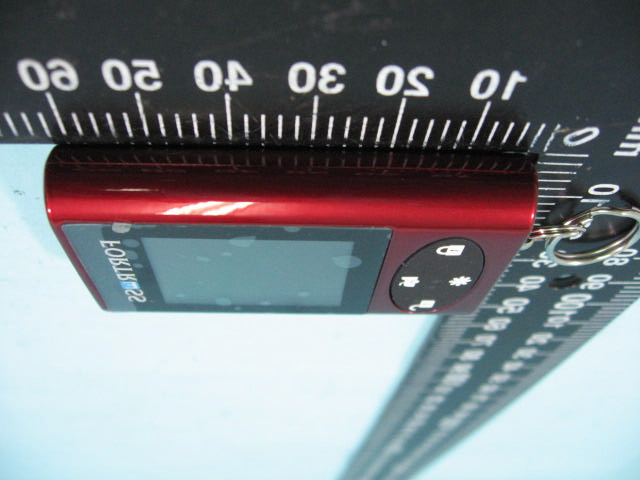

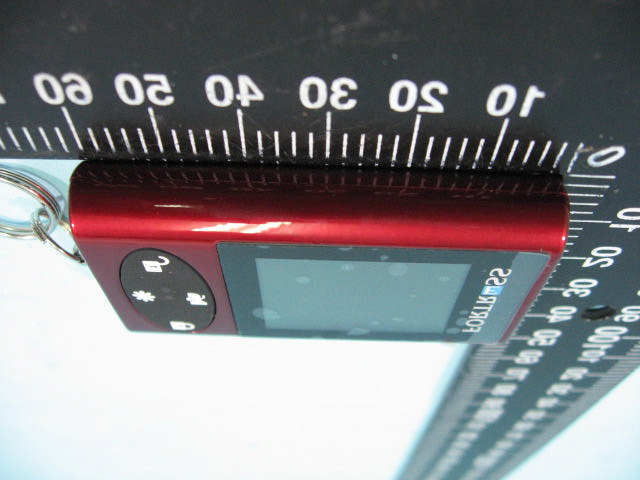

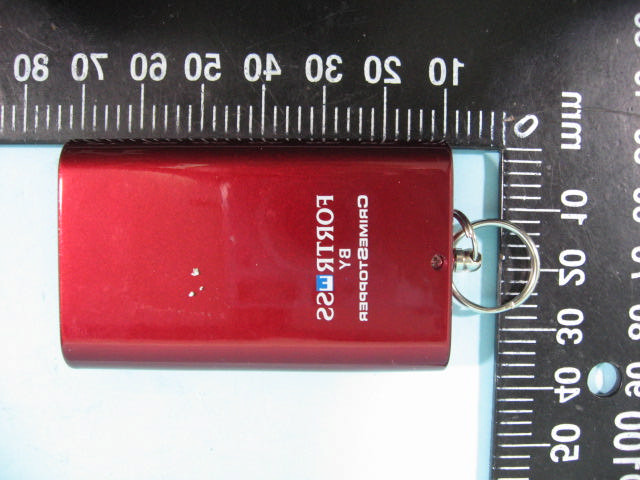

ETC Report No. : 10-06-RBF-141 Sheet 1 of 8 Sheets FCC ID.: CHXFS90TX915 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT A. EUT 1. Front View of EUT 2. Side View of EUT ETC Report No. : 10-06-RBF-141 Sheet 2 of 8 Sheets FCC ID.: CHXFS90TX915 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Top View of EUT 4. Side View of EUT ETC Report No. : 10-06-RBF-141 Sheet 3 of 8 Sheets FCC ID.: CHXFS90TX915 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Bottom View of EUT 6. Rear View of EUT

BY FCC ID : CHXFS90TX915 FS-90 22mm 18mm

ETC Report No. : 10-06-RBF-141 Sheet 4 of 8 Sheets FCC ID.: CHXFS90TX915 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT 8. Internal View of EUT ETC Report No. : 10-06-RBF-141 Sheet 5 of 8 Sheets FCC ID.: CHXFS90TX915 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9. Component View of PCB 10. Solder View of PCB ETC Report No. : 10-06-RBF-141 Sheet 6 of 8 Sheets FCC ID.: CHXFS90TX915 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 11. Component View of PCB 12. Solder View of PCB ETC Report No. : 10-06-RBF-141 Sheet 7 of 8 Sheets FCC ID.: CHXFS90TX915 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT B. Adaptor 1. Front View of Adaptor 2. Side View of Adaptor ETC Report No. : 10-06-RBF-141 Sheet 8 of 8 Sheets FCC ID.: CHXFS90TX915 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Top View of EUT 4. Lable View of Adaptor

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. mini touch remote FCC ID CHXFS90TX915 MODEL FS-90 for APPLICANT : Crimestopper Security Products, INC ADDRESS : 1770 South Tapo St, Simi Valley, California 93063 USA Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 10-06-RBF-141 ETC Report No. : 10-06-RBF-141 FCC ID. : CHXFS90TX915 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Crimestopper Security Products, INC 1770 South Tapo St, Simi Valley, California 93063 USA Manufacturer : Tesor Plus Corp. 6 th Floor, No.11, Alley 11, Lane 327, Section 2, Chung-Shan Road, Chung- Ho City, Taipei Hsien, Taiwan Description of EUT : a) Type of EUT : mini touch remote b) Trade Name : Fortress c) Model No. : FS-90 d) Power Supply : DC 3.7V 300mAh Battery e) Frequency Range : 915 MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2009) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003), and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. ETC Report No. : 10-06-RBF-141 FCC ID. : CHXFS90TX915 Rev. No 1.0 Issued Date : Aug. 30, 2010 Test Engineer : ( Vincent Chang, Engineer ) Check By : ( Charles Wang, Supervisor ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 10-06-RBF-141 FCC ID. : CHXFS90TX915 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION........................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device..................................................................................................................1 1.3 Test Methodology...........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE........................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation.........................................................................................................5 2.4 Labeling Requirement......................................................................................................................5 2.5 User Information.............................................................................................................................6 3 SYSTEM TEST CONFIGURATION............................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System..............................................................................................................7 4 RADIATED EMISSION MEASUREMENT...............................................................................8 4.1 Applicable Standard........................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument....................................................................................................................11 4.4 Radiated Emission Data.................................................................................................................12 4.5 Field Strength Calculation..............................................................................................................14 4.6 Photos of Radiation Measuring Setup............................................................................................15 5 CONDUCTED EMISSION MEASUREMENT.........................................................................17 5.1 Standard Applicable......................................................................................................................17 5.2 Measurement Procedure...............................................................................................................17 5.3 Conducted Emission Data.............................................................................................................18 5.4 Result Data Calculation.................................................................................................................20 5.5 Conducted Measurement Equipment.............................................................................................20 5.6 Photos of Conduction Measuring Setup.........................................................................................21 6 ANTENNA REQUIREMENT.....................................................................................................22 6.1 Standard Applicable......................................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : 10-06-RBF-141 Sheet 15 of 25 Sheets FCC ID.: CHXFS90TX915 Rev. No 1.0 4.6 Photos of Radiation Measuring Setup ETC Report No. : 10-06-RBF-141 Sheet 16 of 25 Sheets FCC ID.: CHXFS90TX915 Rev. No 1.0 ETC Report No. : 10-06-RBF-141 Sheet 21 of 25 Sheets FCC ID.: CHXFS90TX915 Rev. No 1.0 5.6 Photos of Conduction Measuring Setup
