RS2-G3 ONE BUTTON 2-WAY REMOTE START SYSTEM OPERATING INSTRUCTIONS CONGRATULATIONS on your choice of a Cool Start ™ Remote Engine Starter and Keyless Entry with DP Technology by Crimestopper Security Products Inc. This booklet contains the information necessary for operating your system. If any questions arise, cont act your installation dealer or Crimestopper Securit y Products Inc. *IMPORTANT INFORMATION: Primary and Optional Features -PRIMARY: These are features that must be connected in order for the system to operate properly i.e. Remote Start connections, Flashing lights, and Brak e Reset. For programming, the program button must b e installed. -OPTIONAL: These features are to be connected only if desire d or agreed upon by the customer and the installing dealer i.e. Door Locks, Horn-Honk, Anti-G rind, etc. These features may also require additio nal parts and/or labor fees. Consult with your installer befo rehand to be sure of what is going to be installed with your particular system. CRIMESTOPPER SECURITY PRODUCTS, INC. 1770 S. TAPO STREET, SIMI VALLEY, CA. 93063 REV 07.25.2014 This device complies with FCC Rules part 15. Operat ion is subject to the following two conditions: 1) This de vice may not cause interference, and (2) this device must accept any interference that may be received, including interf erence that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. Such m odification could void the user's authority to operate the equi pment. 2 TABLE OF CONTENTS Operation Cautions & Warnings.......................................................... .............................................2 Using the Remote Transmitter..................................................................... ....................................3 Status LED....................................................................................................................... ..........4 Remote Engine Control.................................................................................... ...........................4-6 Timed Self Start Mode (optional)......................................................... ............................................7 Turbo Timer Mode................................................................................................. ........................8 Convenience and Safety Features.......................................................... ......................................9-10 Transmitter Programming.............................................................................. ................................11 No Factory Keyless Entry after Remote Start.................... ................................................................12 Panic Mode....................................................................................................................... .........12 Remote Start Diagnostics................................................................................. ............................13 Battery Replacement...................................................................................... ..............................14 2-Way Data Port............................................................................................................ ............15 OPERATION CAUTIONS & WARNINGS CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident resulting from the use of this equipment. This sys tem is designed to be professionally installed into a car or vehicle in which all items, such as parking brake a nd all associated components, door switches, transm ission shift linkage, throttle linkage, and all engine saf ety features, are in perfect working condition. IT IS ABSOLUTELY THE OWNER’S SOLE RESPONSIBILITY TO : A) Understand the operation of this system and its safety features. B) Check for prope r operation of the system prior to accepting delive ry of the vehicle from the installation facility. C) Check a nd maintain the condition of the vehicle and all it ems relative to the proper operation of this system and its safety features. D) Always leave the doors and windows cl osed and locked to protect against accidents and theft. DO NOT remote start the vehicle in a closed garage. Make sure that the garage door is open or there i s adequate ventilation. Failure to observe this rule could result in injury or death from poisonous Carbon Monoxide fumes. 3 USING THE REMOTE TRANSMITTER BASIC REMOTE OPERATION The transmitter supplied with this system is a sing le button 2-Way remote control. This is a multifunc tion remote control. It can operate power door locks (if equipped with power locks) and Remote Start the ve hicle. The 2-Way Remote Control will confirm operation wit h Beeps and LED flash for lock, unlock and remote sta rt. 1. Press Once = Lock or Unlock. a. Lock = 1 beep & 1 green LED flash. b. Unlock = 2 beeps & 2 green LED flashes. 2. Press 3 times within 2 seconds = Panic Mode – 30 s econd cycle (2 second beep and green LED). 3. Press and Hold 2 seconds = Remote Start or Remote Stop. a. Remote Start = 1 beep, red & green LED flash once. b. Engine Running = 4 beeps, red & green LED flash 4 times. c. Start Fail = 2 beeps & 2 red flashes. d. Engine Stop/Shut Down = 1 beep & 1 red LED flash. 2 - W ay Remote Red & Green LED 1 - W ay Remote Blue LED 4 STATUS LED VEHICLE STATUS LED : Located on Window Antenna The Status led will flash when the doors are locked . It will turn off when the doors are unlocked. The LED will remain solid when the system is in Valet Service mo de. The remote start function WILL NOT operate when in Valet Mode. REMOTE ENGINE CONTROL REMOTE ENGINE STARTING - SUCCESSFUL START: 1) Press the remote start button for at least 2 sec onds. Parking lights flash once, return solid, and the Ignition/Acc circuits turn on. The remote control w ill beep and the LED will flash onc…

Text truncated - open the document above for the full version.

Vicky Yuan

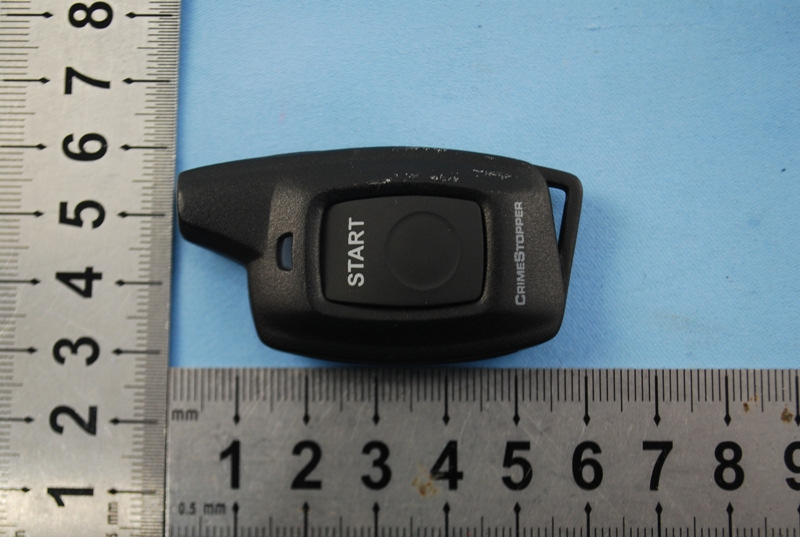

1 Photographs - EUT Constructional Details Test Model No.: T34A-1

1 Photographs - EUT Constructional Details Test Model No.: T34A-1

SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM140700352501 Page: 1 of 22 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. ′′This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.′′ 1 Cover Page FCC REPORT Application No.: SZEM1407003525RF Applicant: Crimestopper Security Products, Inc. Manufacturer: DONGGUAN PORTMAN ELECTRONIC SCIENCE AND TECHNOLOGY CO.,LTD Factory: DONGGUAN PORTMAN ELECTRONIC SCIENCE AND TECHNOLOGY CO.,LTD Product Name: Car alarm –RS2-G3 Model No.(EUT): T34A-1 FCC ID: CHXT34A-1W433 Trade Mark: Crime stopper Standards: 47 CFR Part 15, Subpart C (2013) Date of Receipt: 2014-07-09 Date of Test: 2014-07-14 to 2014-08-18 Date of Issue: 2014-08-21 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM140700352501 Page: 2 of 22 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Version Revision Record Version Chapter Date Modifier Remark 00 2014-08-21 Original Authorized for issue by: Tested By 2014-08-18 (Chris Zhong) /Project Engineer Date Prepared By 2014-08-21 (Linlin Lv) /Clerk Date Checked By 2014-08-27 (Owen Zhou) /Reviewer Date SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM140700352501 Page: 3 of 22 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Par…

Text truncated - open the document above for the full version.

1 Photographs - Test setup Test Model No.: T34A-1 1.1 Radiated Emission
