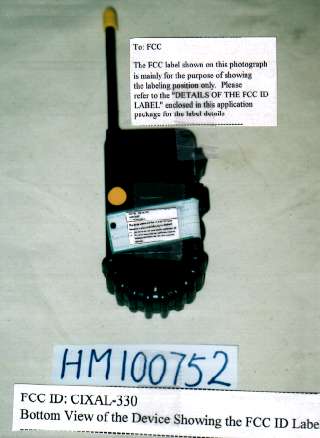

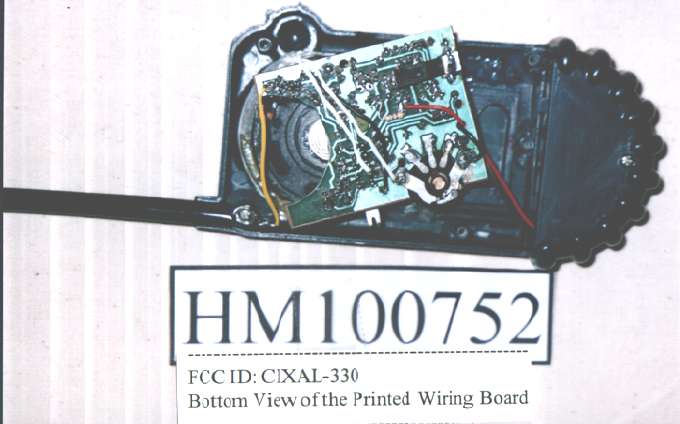

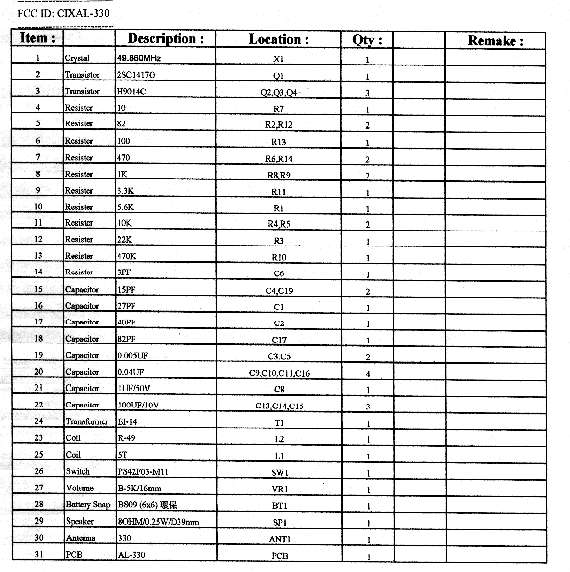

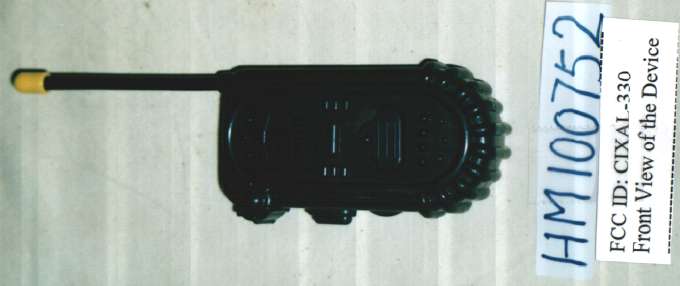

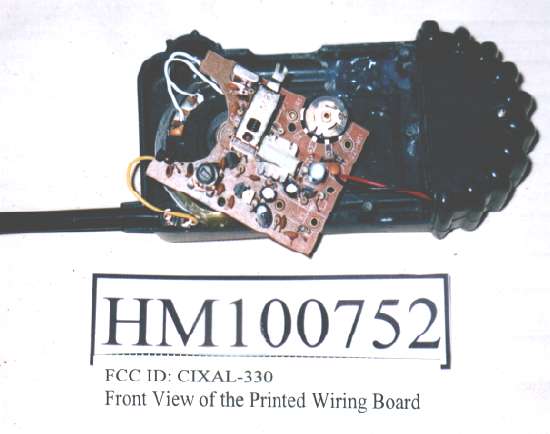

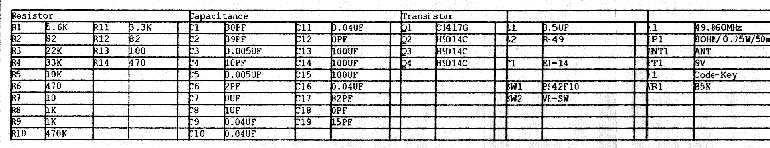

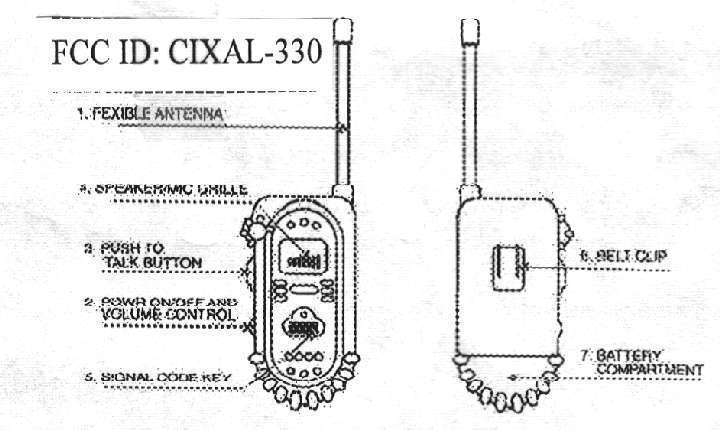

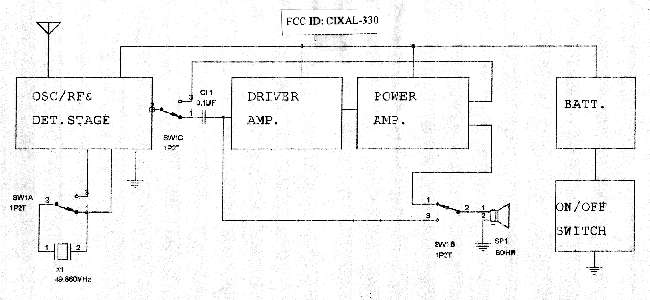

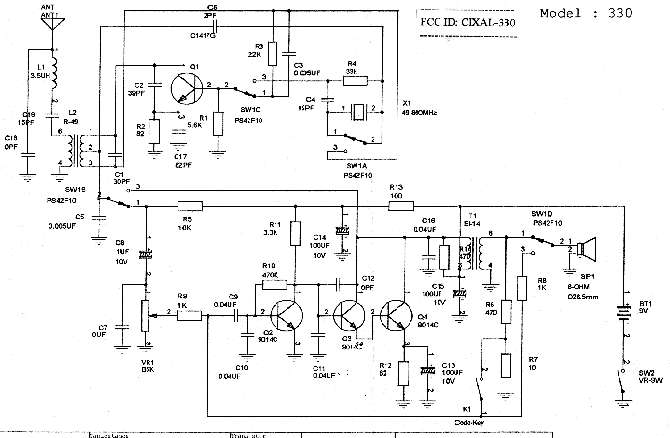

CIXAL-330WALKIE TALKIE

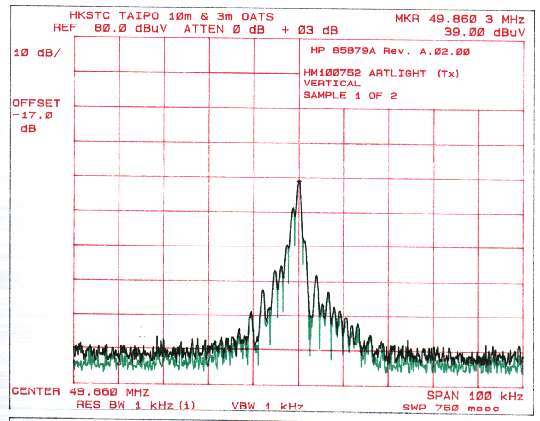

Date: 1999-05-27 TEST REPORT Page 1 of 8 No.: HM100752 __LAW MAN KIT KITTY CHOYPATRICK WONG Patrick Wong Testing EngineerVerify byfor Managing Director Conditions in issuance of Test Report 1. This Report is issued in confidence to the client and it will be strictly treated as such by the Hong Kong Standards and Testing Centre Ltd. It may not be reproduced either in its entirety or in part and it may not be used for advertising. The client to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Hong Kong Standards and Testing Centre Ltd. to his customer, supplier or other persons directly concerned. The Hong Kong Standards and Testing Centre Ltd. will not, without the consent of the client, enter into any discussion or correspondence with any third party concerning the contents of the Report. 2. The report refers only to the sample tested and does not apply to the bulk, unless the sampling has been carried out by the Hong Kong Standards and Testing Centre Ltd. and is stated as such in the Report. 3. In the event of the improper use of the report, the Hong Kong Standards and Testing Centre Ltd. reserves the rights to withdraw it, and to adopt any other remedies which may be appropriate. 4. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Hong Kong Standards and Testing Centre Ltd. 5. The Hong Kong Standards and Testing Centre Ltd. will not be liable for or accept responsibility for any loss or damage howsoever arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 6. Applicants wishing to use the Report in court proceedings or arbitration shall inform the Hong Kong Standards and testing Centre Ltd. to that effect prior to submitting the sample for testing. APPLICANT: (Code:ARE001) ARTLIGHT ELECTRICAL MFG. CO. LTD. ROOM 301 EASTERN CENTRE, 1065 KING’S ROAD, HONG KONG. DATE OF SAMPLES RECEIVED: 1999-04-29 DATE OF TESTING: 1999-05-25 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:WALKIE TALKIE Manufacturer:ARTLIGHT ELECTRICAL MFG. CO. LTD. Model Number: AL-330 Brand Name:ARTLIGHT Rating:9Vd.c. ("6F22" size battery × 1) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B - Unintentional Radiator and Subpart C - Intentional Radiator. RESULT/ REMARK: Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED after modification by customer with the clause 15.109(a) and ANSI C63.4-1992 Section 12.1.1.1-2 for the Receiver Section and with the clause 15.235 for the Transmitter Section of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 1999-05-27 TEST REPORT Page 2 of 8 No.: HM100752 T E S T S U M M A R Y . ***UNINTENTIONAL RADIATOR*** (A)Measurement of Radiated Emissions .......................................................Satisfactory (B) Line Conducted Voltage Test. .................................................................Not applicable *** INTENTIONAL RADIATOR*** (1) Measurement of Emission of RF energy on the carrier frequency.............. Satisfactory Measurement of the out-of band emissions including harmonics............... Satisfactory (2) Measurement of Emission Within Band Edges.......................................... Satisfactory (3)Measurement of Line-Conducted Voltage onto AC Power Line................ Not applicable T E S T D A T A Please refer to the attached result sheets . Date: 1999-05-27 TEST REPORT Page 3 of 8 No.: HM100752 ***UNINTENTIONAL RADIATOR*** (A) Measurement of Radiated Interference ====================================================== TEST REFERENCE: FCC Rules Part 15 Subpart B section 15.109(a) TEST CONDITION : Normal TEST DATE : 1999-05-25 =================================================================================== Freq. to whichFreq of thePolarizationMeter Antenna Field StrengthFCC limit tuned emission H-V reading (at 3m) factor (at 3m) @ MHz MHz dB( μ V) dB dB( μ V/m) μ V/m μ V/m 49.86049.9<1.0+15.0<16.0< 6100 99.7<1.0+12.2<13.2< 5150 149.6<1.0+ 9.8<10.8< 3150 199.4<1.0+11.5<12.5< 4150 249.3<1.0+15.9<16.9< 7200 299.1<1.0+17.0<18.0< 8200 349.0<1.0+17.2<18.2< 8200 398.8<1.0+18.8<19.8<10200 448.7<1.0+19.7<20.7<11200 498.6<1.0+20.6<21.6<12200 548.4<1.0+22.2<23.2<14200 598.3<1.0+23.4<24.4<17200 648.1<1.0+23.5<24.5<17200 698.0<1.0+25.0<26.0<20200 747.8<1.0+26.2<27.2<25200 797.7<1.0+27.2<28.2<25200 847.5<1.0+27.2<28.2<25200 897.5<1.0+27.2<28.2<25200 947.2<1.0+27.8<28.8<27200 997.1<1.0+28.5<29.5<27500 ================================================================================== ==========SUMMARY========== All data is within limits ============================================================ Broad-band Antennas were used and both polarizations of emissions were measured Polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================================= Date: 1999-05-27 TEST REPORT Page 4 of 8 No.: HM100752 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC Rules. (2) Distance between the ET and measuring antenna: 3 meters. (3) Measuring instrumentation: CISPR Quasi-peak type field strength meter (25 MHz - 1000 MHz). 6 dB bandwidth set at 120 KHz. Also, peak level of the fundamental emissions was measured in order to determine compliance with the 20dB peak to average limit specified in Section 15.35(b) of the FCC new Rules. (4) Measuring antenna: Broad band antenna for the frequency range 25-1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable. include…

Text truncated - open the document above for the full version.

Date:1999-05-27APPENDIX APage A1 of A1 No.: HM100752 TEST EQUIPMENT AUDIT Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM007SPECTRUM ANALYZERH PHP85660B3144A2119229/05/98 EM008SPECTRUM ANALYZER DISPLAYH PHP85662A3144A2051429/05/98 EM009QUASI PEAK ADAPTORH PHP85650A3303A0170229/05/98 EM010RF PRESELECTORH PHP85685A3221A0141029/05/98 EM011ATTENNUATOR/SWITCHH PHP11713A2508A1059529/05/98 EM012PRE-AMPLIFIERH PHP8449B3008A0026229/05/98 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE H P H P H P HP9000 HPA1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM017ANTENNAARA INC.LPB-2513/A106930/12/97 EM072SIGNAL GENERATORHP8640B1948A1189230/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A25/02/99 ABBREVIATIONS: CM = Corrective Maintenance N/A= Not Applicable or Not Available
