CIXAL62030Wireless FM Microphone

1 2 34 ABCD 4 3 2 1 D CBA Title:Model NO:Drawing NO: DWG:CHK:APP: SIZE:Sheet Of






 block-al-62206
䎈⚆ A4 00 100MHZ ANT Q1 RF AMP POWER SUPPLY 3V VOICE IC Q2 AF AMP MICPHONE MIC1 LED INDICATION

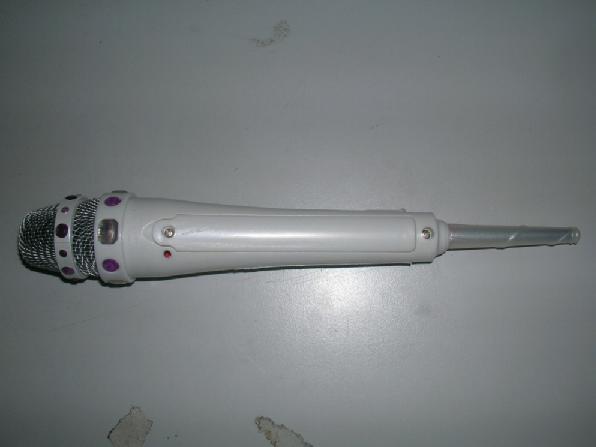

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: CIXAL62030 Circuit Description The Q2 MHz drives the base of Q1 the final/buffer amplifier. The modulation provided by Microphone. The output of Q1 has the matching network consisting of C2, C3, C11 and L1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 6.9 cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3Volt (“AAA” size battery x 2) primary battery Operation Descriptions The transmitter is a voice transmitter operating at 99.72MHz band. The transmitter is powered by a 3V battery (“AAA” size battery x2) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 99.72 MHz carrier frequency. Remarks: The transmitter is a 3 Button transmitter. The EUT continues to transmit while Button is being pressed. It is Voice transmitter, Modulation by Microphone; and type is Frequency / Pulse modulation.

Artlight Electrical Mfg.co.ltd 物料单 (BOM) MODEL：新咪AL-62206(62030)SMD 100C NOD E SQTYL O CNOD E SQTYL O C 1PCB (Double sides) 62206b-01 134Metal Mic Net (Top) 1 2Trimmer Capacitor 5-20 PF135Metal Mic Net (Bottom)1 3Transistor S9014lT1136Sponge (Top)1 4Transistor S9018LT1137Sponge (Bottom)1 5Switch SS12D01138Screw Nut M21 6Coil 3×15T139Screw O Ring 4.5x1.7x0.31 7Coil 5×2 1/2140Screw 2.0×5PB6 8Condenser Mic. FH-15E141Screw 2.6×8PB1 9Resistor SMD0805 1Ω 1/16W242Screw M2×6PM1 10Resistor SMD0805 22Ω 1/16W143Screw 2.3×6PB3 11Resistor SMD0805 2.2K 16W244Solder Tag 881 12Resistor SMD0805 22K 1/16W245Wire 90mm(5/0.8)1 13Resistor SMD0805 5.6K 1/16W146Wire 80mm(7/1.3)1 14Resistor SMD0805 47K 1/16W147Wire 80mm(5/0.8)1 15Resistor SMD0805 220K 1/16W148Wire 80mm(5/0.8)1 16Resistor SMD0805 560K 1/16W149Wire 40mm(5/0.8)1 17Resistor SMD0805 100Ω 1/16W150Wire 40mm(5/0.8)1 18Resistor SMD0805 470Ω1/16W151Battery Plate 62030“+”1 19Resistor SMD0805 220K 1/16W152Battery Plate 62030“-”1 20Capacitor SMD0805 2PF 153Spring Antenna 620301 21Capacitor SMD0805 3PF254 2 Cords Rainbow Wire Ø0.8x80mm1 22Capacitor SMD0805 30PF155 3 Cords Rainbow Wire Ø0.8x65mm1 23Capacitor SMD0805 470PF156PCB (single Side) 62206C-011 24Capacitor SMD0805 202157Resistor SMD0805 330K 1/16W1 25Capacitor SMD0805 103158 26Capacitor SMD0805 203159 27Capacitor SMD0805 403260 28Capacitor SMD0805 104261 29Resistor 100UF/10V (5x8mm)162 30LED Ø3 lp-RH40003D2LC163 31PCB (single side) 62206A-01 164 32Tact Switch KFC-A3x6x5365 33Voice IC P3A010166 批准：制表： 颜尧证日期：2007-04-09

FCC ID: CIXAL62030 Antenna, Ground and Power Source The antenna consists of a 6.9 cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3Volt (“AAA” size battery x 2) primary battery

1 2 34 ABCD 4 3 2 1 D CBA Title:Model NO:Drawing NO: DWG:CHK:APP: SIZE:Sheet Of




 SCH-AL62206-
䎈⚆ A4 11 R11 Ω R3220K R722 R65.6K R95.6k Ω R41 Ω R222K R547K R8560K R102.2K R112.2K L1 3X15T ANT C42PF C210PF C7403 C6103 C8470PF C9403 C113PF C5203 C1202 CT 10PF L2 4.5X2.5T Q19018H B 2 C 3 E 1 Q2S9014C MIC BT19V C10100UF SW1 C33PF R12220k R13470 Ω C12104 audio in SW2SW-PB PWM1 1 VDD 2 GND 4 VDD 5 GND 6 ROSC 7 P2.1 10 P2.2 11 P2.3 12 P2.0 9 U11 R14220K Ω S3 S4 12 JP1 12 JP2 123 JP3 123 JP4 R151K LED1

STC Test Report Date : 2007-04-20 Page 1 of 16 No. : HM158549 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: ARTLIGHT ELECT MFG CO LTD. Unit 301, 3/F., Eastern Centre, 1065 King’s Road, Hong Kong. Description of Samples: Model name: Wireless FM Microphone Model no.: AL62030 Brand name: N/A FCC ID: CIXAL62030 Date Samples Received: 2007-04-11 Date Tested: 2007-04-18 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-04-20 Page 2 of 16 No. : HM158549 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 16 Content Page 2-3 of 16 1.0 General Details 1.1 Test Laboratory Page 4 of 16 1.2 Applicant Details Page 4 of 16 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 16 Description of EUT operation 1.4 Date of Order Page 5 of 16 1.5 Submitted Samples Page 5 of 16 1.6 Test Duration Page 5 of 16 1.7 Country of Origin Page 5 of 16 2.0 Technical Details 2.1 Investigations Requested Page 6 of 16 2.2 Test Standards and Results Summary Page 6 of 16 3.0 Test Results 3.1 Emission Page 7-10 of 16 3.2 Bandwidth Measurement Page 11-12 of 16 3.3 Operation Description Page 13 of 16 STC Test Report Date : 2007-04-20 Page 3 of 16 No. : HM158549 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 14 of 16 Appendix B Photographs Page 15-16 of 16 STC Test Report Date : 2007-04-20 Page 4 of 16 No. : HM158549 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant ARTLIGHT ELECT MFG CO LTD. Unit 301, 3/F., Eastern Centre, 1065 King’s Road, Hong Kong. Manufacturer ARTLIGHT ELECT MFG CO LTD. Unit 301, 3/F., Eastern Centre, 1065 King’s Road, Hong Kong. STC Test Report Date : 2007-04-20 Page 5 of 16 No. : HM158549 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Wireless FM Microphone Manufacturer: ARTLIGHT ELECT MFG CO LTD. Brand Name: N/A Model Number: AL62030 Input Voltage: 3Vd.c. (“AAA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is an ARTLIGHT ELECT MFG CO LTD., Wireless FM Microphone. The transmitter is a 3 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmitter, modulation by Microphone and type is frequency modulation. 1.4 Date of Order 2007-04-11 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2007-04-18 1.7 Country of Origin China STC Test Report Date : 2007-04-20 Page 6 of 16 No. : HM158549 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 …

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
