CIXAL2124002Two Way Communicator Phone

Klaus Knoerig Von: <[email protected]> An: "EMCC - Klaus Knoerig" <[email protected]> Cc: "EED - Kitty" <[email protected]> Gesendet: Freitag, 13. August 2004 06:36 Einfü gen: DSCN4987.JPG; DSCN4988.JPG; DSCN4989.JPG Betreff: FW: Additional information request Seite 1 von 6 2004-08-16 Dear Mr. Knoerig, Please see following answer from our engineer. Thanks Best Regards Alice -----Original Message----- From: Kit [mailto:[email protected]] Sent: Thursday, August 12, 2004 4:11 PM To: [email protected] Subject: RE: Additional information request Answer: 1. See attachment for the additional photo 2. Adaptor is used in other to take the worst reading -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, August 12, 2004 9:10 AM To: EMC - MK Law Cc: EMC - KC; EMC - Steven Subject: FW: Additional information request Resent, Kit, please reply. Thanks Best Regards Alice -----Original Message----- From: Klaus Knoerig [mailto:[email protected]] Sent: Friday, July 30, 2004 6:51 PM To: alice_wong Cc: Patrick Wong Subject: Fw: Additional information request Dear Alice Can you please take care of the FCC questions (see attached email). Best regards EMCC DR. RASEK Klaus Knoerig -------------------------------------------------- EMCC DR. RASEK - Certification Institute - Klaus Knoerig Boelwiese 5 91320 Ebermannstadt Germany Tel.: +49-9194-9016 Fax: +49-9194-8125 Mailto:[email protected] URL: http://www.emcc.de -------------------------------------------------- Der Inhalt dieser E-Mail ist fur den Absender rechtlich nicht verbindlich. Informieren Sie uns bitte, wenn Sie diese E-Mail faelschlicherweise erhalten haben (Fax: +49-9194-8125). Bitte loeschen Sie in diesem Falle die Nachricht. Jede Form der weiteren Benutzung ist untersagt. The content of this e-mail is not legally binding upon the sender. If this e-mail was transmitted to you by error, please inform us accordingly (Fax: +49-9194-8125). In such case you are requested to erase the message. Any use of such e-mail is strictly prohibited. ----- Original Message ----- From: "OET Generic account" <[email protected] > To: <[email protected]> Sent: Thursday, July 29, 2004 11:39 PM Subject: Additional information request To: Werner Rasek From: Richard Fabina [email protected] FCC Equipment Authorization Branch Re: FCC ID: CIXAL2124002 Applicant: Artlight Electrical Manufacturing Co Ltd Correspondence Reference Number: 13126 731 Confirmation Number: TC321067 Date of Original Email: 07/29/2004 Subject: Additional information request 1. Please provide internal photographs of this device that show the construction, the component placement on the chassis and the chassis assembly as prescribed in Section 2.1033(b)(7) of the FCC Rules. Only close-up photos of the internal printed circuit boards are provided to show component placement on these boards. There are no photos that show how Seite 2 von 6 2004-08-16 these boards are placed in the interior of the chassis, the antenna connector for 15.203 compliance and the AC adapter connector. 2. Please confirm that the radiated emissions tests were performed with the optional AC adapter and the battery powering the EUT. The test method for radiated emissions tests, Section 3.1.1 of the test report on page 8 does not indicate that the AC adapter was used on these measurements. If it wasn't, please investigate the emission levels and report the worst case. If it was used, please confirm testing was performed with the AC adapter. 3. The operational description of this device does not mention the optional AC adapter for powering this transmitter. Please amend the operational description accordingly. Both the schematic diagrams and the users manual on page 3 mention/show the use of an AC adapter for powering this transmitter. 4. For your information - Section 15.235 of the Rules requires measurement of the bandwidth at the 26 dB point below the maximum level of the unmodulated fundamental emission or to the 15.209 limits. Since the output power of this transmitter is so low, the device complies at the 20 dB points where it was incorrectly measured. No reply to this item is required. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal pursuant to Section 2.917(c). DO NOT Reply to this email by using the Reply button. In order for your response to be processed expeditiously, you must upload your response via the Internet at www.fcc.gov , E-Filing, OET TCB Electronic Filing, TCB Login. If the response is submitted through Add Attachments, a message which informs the processing staff that a new exhibit has been submitted must also be submitted via Submit Correspondence. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Seite 3 von 6 2004-08-16 Seite 4 von 6 2004-08-16 Seite 5 von 6 2004-08-16 Seite 6 von 6 2004-08-16

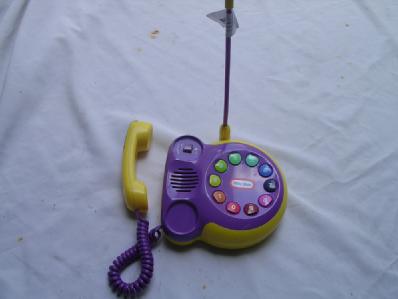

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL FCC ID Label

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: CIXAL2124002 Circuit Description The 49.86 and 49.4MHz crystal oscillator drives the base of Q3 the final/buffer amplifier. The modulation provided by Mic. The output of Q3 has the matching network consisting of L1 and C17 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 21.5cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

FCC ID: CIXAL2124002 Circuit Description The 49.86 and 49.4MHz crystal oscillator drives the base of Q3 the final/buffer amplifier. The modulation provided by Mic. The output of Q3 has the matching network consisting of L1 and C17 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 21.5cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) or adaptor (117Va.c. – 9Vd.c.)

Date: 2004-06-24 TEST REPORT Page 1 of 22 No.: HM150497 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. Applicant: Artlight Electrical Mfg., Co., Ltd. Description of Samples: Model name: Chit Chat Two Way Communicator Phones Model no.: 4002(AL212) Brand name: Little tikes FCC ID: CIXAL2124002 Date Samples Received: 2004-03-25 Date Tested: 2004-03-29 to 2004-05-18 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMC for Chief Executive Date: 2004-06-24 TEST REPORT Page 2 of 22 No.: HM150497 CONTENT: Cover Page 1 of 22 Content Page 2-3 of 22 1.0 General Details 1.1 Test Laboratory Page 4 of 22 1.2 Applicant Details Page 4 of 22 Applicant HKSTC Code Number for Applicant Page 4 of 19 Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 22 Description of EUT operation 1.4 Date of Order Page 5 of 22 1.5 Submitted Samples Page 5 of 22 1.6 Test Duration Page 5 of 22 1.7 Country of Origin Page 5 of 22 1.8 Additional Information of EUT Page 6 of 22 2.0 Technical Details 2.1 Investigations Requested Page 7 of 22 2.2 Test Standards and Results Summary Page 7 of 22 3.0 Test Results 3.1 Emission Page 8-15 of 22 3.2 Bandwidth Measurement Page 16-18 of 22 Date: 2004-06-24 TEST REPORT Page 3 of 22 No.: HM150497 Appendix A List of Measurement Equipment Page 19 of 22 Appendix B Photographs Page 20-22 of 22 Date: 2004-06-24 TEST REPORT Page 4 of 22 No.: HM150497 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Artlight Electrical Mfg., Co., Ltd. Room 301, 3/FL., Eastern Centre, 1065 King’s Road, Quarry Bay, Hong Kong HKSTC Code Number for Applicant ARE001 Manufacturer Artlight Electrical Mfg., Co., Ltd. Room 301, 3/FL., Eastern Centre, 1065 King’s Road, Quarry Bay, Hong Kong Date: 2004-06-24 TEST REPORT Page 5 of 22 No.: HM150497 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Chit Chat Two Way Communicator Phones Manufacturer: Artlight Electrical Mfg., Co., Ltd. Brand Name: Little tikes Model Number: 4002(AL212) Input Voltage: 9Vd.c 1.3.1 Description of EUT Operation The Equipment Under Test(EUT) is an Artlight Electrical Mfg., Co., Ltd., Chit Chat Two Way Communicator Phones. The transmitter is a 4 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by Mic and type is frequency modulation. 1.4 Date of Order 2004-03-25 1.5 Submitted Sample(s): 6 Samples per model 1.6 Test Duration 2004-03-29 to 2004-05-18 1.7 Country of Origin China Date: 2004-06-24 TEST REPORT Page 6 of 22 No.: HM150497 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2004-06-24 TEST REPORT Page 7 of 22 No.: HM150497 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 Class B Note: N/A - Not Applicable Date: 2004-06-24 TEST REPORT Page 8 of 22 No.: HM150497 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement: FCC 47CFR 15.235 Test Method: ANSI C63.4:2003 Test Date: 2004-05-18 Mode of Operation: On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: OATS [Open Area Test Site] located at HKSTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT Pre-Amplifier Distance = 3m Receiver Turn Table Computer Ground Plane Date: 2004-06-24 TEST REPORT Page 9 of 22 No.: HM150497 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.235]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz] [μV/m] [μV/m] 49.82-49.90 100,000 10,000 Results: Transmitter FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdBμV/mμV/m 49.8636.210.246.4208.9100,000Vertical μ V/mdB μ V/m Field Strength dB μ V/m Field Strength of Fundamental Emissions Peak Value Measured Level @3m Field Strength FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdB μ V/m μ V/m 49.8636.210.246.4208.910,000Vertical Field Strength of Fundamental Emissions Average Measured Level @3m Field Strength μV/mdBμV/m Field Strength dBμV/m Remarks: According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being inves…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
