CIXAL30383Walkie Talkie

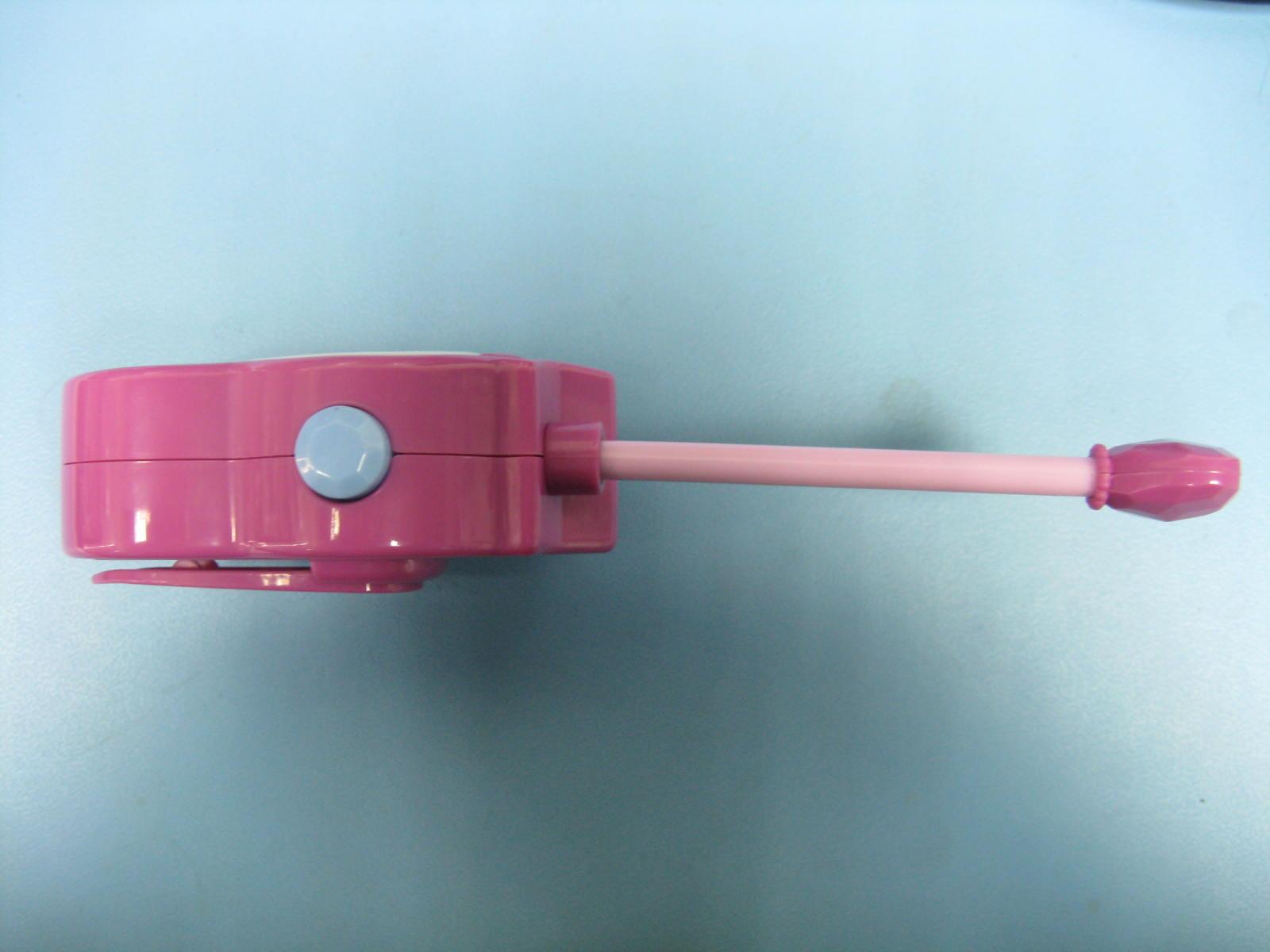

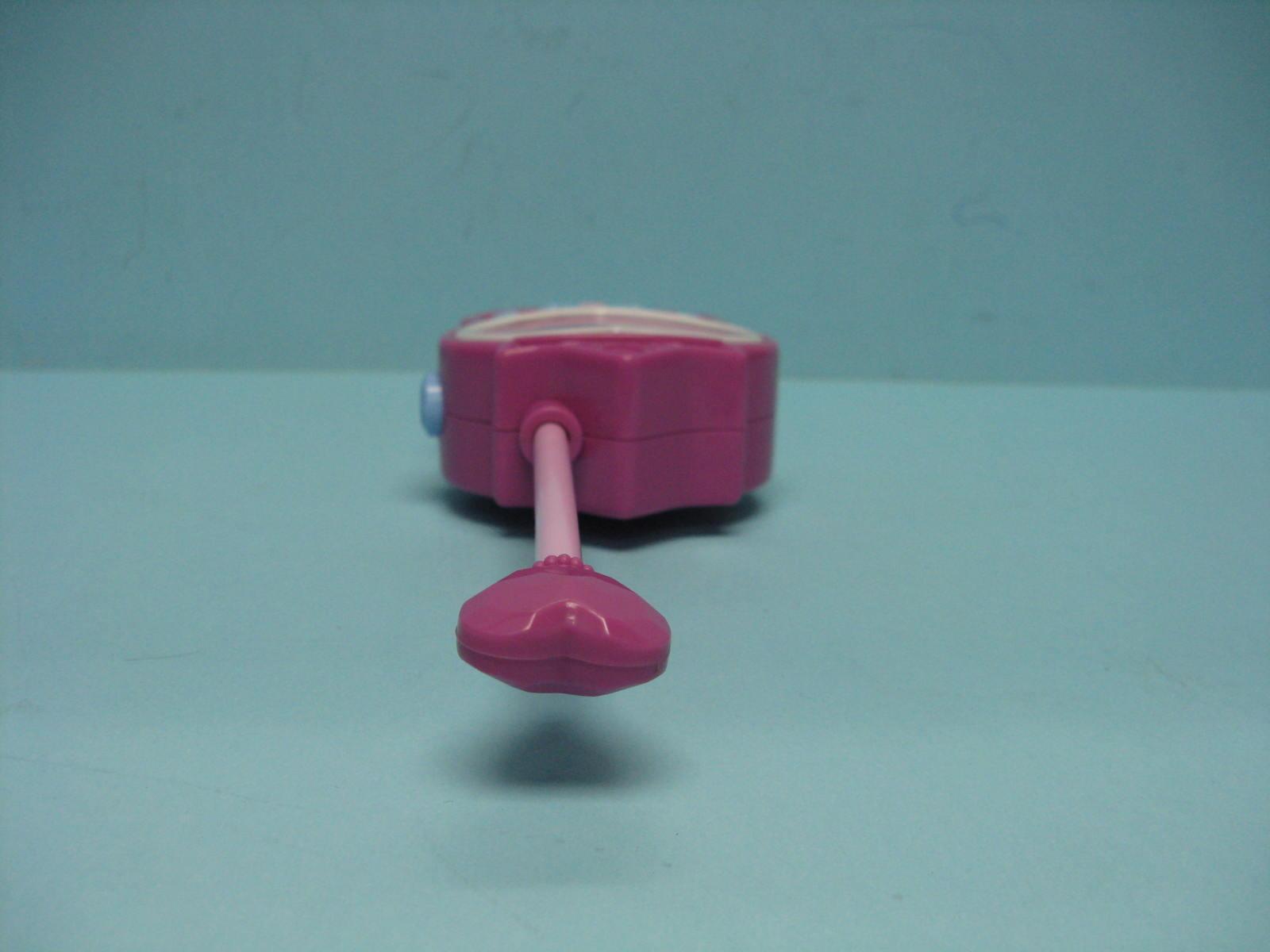

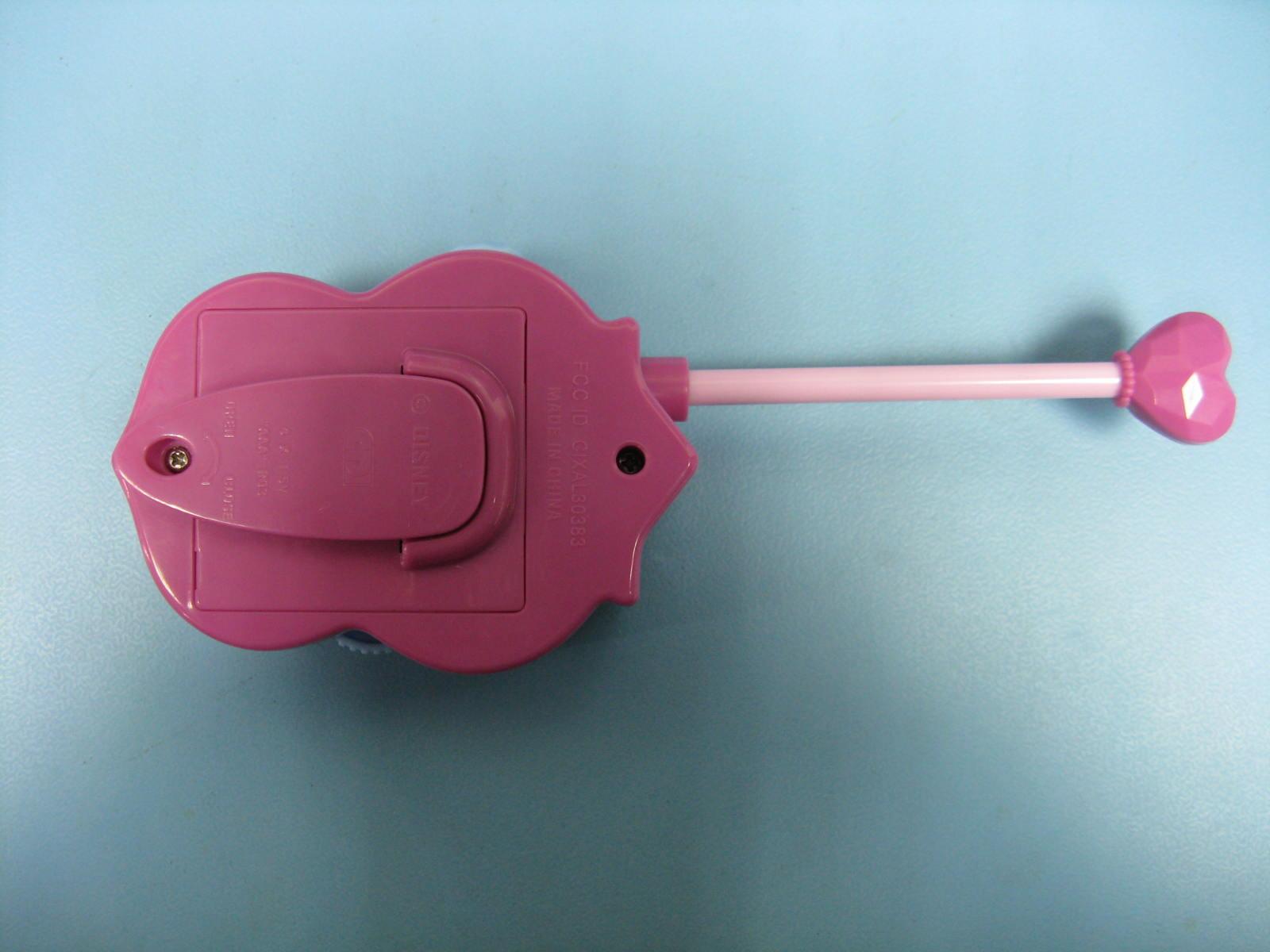

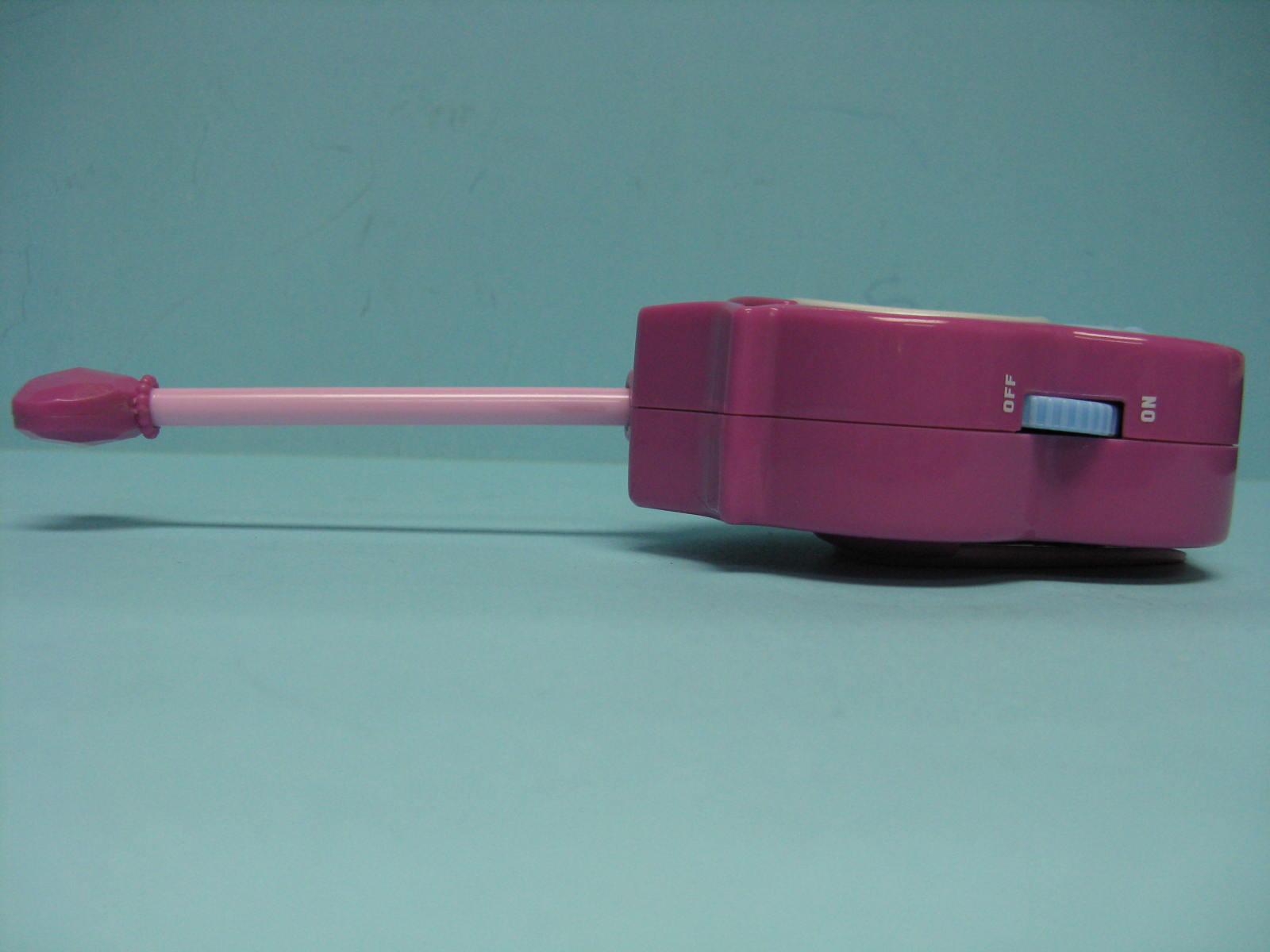

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

STC Test Report Date : 2010-04-01 Page 1 of 15 No. : HM165022 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (ARE003): Artlight Electrical Manufacturing Co Ltd Unit 301, 3/F, Eastern Centre 1065 King's Road, Hong Kong Manufacturer: Artlight Electrical Manufacturing Co Ltd Unit 301, 3/F, Eastern Centre 1065 King's Road, Hong Kong Description of Sample(s): Submitted Sample(s) said to be: Product: Walkie Talkie Brand Name: N/A Model Number: AL30383 FCC ID: CIXAL30383 Date Sample(s) Received: 2010-03-10, 2010-03-18 Date Tested: 2010-03-16 to 2010-04-01 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4:2003 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen, Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2010-04-01 Page 2 of 15 No. : HM165022 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 15 Content Page 2 of 15 1.0 General Details 1.1 Test Laboratory Page 3 of 15 1.2 Applicant Details Page 3 of 15 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 4 of 15 Description of EUT operation 1.4 Date of Order Page 4 of 15 1.5 Submitted Sample(s) Page 4 of 15 1.6 Test Duration Page 4 of 15 1.7 Country of Origin Page 4 of 15 2.0 Technical Details 2.1 Investigations Requested Page 5 of 15 2.2 Test Standards and Results Summary Page 5 of 15 3.0 Test Results 3.1 Emission Page 6-9 of 15 3.2 Bandwidth Measurement Page 10-12 of 15 Appendix A List of Measurement Equipment Page 13 of 15 Appendix B Photographs Page 14-15 of 15 STC Test Report Date : 2010-04-01 Page 3 of 15 No. : HM165022 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Artlight Electrical Manufacturing Co Ltd Unit 301, 3/F, Eastern Centre 1065 King's Road, Hong Kong Manufacturer Artlight Electrical Manufacturing Co Ltd Unit 301, 3/F, Eastern Centre 1065 King's Road, Hong Kong STC Test Report Date : 2010-04-01 Page 4 of 15 No. : HM165022 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample(s) Submitted sample(s) said to be: Product: Walkie Talkie Manufacturer: Artlight Electrical Manufacturing Co Ltd Brand Name: N/A Model Number: AL30383 Additional Model Number: AL6211 Input Voltage: 6Vd.c. (“AAA” size battery x 4) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a ARTLIGHT ELECTRICAL MFG CO LTD., Walkie Talkie. The transmitter is a button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by microphone, and type is amplitude modulation. 1.4 Date of Order 2010-03-10, 2010-03-18 1.5 Submitted Sample(s): 3 samples 1.6 Test Duration 2010-03-16 to 2010-04-01 1.7 Country of Origin China STC Test Report Date : 2010-04-01 Page 5 of 15 No. : HM165022 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15:2009 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2010-04-01 Page 6 of 15 No. : HM165022 The Hong Kong Standards and Testing C…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
