CJ6AT99-044CD-RW/DVD-Rom Drive

Dynabook Inc.

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Dec 21, 1999
Application Purpose: Original Equipment
Date of Application: Oct 14, 1999
Equipment Note: CD-RW/DVD-Rom Drive
Company: Dynabook Inc.
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Toshiba Corporation Application No. YFA-R098 FCC ID: CJ6AT99-044 Exhibit - H 1 of 1 USER’S MANUAL FOR CD-RW/DVD-ROM DRIVE MODEL SD-R1002

Block Diagram

Toshiba Corporation Application No. YFA-R098 FCC ID: CJ6AT99-044 Exhibit - A 1 of 1 CD-RW/DVD-ROM DRIVE MODEL SD-R1002 BLOCK DIAGRAM

External Photos

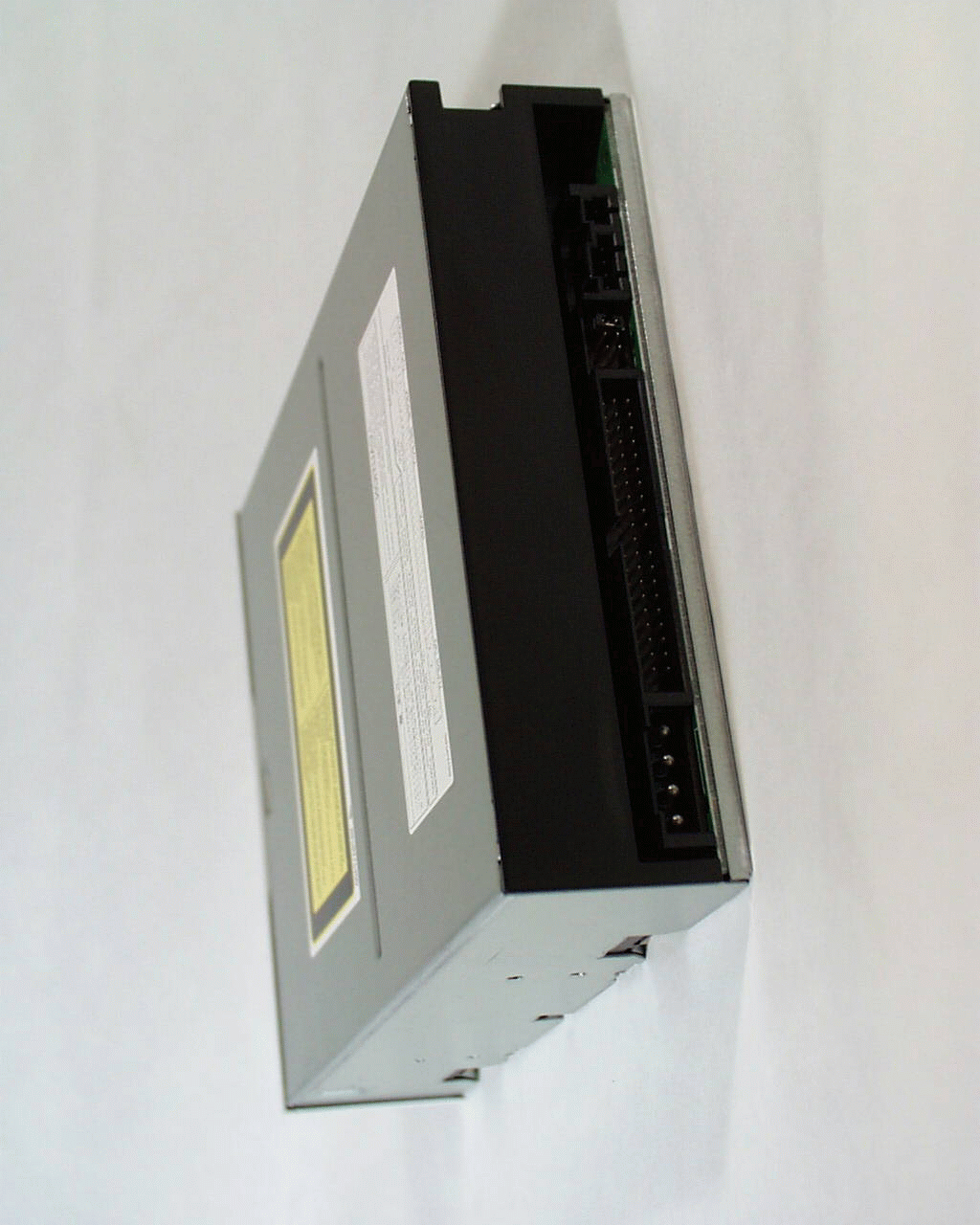

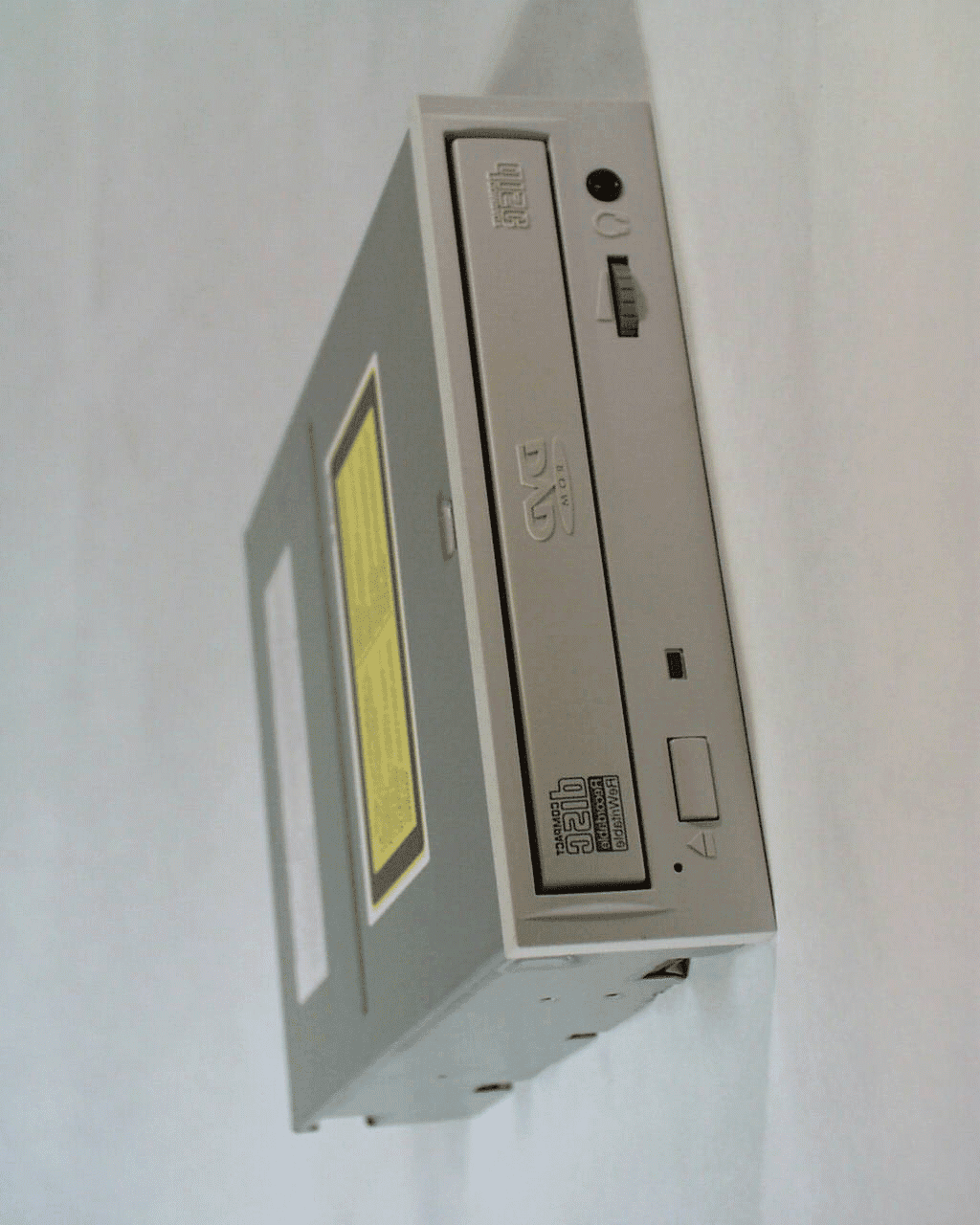

Toshiba Corporation Application No. YFA-R098 FCC ID: CJ6AT99-044 Exhibit - B 1 of 3 PHOTO OF CD-RW/DVD-ROM DRIVE MODEL SD-R1002 Toshiba Corporation Application No. YFA-R098 FCC ID: CJ6AT99-044 Exhibit - B 2 of 3 PHOTO OF CD-RW/DVD-ROM DRIVE MODEL SD-M1002 Toshiba Corporation Application No. YFA-R098 CC ID: CJ6AT99-044 Exhibit - B 3 of 3 PHOTO OF CD-RW/DVD-ROM DRIVE MODEL SD-R1002

ID Label/Location Info

Rating label FCC ID number Top or Bottom View Toshiba Corporation Application No. YFA-R098 FCC ID: CJ6AT99-044 Exhibit - C 1 of 1 ID Label/Location Info: 1. FCC statements & FCC ID number are indicated on the rating label. Word; This device complies with Part 15 of the FCC Rules. Operation is Subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : CJ6AT99-044 2. Location of FCC label Front 3. Sketch of rating label

Internal Photos

Toshiba Corporation Application No. YFA-R086 FCC ID: CJ6AT99-044 Exhibit - D 1 of 4 INTERNAL PHOTO OF CD-RW/DVD-ROM DRIVE MODEL SD-R1002 Toshiba Corporation Application No. YFA-R098 FCC ID: CJ6AT99-044 Exhibit - D 2 of 4 INTERNAL PHOTO OF CD-RW/DVD-ROM DRIVE MODEL SD-R1002 Toshiba Corporation Application No. YFA-R098 FCC ID: CJ6AT99-044 Exhibit - D 3 of 4 INTERNAL PHOTO OF CD-RW/DVD-ROM DRIVE MODEL SD-R1002 Toshiba Corporation Application No. YFA-R098 FCC ID: CJ6AT99-044 Exhibit - D 4 of 4 INTERNAL PHOTO OF CD-RW/DVD-ROM DRIVE MODEL SD-R1002

Parts List/Tune Up Info

Toshiba Corporation Application No. YFA-R098 FCC ID: CJ6AT99-044 Exhibit - F 1 of 1 PARTS LIST FOR CD-RW/DVD-ROM DRIVE MODEL SD-R1002 1. Technical Specifications This CD-RW/DVD-ROM drive uses two clock within laser pickup module. It has a 230 MHz clock is use of DVD function, and other 270 MHz clock is use CD-RW function. Note: The meaning of RW is Rewritable. 1) Generated Frequency : Location: X1 22.58 MHz (Main PWB) X2 33.86 MHz (Main PWB) H_IC1 230 MHz (Inside of laser module) IC2 270 MHz (Inside of laser module) 2) Noise Suppression Components (EMI Filter, etc.) a) Location : L9 (Main PWB) Type: ZJSR5101-332 Rating: 50 V DC, 5 A, -25dB at 35 to 200 MHz Mfr. : TDK Corporation b) Location : L2, L3, L4, L5, L8. L10 (Main PWB) Type: BLM11A601S Rating: 600 ohm at 100 MHz Mfr. : Murata Manufacturing Co., Ltd. c) Location : L1 (Main PWB) Type: LEMF2520T220K Rating: 22uH 105 mA maximum Mfr. : Taiyo Yuden Co., Ltd. d) Location : L11 (Main PWB) Type: NLC322522T-1R0M Rating: 1uH 850 mA maximum Mfr. : TDK Corpration
