CJ6UPA5238WLdynadock WiAC

www.toshiba.eu/accessories User’s Manual dynadock™ WiAC EN-2User’s Manual dynadock TM WiAC User? Manual Content Introduction................................................................................................ 12 Features ..............................................................................................12 Package Contents ............................................................................... 13 Computer Requirements ..................................................................... 13 Quick Tour................................................................................................. 14 Front .................................................................................................... 14 Back..................................................................................................... 16 Underside ............................................................................................ 18 Using your dynadock for the first time ....................................................... 19 Installing the Drivers ............................................................................ 19 Connecting the AC adaptor ................................................................. 19 Connecting/Docking your computer .................................................... 20 Configuring Audio Ports ............................................................................ 21 Configuring audio playback ports (Headphone) .................................. 22 Configuring audio recording ports (Microphone) ................................. 23 Configuring Video Ports ............................................................................ 23 Connection .......................................................................................... 23 Viewable screens ................................................................................ 23 Video Modes........................................................................................24 Set up the dynadock for Extend or Mirror Mode .................................. 24 Adjusting Video Settings...................................................................... 25 How Standby/Sleep/Hibernation Mode Affects Devices Attached to the dynadock ...................................................................................................28 External Monitors................................................................................. 28 Other Devices ...................................................................................... 28 Using the AP (Access Point) function........................................................ 28 Web Configurations .............................................................................28 WPS function ....................................................................................... 30 Troubleshooting......................................................................................... 30 Others .................................................................................................. 31 Specification ..............................................................................................31 User’s ManualEN-3 dynadock TM WiAC Conventions This manual uses the following formats to describe, identify, and highlight terms and operating procedures. Abbreviations On first appearance, and whenever necessary for clarity, abbreviations are enclosed in parentheses following their definition. For example: Read Only Memory (ROM). Icons Icons identify ports, dials, and other parts of your dynadock TM . The indicator panel also uses icons to identify components. Safety icons This guide contains safety instructions that must be observed to avoid potential hazards that could result in personal injuries, damage to your equipment, or loss of data. These safety cautions have been classified according to the seriousness of the risk, and icons highlight these instructions as follows: Signal WordsMeaning Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor injury or moderate injury. Indicates a potentially hazardous situation which, if not avoided, may result in property damage. Provides important information. EN-4User’s Manual dynadock TM WiAC Safety Instructions Always read the safety instructions carefully: Do not disassemble, modify, tamper with or repair your product ■Do not attempt to disassemble, modify, tamper with or repair product (including AC adaptor). Disassembly, modification, tampering or repairing the product could cause fire or electric shock, possibly resulting in serious injury. Please contact an authorized Toshiba service provider for any repair service. Handling the AC adaptor and power cables/cords or plugs ■When handling the power cable/cord, follow these precautions: ■Never tamper with the power cable/cord or plug. ■Never splice or alter a power cable/cord. ■Never bend or twist a power cable/cord. ■Never pull on a power cable/cord to remove a plug from a socket. Always grasp the plug directly. ■Never place heavy objects on a power cable/cord. ■Never run a power cable/cord through a pinch point such as a door or window. ■Never place a power cable/cord near a heat source. ■Never use nails, staples or similar objects to fasten or attach cord in place. ■Never attempt to disassemble or repair an AC adaptor. Doing any of the above may damage the cables, and/or result in a fire or electric shock, possibly resulting in serious injury. The mains plug is used as a disconnecting device and therefore should be readily operable. Attaching the power cable/cord ■Always confirm that the power plug (and extension cable plug if used) has been fully inserted into the socket, to ensure a s…

Text truncated - open the document above for the full version.

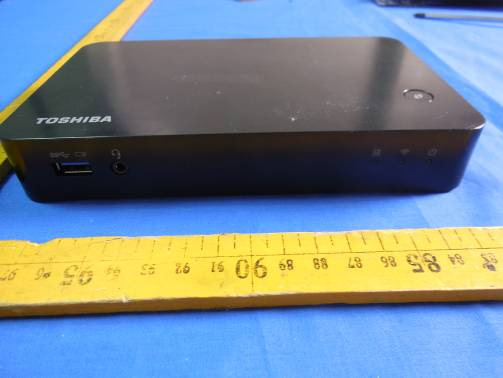

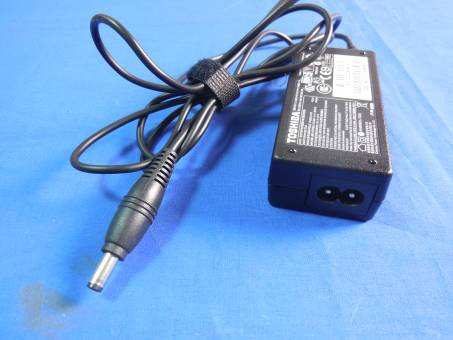

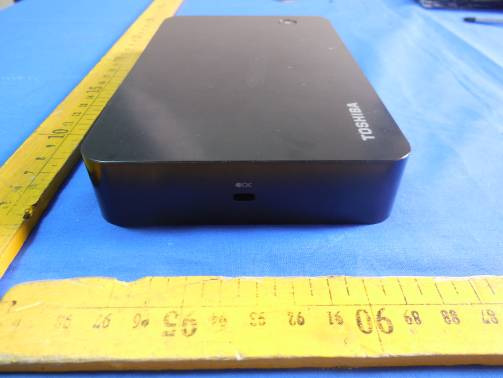

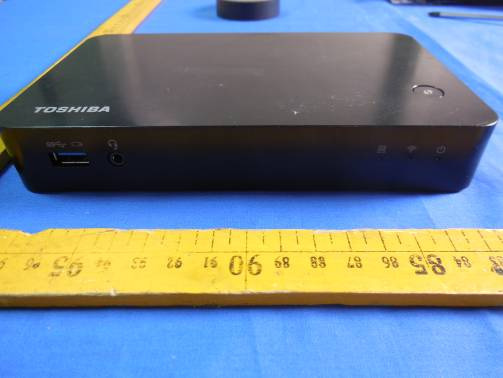

CERPASS TECHNOLOGY CORP. Cerpass Technology (Suzhou) Co., Ltd Issued date : Aug 11, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 5 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Cerpass Technology (Suzhou) Co., Ltd Issued date : Aug 11, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 5 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Cerpass Technology (Suzhou) Co., Ltd Issued date : Aug 11, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 5 5) EUT Photo 6) EUT Photo CERPASS TECHNOLOGY CORP. Cerpass Technology (Suzhou) Co., Ltd Issued date : Aug 11, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 5 7) EUT Photo 8) EUT Photo CERPASS TECHNOLOGY CORP. Cerpass Technology (Suzhou) Co., Ltd Issued date : Aug 11, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 5 of 5 9)EUT Photo 10)EUT Photo

The silk label will show the model name, certification logo This Label will show the model number, password, Serial number.....

This Label will silk-screen on the product. This Label will paste on the product.

CERPASS TECHNOLOGY CORP. Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 30, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo WIFI Antenna WIFI Antenna CERPASS TECHNOLOGY CORP. Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 30, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Cerpass Technology (Suzhou) Co., Ltd Issued date : Apr, 30, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo

CERPASS TECHNOLOGY CORP. Report No.: SESF1505113 Cerpass Technology Corp. Issued date : Aug. 01, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 Radio frequency exposure LIMIT According to FCC §1.1310, The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b). EUT Specification EUT dynadock WiAC Frequency band (Operating) 802.11n/a/ac(20MHz): 5180~5240MHz, 5745~5825MHz 802.11n/ac(40MHz): 5190~5230MHz, 5755~5795MHz 802.11ac(80MHz): 5210MHz, 5775MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna type / gain PCB Antenna;5.15~5.725GHz Gain = 4dBi , 5.725~5.85GHz Gain = 4dBi;Beaforming Gain=3dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A CERPASS TECHNOLOGY CORP. Report No.: SESF1505113 Cerpass Technology Corp. Issued date : Aug. 01, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: SESF1505113 Cerpass Technology Corp. Issued date : Aug. 01, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Maximum Permissible Exposure Test Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11n/a/ac(20MHz) 5180~5240 19.57 7 20 0.090 1 802.11n/ac(40MHz) 5190~5230 16.00 7 20 0.040 1 802.11n/a/ac(20MHz) 5745~5825 19.70 7 20 0.093 1 802.11n/ac(40MHz) 5755~5795 18.54 7 20 0.071 1 802.11ac(80MHz) 5210~5210 18.92 7 20 0.078 1 802.11ac(80MHz) 5775~5775 18.78 7 20 0.075 1 NOTE: The power density at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/㎡. EVALUATION RESULTS No non-compliance noted The End

CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 97 of 361 802.11 ac(20MHz) Power Spectral Density- Ant 0 Channel 36 (5180MHz) Channel 40 (5200MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 98 of 361 802.11 ac(20MHz) Power Spectral Density- Ant 1 Channel 36 (5180MHz) Channel 40 (5200MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 99 of 361 802.11 ac(20MHz) Power Spectral Density- Ant 0+1-0 Channel 36 (5180MHz) Channel 40 (5200MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 100 of 361 802.11 ac(20MHz) Power Spectral Density- Ant 0+1-1 Channel 36 (5180MHz) Channel 40 (5200MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 101 of 361 802.11ac(40MHz) Power Spectral Density- Ant 0 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 155 (5755MHz) Channel 159 (5795MHz) CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 102 of 361 802.11ac(40MHz) Power Spectral Density- Ant 1 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 155 (5755MHz) Channel 159 (5795MHz) CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 103 of 361 802.11ac(40MHz) Power Spectral Density- Ant 0+1-0 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 155 (5755MHz) Channel 159 (5795MHz) CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 104 of 361 802.11ac(40MHz) Power Spectral Density- Ant 0+1-1 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 155 (5755MHz) Channel 159 (5795MHz) CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 105 of 361 802.11ac(80MHz) Power Spectral Density- Ant 0 Channel 42 (5210MHz) Channel 155 (5775MHz) 802.11ac(80MHz) Power Spectral Density- Ant 1 Channel 42 (5210MHz) Channel 155 (5775MHz) CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 106 of 361 802.11ac(80MHz) Power Spectral Density- Ant 0+1-0 Channel 42 (5210MHz) Channel 155 (5775MHz) 802.11ac(80MHz) Power Spectral Density- Ant 0+1-1 Channel 42 (5210MHz) Channel 155 (5775MHz) CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 107 of 361 10. Band Edges Measurement 10.1 Test Limit For 15.205 requirement: Radiated emissions which fall in the restricted bands, as defined in Section 15.205(a) of FCC part 15, must also comply with the radiated emission limits specified in Section 15.209(a). For 15.407(b) requirement: For transmitters operating in the 5.15-5.25 GHz band: all emissions outside of the 5.15-5.35 GHz band shall not exceed an EIRP of -27 dBm/MHz. For transmitters operating in the 5.25-5.35 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. For transmitters operating in the 5.47-5.725 GHz band: All emissions outside of the 5.47-5.725 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. For transmitters operating in the 5.725-5.85 GHz band: All emissions within the frequency range from the band edge to 10 MHz above or below the band edge shall not exceed an e.i.r.p. of −17 dBm/MHz; for frequencies 10 MHz or greater above or below the band edge, emissions shall not exceed an e.i.r.p. of −27 dBm/MHz. CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 108 of 361 Operating Frequency Band (MHz) EIRP Limit (dBm/MHz) Equivalent Field Strength at 3m (dBuV/m) 5150 - 5350 -27 68.2 5470 - 5725 -27 68.2 5725 - 5825 -27 68.2 -17 78.2 Note: Refer to KDB 789033 D02v01 G)2)c), as specified in § 15.407(b), emissions above 1000 MHz that are outside of the restricted bands are subject to a maximum emission limit of -27 dBm/MHz (or -17 dBm/MHz as specified in § 15.407(b)(4)). However, an out-of-band emission that complies with both the peak and average limits of § 15.209 is not required to satisfy the -27 dBm/MHz or -17 dBm/MHz maximum emission limit. All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [V/m] Measured Distance [Meters] 0.009 – 0.490 2400/F (kHz) 300 0.490 – 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 200 3 216 - 960 200 3 Above 960 500 3 CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issue…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 161 of 361 Site: AC102 Time: 2015/07/12 - 14:11 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Vertical E U T: dynadock WiAC Power: 120V/60Hz Note: Mode1:TX at channel 5825 by 802.11a Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 5817.730 86.349 46.295 N/A N/A 40.054 AV 2 5850.000 40.084 -0.022 -38.116 78.2 40.106 AV 3 5860.000 38.996 -1.124 -29.204 68.2 40.120 AV CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 162 of 361 Site: AC102 Time: 2015/07/12 - 14:13 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Vertical E U T: dynadock WiAC Power: 120V/60Hz Note: Mode2:TX at channel 5180 by 802.11n(20MHz) Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 5144.650 63.917 24.269 -10.083 74.000 39.649 PK 2 5150.000 62.900 23.253 -11.100 74.000 39.647 PK 3 * 5175.160 101.910 62.270 N/A N/A 39.640 PK CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 163 of 361 Site: AC102 Time: 2015/07/12 - 14:18 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Vertical E U T: dynadock WiAC Power: 120V/60Hz Note: Mode2:TX at channel 5180 by 802.11n(20MHz) Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 5150.000 40.674 1.027 -13.326 54.000 39.647 AV 2 * 5172.370 87.592 47.952 N/A N/A 39.640 AV CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 164 of 361 Site: AC102 Time: 2015/07/12 - 14:20 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Vertical E U T: dynadock WiAC Power: 120V/60Hz Note: Mode2:TX at channel 5240 by 802.11n(20MHz) Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 5235.300 102.204 62.564 N/A N/A 39.640 PK 2 5350.000 52.379 12.759 -21.621 74.000 39.620 PK CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 165 of 361 Site: AC102 Time: 2015/07/12 - 14:24 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Vertical E U T: dynadock WiAC Power: 120V/60Hz Note: Mode2:TX at channel 5240 by 802.11n(20MHz) Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 5239.080 88.068 48.430 N/A N/A 39.638 AV 2 5350.000 38.938 -0.682 -15.062 54.000 39.620 AV CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 166 of 361 Site: AC102 Time: 2015/07/12 - 14:31 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Vertical E U T: dynadock WiAC Power: 120V/60Hz Note: Mode2:TX at channel 5745 by 802.11n(20MHz) Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 5715.000 57.337 17.407 -10.863 68.2 39.930 PK 2 5724.700 73.264 33.322 -4.936 78.2 39.943 PK 3 5725.000 70.014 30.071 -8.186 78.2 39.943 PK 4 * 5743.100 99.443 59.481 N/A N/A 39.962 PK CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 167 of 361 Site: AC102 Time: 2015/07/12 - 14:39 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Vertical E U T: dynadock WiAC Power: 120V/60Hz Note: Mode2:TX at channel 5745 by 802.11n(20MHz) Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 5715.000 39.654 -0.276 -28.546 68.2 39.930 AV 2 5725.000 43.279 3.336 -34.921 78.2 39.943 AV 3 * 5743.950 86.181 46.218 N/A N/A 39.963 AV CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 168 of 361 Site: AC102 Time: 2015/07/12 - 14:40 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Vertical E U T: dynadock WiAC Power: 120V/60Hz Note: Mode2:TX at channel 5825 by 802.11n(20MHz) Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 5820.390 99.702 59.645 N/A N/A 40.057 PK 2 5850.000 61.453 21.347 -16.747 78.2 40.106 PK 3 5858.675 60.061 19.942 -18.139 78.2 40.118 PK 4 5860.000 53.95 13.83 -14.25 68.2 40.120 PK CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 169 of 361 Site: AC102 Time: 2015/07/12 - 14:42 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Vertical E U T: dynadock WiAC Power: 120V/60Hz Note: Mode2:TX at channel 5825 by 802.11n(20MHz) Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 5826.090 86.024 45.959 N/A N/A 40.065 AV 2 5850.000 40.584 0.478 -37.616 78.2 40.106 AV 3 5860.000 39.336 -0.784 -28.864 68.2 40.120 AV CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzho…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 270 of 361 Site: AC102 Time: 2015/07/12 - 18:54 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Horizontal E U T: dynadock WiAC Power: 120V/60Hz Note: Mode5:TX at channel 5755 by 802.11ac(40MHz) Ant0 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 5715.000 39.834 -0.096 -28.366 68.2 39.930 AV 2 5725.000 40.254 0.311 -37.946 78.2 39.943 AV 3 * 5749.800 78.648 38.679 N/A N/A 39.970 AV CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 271 of 361 Site: AC102 Time: 2015/07/12 - 18:54 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Horizontal E U T: dynadock WiAC Power: 120V/60Hz Note: Mode5:TX at channel 5795 by 802.11ac(40MHz) Ant0 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 5780.000 92.866 52.860 N/A N/A 40.005 PK 2 5850.000 51.671 11.565 -26.529 78.2 40.106 PK 3 5860.000 50.448 10.328 -17.752 68.2 40.120 PK CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 272 of 361 Site: AC102 Time: 2015/07/12 - 18:55 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Horizontal E U T: dynadock WiAC Power: 120V/60Hz Note: Mode5:TX at channel 5795 by 802.11ac(40MHz) Ant0 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 5799.750 76.329 36.296 N/A N/A 40.034 AV 2 5850.000 39.074 -1.032 -39.126 78.2 40.106 AV 3 5860.000 38.696 -1.424 -29.504 68.2 40.120 AV CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 273 of 361 Site: AC102 Time: 2015/07/12 - 18:57 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Horizontal E U T: dynadock WiAC Power: 120V/60Hz Note: Mode6:TX at channel 5210 by 802.11ac(80MHz) Ant0 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 5150.000 57.713 18.066 -16.287 74.000 39.647 PK 2 * 5222.500 93.471 53.829 N/A N/A 39.642 PK CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 274 of 361 Site: AC102 Time: 2015/07/12 - 18:57 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Horizontal E U T: dynadock WiAC Power: 120V/60Hz Note: Mode6:TX at channel 5210 by 802.11ac(80MHz) Ant0 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 5150.000 42.436 2.789 -11.564 54.000 39.647 AV 2 * 5222.800 75.572 35.930 N/A N/A 39.642 AV CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 275 of 361 Site: AC102 Time: 2015/07/12 - 18:59 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Horizontal E U T: dynadock WiAC Power: 120V/60Hz Note: Mode6:TX at channel 5775 by 802.11ac(80MHz) Ant0 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 5715.000 60.21 20.28 -7.99 68.2 39.930 PK 2 5718.800 64.08 24.145 -14.12 78.2 39.935 PK 3 5725.000 63.65 23.707 -14.55 78.2 39.943 PK 4 * 5758.700 91.434 51.455 N/A N/A 39.979 PK 5 5850.000 57.224 17.118 -20.976 78.2 40.106 PK 6 5860.000 56.625 16.505 -11.575 68.2 40.120 PK CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 276 of 361 Site: AC102 Time: 2015/07/12 - 19:01 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Horizontal E U T: dynadock WiAC Power: 120V/60Hz Note: Mode6:TX at channel 5775 by 802.11ac(80MHz) Ant0 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 5705.000 44.104 4.190 -9.896 68.2 39.914 AV 2 5715.000 42.004 2.074 -26.196 68.2 39.930 AV 3 5725.000 42.798 2.855 -35.402 78.2 39.943 AV 4 * 5748.200 75.289 35.322 N/A N/A 39.967 AV 5 5850.000 41.096 0.990 -37.104 78.2 40.106 AV 6 5860.000 40.375 0.255 -27.825 68.2 40.120 AV CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 277 of 361 Site: AC102 Time: 2015/07/12 - 19:02 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Horizontal E U T: dynadock WiAC Power: 120V/60Hz Note: Mode1:TX at channel 5180 by 802.11a Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 5150.000 51.432 11.785 -22.568 74.000 39.647 PK 2 * 5178.580 96.333 56.694 N/A N/A 39.639 PK CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 278 of 361 Site: AC102 Time: 2015/07/12 - 19:03 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA 9120D_499(1-18GHz) Polarity: Horizontal E U T: dynadock WiAC Power: 120V/60Hz Note: Mode1:TX at channel 5180 by 802.11a Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 5150.000 38.827 -0.820 -15.…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 8651269175888 Fax: 8651269175666 Page No. : 1 of 361 FCC/IC TEST REPORT according to FCC CFR Title 47 Part 15 Subpart E(15.407)/ RSS'247 Issue 1 Applicant : Toshiba Corporation Address : Personal & Client Solutions Company 29, Suehirocho, Omeshi, Tokyo 1988710, Japan Equipment : dynadock WiAC FCC Model No. : PA5238***** (* means 09, AZ or blank) IC Model No. : PA5238C1PRP, PA5238U1PRP Brand name : TOSHIBA FCC ID : CJ6UPA5238WL IC : 248HDPA5238WL
The test result refers exclusively to the test presented test model / sample.,
Without written approval of Cerpass Technology (Suzhou) Co.,Ltd. the test report shall not be reproduced except in full.
The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Rules and Regulations Part 15/RSS247 Issue 1. The test report has been issued separately.
The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory Cerpass Technology(SuZhou) Co., Ltd. CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No: SEDL1505113 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Jul 20,2015 Tel: 8651269175888 Fax: 8651269175666 Page No. : 2 of 361 TABLE OF CONTENTS 1. Test Configuration of Equipment under Test .....................................................................................6 1.1 Feature of Equipment under Test...................…

Text truncated - open the document above for the full version.
