  1. Home/
  2. Dynabook Inc./
  3. CJ6DCE42903A

CJ6DCE42903ATri-Mode Dual Band Analog/PCS Phone

Dynabook Inc.
Tri-Mode Dual Band Analog/PCS Phone - FCC ID CJ6DCE42903A - Dynabook Inc.
Click to zoom

Application Details

Equipment Class
PCE - PCS Licensed Transmitter held to ear
Date of Grant
Mar 18, 2001
Application Purpose
Original Equipment
Date of Application
Dec 10, 2000
Equipment Note
Tri-Mode Dual Band Analog/PCS Phone
Frequency Range
824.04000000 - 848.97000000
Company
Dynabook Inc.
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗
↗
↗
↗
↗
↗
↗
↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE: CJ6DCE49203A PAGE 1 OF EXHIBIT T ype“User Manual” OPERATING INSTRUCTIONS TABLE OF CONTENTS PAGE 1. FUNCTIONS 1-1 External View of the Unit 2 1-2 Function of Keys and Controls3 1-3 LCD Readout Indication Items4 2. OPERATION 2-1 Basic Operation5 2-2 Placing Telephone Calls6 2-3 End to End Signaling6 2-4 Call Time Display6 3. INPORTANT SAFETY INFORMATION7 4. WARNING7 5. FCC RF EXPOSURE INFORMATION8 APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE: CJ6DCE49203A PAGE 2 OF EXHIBIT T ype“User Manual” 1.FUNCTIONS 1-1 EXTERNAL VIEW OF THE UNIT Retractable Whip Antenna Incoming Call Indicator End Key with Power On/Off Multi Function Key • Up-arrow • Recall • Function • Down-arrow Microphone Soft Key1 Message Key • Power Indicator • Receiving Signal Strength Indicator • Digital Mode Indicator • IN USE Indicator • Roaming Indicator • Message Indicator • Alarm Indicator • Batter y Level Indicator Digit Keys 64x129 Dot Display Data Connector DC Socket Send Key Earpiece Earphone Mic Jack CLR Key Voice Mail Dial Key Soft Key2 APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE: CJ6DCE49203A PAGE 3 OF EXHIBIT T ype“User Manual” 2-2 FUNCTION OF KEYS AND CONTROLS Digit Keys To enter a Telephone Numbers, Names or special characters. is also used for One Touch Emergency feature. To originate or receive a Call. To terminate a Call and to turn the Unit ON/OFF. To recall phone numbers from memory. To be used with other Keys to activate several special Features. To control Earpiece audio level, Alert Tone and key Tone. Also used as Up/Down-arrow keys To dial most frequently called Number from specially assigned Memory Address only by One Key stroke. To readout Text Massage or Voice Mail Notification from me mo ry . To clear the Digit from memory and Display. Soft key 1 Key-Board Arrangement Function Keys Soft key 2 APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE: CJ6DCE49203A PAGE 4 OF EXHIBIT T ype“User Manual” 2-3 LCD READOUT INDICATION ITEMS ItemDescription Receiving Signal Strength Indicator. The number of lines indicates the received Signal Strength, and is also used as a POWER ON Indicator. Digital Mode Indicator. To indicate the phone is operating in digital mode. A Call is in process. No Service Indicator. The phone cannot receive signals. The phone is out of the Home-Area. Message indicator. To indicate that Text Message are stored in memory or Voice Messages are in your Voice Mailbox. Vibrator Alert Indicator Battery Level Indicator. Monitor the current battery voltage level. Graphic full-dot matrix display with flexible font size in 2 to 6 line. APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE: CJ6DCE49203A PAGE 5 OF EXHIBIT T ype“User Manual” 3. OPERATION 3-1 BASIC OPERATION Turning the Unit On Press the switch. The indicator will light (all indicators will light momentarily and then shows your Telephone Number, and a Tone will be heard). Note: To turn the Unit OFF, press again for about one second. * Signal Strength Indicator This enables you to know the Signal Strength in your Area. The number of the shaded blocks indicates it, and four blocks is the maximum level. The display will vary as your car moves. If the signal is not strong enough to originate a call, “No Service” will appear on the Dot display and also “No Service Indicator” will lit on. To Store a Number in Memory 1. Press then enter a Telephone Number. 2. Press ,, then enter the Memory Address (01 through 99). To Recall a Number from Memory Press , the display shows “Address” then enter the Memory Address (01 through 99). Phone Book Scroll This feature will be useful in finding a certain Telephone Number by scrolling the Repertory Memory Addresses 1. Press , enter the memory address (01 through 99) 2. Press or : Previous Address : Next Address Automatic Number Entry This feature allows an automatic Number Entry into the vacant Repertory Memory Address. 1. Enter a Telephone Number. 2. Press ,,,. If there is no vacant Address in the assigned Area, Telephone Number will remain not entered in the Memory. To Lock the Unit Press ,,. The Unit will remain locked until unlocked, even if the power is turned off. To Unlock the Unit Enter the 4 digit unlock Code. The “LOCK” will go out when the Unit is unlocked. APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE: CJ6DCE49203A PAGE 6 OF EXHIBIT T ype“User Manual” Volume Control An Audio Level of the Alert Tone, Earpiese and the Key Tone can be adjusted by the Volume Control Buttons. Earpiece: Keep pressing or Button until the moderate Sound Level is got. Alert Tone Level will be displayed on the Readout digitally during the level adjustment and the Sample Tone will help you to know the Sound Level when not engaged in a Telephone Conversation. 3-2 PLACING TELEPHONE CALLS To Place a Call 1. Enter a Telephone Number. Maximumits of the dialed number are displayed on the digital Readout. 2. If a dialing error is made, press then enter the telephone number again. By pressing momentarily (less than approx. 0.5 sec.), only last digit can be cleared. (Last Digit clear) 3. Press . The indicator will light. If a Call Fails to go Through If you hear the Reorder signal, press and try again. Redial: If the Intercept signal is heard, press and dial the Correct Number. To Terminate a Call Press . The indicator will go out. To Receive Calls W hen the Telephone rings, press to answer. The indicator will light. To Place a Call to a Number in Memory Pressing , then enter the Memory Address (01 through 99). If you want to see all number, press , 1. Press . The indicator will light, and the Call will be placed. 3-3 END TO END SIGNALLING This feature permits you to utilize some attractive ways of phone, such as Accessing Discounted Long Distance Network, Signal Pager, or Banking by Phone etc. For these purposes, the signaling should be in DTMF. ( Touch Tone TM ) 3-4 CALL TIME DISPLAY This Feature automatically counts the Time while the Conversation is being made through your Phone. Both t…

Text truncated - open the document above for the full version.

External Photos

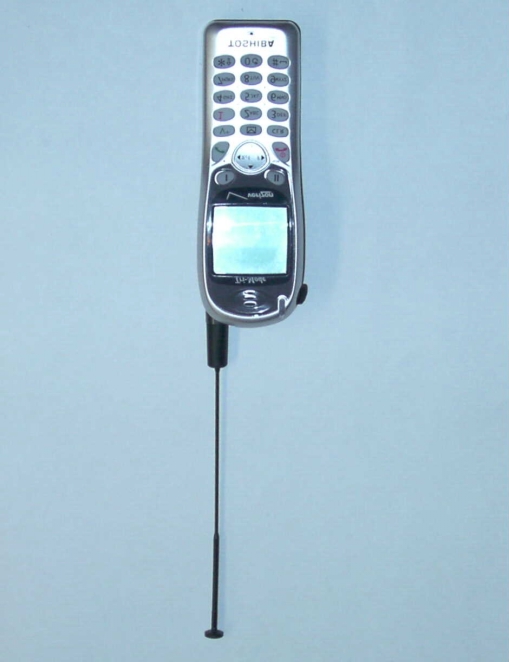

APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE:CJ6DCE42903A PAGE 1 OF EXHIBIT T ype“External Photos” Handheld Portable General Appearance APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE:CJ6DCE42903A PAGE 2 OF EXHIBIT T ype“External Photos” Handheld Portable Inside View (Showing FCC ID Nameplate)

ID Label/Location Info

APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE: CJ6DCE42903A PAGE 1 OF EXIBIT Type“ID Label/Location Information” Subsection 2.1033 (c)(1). Manufacturer Address TOSHIBA Corporation1-1,Sibaura 1-Chome, Minato-ku, Tokyo, 105- 8001 Japan Toshiba America Information System Inc.9740 Irvine Boulevard, Irvine, California 92618-1697 U.S.A. W elco China Limited Man Fung Industrial Estate, Shajing, Po On, Shenzhen, Guang Dong Province Peoples Republic of China MANUFACTURING LOCATION The equipment which is the subject of this Application will initially be manufactured by Toshiba Corporation, Hino Works, Asahigaoka 3-1-1 Hino-shi, Tokyo 191-8555, Japan. End in 2001, Toshiba Corporation plans to transfer a part of the manufacturing process for this product to the United States, at Irvine Works of Toshiba America Information Systems, Inc., 9740 Irvine Boulevard, Irvine, California 92618-1697. When units are completed by Toshiba America Information Systems Inc. at Irvine Works, the design and initial manufacturing of the product, or least its major components, will still be done at Hino W orks in Japan. Final Assembly and Testing will be done at Irvine W orks. It has not yet been finally decided how much of the manufacturing process will be done at Irvine W orks, nor has it been decided how many units will be completed at Hino W orks and how many at Irvine W orks. Those numbers will vary from time to time depending on market demand for the product and available plant capacity at each location. Toshiba America Information Systems, Inc. is a wholly owned subsidiary of Toshiba Corporation. The procedures at Irvine W orks will be similar to those at Hino W orks and will be designed and supervised by Hino technical personnel. The end product will be identical in design, performance, and quality, regardless of where final assembly takes place, and will not be distinguishable by the user based on the local of final assembly. In addition to above, early in 2001, Toshiba corporation plans to transfer the manufacturing process for this product to China, at Welco China Limited a member of Wong ' s International (Holding’s) Ltd. in Hong Kong. Man Fung Industrial Estate, Shajing, Po On, Shenzen, Guang Dong province, People's Republic of China. Even though, the units are completed by W elco China Limited in China, the design and initial manufacture of the product has done at Hino W orks in Japan as above mentioned. And when units are completed by W elco China Limited in China, most components will still be supplied from Japan as same the units are manufactured at Hino Works. The procedures at Irvine Works and Welco China Limited will be similar to those at Hino works and will be designed and supervised by Hino technical personnel. The end product will be identical in design, performance, and quality, regardless of where final assembly takes place, and will not be distinguishable by the user based on the local of final assembly. APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE: CJ6DCE42903A PAGE 2 OF EXIBIT Type“ID Label/Location Information” The FCC Identifier will be the same regardless of the location where a unit of the product is finally assembled, at Hino Works, Irvine Works or Welco China Limited. The final assembly point of any one unit may be determined by the Serial Number. The Number Assignment Rule is as follows. M M Y Z Z Z Z Z Z Z Z Serial Number Last Digit of the Year Month in which the Unit is manufactured APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE: CJ6DCE42903A PAGE 3 OF EXIBIT Type“ID Label/Location Information” Subsection 2.1033 (c) (2) FCC ID: CJ6DCE42903A Unit: mm FCC ID Nameplate A Nameplate of this type or one similar to this will be affixed to every Transceiver. It will be placed on the outside of the Handheld Portable Telephone as shown in the EXHIBIT Type “External Photo”. For Units for which manufacture or final assembly is performed in the United States, the words MADE IN JAPAN may remain or may be changed to ASSEMBLED IN USA FROM JAPANESE COMPONENTS or a similar expression depending upon how much of the process is done in the United States and an analysis of the requirements of U.S. Customs Law under those circumstances. For Units for which manufacture or final assembly is performed in China, the words MADE IN JAPAN will be changed to MADE IN CHINA or ASSEMBLED IN CHINA. 16 47

Internal Photos

APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE:CJ6DCE42903A PAGE 1 OF EXHIBIT T ype“Internal Photos” Handheld Portable MAIN Board (W ith Shield Case and Cover) APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE:CJ6DCE42903A PAGE 2 OF EXHIBIT T ype“Internal Photos” Handheld Portable MAIN Board (Front side , W ith Shield Cover Removed) APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE:CJ6DCE42903A PAGE 3 OF EXHIBIT T ype“Internal Photos” Handheld Portable MAIN Board (Back side , W ith shield cover) APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE:CJ6DCE42903A PAGE 4 OF EXHIBIT T ype“Internal Photos” Handheld Portable MAIN Board (Back side , W ith shield cover removed) APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE:CJ6DCE42903A PAGE 5 OF EXHIBIT T ype“Internal Photos” Handheld Portable Key Board (Front side ) Handheld Portable Key Board (Back side)

RF Exposure Info

© 2000 PCTEST Lab ATTACHMENT C – SAR TEST REPORT © 2000 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) TOSHIBA Corporation Dates of Tests: Nov. 17-30, 2000 Technology & Quality Management Division Test Report S/N: SAR.201114581.CJ6 Digital Media Equipment & Service Co. Test Site: PCTEST Lab, Columbia, MD USA 1-1 Shiobaura 1-Chome, Minatoku Tokyo, 105-01, JAPAN Attn: Jim Papadopoulos Audiovox Communications Corp. FCC ID CJ6DCE42903A APPLICANT TOSHIBA Corporation EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.429 W ERP AMPS (26.32 dBm) / 0.341 W ERP CDMA (25.33 dBm) 0.247 W EIRP PCS CDMA (23.93 dBm) Trade Name/Model(s): TOSHIBA CDM-9100 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.4758 W/kg AMPS Brain SAR; 1.0065 W/kg AMPS Body SAR 1.1607 W/kg CDMA Brain SAR 1.4610 W/kg PCS Brain SAR; 1.2154 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 201114581.CJ6 Test Report S/N: SAR.201114581.CJ6SAR Measurement Report Test Dates: NOV. 17-30, 2000FCC Part 22/24 Certification Table of Contents 1.1 SCOPE...........................................................................................................1 2.1 INTRODUCTION...........................................................................................2 2.2 SAR Definition...................................................................................................2 3.1 SAR MEASUREMENT SET-UP.....................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM........................................................4 5.1 E-field PROBE CALIBRATION PROCESS..................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES....................................................7 7.1 SYSTEM SPECIFICATIONS..........................................................................8 8.1 MEASUREMENT PROCESS..........................................................................9 9.1 TEST POSITION OF THE PHONE...............................................................10 10.1 BODY-WORN TEST SETUP......................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS....................................12 12.1 MEASUREMENT UNCERTAINTIES..........................................................13 13.1 SAR TEST DATA SUMMARY....................................................................14 14.1 SAR TEST EQUIPMENT............................................................................18 15.1 CONCLUSION...........................................................................................19 Test Report S/N: SAR.201114581.CJ6SAR Measurement Report Test Dates: Nov. 17-30, 2000FCC Part 24/22 Certification FCC ID: CJ6DCE42903A (Model(s): CDM-9100) © 2000 PCTEST LabTOSHIBA Tri-Mode Dual-Band Analog/PCS Phone1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC) and Industry Canada (IC). 2 Applicant Name:TOSHIBA Corporation , Product Safety Group Address:Technology & Quality Management Division Digital Media Equipment & Service Co. 1-1 Shjobaura 1-Chome, Minatoku Tokyo, 105-01, JAPAN Attention:Jim Papadapoulos, Audiovox Communications Corp. • EUT Type:Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) • Trade Name:TOSHIBA • Model(s):CDM-9100 • FCC IDENTIFIER:CJ6DCE42903A • Tx Frequency:824.04 – 848.97 MHz (AMPS) 824.70 – 848.32 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency:869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 2.1093, Docket 96-326 • Modulation(s):AMPS/CDMA • Max RF. Output Power:0.429W ERP AMPS (26.32 dBm) 0.341W ERP CDMA (25.33 dBm) 0.247W EIRP PCS CDMA (23.93 dBm) • Date(s) of Tests:Nov. 17-30, 2000 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.201114581.CJ6 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.201114581.CJ6SAR Measurement Report Test Dates: Nov. 17-30, 2000FCC Part 24/22 Certification FCC ID: CJ6DCE42903A (Model(s): CDM-9100) © 2000 PCTEST LabTOSHIBA Tri…

Text truncated - open the document above for the full version.

RF Exposure Info

© 2000 PCTEST Lab ATTACHMENT D – SAR TEST PLOTS Peak SAR Location © 2000 PCTEST Lab TOSHIBA FCC ID: CJ6DCE42903A (Model: CDM-9100) NVLAP Lab Code: 100431-0 Tri-Mode Cellular/PCS Phone 835 MHz Brain SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00111706_ZOOM.VLT Start : 17-Nov-100 12:04:40 pm End : 17-Nov-100 12:14:09 pm Radio Type : TOSHIBA Model Number : CDM-9100 Serial Number : 17 Frequency : 824.04 MHz Peak Trans. Pwr : 0.280 W Start Trans. Pwr: 0.280 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Right Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : TOSHIBA TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 24.5 dBm TOSHIBA TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.500, Y = -4.750, Z = 0.000 (cm) Value = 21.188 Measured Values (volts) = 2.089E-002 1.753E-002 1.497E-002 1.251E-002 1.040E-002 8.057E-003 6.063E-003 4.514E-003 3.668E-003 3.497E-003 3.809E-003 4.560E-003 5.281E-003 5.766E-003 5.526E-003 4.613E-003 5.425E-003 2.727E-003 2.359E-003 2.038E-003 1.813E-003 Calc. Voltage @ Surface (Vs) = 0.0247 Voltage @ 1.00 cm (Vt) = 0.0125 Ave. Voltage (Vs+Vt)/2 = 0.0186 Ave. SAR over 1 g (mW/g) = 1.3567 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 00111706_ZOOM Start : 17-Nov-100 12:04:40 pm End : 17-Nov-100 12:14:09 pm TOSHIBA/CDM-9100/17;824.04MHz;W;Helical/In; Head/Right Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 00111706_ZOOM Start : 17-Nov-100 12:04:40 pm End : 17-Nov-100 12:14:09 pm TOSHIBA/CDM-9100/17;824.04MHz;W;Helical/In; Head/Right Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.546 1.483 1.419 1.356 1.293 1.230 1.166 1.103 1.040 0.976 File : 00111706_ZOOM Start : 17-Nov-100 12:04:40 pm End : 17-Nov-100 12:14:09 pm TOSHIBA/CDM-9100/17;824.04MHz;W;Helical/In; Head/Right Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.546 1.483 1.419 1.356 1.293 1.230 1.166 1.103 1.040 0.976 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00112010_ZOOM.VLT Start : 20-Nov-100 02:40:17 pm End : 20-Nov-100 02:51:02 pm Radio Type : TOSHIBA Model Number : CDM-9100 Serial Number : 17 Frequency : 848.97 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Right Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : TOSHIBA TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 24.8 dBm TOSHIBA TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.250, Y = -4.750, Z = 0.000 (cm) Value = 23.092 Measured Values (volts) = 2.277E-002 1.873E-002 1.613E-002 1.339E-002 1.068E-002 8.461E-003 6.503E-003 5.157E-003 4.588E-003 4.667E-003 5.287E-003 6.106E-003 6.822E-003 7.053E-003 6.390E-003 5.686E-003 5.921E-003 2.748E-003 2.382E-003 2.121E-003 1.924E-003 Calc. Voltage @ Surface (Vs) = 0.0271 Voltage @ 1.00 cm (Vt) = 0.0134 Ave. Voltage (Vs+Vt)/2 = 0.0202 Ave. SAR over 1 g (mW/g) = 1.4758 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1 0 1 2 3 4 5 Z centimeters SAR Scan File : 00112010_ZOOM Start : 20-Nov-100 02:40:17 pm End : 20-Nov-100 02:51:02 pm TOSHIBA/CDM-9100/17;848.97MHz;W;Helical/Out; Head/Right Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 00112010_ZOOM Start : 20-Nov-100 02:40:17 pm End : 20-Nov-100 02:51:02 pm TOSHIBA/CDM-9100/17;848.97MHz;W;Helical/Out; Head/Right Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.685 1.605 1.526 1.447 1.367 1.288 1.208 1.129 1.049 0.970 File : 00112010_ZOOM Start : 20-Nov-100 02:40:17 pm End : 20-Nov-100 02:51:02 pm TOSHIBA/CDM-9100/17;848.97MHz;W;Helical/Out; Head/Right Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.685 1.605 1.526 1.447 1.367 1.288 1.208 1.129 1.049 0.970 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00112013_ZOOM.VLT Start : 20-Nov-100 04:42:27 pm End : 20-Nov-100 04:51:46 pm Radio Type : TOSHIBA Model Number : CDM-9100 Serial Number : 17 Frequency : 836.49 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Right Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : TOSHIBA TRI-MODE PHONE - AMPS MODE CHAN 0383 Conducted 24.8 dBm TOSHIBA TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.500, Y = -4.750, Z = 0.000 (cm) Value = 22.381 Measured Values (volts) = 2.231E-002 1.853E-002 1.571E-002 1.297E-002 1.046E-002 8.104E-003 6.253E-003 4.986E-003 4.366E-003 4.518E-003 5.089E-003 5.934E-003 6.521E-003 6.638E-003 5.745E-003 4.592E-003 4.332E-003 2.035E-003 1.851E-003 1.687E-003 1.578E-003 Calc. Voltage @ Surface (Vs) = 0.0266 Voltage @ 1.00 cm (Vt) = 0.0130 Ave. Voltage (Vs+Vt)/2 = 0.0198 Ave. SAR over 1 g (mW/g) = 1.4432 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 00112013_ZOOM Start : 20-Nov-100 04:42:27 pm End : 20-Nov-100 04:51:46 pm TOSHIBA/CDM-9100/17;836.49MHz;W;Helical/In; Head/Right Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 00112013_ZOOM Start : 20-Nov-100 04:42:27 pm End : 20-Nov-100 04:51:46 pm TOSHIBA/CDM-9100/17;836.49MHz;W;Helical/In; Head/Right Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.633 1.553 1.473 1.393 1.313 1.232 1.152 1.072 0.992 0.912 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00111…

Text truncated - open the document above for the full version.

RF Exposure Info

© 2000 PCTEST Lab ATTACHMENT E – SAR TEST PHOTOGRAPHS © 2000 PCTEST Lab FCC ID: CJ6DCE42903A (Model: CDM-9100) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: CJ6DCE42903A (Model: CDM-9100) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: CJ6DCE42903A (Model: CDM-9100) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: CJ6DCE42903A (Model: CDM-9100) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone

RF Exposure Info

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00120706_ZOOM.VLT Start : 7-Dec-100 11:25:25 am End : 7-Dec-100 11:37:12 am Radio Type : TOSHIBA Model Number : CDM-9100 Serial Number : 17 Frequency : 836.49 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : TOSHIBA TRI-MODE PHONE - AMPS MODE CHAN 0383 Conducted 24.8 TOSHIBA TRI-MODE PHONE - BODY SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.500, Y = -0.750, Z = 0.000 (cm) Value = 12.402 Measured Values (volts) = 1.216E-002 1.112E-002 9.466E-003 8.498E-003 7.796E-003 7.237E-003 6.725E-003 5.982E-003 5.363E-003 4.530E-003 3.670E-003 3.042E-003 2.561E-003 2.439E-003 2.534E-003 2.674E-003 2.737E-003 2.654E-003 2.297E-003 1.655E-003 9.931E-004 Calc. Voltage @ Surface (Vs) = 0.0138 Voltage @ 1.00 cm (Vt) = 0.0085 Ave. Voltage (Vs+Vt)/2 = 0.0111 Ave. SAR over 1 g (mW/g) = 0.9226 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 mW/g -1012345 Z centimeters SAR Scan File : 00120706_ZOOM Start : 7-Dec-100 11:25:25 am End : 7-Dec-100 11:37:12 am TOSHIBA/CDM-9100/17;836.49MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 00120706_ZOOM Start : 7-Dec-100 11:25:25 am End : 7-Dec-100 11:37:12 am TOSHIBA/CDM-9100/17;836.49MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.027 0.984 0.942 0.899 0.857 0.815 0.772 0.730 0.687 0.645 File : 00120706_ZOOM Start : 7-Dec-100 11:25:25 am End : 7-Dec-100 11:37:12 am TOSHIBA/CDM-9100/17;836.49MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.027 0.984 0.942 0.899 0.857 0.815 0.772 0.730 0.687 0.645 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00120707_ZOOM.VLT Start : 7-Dec-100 11:48:39 am End : 7-Dec-100 12:00:39 pm Radio Type : TOSHIBA Model Number : CDM-9100 Serial Number : 17 Frequency : 836.49 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : TOSHIBA TRI-MODE PHONE - AMPS MODE CHAN 0383 Conducted 24.8 TOSHIBA TRI-MODE PHONE - BODY SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.000, Y = -0.750, Z = 0.000 (cm) Value = 8.156 Measured Values (volts) = 7.865E-003 6.826E-003 5.907E-003 5.404E-003 4.985E-003 4.714E-003 4.297E-003 3.819E-003 3.160E-003 2.617E-003 2.094E-003 1.741E-003 1.578E-003 1.663E-003 1.778E-003 1.877E-003 1.845E-003 1.608E-003 1.241E-003 8.390E-004 4.590E-004 Calc. Voltage @ Surface (Vs) = 0.0091 Voltage @ 1.00 cm (Vt) = 0.0054 Ave. Voltage (Vs+Vt)/2 = 0.0072 Ave. SAR over 1 g (mW/g) = 0.5993 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 mW/g -1012345 Z centimeters SAR Scan File : 00120707_ZOOM Start : 7-Dec-100 11:48:39 am End : 7-Dec-100 12:00:39 pm TOSHIBA/CDM-9100/17;836.49MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 00120707_ZOOM Start : 7-Dec-100 11:48:39 am End : 7-Dec-100 12:00:39 pm TOSHIBA/CDM-9100/17;836.49MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 0.675 0.649 0.622 0.596 0.569 0.543 0.516 0.490 0.463 0.437 File : 00120707_ZOOM Start : 7-Dec-100 11:48:39 am End : 7-Dec-100 12:00:39 pm TOSHIBA/CDM-9100/17;836.49MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 0.675 0.649 0.622 0.596 0.569 0.543 0.516 0.490 0.463 0.437 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00120708_ZOOM.VLT Start : 7-Dec-00 03:04:50 pm End : 7-Dec-00 03:14:41 pm Radio Type : TOSHIBA Model Number : CDM-9100 Serial Number : 17 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.150 W Start Trans. Pwr: 0.150 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.820 Comment : TOSHIBA TRI-MODE PHONE - PCS MODE CHAN 0025 Conducted 21.8 dBm TOSHIBA TRI-MODE PHONE - BODY SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.378 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = -1.500, Y = -0.250, Z = 0.000 (cm) Value = 10.502 Measured Values (volts) = 1.032E-002 7.807E-003 5.976E-003 4.804E-003 4.048E-003 3.686E-003 3.309E-003 2.775E-003 2.432E-003 2.460E-003 2.113E-003 2.131E-003 1.808E-003 1.686E-003 1.790E-003 2.003E-003 2.038E-003 1.608E-003 1.579E-003 1.594E-003 1.585E-003 Calc. Voltage @ Surface (Vs) = 0.0136 Voltage @ 1.00 cm (Vt) = 0.0048 Ave. Voltage (Vs+Vt)/2 = 0.0092 Ave. SAR over 1 g (mW/g) = 1.1713 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 00120708_ZOOM Start : 27-Nov-100 03:04:50 pm End : 27-Nov-100 03:14:41 pm TOSHIBA/CDM-9100/17;1851.254MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/40.400/1.820 File : 00120708_ZOOM Start : 27-Nov-100 03:04:50 pm End : 27-Nov-100 03:14:41 pm TOSHIBA/CDM-9100/17;1851.25MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/40.400/1.820 1.340 1.253 1.166 1.080 0.993 0.906 0.819 0.732 0.646 0.559 File : 00120708_ZOOM Start : 27-Nov-100 03:04:50 pm End : 27-Nov-100 03:14:41 pm TOSHIBA/CDM-9100/17;1851.25MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/40.400/1.820 1.340 1.253 1.…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ryuichi Kamimura(Senior Manager)
[email protected]81-50-5357-9251Fax: 81-42-534-1175

Technical Contact

Toshiba America Information Systems, Inc.Peter Leone
[email protected](949)587-6473

9740 Irvine Boulevard · Irvine, California · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez
[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
422H824.04 MHz - 848.97 MHz429.00 mW40KOF1D2.5 ppm
Confidentiality
Long Term
