CJ6DCE45202ATri-Mode Dual Band Analog/PCS Phone

CDM-9200X OWNER'S OPERATING MANUAL Draft Nov. 2001 TABLE OF CONTENTS SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES .......................................................... 1 SAR INFORMATION.............................................................. 2 HANDSET DESCRIPTION .................................................... 3 Function of Keys ................................................................. 4 GETTING STARTED ............................................................. 5 Placing Calls ........................................................................ 6 Receiving Calls .................................................................... 7 OPERATING PROCEDURES ............................................... 8 APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE: CJ6DCE45202A EXHIBIT Type "User Manual" SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES Read this information before using your handheld portable Cellular Telephone. Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) sig- nals. FCC RF EXPOSURE INFORMATION In August 1996, the Federal Communications Commis- sion (FCC) of the United States, with its action in Re- port and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated trans- mitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international stan- dards. Use only the supplied or an approved antenna. Unau- thorized antennas, damaged antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the BC-9200 belt-clip, offered by Audiovox as an accessory to this phone, and found to comply with FCC RF exposure require- ments. Third-party belt-clips, holsters and similar ac- cessories should be avoided, as they have not been tested and may not comply with FCC RF exposure lim- its. For more information about RF exposure, please visit the FCC website at www.fcc.gov . phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub- stantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAR INFORMATION SAR INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT’S RE- QUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Fed- eral Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and estab- lish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the ac- tual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not ex- ceed the limit established by the government-adopted require- ment for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as re- quired by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 1.34 W/kg and when worn on the body, as described in this user guide, is 1.32 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC re- quirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in com- pliance with the FCC RF exposure guidelines. SAR informa- tion on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID CJ6DCE45202A. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet As- sociation (CTIA) web-site at http://phonefacts.net. * In the United States and Canada, the SAR limit for mobile HANDSET DESCRIPTION Volume Button VAD Button Earpiece LCD Screen LED Function Keys Keypad Microphone Function of Keys LCD Display Indication Digit Keys Function Keys 4GHI 7PQRS 2ABC 5JKL 8TUV 3DEF 6MON 9WXYZ To enter Telephone Numbers. To enter letters and symbols is also used for One-Touch Emergency feature. Key - Board Arrangement 1ABC CLR Soft keys. To function as shown in the bottom line on the display. SEND keys. To originate or receive a Call. END keys. To terminate a Call and to turn the phone ON/OFF. Receiving Signal Stengh Indicator. Th…

Text truncated - open the document above for the full version.

APPLICANT: TOSHIBA CORPORATIONTRANSCEVER TYPE: CJ6DCE45202A PAGE 1 OF EXHIBIT T ype“Cover Letters” LIST OF EXHIBITS EXHIBIT Type.DESCRIPTION Attestation Statement(4 Pages) Request for confidentiality (1 Pages) Block Diagram of Handheld Portable Telephone Transceiver(2 Pages) Cover Letters (List of Exhibit)(1 Pages) External Photos(11 Pages) ID Label / Location Information(3 Pages) Internal Photos(12Pages) Operational Description(22 Pages) Parts List(8 Pages) Tune Up Information •••••••••••••••••••••••••••••• (8 Pages) Schematic Diagram of Transceiver RF/BB(5 Pages) RF • Output Power ••••••••••••••••••••••••••••••• (1 Pages) Test Report (Include Exhibit type RF Exposure Information)(196 Pages) Test Set Up(4 Pages) User Manual(9 Pages)

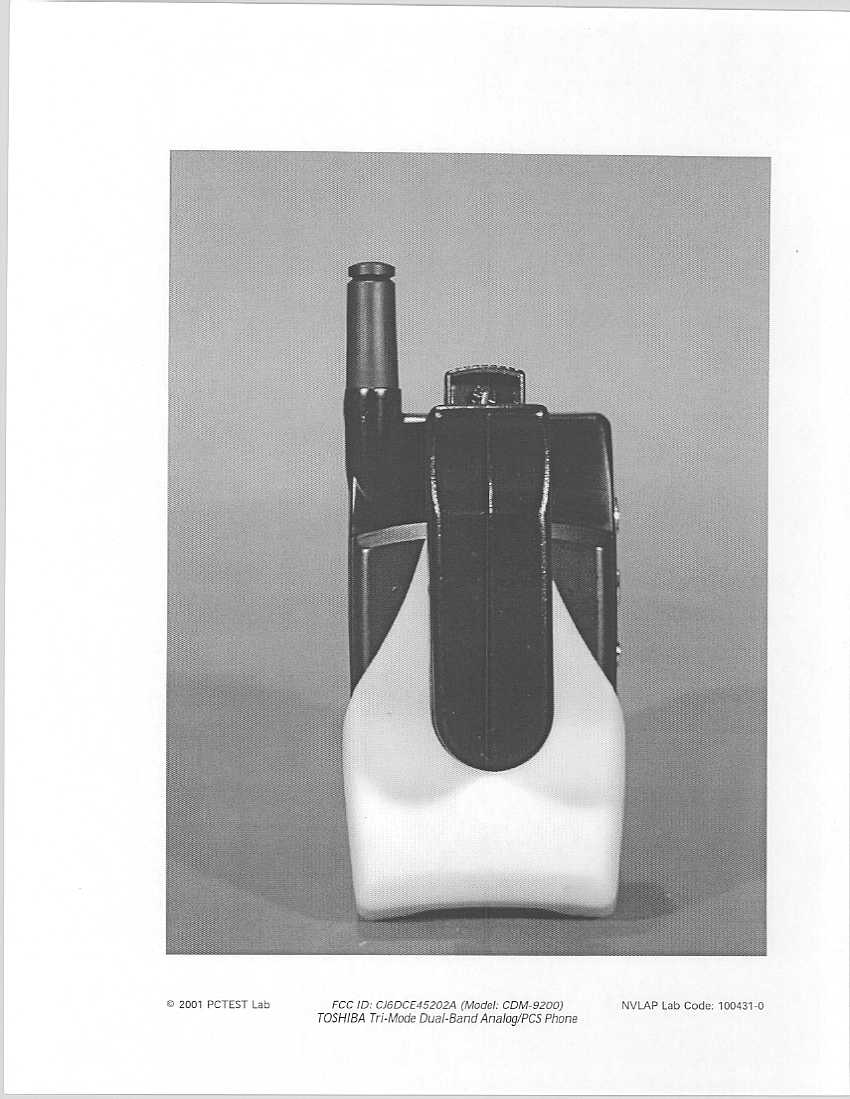

© 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) TOSHIBA Corporation Dates of Tests: Oct. 1-8, 2001 Technology & Quality Management Division Test Report S/N: SAR.211001568.CJ6 Digital Media Equipment & Service Co. Test Site: PCTEST Lab, Columbia, MD USA 1-1 Shibaura 1-Chome, Minatoku Tokyo, 105-01, JAPAN Attn: Jim Papadopoulos Audiovox Communications Corp. FCC ID CJ6DCE45202A APPLICANT TOSHIBA Corporation EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.614W ERP AMPS (27.885 dBm) / 0.434W ERP CDMA (26.377 dBm) 0.396W EIRP PCS CDMA (25.981 dBm) Trade Name/Model(s): TOSHIBA CDM-9200 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.3408 W/kg AMPS Brain SAR; 1.3199 W/kg AMPS Body SAR 0.8831 W/kg CDMA Brain SAR; 0.9025 W/kg CDMA Body SAR 1.2496 W/kg PCS Brain SAR; 0.7596 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 211001568.CJ6 Test Report S/N: SAR.211001568.CJ6 SAR Measurement Report Test Dates: OCT. 1-8, 2001 FCC Part 22/24 Certification Table of Contents 1.1 SCOPE........................................................................................................................1 2.1 INTRODUCTION........................................................................................................2 2.2 SAR Definition......................................................................................................2 3.1 SAR MEASUREMENT SET-UP.............................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM...............................................................4 5.1 E-field PROBE CALIBRATION PROCESS..........................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES...........................................................7 7.1 SYSTEM SPECIFICATIONS...................................................................................8 8.1 MEASUREMENT PROCESS..................................................................................9 9.1 TEST POSITION OF THE PHONE.......................................................................10 10.1 BODY-WORN TEST SETUP...............................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.........................................12 12.1 MEASUREMENT UNCERTAINTIES.................................................................13 13.1 SAR TEST DATA SUMMARY.............................................................................14 14.1 SAR TEST EQUIPMENT.....................................................................................20 15.1 CONCLUSION.......................................................................................................21 Test Report S/N: SAR.211001568.CJ6 SAR Measurement Report Test Dates: Oct. 1-8, 2001 FCC Part 22/24 Certification FCC ID: CJ6DCE45202A (Model: CDM-9200) © 2001 PCTEST Lab TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: TOSHIBA Corporation, Product Safety Group Address: Technology & Quality Management Division Digital Media Equipment & Service Co. 1-1 Shibaura 1-Chome, Minatoku Tokyo, 105-01, JAPAN Attention: Jim Papadapoulos, Audiovox Communications Corp. • EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) • Trade Name: TOSHIBA • Model(s): CDM-9200 • FCC IDENTIFIER: CJ6DCE45202A • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.614W ERP AMPS (27.885 dBm) 0.434W ERP CDMA (26.377 dBm) 0.396W EIRP PCS CDMA (25.981 dBm) • Date(s) of Tests: Oct. 1-8, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.211001568.CJ6 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.211001568.CJ6 SAR Measurement Report Test Dates: Oct. 1-8, 2001 …

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone

Peak SAR Location © 2001 PCTEST Lab TOSHIBA FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 800 MHz Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01100217_ZOOM.VLT Start : 2-Oct-101 04:15:38 pm End : 2-Oct-101 04:25:27 pm Radio Type : TOSHIBA Model Number : CDM-9200 Serial Number : 22 Frequency : 824.04 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : TOSHIBA TRI-MODE PHONE - AMPS MODE CH 0991 Conducted 27.0 dBm TOSHIBA TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.325 PCTEST Amplifier Channel Settings : 0.239 0.278 0.294 Max Location : X = 2.500, Y = -2.500, Z = 0.000 (cm) Value = 39.914 Measured Values (volts) = 4.000E-002 3.113E-002 2.536E-002 2.201E-002 1.931E-002 1.728E-002 1.556E-002 1.412E-002 1.269E-002 1.149E-002 1.013E-002 9.083E-003 8.180E-003 7.262E-003 6.597E-003 6.091E-003 5.855E-003 5.809E-003 6.083E-003 6.297E-003 6.435E-003 Calc. Voltage @ Surface (Vs) = 0.0480 Voltage @ 1.00 cm (Vt) = 0.0215 Ave. Voltage (Vs+Vt)/2 = 0.0347 Ave. SAR over 1 g (mW/g) = 1.0454 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01100221_ZOOM.VLT Start : 2-Oct-101 05:27:03 pm End : 2-Oct-101 05:36:53 pm Radio Type : TOSHIBA Model Number : CDM-9200 Serial Number : 22 Frequency : 824.04 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : TOSHIBA TRI-MODE PHONE - AMPS MODE CH 0991 Conducted 27.0 dBm TOSHIBA TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.325 PCTEST Amplifier Channel Settings : 0.239 0.278 0.294 Max Location : X = 2.000, Y = -2.000, Z = 0.000 (cm) Value = 33.382 Measured Values (volts) = 3.257E-002 2.408E-002 2.004E-002 1.749E-002 1.531E-002 1.364E-002 1.232E-002 1.123E-002 1.044E-002 9.603E-003 8.792E-003 7.963E-003 7.315E-003 6.783E-003 6.342E-003 5.863E-003 5.583E-003 5.436E-003 5.363E-003 5.403E-003 5.767E-003 Calc. Voltage @ Surface (Vs) = 0.0396 Voltage @ 1.00 cm (Vt) = 0.0171 Ave. Voltage (Vs+Vt)/2 = 0.0283 Ave. SAR over 1 g (mW/g) = 0.8526 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01100214_ZOOM.VLT Start : 2-Oct-101 03:37:18 pm End : 2-Oct-101 03:47:08 pm Radio Type : TOSHIBA Model Number : CDM-9200 Serial Number : 22 Frequency : 836.49 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : TOSHIBA TRI-MODE PHONE - AMPS MODE CH 0383 Conducted 27.0 dBm TOSHIBA TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.325 PCTEST Amplifier Channel Settings : 0.239 0.278 0.294 Max Location : X = 2.500, Y = -2.500, Z = 0.000 (cm) Value = 39.262 Measured Values (volts) = 3.959E-002 3.045E-002 2.548E-002 2.129E-002 1.864E-002 1.650E-002 1.489E-002 1.339E-002 1.213E-002 1.081E-002 9.729E-003 8.717E-003 7.796E-003 6.982E-003 6.563E-003 5.967E-003 5.869E-003 5.783E-003 5.753E-003 6.004E-003 6.039E-003 Calc. Voltage @ Surface (Vs) = 0.0473 Voltage @ 1.00 cm (Vt) = 0.0208 Ave. Voltage (Vs+Vt)/2 = 0.0340 Ave. SAR over 1 g (mW/g) = 1.0233 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01100220_ZOOM.VLT Start : 2-Oct-101 05:09:04 pm End : 2-Oct-101 05:24:47 pm Radio Type : TOSHIBA Model Number : CDM-9200 Serial Number : 22 Frequency : 836.49 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : TOSHIBA TRI-MODE PHONE - AMPS MODE CH 0383 Conducted 27.0 dBm TOSHIBA TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.325 PCTEST Amplifier Channel Settings : 0.239 0.278 0.294 Max Location : X = 1.500, Y = -2.000, Z = 0.000 (cm) Value = 37.061 Measured Values (volts) = 3.140E-002 2.382E-002 2.035E-002 1.766E-002 1.570E-002 1.411E-002 1.285E-002 1.183E-002 1.104E-002 1.037E-002 9.633E-003 8.966E-003 8.358E-003 7.690E-003 7.184E-003 6.737E-003 6.298E-003 6.099E-003 6.007E-003 5.998E-003 6.154E-003 Calc. Voltage @ Surface (Vs) = 0.0374 Voltage @ 1.00 cm (Vt) = 0.0173 Ave. Voltage (Vs+Vt)/2 = 0.0273 Ave. SAR over 1 g (mW/g) = 0.8225 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01100210_ZOOM.VLT Start : 2-Oct-101 02:49:25 pm End : 2-Oct-101 02:59:14 pm Radio Type : TOSHIBA Model Number : CDM-9200 Serial Number : 22 Frequency : 848.97 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : TOSHIBA TRI-MODE PHONE - AMPS MODE CH 0799 Conducted 27.0 dBm TOSHIBA TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.325 PCTEST Amplifier Channel Settings : 0.239 0.278 0.294 Max Location : X = 2.000, Y = -2.000, Z = 0.000 (cm) Value = 55.297 Measured Values (volts) = 5.166E-002 3.753E-002 3.166E-002 2.681E-002 2.345E-002 2.029E-002 1.841E-002 1.674E-002 1.525E-002 1.409E-002 1.302E-…

Text truncated - open the document above for the full version.

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) TOSHIBA Corporation Dates of Tests: Oct. 1-8, 2001 Technology & Quality Management Division Test Report S/N: SAR.211001568.CJ6 Digital Media Equipment & Service Co. Test Site: PCTEST Lab, Columbia, MD USA 1-1 Shibaura 1-Chome, Minatoku Tokyo, 105-01, JAPAN Attn: Jim Papadopoulos Audiovox Communications Corp. FCC ID CJ6DCE45202A APPLICANT TOSHIBA Corporation EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.614W ERP AMPS (27.885 dBm) / 0.434W ERP CDMA (26.377 dBm) 0.396W EIRP PCS CDMA (25.981 dBm) Trade Name/Model(s): TOSHIBA CDM-9200 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.3408 W/kg AMPS Brain SAR; 1.3199 W/kg AMPS Body SAR 0.8831 W/kg CDMA Brain SAR; 0.9025 W/kg CDMA Body SAR 1.2496 W/kg PCS Brain SAR; 0.7596 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 211001568.CJ6 Test Report S/N: SAR.211001568.CJ6 SAR Measurement Report Test Dates: OCT. 1-8, 2001 FCC Part 22/24 Certification Table of Contents 1.1 SCOPE........................................................................................................................1 2.1 INTRODUCTION........................................................................................................2 2.2 SAR Definition......................................................................................................2 3.1 SAR MEASUREMENT SET-UP.............................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM...............................................................4 5.1 E-field PROBE CALIBRATION PROCESS..........................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES...........................................................7 7.1 SYSTEM SPECIFICATIONS...................................................................................8 8.1 MEASUREMENT PROCESS..................................................................................9 9.1 TEST POSITION OF THE PHONE.......................................................................10 10.1 BODY-WORN TEST SETUP...............................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.........................................12 12.1 MEASUREMENT UNCERTAINTIES.................................................................13 13.1 SAR TEST DATA SUMMARY.............................................................................14 14.1 SAR TEST EQUIPMENT.....................................................................................20 15.1 CONCLUSION.......................................................................................................21 Test Report S/N: SAR.211001568.CJ6 SAR Measurement Report Test Dates: Oct. 1-8, 2001 FCC Part 22/24 Certification FCC ID: CJ6DCE45202A (Model: CDM-9200) © 2001 PCTEST Lab TOSHIBA Tri-Mode Dual-Band Analog/PCS Phone 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: TOSHIBA Corporation, Product Safety Group Address: Technology & Quality Management Division Digital Media Equipment & Service Co. 1-1 Shibaura 1-Chome, Minatoku Tokyo, 105-01, JAPAN Attention: Jim Papadapoulos, Audiovox Communications Corp. • EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) • Trade Name: TOSHIBA • Model(s): CDM-9200 • FCC IDENTIFIER: CJ6DCE45202A • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.614W ERP AMPS (27.885 dBm) 0.434W ERP CDMA (26.377 dBm) 0.396W EIRP PCS CDMA (25.981 dBm) • Date(s) of Tests: Oct. 1-8, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.211001568.CJ6 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.211001568.CJ6 SAR Measurement Report Test Dates: Oct. 1-8, 2001 …

Text truncated - open the document above for the full version.

Peak SAR Location © 2001 PCTEST Lab TOSHIBA FCC ID: CJ6DCE45202A (Model: CDM-9200) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 800 MHz Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01100217_ZOOM.VLT Start : 2-Oct-101 04:15:38 pm End : 2-Oct-101 04:25:27 pm Radio Type : TOSHIBA Model Number : CDM-9200 Serial Number : 22 Frequency : 824.04 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : TOSHIBA TRI-MODE PHONE - AMPS MODE CH 0991 Conducted 27.0 dBm TOSHIBA TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.325 PCTEST Amplifier Channel Settings : 0.239 0.278 0.294 Max Location : X = 2.500, Y = -2.500, Z = 0.000 (c…

Text truncated - open the document above for the full version.
