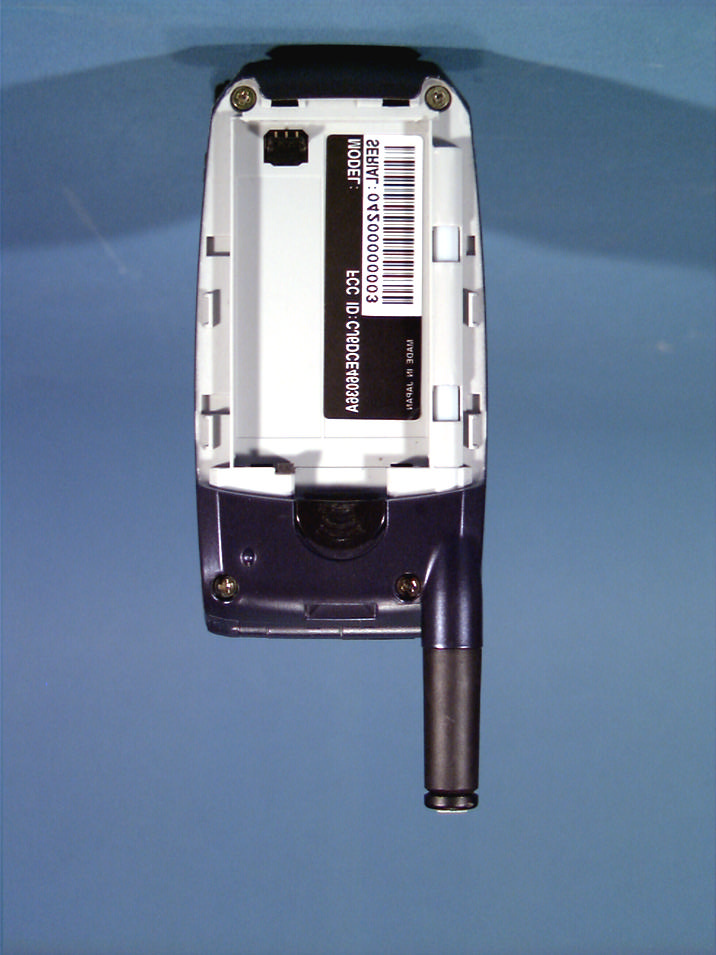

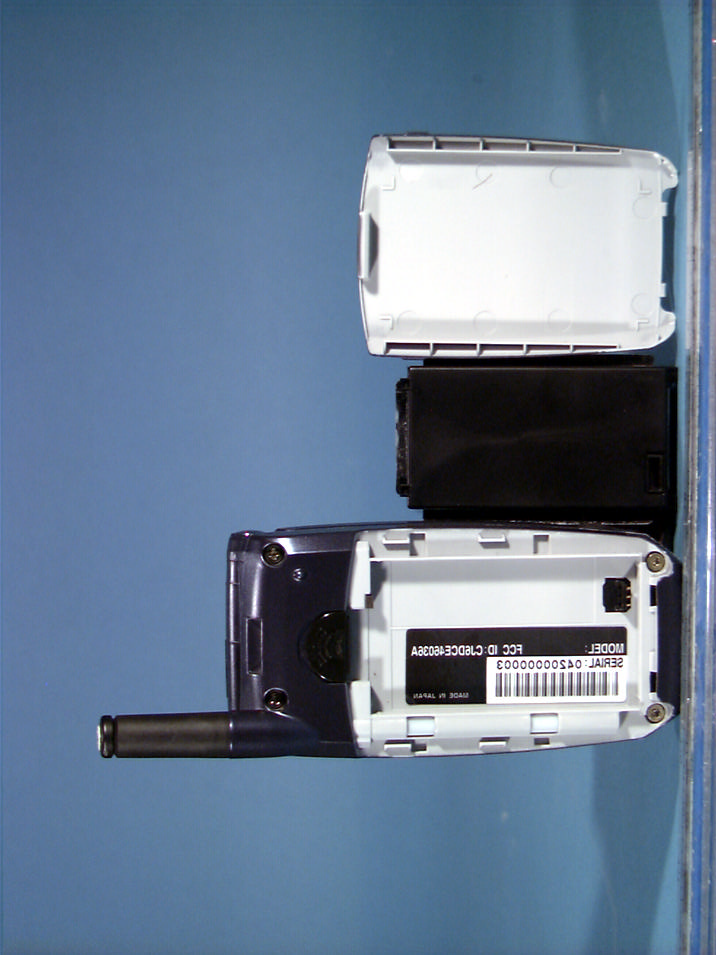

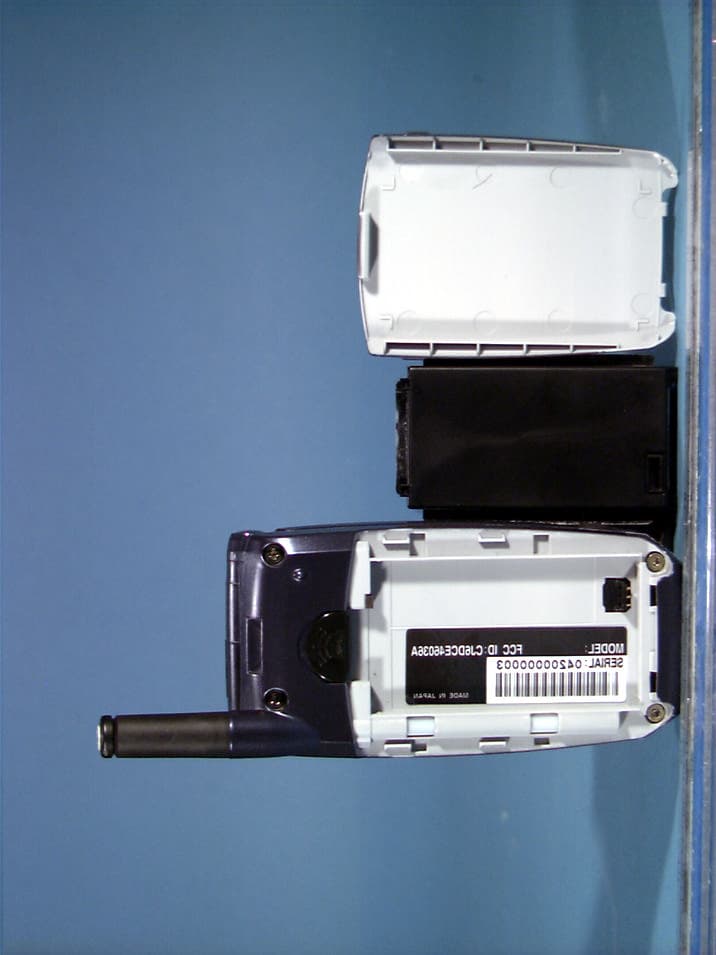

CJ6DCE46036ATri-Mode Dual-Band Analog/PCS Phone

CDM-9500 OWNER'S MANUAL Draft May 2002 TABLE OF CONTENTS SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES .................................. 1 SAR INFORMATION ......................................................... 2 FUNCTIONS ...................................................................... 3 GETTING STARTED ......................................................... 5 BASIC OPERATION .......................................................... 6 Placing Calls ................................................................. 6 Receiving Calls ............................................................. 6 OPERATING PROCEDURES .............................................. 7 APPLICANT: TOSHIBA CORPORATIONTRANSCEIVER TYPE: CJ6DCE46036A EXHIBIT Type “User Manual” 1 SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES Read this information before using your handheld portable Cellular Telephone. Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) sig- nals. FCC RF EXPOSURE INFORMATION In August 1996, the Federal Communications Commis- sion (FCC) of the United States, with its action in Re- port and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated trans- mitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international stan- dards. Use only the supplied or an approved antenna. Unau- thorized antennas, damaged antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the BC9500 belt-clip and LB9500 holster mod- els, offered by Audiovox as an accessory to this phone, and found to comply with FCC RF exposure require- ments. Third-party belt-clips, holsters and similar ac- cessories should be avoided, as they have not been tested and may not comply with FCC RF exposure lim- its. For more information about RF exposure, please visit the FCC website at www.fcc.gov . 2 phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub- stantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAR INFORMATION SAR INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT’S RE- QUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Fed- eral Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and estab- lish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the ac- tual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not ex- ceed the limit established by the government-adopted require- ment for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as re- quired by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 1.38 W/kg and when worn on the body, as described in this user guide, is 0.50 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC re- quirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in com- pliance with the FCC RF exposure guidelines. SAR informa- tion on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID CJ6DCE46036A. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet As- sociation (CTIA) web-site at http://phonefacts.net. * In the United States and Canada, the SAR limit for mobile F F U U N N C C T T I I O O N N S S External View 3 LCD Display Icon Signal strength icon. You are on a call. You are out of service area. You are in a roaming service area. The phone operates on digital mode. The phone operates on digital mode. You have new messages. Vibrating alert is active. The phone operates on hands-free mode. Alert from Network. Battery level icon. Key Functions Soft Keys: To enter the message menu. To activate Speakerphone mode. To access your Voice Mail. To clear digits or letters. 4 Web security page. Navigation Key: To end a call and to turn the…

Text truncated - open the document above for the full version.

APPLICANT: TOSHIBA CORPORATIONTRANSCEVER TYPE: CJ6DCE46036A PAGE 1 OF EXHIBIT T ype“Cover Letters” LIST OF EXHIBITS EXHIBIT Type.DESCRIPTION Attestation Statement(4 Pages) Request for confidentiality(1 Pages) Block Diagram of Handheld Portable Telephone Transceiver(1 Pages) Cover Letters (List of Exhibit)(1 Pages) External Photos(4 Pages) ID Label / Location Information(3 Pages) Internal Photos(9 Pages) Operational Description(12 Pages) Parts List / Tune Up Information(21 Pages) Schematic Diagram of Transceiver RF/BB(7 Pages) Test Report (Include Exhibit type RF Exposure Information)(247 Pages) Test Set Up(4 Pages) User Manual(8 Pages)

June 6, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: Toshiba America Information Systems FCC ID: CJ6DCE46036A 731 Confirmation No.: EA683303 Correspondence Reference No.: 23036 Request for Tech. Info.: 6/3/02 Dear Andy: Transmitted herewith, on behalf of Toshiba America Information Systems is an amendment provided in response to the request for technical information dated June 3, 2002. 1. We have received new probe calibration sheets from SPEAG that use a single conversion factor for a range of frequencies. We doubted these calibration certification were suitable with FCC past calibration requirements so we determined the probe conversion factors the way that SPEAG has done them in the past. We have retested the AMPS mode at 27.2 dBm with a SPEAG calibrated probe and received very comparable results so we believe that the new SPEAG calibration in the 800 MHz Band may be suitable for FCC requirements. Please find attached the photos of the calibration process. The probe was calibrated according to IEEE std 1528-200x (A.3.2.2.). The validation dipole construction procedures followed the IEEE std. Furthermore, please find attached the uncertainty budget for the PCTEST wave guide for the probe calibration. 2. Please find attached the corrected data summary sheets. 3. Please find attached the revised uncertainty table. 4. Please find the attached data of plots for the retest of the AMPS mode with and without holder. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Toshiba America Information Systems

© 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab TOSHIBA FCC ID: CJ6DCE46036A Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

APPLICANT: TOSHIBA CORPORATION TRANSCEIVER TYPE:CJ6DCE46036A PAGE 1 OF EXHIBIT Type “Internal Photos” Handheld Portable MAIN Board (With Shield Case and Cover) APPLICANT: TOSHIBA CORPORATION TRANSCEIVER TYPE:CJ6DCE46036A PAGE 2 OF EXHIBIT Type “Internal Photos” Handheld Portable SUB Board (Front side , Without Shield Cover and LCD holder Removed) APPLICANT: TOSHIBA CORPORATION TRANSCEIVER TYPE:CJ6DCE46036A PAGE 3 OF EXHIBIT Type “Internal Photos” Handheld Portable SUB Board (Back side ,Without Shield Cover ,With LCD holder Removed)

APPLICANT: TOSHIBA CORPORATION TRANSCEIVER TYPE:CJ6DCE46036A PAGE 4 OF EXHIBIT Type “Internal Photos” Handheld Portable MAIN Board (Front side , Without shield cover) APPLICANT: TOSHIBA CORPORATION TRANSCEIVER TYPE:CJ6DCE46036A PAGE 5 OF EXHIBIT Type “Internal Photos” Handheld Portable MAIN Board (Back side , With shield cover) APPLICANT: TOSHIBA CORPORATION TRANSCEIVER TYPE:CJ6DCE46036A PAGE 6 OF EXHIBIT Type “Internal Photos” Handheld Portable MAIN Board (Back side , With shield cover removed) VCTCXO : DSA535SAB APPLICANT: TOSHIBA CORPORATION TRANSCEIVER TYPE:CJ6DCE46036A PAGE 7 OF EXHIBIT Type “Internal Photos” Handheld Portable MAIN Board (Back side , With shield cover removed) VCTCXO : VC-TCXO-208C3-19.2MHz

APPLICANT: TOSHIBA CORPORATION TRANSCEIVER TYPE:CJ6DCE46036A PAGE 8 OF EXHIBIT Type “Internal Photos” Handheld Portable Key Board (Front side ) Handheld Portable Key Board (Back side) APPLICANT: TOSHIBA CORPORATION TRANSCEIVER TYPE:CJ6DCE46036A PAGE 9 OF EXHIBIT Type “Internal Photos” LCD Case (Front side) LCD Case (Back side)

Probe ET3DV6 SN: 1560 Manufactured: Ca I i brated : December 1,2000 February 20,2002 Calibrated for System DASY3 PCTEST Calibration Laboratory Approved By: h Alfred Cirwithian Vice President Engineering ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free Space Diode Compression NormX 1.48 μV/(V/m) 2 DCP X 98 mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head 835 MHz Brain ε r = 41.5 ± 5% σ = 0.90 ± 5% mho/m ConvF X 6.78 Boundary effect: ConvF Y 6.78 Alpha 0.30 ConvF Z 6.78 Depth 2.90 Body 835 MHz Muscle ε r = 56.2 ± 5% σ = 0.95 ± 5% mho/m ConvF X 6.52 ± 7% (k=2) Boundary effect: ConvF Y 6.52 ± 7% (k=2) Alpha 0.30 ConvF Z 6.52 ± 7% (k=2) Depth 2.90 Head 1900 MHz Brain ε r = 40.0 ± 5% σ = 1.40 ± 5% mho/m ConvF X 5.16 Boundary effect: ConvF Y 5.16 Alpha 0.48 ConvF Z 5.16 Depth 2.40 Body 19 00 MHz Muscle ε r = 54.2 ± 5% σ = 1.50 ± 5% mho/m ConvF X 4.70 ± 7% (k=2) Boundary effect: ConvF Y 4.70 ± 7% (k=2) Alpha 0.48 ConvF Z 4.70 ± 7% (k=2) Depth 2.40 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 5 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 5 Conversion Factor Assessment Head 835 MHz Brain ε r = 42 ± 5% σ = 0.90 ± 5% mho/m ConvF X 6.78 ± 7% (k=2) Boundary effect: ConvF Y 6.78 ± 7% (k=2) Alpha 0.30 ConvF Z 6.78 ± 7% (k=2) Depth 2.90 Head 1900 MHz Brain ε r = 40 ± 5% σ = 1.40 ± 5% mho/m ConvF X 5.16 ± 7% (k=2) Boundary effect: ConvF Y 5.16 ± 7% (k=2) Alpha 0.48 ConvF Z 5.16 ± 7% (k=2) Depth 2.40 ET3DV6 SN:1560 f = 835 MHz, WG 835 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1900 MHz, WG 1900 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 4 of 5

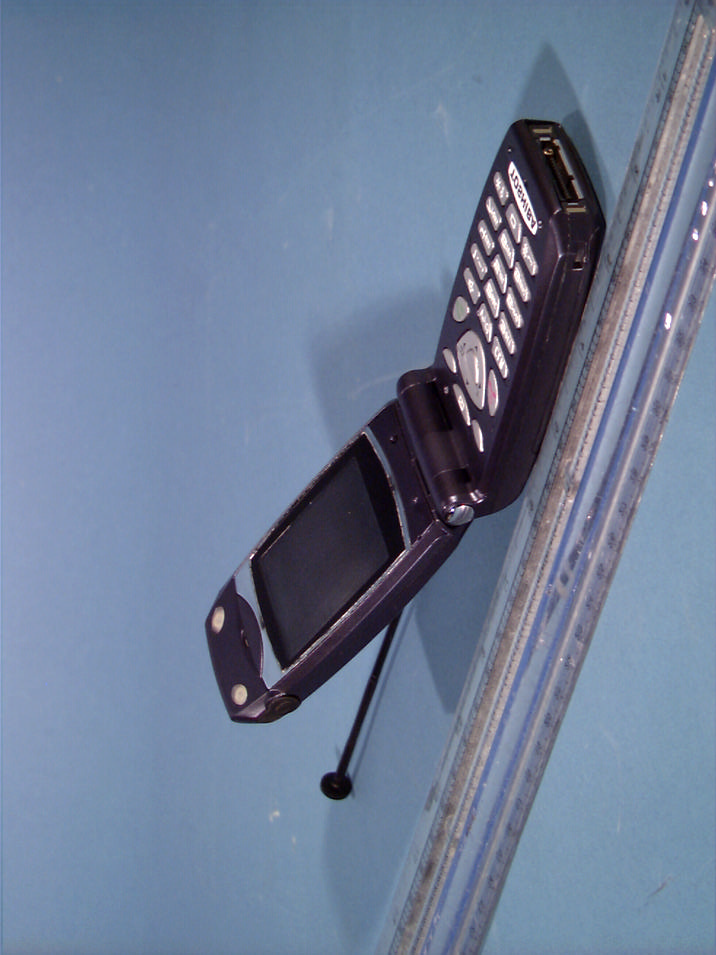

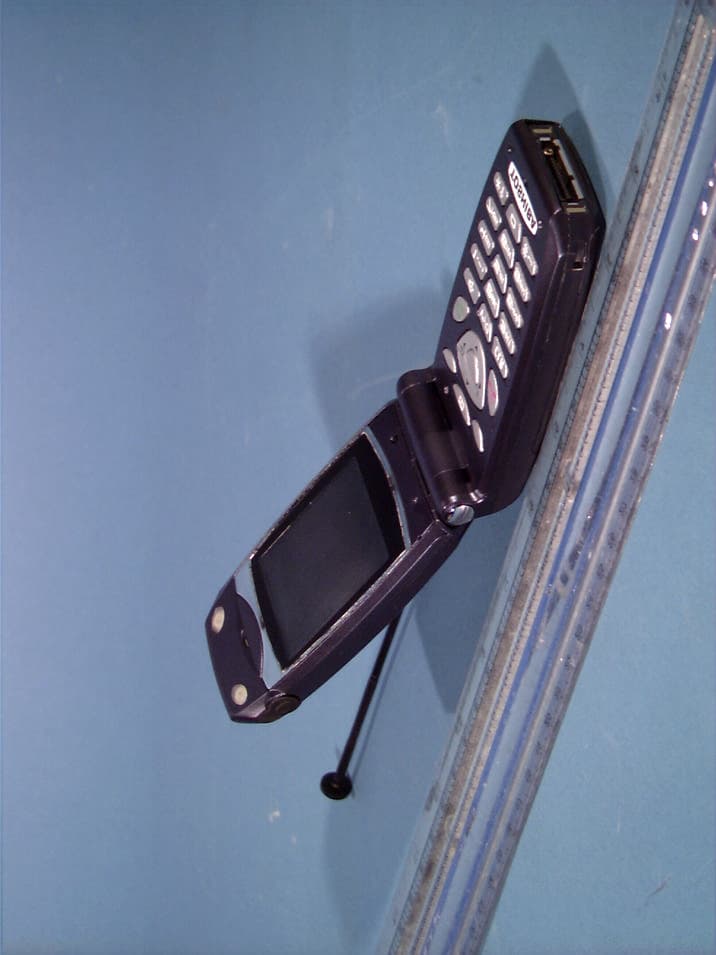

TOSHIBA FCC ID: CJ6DCE46036A -- Cellular CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1560; ConvF(6.78,6.78,6.78) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.1 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.701 mW/g, SAR (10g): 0.472 mW/g Toshiba TriMode Phone Model: CDM-9500 Cellular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Flip = open; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 24.5dBm; Right Head Phantom, Cheek/Touch position Test Date - 04/24/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 7.16E-2 2.15E-1 3.58E-1 5.01E-1 6.44E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--Cellular CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1560; ConvF(6.78,6.78,6.78) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.149 mW/g * , SAR (10g): 0.106 mW/g Toshiba TriMode Phone Model: CDM-9500 Cellular CDMA Mode, Ch.0383 [836.49MHz]; Standard Battery; Flip = open; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 24.5dBm; Right Head Phantom, Ear/15° Tilt position Test Date - 04/24/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.48E-2 4.44E-2 7.40E-2 1.04E-1 1.33E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--Cellular CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1560; ConvF(6.78,6.78,6.78) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.1 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.579 mW/g, SAR (10g): 0.403 mW/g Toshiba TriMode Phone Model: CDM-9500 Cellular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Flip = open; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 24.5dBm; Left Head Phantom, Cheek/Touch position Test Date - 04/23/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 6.06E-2 1.82E-1 3.03E-1 4.24E-1 5.45E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--Cellular CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1560; ConvF(6.78,6.78,6.78) Med. Parameters 835 MHz Brain: σ = 0.91 mho/m ε r = 40.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.141 mW/g, SAR (10g): 0.108 mW/g Toshiba TriMode Phone Model: CDM-9500 Cellular CDMA Mode, Ch.0383 [836.49MHz]; Standard Battery; Flip = open; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 24.5dBm; Left Head Phantom, Ear/15° Tilt position Test Date - 04/24/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.37E-2 4.11E-2 6.85E-2 9.59E-2 1.23E-1 PCTEST Engineering Laboratory, Inc.

835MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(6.78,6.78,6.78) Med. Parameters 835 MHz Brain: σ = 0.91mho/m ε r = 40.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.45 mW/g, SAR (10g): 1.58 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.1°C PCTEST Brain Tissue Simulating Liquid [04/24/2002] SAR Tot [mW/g] 2.39E-1 7.17E-1 1.20E+0 1.67E+0 2.15E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.41 mho/m ε r = 40.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 10.0 mW/g, SAR (10g): 5.18 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 22.1°C / Meas. Tissue Temp. = 22.0°C PCTEST Brain Tissue Simulating Liquid [04/25/2002] SAR Tot [mW/g] 9.87E-1 2.96E+0 4.93E+0 6.91E+0 8.88E+0 PCTEST Engineering Laboratory, Inc.

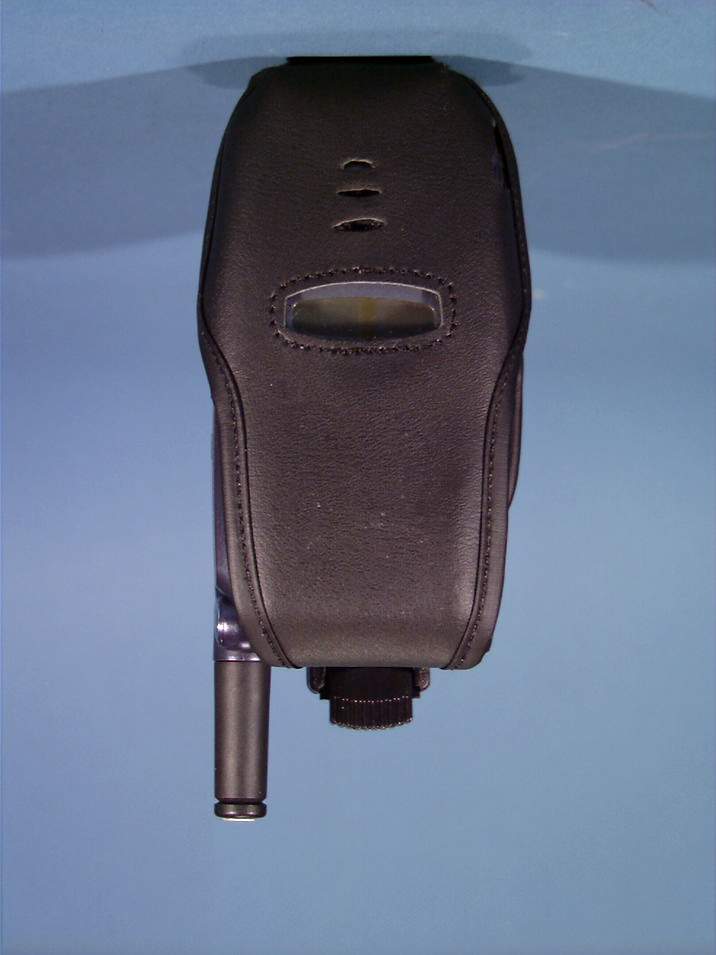

TOSHIBA FCC ID:CJ6DCE46036A--FM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(6.52,6.52,6.52) Med. Parameters 835 MHz Muscle: σ = 0.93 mho/m ε r = 56.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.380 mW/g, SAR (10g): 0.271 mW/g Toshiba TriMode Phone Model: CDM-9500 FM Mode, Ch.0991 [824.04MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 27.2dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.51E-2 1.05E-1 1.76E-1 2.46E-1 3.16E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--FM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(6.52,6.52,6.52) Med. Parameters 835 MHz Muscle: σ = 0.93 mho/m ε r = 56.9 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.432 mW/g, SAR (10g): 0.304 mW/g Toshiba TriMode Phone Model: CDM-9500 FM Mode, Ch.0991 [824.04MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 27.2dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.82E-2 1.15E-1 1.91E-1 2.67E-1 3.44E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--FM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(6.52,6.52,6.52) Med. Parameters 835 MHz Muscle: σ = 0.93 mho/m ε r = 56.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.306 mW/g, SAR (10g): 0.217 mW/g Toshiba TriMode Phone Model: CDM-9500 FM Mode, Ch.0383 [836.49MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 27.2dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.66E-2 7.98E-2 1.33E-1 1.86E-1 2.39E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--FM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(6.52,6.52,6.52) Med. Parameters 835 MHz Muscle: σ = 0.93 mho/m ε r = 56.9 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.442 mW/g, SAR (10g): 0.313 mW/g Toshiba TriMode Phone Model: CDM-9500 FM Mode, Ch.0383 [836.49MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 27.2dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.96E-2 1.19E-1 1.98E-1 2.77E-1 3.56E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--FM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(6.52,6.52,6.52) Med. Parameters 835 MHz Muscle: σ = 0.93 mho/m ε r = 56.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.380 mW/g, SAR (10g): 0.267 mW/g Toshiba TriMode Phone Model: CDM-9500 FM Mode, Ch.0799 [848.97MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 27.2dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.39E-2 1.02E-1 1.70E-1 2.37E-1 3.05E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--FM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(6.52,6.52,6.52) Med. Parameters 835 MHz Muscle: σ = 0.93 mho/m ε r = 56.9 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.369 mW/g, SAR (10g): 0.262 mW/g Toshiba TriMode Phone Model: CDM-9500 FM Mode, Ch.0799 [848.97MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 27.2dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.35E-2 1.01E-1 1.68E-1 2.35E-1 3.01E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A-- FM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(6.52,6.52,6.52) Med. Parameters 835 MHz Muscle: σ = 0.93 mho/m ε r = 56.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.309 mW/g, SAR (10g): 0.217 mW/g Toshiba TriMode Phone Model: CDM-9500 FM Mode, Ch.0383 [836.49MHz]; Extended Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 27.2dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.66E-2 7.98E-2 1.33E-1 1.86E-1 2.39E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--FM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(6.52,6.52,6.52) Med. Parameters 835 MHz Muscle: σ = 0.93 mho/m ε r = 56.9 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.464 mW/g, SAR (10g): 0.328 mW/g Toshiba TriMode Phone Model: CDM-9500 FM Mode, Ch.0383 [836.49MHz]; Extended Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 27.2dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.26E-2 1.28E-1 2.13E-1 2.98E-1 3.83E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A -- FM Body SAR SAM Phantom; Flat Section; Probe: ET3DV6 - SN1560 Medium Parameters 835 MHz Muscle: σ = 0.93 mho/m ε r = 56.9 ρ = 1.00 g/cm 3 Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.441 mW/g, SAR (10g): 0.353 mW/g Toshiba TriMode Phone Model: CDM-9500 FM Mode, Ch.0991 [824.04MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 27.2dBm; Spacing = 2.2cm from EUT (antenna side) to flat phantom, w/Holster Test Date - 0…

Text truncated - open the document above for the full version.

TOSHIBA FCC ID:CJ6DCE46036A--PCS CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(4.70,4.70,4.70) Med. Parameters 1900 MHz Muscle: σ = 1.55 mho/m ε r = 54.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.265 mW/g, SAR (10g): 0.154 mW/g Toshiba TriMode Phone Model: CDM-9500 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.3°C Conducted Power = 24.0dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.47E-2 7.41E-2 1.23E-1 1.73E-1 2.22E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--PCS CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(4.70,4.70,4.70) Med. Parameters 1900 MHz Muscle: σ = 1.55 mho/m ε r = 54.9 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.296 mW/g, SAR (10g): 0.174 mW/g Toshiba TriMode Phone Model: CDM-9500 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.3°C Conducted Power = 24.0dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.61E-2 7.83E-2 1.31E-1 1.83E-1 2.35E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--PCS CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(4.70,4.70,4.70) Med. Parameters 1900 MHz Muscle: σ = 1.55 mho/m ε r = 54.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.250 mW/g, SAR (10g): 0.144 mW/g Toshiba TriMode Phone Model: CDM-9500 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.3°C Conducted Power = 24.0dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.32E-2 6.96E-2 1.16E-1 1.62E-1 2.09E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--PCS CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(4.70,4.70,4.70) Med. Parameters 1900 MHz Muscle: σ = 1.55 mho/m ε r = 54.9 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.281 mW/g, SAR (10g): 0.161 mW/g Toshiba TriMode Phone Model: CDM-9500 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.3°C Conducted Power = 24.0dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.33E-2 6.99E-2 1.17E-1 1.63E-1 2.10E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID: CJ6DCE46036A -- PCS CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(4.70,4.70,4.70) Med. Parameters 1900 MHz Muscle: σ = 1.55 mho/m ε r = 54.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.309 mW/g, SAR (10g): 0.179 mW/g Toshiba TriMode Phone Model: CDM-9500 PCS CDMA Mode, Ch.1175 [1908.75MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.3°C Conducted Power = 24.0dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.57E-2 7.71E-2 1.29E-1 1.80E-1 2.31E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--PCS CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(4.70,4.70,4.70) Med. Parameters 1900 MHz Muscle: σ = 1.55 mho/m ε r = 54.9 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.303 mW/g, SAR (10g): 0.175 mW/g Toshiba TriMode Phone Model: CDM-9500 PCS CDMA Mode, Ch.1175 [1908.75MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.3°C Conducted Power = 24.0dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.75E-2 8.25E-2 1.38E-1 1.93E-1 2.48E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A--PCS CDMA Body SAR SAM Phantom; Flat Section; Probe: ET3DV6 - SN1560 Medium Parameters 1900 MHz Muscle: σ = 1.55 mho/m ε r = 54.9 ρ = 1.00 g/cm 3 Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.255 mW/g, SAR (10g): 0.150 mW/g Toshiba TriMode Phone Model: CDM-9500 PCS CDMA Mode, Ch.1175 [1908.75MHz]; Extended Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.3°C Conducted Power = 24.0dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.23E-2 6.69E-2 1.12E-1 1.56E-1 2.01E-1 PCTEST ENGINEERING LAB., INC. TOSHIBA FCC ID:CJ6DCE46036A--PCS CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(4.70,4.70,4.70) Med. Parameters 1900 MHz Muscle: σ = 1.55 mho/m ε r = 54.9 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.298 mW/g, SAR (10g): 0.171 mW/g Toshiba TriMode Phone Model: CDM-9500 PCS CDMA Mode, Ch.1175 [1908.75MHz]; Extended Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue Temp. = 22.3°C Conducted Power = 24.0dBm; Spacing = 3.0cm from EUT (antenna side) to flat phantom, w/Beltclip Test Date - 04/26/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.41E-2 7.23E-2 1.21E-1 1.69E-1 2.17E-1 PCTEST Engineering Laboratory, Inc. TOSHIBA FCC ID:CJ6DCE46036A-- PCS CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1560; ConvF(4.70,4.70,4.70) Med. Parameters 1900 MHz Muscle: σ = 1.55 mho/m ε r = 54.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.312 mW/g, SAR (10g): 0.170 mW/g Toshiba TriMode Phone Model: CDM-9500 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.4°C / Meas. Tissue T…

Text truncated - open the document above for the full version.

TOSHIBA FCC ID:CJ6DCE46036A--PCS CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1560; ConvF(5.16,5.16,5.16) Med. Parameters 1900 MHz Brain: σ = 1.40 mho/m ε r = 40.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.828 mW/g, SAR (10g): 0.480 mW/g Toshiba TriMode Phone Model: CDM-9500 PCS CDMA Mode, Ch.0025 [1851.25MHz]; Standard Battery; Flip = open; Ambient Temp. = 22.1°C / Meas. Tissue Temp. = 22.0°C Conducted Power = 24.0dBm; Right Head Phantom, Cheek/Touch position Test Date - 04/25/2002 [FCC/OET Bulletin 65 - Suppleme…
