CJ6KM60G2.4 GHz Wireless Keyboard

Model : KM60G, M60GM, M60GM(RX) Desprition : 2.4Ghz Keyboards Mouse Combo Set. For Toshiba Whitney AIO Keyboards and Mouse, please make sure the following Key define need to used in Toshiba special utility driver installation. If not, the key define can not be work. 1. Open AIO system 2. Put the dongle into AIO System 3. Or use one transfer adapter. Insert mini dongle into PC or Notebook USB port. 4. Open Keyboard battery cover, put into 2 X AA battery pack. 5. Make sure the power switch “ ON” on the keyboard 6. It should be work. POWER switch Keyboards function define – 1. “Power on” key for AIO System used 2. “ECO” key for Toshiba AIO special program 3. “ MUTE” for silence volume 4. “ Volume down” 5. “volume up” POWER ON Key define : Battery indicator of Keyboards define 1. When put the AA x 2 batteries, plus power switch “on” of keyboard. The Indicator will be light on “ green” for 10 second. After 10 second, it will be light off for normal operation. 2. When battery pack is during low battery, the indicator will be flash light on until without power. Please make sure to put the new battery pack into keyboard battery slot. Mouse tilt wheel define 1. Make sure to installation Toshiba tilt wheel driver for tilt used. 2. Tilt wheel function could be used on excel special operation as the following – 3. Push “Scrolling Wheel” down. It will be showed tilt wheel icon on the screen as following 4. Move mouse to right, the censor icon will be quickly move to right as the following. 5. Move mouse to right, the censor icon will be quickly move to right as the following. Battery indicator of Mouse define 3. When put the AA x 1 battery, plus power switch “on” of mouse. The Indicator will be light on “ green” for 10 second. After 10 second, it will be light off for normal operation. 4. When battery pack is during low battery, the indicator will be flash light on until without power. Please make sure to put the new battery pack into mouse battery slot. Trouble Shutting Issue – 1. Make sure power switch into “on”. 2. Make sure the battery pack into full power capacity. 3. Make sure the battery put into correct direction as battery slot.

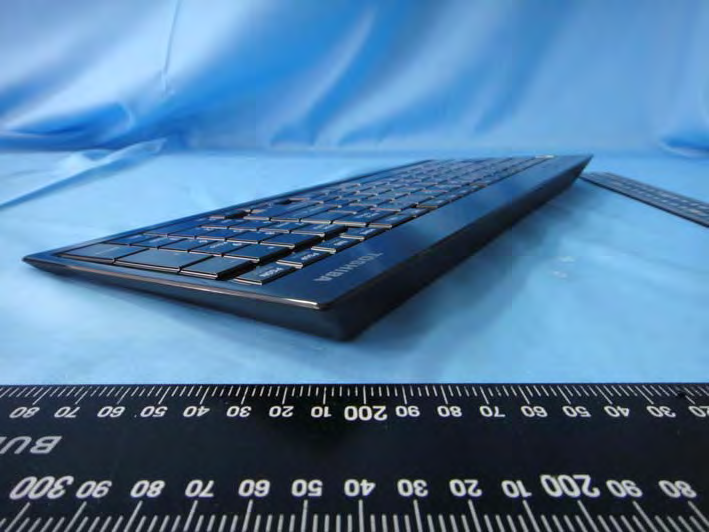

1 of 3 External Photos Model Number: KM60G FCC ID: CJ6KM60G 2 of 3 EUT Photo 1 ) EUT Photo 2 ) 3 of 3 EUT Photo 3 ) EUT Photo 4 )

LABEL SPEC WW KB TOSHIBA KM60G KM60G 1 / 1 REV DESCRIPTION SIGN DATE A 1 1 RELEASE DRAWING HR0/Avon Yang 02/16 -’11 Darfon Electronics Corp. 4E.20001.*** Avon 02/23 -’11 NOTE: 2. PRINT FROND SIDE , ADHESIVE BACK 3. ADHESIVE : THE SPEC REFER TO ES-813-C02 4. PRINTING COLOR : BLACK 1. MATERIAL: 合成紙(BW0052)+PO37 t=0.075mm 【公差值為 +0/- 0.2 mm】 可移式背膠 Rating: 3V ,100mA Made in China M/N:KM60G P/N:9J.M3499.T** S/N:YMD000001AK FCC ID: CJ6KM60G CMIIT ID: 2010DJ5128 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation

Label Location:

1 of 6 Internal Photos Model Number: KM60G FCC ID: CJ6KM60G 2 of 6 EUT Photo 1 ) EUT Photo 2 ) 3 of 6 EUT Photo 3 ) EUT Photo 4 ) 4 of 6 EUT Photo 5 ) EUT Photo 6 ) 5 of 6 EUT Photo 7 ) EUT Photo 8 ) 6 of 6 EUT Photo 9 ) EUT Photo 10 )

FCC 47 CFR PART 15 SUBPART C Product Type ： 2.4 GHz Wireless Keyboard Applicant ： Toshiba Corporation Address 2-9, Suehiro-Cho, Ome, 198-8710 Tokyo, Japan Trade Name ： TOSHIBA Model Number ： KM60G Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2009 ANSI C63.4-2003 Issue Date ： Feb. 18, 2011 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report Number: 1102FR13 1/34 Revision History Rev. Issue Date Revisions Revised By 00 Feb. 18, 2011 Initial Issue A Test Lab Techno Corp. Report Number: 1102FR13 2/34 Verification Issued Date: 2011/02/18 Product Type : 2.4 GHz Wireless Keyboard Applicant : Toshiba Corporation Address : 2-9, Suehiro-Cho, Ome, 198-8710 Tokyo, Japan Trade Name : TOSHIBA Model Number : KM60G FCC ID : CJ6KM60G EUT Rated Voltage : DC 3.0V, 100mA Test Voltage : DC 3.0V Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2009 ANSI C63.4-2003 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.249 . The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Miller Lee ) (Testing Engineer) (Gary Wu) A Test Lab Techno Corp. Report Number: 1102FR13 3/34 TABLE OF CONTENTS 1 General Information ....................................................................................................................... 5 2 EUT Description ............................................................................................................................. 6 3 Test Methodology........................................................................................................................... 7 3.1. Mode of Operation .................................................................................................................. 7 3.2. EUT Exercise Software........................................................................................................... 7 3.3. Configuration of Test System Details......................................................................................7 3.4. Test Site Environment............................................................................................................. 8 4 Conducted Emission Measurement ............................................................................................. 9 4.1. Limit ........................................................................................................................................ 9 4.2. Test Instruments ..................................................................................................................... 9 4.3. Test Setup............................................................................................................................... 9 4.4. Test Procedure...................................................................................................................... 10 4.5. Test Result ............................................................................................................................ 10 5 Radiated Interference Measurement .......................................................................................... 11 5.1. Limit ...................................................................................................................................... 11 5.2. Test Instruments ................................................................................................................... 12 5.3. Setup .................................................................................................................................... 13 5.4. Test Procedure...................................................................................................................... 14 5.5. Test Result ............................................................................................................................ 16 6 Band Edges Measurement ..........................................................................................................26 6.1. Limit ...................................................................................................................................... 26 6.2. Test Setup............................................................................................................................. 26 6.3. Test Instruments ................................................................................................................... 26 6.4. Test Procedure...................................................................................................................... 27 6.5. Test Result ............................................................................................................................ 28 7 Minimum 20dB RF Bandwidth Measurement ...............................................…
