CJ6UPA3231WL802.11b WLAN Mini-PCI Module

1 Wireless LAN Card FeaturesWireless LAN Card Features The Wireless LAN Card is a wireless network card that fits into a Mini-PCI TypeIII slot. Wireless LAWireless LAN Card TypesN Card Types The Wireless LAN Card is a wireless network card that complies with the IEEE 802.11 standard on wireless LANs (Revision B). Revision B supports data rates up to 11 Mbit/s. n Wi-Fi (Wireless Fidelity) certified by the Wi-Fi Alliance. This means that your Wireless hardware will communicate with other vendors’ IEEE 802.11 compliant wireless LAN product. The 'Wi-Fi CERTIFIED' logo is a certification mark of the Wi-Fi Alliance. n Fully compatible with any other wireless LAN system based on Direct Sequence Spread Spectrum (DSSS) radio technology that complies with the “IEEE 802.11 standard on wireless LANs (Revision B). Wireless LAN CardsWireless LAN Cards The Wireless LAN Card supports the following wireless LAN features: n Automatic Transmit Rate Select mechanism in the transmit range of 11, 5.5, 2 and 1 Mbit/s. n Frequency Channel Selection n Roaming over multiple channels. n Card Power Management. n Wired Equivalent Privacy (WEP) data encryption, based on 128bit encryption algorithm. Card SpecificationsCard Specifications Form Factor - Mini PCI TypeIII Capability - IEEE 802.11 Standard for Wireless LANS Wi-Fi (Wireless Fidelity) certified by the Wi-Fi Alliance. Network Operating - Microsoft Windows® Networking System Media Access Protocol - CSMA/CA (Collision Avoidance) with Acknowledgment (ACK) Data Rate - 11/5.5/2/1 Mb/s (Revision B) Radio CharacteristicsRadio Characteristics Radio Characteristics of Wireless LAN Cards may vary according to: n country/region where the product was purchased n Type of product Wireless communication is often subject to local radio regulations. Although Wireless LAN Wireless networking products have been designed for operation in the license-free 2.4GHz band, local radio regulations may impose a number of limitations to the use of wireless communication equipment. NOTE: NOTE: Refer to the flyer "Information to the User” for regulatory information that may apply in your country/region. RF Frequency -Band2.4GHz (2400-2483.5 MHz) Modulation Technique -DSSS-CCK, DSSS-DQPSK, DSSS-DBPSK The range of the wireless signal is related to the Transmit Rate of the wireless communication. Communications at lower Transmit range may travel larger distances. 2 n The range of your wireless devices can be affected when the antennas are placed near metal surfaces and solid high-density materials. n Range is also impacted due to “obstacles” in the signal path of the radio that may either absorb or reflect the radio signal. Information sheet Wireless Interoperability The CISCO Aironet® 350 Series Mini-PCI (MPI350) products are designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum(DSSS) radio technology, and is compliant to: The IEEE 802.11 Standard on Wireless LANs(Revision B), as defined and approved by the Institute of Electrical and Electronics Engineers. The Wireless Fidelity(Wi-Fi) certification as defined by the Wi-Fi Alliance. CAUTION Bluetooth™ and WirelessLAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth™ and WirelessLAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection. If you should experience any such problem, immediately turn off either one of your Bluetooth™ or WirelessLAN. Please contact Toshiba PC product support on web site http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or http://www.pc.support.global.toshiba.com in the United States for more information. Wireless LAN and your Health Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones. Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: Using the Wireless LAN equipment on board of airplanes, or In any other environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment. 3 Regulatory Information The CISCO Aironet® 350 Series Mini-PCI (MPI350) must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product. This device complies with the following radio frequency and safety standards. Canada – Industry Canada (IC) This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference , and (2) this device must accept any interference, including interference that may cause undesired operation of this device.” L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnem…

Text truncated - open the document above for the full version.

This sheet is for information only. The wireless LAN card must be installed by Toshiba or Toshiba OEM dealers. 2. Apply to following Wireless LAN label to position C shown in the figure for the Tecra 9000 or the figure for the Portégé 4000. Apply this Label

From: Steve Cheng Sent: Friday, June 27, 2003 3:36 PM To: Mike Kuo Cc: Anne Liang; CLIENT ADVOCATES; Michael Heckrotte Subject: RE: Toshiba Corporation, FCC ID:CJ6UPA3231WL,AN03T2920 Hi Mike, Please see text in blue below for response. Thanks. Best regards, Steve -----Original Message----- From: Mike Kuo Sent: Friday, June 20, 2003 3:59 PM To: Michael Heckrotte; Steve Cheng; CLIENT ADVOCATES Cc: Anne Liang Subject: FW: Toshiba Corporation, FCC ID:CJ6UPA3231WL,AN03T2920 -----Original Message----- From: CERTADM Sent: Friday, June 20, 2003 3:58 PM To: '[email protected]' Subject: Toshiba Corporation, FCC ID:CJ6UPA3231WL,AN03T2920 Notice_content ------------- Question #1: Section 6 of test report, please specify the Laptop computer manufacturer. <Response> Report revised Question #2: Conducted output power was measured with peak power meter, section 5.3 of test report does not include Peak power meter information. Please provide it. <Response> Report revised Question #3: RF conducted output power : Peak power meter is used. Confirmation that the power meter used can measure 11.3 MHZ BW signals accurately. Please state the VBW of the probe. <Response> Although this product generate the emission bandwidth of 11.3M, but due to the architecture of the 802.11, the internal symbol rate or amplitude modulation is actually less than 1.5M and we understand that the new quid line from the FCC is preferring the use of channel power method, but due to the fact that this project is initiated before new quid line issued and was following the old procedure and we have verified that the reported value does represent the actual output power. To demonstrate that reported power does not under estimated the output power we have did some experiment to measure typical 11a/b/g signal with different equipment as listed below and the result show great agreement to each other. This proved the peak power meter which we used with this filing does has enough video bandwidth to perform the assigned test. Please refer to attached file "experiment record" for detail. The VBW of the probe is 5M. Question #4: Please provide solder side of EUT photo. <Response> New photo uploaded. Question #5: In the internal photo file, one of stick antenna is included. Based upon the length of antenna cable, when this antenna is installed in the notebook computer, it will not be able to provide 20cm separation distance. Please explain. <Response> The stick antenna is not for this application, we have revised the file. Question #6: User manual submitted is for CISCO product. Please provide user manual for the device filed in this application. <Response> New user manual uploaded. Question #7: Please provide OEM installation instruction. <Response> New installation instruction uploaded. Question #8: In accordance with test setup photo for AC line conducted tests, the EUT is not tested as stand alone configuration. Is EUT installed in the notebook computer during the tests ? If yes, please explain why the EUT is not tested as stand alone configuration. <Response> Originally, applicant is pursuant the FMA, but due to the fact that extended card produce a lots of radiation in ITE emission band and a proper shielded extended card is not available, the applicant has changed this application to LMA and limit the certification only for tested configuration. All the test had been done with Tx module and antenna installed inside the tested laptop. The included photo is a wrong placement and setup photo has been revised. Question #9: All component reference value in the schematic diagram can not be read. Please provide a clear copy of schematic diagram. <Response> New schematic uploaded. Question #10: Three antennas ( Dual band film/ Wide Band Film and film antennas ) are listed in the test report. Only one antenna specification is included the antenna specification attachments. In the internal photos, three antennas are included : Dual Band antenna, film antenna and stick antenna. Please harmonize the antenna information in the filing. <Response> New antenna specification file uploaded. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

Toshiba Corporation FCC ID: CJ6UPA3231WL Request for limited modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)-LP-040) connector. Refer to external photos 5 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Proposed FCC ID label format is included in the filing. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). The max. output power measured is 0.092W . Antenna will be installed on the top edge of LCD panel which provide at least 20cm separation distance to the body.

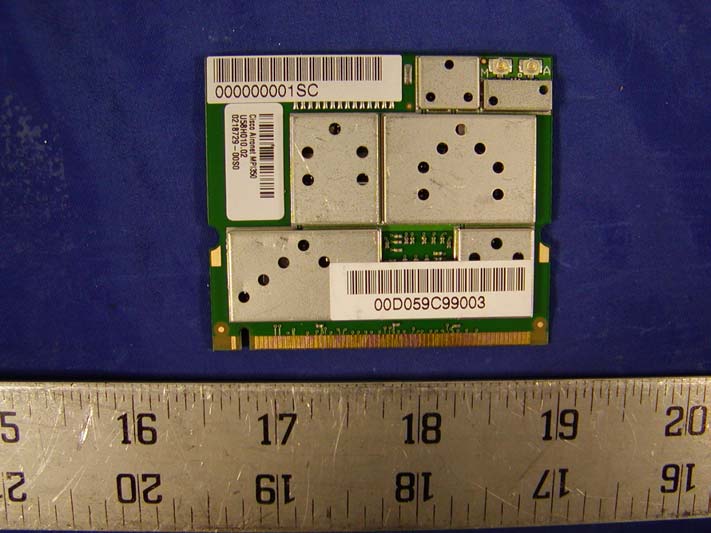

EXHIBIT C - EUT PHOTOGRAPHS Top View Bottom View

PROPOSED FCC ID LABEL AND LOCATION TOSHIBA CORPORATION DIGITAL MEDIA NETWORK COMPANY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: CJ6UPA3231WL FCC ID LABEL LOCATION

Shield Removed Top View Dual Band Antenna - M&A View Film Antenna - M View Film Antenna - A View

336749.XLS Model NameSuzuka with Dualband Film Antenna DayPlaneX-Y Frequency 2.441 Data FileLCD Degre90 Data No.Position AntennaCable <Antenna Gain> HorizontalVertical AVG-2.50.4 MAX4.44.8 (dBi) SuzkaCS011128 5,60°:Front 90°Right 11/28/2001 Coaxial Cable 1.32φ510mm Comment In put 0dBm Sine Wave from SG Wireless LAN Main (Rig Hor Ver 0° 270° (dBi) -10 0 -20 -30 90°

336750.XLS Model NameSuzuka with New Dualband Film Antenna DayPlaneX-Y Frequency 2.441 Data FileLCD Degre90 Data No.Position AntennaCable <Antenna Gain> HorizontalVertical AVG-1.41.4 MAX3.64.1 (dBi) Suzuka100CSwithWide D 3,40°:Front 90°Right 7/31/2002 Coaxial Cable 0.8φ510mm Comment In put 0dBm Sine Wave from SG Wireless LAN Main (Rig Hor Ver 0° 270° (dBi) -10 0 -20 -30 90°

336751.XLS Model NameSepangX10 with Singleband Film Antenna DayPlaneX-Y Frequency 2.442 Data FileLCD Degre90 Data No.Position AntennaCable <Antenna Gain> HorizontalVertical AVG-4.5-3.8 MAX-0.3-1.1 (dBi) SepangX10_14inch 3,40°:Front 90°Right 5/10/2002 Coaxial Cable 0.8φ555mm Comment In put 0dBm Sine Wave from SG Wireless LAN Main (Rig Hor Ver 0° 270° (dBi) -10 0 -20 -30 90°

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11b WLAN MINI PCI MODULE MODEL NUMBER: PA3231U-1MPC BRAND NAME: TOSHIBA FCC ID: CJ6UPA3231WL REPORT NUMBER: 03U1874-1 ISSUE DATE: JUNE 03, 2003 Prepared for TOSHIBA CORPORATION DIGITAL MEDIA NETWORK COMPANY 2-9 SUEHIRO-CHO, OME TOKYO, 198-8710 JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03U1874-1 DATE: JUNE 3, 2003 EUT: 802.11 b WLAN MINI PCI MODULE FCC ID: CJ6UPA3231WL Page 2 of 51 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................4 3. TEST METHODOLOGY..................................................................................................................5 4. FACILITIES AND ACCREDITATION..........................................................................................5 4.1. FACILITIES AND EQUIPMENT.................................................................................................5 4.2. TABLE OF ACCREDITATIONS AND LISTINGS........................................................................6 5. CALIBRATION AND UNCERTAINTY.........................................................................................7 5.1. MEASURING INSTRUMENT CALIBRATION............................................................................7 5.2. MEASUREMENT UNCERTAINTY..............................................................................................7 5.3. TEST AND MEASUREMENT EQUIPMENT...............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST.......................................................................................9 7. APPLICABLE LIMITS AND TEST RESULTS...........................................................................11 7.1. 6 dB BANDWIDTH.....................................................................................................................11 7.2. OUTPUT POWER......................................................................................................................15 7.3. MAXIMUM PERMISSIBLE EXPOSURE...................................................................................17 7.4. PEAK POWER SPECTRAL DENSITY.......................................................................................19 7.5. CONDUCTED SPURIOUS EMISSIONS...................................................................................23 7.6. RADIATED EMISSIONS............................................................................................................30 7.7. CO-LOCATED WLAN AND BLUETOOTH OPERATING SIMULTANEOUSLY.....................43 7.8. POWERLINE CONDUCTED EMISSIONS................................................................................44 8. SETUP PHOTOS..............................................................................................................................47 REPORT NO: 03U1874-1 DATE: JUNE 3, 2003 EUT: 802.11 b WLAN MINI PCI MODULE FCC ID: CJ6UPA3231WL Page 3 of 51 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: TOSHIBA CORPORATION DIGITAL MEDIA NETWORK COMPANY 2-9 SUEHIRO-CHO, OME TOKYO, 198-8710 JAPAN EUT DESCRIPTION: 802.11b WLAN MINI PCI MODULE MODEL: PA3231U-1MPC DATE TESTED: JUNE 3, 2003 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE CHIN PANG CHIEF ENGINEER EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03U1874-1 DATE: JUNE 3, 2003 EUT: 802.11 b WLAN MINI PCI MODULE FCC ID: CJ6UPA3231WL Page 4 of 51 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT is an 802.11b transceiver module, with an option of collocation with a Bluetooth transceiver module, FCC ID: CJ6UPA3232BT. The EUT has a output power of 19.64 dBm (92 mW) and highest antenna gain of 4.8 dBi in the 2400 - 2483.5 MHz band. Antennas filed under thi…

Text truncated - open the document above for the full version.

REPORT NO: 03U1874-1 DATE: JUNE 3, 2003 EUT: 802.11 b WLAN MINI PCI MODULE FCC ID: CJ6UPA3231WL Page 47 of 51 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 03U1874-1 DATE: JUNE 3, 2003 EUT: 802.11 b WLAN MINI PCI MODULE FCC ID: CJ6UPA3231WL Page 48 of 51 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 03U1874-1 DATE: JUNE 3, 2003 EUT: 802.11 b WLAN MINI PCI MODULE FCC ID: CJ6UPA3231WL Page 49 of 51 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 03U1874-1 DATE: JUNE 3, 2003 EUT: 802.11 b WLAN MINI PCI MODULE FCC ID: CJ6UPA3231WL Page 50 of 51 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 03U1874-1 DATE: JUNE 3, 2003 EUT: 802.11 b WLAN MINI PCI MODULE FCC ID: CJ6UPA3231WL Page 51 of 51 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
