CJ6UPA3233WL802.11 a/b Combo Wireless LAN Module

Atheros AR5001X Mini PCI Wireless Network AdapterAtheros AR5001X Mini PCI Wireless Network Adapter Client Utility HelpClient Utility Help IntroductionIntroduction.....................................................................................................................................................2 Station ConfigurationStation Configuration..................................................................................................................................3 Add or Edit a Configuration ProfileAdd or Edit a Configuration Profile.............................................................................................................3 General TabGeneral Tab..............................................................................................................................................4 Security TabSecurity Tab..............................................................................................................................................4 Advanced TabAdvanced Tab............................................................................................................................................5 Ad Hoc Mode Profile ConfigurationAd Hoc Mode Profile Configuration.............................................................................................................5 Ad Hoc ModeAd Hoc Mode.............................................................................................................................................6 Access Point Mode Profile ConfigurationAccess Point Mode Profile Configuration....................................................................................................6 Access Point ModeAccess Point Mode....................................................................................................................................7 Remove a Configuration ProfileRemove a Configuration Profile...................................................................................................................7 TCP/IP ConfigurationTCP/IP Configuration..................................................................................................................................7 Station ConfigurationStation Configuration..................................................................................................................................7 Security TabSecurity Tab.....................................................................................................................................................9 Define Static Encryption KeysDefine Static Encryption Keys.....................................................................................................................9 Check the Status Information or StatisticsCheck the Status Information or Statistics...................................................................................................11 Link StatuLink Statuss..................................................................................................................................................11 Advanced Link Status StatisticsAdvanced Link Status Statistics.............................................................................................................11 WLAN Status TabWLAN Status Tab.......................................................................................................................................12 Driver InfoDriver Informationrmation......................................................................................................................................13 StatisticsStatistics......................................................................................................................................................13 Site SurveySite Survey..................................................................................................................................................14 WLAN Status: Available APs andWLAN Status: Available APs and Ad Hoc Networks List Ad Hoc Networks List..............................................................................14 ToolsTools................................................................................................................................................................16 Tray IconTray Icon......................................................................................................................................................16 Display SettingsDisplay Settings..............................................................................................................................................17 Information sheetInformation sheet...........................................................................................................................................18 Introduction The Atheros AR5001X Mini PCI Wireless Network Adapter are reference designs based on the Atheros AR5001 chipsets. These reference designs support all IEEE 802.11a data rates (6 to 54 Mbps) and 802.11b data rates (1 to 11 Mbps). In the Atheros Turbo ModeTM, they support data rates up to 108 Mbps. The Atheros Client Utility (ACU) is a user-mode utility designed to display information and statistics pertaining to a selected Atheros NIC, as well as to allow users to edit and add configuration profiles. Station Configuration Configure the Atheros AR5001X Mini PCI Wireless Network Adapter through the Atheros Client Utility. The wireless network adapter (also called wireless card) works in either access point mode (infrastructure mode - leverages an AP) or ad hoc mode (a group of stations participating in the WLAN). To switch to another configuration profile, click on the profile name in the Select Profile list, then click the Apply button. l To add a configuration profile l To edit a configuration profile l Access Point (infrastructure) mode profile configuration l Ad Hoc mode profile configuration Add or Edit a Configuration Profile 1. To add a …

Text truncated - open the document above for the full version.

Applicant : Toshiba Corporation FCC ID: CJ6UPA3233WL TCB Assessment no:AN02T2391 ( DTS ) and AN02T2392 ( UNII) Question #1: MB22 is a 802.11 a/b transmitter module which is seeking full module approval. On Nov. 05, 2002, you provide the module installation procedures in two typical notebook computer. I attached this installation procedures for your quick reference. Per 15.407 (d) of FCC rules, for UNII device operates in 5.15-5.25GHz band, the transmitter must be equipped with integral antenna. In your installation instruction, I have no problem with installation procedures for device installed in TECRA 9000 notebook computer. The mini PCI is located in the area where the end user has not need to access. I consider MB22 installed in TECRA 9000 complies with integral antenna requirements. However, I do not consider this is the case when MB22 is installed in Portege 4000. There are only two screws on the bottom of notebook computer. User can easily access the MB 22. In order to comply with integral antenna requirement, I will require the following : When MB 22 is installed in the Portege 4000, after the antennas are connected to MB22, Toshiba needs to apply Epoxy ( Type of Epoxy and Model no needs to provide ) to the antenna connectors which make the antennas permanently attached to the MB22. Please consider this requirement and modify the installation procedures. Reply to Question #1: The modification point is : The access door of Mini PCI Wireless LAN is fixed by 'Special Screw'. Please see page 3 and 5. End user never access Mini PCI WLAN by above procedure. We have decided above procedure based on the information below from Peter san. >Under FCC, "Caution: Exposure to Radio Frequency Radiation, it is specified that antenna used in the 5.15-5.25 GHz frequency band must be integral antenna which provides no access to the end user. >Please advise as to how you intend to make the connection inaccessible: > -By providing a permanent connection, such as, the connectors are glued together. > -FCC has indicated that they will also accept some means of making the access door > inaccessible by using a special screw, requiring a special tool to open it Best Regards Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037 *Tel:(408)463-0885 x:105 *Fax:(408)463-0888 *:[email protected] http:\\www.ccsemc.com

Toshiba Corporation FCC ID: CJ6UPA3233WL Request for transmitter modular approval Transmitter Module Characteristics Product Category: Mobile Device ( Section 2.1091 of FCC rules ) Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 2.5V power regulator. Refer to Theory of Operation 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)- LP-040/u.FL-LP-062) connector. Refer to page 1 of external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside the host computer as stand-alone confi guration. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Antenna will be installed on the top edge of LCD panel of notebook computer to provide at least 20cm separation distance to the body.

Toshiba Corp. FCC ID:CJ6UPA3233WL External Photos

Bottom side view Regulatory Label Regulatory Label of Wireless LAN on bottom of PC Regulatory Label on Mini PCI Wireless LAN Card MAC Address Label Label with P/N and Country of Origin Serial Number Label Label with P/N and Country of Origin MAC Address Label Serial Number Label

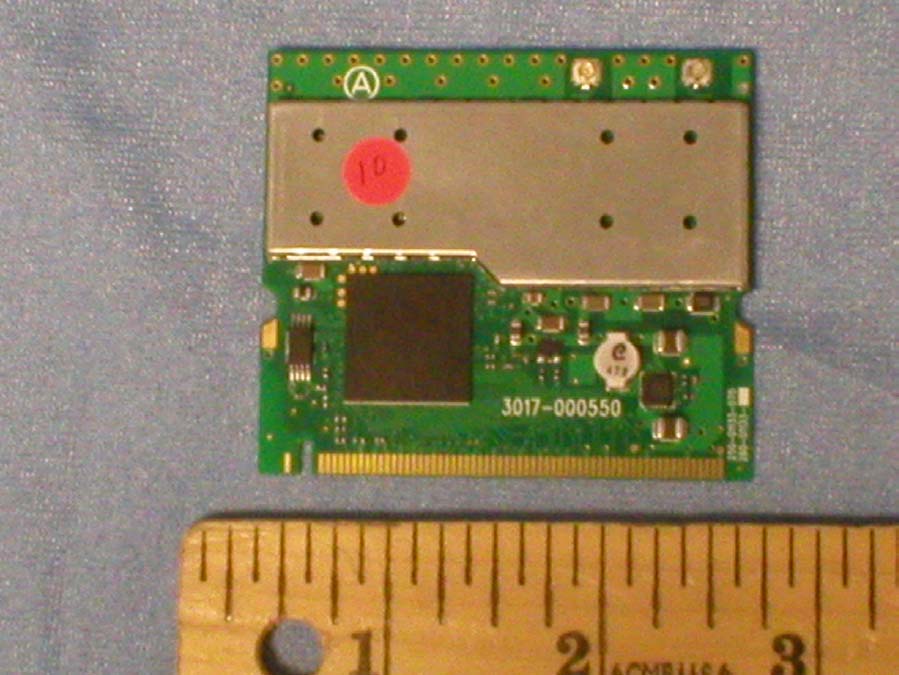

Toshiba Corp. FCC ID:CJ6UPA3233WL Internal Photos

This sheet is for information only. The wireless LAN card must be installed by Toshiba or Toshiba OEM dealers. one special screw. one six-point screw and one special screw. 2. Apply to following Wireless LAN label to position C shown in the figure for the Tecra 9000 or the figure for the Portégé 4000. Apply this Label

REPORT NO: 02U1585-1 DATE: NOVEMBER 8, 2002 EUT: 802.11 a/b COMBO WIRELESS LAN MODULE FCC ID: CJ6UPA3233WL Page 31 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8.4. MAXIMUM PERMISSIBLE EXPOSURE CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = distance in meters S = Power Density in milliwatts / square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d = √ ((30 * P * G) / (3770 * S)) Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) yields d = 100 * √ ((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 * √ (P * G / S) where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm^2 REPORT NO: 02U1585-1 DATE: NOVEMBER 8, 2002 EUT: 802.11 a/b COMBO WIRELESS LAN MODULE FCC ID: CJ6UPA3233WL Page 32 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yields d = 0.282 * 10 ^ ((P + G) / 20) / √ S Equation (1) where d = MPE safe distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW / cm^2 RESULTS No non-compliance noted: MAXIMUM PERMISSIBLE EXPOSURE (2.4 GHZ BAND) EUT output power = 18.2 dBm Antenna Gain = 4.8 dBi S = 1.0 mW / cm^2 from 1.1310 Table 1 Substituting these parameters into Equation (1) above: MPE Safe Distance = 03.98 cm MAXIMUM PERMISSIBLE EXPOSURE (5.8 GHZ BAND) EUT output power = 23.1 dBm Antenna Gain = 4.8 dBi S = 1.0 mW / cm^2 from 1.1310 Table 1 Substituting these parameters into Equation (1) above: MPE Safe Distance = 7.0 cm NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11a/b COMBO WIRELESS LAN MODULE MODEL NUMBER: PA3233U-1MPC BRAND NAME: TOSHIBA FCC ID: CJ6UPA3233WL REPORT NUMBER: 02U1585-1 ISSUE DATE: NOVEMBER 8, 2002 Prepared for TOSHIBA CORPORATION DIGITAL MEDIA NETWORK COMPANY 2-9, SUEHIRO-CHO, OME, TOKYO, 198-8710 JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02U1585-1 DATE: NOVEMBER 8, 2002 EUT: 802.11 a/b COMBO WIRELESS LAN MODULE FCC ID: CJ6UPA3233WL Page 2 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................4 3. TEST METHODOLOGY..................................................................................................................5 4. FACILITIES AND ACCREDITATION..........................................................................................5 4.1. FACILITIES AND EQUIPMENT.................................................................................................5 4.2. LABORATORY ACCREDITATIONS AND LISTINGS.................................................................5 4.3. TABLE OF ACCREDITATIONS AND LISTINGS........................................................................6 5. CALIBRATION AND UNCERTAINTY.........................................................................................7 5.1. MEASURING INSTRUMENT CALIBRATION............................................................................7 5.2. MEASUREMENT UNCERTAINTY..............................................................................................7 5.3. TEST AND MEASUREMENT EQUIPMENT...............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST.......................................................................................9 7. APPLICABLE RULES....................................................................................................................11 8. TEST SETUP, PROCEDURE AND RESULT..............................................................................14 8.1. 6 dB BANDWIDTH.....................................................................................................................14 8.2. PEAK POWER............................................................................................................................21 8.3. PEAK POWER SPECTRAL DENSITY.......................................................................................22 8.4. MAXIMUM PERMISSIBLE EXPOSURE...................................................................................31 8.5. SPURIOUS EMISSIONS – CONDUCTED MEASUREMENTS.................................................33 8.6. UNDESIRABLE EMISSIONS – RADIATED MEASUREMENTS..............................................53 8.7. SETUP PHOTOS........................................................................................................................69 REPORT NO: 02U1585-1 DATE: NOVEMBER 8, 2002 EUT: 802.11 a/b COMBO WIRELESS LAN MODULE FCC ID: CJ6UPA3233WL Page 3 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: TOSHIBA CORPORATION DIGITAL MEDIA NETWORK COMPANY 2-9, SUEHIRO-CHO, OME TOKYO, 198-8710 JAPAN EUT DESCRIPTION: 802.11A/B COMBO WLAN MODULE MODEL NAME: PA3233U-1MPC DATE TESTED: OCTOBER 17 – NOVEMBER 8, 2002 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 2.4 - 2.4835 GHz and 5.725 – 5.850 TRANSCEIVER* MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 15.C * The 2.4 and 5.8 GHz bands are applicable to this report; another band of operation (5.2 GHz) is documented in a separate report Compliance Certification Services, Inc. tested the above equipment for compliance with the requirements set forth in CFR 47, PART 15, Subpart C. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. This report only documents the RF performance of the radio module. AC mains conducted emissions and digital device radiated emissions performance is documented by Toshiba Document Number OFD- H3395 dated October 18, 2002, FCC ID: CJ6PP35ASY, Certification Pending. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE FRANK IBRAHIM CHIEF ENGINEER EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02U1585-1 DATE: NOVEMBER 8, 2002 EUT: 802.11 a/b COMBO WIRELESS LAN MODULE FCC ID: CJ6UPA3233WL Page 4 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTERE…

Text truncated - open the document above for the full version.

TABLE OF CONTENTS [Title] [Page] REPORT OF MEASUREMENT OF DIGITAL DEVICE .............................................................................................1 1. MEASUREMENT CONDITION AND CONFIGURATION OF EUT ...................................................................3 1.1. T HE E QUIPMENT U NDER T EST (EUT) INFORMATION ................................................................................................3 1.2. P RODUCT INFORMATION .................................................................................................................................................4 1.3. T HE MEASUREMENT WAS CARRIED OUT WITH THE FOLLOWING EQUIPMENT CONNECTED : .................................7 1.4. I NFORMATION OF INSTALLED OR CONNECTED PERIPHERALS ...................................................................................8 1.5. O PERATING CONDITIONS ................................................................................................................................................9 2. COMMENT ON THE MEASUREMENT....................................................................................................................10 2.1. M EASUREMENT METHODOLOGY .................................................................................................................................10 2.2. D EVIATION FROM STANDARD ......................................................................................................................................10 2.3. M EASUREMENT PROCEDURE ........................................................................................................................................10 2.4. M EASUREMENT PLACE ..................................................................................................................................................10 2.5. M EASUREMENT ABOVE 1 GH Z ....................................................................................................................................10 2.6. A MBIENT CONDITION ....................................................................................................................................................10 2.7. U NCERTAINTY ................................................................................................................................................................10 2.8. R EFERENCE PAGE OF MEASUREMENT RESULTS .........................................................................................................11 2.9. M INIMUM MARGIN TO THE LIMITS ..............................................................................................................................12 2.10. S AMPLE OF CALCULATION .........................................................................................................................................14 [MEASUREMENT RESULTS]...........................................................................................................................................15 (C ONDUCTION ) ......................................................................................................................................................................15 (R ADIATION ) ..........................................................................................................................................................................36 [MEASUREMENT SETUP] .................................................................................................................................................71 (S KETCHES ) ............................................................................................................................................................................71 (P HOTOGRAPHS ) ....................................................................................................................................................................73 [MEASUREMENT INSTRUMENTATION USED]......................................................................................................74 (C ONDUCTION ) ......................................................................................................................................................................74 (R ADIATION ) ..........................................................................................................................................................................75 [APPENDIX] ............................................................................................................................................................................77 [A PPENDIX A]: S YSTEM FACTOR ( FOR CONDUCTION ): 150 K H Z - 30 MH Z .................................................................77 [A PPENDIX B]: S YSTEM LOSS ( FOR RADIATION ): .............................................................................................................78 [A PPENDIX C]: A NTENNA FACTOR ( FOR TUNABLE DIPOLE ANTENNA ): 30 MH Z - 1 GH Z .........................................79 [A PPENDIX D]: A NTENNA FACTOR ( FOR BROADBAND ANTENNA ): 30 MH Z - 18 GH Z ..............................................80 [A PPENDIX E]: D ISPLAY MODE AND VIDEO MODE ...........................................................................................................81 [A PPENDIX F]: S YSTEM BLOCK DIAGRAM .........................................................................................................................88 [A PPENDIX G]: L ABEL I NFORMATION ................................................................................................................................89 [A PPENDIX H]: D ETAIL OF UNITS .......................................................................................................................................90 [A PPENDIX I]: P HOTOGRAPHS .............................................................................................................................................96 …

Text truncated - open the document above for the full version.

[Final measurement result] [Data F] Document No.: OFD-H3395 Page 61 of 112 Toshiba Corp., Ome Operations [Pre-measurement result (pick-up list)] [Data F] for 30 MHz – 1000 MHz Model Name: PORTEGE 3500 Model No.: PP350U Serial No.: #6, Normal mode Power Supply: 120Vac / 60 Hz Test Mode: Toshiba Windows EMI test program Temp/Humi: 25.5 deg / 60.0 % Operator: Y. Abe Memo: AC ADP.: 45W, HDD: 20 GB Limit1: VCCI Class B (3m) Limit2: FCC Part 15 Class B (3m) Date: 10/07/2002 << Peak List-Up Data List>> Freq.H/VLevelLimitMargin [MHz][dBuV/m][dBuV/m][dB] 59.700 V35.140.04.9 74.100 V35.840.04.2 98.775 H34.640.05.4 107.000H34.940.05.1 152.000H35.040.05.0 156.000H34.540.05.5 165.750V33.440.06.6 195.375V32.540.07.5 212.000H33.540.06.5 212.625V37.340.02.7 213.375V33.040.07.0 221.625V32.740.07.3 229.500V34.140.05.9 459.750V39.747.07.3 466.500V42.747.04.3 473.250V42.147.04.9 494.250V43.147.03.9 496.500V40.047.07.0 502.500V40.447.06.6 519.750V40.947.06.1 522.000V42.847.04.2 528.000V41.547.05.5 529.500V42.547.04.5 536.250V44.647.02.4 542.250V41.547.05.5 543.750V42.547.04.5 551.250V40.647.06.4 555.750V40.447.06.6 565.500V41.847.05.2 570.750V44.147.02.9 Document No.: OFD-H3395 Page 62 of 112 Toshiba Corp., Ome Operations [Pre-measurement result (spectrum graph)] [Data F] for 30 MHz – 1000 MHz -Horizontal -Vertical Document No.: OFD-H3395 Page 63 of 112 Toshiba Corp., Ome Operations [Pre-measurement result (pick-up list)] [Data F] for 1 GHz – 7 GHz Model Name: PORTEGE 3500 Model No.: PP350U Serial No.: #6, Normal mode Power Supply: 120Vac / 60 Hz Test Mode: Toshiba Windows EMI test program Temp/Humi: 22.1 deg / 70.0 % Operator: Y. Abe Memo: AC ADP.: 45W, HDD: 20 GB Limit1: FCC Part 15 Class B (3m): Peak Limit2: FCC Part 15 Class B (3m): Average Date: 10/09/2002 << Peak List-Up Data List>> Freq.H/VLevelLimitMargin [MHz][dBuV/m] [dBuV/m][dB] 1000.000H47.674.026.4 1027.500V45.374.028.7 1060.000V45.474.028.6 1325.000V47.774.026.3 1452.500V45.374.028.7 1585.000H45.974.028.1 1592.500H44.974.029.1 1602.500V47.574.026.5 1735.000V49.274.024.8 1867.500V46.474.027.6 1982.500V46.474.027.6 2387.500V54.574.019.5 2395.000V54.374.019.7 2410.000V58.674.015.4 2417.500V72.274.01.8 2425.000V67.274.06.8 2457.500H72.274.01.8 2470.000V72.374.01.7 2500.000H46.274.027.8 2525.002V43.774.030.3 Document No.: OFD-H3395 Page 64 of 112 Toshiba Corp., Ome Operations [Pre-measurement result (spectrum graph)] [Data F] for 1 GHz – 7 GHz - Horizontal - Vertical Document No.: OFD-H3395 Page 65 of 112 Toshiba Corp., Ome Operations [Final measurement result] [Data G] Document No.: OFD-H3395 Page 66 of 112 Toshiba Corp., Ome Operations [Pre-measurement result (pick-up list)] [Data G] for 30 MHz – 1000 MHz Model Name: PORTEGE 3500 Model No.: PP350U Serial No.: #7, Tablet mode Power Supply: 120Vac / 60 Hz Test Mode: Toshiba Windows EMI test program Temp/Humi: 25.5 deg / 60.0 % Operator: Y. Abe Memo: AC ADP.: 45W, HDD: 60 GB Limit1: VCCI Class B (3m) Limit2: FCC Part 15 Class B (3m) Date: 10/07/2002 << Peak List-Up Data List>> Freq.H/VLevelLimitMargin [MHz][dBuV/m][dBuV/m][dB] 35.400 V29.940.010.1 61.800 V35.040.05.0 63.900 V31.940.08.1 73.925 H31.840.08.2 74.100 V34.640.05.4 78.600 V28.240.011.8 94.750 H34.340.05.7 98.775 H35.240.04.8 102.000H35.040.05.0 111.000H32.640.07.4 120.000H28.840.011.2 133.800V31.440.08.6 151.500H34.940.05.1 151.500V32.140.07.9 156.000V30.740.09.3 156.000H33.340.06.7 166.500H32.140.07.9 195.000V28.240.011.8 200.500H27.140.012.9 221.500H26.640.013.4 248.500H37.847.09.2 250.000H35.547.011.5 313.500V36.847.010.2 333.000H33.847.013.2 502.500V41.547.05.5 524.250V35.447.011.6 526.500V34.247.012.8 549.000V36.147.010.9 556.500V33.647.013.4 569.250V36.647.010.4 Document No.: OFD-H3395 Page 67 of 112 Toshiba Corp., Ome Operations [Pre-measurement result (spectrum graph)] [Data G] for 30 MHz – 1000 MHz -Horizontal -Vertical Document No.: OFD-H3395 Page 68 of 112 Toshiba Corp., Ome Operations [Pre-measurement result (pick-up list)] [Data G] for 1 GHz – 7 GHz Model Name: PORTEGE 3500 Model No.: PP350U Serial No.: #7, Tablet mode Power Supply: 120Vac / 60 Hz Test Mode: Toshiba Windows EMI test program Temp/Humi: 22.1 deg / 70.0 % Operator: Y. Abe Memo: AC ADP.: 45W, HDD: 60 GB Limit1: FCC Part 15 Class B (3m): Peak Limit2: FCC Part 15 Class B (3m): Average Date: 10/09/2002 << Peak List-Up Data List>> Freq.H/VLevelLimitMargin [MHz][dBuV/m] [dBuV/m][dB] 1037.500V43.774.030.3 1040.000H42.474.031.6 1065.000V42.674.031.4 1082…

Text truncated - open the document above for the full version.
