CJ6UPA3297WL802.11a/b/g Mini-PCI Module

UUserser’’ss M Manualanual PA32PA329797UU--1MPC1MPC AR5001 Client Utility HelpAR5001 Client Utility Help PA3297U-1MPC Wireless LAN Card FeaturesWireless LAN Card Features...................................................................................................3 Card SpecificationsCard Specifications...............................................................................................................4 IntroductionIntroduction..............................................................................................................................7 System RequirementsSystem Requirements...........................................................................................................8 Package ContentsPackage Contents..................................................................................................................8 Profile ManagementProfile Management.................................................................................................................8 Add a New or Modify a Configuration ProfileAdd a New or Modify a Configuration Profile......................................................................9 Ad Hoc Mode Profile ConfigurationAd Hoc Mode Profile Configuration....................................................................................10 Access Point Mode Profile ConfigurationAccess Point Mode Profile Configuration...........................................................................11 Remove a Configuration ProfileRemove a Configuration Profile..........................................................................................13 TCP/IP ConfiguratiTCP/IP Configurationon.........................................................................................................13 Profile ManagementProfile Management............................................................................................................13 Zero ConfigurationZero Configuration..............................................................................................................14 Security TabSecurity Tab............................................................................................................................15 Define PreDefine Pre--Shared Encryption KeysShared Encryption Keys...................................................................................16 Check the Status Information or DiagnosticsCheck the Status Information or Diagnostics........................................................................17 Current StatusCurrent Status....................................................................................................................17 Driver Information ButtonDriver Information Button..................................................................................................18 DiagnosticsDiagnostics..........................................................................................................................18 Profile Management: Available APs and Ad Hoc Networks ListProfile Management: Available APs and Ad Hoc Networks List...........................................19 Action MenuAction Menu............................................................................................................................21 Country Code SelectorCountry Code Selector........................................................................................................21 Tray IconTray Icon.................................................................................................................................23 Display SettingsDisplay Settings......................................................................................................................24 Updating the NDIS DriverUpdating the NDIS Driver.....................................................................................................25 Information sheetInformation sheet...................................................................................................................26 Wireless LAN Card Features The Wireless LAN Card is a wireless network card that fits into a Mini-PCI TypeIII slot. Wireless LAWireless LAN Card TypesN Card Types The Wireless LAN Card is a wireless network card that complies with the IEEE 802.11 standard on wireless LANs (Revision A, B, G), Turbo Mode. Revision A and G supports data rates up to 54 Mbit/s. Revision B supports data rates up to 11 Mbit/s. Turbo Mode supports data rates up to 108 Mbit/s. n Wi-Fi (Wireless Fidelity) certified by the Wi-Fi Alliance. This means that your Wireless hardware will communicate with other vendors’ IEEE 802.11 compliant wireless LAN product. The 'Wi-Fi CERTIFIED' logo is a certification mark of the Wi-Fi Alliance. n Fully compatible with any other wireless LAN system based on Direct Sequence Spread Spectrum (DSSS)/ Orthogonal Frequency Division Multiplexing (OFDM) radio technology that complies with the “IEEE 802.11 standard on wireless LANs (Revision A or B or G). Wireless LAN CardsWireless LAN Cards The Wireless LAN Card supports the following wireless LAN features: n Automatic Transmit Rate Select mechanism in the transmit range of 54,48,36,24,18,12, 9 and 6 Mbit/s. (Revision A, G) n Automatic Transmit Rate Select mechanism in the transmit range of 11, 5.5, 2 and 1 Mbit/s. (Revision B) n Automatic Transmit Rate Select mechanism in the transmit range of 108,96,72,48,36, 24,18 and 12 Mbit/s. (Turbo Mode) n Frequency Channel Selection (5GHz:Revision A / 2.4GHz:Revision B, G). n Roaming over multiple channels. n Card Power Management. n Wired Equivalent Privacy (WEP) data encryption, based on 152bit encryption algorithm. n Advanced Encryption Standard (AES) data encryption, based on 256bit encryption algorithm. Card Specifications Form Factor - Mini PCI TypeIII Capability - IEEE 802.11 Standard for Wireless LANS Wi-Fi (Wireless Fidelity) certified by the Wi-Fi Alliance. Network Operating - Microsoft Windows® Networking S…

Text truncated - open the document above for the full version.

This sheet is for information only. The wireless LAN card must be installed by Toshiba or Toshiba OEM dealers. one special screw. one six-point screw and one special screw. 2. Apply to following Wireless LAN label to position C shown in the figure for the Tecra 9000 or the figure for the Portégé 4000. Apply this Label

DIGITAL MEDIA NETWORK COMPANY OME COMPLEX 2-9, SUEHIRO-CHO, OME, TOKYO 198-8710, JAPAN PHONE: +81(428) 34-1872 FAX: +81(428) 33-2922 May 30, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality In reference to the application under FCC ID: CJ6UPA3297WL, and pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics, titled “PA3297U-1MPC_Schematics.pdf”, 6 pages Block diagram, titled “PA3297U-1MPC_Block Diagram.pdf”, 1 page Theory of operation, titled “PA3297U-1MPC_Thoery of Operation.pdf”, 5 pages The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hideo Abe Digital Media Network Company

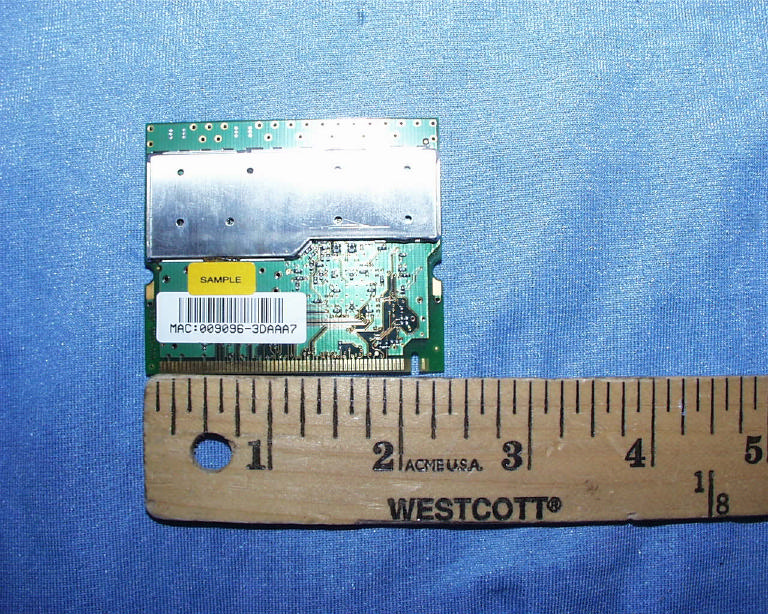

Toshiba Corporation FCC ID: CJ6UPA3297WL Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to Internal photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 2.5V for Digital /Analog, 3.3V for I/O Power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside the host computer as stand-alone configuration. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. FCC ID label format is included in the filing. It will be placed on the module, and on the outside of the system into which the module is installed. 7 The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field OEM installation procedures is provided with the submission files. This mini-PCI card will be installed in the notebook computer. Per 15.407 requirement, the user manual has mentioned the indoor operation requirement. With OEM installation instruction, the integral antenna requirement can be strength level and timing requirements. Compliance with these requirements must be assured. complied. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Three proposed antenna will be mounted on the top edge of LCD panel where the separation distance of 20cm can be maintained between the transmitting antenna to the body of user. This device is intended to be marketed as Mobile device per section 2.1091 of FCC rules. MPE estimate is complied with the requirements.

PROPOSED FCC ID LABEL AND LOCATION TOSHIBA CORPORATION DIGITAL MEDIA NETWORK COMPANY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: CJ6UPA3297WL FCC ID LABEL LOCATION

Toshiba PC Internal Antenna Data 1. Model Name TIAN01-*** 2. Frequency Range 2.4 – 2.5 GHz , 5.155.85GHz 3. Bandwidth 2.4GHz : Over 200MHz ( VSWR :under 2 ) 5GHz : Over 900MHz( VSWR :under 2 ) 4. Gain Antenna fixed on the LCD of Portege3500 (Measure at Toshiba EMI Site) X-Y PLANE (dBi) Antenna Horizontal Vertical Average -3.8 -3.0 2.441GHz Maximum 1.0 0.3 Average -7.2 -6.8 5.350GHz Maximum -0.2 -2.0 5. Antenna position LCD Wireless LAN Sub Bluetooth Wireless LAN Main 5. VSWR Antenna attached on the Package of Portege3500 Wireless LAN Main Antenna 6. Radiation Pattern Please refer to “TIAN01AntennaData.xls” file. The azimuth of graph drawn in xls file is bellow. 7. Polarization Vertical 8. Impedance 50Ù 0° 90° 270° 180° Toshiba PC Internal Antenna Data 1. Model Name HTL008-P*** 2. Frequency Range 2.4 – 2.5 GHz , 5.155.85GHz 3. Bandwidth 2.4GHz : Over 200MHz ( VSWR :under 2 ) 5GHz : Over 900MHz 4. Gain (Average) Antenna fixed on the LCD of Tecra9000 (Measure at Toshiba EMI Site) X-Y PLANE (dBi) Antenna Horizontal Vertical 2.441GHz -4.7 -1.8 5.350GHz -4.6 -4.2 5. Antenna position LCD Wireless LAN Sub Bluetooth Wireless LAN Main 5. VSWR Antenna attached on the Package of Tecra9000 Wireless LAN Main Antenna 6. Radiation Pattern Please refer to ToshibaDualbandFilmAntennaData.xls file. The azimuth of graph drawn in xls file is bellow. 7. Polarization Vertical 8. Impedance 50Ù 0° 90° 270° 180° Toshiba PC Internal Antenna Data 1. Model Name HTL012-P*** 2. Frequency Range 2.4 – 2.5 GHz , 5.155.85GHz 3. Bandwidth 2.4GHz : Over 200MHz ( VSWR :under 2 ) 5GHz : Over 900MHz( VSWR :under 2 ) 4. Gain (Average) Antenna fixed on the LCD of Tecra9000 (Measure at Toshiba EMI Site) X-Y PLANE (dBi) Antenna Horizontal Vertical 2.441GHz -3.5 -0.7 5.350GHz -10.0 -6.3 5. Antenna position LCD Wireless LAN Sub Bluetooth Wireless LAN Main 5. VSWR Antenna attached on the Package of Tecra9000 Wireless LAN Main Antenna 6. Radiation Pattern Please refer to “HTL012AntennaData.xls” file. The azimuth of graph drawn in xls file is bellow. 7. Polarization Vertical 8. Impedance 50Ù 0° 90° 270° 180°

REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 26 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 7.3. MAXIMUM PERMISSIBLE EXPOSURE LIMITS §15.247 (b) (5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §1.1307(b)(1) of this chapter. CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = distance in meters S = Power Density in milliwatts / square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d = √ ((30 * P * G) / (3770 * S)) Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) yields d = 100 * √ ((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 * √ (P * G / S) where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm^2 REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 27 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yields d = 0.282 * 10 ^ ((P + G) / 20) / √ S Equation (1) where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW / cm^2 Equation (1) and the measured peak power is used to calculate the MPE distance. LIMITS S = 1.0 mW / cm^2 from 1.1310 Table 1 NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. RESULTS No non-compliance noted: ModePower Density LimitOutput PowerAntenna GainMPE Distance (mW/cm^2)(dBm)(dBi)(cm) 802.11a Normal1.016.704.803.35 802.11a Turbo1.016.844.803.41

FCC CFR47 PART 15 SUBPART E CERTIFICATION TEST REPORT FOR 802.11a/b/g COMBO MINI PCI MODULE MODEL NUMBER: PA3297U-1MPC BRAND NAME: TOSHIBA FCC ID: CJ6UPA3297WL REPORT NUMBER: 03U1876-1 ISSUE DATE: JUNE 05, 2003 Prepared for TOSHIBA CORPORATION DIGITAL MEDIA NETWORK COMPANY 2-9 SUEHIRO-CHO, OME TOKYO, 198-8710 JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 2 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................4 3. TEST METHODOLOGY..................................................................................................................5 4. FACILITIES AND ACCREDITATION..........................................................................................5 4.1. FACILITIES AND EQUIPMENT.................................................................................................5 4.2. TABLE OF ACCREDITATIONS AND LISTINGS........................................................................6 5. CALIBRATION AND UNCERTAINTY.........................................................................................7 5.1. MEASURING INSTRUMENT CALIBRATION............................................................................7 5.2. MEASUREMENT UNCERTAINTY..............................................................................................7 5.3. TEST AND MEASUREMENT EQUIPMENT...............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST.......................................................................................9 7. APPLICABLE LIMITS AND TEST RESULTS...........................................................................11 7.1. EMISSION BANDWIDTH..........................................................................................................11 7.2. PEAK POWER............................................................................................................................18 7.3. MAXIMUM PERMISSIBLE EXPOSURE...................................................................................26 7.4. AVERAGE POWER....................................................................................................................28 7.5. PEAK POWER SPECTRAL DENSITY.......................................................................................29 7.6. PEAK EXCURSION...................................................................................................................37 7.7. TRANSMISSION IN THE ABSENCE OF DATA........................................................................44 7.8. TYPE OF ANTENNA..................................................................................................................44 7.9. FREQUENCY STABILITY..........................................................................................................44 7.10. CONDUCTED UNDESIRABLE EMISSIONS.............................................................................45 7.11. RADIATED EMISSION...............................................................................................................52 7.12. CO-LOCATED RADIATED EMISSIONS...................................................................................66 7.13. POWERLINE CONDUCTED EMISSIONS.................................................................................80 8. SETUP PHOTOS..............................................................................................................................84 REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 3 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: TOSHIBA CORPORATION DIGITAL MEDIA NETWORK COMPANY 2-9 SUEHIRO-CHO, OME TOKYO, 198-8710 JAPAN EUT DESCRIPTION: 802.11a/b/g COMBO MINI PCI MODULE MODEL: PA3297U-1MPC DATE TESTED: APRIL 30 – MAY 23, 2003 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART E NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Note: The 5.2 GHz band is applicable to this report. Other bands of operation (2.4 and 5.8GHz) are documented in a separate report. Approved & Released For CCS By: Tested By: MIKE HECKROTTE VIEN TRAN CHIEF ENGINEER EMC…

Text truncated - open the document above for the full version.

REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 46 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CONDUCTED SPURIOUS EMISSIONS (BASE MODE) LOW CHANNEL_NORMAL REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 47 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. MID CHANNEL_NORMAL REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 48 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH CHANNEL_NORMAL REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 49 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CONDUCTED SPURIOUS EMISSIONS (TURBO MODE) LOW CHANNEL_TURBO REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 50 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. MID CHANNEL_TURBO REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 51 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HI CHANNEL_TURBO REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 52 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 7.11. RADIATED EMISSION LIMIT §15.205 (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 1 0.495 - 0.505 2.1735 - 2.1905 4.125 - 4.128 4.17725 - 4.17775 4.20725 - 4.20775 6.215 - 6.218 6.26775 - 6.26825 6.31175 - 6.31225 8.291 - 8.294 8.362 - 8.366 8.37625 - 8.38675 8.41425 - 8.41475 12.29 - 12.293 12.51975 - 12.52025 12.57675 - 12.57725 13.36 - 13.41 16.42 - 16.423 16.69475 - 16.69525 16.80425 - 16.80475 25.5 - 25.67 37.5 - 38.25 73 - 74.6 74.8 - 75.2 108 - 121.94 123 - 138 149.9 - 150.05 156.52475 - 156.52525 156.7 - 156.9 162.0125 - 167.17 167.72 - 173.2 240 - 285 322 - 335.4 399.9 - 410 608 - 614 960 - 1240 1300 - 1427 1435 - 1626.5 1645.5 - 1646.5 1660 - 1710 1718.8 - 1722.2 2200 - 2300 2310 - 2390 2483.5 - 2500 2655 - 2900 3260 - 3267 3332 - 3339 3345.8 - 3358 3600 - 4400 4.5 - 5.15 5.35 - 5.46 7.25 - 7.75 8.025 - 8.5 9.0 - 9.2 9.3 - 9.5 10.6 - 12.7 13.25 - 13.4 14.47 - 14.5 15.35 - 16.2 17.7 - 21.4 22.01 - 23.12 23.6 - 24.0 31.2 - 31.8 36.43 - 36.5 ( 2 ) 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6 §15.205 (b) Except as provided in paragraphs (d) and (e), the field strength of emissions appearing within these frequency bands shall not exceed the limits shown in Section 15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 53 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. §15.209 (a) Except as provided elsewh…

Text truncated - open the document above for the full version.

REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 84 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8.3. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 85 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 86 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 87 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP REPORT NO: 03U1876-1 DATE: JUNE 05, 2003 EUT: 802.11 a/b/g Combo Mini PCI Module FCC ID: CJ6UPA3297WL Page 88 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, …

Text truncated - open the document above for the full version.
