CJ6UPA3299WL802.11b/g Combo WLAN Mini-PCI Module

AR5001 Client Utility HelpAR5001 Client Utility HelpPA3299U-1MPC Wireless LAN Card FeaturesWireless LAN Card Features...........................................................................................2 Card SpecificationsCard Specifications.......................................................................................................3 IntroductionIntroduction......................................................................................................................5 System RequirementsSystem Requirements...................................................................................................5 Package ContentsPackage Contents.........................................................................................................5 Profile ManagementProfile Management.........................................................................................................6 Add a New or Modify a Configuration ProfileAdd a New or Modify a Configuration Profile..............................................................6 Ad Hoc Mode Profile ConfigurationAd Hoc Mode Profile Configuration..............................................................................8 Access Point Mode Profile ConfigurationAccess Point Mode Profile Configuration.....................................................................8 Remove a Configuration ProfileRemove a Configuration Profile...................................................................................10 TCP/IP ConfiguratioTCP/IP Configurationn..................................................................................................10 Profile ManagementProfile Management.....................................................................................................11 Zero ConfigurationZero Configuration.......................................................................................................11 Security TabSecurity Tab.....................................................................................................................13 Define PreDefine Pre--Shared Encryption KeysShared Encryption Keys............................................................................13 Check the Status Information or DiagnosticsCheck the Status Information or Diagnostics.................................................................15 Current StatusCurrent Status.............................................................................................................15 Driver Information ButtonDriver Information Button..........................................................................................16 DiagnosticsDiagnostics...................................................................................................................16 Profile Management: Available APs and Ad Hoc Networks ListProfile Management: Available APs and Ad Hoc Networks List....................................17 Action MenuAction Menu....................................................................................................................19 Country Code SelectorCountry Code Selector.................................................................................................19 Tray IconTray Icon..........................................................................................................................21 Display SettingsDisplay Settings..............................................................................................................22 Updating the NDIS DriverUpdating the NDIS Driver..............................................................................................23 Information sheetInformation sheet............................................................................................................24 Wireless LAN Card Features The Wireless LAN Card is a wireless network card that fits into a Mini-PCI TypeIII slot. Wireless LAWireless LAN Card TypesN Card Types The Wireless LAN Card is a wireless network card that complies with the IEEE 802.11 standard on wireless LANs (Revision B, G), Turbo Mode. Revision G supports data rates up to 54 Mbit/s. Revision B supports data rates up to 11 Mbit/s. Turbo Mode supports data rates up to 108 Mbit/s. n Wi-Fi (Wireless Fidelity) certified by the Wi-Fi Alliance. This means that your Wireless hardware will communicate with other vendors’ IEEE 802.11 compliant wireless LAN product. The 'Wi-Fi CERTIFIED' logo is a certification mark of the Wi-Fi Alliance. n Fully compatible with any other wireless LAN system based on Direct Sequence Spread Spectrum (DSSS)/ Orthogonal Frequency Division Multiplexing (OFDM) radio technology that complies with the “IEEE 802.11 standard on wireless LANs (Revision B or G). Wireless LAN CaWireless LAN Cardsrds The Wireless LAN Card supports the following wireless LAN features: n Automatic Transmit Rate Select mechanism in the transmit range of 54,48,36,24,18,12, 9 and 6 Mbit/s. (Revision G) n Automatic Transmit Rate Select mechanism in the transmit range of 11, 5.5, 2 and 1 Mbit/s. (Revision B) n Automatic Transmit Rate Select mechanism in the transmit range of 108,96,72,48,36, 24,18 and 12 Mbit/s. (Turbo Mode) n Frequency Channel Selection (2.4GHz:Revision B, G). n Roaming over multiple channels. n Card Power Management. n Wired Equivalent Privacy (WEP) data encryption, based on 152bit encryption algorithm. n Advanced Encryption Standard (AES) data encryption, based on 256bit encryption algorithm. Card Specifications Form Factor - Mini PCI TypeIII Capability - IEEE 802.11 Standard for Wireless LANS Wi-Fi (Wireless Fidelity) certified by the Wi-Fi Alliance. Network Operating - Microsoft Windows® Networking System Media Access Protocol - CSMA/CA (Collision Avoidance) with Acknowledgment (ACK) Data Rate - 54/48/36/24/18/12/9/6 Mb/s (Revision G) - 11/5.5/2/1 Mb/s (Revision B) - 108/96/72/48/36/24/18/12 Mb/s (Turbo Mode) Radio Radio CharacteristicsCharacteristics Radio Characteristics of…

Text truncated - open the document above for the full version.

This sheet is for information only. The wireless LAN card must be installed by Toshiba or Toshiba OEM dealers. 2. Apply to following Wireless LAN label to position C shown in the figure for the Tecra 9000 or the figure for the Portégé 4000. Apply this Label

From: Steve Cheng Sent: Thursday, June 26, 2003 3:52 PM To: Mike Kuo Cc: Anne Liang; CLIENT ADVOCATES; Michael Heckrotte Subject: RE: Toshiba Corporation, FCC ID:CJ6UPA3299WL, AN03T2929 Hi Mike, Please refer the original text for response. Thanks. Best regards, Steve To CA, please upload related document to TCB. Thanks. -----Original Message----- From: Mike Kuo Sent: Friday, June 20, 2003 4:53 PM To: Michael Heckrotte; Steve Cheng; CLIENT ADVOCATES Cc: Anne Liang Subject: FW: Toshiba Corporation, FCC ID:CJ6UPA3299WL, AN03T2929 -----Original Message----- From: CERTADM Sent: Friday, June 20, 2003 4:52 PM To: '[email protected]' Subject: Toshiba Corporation, FCC ID:CJ6UPA3299WL, AN03T2929 Notice_content ------------- Question #1: RF conducted output power : Peak power meter is used. Confirmation that the power meter used can measure 32.67 MHZ BW signals accurately. Please state the VBW of the probe. <Response> Although this product generate the emission bandwidth of 32.67M, but due to the architecture of the 802.11, the internal symbol rate or amplitude modulation is actually less than 1.5M and we understand that the new quid line from the FCC is preferring the use of channel power method, but due to the fact that this project is initiated before new quid line issued and was follow the old procedure and we have verified that the reported value does represent the actual output power. To demonstrate that reported power does not under estimated the output power we have did some experiment to measure typical 11a/b/g signal with different equipment as listed below and the result show great agreement to each other. This proved the peak power meter which we used with this filing does has enough video bandwidth to perform the assigned test. Please refer to attached file "experiment record" for detail. Question #2: Peak power meter is used but section 5.2 of test report can not locate such instrument. Please provide it. <Response> Report revised Question #3: Three of antennas are listed in the test report, page 69 of test report is for spurious and harmonic radiated emission measurements. Per the test report, there is no indication which antenna was used during the tests. By comparing to the antenna connected plots and antenna gain information, there should be measurable emissions during the spurious and harmonic emission tests. Please provide information on which antenna was used and if no emission can be found, please provide noise floor information. <Response> Due to the limited band width of the antenna, all the spurs which show on the conducted plots is further attenuated by the antenna stop band and is not detectable in radiated measurement. Question #4: Please provide OEM installation instruction. <Response> new installation instruction attached. Question #5: Co-location tests: please specify which antenna was used during the tests. <Response> We use HTL008. Question #6: Request for confidentiality : Schematic diagram is a 6 pages document in stead of 4 pages. Please make necessary correction. <Response> revised letter attached. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

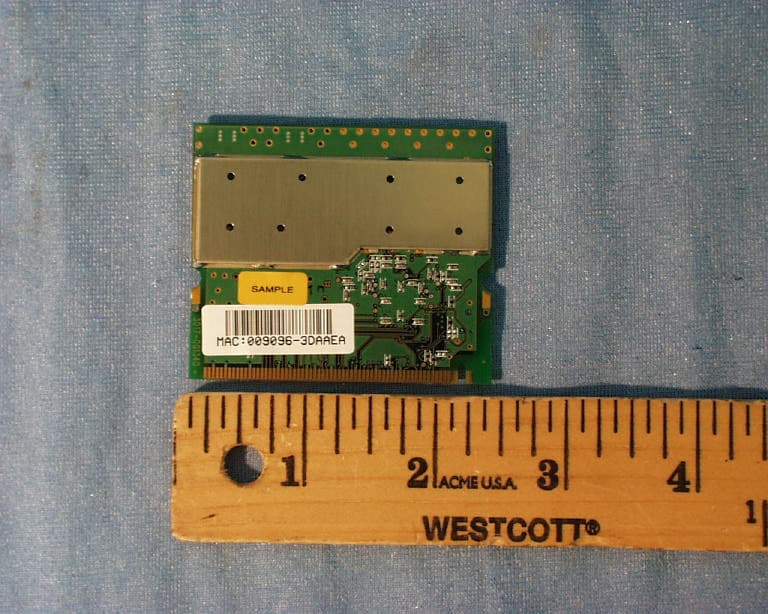

Toshiba Corporation FCC ID: CJ6UPA3299WL Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)- LP-040) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside the host computer as stand-alone configuration. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. FCC ID label format is included in the filing. It will be placed on the module, and on the outside of the system into which the module is installed. 7 The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. OEM installation instruction is provided. This module will only be installed by Toshiba or Toshiba authorized OEM installer. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance The max. output power measured is 0.124W, which is below the low threshold. SAR evaluation is exempted. with Section 15.247(b)(4). Antenna will be installed to provide at least 20cm separation distance to the body.

PROPOSED FCC ID LABEL AND LOCATION TOSHIBA CORPORATION DIGITAL MEDIA NETWORK COMPANY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: CJ6UPA3299WL FCC ID LABEL LOCATION

336786.XLS Model NameSuzuka with Dualband Film Antenna DayPlaneX-Y Frequency 2.441 Data FileLCD Degre90 Data No.Position AntennaCable <Antenna Gain> HorizontalVertical AVG-2.50.4 MAX4.44.8 (dBi) SuzkaCS011128 5,60°:Front 90°Right 11/28/2001 Coaxial Cable 1.32φ510mm Comment In put 0dBm Sine Wave from SG Wireless LAN Main (Rig Hor Ver 0° 270° (dBi) -10 0 -20 -30 90°

336787.XLS Model NameSuzuka with New Dualband Film Antenna DayPlaneX-Y Frequency 2.441 Data FileLCD Degre90 Data No.Position AntennaCable <Antenna Gain> HorizontalVertical AVG-1.41.4 MAX3.64.1 (dBi) Suzuka100CSwithWide D 3,40°:Front 90°Right 7/31/2002 Coaxial Cable 0.8φ510mm Comment In put 0dBm Sine Wave from SG Wireless LAN Main (Rig Hor Ver 0° 270° (dBi) -10 0 -20 -30 90°

Toshiba PC Internal Antenna Data 1. Model Name TIAN01-*** 2. Frequency Range 2.4 – 2.5 GHz , 5.155.85GHz 3. Bandwidth 2.4GHz : Over 200MHz ( VSWR :under 2 ) 5GHz : Over 900MHz( VSWR :under 2 ) 4. Gain Antenna fixed on the LCD of Portege3500 (Measure at Toshiba EMI Site) X-Y PLANE (dBi) Antenna Horizontal Vertical Average -3.8 -3.0 2.441GHz Maximum 1.0 0.3 Average -7.2 -6.8 5.350GHz Maximum -0.2 -2.0 5. Antenna position LCD Wireless LAN Sub Bluetooth Wireless LAN Main 5. VSWR Antenna attached on the Package of Portege3500 Wireless LAN Main Antenna 6. Radiation Pattern Please refer to “TIAN01AntennaData.xls” file. The azimuth of graph drawn in xls file is bellow. 7. Polarization Vertical 8. Impedance 50 0 90 270 180

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11 b/g COMBO MINI PCI MODULE MODEL NUMBER: PA3299U-1MPC BRAND NAME: TOSHIBA FCC ID: CJ6UPA3299WL REPORT NUMBER: 03U1877-1 ISSUE DATE: MAY 30, 2003 Prepared for TOSHIBA CORPORATION DIGITAL MEDIA NETWORK COMPANY 2-9 SUEHIRO-CHO, OME TOKYO, 198-8710 JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 2 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................4 3. TEST METHODOLOGY..................................................................................................................5 4. FACILITIES AND ACCREDITATION..........................................................................................5 4.1. FACILITIES AND EQUIPMENT.................................................................................................5 4.2. TABLE OF ACCREDITATIONS AND LISTINGS........................................................................6 5. CALIBRATION AND UNCERTAINTY.........................................................................................7 5.1. MEASURING INSTRUMENT CALIBRATION............................................................................7 5.2. MEASUREMENT UNCERTAINTY..............................................................................................7 5.3. TEST AND MEASUREMENT EQUIPMENT...............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST.......................................................................................9 7. APPLICABLE LIMITS AND TEST RESULTS...........................................................................12 7.1. 6 dB BANDWIDTH.....................................................................................................................12 7.2. OUTPUT POWER......................................................................................................................20 7.3. MAXIMUM PERMISSIBLE EXPOSURE...................................................................................22 7.4. PEAK POWER SPECTRAL DENSITY.......................................................................................24 7.5. CONDUCTED SPURIOUS EMISSIONS...................................................................................32 7.6. RADIATED EMISSIONS............................................................................................................54 7.7. CO-LOCATED RADIATED EMISSIONS..................................................................................72 7.8. POWERLINE CONDUCTED EMISSIONS................................................................................86 8. SETUP PHOTOS..............................................................................................................................89 REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 3 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: TOSHIBA CORPORATION DIGITAL MEDIA NETWORK COMPANY 2-9 SUEHIRO-CHO, OME TOKYO, 198-8710, JAPAN EUT DESCRIPTION: 802.11 b/g COMBO MINI PCI MODULE MODEL: PA3299U-1MPC DATE TESTED: MAY 6 – MAY 15, 2003 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE THANH NGUYEN CHIEF ENGINEER EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 4 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT is an 802.11b/g WLAN mini PCI module operating in the 2.4-2.4835 GHz band. The EUT has a peak output power of 20.93 dBm (124mW) and highest antenna gain of 4.8 dBi. Optionally the WLAN may be colloc…

Text truncated - open the document above for the full version.

REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 41 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH CHANNEL SPURIOUS (802.11b mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 42 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. SPURIOUS EMISSIONS, LOW CHANNEL (802.11g NORMAL MODE) LOW CH BANDEDGE (802.11g Normal mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 43 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. LOW CH SPURIOUS (802.11g Normal mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 44 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. LOW CHANNEL SPURIOUS (802.11g Normal mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 45 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. SPURIOUS EMISSIONS, MID CHANNEL (802.11g NORMAL MODE) MID CH REFERENCE (802.11g Normal mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 46 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. MID CH SPURIOUS (802.11g Normal mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 47 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. MID CHANNEL SPURIOUS (802.11g Normal mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 48 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. SPURIOUS EMISSIONS, HIGH CHANNEL (802.11g NORMAL MODE) HIGH CH BANDEDGE (802.11g Normal mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 49 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH CH SPURIOUS (802.11g Normal mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 50 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH CHANNEL SPURIOUS (802.11g Normal mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 51 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall …

Text truncated - open the document above for the full version.

REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 65 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. LOW RESTRICTED BANDEDGE (g TURBO MODE) LOW RESTRICTED, PEAK (802.11g Turbo mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 66 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. LOW RESTRICTED, AVG (802.11g Turbo mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 67 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH RESTRICTED BANDEDGE (g TURBO MODE) HIGH RESTRICTED, PEAK (802.11g Turbo mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 68 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH RESTRICTED, AVG (802.11g Turbo mode) REPORT NO: 03U1877-1 DATE: May 30, 2003 EUT: 802.11 b/g Combo Mini PCI Module FCC ID: CJ6UPA3299WL Page 69 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HARMONICS AND SPURIOUS EMISSIONS 05/07/03 High Frequency Measurement Compliance Certification Services, Morgan Hill Open Field Site Test Engr:Thanh Nguyen Project #: 03U1877 Company: TOSHIBA AMERICA INFORMATION SYSTEMS, INC. EUT Descrip.: 802.11b/g Mini PCI Module EUT M/N: PA3299U-1MPC (FCC ID: CJ6UPA3299WL) Mode Oper:Transmit at LOW , MID, HIGH Channel,b/g normal& Turbo mode. Test Equipment: Peak Measurements:Average Measurements: 1 MHz Resolution Bandwidth1 MHz Resolution Bandwidth 1MHz Video Bandwidth10Hz Video Bandwidth fDistRead PkRead Avg.AFCLAmpD CorrHPFPeakAvgPk LimAvg LimPk MarAvg MarNotes GHzfeetdBuVdBuVdB/mdBdBdB dBuV/mdBuV/mdBuV/mdBuV/mdBdB No Spurious Emissions was detected up to 10th Harmonic, above the system noise floor. fMeasurement FrequencyAmpPreamp GainAvg LimAverage Field Strength Limit DistDistance to AntennaD CorrDistance Correct to 3 metersPk LimPeak Field Strength Limit ReadAnalyzer ReadingAvgAverage Field Strength @ 3 mAvg MarMargin vs. Average Limit AFAntenna FactorPeakCalculated Peak Field StrengthPk MarMargin vs. Peak Limit CLCable LossHPFHigh Pass Filter T63 Miteq 646456 Pre-amplifer 1-26GHzEMCO Horn 1-18GHz T73; S/N: 6717 @3m Spectrum Analyzer HP 8593EM Analyzer Horn > 18GHz T87; ARA 18-26GHz; S/N:1049 (2 ft) gfedc (2 ~ 3 ft) gfedcb (4 ~ 6 ft)…

Text truncated - open the document above for the full version.
