CJ6UPA3375WL802.11a/b/g Mini PCI type 3B Card

Contents Intel(R) PRO/Wireless 2915ABG Network Connection User Guide With your wireless network card, you can access wireless networks, share files or printers, or even share your Internet connection. All of these features can be explored using a wireless network in your home or office. This wireless LAN solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. Your Intel(R) PROSet/Wireless 2915ABG Network Connection adapter is compatible with 802.11a, 802.11b or 802.11g wireless standards. Operating at 5 GHz or 2.4 GHz frequency at speeds of up to 54 Mbps you can now connect your computer to existing high-speed networks using multiple access points within large or small environments. Your wireless adapter maintains automatic data rate control according to access point location to achieve the fastest possible connection. provide enhanced security measures using 802.1x network authentication. All of your wireless networks connections can be easily managed by Intel PROSet/Wireless. Intel(R) PRO/Wireless profiles provide enhanced security measures using 802.1x network authentication. NOTE: The software is compatible with the Intel PROSet/Wireless 2915ABG Network Connection and the Intel PROSet Wireless 2200BG Network Connection. Table of Contents l Using Intel PROSet/Wireless l Using Profiles l Setting up Security l Security Overview l Introduction to Wireless Networking l Connecting to a Network l Specifications l Troubleshooting l Glossary l Customer Support l Safety and Regulatory Information l Warranty l Adapter Registration Information in this document is subject to change without notice. file:///C|/CX2%20Muroc%20UG/6-15-04/index.htm (1 of 2) [6/15/2004 3:40:01 PM] Contents © 2000–2004 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel(R) is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. June 2004 file:///C|/CX2%20Muroc%20UG/6-15-04/index.htm (2 of 2) [6/15/2004 3:40:01 PM] Using Intel(R)PROSet/Wireless Back to Contents Using Intel PROSet/Wireless Software: Intel(R) PRO/Wireless 2915ABG Network Connection User Guide l Using Intel(R) PROSet/Wireless as your Wireless Manager l Starting Intel PROSet/Wireless l Launch Intel PROSet/Wireless from the task tray l Task Tray Menu Options l Tool Tips and Balloon Message Prompts l Intel PROSet/Wireless Main Window l Connection Status Icons l Connection Details l Profile List l Available Networks l Menus (Tools and Profile menus) l Tools Menu m Application Settings m Adapter Settings m Use Microsoft Client m Advanced Statistics m Intel Wireless Troubleshooter m Administrator Tool l Profiles Menu m Import/Export m Manage Exclusions l Enabling and Disabling the Radio l Installing and Uninstalling the Software l Installing and Uninstalling Single Sign On Feature Using Intel(R) PROSet/Wireless as your Wireless Manager Intel PROSet/Wireless can be used to setup, edit and manage network profiles to connect to a network. It also includes advanced settings such as power management and channel selection for setting up ad-hoc networks. If you are using Windows XP as your wireless manager, you can disable it from the Wireless Network tab. To disable Windows XP as your wireless manager: 1. Double-click the Intel PROSet/Wireless icon in the desktop task tray or click Start ‡Settings ‡Control Panel and double-click on Network Connections. 2. Right-click Wireless Network Connection and click Properties. 3. Click on Wireless Networks tab on the Wireless Network Connection Properties. 4. Verify that the Use Windows to configure my wireless network settings box is not selected. If it is, deselect it. 5. Click OK. This confirms that the Intel PROSet/Wireless utility is configured to manage your network profiles. file:///C|/CX2%20Muroc%20UG/6-15-04/assist.htm (1 of 32) [6/15/2004 3:40:06 PM] Using Intel(R)PROSet/Wireless NOTE: Check that the Application Settings option Notify me when another application is using the wireless device is selected. This option prompts you when Windows XP starts to manage your network profiles. Starting Intel PROSet/Wireless Launch Intel PROSet/Wireless either from the task tray icon, the Windows Start button, or from the Windows Control Panel icon. To launch Intel PROSet/Wireless use either of the following methods: l Click Start > Programs > Intel Wireless > Intel PROSet/Wireless. l Right-click the task tray icon located in the lower right corner of your Windows Desktop, and click the menu option Open Intel PROSet/Wireless. l Double-click the task tray icon to open Intel PROSet/Wireless. Exit Intel PROSet/Wireless: l To exit Intel PROSet/Wireless and close the task tray icon, click Exit from the from the task tray menu or click the Close button on the Intel PROSet/Wireless main window. Launch Intel PROSet/Wireless from the task tray To launch Intel PROSet/Wireless, double-click the task tray icon located in the lower right corner of your Windows desktop or right-click the task tray icon and click Open Intel PROSet/Wireless. Exit Intel PROSet/Wireless To exit Intel PROSet/Wireless and hide the task tray icon, right-click the task tr…

Text truncated - open the document above for the full version.

TOSHIBA Portégé M200 Portable Personal Computer User’s Manual Copyright © 2003 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the informa- tion contained herein. TOSHIBA Portégé M200 Portable Personal Computer User’s Manual First edition November 2003 Disclaimer This manual has been validated and reviewed for accuracy. The instructions and descriptions it contains are accurate for the TOSHIBA Portégé M200 Portable Personal Computer at the time of this manual’s production. However, succeeding computers and manuals are subject to change without notice. TOSHIBA assumes no liability for damages incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manual. Trademarks IBM is a registered trademark of International Business Machines Corporation. Intel, Pentium and Centrino are registered trademarks and SpeedStep is a trademark of Intel Corporation. Windows and Microsoft are registered trademarks of Microsoft Corporation. Bluetooth is a trademark owned by its proprietor and used by TOSHIBA under licence. Other trademarks and registered trademarks not listed above may be used in this manual. FCC information Product Name : Portégé M200 Model number : PPM20 FCC notice "Declaration of Conformity Information" This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ❑Reorient or relocate the receiving antenna. ❑Increase the separation between the equipment and receiver. ❑Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ❑Consult the dealer or an experienced radio/TV technician for help. WARNING: Only peripherals complying with the FCC class B limits may be attached to this equipment. Operation with non-compliant peripher- als or peripherals not recommended by TOSHIBA is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer’s external monitor port, USB port and microphone jack. Changes or modifications made to this equipment, not expressly approved by TOSHIBA or parties authorized by TOSHIBA could void the user’s authority to operate the equipment. The modular cable that comes with the computer must be used to connect a modem. FCC conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Contact Address:TOSHIBA America Information Systems, Inc. 9740 Irvine Boulevard Irvine, California 92618-1697 Telephone:(949) 583-3000 EU Declaration of Conformity TOSHIBA declares, that the product: PPM20* conforms to the following Standards: Supplementary Information:“The product complies with the requirements of the Low Voltage Directive 73/23/EEC, the EMC Directive 89/336/EEC and/or the R&TTE Directive 1999/05/EEC.” This product is carrying the CE-Mark in accordance with the related European Directives. Responsible for CE-Marking is TOSHIBA Europe, Hammfelddamm 8, 41460 Neuss, Germany. VCCI Class B Information Modem warning notice Conformity Statement The equipment has been approved to [Commission Decision “CTR21”] for pan- European single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between the individual PSTNs provided in different countries/regions the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point. In the event of problems, you should contact your equipment supplier in the first instance. Network Compatibility Statement This product is designed to work with, and is compatible with the following networks. It has been tested to and found to conform with the additional require- ments conditional in EG 201 121. GermanyATAAB AN005,AN006,AN007,AN009,AN010 and DE03,04,05,08,09,12,14,17 GreeceATAAB AN005,AN006 and GR01,02,03,04 PortugalATAAB AN001,005,006,007,011 and P03,04,08,10 SpainATAAB AN005,007,012, and ES01 SwitzerlandATAAB AN002 All other countries/regionsATAAB AN003,004 Specific switch settings or software setup are required for each network, please refer to the relevant sections of the user guide for more details. The hookflash (timed break register recall) function is subject to separate national type approvals. It has not been tested for conformity to national type regulations, and no guarantee of successful operation of that specific function on specific national networks can be given. Japan regulations Region selection If you are using the computer in Japan, technical regulations described in the Telecommunications Business Law require that you select the Japan region mode. It is illegal to use the modem in Japan with any other selection. Redial Up to two redial attempts can be made. If more than two redial attempts are made, the modem will return Black Listed. If you are experiencing problems with the Black Listed code, set the interval between redials at one minute or longer. Japan’…

Text truncated - open the document above for the full version.

1 Information sheet Wireless Interoperability The Intel(R) PRO/Wireless 2915ABG Network Connection products are designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS)/Orthogonal Frequency Division Multiplexing(OFDM) radio technology, and is compliant to: The IEEE 802.11 Standard on Wireless LANs(Revision A/B/G), as defined and approved by the Institute of Electrical and Electronics Engineers. The Wireless Fidelity(Wi-Fi) certification as defined by the Wi-Fi Alliance. The “Wi-Fi CERTIFIED” logo is a certification mark of the Wi-Fi Alliance. CAUTION Bluetooth™ and WirelessLAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth™ and WirelessLAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection. If you should experience any such problem, immediately turn off either one of your Bluetooth™ or WirelessLAN. Please contact Toshiba PC product support on web site http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or http://www.pc.support.global.toshiba.comin the United States for more information. CAUTION This device is restricted to indoor use due to its operation in the 5.15 to 5.85 GHz frequency range. Wireless LAN and your Health Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones. Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: Using the Wireless LAN equipment on board of airplanes, or In any other environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment. Regulatory Information The Intel(R) PRO/Wireless 2915ABG Network Connection must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product. This device complies with the following radio frequency and safety standards. 2 Canada – Industry Canada (IC) This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.” L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Pour empecher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit etre utilize a l'interieur et devrait etre place loin des fenetres afin de Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d'emission) est installe a l'exterieur, il doit faire l'objet d'une licence. USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. TOSHIBA is not responsible for any radio or television interference caused by unauthorized modification of the devices included with this Intel(R) PRO/Wireless 2915ABG Network Connection , or the substitution or attachment of connecting cables and equipment other than specified by TOSHIBA. The correction of interference caused by such unauthorized modification, substitution or…

Text truncated - open the document above for the full version.

Toshiba Corporation Digital Media Network Company FCC ID: CJ6UPA3375WL Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V/2.7V/2.9V power regulator. Refer to Schematics 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)- LP-040) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested inside the laptop for limited modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). SAR test was performed on the portable laptop, Portege M200

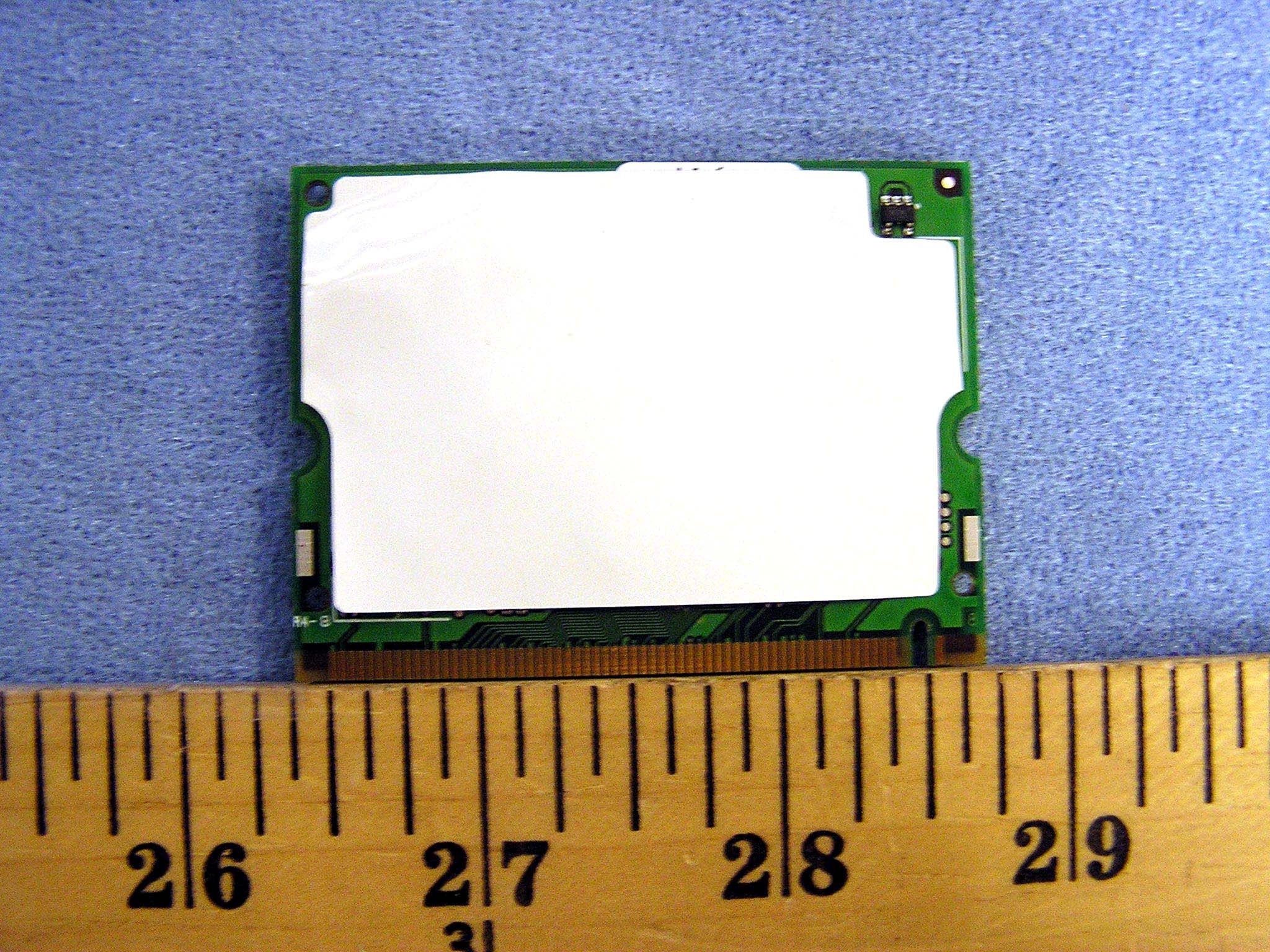

Bottom side view Regulatory Label of Wireless LAN on bottom of PC Regulatory Label Regulatory Label on Mini PCI Wireless LAN Card Front Back Serial Number / Part Number Bar Code

Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 1/1 Regulatory WLAN Antenna Information HTL004 Toshiba Corporation Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 2/2 Section 1. Antenna Assembly Specifications Antenna Assembly Summary: 1A Antenna Part Number 1B Manufacture 1C Antenna Type 1D Cable Assembly Part Number and Information 1E Peak Gain W/ Cable loss (dBi) 1F Peak Gain w/o Cable Loss (dBi) 1G VSWR 1H Cable Loss (dBi) 2400-2500MHz 1.5 dBi (peak) 2400-2500MHz 4.18 dBi (peak) 2400-2500MHz 1.49 max 2400-2500MHz 2.68 dBi (peak) 5150-5350MHz _.__ dBi (peak) 5150-5350MHz _.__ dBi (peak) 5150-5350MHz __.__ max 5150-5350MHz _.__ dBi (peak) 5470-5725MHz _.__ dBi (peak) 5470-5725MHz _.__ dBi (peak) 5470-5725MHz __.__ max 5470-5725MHz _.__ dBi (peak) HTL004 HitachiCable,Lt d. PIFA P/N: HTL004-510 50 ohm Coaxial. length: 510mm diameter: 1.0mm Connector: U.FL 5725-5850MHz _.__ dBi (peak) 5725-5850MHz _.__ dBi (peak) 5725-5850MHz __.__ max 5725-5850MHz _.__ dBi (peak) 2400-2500MHz -0.5 dBi (peak) 2400-2500MHz 2.18 dBi (peak) 2400-2500MHz 1.37 max 2400-2500MHz 2.68 dBi (peak) 5150-5350MHz _.__ dBi (peak) 5150-5350MHz _.__ dBi (peak) 5150-5350MHz __.__ max 5150-5350MHz _.__ dBi (peak) 5470-5725MHz _.__ dBi (peak) 5470-5725MHz _.__ dBi (peak) 5470-5725MHz __.__ max 5470-5725MHz _.__ dBi (peak) HTL004 HitachiCable,Lt d. PIFA P/N: HTL004-510 50 ohm Coaxial. length: 510mm diameter: 1.0mm Connector: U.FL 5725-5850MHz _.__ dBi (peak) 5725-5850MHz _.__ dBi (peak) 5725-5850MHz __.__ max 5725-5850MHz _.__ dBi (peak) Section 2. Dimensioned Photos or Drawings of Antennas Include a dimensioned photo or dimensioned drawing of main antenna here. Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 3/3 Include a dimensioned photo or dimensioned drawing of aux antenna here. Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 4/4 Section 3. Radiation characteristics of antennae Loaded in Host Platform 2400-2500MHz radiation characteristic Main antenna: 2400 MHz Center Frequency 2400 MHz Horizontal (dBi) peak 1.2 Vertical (dBi) peak -3.4 Horz+Vert (dBi) peak 1.2 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 5/5 Main antenna: 2450 MHz Center Frequency 2450 MHz Horizontal (dBi) peak 1.0 Vertical (dBi) peak -3.4 Horz+Vert (dBi) peak 1.0 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 6/6 Main antenna: 2500 MHz Center Frequency 2500 MHz Horizontal (dBi) peak 1.5 Vertical (dBi) peak -1.5 Horz+Vert (dBi) peak 1.5 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 7/7 Auxiliary antenna: 2400 MHz Center Frequency 2400 MHz Horizontal (dBi) peak -1.2 Vertical (dBi) peak -3.7 Horz+Vert (dBi) peak -1.2 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 8/8 Auxiliary antenna: 2450 MHz Center Frequency 2450 MHz Horizontal (dBi) peak -1.0 Vertical (dBi) peak -4.2 Horz+Vert (dBi) peak -1.0 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 9/9 Auxiliary antenna: 2500 MHz Center Frequency 2500 MHz Horizontal (dBi) peak -0.5 Vertical (dBi) peak -2.0 Horz+Vert (dBi) peak -0.5

Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 1/1 Regulatory WLAN Antenna Information HTL008 Toshiba Corporation Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 2/2 Section 1. Antenna Assembly Specifications Antenna Assembly Summary: 1A Antenna Part Number 1B Manufacture 1C Antenna Type 1D Cable Assembly Part Number and Information 1E Peak Gain W/ Cable loss (dBi) 1F Peak Gain w/o Cable Loss (dBi) 1G VSWR 1H Cable Loss (dBi) 2400-2500MHz 0.2 dBi (peak) 2400-2500MHz 2.24 dBi (peak) 2400-2500MHz 1.41 max 2400-2500MHz 2.04 dBi (peak) 5150-5350MHz 0.8 dBi (peak) 5150-5350MHz 3.77 dBi (peak) 5150-5350MHz 1.41 max 5150-5350MHz 2.97 dBi (peak) 5470-5725MHz 1.2 dBi (peak) 5470-5725MHz 4.26 dBi (peak) 5470-5725MHz 1.86 max 5470-5725MHz 3.06 dBi (peak) P/N:HTL008 Hitachi Cable ,Ltd. 2.4GHz:PIFA 5GHz:Loop P/N: HTL008-C334 50 ohm Coaxial. length: 715mm diameter: 1.0mm Connector: U.FL 5725-5850MHz -2.4 dBi (peak) 5725-5850MHz 0.72 dBi (peak) 5725-5850MHz 1.98 max 5725-5850MHz 3.12 dBi (peak) 2400-2500MHz 0.5 dBi (peak) 2400-2500MHz 2.89 dBi (peak) 2400-2500MHz 1.43 max 2400-2500MHz 2.39 dBi (peak) 5150-5350MHz -0.4 dBi (peak) 5150-5350MHz 3.08 dBi (peak) 5150-5350MHz 1.24 max 5150-5350MHz 3.48 dBi (peak) 5470-5725MHz -1.4 dBi (peak) 5470-5725MHz 2.19 dBi (peak) 5470-5725MHz 1.67 max 5470-5725MHz 3.59 dBi (peak) P/N: HTL008 Hitachi Cable ,Ltd. 2.4GHz:PIFA 5GHz:Loop P/N: HTL008-C334 50 ohm Coaxial. length: 838mm diameter: 1.0mm Connector: U.FL 5725-5850MHz -3.2 dBi (peak) 5725-5850MHz 0.45 dBi (peak) 5725-5850MHz 1.78 max 5725-5850MHz 3.65 dBi (peak) Section 2. Dimensioned Photos or Drawings of Antennas Include a dimensioned photo or dimensioned drawing of main antenna here. Unit:mm Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 3/3 Include a dimensioned photo or dimensioned drawing of aux antenna here. Unit:mm Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 4/4 Section 3. Radiation characteristics of antennae Loaded in Host Platform 2400-2500MHz radiation characteristic Main antenna: 2400 MHz Center Frequency 2400 MHz Horizontal (dBi) peak 0.2 Vertical (dBi) peak -2.0 Horz+Vert (dBi) peak 0.2 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 5/5 Main antenna: 2450 MHz Center Frequency 2450 MHz Horizontal (dBi) peak 0.0 Vertical (dBi) peak -2.7 Horz+Vert (dBi) peak 0.0 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 6/6 Main antenna: 2500 MHz Center Frequency 2500 MHz Horizontal (dBi) peak -0.2 Vertical (dBi) peak -2.9 Horz+Vert (dBi) peak -0.2 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 7/7 Auxiliary antenna: 2400 MHz Center Frequency 2400 MHz Horizontal (dBi) peak -1.5 Vertical (dBi) peak -1.7 Horz+Vert (dBi) peak -1.5 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 8/8 Auxiliary antenna: 2450 MHz Center Frequency 2450 MHz Horizontal (dBi) peak -1.9 Vertical (dBi) peak -0.9 Horz+Vert (dBi) peak -0.9 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 9/9 Auxiliary antenna: 2500 MHz Center Frequency 2500 MHz Horizontal (dBi) peak -1.4 Vertical (dBi) peak 0.5 Horz+Vert (dBi) peak 0.5 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 10/10 5150-5350 MHz radiation characteristic Main antenna: 5150 MHz Center Frequency 5150 MHz Horizontal (dBi) peak -1.1 Vertical (dBi) peak 0.5 Horz+Vert (dBi) peak 0.5 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 11/11 Main antenna: 5250 MHz Center Frequency 5250 MHz Horizontal (dBi) peak -1.9 Vertical (dBi) peak -0.5 Horz+Vert (dBi) peak -0.5 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 12/12 Main antenna: 5350 MHz Center Frequency 5350 MHz Horizontal (dBi) peak 0.5 Vertical (dBi) peak 0.8 Horz+Vert (dBi) peak 0.8 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 13/13 Auxiliary antenna: 5150 MHz Center Frequency 5150 MHz Horizontal (dBi) peak -0.7 Vertical (dBi) peak -0.7 Horz+Vert (dBi) peak -0.7 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 14/14 Auxiliary antenna: 5250 MHz Center Frequency 5250 MHz Horizontal (dBi) peak -0.9 Vertical (dBi) peak -2.4 Horz+Vert (dBi) peak -0.9 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 15/15 Auxiliary antenna: 5350 MHz Center Frequency 5350 MHz Horizontal (dBi) peak -0.5 Vertical (dBi) peak -0.4 Horz+Vert (dBi) peak -0.4 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 16/16 5470-5725MHz radiation characteristic Main antenna: 5470 MHz Center Frequency 5470 MHz Horizontal (dBi) peak -0.9 Vertical (dBi) peak -2.2 Horz+Vert (dBi) peak -0.9 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 17/17 Main antenna: 5597.5 MHz Center Frequency 5597.5 MHz Horizontal (dBi) peak -1.9 Vertical (dBi) peak 1.2 Horz+Vert (dBi) peak 1.2 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 18/18 Main antenna: 5725 MHz Center Frequency 5725 MHz Horizontal (dBi) peak -2.6 Vertical (dBi) peak -2.4 Horz+Vert (dBi) peak -2.4 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 19/19 Auxiliary antenna: 5470 MHz Center Frequency 5470 MHz Horizontal (dBi) peak -3.5 Vertical (dBi) peak -1.4 Horz+Vert (dBi) peak -1.4 Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 20/20 Auxiliary antenna: 5597.5 MHz Center Frequency 5597.5 MHz Horizontal (dBi) peak -2.3 Vertical (dBi) peak -2.7 Horz+Vert (dBi) peak -2.3 Doc.No.:8.8.03 Rev - …

Text truncated - open the document above for the full version.

Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 1/1 Regulatory WLAN Antenna Information HTL017 Toshiba Corporation Doc.No.:8.8.03 Rev - 5.0 Regulatory WLAN Antenna Information Example – Toshiba Corporation 2/2 Antenna Information Example Section 1. Antenna Assembly Specifications Antenna Assembly Summary: 1A Antenna Part Number 1B Manufacture 1C Antenna Type 1D Cable Assembly Part Number and Information 1E Peak Gain W/ Cable loss (dBi) 1F Peak Gain w/o Cable Loss (dBi) 1G VS…
