CJ6UPA3529U2Wireless UWB Port Replicator

TOSHIBA Wireless UWB Port Replicator Users Guide Version 0.1 1 TOSHIBA Wireless UWB Port Replicator Users Guide Revision 0.1 CONTENTS : RIGHTS................................................................................................................................................................................2 INTRODUCTION.................................................................................................................................................................4 1 TOSHIBA WIRELESS UWB PORT REPLICATOR FEATURES...................................................................................4 1.1 HARDWARE FEATURES........................................................................................................................................4 1.2 SYSTEM REQUIREMENTS.....................................................................................................................................4 2 INSTALLING DRIVER AND SOFTWARE........................................................................................................................4 2.1 INSTALLING THE DRIVER.......................................................................................................................................5 2.2 INSTALLING THE USB DRIVERS AND THE EVK CONTROL CENTER (ECC)............................................................5 2.3 CONNECT THE TOSHIBA WIRELESS UWB PORT REPLICATOR HARDWARE..................................................10 3 EVK CONTROL CENTER (ECC)...............................................................................................................................12 3.1 RUNNING THE EVK CONTROL CENTER APPLICATION.........................................................................................12 3.2 SELECT THE HOST INTERFACE.............................................................................................................................12 3.2.1 SELECT THE DEVICE IDENTIFIER (ADDRESS) AND TIME FREQUENCY CODE #......................................................13 3.2.2 RECEIVE WINDOW..............................................................................................................................................14 2 TOSHIBA Wireless UWB Port Replicator Users Guide Revision 0.1, Rights Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. WiQuest™ and WiDV™ are registered trademarks of WiQuest Communications, Inc.. No right, license, or interest to such trademark is granted hereunder. 3 TOSHIBA Wireless UWB Port Replicator Users Guide Revision 0.1, Regulatory Notices FCC information Product Name : TOSHIBA Wireless UWB Port Replicator Model number : PA3529 FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates , uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ■ Reorient or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ■ Consult the dealer or an experienced radio/TV technician for help. WARNING: Only peripherals complying with the FCC class B limits may be attached to this equipment. Operation with non-compliant peripherals or peripherals not recommended by TOSHIBA is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer’s external monitor port,DVI port, and USB ports. Changes or modifications made to this equipment, not expressly approved by TOSHIBA or parties authorized by TOSHIBA could void the user’s authority to operate the equipment. FCC conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Contact Address: TOSHIBA America Information Systems, Inc. 9740 Irvine Boulevard Irvine, CA 92618-1697 Telephone: (949) 583-3000 This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties. THIS DEVICE MUST BE INSTALLED IN A LOCATION THAT IS NOT ACCESIBLE TO THE GENERAL PUBLIC. INSTALL THE DEVICE SO THAT THE ANTENNA IS MORE THAN 20 cm FROM UNSUSPECTING PERSONNEL. FAILURE TO INSTALL THIS DEVICE AS DESCRIBED WILL RESULT IN A FAILURE TO COMPLY WITH FCC RULES FOR RF EXPOSURE AND IS DISCOURAGED. ONLY ANTENNAS APPROVED WITH THE DEVICE MAY BE USED. THIS DEVICE MAY NOT BE CO- LOCATED WITH OTHER TRANSMITTERS WITHOUT FURTHER APPROVAL BY THE FCC. 4 TOSHIBA Wireless UWB Port Replicator Users Guide Revision 0.1, Introduction This document outlines how to install the WiQuest USB drivers and software of the TOSHIBA Wireless UWB Port Replicator. One of the most important parts of this document is the driver and software installation procedure. Make sure to follow the step- by-step procedures. These procedures are proven to work. If followed, the setup, installation, and evaluation will go smoothly. 1 TOSHIBA Wireless UWB Port Replicator Features The TOSHIBA Wireless UWB Port Replicator Reference Design allows for …

Text truncated - open the document above for the full version.

All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK RF Systems Inc. This report must not be used to claim product endorsement by A2LA, NVLAP nor any other agency of the US Government. Compliance report of Wireless UWB Port Replicator Customer: Toshiba Corporation Date: December 22, 2006 TDK Report: TTS-TR-T111-104 Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician Checked by Radiated 30 MHz to 40 GHz A. Medina K. Yata Conducted 150 KHz to 30 MHz A. Medina K. Yata Report A. Medina P. Carson This document contains confidential information and cannot be disclosed outside of Toshiba or any affiliated company in whole or in part without the express written permission of TDK RF Systems Inc. TTS-TR-T111-104 2 1. Executive Summary An EMC evaluation to determine compliance of the Wireless UWB Port Replicator with requirements of FCC 47 CFR Part 15, Subpart F Section 15.517 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that is currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.517(a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.517(b) Yes Radiated Emissions 15.517(c), 15.209 Yes Radiated Emissions in GPS Bands 15.517(d) Yes Peak Emissions within a 50 MHz Bandwidth 15.517(e) Yes Labelling Requirements 15.517(f) Yes Page 3 of 50 2. Task Description 2.1. Scope Reference FCC ET Docket No. 98-153, FCC 02-48 First R&O; FCC 47 CFR, Part 15, Subpart A; FCC 47 CFR, Part 15, Subpart B; FCC 47 CFR, Part 15, Subpart C; FCC 47 CFR, Part 15, Subpart F FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) Title Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; Code of Federal Regulations, Part 15 Subpart A: General Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation Purpose of Test To gain FCC Certification Authorization for technical requirements for Indoor UWB Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O ANSI C63.4: 2003: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Indoor Ultra-Wideband System Page 4 of 50 2.2. Related Submittal(s)/Grant(s) None 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2004 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2004 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators FCC 47 CFR, Part 15, Subpart C 10/2004 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2004 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98-153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra- Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2004 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ET Docket No. 04- 352 3/2005 Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG 2.4. Client Information APPLICANT Name: Toshiba Corporation Address: Digital Media Network, Company Ome Complex, 2-9 Suehiro-cho Tokyo, Japan 198-8710 Contact Person: Kusuke Takenaka MANUFACTURER Name: Askey Technology (JingSu) LTD Address: Number 1388, Jiao Tong Road, WuJiang Economic – Technological Development Area, JiangSu Province, P.R.C. Contact Person: Stanly Cheng Page 5 of 50 2.5. 2.5 Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name Toshiba Product Name Wireless UWB Port Replicator Model Name or Number PA3529U-2PRP Serial Number 116AU000069 B0752 S1 Type of Equipment UWB radio Transmitter Input Power Supply Type External power adaptor Classification Indoor Ultra-Wideband System Technical Power Supply Requirements AC mains, 100 – 240 Vac, 50 – 60 Hz RF Output Rating -42 dBm EIRP @ 3 meters Operating Frequency Range 3100 MHz to 4800 MHz RF Output Impedance 50 Ω Channel Spacing N/A Pulse Width N/A Pulse Repetition Frequency N/A 10 dB Bandwidth >500 MHz Modulation/Constellation Multiband OFDM Oscillators’ Frequencies 48 MHz, EUT Ports 15V DC, USB(4), DVI-D, Ethernet, audio Antenna Connector Type Internal Antenna Description Diversity omni directional linear polarized internal and external antennas Logistics EUT Receive Date December 14, 2006 EUT Re…

Text truncated - open the document above for the full version.

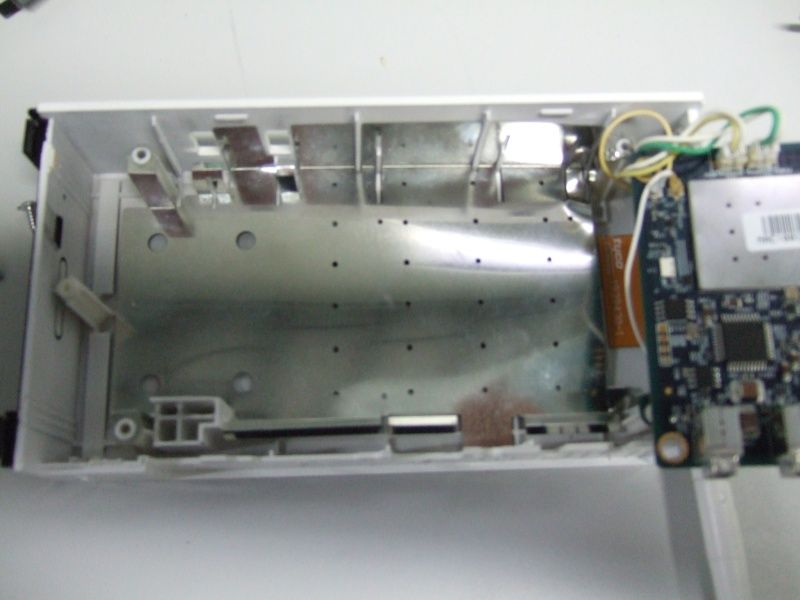

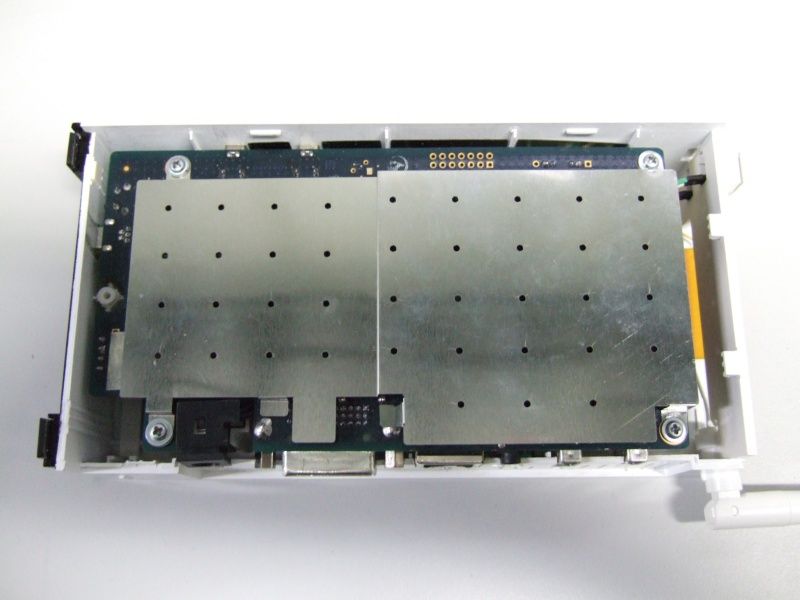

All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK RF Systems Inc. This report must not be used to claim product endorsement by A2LA, NVLAP nor any other agency of the US Government. Compliance report of Wireless UWB Port Replicator with metal shield Customer: Toshiba Corporation Date: February 17, 2007 TDK Report: TTS-TR-T111-104a Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician Checked by Radiated 3 GHz to 5 GHz A. Medina K. Yata Report A. Medina P. Carson This document contains confidential information and cannot be disclosed outside of Toshiba or any affiliated company in whole or in part without the express written permission of TDK RF Systems Inc. TTS-TR-T111-104 2 1. Executive Summary An EMC evaluation to determine compliance of the Wireless UWB Port Replicator with requirements of FCC 47 CFR Part 15, Subpart F Section 15.517 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that is currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.517(a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.517(b) Yes Radiated Emissions 15.517(c), 15.209 Yes Radiated Emissions in GPS Bands 15.517(d) Yes Peak Emissions within a 50 MHz Bandwidth 15.517(e) Yes Labelling Requirements 15.517(f) Yes Page 3 of 23 2. Task Description 2.1. Scope Reference FCC ET Docket No. 98-153, FCC 02-48 First R&O; FCC 47 CFR, Part 15, Subpart A; FCC 47 CFR, Part 15, Subpart B; FCC 47 CFR, Part 15, Subpart C; FCC 47 CFR, Part 15, Subpart F FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) Title Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; Code of Federal Regulations, Part 15 Subpart A: General Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation Purpose of Test To gain FCC Certification Authorization for technical requirements for Indoor UWB Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O ANSI C63.4: 2003: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Indoor Ultra-Wideband System Page 4 of 23 2.2. Related Submittal(s)/Grant(s) None 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2004 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2004 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators FCC 47 CFR, Part 15, Subpart C 10/2004 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2004 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98-153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra- Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2004 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ET Docket No. 04- 352 3/2005 Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG 2.4. Client Information APPLICANT Name: Toshiba Corporation Address: Digital Media Network, Company Ome Complex, 2-9 Suehiro-cho Tokyo, Japan 198-8710 Contact Person: Kusuke Takenaka MANUFACTURER Name: Askey Technology (JingSu) LTD Address: Number 1388, Jiao Tong Road, WuJiang Economic – Technological Development Area, JiangSu Province, P.R.C. Contact Person: Stanly Cheng Page 5 of 23 2.5. Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name Toshiba Product Name Wireless UWB Port Replicator Model Name or Number PA3529U-2PRP Serial Number 116AU000069 B0752 S1 Type of Equipment UWB radio Transmitter Input Power Supply Type External power adaptor Classification Indoor Ultra-Wideband System Technical Power Supply Requirements AC mains, 100 – 240 Vac, 50 – 60 Hz RF Output Rating -42 dBm EIRP @ 3 meters Operating Frequency Range 3100 MHz to 4800 MHz RF Output Impedance 50 Ω Channel Spacing N/A Pulse Width N/A Pulse Repetition Frequency N/A 10 dB Bandwidth >500 MHz Modulation/Constellation Multiband OFDM Oscillators’ Frequencies 48 MHz, EUT Ports 15V DC, USB(4), DVI-D, Ethernet, audio Antenna Connector Type Internal Antenna Description Diversity omni directional linear polarized internal and external antennas Logistics EUT Receive Date February 14, 2007 EUT Receive Condition Good Test Start D…

Text truncated - open the document above for the full version.
