CJ6UPA5197WL1X1 802.11b/g/n PCIe M.2 Module

1X1 802.11b/g/n PCIe M.2 Module Toshiba QCNFA125 Document Conventions Text Conventions bold Bold type within paragraph text indicates commands, file names, directory names, paths, output, or returned values. Example: The DK_Client package will not function unless you use the wdreg_install batch file. italic Within commands, italics indicate a variable that the user must specify. Example: mem_alloc size_in_bytes Titles of manuals or other published documents are also set in italics. Courier The Courier font indicates output or display. Example: Error:Unable to allocate memory for transfer! Menu The Menu character tag is used for menu items. Example: Choose Edit > Copy. [ ] Within commands, items enclosed in square brackets are optional parameters or values that the user can choose to specify or omit. { } Within commands, items enclosed in braces are options from which the user must choose. | Within commands, the vertical bar separates options. ... An ellipsis indicates a repetition of the preceding parameter. > The right angle bracket separates successive menu selections. Example: Start > Programs > DK > wdreg_install. Notices NOTE: This message denotes neutral or positive information that calls out important points to the text. A note provides information that may apply only in special cases. Revision History Revision Description of Changes Feb 2014 Initial Release Contents Introduction The QCNFA125 802.11n Adapter support 802.11n. The card uses the Atheros Client Utility (ACU) which is a user-mode utility designed to edit and add profiles for selected Atheros network interface adapters. System Requirements Laptop/ PC containing: 32-bit PCI Express Bus 32 MB memory or greater 300 MHz processor or higher Microsoft Windows 2000, Windows Millennium Edition, Windows 98 Second Edition, Windows XP, or Windows NT 4.0 (with Service Pack 6) Profile Management Configure the wireless network adapter (wireless card) from the Profile Management tab of the Atheros Client Utility. Add a profile Edit a profile Import a Profile Export a Profile Order profiles Switch to a different profile Remove a profile Connect to a Different Network The wireless network adapter works in either infrastructure mode (which uses an access point) or ad hoc mode (a group of stations participating in the wireless LAN). Create or Modify a Configuration Profile To add a new configuration profile, click New on the Profile Management tab. To modify a configuration profile, select the configuration from the Profile list and click the Modify button. The Profile Management dialog box displays the General tab. In profile management: Edit the General tab. Edit the Security tab. Edit the Advanced tab. To configure a profile for ad hoc or access point (infrastructure) mode, edit the Network Type field on the Advanced tab. Note that the ACU only allows the creation of 16 configuration profiles. After the creation of 16 profiles, clicking the New button displays an error message. Remove an old profile or modify an existing profile for a new use. Remove a Configuration Profile 1. Go to the Profile Management tab. 2. Select the profile to remove from the list of configuration profiles. 3. Click the Remove button. Auto Profile Selection Management Including a profile in the auto selection feature allows the wireless adapter to automatically select that profile from the list of profiles and use it to connect to the network. Including a profile in auto profile selection: 1. On the Profile Management tab, click the Order Profiles button. 2. The Auto Profile Selection Management window appears, with a list of all created profiles in the Available Profiles box. 3. Highlight the profiles to add to auto profile selection, then click Add. The profiles appear in the Auto Selected Profiles box. Ordering the auto selected profiles: 1. Highlight a profile in the Auto Selected Profiles box. 2. Click Move Up, Move Down, or Remove as appropriate. The first profile in the Auto Selected Profiles box has highest priority, and the last profile has lowest priority. 3. Click OK. 4. Check the Auto Select Profiles box. 5. Save the modified configuration file. When auto profile selection is enabled by checking Auto Select Profiles on the Profile Management tab, the adapter scans for an available network. The profile with the highest priority and the same SSID as one of the found networks is the one that is used to connect to the network. If the connection fails, the adapter tries the next highest priority profile that matches the SSID, and so on. With auto profile selection enabled, the wireless adapter scans for available networks. The highest priority profile with the same SSID as a found network is used to connect to the network. On a failed connection, the adapter tries with the next highest priority profile. Switching to a Different Configuration Profile 1. To switch to a different profile, go to the Profile Management tab. 2. Click on the profile name in the Profile List. 3. Click the Activate button. The Profile List provides icons that specify the operational state for that profile. The list also provides icons that specify the signal strength for that profile. Import and Export Profiles Importing a Profile 1. From the Profile Management tab, click the Import button. The Import Profile window appears. 2. Browse to the directory where the profile is located. 3. Highlight the profile name. 4. Click Open. The imported profile appears in the profiles list. Exporting a Profile 1. From the Profile Management tab, highlight the profile to export. 2. Click the Export button. The Export Profile window appears. 3. Browse to the directory to export the profile to. 4. Click Save. The profile is exported to the specified location. TCP/IP Configuration Configuring the TCP/IP Address for the network device: 1. After configuring the wireless network adapter properties, open the Control Panel and open Network and Dial-up Connections. 2. Find the Local Area Connection assoc…

Text truncated - open the document above for the full version.

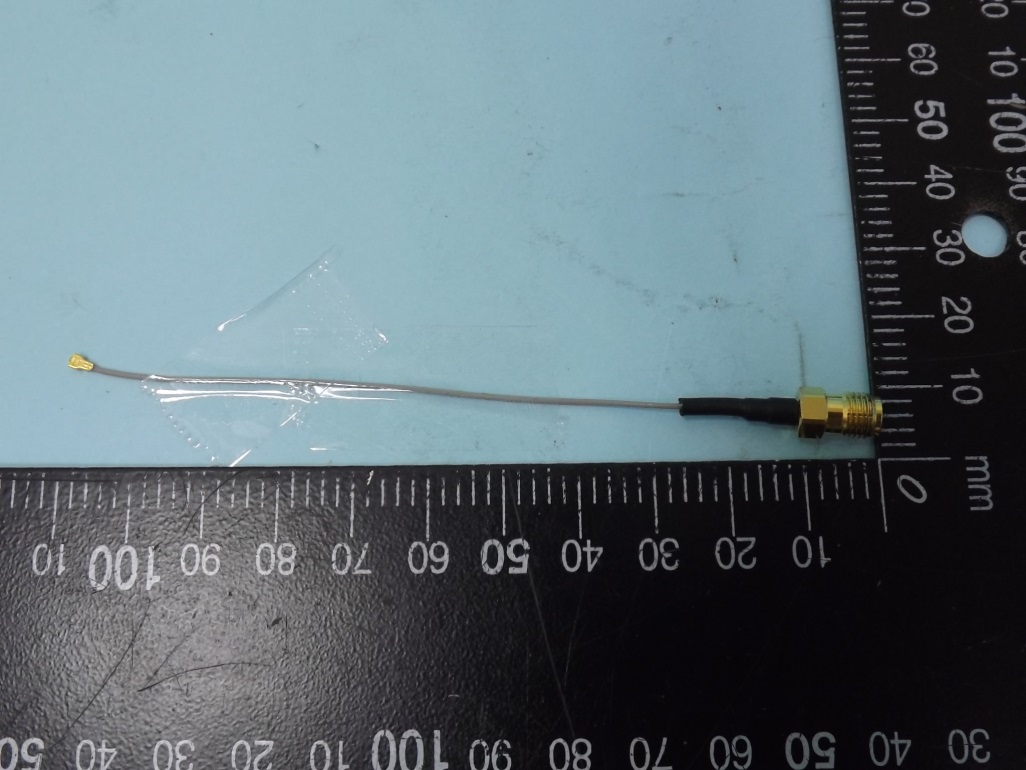

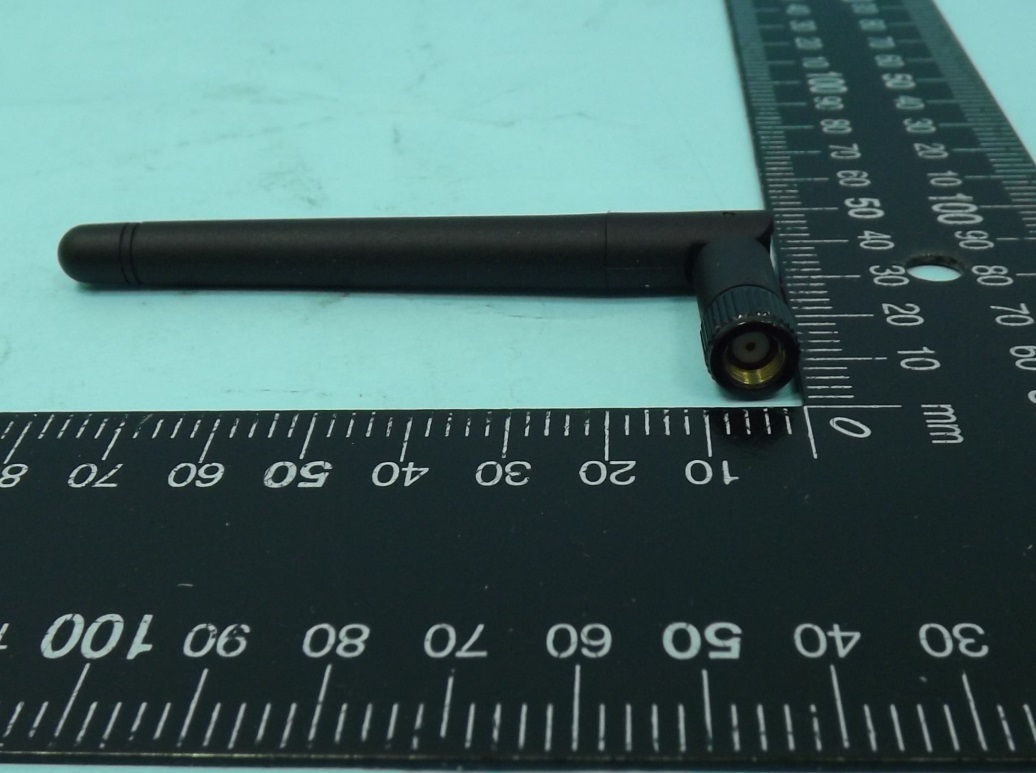

FCC / IC Test Report Report No. : EP411317 SPORTON International Inc. PAGE NUMBER : B1 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC / IC Test Report Report No. : EP411317 SPORTON International Inc. PAGE NUMBER : B3 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 PIFA Ant. FCC / IC Test Report Report No. : EP411317 SPORTON International Inc. PAGE NUMBER : B5 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 Dipole Ant. FCC / IC Test Report Report No. : EP411317 SPORTON International Inc. PAGE NUMBER : B6 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 FCC / IC Test Report Report No. : EP411317 SPORTON International Inc. PAGE NUMBER : B7 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973

PROPOSED FCC ID LABEL AND LOCATION Printed Color： Black 地色：White 材質：一般合成紙 粘著材：樹脂系糊 Bottom of EUT FCC / IC Label Location

FCC / IC Test Report Report No. : EP411317 SPORTON International Inc. PAGE NUMBER : B1 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC / IC Test Report Report No. : EP411317 SPORTON International Inc. PAGE NUMBER : B2 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Feb. 12, 2014 FAX : 886-3-327-0973

FCC / IC EMF Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC / IC EMF Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC / IC EMF Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) b 1 1 Correlated 19.50 g 1 1 Correlated 19.50 n (HT20) 1 1 Correlated 18.00 n (HT40) 1 1 Correlated 17.50 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 19.50 3.20 22.70 0.03705 11G-20M 1 19.50 3.20 22.70 0.03705 11N2.4G-20M 1 18.00 3.20 21.20 0.02623 11N2.4G-40M 1 17.50 3.20 20.70 0.02337 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Feb. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : CJ6UPA5197WL FCC SAR Test Report Report No. : FA411317 FCC SAR Test Report APPLICANT : Toshiba Corporation EQUIPMENT : 1X1 802.11b/g/n PCIe M.2 Module BRAND NAME : Toshiba MODEL NAME : QCNFA125 FCC ID : CJ6UPA5197WL STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was completely tested on Feb. 05, 2014. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Feb. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : CJ6UPA5197WL FCC SAR Test Report Report No. : FA411317 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 2.1 Testing Laboratory .................................................................................................................................................. 4 2.2 Applicant ................................................................................................................................................................ 4 2.3 Manufacturer .......................................................................................................................................................... 4 2.4 Application Details .................................................................................................................................................. 4 3. General Information ...................................................................................................................................................... 5 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 5 3.2 Maximum RF output power among production units .............................................................................................. 5 3.3 Applied Standard .................................................................................................................................................... 6 3.4 Device Category and SAR Limits ........................................................................................................................... 6 3.5 Test Conditions ....................................................................................................................................................... 6 4. Specific Absorption Rate (SAR) ................................................................................................................................... 7 4.1 Introduction ............................................................................................................................................................ 7 4.2 SAR Definition ........................................................................................................................................................ 7 5. SAR Measurement System ........................................................................................................................................... 8 5.1 E-Field Probe ......................................................................................................................................................... 8 5.2 Data Acquisition Electronics (DAE) ........................................................................................................................ 9 5.3 Robot ....................................................................................................................................................................10 5.4 Measurement Server .............................................................................................................................................10 5.5 Phantom ................................................................................................................................................................ 11 5.6 Device Holder........................................................................................................................................................12 5.7 Data Storage and Evaluation ................................................................................................................................13 5.8 Test Equipment List ...............................................................................................................................................15 6. Tissue Simulating Liquids ...........................................................................................................................................16 7. SAR System Verification .............................................................................................................................................18 7.1 Purpose of System Performance check ................................................................................................................18 7.2 System Setup .......................................................................................…

Text truncated - open the document above for the full version.

FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 1 of 54 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC / IC Radio Test Report Applicant : Toshiba Corporation Digital Products & Services Company. 2-9 Suehiro-cho, Ome shi, Tokyo 198-8710, Japan Manufacturer : Toshiba Corporation 2-9 Suehiro-cho, Ome shi, Tokyo 198-8710, Japan Equipment : 1X1 802.11b/g/n PCIe M.2 Module Brand Name : Toshiba Model No. : QCNFA125 FCC ID : CJ6UPA5197WL IC ID : 248H-DPA5197WL Standard : 47 CFR FCC Part 15.247 RSS-210 Issue 8 Operating Band : 2400 MHz – 2483.5 MHz The product sample received on Jan. 14, 2014 and completely tested on Jan. 24, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 2 of 54 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 Test Setup Diagram ............................................................................................................................... 9 3 TRANSMITTER TEST RESULT .......................................................................................................... 10 3.1 6dB Bandwidth ..................................................................................................................................... 10 3.2 RF Output Power .................................................................................................................................. 13 3.3 Power Spectral Density ........................................................................................................................ 17 3.4 Emission in Non-Restricted Frequency Bands ..................................................................................... 20 3.5 Emission in Restricted Frequency Bands ............................................................................................ 25 3.6 AC Power-line Conducted Emissions .................................................................................................. 51 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 54 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 3 of 54 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Typical Data Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied According to FCC 15.203 Complied 3.1 15.247(a) / RSS-210 A8.2 / /RSS-Gen 4.6.1 6dB Bandwidth 20M: 9.63 MHz 40M: 33.72 MHz ≥500kHz Complied 99% Bandwidth 20M: 17.78 MHz 40M: 36.18 MHz 3.2 15.247(b) / RSS-210 A8.4 RF Output Power (Maximum Peak Conducted Output Power) 11 b: 21.14 dBm 11 g: 22.97 dBm 11 n HT20: 21.24 dBm 11 n HT40: 21.26 dBm ≦30 dBm Complied 3.3 15.247(e) / RSS-210 A8.2 Power Spectral Density 11 b: -8.40 dBm/100kHz 11 g: -11.72 dBm/100kHz 11 n HT20: -13.14 dBm/100kHz 11 n HT40: -15.80 dBm/100kHz ≦8 dBm/3kHz Complied 3.4 15.247(d) / RSS-210 A8.5 Emission in Non-Restricted Frequency Bands Non-Restricted Bands Non-Restricted Bands: > 20 dBc Complied 3.5 15.247(d) / RSS-210 A8.5 Emission in Restricted Frequency Bands Restricted Bands 2389.88 MHz -24.30 dBm - PK -43.40 dBm - AV Restricted Bands: According to FCC 15.209 / RSS-Gen 6.1 Complied 3.6 15.207 / RSS-Gen 7.2.4 AC Power-line Conducted Emissions 0.1924150 MHz 48.86 dBuV – QP 39.28 dBuV - AV According to FCC 15.207 / RSS-Gen 7.2.4 Complied FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 4 of 54 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR411317 Rev. 01 Initial issue of report Feb. 12, 2014 2500-2690 FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 5 of 54 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information (WLAN) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz)Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400~2483.5 b 2412, 2417, 2422, 2427, 2432, 2437, 2442, 2447, 2452, 2457, 2462 11 1 21.14 g 2412, 2417, 2422, 2427, 2432, 2437, 2442, 2447, 2452, 2457, 2462 11 1 22.97 n (HT20) 2412, 2417, 2422, 2427, 2432, 2437, 2442, 2447, 2452, 2457, 2462 11 1 21.24 n (HT40) 2422, 2427, 243…

Text truncated - open the document above for the full version.

FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 1 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 2 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration EUT with 50Ω Terminal FRONT VIEW REAR VIEW FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 3 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 4 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 5 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz EUT with 50Ω Terminal FRONT VIEW REAR VIEW FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 6 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz EUT with 50Ω Terminal FRONT VIEW REAR VIEW FCC / IC Radio Test Report Report No. : FR411317 SPORTON INTERNATIONAL INC. Page No. : 7 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 EUT take a close-up FRONT VIEW

SPORTON INTERNATIONAL INC. Page Number : D1 of D1 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CJ6UPA5197WL FCC SAR Test Report Report No. : FA411317 Appendix D. SAR Test Setup Photos Front, Test Separation 1.2 cm Back Side Test Separation 1.2 cm Edge1, Test Separation 1.2 cm Edge2, Test Separation 1.2 cm Edge3, Test Separation 1.2 cm Edge4, Test Separation 1.2 cm
