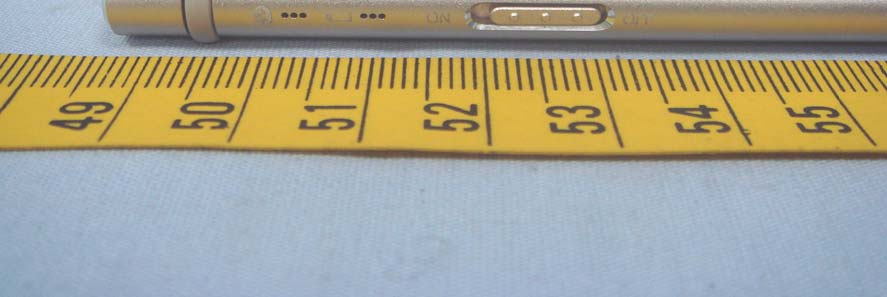

Report No: T140320L08 Page 1 / 11 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T140320L08 Page 2 Rev.00 Report No: T140320L08 Page 3 Rev.00 Report No: T140320L08 Page 4 Rev.00 Report No: T140320L08 Page 5 Rev.00 TOSHIBA / PA5201U-1ACA Report No: T140320L08 Page 6 Rev.00

Report No: T140320L08 Page 7 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T140320L08 Page 8 Rev.00 Report No: T140320L08 Page 9 Rev.00 Report No: T140320L08 Page 10 Rev.00 Report No: T140320L08 Page 11 Rev.00 Antenna

Compliance Certification Services Inc. Report No.: T140320L08 - MF Date of Issue: April 21, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The tune-up power is 0.5 dBm +/- 1.5dB, therefore the highest tune-up power is 2.0 dBm(1.58 mW)@ 2441 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (2mW / 5mm)* (2.441GHz^0.5 )= 0.5 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 0.5 < 3.0 Therefore, standalone SAR measurements are not required for both head and body.

Compliance Certification Services Inc. Report No.: T140320L08-RP1 FCC ID: CJ6UPSUM3KBBT Date of Issue: April 8, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C TEST REPORT For Keyboard Model Name: KIRA, KIRAbook, KIRAbook Pro, KIRAbook Elite, KIRAbook V, KIRAbook Fit, KIRAbook Lift, KIRA Flip, KIRAbook Go, KIRAbook Switch, KIRAbook Ka, KIRAbook CrossFit, KIRAbook X-Fit, KIRAbook Klay, KIRAbook Kinetix, dynabook KIRA V93, dynabook KIRA V83, dynabook KIRA L93, dynabook KIRA L83, dynabook KIRA L73, dynabook KIRA L63, dynabook KIRA L53 Model Number: PSUM2, PSUM3, PSUM4 Trade Name: TOSHIBA Issued to Toshiba Corporation Digital Products & Service Company 2-9, Suehiro-cho, Ome-shi , Tokyo ,Japan Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841,Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T140320L08-RP1 FCC ID: CJ6UPSUM3KBBT Date of Issue: April 8, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 8, 2014 Initial Issue All Angel Hu Compliance Certification Services Inc. Report No.: T140320L08-RP1 FCC ID: CJ6UPSUM3KBBT Date of Issue: April 8, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION........................................................................................... 4 2 EUT DESCRIPTION ............................................................................................................... 5 3 TEST METHODOLOGY ......................................................................................................... 6 3.1. EUT CONFIGURATION ...................................................................................................... 6 3.2. EUT EXERCISE .................................................................................................................. 6 3.3. GENERAL TEST PROCEDURES ....................................................................................... 6 3.4. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................... 7 3.5. DESCRIPTION OF TEST MODES...................................................................................... 8 4 INSTRUMENT CALIBRATION............................................................................................... 9 4.1. MEASUREMENT EQUIPMENT USED ............................................................................... 9 4.2. MEASUREMENT UNCERTAINTY .................................................................................... 11 5 FACILITIES AND ACCREDITATIONS................................................................................. 12 5.1. FACILITIES ....................................................................................................................... 12 5.2. EQUIPMENT..................................................................................................................... 12 5.3. TABLE OF ACCREDITATIONS AND LISTINGS............................................................... 13 6 SETUP OF EQUIPMENT UNDER TEST.............................................................................. 14 6.1. SETUP CONFIGURATION OF EUT ................................................................................. 14 6.2. SUPPORT EQUIPMENT................................................................................................... 14 7 FCC PART 15.247 REQUIREMENTS .................................................................................. 15 7.1. 20DB BANDWIDTH........................................................................................................... 15 7.2. PEAK POWER .................................................................................................................. 18 7.3. AVERAGE POWER .......................................................................................................... 20 7.4. BAND EDGES MEASUREMENT ...................................................................................... 21 7.5. FREQUENCY SEPARATION............................................................................................ 29 7.6. NUMBER OF HOPPING FREQUENCY ............................................................................ 31 7.7. TIME OF OCCUPANCY (DWELL TIME) ........................................................................... 33 7.8. SPURIOUS EMISSIONS................................................................................................... 41 7.9. POWERLINE CONDUCTED EMISSIONS ........................................................................ 51 8 PHOTOGRAPHS OF TEST SETUP..................................................................................... 54 Compliance Certification Services Inc. Report No.: T140320L08-RP1 FCC ID: CJ6UPSUM3KBBT Date of Issue: April 8, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Applicant: Toshiba Corporation Digital Products & Service Company 2-9, Suehiro-cho, Ome-shi ,…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T140320L08-RP1 FCC ID: CJ6UPSUM3KBBT Date of Issue: April 8, 2014 Page 53 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8 PHOTOGRAPHS OF TEST SETUP Radiated Emission Setup Photos Below 1GHz Compliance Certification Services Inc. Report No.: T140320L08-RP1 FCC ID: CJ6UPSUM3KBBT Date of Issue: April 8, 2014 Page 54 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Compliance Certification Services Inc. Report No.: T140320L08-RP1 FCC ID: CJ6UPSUM3KBBT Date of Issue: April 8, 2014 Page 55 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photo Compliance Certification Services Inc. Report No.: T140320L08-RP1 FCC ID: CJ6UPSUM3KBBT Date of Issue: April 8, 2014 Page 56 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Power Line Conducted Emissions Setup Photos
