CJ6UPSU7FPC2Notebook Computer

User's Manual Satellite U930/U930t series Table of Contents Chapter 1 TOSHIBA Legal, Regulatory and Safety Copyright, Disclaimer and Trademarks .............................................. 1-1 Regulatory Information ......................................................................... 1-2 Video Standard Notice .......................................................................... 1-3 OpenSSL Toolkit License Issues ......................................................... 1-3 ENERGY STAR® Program .................................................................... 1-7 Disposing of the computer and the computer's batteries ................. 1-7 General Precautions ............................................................................. 1-7 Safety Icons ......................................................................................... 1-10 Chapter 2 Getting Started Equipment checklist ............................................................................. 2-1 Conventions ........................................................................................... 2-1 Using your computer for the first time ................................................ 2-2 Turning off the power ............................................................................ 2-8 Chapter 3 The Grand Tour Front with the display closed ............................................................... 3-1 Left side .................................................................................................. 3-1 Right side ............................................................................................... 3-2 Back ........................................................................................................ 3-3 Underside ............................................................................................... 3-3 Front with the display open .................................................................. 3-4 Internal Hardware Components ........................................................... 3-7 Monitoring of power conditions ......................................................... 3-11 Chapter 4 Operating Basics Using the Touch Screen ....................................................................... 4-1 The Keyboard ......................................................................................... 4-2 Battery .................................................................................................... 4-4 Memory media ....................................................................................... 4-8 HDMI Device ......................................................................................... 4-12 Optional TOSHIBA Accessories ........................................................ 4-14 Sound System and Video mode ......................................................... 4-14 Chapter 5 Utilities and Advanced Usage Utilities and Applications ...................................................................... 5-1 Special features ..................................................................................... 5-4 User's Manualii TOSHIBA Password utility .................................................................... 5-6 TOSHIBA System Settings ................................................................... 5-8 USB Charge ............................................................................................ 5-9 Sleep and Music .................................................................................. 5-12 TOSHIBA Media Player by sMedio TrueLink+ .................................. 5-13 TOSHIBA PC Health Monitor .............................................................. 5-14 System Recovery ................................................................................ 5-15 Chapter 6 Troubleshooting Problem solving process ...................................................................... 6-1 Hardware and system checklist ........................................................... 6-4 TOSHIBA support ................................................................................ 6-14 Chapter 7 Appendix Specifications ........................................................................................ 7-1 AC Power Cord and Connectors .......................................................... 7-2 Information for Wireless Devices ........................................................ 7-3 Legal Footnotes ..................................................................................... 7-7 Glossary ............................................................................................... 7-10 Index User's Manualiii Chapter 1 TOSHIBA Legal, Regulatory and Safety This chapter states the Legal, regulatory and safety information applicable to TOSHIBA computers. Copyright, Disclaimer and Trademarks Copyright © 2012 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein. First edition December 2012 Copyright authority for music, movies, computer programs, databases and other intellectual property covered by copyright laws belongs to the author or to the copyright owner. Copyrighted material can be reproduced only for personal use or use within the home. Any other use beyond that stipulated above (including conversion to digital format, alteration, transfer of copied material and distribution on a network) without the permission of the copyright owner is a violation of copyright or author's rights and is subject to civil damages or criminal action. Please comply with copyright laws in making any reproduction from this manual. Disclaimer This manual has been validated and reviewed for accuracy. The instructions and descriptions it contains are accurate for your computer at the time…

Text truncated - open the document above for the full version.

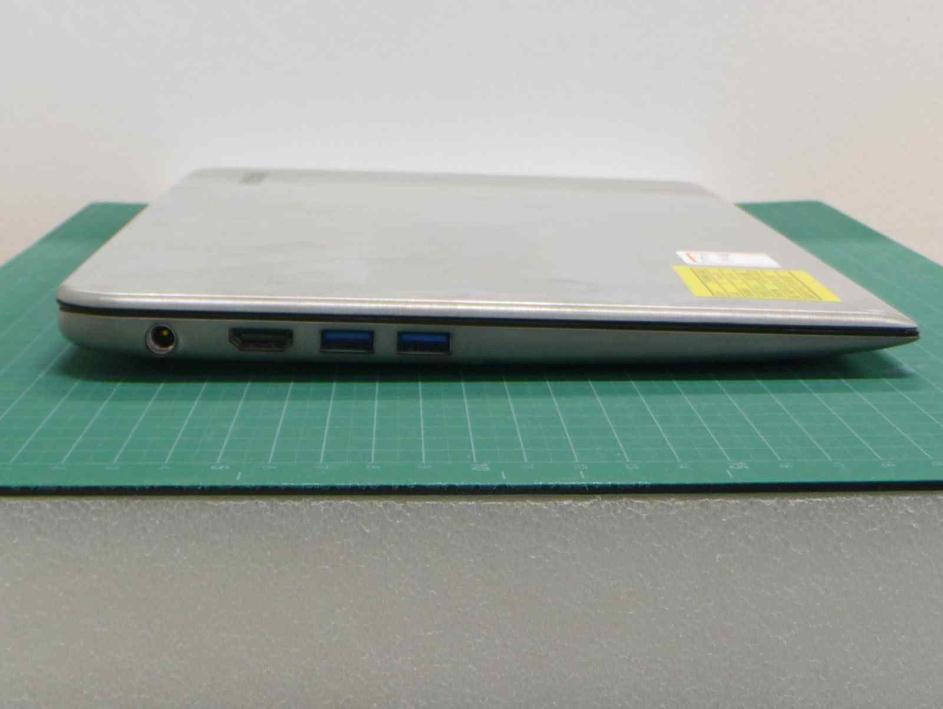

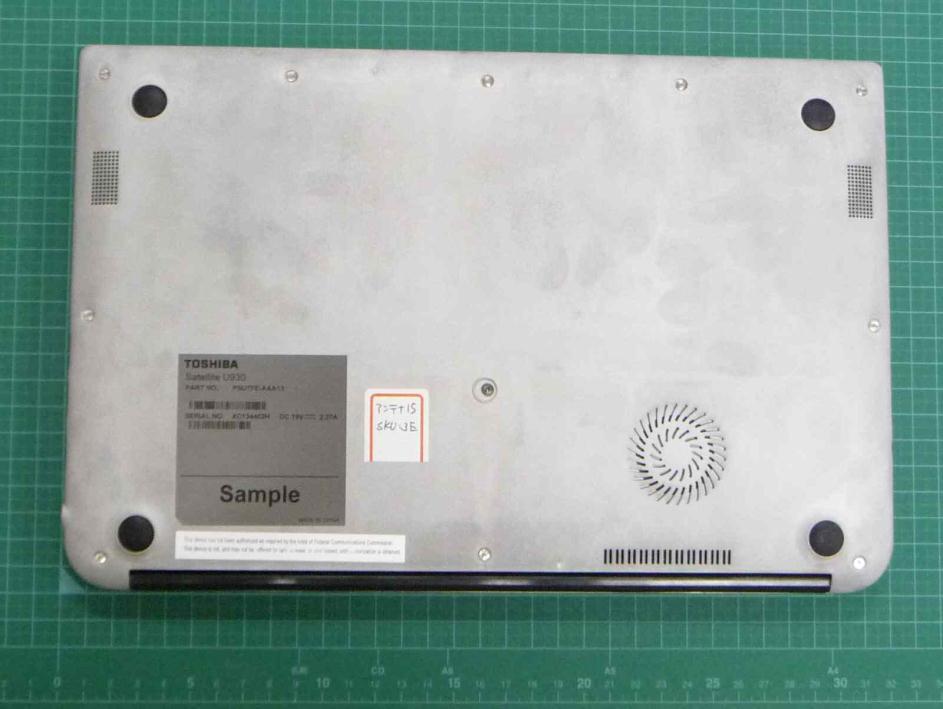

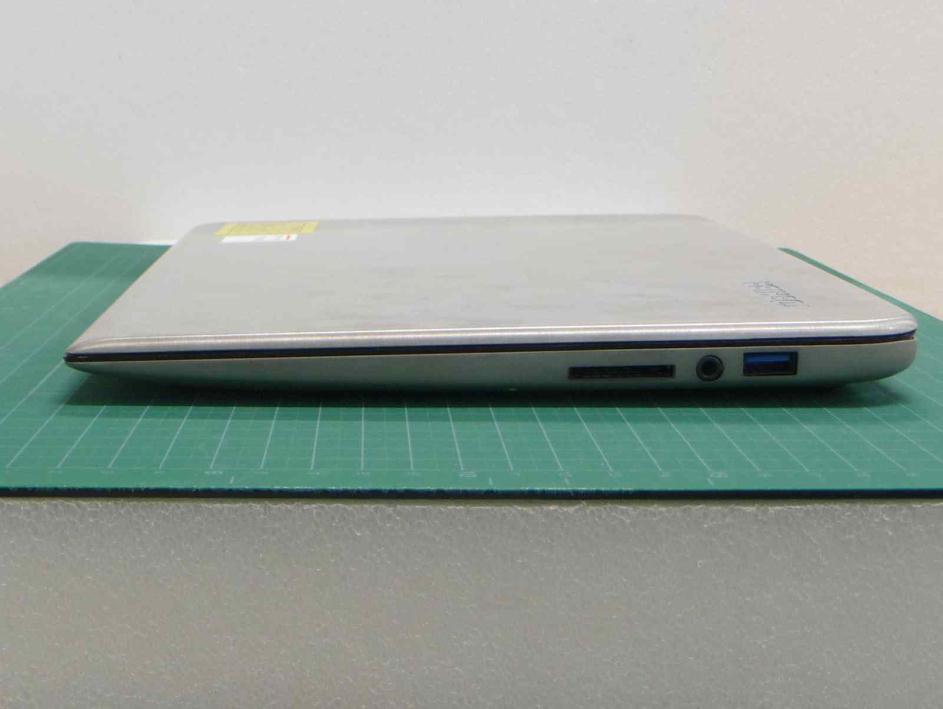

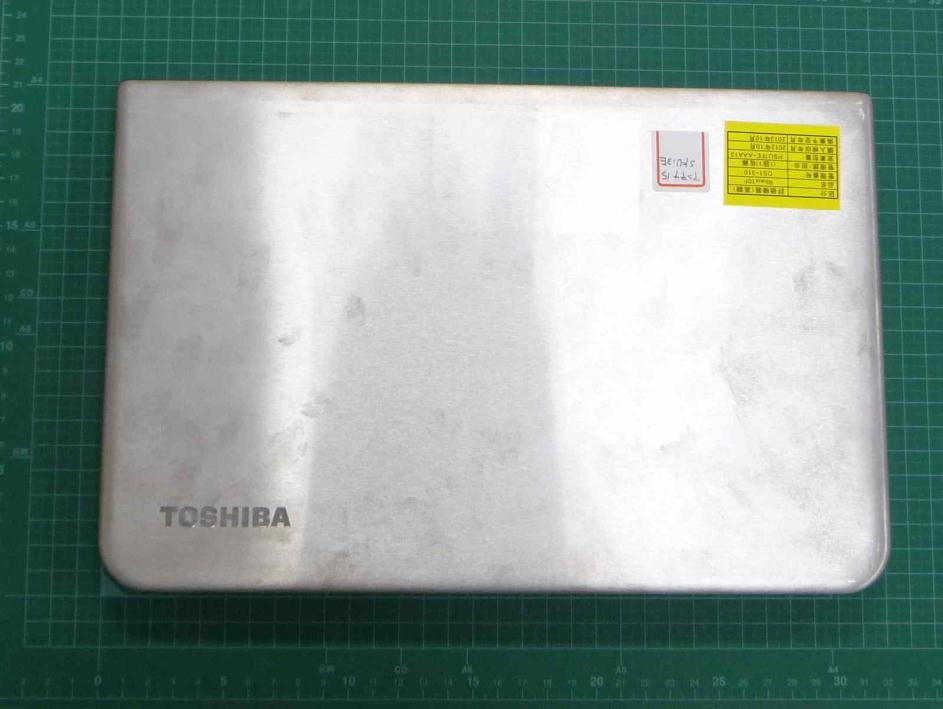

Top Bottom Left Right Front Rear Chain A (Main antenna) Chain B (Aux antenna) LCD open Chain A (Main antenna) Chain B (Aux antenna)

Confidential

Bottom cover removed Module zoom up Module is here!! Top with shield Top without shield Bottom Antenna

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 December 17, 2012 UL Japan, Inc. FCC ID: CJ6UPSU7FPC2 To whom it may concern, We, UL Japan, Inc., hereby declare that Notebook Computer, model: Satellite U930 (FCC ID: CJ6UPSU7FPC2) of Toshiba Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093 and FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. Thank you for your attention to this matter. Sincerely, Toyokazu Imamura, Leader of WiSE Japan, UL Verification Service UL Japan, Inc.

Test report No. : 33CE0266-SH-02-B Page : 2 of 59 Issued date : December 17, 2012 Revised date : December 25, 2012 FCC ID : CJ6UPSU7FPC2 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 33CE0266-SH-02-B Revision Test report No. Date Page revised Contents - (Original) 33CE0266-SH-02-B December 17, 2012 - - 1 33CE0266-SH-02-B December 25, 2012 1-2 12 P1-2: Update P12: Correction of description about tilt angle Test report No. : 33CE0266-SH-02-B Page : 3 of 59 Issued date : December 17, 2012 FCC ID : CJ6UPSU7FPC2 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 6 SECTION 4: Operation of E.U.T. during testing ................................................................. 9 SECTION 5: Conducted emission ...................................................................................... 11 SECTION 6: Radiated emission ......................................................................................... 12 SECTION 7: Carrier frequency separation ........................................................................ 14 SECTION 8: 20dB bandwidth & Occupied bandwidth (99%) ......................................... 14 SECTION 9: Number of hopping frequency ...................................................................... 14 SECTION 10: Dwell time .................................................................................................... 14 SECTION 9: Maximum peak output power ...................................................................... 14 SECTION 11: Spurious emissions (Antenna port conducted) ........................................... 14 Contents of APPENDIXES ................................................................................................... 15 APPENDIX 1: Data of Radio tests ...................................................................................... 16 APPENDIX 2: Test instruments ......................................................................................... 56 APPENDIX 3: Photographs of test setup ........................................................................... 58 Test report No. : 33CE0266-SH-02-B Page : 4 of 59 Issued date : December 17, 2012 FCC ID : CJ6UPSU7FPC2 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Toshiba Corporation Address : 2-9, Suehiro-cho, Ome-shi, Tokyo, 198-8710 Japan Telephone Number : +81 42 834 1050 Facsimile Number : +81 42 830 7331 Contact Person : Toshiyuki Echigo SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Notebook Computer Model Number : Satellite U930 Serial Number : Refer to 4.2 in this report. Rating : DC19V Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : November 14, 2012 Modification of EUT : No modification by the test lab. 2.2 Product description Model: Satellite U930 (referred to as the EUT in this report) is a Notebook Computer. Derived models of the EUT: Model Touch screen function Satellite U930 (EUT) - Satellite U930t Yes Satellite U935 - Satellite U935t Yes Model: Satellite U930/ Satellite U930t has a different sales channel with Satellite U935/Satellite U935t. Clock frequency(ies) in the system : 40MHz (XTAL) Test report No. : 33CE0266-SH-02-B Page : 5 of 59 Issued date : December 17, 2012 FCC ID : CJ6UPSU7FPC2 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radio specification: Bluetooth: Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth : 79MHz Channel spacing : 1MHz (BDR/EDR mode), 2MHz (Low Energy mode) Type of modulation : FHSS, DSSS Antenna type : PIFA Antenna gain with cable loss : 3.24dBi Antenna connector type : U.FL ITU code : F1D, G1D Refer to the test report: 33CE0266-SH-02-C for Bluetooth part (Low Energy mode). When Bluetooth is used, IEEE 802.11 a/b/g/n is not transmitted. Wireless LAN: Equipment type : Transceiver Frequency of operation : 2.4GHz: 2412-2462MHz (IEEE 802.11b, 11g, 11n-HT20) 2422-2452MHz (IEEE 802.11n-HT40) W52: 5180-5240MHz (IEEE 802.11a, 11n-HT20) 5190-5230MHz (IEEE 802.11n-HT40) W53: 5260-5320MHz (IEEE 802.11a, 11n-HT20) 5270-5310MHz (IEEE 802.11n-HT40) W56: 5500-5700MHz (IEEE 802.11a, 11n-HT20) 5510-5670MHz (IEEE 802.11n-HT40) W58: 5745-5825MHz (IEEE 802.11a, 11n-HT20) 5755-5795MHz (IEEE 802.11n-HT40) Bandwidth : 20MHz (IEEE 802.11a/b/g/n), 40MHz (IEEE 802.11n) Channel spacing : 5MHz (2.4GHz), 20MHz (11a, 11n (HT20, 5GHz)), 40MHz (11n (HT40, 5GHz)) Type of modulation : DSSS, OFDM Antenna type : PIFA Antenna gain with cable loss : 3.24dBi (2.4GHz), 3.64dBi (W52), 3.73dBi (W53), 4.77dBi (W56), 4.97dBi (W58) Antenna connector type : U.FL ITU code : D1D, G1D Refer to the test report: 33CE0266-SH-02-A/D/E for Wireless LAN part. Operation temperature range : 0 to +80 deg.C FCC 15.31 (e) The EUT provides stable voltage (DC3.3V) constantly to the wireless transmitter regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 The EUT has a unique coupling/antenna connector (U.FL). Therefore the equipment complies with the requirement. Test report No. : 33CE0266-SH-02-B Page : 6 of…

Text truncated - open the document above for the full version.

Test report No. : 33CE0266-SH-02-B Page : 58 of 59 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Test report No. : 33CE0266-SH-02-B Page : 59 of 59 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) END OF REPORT
