CJ6UTDPW01WLWireless LAN Module Unit

Wireless LAN Module Unit User’s Manual Model : TDPWLAN01 Prior to using wireless LAN module unit, please take the time to read through this user’s manual to ensure correct usage of the unit. This wireless LAN module unit offers an additional feature of wireless LAN supporting IEEE802.11g/b by embedding in a projector and controlled by a control unit which is connected to the unit with FFC cable. This wireless LAN module unit is a built-in device designed to be exclusively used for projectors. Do not use for any other purposes. This wireless LAN module unit is not commercially available to regular users for use. IMPORTANT SAFETY PRECAUTIONS ● Please read and observe all warnings and instructions given in this User’s Manual. ■ If you notice smoke or a strange smell coming from the unit, turn off the power. ■ Do not attempt to repair, remodel or disassemble this product. ■ Do not use near water. ■ Do not use near people with heart pacemakers ■ Do not use near electronic medical equipment, or in hospitals or other Medical institutions ■ Do not use inside aircraft or in places where the wireless LAN module could interfere with electromagnetic signals. The electromagnetic interference could cause a malfunction, resulting in an accident. ■ If the use of a wireless LAN module interferes with another device’s electromagnetic signals, cease use immediately. The electromagnetic interference could cause a malfunction, resulting in an accident. 1 Appearance and Names of each part Figure 1. (1). Wireless LAN Module (2). Chip Antenna (3). 13-pin connector for FFC cable (4). Hole for Screw (5). LED 2 Specification Interface : SDIO FFC13-pin cable supported Wireless LAN : IEEE802.11g/b Operating frequency band : 2.4 GHz Transmission speed : 54, 48, 36, 24, 18, 12, 9, 6 (Mbps)(IEEE802.11g) 11,5.5, 2,1(Mbps)(IEEE802.11b) Channel : 1 to 11 channel(See Table 1) External dimensions : 32 x 21 x 5(typ.)mm Weight : 2.8 g Consumption current : 3.3V(200(typ.)mA) 1.8V(200(typ.)mA) Conditions for usage environment : Temp: 0 to 40 degrees C; relative humidity: 30% to 70% Table 1. Channel Center Frequency 1 2412MHz 2 2417MHz 3 2422MHz 4 2427MHz 5 2432MHz 6 2437MHz 7 2442MHz 8 2447MHz 9 2452MHz 10 2457MHz 11 2462MHz Pin assignment of 13-pin connector for FFC cable 1. SD-CLK 2. GND 3. SD-CMD 4. GND 5. SD-DAT0 6. GND 7. SD-DAT1 8. GND 9. SD-DAT2 3 10. 3.3V 11. SD-DAT3 12. 1.8V 13. RESET Installation Figure 2 shows an example of installation. 1. Place the rear side of the unit on the electrically-grounded metal surface and fix with two screws as shown in Figure 2. 2. Plug the FFC cable in 13-pin connector for FFC cable. ■ Notes Do not place any objects which do not conduct electric waves outside the chip antenna. Figure 2. This device contains WLAN module and FCC ID: CJ6UTDPW01WL / IC ID: 248H-DTDPW01W 4 FCC Compliance Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not nstalled and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment or devices -Connect the equipment to an outlet other than the receiver's -Consult a dealer or an experienced radio/TV technician for assistance Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF exposure warning:This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

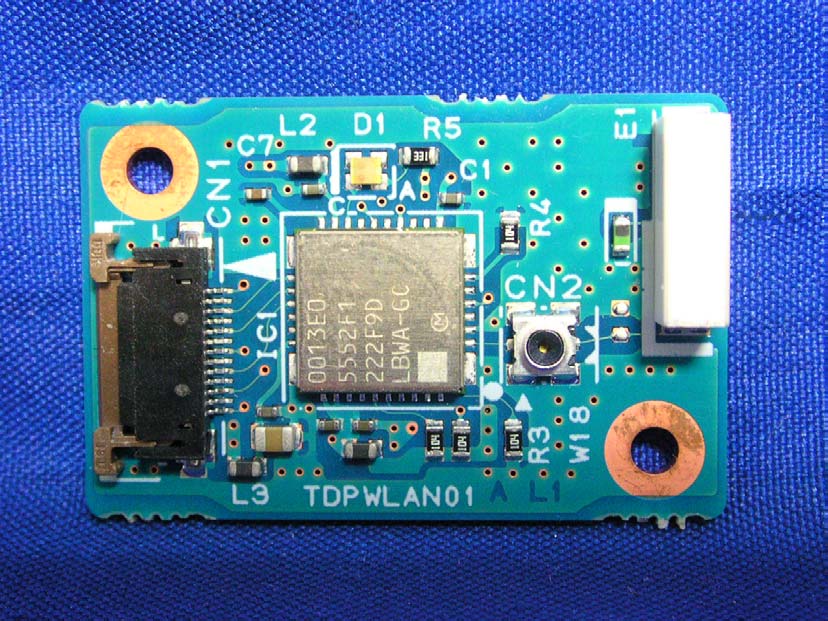

Report No.: 076006R-RFUSP05V01 Page : 1 of 3 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

OME COMPLEX DIGITAL MEDIA NETWORK COMPANY 2-9, SUEHIRO-CHO, OME, TOKYO 198-8710, JAPAN PHONE: +81(428)34-1050 FACSIMILE: +81(428)30-7331 FCC ID: CJ6UTDPW01WL FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. Model No. TDPWLAN01 FCC ID Label

Report No.: 076006R-RFUSP05V01 Page : 2 of 3 Version:1.0 (3) EUT Photo (4) EUT Photo WLAN Antenna Report No.: 076006R-RFUSP05V01 Page : 3 of 3 Version:1.0 (5) EUT Photo

Report No. 076006R-RFUSP05V01 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : Wireless LAN Module Unit Model No. : TDPWLAN01 FCC ID : CJ6UTDPW01WL Applicant : Toshiba Corporation Address : Digital Media Network Company Ome Complex, 2-9, Suehiro-cho, Tokyo 198-8710, Japan Date of Receipt : June 06, 2007 Date of Declaration: June 25, 2007 Report No. : 076006R-RFUSP05V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 076006R-RFUSP05V01 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 076006R-RFUSP05V01 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Wireless LAN Module Unit Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is -1.3 dBi in logarithm scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (-1.3 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 51.1682 0.0075 6 2437.00 59.0201 0.0087 11 2462.00 60.6736 0.0089 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (1.18 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 123.8797 0.0183 6 2437.00 128.8250 0.0190 11 2462.00 161.4359 0.0238 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 076006R-RFUSP05V01 Page: 1 of 59 Version:1.0 Test Report Product Name Wireless LAN Module Unit Model No. TDPWLAN01 FCC ID CJ6UTDPW01WL Applicant Toshiba Corporation Address Digital Media Network Company Ome Complex, 2-9, Suehiro-cho, Tokyo 198-8710, Japan Date of Receipt June 06, 2007 Issued Date June 25, 2007 Report No. 076006R-RFUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 076006R-RFUSP05V01 Page: 2 of 59 Version:1.0 Test Report Certification Issued Date: June 25, 2007 Report No.: 076006R-RFUSP05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Wireless LAN Module Unit Applicant Toshiba Corporation Address Digital Media Network Company Ome Complex, 2-9, Suehiro-cho, Tokyo 198-8710, Japan Manufacturer Denken Sangyo Co., Ltd. Model No. TDPWLAN01 Rated Voltage AC 120V/60Hz Working Voltage DC 3.3V Trade Name TOSHIBA Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2006 ANSI C63.4: 2003 Test Result Complied Documented By : ( Engineering Adm. Specialist / Rita Huang ) Tested By : (Engineer /Tim Sung) Approved By : ( President / Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 076006R-RFUSP05V01 Page: 3 of 59 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of Test System ........................................................................................................7 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Uncertainty ..................................................................................................................................16 3.5. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................21 4.1. Test Equipment............................................................................................................................21 4.2. Test Setup ....................................................................................................................................22 4.3. Limits ..........................................................................................................................................23 4.4. Test Procedure .............................................................................................................................24 4.5. Uncertainty ..................................................................................................................................24 4.6. Test Result of Radiated Emission................................................................................................25 5. Band Edge ..................................................................................................................................33 Report No. 076006R-RFUSP05V01 Page: 4 of 59 Version:1.0 5.1. Test Equipment............................................................................................................................33 5.2. Test Setup .............................................…

Text truncated - open the document above for the full version.

Report No.: 076006R-RFUSP05V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 076006R-RFUSP05V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 076006R-RFUSP05V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
