WUS-G06G-JT 802.11b/g Wireless USB Adapter User's Manual 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Features and Benefits........................................................................... 6 Wireless Basics.................................................................................... 7 Installation Considerations.................................................................... 7 Getting Started ...................................................................................... 9 Using the Configuration Utility.............................................................. 12 Networking Basics.............................................................................. 26 Troubleshooting................................................................................... 39 Technical Specifications...................................................................... 42 Contacting Technical Support.............................................................. 44 Warranty and Registration................................................................... 45 3 TOSHIBA WUS-G06G-JT 2.4 GHz Wireless G USB 2.0 Adapter At least 64MB of memory and a 500MHz processor Properly installed and working USB Controller Windows XP/2000
A computer or laptop with an available USB 2.0 port


Manual on CD-ROM Quick Installation Guide Cradle Contents of Package: Package Contents If any of the above items are missing, please contact your reseller. System Requirements:



4 Introduction The TOSHIBA WUS-G06G-JT Wireless USB Adapter is an 802.11b/802.11g high-performance,convenient Plug & Play USB 2.0 solution that brings wireless networking to your laptop or desktop PC. With a maximum wireless signal rate of up to 54Mbps (108Mbps* in Turbo mode) you can connect to a wireless network at home, at the office or at any wireless hotspot. Now you can stay connected wherever you are and wherever you go. WUS-G06G-JT is Wi-Fi compliant, meaning that it can connect and interoperate with other 802.11b or 802.11g Wi-Fi-compliant wireless routers, access points and adapters. WUS-G06G-JT connects to any available USB port on a laptop or desktop Windows -based computer and also includes a USB cradle. With the optional USB cradle, WUS-G06G-JT can be positioned virtually anywhere at a workstation to achieve the best available wireless signal reception - whether that workstation is in your office, on your deck or patio, by the pool, at the local coffee shop, or in an airport terminal while waiting to board your next flight. The adapter works with Microsoft Windows XP and Windows 2000 operating systems to ensure that you’ll be up and running on a wireless network in just a matter of seconds. Using its default settings, the WUS-G06G-JT automatically connects to other TOSHIBA wireless products as soon as it’s active. *Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and evironmental factors lower actual data throughput rate. WUS-G06G-JT has the newest, strongest and most advanced security features available today. When used with other 802.11 WPA (Wi-Fi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access which authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security. (By contrast, the previous WEP encryption implementations required the keys to be changed manually.) 5 For home users that will not incorporate a RADIUS server in their network, the security for WUS-G06G-JT, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before. Utilizing the Pre-Shared Key mode of WPA, WUS-G06G-JT will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security. With the WUS-G06G-JT, you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. Introduction (continued) 802.1x: Authentication which is a first line of defense against intrusion. In the authentication process, the Authentication Server verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. 6 Features and Benefits ** 3 Environmental factors may adversely affect range. User-friendly configuration and diagnostic utilities. Supports Infrastructure networks via an access point and Peer-to-Peer communication in Ad-Hoc mode. Connects at up to 328 feet indoors 3 .


1 year warranty.
2 Using a USB 1.1 port will adversely affect throughput. 1 Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. Compact size for placement anywhere.
Convenience of Plug & Play installation.
Fully 802.11b/802.11g compatible.
Powered by the USB port; no external power source is required.
USB 2.0 standard 2 .
Better Security with 802.1x and WPA - In addition to 64-,128-bit WEP encryption, you can also securely connect to a wireless network using 802.1x for wireless authentication, as well as WPA (Wi-Fi Protected Access) providing you a much higher level of security for your data and communication than has previously been available.
Provides maximum wireless signal rate of up to 54Mbps (108…

Text truncated - open the document above for the full version.

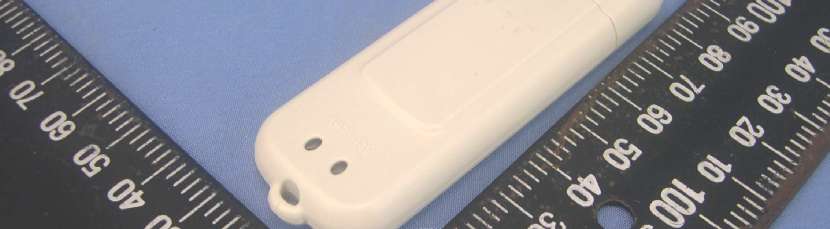

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID：CJ6UWUSG06GWL Label Location Label

Page 2 Page 3 Page 4 Page 5

FCC ID: CJ6UWUSG06GWL Report No. 950103H02 Operational Description This device is an 802.11b/g Wireless USB adapter, the maximum data rate could be up to 54Mbps (108Mbps for Turbo mode, channel 6) which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802.11b/g Wireless USB adapter) is powered from host equipment. The antenna used in this product is chip antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: CJ6UWUSG06GWL Report no.: SA930909H01G1Report Format Version 2.0.2 Reference No.: 950103H02 SAR TEST REPORT REPORT NO.: SA930909H01G MODEL NO.: WUS-G06G-JT RECEIVED: Jan. 03, 2006 TESTED: Jan. 14, 2006 ISSUED: Jan. 17, 2006 APPLICANT: TOSHIBA CORPORATION Digital Meida Network Company. ADDRESS: 1-1, Shibaura 1-Chome, Minato-Ku, Tokyo, Japan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 36 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 FCC ID: CJ6UWUSG06GWL Report no.: SA930909H01G2Report Format Version 2.0.2 Reference No.: 950103H02 TABLE OF CONTENTS 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................8 3.DESCRIPTION OF SUPPORT UNITS ......................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.1. DESCRIPTION OF ANTENNA LOCATION ...............................................................13 4.2. DESCRIPTION OF ASSESSMENT POSITION ........................................................14 4.3. DESCRIPTION OF TEST MODE ..............................................................................15 4.4. SUMMARY OF TEST RESULTS ...............................................................................15 5.TEST RESULTS ........................................................................................................16 5.1 TEST PROCEDURES ...............................................................................................16 5.2 MEASURED SAR RESULTS ....................................................................................18 5.3 SAR LIMITS...............................................................................................................20 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................21 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................23 6.SYSTEM VALIDATION ..............................................................................................24 6.1 TEST EQUIPMENT ...................................................................................................24 6.2 TEST PROCEDURE .................................................................................................25 6.3 VALIDATION RESULTS ............................................................................................27 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................28 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................29 7.1. PROBE CALIBRATION UNCERTAINTY...................................................................29 7.2. ISOTROPY UNCERTAINTY .....................................................................................30 7.3. BOUNDARY EFFECT UNCERTAINTY.....................................................................30 7.4. PROBE LINEARITY UNCERTAINTY ........................................................................31 7.5. READOUT ELECTRONICS UNCERTAINTY ............................................................31 7.6. RESPONSE TIME UNCERTAINTY ..........................................................................31 7.7. INTEGRATION TIME UNCERTAINTY ......................................................................32 7.8. PROBE POSITIONER MECHANICAL TOLERANCE ...............................................33 7.9. PROBE POSITIONING .............................................................................................33 7.10. PHANTOM UNCERTAINTY ......................................................................................34 7.11. DASY4 UNCERTAINTY BUDGET ............................................................................35 8.INFORMATION ON THE TESTING LABORATORIES ..............................................36 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: CJ6UWUSG06GWL Report no.: SA930909H01G3Report Format Version 2.0.2 Reference No.: 950103H02 1. CERTIFICATION PRODUCT: 802.11b/g Wireless USB adapter MODEL: WUS-G06G-JT BRAND: TOSHIBA APPLICANT: TOSHIBA CORPORATION Digital Meida Network Company. TESTED: Jan. 14, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Jan. 17, 2006 Windy Chou TECHNICAL ACCEPTANCE :, DATE:Jan. 17, 2006 Responsible for…

Text truncated - open the document above for the full version.

D3: DAE SN: 579

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G1 Issued: Jan. 16, 2006 Reference No.: 950103H02 FCC TEST REPORT REPORT NO.: RF930909H01G MODEL NO.: WUS-G06G-JT RECEIVED: Sep. 09, 2004 TESTED: Sep. 21 to 22, 2004 APPLICANT: TOSHIBA CORPORATION Digital Meida Network Company. ADDRESS: 1-1, Shibaura 1-Chome, Minato-Ku, Tokyo, Japan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G2 Issued: Jan. 16, 2006 Reference No.: 950103H02 Table of Contents 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.2.1TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..............................10 3.4DESCRIPTION OF SUPPORT UNITS........................................................11 3.5CONFIGURATION OF SYSTEM UNDER TEST.........................................11 4TEST TYPES AND RESULTS.....................................................................12 4.1CONDUCTED EMISSION MEASUREMENT..............................................12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................12 4.1.2TEST INSTRUMENTS.................................................................................12 4.1.3TEST PROCEDURES.................................................................................13 4.1.4TEST SETUP..............................................................................................13 4.1.5EUT OPERATING CONDITIONS................................................................14 4.1.6TEST RESULTS..........................................................................................15 4.2RADIATED EMISSION MEASUREMENT...................................................17 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................17 4.2.2TEST INSTRUMENTS.................................................................................18 4.2.3TEST PROCEDURES.................................................................................19 4.2.4TEST SETUP..............................................................................................20 4.2.5EUT OPERATING CONDITIONS................................................................20 4.2.6TEST RESULTS..........................................................................................21 4.2.7TEST RESULTS –DSSS..............................................................................22 4.2.8TEST RESULTS -OFDM.............................................................................25 4.36dB BANDWIDTH MEASUREMENT...........................................................29 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT........................................29 4.3.2TEST INSTRUMENTS.................................................................................29 4.3.3TEST PROCEDURE....................................................................................30 4.3.4TEST SETUP..............................................................................................30 FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G3 Issued: Jan. 16, 2006 Reference No.: 950103H02 4.3.5EUT OPERATING CONDITIONS................................................................30 4.3.6TEST RESULTS-DSSS...............................................................................31 4.3.7TEST RESULTS-OFDM..............................................................................35 4.4MAXIMUM PEAK OUTPUT POWER..........................................................40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........40 4.4.2TEST INSTRUMENTS.................................................................................40 4.4.3TEST PROCEDURES.................................................................................41 4.4.4TEST SETUP..............................................................................................41 4.4.5EUT OPERATING CONDITIONS................................................................41 4.4.6TEST RESULTS- DSSS..............................................................................42 4.4.7TEST RESULTS- OFDM.............................................................................43 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................44 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................44 4.5.2TEST INSTRUMENTS.................................................................................44 4.5.3TEST PROCEDURE....................................................................................45 4.5.4TEST SETUP..............................................................................................45 4.5.5EUT OPERATING CONDITIONS................................................................45 4.5.6TEST RESULTS-DSSS...............................................................................46 4.5.7TEST RESULTS-OFDM............................................................…

Text truncated - open the document above for the full version.

FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G55 Issued: Jan. 16, 2006 Reference No.: 950103H02 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 1 MHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100037May 06, 2005 Note: 1.The measurement uncertainty is 2.79dB, which is calculated as per the document ETSI TR 100 028 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set RBW spectrum analyzer to 1 MHz and set VBW spectrum analyzer to 10 Hz with suitable frequency span including 1 MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW=VBW=100kHz ; Average RBW=1MHz, VBW=10Hz) are attached on the following pages. 4.6.4 EUT OPERATING CONDITION Same as Item 4.3.5 FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G56 Issued: Jan. 16, 2006 Reference No.: 950103H02 4.6.5 TEST RESULTS –DSSS The spectrum plots are attached on the following page. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). Note - The delta method is only used up to 2 MHz away from the restricted bandage, The radiated emissions which located in other restricted frequency band, the result, please refer to 4.2. NOTE (Peak): The band edge emission plot of DSSS technique on the following first page show 55.6dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 108.1dBuV/m, so the maximum field strength in restrict band is 108.1-55.6=52.5dBuV/m which is under 74 dBuV/m limit. The band edge emission plot of DSSS technique on the following second page shows 57.63dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2 is 109.6dBuV/m, so the maximum field strength in restrict band is 109.6-57.63=51.97dBuV/m which is under 74 dBuV/m limit. NOTE (Average): The band edge emission plot on the following third page shows 58.83dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 102.3dBuV/m, so the maximum field strength in restrict band is 102.3-58.83=43.47BuV/m which is under 54 dBuV/m limit. The band edge emission plot on the following fourth page shows 58.97dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2. is 103.00dBuV/m, so the maximum field strength in restrict band is 103.00-58.97=44.03dBuV/m which is under 54 dBuV/m limit. FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G57 Issued: Jan. 16, 2006 Reference No.: 950103H02 CH1 FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G58 Issued: Jan. 16, 2006 Reference No.: 950103H02 CH11 FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G59 Issued: Jan. 16, 2006 Reference No.: 950103H02 CH1 FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G60 Issued: Jan. 16, 2006 Reference No.: 950103H02 CH11 FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G61 Issued: Jan. 16, 2006 Reference No.: 950103H02 CH1 FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G62 Issued: Jan. 16, 2006 Reference No.: 950103H02 CH11 FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G63 Issued: Jan. 16, 2006 Reference No.: 950103H02 4.6.6 TEST RESULTS –OFDM The spectrum plots are attached on the following page. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). Note - The delta method is only used up to 2 MHz away from the restricted bandage, The radiated emissions which located in other restricted frequency band, the result, please refer to 4.2. NOTE (Peak): The band edge emission plot of OFDM technique on the following first page show 40.37dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 107.1dBuV/m, so the maximum field strength in restrict band is 107.1-40.37=66.73dBuV/m which is under 74 dBuV/m limit. The band edge emission plot of OFDM technique on the following second page shows 41.01dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2 is 107.3dBuV/m, so the maximum field strength in restrict band is 107.3-41.01=66.29dBuV/m which is under 74 dBuV/m limit. NOTE (Average): The band edge emission plot on the following third page shows 50.66dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2. is 98.2dBuV/m, so the maximum field strength in restrict band is 98.2-50.66=47.54dBuV/m which is under 54 dBuV/m limit. The band edge emission plot on the following fourth page shows 49.77dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2. is 98.2dBuV/m, so the maximum field strength in restrict band is 98.2- 49.77=48.43dBuV/m which is under 54 dBuV/m limit. FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G64 Issued: Jan. 16, 2006 Reference No.: 950103H02 CH1 FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G65 Issued: Jan. 16, 2006 Reference No.: 950103H02 CH11 FCC ID: CJ6UWUSG…

Text truncated - open the document above for the full version.

FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G75 Issued: Jan. 16, 2006 Reference No.: 950103H02 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: CJ6UWUSG06GWL Report No.: RF930909H01G76 Issued: Jan. 16, 2006 Reference No.: 950103H02 RADIATED EMISSION TEST
