CKECMN727BWLAN MODULE

TECHNICAL SPECIFICATIONS FOR WIRELESS LAN MODULE MODEL: CMN-727B 2/9 Compliance statement and notification <FCC / IC> RF exposure compliance: This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency（RF）Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency（RF）Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation （MPE）. But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body（excluding extremities: hands, wrists, feet and ankles）. CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Declaration of Conformity Product Name: Wireless Lan Module Model Number: CMN-727B This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. 3/9 < FCC > NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an AC outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. In according with 47 CFR Part15.407 (e) U-NII devices operating in 5.15-5.25GHz frequency bands are restricted to indoor operations only. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: CKECMN727B ” and "Contains IC: 768B-CMN727B“ Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1) This device is intended for OEM integrators only. 2) Please see the full Grant of Equipment document for other restrictions. This radio transmitter FCC ID: CKECMN727B and IC: 768B-CMN727B has been approved by FCC/ Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. 4/9 Antenna List No. Manufacturer Part No. Antenna Type Peak Gain 1 SANSEI ELECTRIC NZA-606R (Main) NZA-606R (Aux) Dipole 1.0 dBi for 2.4 GHz 0.9 dBi for 5 GHz 2 HOKO ELECTRONICS 7ACWN0048R (Main) 7ACWN0048R (Aux) IFA 0.5 dBi for 2.4 GHz 2.0 dBi for 5 GHz Note: The antenna connector is Reverse SMA type. < IC > Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause Undesired operation of the device. Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se situent à moins de 20 cm du corps d'une personne). 5/9 <R&TTE> CE Marking: Please describe the following sentences to the label or the user manual of the product in each language in the sales country: Hereby, Japan Radio CO., Ltd. declares that this CMN-727B is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. <NCC> 經型式認證合格之低功率射頻電 機，非經許可，公司、商號或使用者均不得擅自 變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響 飛航安全及干擾合法通信；經發現有干擾現象時， 應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定 作業之無線電通信。低功率射頻電機須忍受合法 通信或工業、科學及醫療用電波輻射性電機設備之干擾。 本模組於取得認證後將依規定於 模組本體標示審驗合格標籤，並要求最終產品平 台廠商 (OEM Integrator)於最終產品平台(End Product)上標示” 本產品內含射頻模組， 其NCC型式認證號碼為: CCXXxxYYyyyZzW 6/9 1. General 1) Input Power : DC IN; DC 3.3V+/-5% 2) Frequency Range : 2.4GHz ISM band (2412 to 2462MHz) 5GHz band（W52）（5150 to 5250MHz） 3) Radio Communication Standard : IEEE802.11a/b/g 4) Operating Temperature : -40 to +85 degree C 5) Power Consumption : Less than 2.8W 2. Electrical Specification 1) Output Power : 8mW/MHz…

Text truncated - open the document above for the full version.

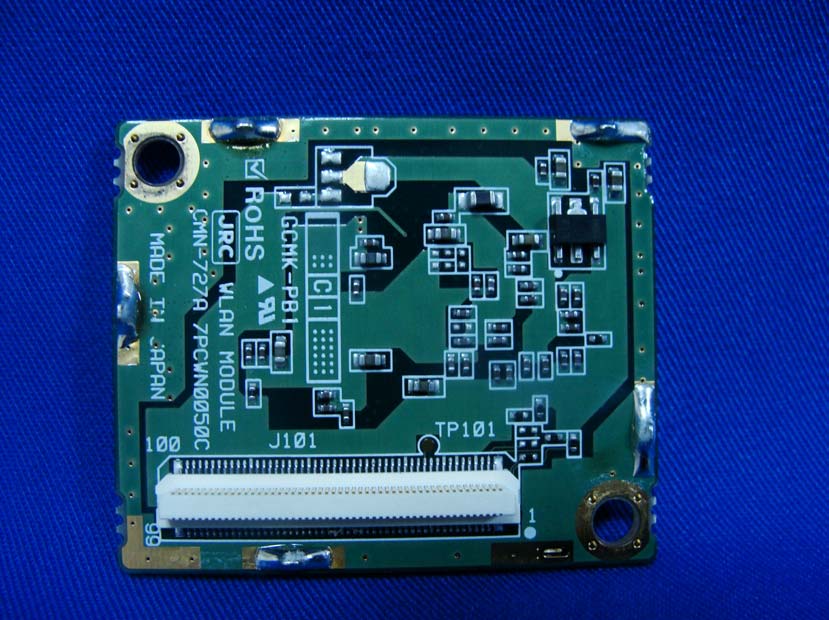

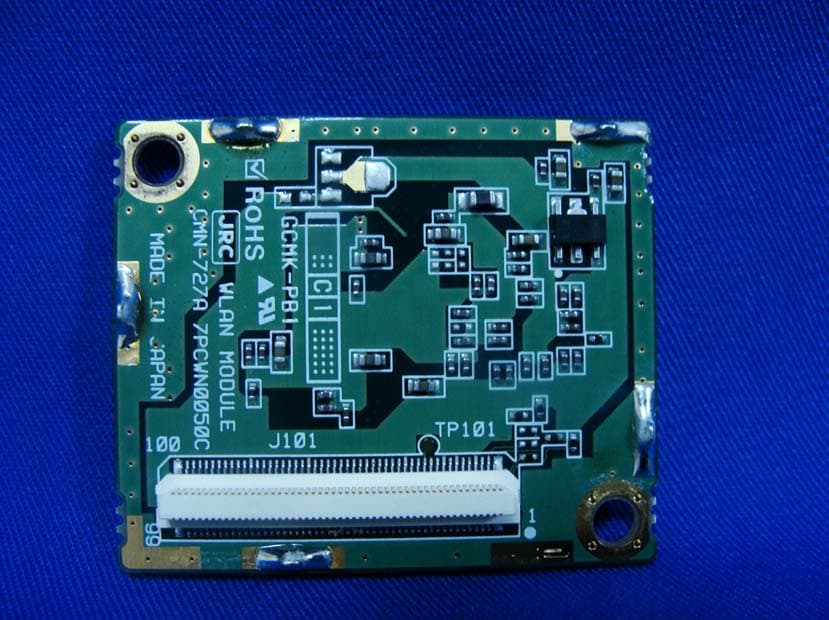

Report No.: 12B004R-RFUSP42V01 Page : 1 of 8 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Japan Radio Co.,Ltd. FCC ID.: CKECMN727B 1-1,SHIMORENJAKU 5 CHOME, MITAKA-SHI, Tokyo, 181-8510, Japan Tel : +81-422-45-9395 The FCC ID and will be placed on the equipment as shown in the photograph below.

Japan Radio Co.,Ltd. FCC ID.: CKECMN727B 1-1,SHIMORENJAKU 5 CHOME, MITAKA-SHI, Tokyo, 181-8510, Japan Tel : +81-422-45-9395 FCC ID Label

Report No.: 12B004R-RFUSP42V01 Page : 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 12B004R-RFUSP42V01 Page : 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 12B004R-RFUSP42V01 Page : 4 of 8 (7) EUT Photo - (Ant:Dipole) (8) EUT Photo - (Ant:Dipole) Report No.: 12B004R-RFUSP42V01 Page : 5 of 8 (9) EUT Photo - (Ant:Dipole) (10) EUT Photo - (Ant:Dipole) Report No.: 12B004R-RFUSP42V01 Page : 6 of 8 (11) EUT Photo - (Ant:IFA) (12) EUT Photo - (Ant:IFA) Report No.: 12B004R-RFUSP42V01 Page : 7 of 8 (13) EUT Photo - (Ant:IFA) (14) EUT Photo - (Ant:IFA) Report No.: 12B004R-RFUSP42V01 Page : 8 of 8 (15) EUT Photo - (Ant:IFA) (16) EUT Photo - (Ant:IFA)

Report No. 12B004R-RFUSP42V01-A Page: 1 of 3 RF Exposure Evaluation declaration Product Name WLAN MODULE Model No. CMN-727B FCC ID CKECMN727B Applicant Japan Radio Co.,Ltd. Address 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. Date of Receipt Oct. 26, 2012 Date of DeclarationDec. 12, 2012 Report No. 12B004R-RFUSP42V01-A The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12B004R-RFUSP42V01-A Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12B004R-RFUSP42V01-A Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : WLAN MODULE Test Item : RF Exposure Evaluation Test Site : No.3 OATS 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (1dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 58.2103 0.014579 6 2437.00 47.9733 0.012015 11 2462.00 32.5087 0.008142 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (1dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 261.8183 0.065574 6 2437.00 251.1886 0.062912 11 2462.00 130.6171 0.032714 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180 39.9025 0.012581 44 5220 40.0867 0.012640 48 5240 39.9945 0.012610 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No. 12B004R-RFUSP42V01 Page : 1 of 104 Test Report Product Name WLAN MODULE Model No CMN-727B FCC ID. CKECMN727B Applicant Japan Radio Co.,Ltd. Address 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. Date of Receipt Oct. 26, 2012 Issue Date Nov. 27, 2012 Report No. 12B004R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12B004R-RFUSP42V01 Page : 2 of 104 Test Report Certification Issue Date: Nov. 27, 2012 Report No.: 12B004R-RFUSP42V01 Product Name WLAN MODULE Applicant Japan Radio Co.,Ltd. Address 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. Manufacturer Japan Radio Co.,Ltd. Model No. CMN-727B FCC ID. CKECMN727B EUT Rated Voltage DC 3.3V EUT Test Voltage DC 5V (Power by DC power supply) Trade Name Japan Radio Co.,Ltd. Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Assistant Engineer / Vincent Chu ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 12B004R-RFUSP42V01 Page : 3 of 104 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Test Procedure .............................................................................................................................16 3.5. Uncertainty ..................................................................................................................................16 3.6. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................20 4.3. Limits ..........................................................................................................................................21 4.4. Test Procedure .............................................................................................................................22 4.5. Uncertainty ..................................................................................................................................22 4.6. Test Result of Radiated Emission................................................................................................23 5. RF antenna conducted test........................................................................................................39 5.1. Test Equipment..................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 12B004R-RFUSP42V01 Page : 1 of 6 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test - (Ant: IFA) Back View of Conducted Test - (Ant: IFA) Report No.: 12B004R-RFUSP42V01 Page : 2 of 6 Front View of Radiated Test - (Ant: IFA) Back View of Radiated Test - (Ant: IFA) Report No.: 12B004R-RFUSP42V01 Page : 3 of 6 Front View of Radiated Test (Horn) 1-18GHz - (Ant: IFA) Back View of Radiated Test (Horn) 1-18GHz - (Ant: IFA) Report No.: 12B004R-RFUSP42V01 Page : 4 of 6 Front View of Conducted Test - (Ant: Dipole) Back View of Conducted Test - (Ant: Dipole) Report No.: 12B004R-RFUSP42V01 Page : 5 of 6 Front View of Radiated Test - (Ant: Dipole) Back View of Radiated Test - (Ant: Dipole) Report No.: 12B004R-RFUSP42V01 Page : 6 of 6 Front View of Radiated Test (Horn) 1-18GHz - (Ant: Dipole) Back View of Radiated Test (Horn) 1-18GHz - (Ant: Dipole)
