1/9 CMN-851 Installation Manual 1. Compliance statement and notification <FCC / IC> RF exposure compliance: This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency（RF）Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency（RF）Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation （MPE）. But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body（excluding extremities: hands, wrists, feet and ankles）. < FCC > NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Declaration of Conformity Product Name: WLAN Module Model Number: CMN-851 This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. 2/9 instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an AC outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. In according with 47 CFR Part15.407 (e) U-NII devices operating in 5.15-5.25GHz frequency bands are restricted to indoor operations only. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This device is slave equipment, the device is not radar detection and not ad-hoc operation in the DFS band. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: CKECMN851” < IC > Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. 3/9 This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body). This device has been certified for use in Canada. Status of the listing in the Industry Canada’s REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng Additional Canadian information on RF exposure also can be found at the following web address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se situent à moins de 20 cm du corps d'une personne). Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée correspondant à l’appareil dans la liste d'équipement radio (REL - Radio Equipment List) d'Industry Canada rendez-vous sur: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng Pour des informations supplémentaires concernant l'exposition aux RF au Canada rendez-vous sur : http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html Information to Be Supplied to the End User by the OEM or Integrator The following regulatory and safety notices must be published in documentation supplied to the end user of the product or system incorporating an adapter in compliance with local regulations. Host system must be labeled with "Contains IC: 768B-CMN851 “ 4/9 This radio transmitter IC: 768B-CMN851 has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not incl…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Japan Radio Co.,Ltd. Declaration of Authorization We Name: Japan Radio Co.,Ltd. Address: 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. City: Seattle  . Country: United States  .  . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: WLAN MODULE Type designation: CMN-851  Trademark: Japan Radio Co.,Ltd.  . on our behalf. Date:  2011/10/04  . City:  Seattle  Name:  Doug Pratt  (2) Function:  Service Manager   Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Japan Radio Co.,Ltd. FCC ID: CKECMN851 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. Japan Radio Co.,Ltd. 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. Tel : 206-654-5644 Fax: 206-654-7030 Gentlemen: Regarding to the FCC Part 15 Section 15.212 Modular transmitters, Japan Radio Co.,Ltd.would like to request “Limited Modular Approval” for the submission FCC ID: CKECMN851. Japan Radio Co., Ltd confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding (Please see the internal photo). 2. The modular transmitter have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation(Please see the Block Diagram chip“BA24G32FJ-WE2”). 3. The modular transmitter haven’t its own power supply regulation. 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter is tested in a stand-alone configuration (Please see the test photo). 6. The modular transmitter is labeled with its own FCC ID number (Please see the label sample). 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements (Please see the Uesr’s manual). 8. The modular transmitter complies with any applicable RF exposure requirements. Sincerely, ------------------------------------------------------- Doug Pratt / Service Manager Japan Radio Co.,Ltd.

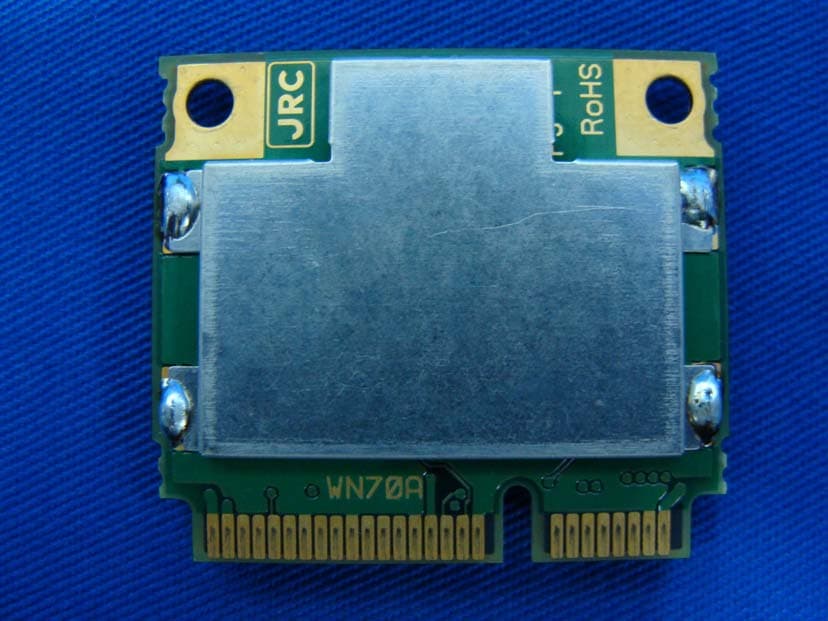

Report No.: 118318R-RFUSP46V01 Page : 1 of 10 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Japan Radio Co.,Ltd. FCC ID.: CKECMN851 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. Tel : 206-654-5644 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Japan Radio Co.,Ltd. FCC ID.: CKECMN851 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. Tel : 206-654-5644 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 118318R-RFUSP46V01 Page : 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 118318R-RFUSP46V01 Page : 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 118318R-RFUSP46V01 Page : 4 of 5 (7) EUT Photo (Host System, M/N: PJ WX4130N) (8) EUT Photo Chip Antenna Report No.: 118318R-RFUSP46V01 Page : 5 of 5 (9) EUT Photo Chip Antenna

Report No. 118318R-RFUSP46V01 Page: 7 of 187 1.2. Operational Description The EUT is a WLAN MODULE with a built-in 2.4GHz and 5GHz WLAN transceiver. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11a/g). The device provided of eight kinds of transmitting speed 14.4,28.9,43.3,57.8,86.7,115.6,130 and 144.4Mbps in 802.11n(20M-BW) mode and 30,60,90,120,180,240,270 and 300 Mbps(40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), the IEEE 802.11n is Multiple In, Multiple Out” (MIMO) technology. The device adapts direct sequence spread spectrum modulation. The antenna provides diversity function to improve the receiving function and the antennas to support 2(Transmit) × 2(Receive) MIMO technology. This Plug-In PC, compliant with IEEE 802.11a/b/g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the Plug-In PC Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11a/b/g/n network. The Device no radar detection and no ad-hoc operation in the DFS band, another information please refer to users manual.

Report No. 118318R-RFUSP46V01 Page: 1 of 6 RF Exposure Evaluation declaration Product Name WLAN MODULE Model No. CMN-851 FCC ID CKECMN851 Applicant Japan Radio Co.,Ltd. Address 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. Date of Receipt Aug. 15, 2011 Date of Declaration Sep. 29, 2011 Report No. 118318R-RFUSP46V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 118318R-RFUSP46V01 Page: 2 of 6 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 118318R-RFUSP46V01 Page: 3 of 6 1.3. Test Result of RF Exposure Evaluation Product : WLAN MODULE Test Item : RF Exposure Evaluation Test Site : No.3 OATS 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2.1dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 46.3447 0.014953 6 2437.00 43.7522 0.014117 11 2462.00 43.4510 0.014019 The RF exposure at 20 cm is below limit. 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2.1dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 245.4709 0.079201 6 2437.00 243.2204 0.078475 11 2462.00 222.3310 0.071735 The RF exposure at 20 cm is below limit. 802.11n-20MHz_14.4Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2.1 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 301.3006 0.097214 6 2437.00 302.6913 0.097663 11 2462.00 306.1963 0.098794 The RF exposure at 20 cm is below limit. Report No. 118318R-RFUSP46V01 Page: 4 of 6 802.11n-40MHz_30Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2.1 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 326.5878 0.105373 06 2437.00 334.9654 0.108076 09 2452.00 324.3396 0.104648 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2.4dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 31.7687 0.010983 44 5220.00 30.9030 0.010684 48 5240.00 32.0627 0.011085 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2.4dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 52 5260.00 31.0456 0.010733 60 5300.00 32.2849 0.011162 64 5320.00 32.8095 0.011343 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2.4dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 100 5500.00 20.6538 0.007141 120 5600.00 19.8153 0.006851 140 5700.00 20.1372 0.006962 The RF exposure at 20 cm is below limit. Report No. 118318R-RFUSP46V01 Page: 5 of 6 802.11n-20MHz_14.4Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (2.4dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 34.6737 0.011988 44 5220.00 35.8922 0.012409 48 5240.00 35.6451 0.012323 The RF exposure at 20 cm is below limit. 802.11n-20MHz_14.4Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (2.4dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 52 5260.00 35.4813 0.012267 60 5300.00 35.0752 0.012126 64 5320.00 32.2107 0.011136 The RF exposure at 20 cm is below limit. 802.11n-20MHz_14.4Mbps 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2.4dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 100 5500.00 20.3704 0.007043 120 5600.00 20.1837 0.006978 140 5700.00 21.8776 0.007564 The RF exposure at 20 cm is below limit. 802.11n-40MHz_30Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (2.4dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 38 5190.00 33.2660 0.011501 46 5230.00 35.5631 0.012295 The RF exposure at 20 cm is below limit. Report No. 118318R-RFUSP46V01 Page: 6 of 6 802.11n-40MHz_30Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (2.4dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 54 5270.00 34.9140 0.012071 62 5310.00 34.9140 0.012071 The RF exposure at 20 cm is below limit. 802.11n-40MHz_30Mbps 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2.4dBi): Channel Frequency (MH…

Text truncated - open the document above for the full version.

Report No. 118318R-RFUSP46V01-A Page: 1 of 30 Dynamic Frequency Selection (DFS) Test Report Product Name WLAN MODULE Model No CMN-851 FCC ID CKECMN851 Applicant Japan Radio Co.,Ltd. Address 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Performed Location: Quietek Corporation (Linkou Laboratory) No. 5-22, Rueishu Keng, Linkou Dist., New Taipei City 24451, Taiwan. R.O.C. TEL:+866-2-8601-3788 / FAX:+886-2-8601-3789 Date of Receipt Aug. 15, 2011 Issued Date Sep. 29, 2011 Report No. 118318R-RFUSP46V01-A Report Version V1.0 Report No. 118318R-RFUSP46V01-A Page: 2 of 30 DFS Test Report Issued Date: Sep. 29, 2011 Report No.: 118318R-RFUSP46V01-A The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name WLAN MODULE Applicant Japan Radio Co.,Ltd. Address 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. Manufacturer Japan Radio Co.,Ltd. Model No. CMN-851 FCC ID. CKECMN851 EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name Japan Radio Co.,Ltd. Applicable Standard FCC CFR Title 47 Part 15 Subpart E 15.407 (h): 2010 FCC 06-96 Test Result Complied Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Vice Supervisor / Tom Hsieh ) Approved By : ( Manager / Vincent Lin ) Report No. 118318R-RFUSP46V01-A Page: 3 of 30 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Standard Requirement....................................................................................................................................................................6 1.2. EUT Description ............................................................................................................................................................................4 1.3. UNII Device Description ...............................................................................................................................................................6 1.4. Test Equipment ..............................................................................................................................................................................7 1.5. Test Setup ......................................................................................................................................................................................8 1.6. DFS Detection Thresholds.............................................................................................................................................................9 1.7. Radar Test Waveforms .................................................................................................................................................................10 1.8. Radar Waveform Calibration .......................................................................................................................................................14 1.9. Radar Waveform Calibration Result ............................................................................................................................................15 1.10. Master Data Traffic Plot Result ...................................................................................................................................................17 2. IN-SERVICE MONITORING FOR CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD ............................................................... 18 2.1. Test Procedure .............................................................................................................................................................................18 2.2. Test Requirement .........................................................................................................................................................................18 2.3. Uncertainty ..................................................................................................................................................................................18 2.4. Test Result of Channel Move Time and Channel Closing Transmission Time and Non-Occupancy Period ...............................19 3. DFS TEST SETUP PHOTO ........................................................................................................ 29 Attachment 1: EUT Test Photographs Report No. 118318R-RFUSP46V01-A Page: 4 of 30 1. GENERAL INFORMATION 1.1. EUT Description Product Name WLAN MODULE Trade Name Japan Radio Co.,Ltd. FCC ID. CKECMN851 Model No. CMN-851 Frequency Range 5270-5310MHz, 5510-5670MHz Number of Channels 22CH Channel Control Auto Data Rate 802.11a:6-54MHz,802.11n:14.4–144Mbps-20MHz, 30 – 300Mbps- 40MHz Channel Separation 802.11a/n: 20MHz Type of Modulation OFDM (BPSK, QPSK, 16QAM, 64QAM) DFS Function □ Master ■ Slave TPC Function ■ <500mW not required □ ≧ 500mW employ a TPC Communication Mode ■ IP Based Systems □ Frame Based System □ Other System Antenna type Chip antenna Antenna Gain Refer to the table “Antenna List” Host System MFR: Ricoh Company, Ltd. / M/N: PJ WX4130N * This module is “Limited Modular Approval” (LMA). Antenna List No. Manufacturer Model No. Peak Gain 1 TAIYO YUDEN AH 104N2450D1 2.4dBi for 5.0 GHz Report No. 118318R-RFUSP46V01-A Page: 5 of 30 802.11a / n-20MHz Carrier Frequency of Each Channel: Channel Frequency Channel FrequencyChannel FrequencyChannel Frequency Channel 36: 5180 MHz Channel 40: 5200 MHz Channel 44: 5220 MHz Chan…

Text truncated - open the document above for the full version.

Report No. 118318R-RFUSP46V01 Page: 1 of 187 Test Report Product Name WLAN MODULE Model No CMN-851 FCC ID CKECMN851 Applicant Japan Radio Co.,Ltd. Address 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. (For FCC) Date of Receipt Aug. 15, 2011 Issued Date Sep. 29, 2011 Report No. 118318R-RFUSP46V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 118318R-RFUSP46V01 Page: 2 of 187 Test Report Certification Issued Date: Sep. 29, 2011 Report No.: 118318R-RFUSP46V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name WLAN MODULE Applicant Japan Radio Co.,Ltd. Address 1011 SW Klickitat Way, Suite 201B, Seattle, WA 98134 U.S.A. (For FCC) Manufacturer Japan Radio Co.,Ltd. Model No. CMN-851 FCC ID. CKECMN851 EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name Japan Radio Co.,Ltd. Applicable Standard FCC CFR Title 47 Part 15 Subpart E: 2010 ANSI C63.4: 2009 Test Result Complied Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Assistant Engineer / Jack Hsu ) Approved By : ( Manager / Vincent Lin ) Report No. 118318R-RFUSP46V01 Page: 3 of 187 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Datails....................................................................................................................8 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Transmit Power ................................................................................................................19 3.1. Test Equipment............................................................................................................................19 3.2. Test Setup ....................................................................................................................................19 3.3. Limits ..........................................................................................................................................20 3.4. Test Procedur ...............................................................................................................................20 3.5. Uncertainty ..................................................................................................................................20 3.6. Test Result of Peak Transmit Power............................................................................................21 4. Peak Power Spectral Density....................................................................................................47 4.1. Test Equipment............................................................................................................................47 4.2. Test Setup ....................................................................................................................................47 4.3. Limits ..........................................................................................................................................47 4.4. Test Procedure .............................................................................................................................48 4.5. Uncertainty ..................................................................................................................................48 4.6. Test Result of Peak Power Spectral Density ...............................................................................49 5. Peak Excursion ..........................................................................................................................74 5.1. Test Equipment............................................................................................................................74 5.2. Test Setup .......................................................…

Text truncated - open the document above for the full version.

Report No. 118318R-RFUSP46V01 Page: 41 of 187 Channel 102 – Chain A Channel 118 – Chain A Report No. 118318R-RFUSP46V01 Page: 42 of 187 Channel 134 – Chain A Report No. 118318R-RFUSP46V01 Page: 43 of 187 Channel 38 – Chain B Channel 46 – Chain B Report No. 118318R-RFUSP46V01 Page: 44 of 187 Channel 54 – Chain B Channel 62 – Chain B Report No. 118318R-RFUSP46V01 Page: 45 of 187 Channel 102 – Chain B Channel 118 – Chain B Report No. 118318R-RFUSP46V01 Page: 46 of 187 Channel 134 – Chain B Report No. 118318R-RFUSP46V01 Page: 47 of 187 4. Peak Power Spectral Density 4.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr, 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standard…
