CKECMN851AWireless LAN Module

Japan Radio Co., Ltd.

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Jun 17, 2013
Application Purpose: Original Equipment
Date of Application: Jun 17, 2013
Equipment Note: Wireless LAN Module
Frequency Range: 5500.00000000 - 5700.00000000
Company: Japan Radio Co., Ltd.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Date of issue：11 APL 2013 Document Number WN-AG0038A Users Manual Product name: Wireless LAN Module Type：：：：CMN-851A Rev．．．．１１１１．．．．００００００００ Japan Radio Co., Ltd. Mobile Communication Group i History Rev. Date Change Record 1.00 2013.04.11 First Edition Table of contents 1. GENERAL .................................................................................................................................. 1 2. SPECIFICATIONS FOR WIRELESS LAN ................................................................................. 1 2.1 Environment .......................................................................................................................... 1 2.2 Power .................................................................................................................................... 1 2.3 Radio specification ................................................................................................................ 1 2.4 Radio specifications .............................................................................................................. 2 2.5 Block diagram ....................................................................................................................... 6 2.6 Host interface ........................................................................................................................ 7 2.7 Environmental load ............................................................................................................. 10 2.8 MTBF .................................................................................................................................. 10 3. RELIABILITY TEST .................................................................................................................. 11 4. PACKING .................................................................................................................................. 11 5. ASSURANCE ........................................................................................................................... 11 6. STRUCTURE ........................................................................................................................... 11 7. LOCATION OF MANUFACTURE ............................................................................................. 11 8. NOTE ........................................................................................................................................ 12 1 1. General This equipment is Wireless LAN Module for IEEE802.11 a/b/g/n (2.4GHz band/5GHz band) with PCI-Express mini-card interface. 2. Specifications for Wireless LAN 2.1 Environment (1) Temperature Operation 0～+50°C（Ta：Ambient Temperature） 0～+65°C（Tc：Case Surface Temperature ） Storage -40～+85°C（Ta：Ambient Temperature） (2) Humidity Operation 20～95%RH(no condensation) Storage 20～95%RH(no condensation) 2.2 Power (1) Input Supply from the host interface connector (2) Operation voltage DC3.3V ±5% (3) Maximum voltage +3.6V (4) Ripple Less than 100mVp-p (5) Consumption current See Table 1 Table 1．Consumption Current (Source voltage is 3.3V） Condition TYP MAX 2.4GHz Band (Tx) 440mA 740mA 5GHz Band(Tx) 630mA 930mA 2.4GHz Band (Rx) 200mA 350mA 5GHz Band (Rx) 230mA 360mA 2.3 Radio specification (1) Standard ARIB STD-T71/T66, IEEE802.11a/b/g/n/e/h 11e（QoS） and 11h（DFS）are operated by driver software. (2) Frequency 20MHz System 2.4GHz band(ISM) 2412～2472MHz，5MHz step 13ch 5.2/5.3GHz band 5180～5320MHz，20MHz step 8ch 5.6GHz band 5500～5700MHz，20MHz step 11ch 5.8GHz band 5745～5825MHz，20MHz step 5ch 40MHz System 2.4GHz band(ISM) 2422～2462MHz，5MHz step 9ch 5.2/5.3GHz band 5190～5310MHz，40MHz step 4ch 5.6GHz band 5510～5670MHz，40MHz step 5ch 5.8GHz band 5755MHz，5795MHz，40MHz step 2ch (Note) Available frequency is regulated by law in each country. 5.2GHz band and 5.3GHz band are for indoor use only. (3) Mode Infrastructure / Ad-hoc（not Ad-hoc operation in the DFS band.） (4) RF connector 20441-001E-01（IPEX, Hirose U.FL-R） 2 ports Nominal Impedance 50ohm (Recommended ANT VSWR : <= 2) 2 (5) Modulation 2.4GHz band: OFDM, DSSS 5GHz band: OFDM (6) MIMO 2x2，2 stream (7) Transmit rate IEEE802.11b(DSSS/CCK) 1～11Mbps IEEE802.11a/g(OFDM) 6～54Mbps IEEE802.11n(OFDM,2x2MIMO) 6.5～300Mbps (8) Functions Encryptions Power save function and etc are operated by driver software. (9) Security IEEE802.11i Encryption method：WEP/TKIP/AES 2.4 Radio specifications (1) Transmit power 2.4GHzband Table 2．2.4GHz band Mode Rate Tx Power allowable deviation IEEE802.11b All rate 1～11Mbps 3mW/MHz （14.8dBm） +20%，-80% （+0.8dB, -7dB） IEEE802.11g All rate 6～54Mbps 3mW/MHz （17.1dBm） +20%，-80% （+0.8dB, -7dB） IEEE802.11n HT20 MCS8～14 3mW/MHz （17.3dBm） +20%，-80% （+0.8dB, -7dB） MCS15 1.4mW/MHz （14.0dBm） IEEE802.11n HT40 MCS8～14 1.5mW/MHz （17.3dBm） +20%，-80% （+0.8dB, -7dB） MCS15 0.7mW/MHz （14.0dBm） 5.2/5.3GHz band Table3．5.2/5.3GHz band Mode Rate Tx power allowable deviation IEEE802.11a 6～48Mbps 3mW/MHz （17.1dBm） +20%，-80% （+0.8dB, -7dB） 54Mbps 1.4mW/MHz （13.8dBm） IEEE802.11n HT20 MCS8～13 3mW/MHz （17.3dBm） +20%，-80% （+0.8dB, -7dB） MCS14～15 1.4mW/MHz （14.0dBm） IEEE802.11n HT40 MCS8～13 1.5mW/MHz （17.3dBm） +20%，-80% （+0.8dB, -7dB） MCS14～15 0.7mW/MHz （14.0dBm） 3 5.6GHz band Table 4．5.6GHz band Mode Rate Tx power allowable deviation IEEE802.11a 6～48Mbps 1.4mW/MHz （13.8dBm） +50%，-50% （+1.8dB, -3dB） 54Mbps 0.6mW/MHz （10.1dBm） IEEE802.11n HT20 MCS8～13 1.4mW/MHz （14.0dBm） +50%，-50% （+1.8dB, -3dB） MCS14～15 0.6mW/MHz （10.3dBm） IEEE802.11n HT40 MCS8～13 0.7mW/MHz （14.0dBm） +50%，-50% （+1.8dB, -3dB） MCS14～15 0.3mW/MHz （10.3dBm） 5.8GHz band（TBD） Table 5．5.8GHz band Mode Rate Tx power allowable deviation IEEE802.11a 6～48Mbps 2.0mW/MHz （15.2dBm） +20%，-80% （+0.8dB, -7dB） 54Mbps 1.0mW/MHz （12.2dBm） IEEE802.11n HT20 MCS8～13 2.0mW/MHz （15.5dBm） +20%，-80% （+0.8dB, -7dB） MCS14～15 1.0mW/MHz （12.5dBm） IEEE802.11n HT40 MCS8～13 1.0mW/MHz （15.5dBm） +20%，-80% （+0.8dB, -7dB） MCS14～15 0.5mW/MHz （12.5dBm） (2) Occupied band w…

Text truncated - open the document above for the full version.

External Photos

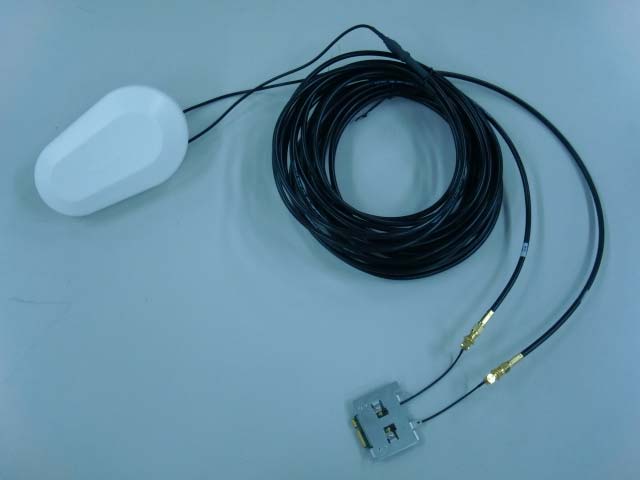

Photo Top Bottom Photo Moudule with Antenna 1 Moudule with Antenna 2 Photo Moudule with Antenna 3

ID Label/Location Info

Label Location Fig.1 Top view Fig.2 Bottom view Label Location Fig.1 Top view Fig.2 Bottom view Fig.3 Label design

Internal Photos

Photo Top without cover cover Photo Top without Shield Bottom without Shield

RF Exposure Info

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Applicant: Japan Radio Co., Ltd. T ype of Equipm ent : W ireless LAN M odule Model No. : CMN-851A FCC ID: CKECMN851A Japan Radio Co., Ltd. declares that Model : Wireless LAN Module complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “CMN-851A“ has 32.36 mW of conducted Peak Output power and 25.82 mW of EIRP. This kind of equipment is below SAR Threshold (KDB447498 D01 v05) The Follo wing calculation is the reference data fo r 20cm distance. RF Ex posure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “CMN-851A“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G ) / (4* π * r 2 ) Where P = 32.36 mW (M aximum peak output pow er) G = 0.80 Num erical A ntenna gain; equal -0.98 dBi r =20.0 cm For: CMN-851AS = 0.00514mW/cm 2 No. : 10009516S-B RF Exposure / SAR Statement

Test Report

Test report No. : 10009516S-B Page : 1 of 149 Issued date : June 11, 2013 Revised date : June 18, 2013 FCC ID : CKECMN851A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10009516S-B Applicant : Japan Radio Co., Ltd. Type of Equipment : Wireless LAN Module Model No. : CMN-851A FCC ID : CKECMN851A Test regulation : FCC Part15 Subpart E: 2012 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: April 26 to June 18, 2013 Tested by: Makoto Hosaka Engineer of WiSE Japan, UL Verification Service Approved by : Go Ishiwata Manager of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10009516S-B Page : 2 of 149 Issued date : June 11, 2013 Revised date : June 18, 2013 FCC ID : CKECMN851A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10009516S-B Revision Test report No. Date Page revised Contents - (Original) 10009516S-B June 11, 2013 - - 1 10009516S-B June 18, 2013 -P5 -P53-55,57,59-61 -P65-66,70-71,75-76,81-81,85-86 -P90-107 - 15.31 (e) was corrected. - RBW is readjusted. - A numerical display is corrected. - Correction of a clerical error Test report No. : 10009516S-B Page : 3 of 149 Issued date : June 11, 2013 FCC ID : CKECMN851A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 6 SECTION 4: Operation of E.U.T. during testing ................................................................. 9 SECTION 5: Conducted emission ...................................................................................... 11 SECTION 6: Radiated emission ......................................................................................... 12 SECTION 7: Antenna terminal conducted tests ................................................................ 14 Contents of APPENDIXES ................................................................................................... 15 APPENDIX 1: Data of Radio tests ...................................................................................... 16 APPENDIX 2: Test instruments ....................................................................................... 145 APPENDIX 3: Photographs of test setup ......................................................................... 147 Test report No. : 10009516S-B Page : 4 of 149 Issued date : June 11, 2013 FCC ID : CKECMN851A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Japan Radio Co., Ltd. Address : 1-1, Shimorenjaku 5-chome, Mitaka-shi, Tokyo, 181-8510 Japan Telephone Number : +81 422 45 9311 Facsimile Number : +81 422 45 9956 Contact Person : Shinsuke Miyazaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model Number : CMN-851A Serial Number : Refer to 4.2 in this report. Rating : DC3.3V Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : April 23, 2013 Modification of EUT : No modification by the test lab. 2.2 Product description Model: CMN-851A (referred to as the EUT in this report) is a Wireless LAN Module. Clock frequency(ies) in the system : 40MHz Test report No. : 10009516S-B Page : 5 of 149 Issued date : June 11, 2013 Revised date : June 18, 2013 FCC ID : CKECMN851A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radio specification: Equipment type : Transceiver Frequency of operation *1) : 2.4GHz: 2412-2462MHz (IEEE 802.11b, 11g, 11n-HT20) 2422-2452MHz (IEEE 802.11n-HT40) W52: 5180-5240MHz (IEEE 802.11a, 11n-HT20) 5190-5230MHz (IEEE 802.11n-HT40) W53: 5260-5320MHz (IEEE 802.11a, 11n-HT20) 5270-5310MHz (IEEE 802.11n-HT40) W56: 5500-5700MHz (IEEE 802.11a, 11n-HT20) 5510-5670MHz (IEEE 802.11n-HT40) W58: 5745-5825MHz (IEEE 802.11a, 11n-HT20) 5755-5795MHz (IEEE 802.11n-HT40) Bandwidth : 20MHz (IEEE 802.11a/b/g/n), 40MHz (IEEE 802.11n) Channel spacing : 5MHz (2.4GHz), 20MHz (11a, 11n (HT20, 5GHz)), 40MHz (11n (HT40, 5GHz)) Type of modulation : DSSS, OFDM Antenna type : Dual (2.4GHz band: Planar patch, 5GHz band: Inverted F) Antenna gain with cable loss : 2.4GHz band: 0.58dBi 3.73dBi (Antenna gain) – 3.15dB (cable loss(18ft)) 5GHz band: -0.98dBi 4.06dBi (Antenna gain) – 5.04dB (cable loss(18ft)) Antenna connector type : Module side: U.FL Antenna side: RP-SMA…

Text truncated - open the document above for the full version.

Test Report

Revised date: June 18, 2013 Test placeNo.2 Semi Anechoic ChamberNo.1 Semi Anechoic ChamberNo.1 Semi Anechoic ChamberNo.1 Semi Anechoic Chamber DateMay 5, 2013May 7, 2013May 9, 2013May 10, 2013 Temperature / Humidity19 deg.C, 45 %RH22 deg.C, 43 %RH25 deg.C, 40 %RH24 deg.C, 41 %RH EngineerHikaru ShirasawaMakoto HosakaMakoto HosakaMakoto Hosaka ModeTx, 5700MHz Tx, IEEE802.11n HT20 (above 1GHz Inside of the restricted band) (* PK: Peak, AV: Average, QP: Quasi-Peak) PolarityFrequencyDetector ReadingAnt.Fac.LossGainResultLimitMarginHeightAngle Remark [MHz][dBuV][dB/m][dB][dB][dBuV/m] [dBuV/m][dB][cm][deg.] Hori.3800.000 PK44.829.315.837.95273.921.9100358 Hori.7600.000 PK47.736.58.639.653.273.920.712897 Hori.11400.000 PK43.939.89.838.754.873.919.11000 Hori.3800.000 A V32.129.315.837.939.353.914.6100358 VBW:10Hz Hori.7600.000 AV36.636.58.639.642.153.911.812897 VBW:10Hz Hori.11400.000 AV30.539.89.838.741.453.912.51000 VBW:10Hz Vert.3800.000 PK44.829.315.837.95273.921.9124290 Vert.7600.000 PK47.136.58.639.652.673.921.3100348 Vert.11400.000 PK43.439.89.838.754.373.919.61000 Vert.3800.000 A V31.629.315.837.938.853.915.1124290 VBW:10Hz Vert.7600.000 AV35.236.58.639.640.753.913.2100348 VBW:10Hz Vert.11400.000 AV30.439.89.838.741.353.912.61000 VBW:10Hz Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter-Distance factor(above 15GHz)) - Gain(Amprifier) *Other frequency noises omitted in this report were not seen or have enough margin (more than 20dB). *The 10th harmonic was not seen so the result was its base noise level. Distance factor:15GHz-40GHz20log(3.0m/1.0m)= 9.5dB (Calculation) (above 1GHz Outside of the restricted band) (* PK: Peak, AV: Average, QP: Quasi-Peak) PolarityFrequencyDetector ReadingAnt.Fac.LossGainResultResult (EIRP)LimitMargin HeightAngleRemark [MHz][dBuV][dB/m][dB][dB][dBuV/m][dBm][dBm][dB][cm][deg.] Hori.5725.000 PK44.632.317.137.756.3-38.93-27.0011.91000 Vert.5725.000 PK44.232.317.137.755.9-39.33-27.0012.3100359 Result[dBuV/m] = Reading + Ant Factor + Loss (Cable+Attenuator+Filter-Distance factor(above 15GHz)) - Gain(Amprifier) Resrult(EIRP[dBm])=10*LOG（({ 10 ^ ( Electric Field Strength [dBuV/m] / 20 ) * 10 ^ (-6) * Distance:3[m] ) ^ 2 } / 30) *10^3) *Other frequency noises omitted in this report were not seen or have enough margin (more than 20dB). *The 10th harmonic was not seen so the result was its base noise level. Distance factor:15GHz-40GHz20log(3.0m/1.0m)= 9.5dB Radiated Emission UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No 10009516S-B 101 of 149 Revised date: June 18, 2013 Test placeNo.2 Semi Anechoic ChamberNo.1 Semi Anechoic ChamberNo.1 Semi Anechoic ChamberNo.1 Semi Anechoic Chamber DateMay 4, 2013May 8, 2013May 9, 2013May 10, 2013 Temperature / Humidity20 deg.C, 41 %RH22 deg.C, 30 %RH25 deg.C, 40 %RH24 deg.C, 41 %RH EngineerMakoto HosakaMakoto HosakaMakoto HosakaMakoto Hosaka ModeTx, 5190MHz Tx, IEEE802.11n HT40 (above 1GHz Inside of the restricted band) (* PK: Peak, AV: Average, QP: Quasi-Peak) PolarityFrequencyDetector ReadingAnt.Fac.LossGainResultLimitMarginHeightAngle Remark [MHz][dBuV][dB/m][dB][dB][dBuV/m] [dBuV/m][dB][cm][deg.] Hori.5150.000 PK47.231.516.837.258.373.915.6100346 Hori.5150.000 A V35.931.516.837.24753.96.9100346 VBW:3.9kHz Vert.5150.000 PK47.331.516.837.258.473.915.510023 Vert.5150.000 A V35.731.516.837.246.853.97.110023 VBW:3.9kHz Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter-Distance factor(above 15GHz)) - Gain(Amprifier) *Other frequency noises omitted in this report were not seen or have enough margin (more than 20dB). *The 10th harmonic was not seen so the result was its base noise level. Distance factor:15GHz-40GHz20log(3.0m/1.0m)= 9.5dB (Calculation) (above 1GHz Outside of the restricted band) (* PK: Peak, AV: Average, QP: Quasi-Peak) PolarityFrequencyDetector ReadingAnt.Fac.LossGainResultResult (EIRP)LimitMargin HeightAngleRemark [MHz][dBuV][dB/m][dB][dB][dBuV/m][dBm][dBm][dB][cm][deg.] Hori.3460.000 PK46.22915.538.152.6-42.63-27.0015.6100115 Hori.6920.000 PK4835.88.139.252.7-42.53-27.0015.510031 Hori.10380.000 PK44.838.89.637.955.3-39.93-27.0012.9135263 Vert.3460.000 PK46.22915.538.152.6-42.63-27.0015.61006 Vert.6920.000 PK48.835.88.139.253.5-41.73-27.0014.7100103 Vert.10380.000 PK47.338.89.637.957.8-37.43-27.0010.4147284 Result[dBuV/m] = Reading + Ant Factor + Loss (Cable+Attenuator+Filter-Distance factor(above 15GHz)) - Gain(Amprifier) Resrult(EIRP[dBm])=10*LOG（({ 10 ^ ( Electric Field Strength [dBuV/m] / 20 ) * 10 ^ (-6) * Distance:3[m] ) ^ 2 } / 30) *10^3) *Other frequency noises omitted in this report were not seen or have enough margin (more than 20dB). *The 10th harmonic was not seen so the result was its base noise level. Distance factor:15GHz-40GHz20log(3.0m/1.0m)= 9.5dB Radiated Emission UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No 10009516S-B 102 of 149 Revised date: June 18, 2013 Test placeNo.2 Semi Anechoic ChamberNo.1 Semi Anechoic ChamberNo.1 Semi Anechoic ChamberNo.1 Semi Anechoic Chamber DateMay 4, 2013May 8, 2013May 9, 2013May 10, 2013 Temperature / Humidity20 deg.C, 41 %RH22 deg.C, 30 %RH25 deg.C, 40 %RH24 deg.C, 41 %RH EngineerMakoto HosakaMakoto HosakaMakoto HosakaMakoto Hosaka ModeTx, 5230MHz Tx, IEEE802.11n HT40 (Calculation) (above 1GHz Outside of the restricted band) (* PK: Peak, AV: Average, QP: Quasi-Peak) PolarityFrequencyDetector ReadingAnt.Fac.LossGainResultResult (EIRP)LimitMargin HeightAngleRemark [MHz][dBuV][dB/m][dB][dB][dBuV/m][dBm][dBm][dB][cm][deg.] Hori.3486.670 PK46.22915.538.152.6-42.63-27.0015.6100337 Hori.6973.330 PK47.9368.239.252.9-42.33-27.0015.31126 Hori.10460.000 PK44.138.89.737.954.7-40.53-27.0013.51458 Vert.3486.670 PK46.12915.538.152.5-42.73-27.0015.71005 Vert.6973.330 PK48.8368.239.253.8-41.43-27.0014.4103288 Vert.10460.000 PK47.738.8…

Text truncated - open the document above for the full version.

Test Report

Test report No. : 10009516S-C Page : 1 of 24 Issued date : June 11, 2013 FCC ID : CKECMN851A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 RADIO TEST REPORT Test Report No. : 10009516S-C Applicant : Japan Radio Co., Ltd. Type of Equipment : Wireless LAN Module Model No. : CMN-851A FCC ID : CKECMN851A Test regulation : FCC Part 15 Subpart E: 2012 Section 15.407(DFS test only) Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test : ____________________________________ Representative test engineer: _____________________________________ Tatsuya Arai Engineer of WiSE Japan, UL Verification Service Approved by : _____________________________________ Go Ishiwata Manager of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". May 16, 2013 13-EM-F0429 Test report No. : 10009516S-C Page : 2 of 24 Issued date : June 11, 2013 FCC ID : CKECMN851A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10009516S-C Revision Test report No. Date Page revised Contents - (Original) 10009516S-CJune 11, 2013 -- Test report No. : 10009516S-C Page : 3 of 24 Issued date : June 11, 2013 FCC ID : CKECMN851A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information............................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 4 SECTION 3: Scope of Report ......................................................................................................... 5 SECTION 4: Test specification, procedures & results................................................................... 5 SECTION 5: Operation of E.U.T. during testing ......................................................................... 10 SECTION 6: In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time ................................................................................................................................................ 17 SECTION 7: In-Service Monitoring for Non-Occupancy Period................................................ 20 APPENDIX 1: Data of DFS test ..................................................................................................... 22 APPENDIX 2: Test instruments .................................................................................................... 23 APPENDIX 3: Photographs of test setup ...................................................................................... 24 Test report No. : 10009516S-C Page : 4 of 24 Issued date : June 11, 2013 FCC ID : CKECMN851A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name :Japan Radio Co., Ltd. Address :1-1, Shimorenjaku 5-chome, Mitaka-shi, Tokyo, 181-8510 Japan Telephone Number :+81 422 45 9311 Facsimile Number :+81 422 45 9956 Contact Person :Shinsuke Miyazaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model Number : CMN-851A Serial Number : Refer to 4.2 in this report. Rating : DC3.3V Country of Mass- production: Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : April 23, 2013 Modification of EUT : No modification by the test lab. 2.2 Product description Model: CMN-851A (referred to as the EUT in this report) is a Wireless LAN Module. Clock frequency(ies) in the system : 40MHz <Radio part> Equipment type : Transceiver Frequency of operation *1): 2.4GHz: 2412-2462MHz (IEEE 802.11b, 11g, 11n-HT20) 2422-2452MHz (IEEE 802.11n-HT40) W52: 5180-5240MHz (IEEE 802.11a, 11n-HT20) 5190-5230MHz (IEEE 802.11n-HT40) W53: 5260-5320MHz (IEEE 802.11a, 11n-HT20) 5270-5310MHz (IEEE 802.11n-HT40) W56: 5500-5700MHz (IEEE 802.11a, 11n-HT20) 5510-5670MHz (IEEE 802.11n-HT40) W58: 5745-5825MHz (IEEE 802.11a, 11n-HT20) 5755-5795MHz (IEEE 802.11n-HT40) Bandwidth : 20MHz (IEEE 802.11a/b/g/n), 40MHz (IEEE 802.11n) Channel spacing : 5MHz (2.4GHz), 20MHz (11a, 11n (HT20, 5GHz)), 40MHz (11n (HT40, 5GHz)) Type of modulation : DSSS, OFDM Antenna type : Dual (2.4GHz band: Planar patch, 5GHz band: Inverted F) Antenna gain with cable loss : 2.4GHz band: 0.58dBi 3.73dBi (Antenna gain) – 3.15dB (cable loss(18ft)) 5GHz band: -0.98dBi 4.06dBi (Antenna gain) – 5.04dB (cable loss(18ft)) Antenna connector type : Module side: U.FL Antenna side: RP-SMA ITU code : D1D, G1D *1) Refer to the test report 10009516S-A for FCC 15.247 and 10009516S-B for FCC 15.407. * The EUT does not perform simultaneous transmission of 2.4GHz and 5GHz Wireless LAN. Operation temperature range : 0 to +50 deg.C Test report No. : 10009516S-C Page : 5 of 24 Issued date : June 11, 2013 FCC ID : CKECMN851A UL Japan…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report No. : 10005707S-A Page : 21 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Front Side Test Report No 10009516S-B 147 of 149 Test report No. : 10005707S-A Page : 22 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front Rear (below 1GHz) Rear (above 1GHz) Test Report No 10009516S-B 148 of 149 Test report No. : 10005707S-A Page : 23 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position Module Antenna X-axis X-axis Y-axis Y-axis Z-axis Z-axis END OF REPORT Test Report No 10009516S-B 149 of 149

Test Setup Photos

Test report No. : 10009516S-C Page : 24 of 24 Issued date : June 11, 2013 FCC ID : CKECMN851A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 APPENDIX 3: Photographs of test setup Photo 1 Photo 2 END OF REPORT

Contact Information

Applicant

Yuji Kinoshita(General Manager)

[email protected]1-408-217-9832Fax: -

Technical Contact

UL Japan, Inc.Go Ishiwata

[email protected]81-463-50-6400

1-22-3 Megumigaoka, Hiratsuka-shi · Kanagawa-ken · Japan

Test Firm

UL Japan, Inc. Shonan EMC EMC Lab.Tetsuya Hashimoto

[email protected]+81-596-24-8116Fax: +81-596-24-8095

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15E	5.50 GHz - 5.70 GHz	21.80 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval. Output power listed is Conducted. The antenna shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons. Use in portable RF exposure conditions will require additional filing for SAR compliance. Host systems must provide regulated supply voltages to the module. Compliance of this device in all final host configurations is the responsibility of the Grantee. OEM integrators and end-users must be provided with specific information required to satisfy RF exposure compliance for the final host device. OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. The antenna of this device must not be co-located or used in conjunction with any other antenna or transmitter except the conditions shown in this filing and/or in accordance with FCC multi-transmitter product guidelines. This device has a 20 MHz and 40 MHz bandwidth mode. Operations in 5.15-5.25 GHz band are for indoor use only. This device complies with the Dynamic Frequency Selection (DFS) requirements as a Client only without Radar Detection.
