CKEJSS-296MF/HF Radio Telephone

MF/HF Radio Equipment JSS-296 Instruction Manual i CAUTIONS AGAINST HIGH VOLTAGE Radio and radar devices are operated by high voltages of anywhere from a few hundred volts up to many hundreds of thousands of volts. Although there is no danger with normal use, it is very dangerous if contact is made with the internal parts of these devices. (Only specialists should attempt any maintenance, checking or adjusting.) There is a very high risk of death by even a few thousand volts, in some cases you can be fatally electrocuted by just a few hundred volts. To circumvent accidents, you should avoid contact with the internal parts of these devices at all costs. If contact is inevitable as in the case of an emergency, you must switch off the devices and ground a terminal in order to discharge the capacitors. After making certain that all the electricity is discharged, only then can you insert your hand into the device. Wearing cotton gloves and putting your free hand in your pocket, in order not to use both hands simultaneously, are also very good methods of shock prevention. Quite often, an injury occurs by secondary factors, therefore it is necessary to choose a sturdy and level working surface. If someone is electrocuted it is necessary to thoroughly disinfect the affected area and seek medical attention as soon as possible. Cautions concerning treatment of electrocution victims When you find an electrocution victim, you must first switch off the machinery and ground all circuits. If you are unable to cut off the machinery, move the victim away from it using a non-conductive material such as dry boards or clothing. When someone is electrocuted, and the electrical current reaches the breathing synapses of the central nervous system inside the brain, breathing stops. If the victim's condition is stable, he or she can be administered artificial respiration. An electrocution victim becomes very pale, and their pulse can be very weak or even stop, consequently losing consciousness and becoming stiff. Administration of first aid is critical in this situation. ii First aid Note points for first aid Unless there is impending danger leave the victim where he or she is, then begin artificial respiration. Once you begin artificial respiration, you must continue without losing rhythm. (1) Make contact with the victim cautiously, there is a risk that you may get electrocuted. (2) Switch off the machinery and then move the victim away slowly if you must. (3) Inform someone immediately (a hospital or doctor, dial emergency numbers, etc.). (4) Lay the victim on his or her back and loosen any constrictive clothing (a tie, or belt). (5) (a) Check the victim's pulse. (b) Check for a heartbeat by pressing your ear against the victim's chest. (c) Check if the victim is breathing by putting the back of your hand or face near the victim's face. (d) Check the pupils of the eyes. (6) Open the victim's mouth and remove any artificial dentifrice, food or chewing gum. Leave the mouth opened and flatten the tongue with a towel or by putting something into the mouth to prevent the victim's tongue from obstructing the throat. (If he or she is clenching their teeth and it is difficult to open the mouth, use a spoon or the like to pry open the mouth.) (7) Continually wipe the mouth to prevent the accumulation of saliva. iii If the victim has a pulse but is not breathing ("Mouth to mouth" resuscitation) Figure 1. (1) Place the victim's head facing backward (place something under the neck like a pillow). (2) Point the chin upward to widen the trachea. (3) Pinch the victim's nose, take a deep breath, then put your mouth over the victim's mouth and exhale completely, making sure that your mouth completely covers the victim's mouth. Then remove your mouth. Repeat this routine 10 to 15 times per minute (holding the nostrils). (4) Pay attention to the victim to notice if he or she starts to breath. If breathing returns, stop resuscitation. (5) If it is impossible to open the victim's mouth, put something like a plastic straw or vinyl tube into one of the nostrils then blow air in while covering the mouth and the other nostril. (6) Occasionally, when the victim comes back to consciousness, they immediately try to stand up. Prevent this and keep them in a laying position. Give them something warm to drink and be sure that they rest (do not give them any alcohol). Administering artificial respiration by raising the head. ① ①① ①(1) Raise the back of the head, then place one hand on the forehead and place the other hand under the neck. →① →①→① →① Most victims open their mouth when doing this, making "mouth to mouth" resuscitation easier. ② ②② ②(2) Cover the victim's mouth by opening your mouth widely, then push your cheek against the victim's nose, →② →②→② →② or pinch the victim's nose to prevent air from leaking out of it. →③ →③→③ →③ ③ ③③ ③(3) Completely exhale into the lungs. Exhale into the lungs until the chest is inflates. You have to blow as rapidly as possible for the first 10 times. ("Mouth to mouth" resuscitation) Figure 1. iv If the victim has no pulse and is not breathing (Heart massage in combination with artificial respiration.) Figure 2 If the victim has no pulse, his or her pupils are dilated, and if you cannot detect a heartbeat, the heart may have stopped, beginning artificial respiration is critical. (1) Put both hands on the diaphragm, with hands on top of each other keeping both arms straight. (If your elbows are bent, you cannot push with as much power.) Press the diaphragm with your body weight until the chest sinks about 2 cm (about 50 times per minute). (2) If administering first aid when alone: Perform the heart massage about 15 times then blow in twice. Repeat this routine. If administering first aid with two people: One person performs the heart massage 5 times, and the other person blows air in once. Repeat this routine. (Heart massage and "mouth to mouth" resuscitation used together.) (3) Constantly check the …

Text truncated - open the document above for the full version.

3-42 (4)DISTRESS RELAY CALL Normally, a distress call is acknowledged by a coastal station, but if there is not acknowledgement by any station (e.g., due to propagation, etc.) relay it after editing the message for a relay call by selecting this menu. Normally, a distress relay is made by selecting this menu. 3-43 ALL SHIP’S DIST RELAY Dist-address XXXXXXXXX Nature UNDESIGNATED DIST Dist-position 12 34’N123 45’E Dist-UTC 01:20 Dist-telecomm J3E TEL Call TX/RX freq 2,187.5 / 2,187.5 kHz Use and to scroll the screen. Procedure Example: Procedure of a distress relay call to all ships 1. From the "MENU#1-EDIT&CALL" screen, press , and then press . The "DISTRESS RELAY CALL" screen is displayed. 1. Select 1 to relay the call to all ships and coastal stations. 2. Select 2 to relay the call to an individual ship or coastal station. 2. Press . and then press . The "ALL SHIPS DIST-RELAY" screen is displayed. The following items have been set in this example. Dist-address XXXXXXXXX NatureUNDESIGNATED DIST Dist-position12 34’N123 45’E Dist-UTC 01:20 Dist-telecomm J3E TEL Call TX/RX freq 2,187.5/2,187.5 kHz Entering the respective items: After selecting each item, press to confirm the selection. (1) Dist-address: Use the numerical keys ( to ) to enter the address of the receiving station (ship or coastal station). (2) Nature Dist-telecomm: Use the and keys to select the items. (3) Dist-position: Use the and keys to determine the direction, and then input the ship's position using the numerical keys ( to ). (4) Dist-UTC: Use the numerical keys ( to ) to enter the time. (4) Call TX/RX freq: Use the and keys to select one of the preset frequencies, or use the numerical keys ( to ,and ) to specify a frequency directly. 4 ENT ENT 09 09 DISTRESS RELAY CALL Select no.__ 1.ALL SHIP’S DIST rly EDIT 2.INDIVIDUAL DIST rly EDIT 1 ENT 09 Note 09. 3-44 3. Press , and then open the cover on the left and press for at least 3 seconds (until the intermittent alarm tone changes to a continuous tone). The following screen is displayed and the message is transmitted. Press to cancel the DISTRESS transmission. To discard the message and quit without sending it, press (QUIT). Unable to save the message. CALL ALL SHIP’S DIST-RELAY Transmitting TX frequency 2,187.5 kHz TX date&time 06.Sep.2001(Thu) 01:30 DISTRESS FUNC4 STOP Note 3-45 (5)AUTO/SEMI-AUTO CALL This mode is available only to coastal stations where the telephone on board can be connected on-line to a public line on the land after DSC communication on the MF/HF band. 3-46 Use and to scroll the screen. Procedure 1. From the "MENU#1-EDIT&CALL" screen, press , and then press . The "AUTO/SEMI-AUTO CALL" screen is displayed. The following items have been set in this example. Address XXXXXXXXX Telecommand-1 J3E TEL Telecommand-2 NO INFORMATION Ship’s position 1234’N12345’E Telephone no. 04224507XX Call TX/RX freq 4,208.0/4,219.5kHz Entering the respective items: After selecting each item, press to confirm the selection. (1) Address: Use the numerical keys ( to ) to enter the address of the receiving station (ship or coastal station). (2) Telecommand-1: Use the and keys to select the items. Telecommand-2 (3) Ship's-position: Use the and keys to determine the direction, and then input the ship's position using the numerical keys ( to ). (4) Telephone no. Use the numerical keys ( to ) to enter the telephone number. (5) Call TX/RX freq: Use the and keys to select one of the preset frequencies, or use the numerical keys ( to ,and ) to specify a frequency directly. (6) Other settings: "Work TX/RX freq": Use the numerical keys ( to , and ) to directly specify a frequency. Switching from "Ship's position" to "Work TX/RX freq": Press (FREQ). Switching from "Work TX/RX freq" to "Ship's position": Press (POS). ATTENTION This call requires the auto/semi-auto call service of a coastal station. Please ask the coastal station you use for details. AUTO/SEMI-AUTO CALL Transmissible Address XXXXXXXXX Telecommand-1 J3E TEL Telecommand-2 NO INFORMATION Ship’s position 12 34’N123 45’E Telephone no. 04224507XX Call TX/RX freq 4,208.0/4,219.5kHz 09 0 9 FUNC6 FUNC5 ENT 5ENT 09 09. 09. 3-47 2. Press The following screen is displayed and the message is transmitted. If the tuner is not tuned to the transmission frequency, the "tuner mismatch!!" warning message is displayed. Press to tune the tuner, then transmit the message. When the transmission is completed, the following screen is displayed. After a brief interval, operation returns to the "MENU#1-EDIT&CALL" screen. To discard the message and quit without sending it, press (QUIT). To store a message without sending it, press (SAVE). CALL AUTO/SEMI-AUTO CALL Transmitting TX frequency 4,208.0 kHz TX date&time 06.Sep.2001(Thu) 01:30 AUTO/SEMI-AUTO CALL Send Completed TX frequency 4,208.0 kHz TX date&time 06.Sep.2001(Thu) 01:30 FUNC 9 ENT FUNC4 Note Note 3-48 (6)ALL SHIPS CALL An all ships call is transmitted to all ships. Normally, this feature is used to acknowledge when a distress call is received and a distress acknowledgement from a coastal station has not been received in response. 3-49 ALL SHIPS CALL Category DISTRESS Telecommand-1 DISTRESS RELAY Dist address XXXXXXXXX Nature UNDESIGNATED DIST Dist-position 12 34’N123 45’E Dist-UTC 01:20 Dist-telecomm J3E TEL Call TX/RX freq 4,208.0 / 4,208.0 kHz Use and to scroll the screen. Procedure Example: Procedure for a distress relay call to all ships 1. From the "MENU#1-EDIT&CALL" screen, press , and then press . The "ALL SHIPS CALL" screen is displayed. The following items have been set in this example. CategoryDISTRESS Telecommand-1DISTRESS RELAY Dist-address XXXXXXXXX NatureUNDESIGNATED DIST Dist-position1234’N12345’E Dist-UTC01:20 Dist-telecommJ3ETEL Call TX/RX freq4,208.0 / 4,208.0 kHz Entering the respective items: After selecting each item, press to confirm the selection. (1) Dist-address: Use the numerical keys ( to ) to enter the address of the receiving station (ship or coastal station). (…

Text truncated - open the document above for the full version.

1011 SW Klickitat Way, Building B, Suite 100 Seattle, WA 98134 206-654-5644 fax 206-654-7030 Frequency Range Correction Frequency Output Power Freq. Tolerance Hertz Emission Type 1.6 ~ 4.0 MHz 200W 10 Hz J3E 1.6 ~ 4.0 MHz 200W 10 Hz A1A 1.6 ~ 4.0 MHz 200W 10 Hz F1B Frequency Output Power Freq. Tolerance Hertz Emission Type 4.0 ~ 27.5 MHz 250W 10 Hz J3E 4.0 ~ 27.5 MHz 250W 10 Hz A1A 4.0 ~ 24.5 MHz 250W 10 Hz F1B This cover letter stands to correct the information submitted on JRC’s 731 OET application. I certify that the above information is true and correct to the best of my knowledge. Please feel free to contact me if you have any questions at all. With Best Regards, Eric D’Ancicco AIS Technical Advisor High Seas Product Support [email protected] 206-654-5644 XT 202

1011 SW Klickitat Way, Building B, Suite 100 Seattle, WA 98134 206-654-5644 fax 206-654-7030 To: Federal Communications Commission Date: April 25, 2003 Attention: From: Eric D’Ancicco Fax Number: Number of pages: 1 FCC ID: CKKJSS-296 Confirmation Number: EA391747 To Whom It May Concern, I am writing this letter to inform you of a change in my Form 731 attachments. Please disregard the “ID Label and Location” attachment on my previous submission. The location of the sticker was incorrect. Attached, you will find an update ID Label and Location. Please refer to this attachment as the true and correct one. If you have any questions or concerns regarding this matter, please feel free to contact me. With Best Regards, Eric D’Ancicco High Seas Product Support [email protected] 206-654-5644 XT 202

1011 SW Klickitat Way, Building B, Suite 100 Seattle, WA 98134 206-654-5644 fax 206-654-7030 To: Andy Leimer, Federal Communications Commission From: Eric D’Ancicco [email protected] High Seas Service Coordinator Re: FCC ID CKEJSS-296 Applicant: Japan Radio Company 731 Conformation Number: EA391747 Mr. Leimer, I was a little uncertain of the question you posed to me regarding the occupied bandwidth of the three emission designators. If I understand what it is you want, then my response to the FCC is this: For all three emission modes, (J3E, A1A, and F1B), the occupied bandwidth is from 1.619Mhz to 26.175MHz as well as 2182KHz and 2187KHz. Please see the attached pdf file labeled “JSS296 Occupied Bandwidth Test Results”. I believe this should satisfy your requirements. If I have not provided you with the correct information, or I can be of any further assistance to you, please feel free to contact me personally. With Best Regards, Eric D’Ancicco High Seas Service Coordinator [email protected] 206-654-5644 XT 202

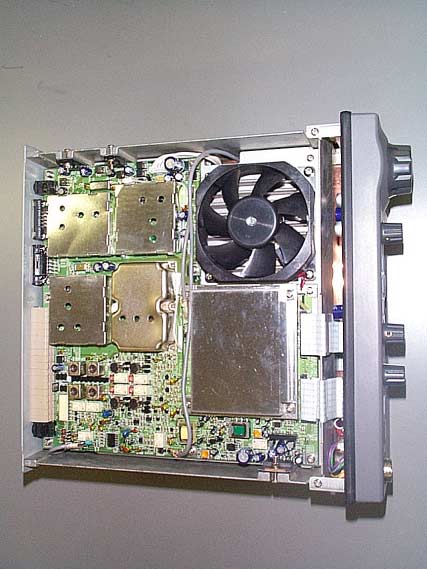

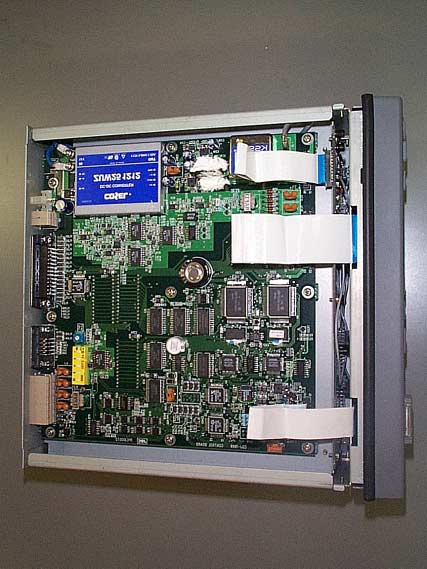

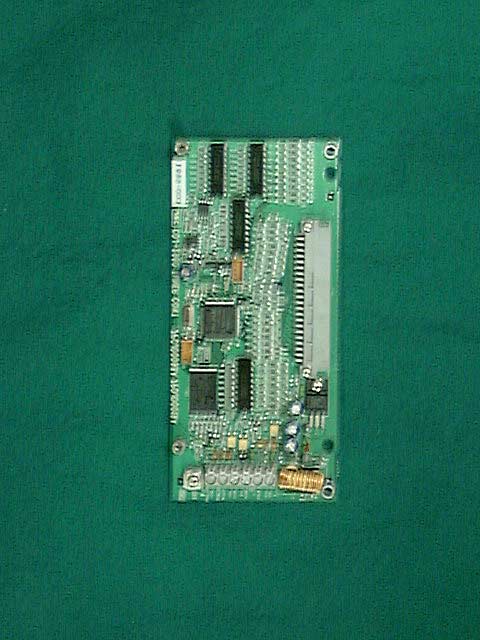

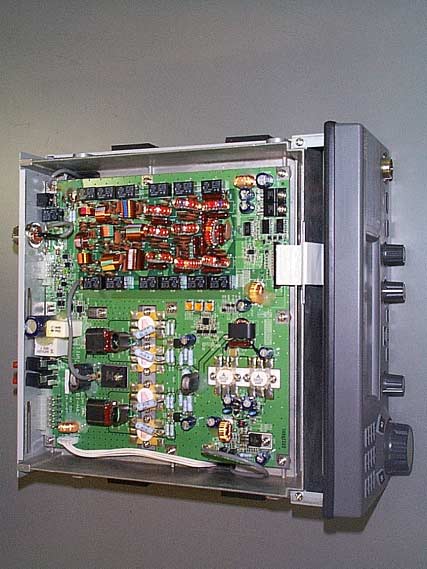

3.3.1 JSB-196GM (1/4) RADIOTELEPHONE 3.3.2 JSB-196GM (2/4) CONTROL UNIT 3.3.3 JSB-196GM (3/4) PA UNIT 3.3.4 JSB-196GM (4/4) TRX UNIT 3.3.5 NCT-196N (1/7) DSC/NBDP MODEM 3.3.6 NCT-196N (2/7) NAME PLATE 3.3.7 NCT-196N (3/7) PANEL BOARD 3.3.8 NCT-196N (4/7) MOTHER BOARD 3.3.9 NCT-196N (5/7) TOP VIEW 3.3.10 NCT-196N (6/7) W/K RECEIVER 3.3.11 NCT-196N (7/7) CONTROL BOARD 3.3.12 NAH-692 (1/6) POWER AMPLIFIER 3.3.13 NAH-692 (2/6) NAME PLATE 3.3.14 NAH-692 (3/6) PA UNIT 3.3.15 NAH-692 (4/6) PA CONTROL UNIT 3.3.16 NAH-692 (5/6) MAIN CONTROL UNIT 3.3.17 NAH-692 (6/6) PS UNIT 3.3.18 NFC-296 (1/4) ANTENNA TUNER 3.3.19 NFC-296 (2/4) NAME PLATE 3.3.20 NFC-296 (3/4) MATCHING UNIT 3.3.21 NFC-296 (4/4) TUNER CONT 3.3.22 NDZ-127J DTE 3.3.23 NDF-268 KEYBOARD 3.3.24 NKG-800 PRINTER

FCC ID LABEL AND NAME PLATE [FCC §2.1033(c)(11)] INDEX 1. FCC ID LABEL MF/HF RADIOTELEPHONE JSS-296 2. FCC LABEL 3. INCORPORATING RECEIVER LABEL 1. FCC ID LABEL MF/HF DSC EQUIPMENT & MF/HF DSC WATCHKEEPING RECEIVER JSS-296 2. FCC LABEL 3. INCORPORATING RECEIVER LABEL

3.3.1 JSB-196GM (1/4) RADIOTELEPHONE 3.3.2 JSB-196GM (2/4) CONTROL UNIT 3.3.3 JSB-196GM (3/4) PA UNIT 3.3.4 JSB-196GM (4/4) TRX UNIT 3.3.5 NCT-196N (1/7) DSC/NBDP MODEM 3.3.6 NCT-196N (2/7) NAME PLATE 3.3.7 NCT-196N (3/7) PANEL BOARD 3.3.8 NCT-196N (4/7) MOTHER BOARD 3.3.9 NCT-196N (5/7) TOP VIEW 3.3.10 NCT-196N (6/7) W/K RECEIVER 3.3.11 NCT-196N (7/7) CONTROL BOARD 3.3.12 NAH-692 (1/6) POWER AMPLIFIER 3.3.13 NAH-692 (2/6) NAME PLATE 3.3.14 NAH-692 (3/6) PA UNIT 3.3.15 NAH-692 (4/6) PA CONTROL UNIT 3.3.16 NAH-692 (5/6) MAIN CONTROL UNIT 3.3.17 NAH-692 (6/6) PS UNIT 3.3.18 NFC-296 (1/4) ANTENNA TUNER 3.3.19 NFC-296 (2/4) NAME PLATE 3.3.20 NFC-296 (3/4) MATCHING UNIT 3.3.21 NFC-296 (4/4) TUNER CONT 3.3.22 NDZ-127J DTE 3.3.23 NDF-268 KEYBOARD 3.3.24 NKG-800 PRINTER

1. General One of the features of Global Maritime Distress/Safety System (GMDSS) is high reliability established by automatic and introduction of digital techniques. The JSS-296 MF/HF Radio System is designed for medium-distance communication. It completely satisfies the requirements that SOLAS/GMDSS must meet. The Radio System consists of MF/HF Radiotelephone, digital selective call (DSC) / narrow-band direct printing (NBDP) MODEM with a built-in watch-keeping receiver, DTE for NBDP, and Antenna Tuning unit. It uses digitized information suited to automatic processing for distress/safety as well as general purpose communications. It features ease of handling and operation, and demands no special techniques. Further, the self-diagnosis and module design assures easy maintenance and inspection. 1.1 SCOPE AND PURPOSE The following technical data on the JSS-296 Radio Equipment are submitted to the Federal Communications Commission for type acceptance under Part 2, Part15 and Part 80 of the Commission’s rules and regulations. 1.2 JSS-296 Composition The JSS-296 consists of the following units and attachments: No. Name ModelQuantityRemarks 1MF/HF Radiotelephone JSB-196GM1 2DSC/NBDP Modem NCT-196N1 3Power Amplifier NAH-6921 4Antenna Tuner NFC-2961 5Data Terminal NDZ-127J1 6Keyboard NDF-2681 7Printer NKG-8001 8Hand Set NQW-2131 9Cable1 9-1 Radiotelephone Power Cable 7ZCJD0043A1 9-2 Modem Power Cable 7ZCJD01391 9-3 DSC AF Cable 7ZCJD00731 9-4 DSC Control Cable 7ZCJD00741 9-5 DTE Power Cable 6ZCSC005821 9-6 DTE Control Cable 7ZCJD00721 9-7 Printer Cable 6JNKD00100A1 10Spare parts 7ZXJD00301 11FDD Unit NDH-2651Option 12Instruction Manual 7ZPJD01241 2. TYPE NUMBER TYPE: MF/HF RADIO EQUIPMENT MODEL : JSS-296 FCC ID : CKE JSS-296 3. SPECIFICATIONS 3.1 GENERAL Frequency range:Transmit: 1.6 to 27.5MHz (100Hz steps) Receive: 0.1 to 29.9999MHz (100Hz steps) Frequency tolerance:Within ±10 Hz (after 1minute warm-up) Emission mode:J3E, A1A, F1B, H2B,H3E(Reception only) User definable channels:200ch (20ch X 10 Groups) Preset ITU channels:1722ch (TEL:283, DSC:29, TLX:891, CW:519) Communication mode:Simplex and semi-duplex Power requirement: 90132V/180264V AC, Single-phase, 50/60Hz Tx: 2.0kVA max, Rx: 0.5kVA max 21.631.2V DC Tx: 30A max, Rx: 7A max Operating temperature:-30 to +55 o C (-15 o C to +55 o C during normal operation) Charging current: 20A (Ordinary charge) 10A (Equalizing charge) Alarm function:Charge /Low voltage/ High voltage alarm 3.2 TRANSCEIVER (JSB-196GM with NAH-692) TRANSMITTER Output power:AC power source: 200Wpx ( 1.6 to 4MHz ) , 250Wpx ( 4 to 27.5MHz ) DC power source: 100Wpx ( 1.6 to 4MHz ) , 150Wpx ( 4 to 27.5MHz ) Occupied bandwidth:J3E3 kHz or less F1B, A1A0.5 kHz or less Carrier suppression:J3E 40dB or more Unwanted emission:J3E: 28dB or more at 1.5 to 4.5kHz 35dB or more at 4.5 to 7.5kHz 62dB or more at 7.5kHz or more F1B: 28dB or more at 0.25 to 0.5kHz 35dB or more at 0.5 to 1.25kHz 62dB or more at 1.25kHz or more Spurious suppression:60 dB or more AF frequency response:350 to 2700Hz (6dB bandwidth) Microphone input:600 ohms dynamic microphone (-40 dBm standard) Line input:0 dBm, 600 ohms (Balanced) RECEIVER Sensitivity (SINAD 20dB): J3E6.3 uV or less (1.6 to 4MHz) 3.5 uV or less (4 to 27.5MHz) F1B1.8 uV or less (1.6 to 4MHz) 1.0 uV or less (4 to 27.5MHz) Receiving system:Triple superheterodyne Intermediate frequencies:70.455MHz, 455kHz, 20.217kHz Selectivity: J3E6 dB bandwidth 2.4 to 3kHz, 66 dB bandwidth within ±2.1kHz F1B6 dB bandwidth 270 to 300Hz, 60 dB bandwidth within ±550Hz Spurious response:70 dB or more Clarifier range:±200 Hz (1Hz steps) AF output:5.0W max. 1W rated 3.3 DSC/NBDP MODEM (NCT-196N) DSC Protocol:ITU-R Recommendations 493 and 541 Emission: F1B/J2B 100 baud Modulator frequency: 1,700Hz ± 85Hz Output level:+10dBm maximum at 600 ohms, balanced Demodulator frequency: 1,700Hz ± 85Hz Input level:-20dBm to +10dBm at 600 ohms, balanced Processor code:10 units error detection specified by ITU-R Recommendation 493. File Memories: (Battery backup RAM) Call transmitting file: 11files General call receiving file: 20files Distress call receiving file: 20files WATCH-KEEPING RECEIVER Receiving frequencies:2187.5, 4207.5, 6312, 8414.5, 12577, and 16804.5kHz Scanning:(a) Scanning within two seconds of any frequencies selected from the following: 2187.5, 4207.5, 6312, 8414.5, 12577, and 16804.5kHz (b) Scanning stops on detection of 100 baud dot pattern. Receiving system:Double super heterodyne with the up-conversion system using a phase-locked digital frequency synthesizer. 1st IF:40.455MHz 2nd IF:455kHz Reception mode:F1B/J2B Sensitivity:The symbol error rate is 1×10 -2 or less. (RF input level = 1μV) Selectivity:6dB bandwidth: 270 to 300Hz 30dB bandwidth: within ±330Hz 60dB bandwidth: within ±550Hz Frequency stability:Within ±10Hz Interference rejection and Blocking immunity: The symbol error rate is 1×10 -2 or less. Wanted signal:input level =10μV, Unwanted signal: input level = 31.6mV, no modulation, variation range 9kHz to 2GHz (except wanted channel and its adjacent channel (±750Hz)) Adjacent channel selectivity: The symbol error rate is 1×10 -2 or less. Wanted signal:input level = 10μV Unwanted signal: input level = 1mV, no modulation, offset frequency = ±500Hz) Conducted spurious emission: The power emitted from the antenna terminal is 1nW or less. Antenna impedance:50 ohms, unbalanced NBDP Communications protocol:In conformity with ITU-RM.476, M.490, M.491, M.492, M.625 and ITU-T Rec. F130 Call codes5- and 9-digit with dual ship ID-code for individual and group call Code:7-bit code 4B/3Y ratio constant mark signal Clock:Within ±30ppm Modulation:Phase continuous AFSK Modulation speed:100 baud (ARQ, FEC mode) Mark frequency:1615 ±0.5Hz Space frequency:1785 ±0.5Hz Output level:0dBm (-20 to +10dBm variable/600 ohms balanced) Input frequency :1700 ±85Hz Input level :-25 to +10dBm (600-ohm balanced load) 3.4 ANTENNA TUNER (NFC-296) Frequency range:1.6 to 30MHz Power capabil…

Text truncated - open the document above for the full version.

1. General One of the features of Global Maritime Distress/Safety System (GMDSS) is high reliability established by automatic and introduction of digital techniques. The JSS-296 MF/HF Radio System is designed for medium-distance communication. It completely satisfies the requirements that SOLAS/GMDSS must meet. The Radio System consists of MF/HF Radiotelephone, digital selective call (DSC) / narrow-band direct printing (NBDP) MODEM with a built-in watch-keeping receiver, DTE for NBDP, and Antenna Tuning unit. It uses digitized information suited to automatic processing for distress/safety as well as general purpose communications. It features ease of handling and operation, and demands no special techniques. Further, the self-diagnosis and module design assures easy maintenance and inspection. 1.1 SCOPE AND PURPOSE The following technical data on the JSS-296 Radio Equipment are submitted to the Federal Communications Commission for type acceptance under Part 2, Part15 and Part 80 of the Commission’s rules and regulations. 1.2 JSS-296 Composition The JSS-296 consists of the following units and attachments: No. Name ModelQuantityRemarks 1MF/HF Radiotelephone JSB-196GM1 2DSC/NBDP Modem NCT-196N1 3Power Amplifier NAH-6921 4Antenna Tuner NFC-2961 5Data Terminal NDZ-127J1 6Keyboard NDF-2681 7Printer NKG-8001 8Hand Set NQW-2131 9Cable1 9-1 Radiotelephone Power Cable 7ZCJD0043A1 9-2 Modem Power Cable 7ZCJD01391 9-3 DSC AF Cable 7ZCJD00731 9-4 DSC Control Cable 7ZCJD00741 9-5 DTE Power Cable 6ZCSC005821 9-6 DTE Control Cable 7ZCJD00721 9-7 Printer Cable 6JNKD00100A1 10Spare parts 7ZXJD00301 11FDD Unit NDH-2651Option 12Instruction Manual 7ZPJD01241 2. TYPE NUMBER TYPE: MF/HF RADIO EQUIPMENT MODEL : JSS-296 FCC ID : CKE JSS-296 3. SPECIFICATIONS 3.1 GENERAL Frequency range:Transmit: 1.6 to 27.5MHz (100Hz steps) Receive: 0.1 to 29.9999MHz (100Hz steps) Frequency tolerance:Within ±10 Hz (after 1minute warm-up) Emission mode:J3E, A1A, F1B, H2B,H3E(Reception only) User definable channels:200ch (20ch X 10 Groups) Preset ITU channels:1722ch (TEL:283, DSC:29, TLX:891, CW:519) Communication mode:Simplex and semi-duplex Power requirement: 90132V/180264V AC, Single-phase, 50/60Hz Tx: 2.0kVA max, Rx: 0.5kVA max 21.631.2V DC Tx: 30A max, Rx: 7A max Operating temperature:-30 to +55 o C (-15 o C to +55 o C during normal operation) Charging current: 20A (Ordinary charge) 10A (Equalizing charge) Alarm function:Charge /Low voltage/ High voltage alarm 3.2 TRANSCEIVER (JSB-196GM with NAH-692) TRANSMITTER Output power:AC power source: 200Wpx ( 1.6 to 4MHz ) , 250Wpx ( 4 to 27.5MHz ) DC power source: 100Wpx ( 1.6 to 4MHz ) , 150Wpx ( 4 to 27.5MHz ) Occupied bandwidth:J3E3 kHz or less F1B, A1A0.5 kHz or less Carrier suppression:J3E 40dB or more Unwanted emission:J3E: 28dB or more at 1.5 to 4.5kHz 35dB or more at 4.5 to 7.5kHz 62dB or more at 7.5kHz or more F1B: 28dB or more at 0.25 to 0.5kHz 35dB or more at 0.5 to 1.25kHz 62dB or more at 1.25kHz or more Spurious suppression:60 dB or more AF frequency response:350 to 2700Hz (6dB bandwidth) Microphone input:600 ohms dynamic microphone (-40 dBm standard) Line input:0 dBm, 600 ohms (Balanced) RECEIVER Sensitivity (SINAD 20dB): J3E6.3 uV or less (1.6 to 4MHz) 3.5 uV or less (4 to 27.5MHz) F1B1.8 uV or less (1.6 to 4MHz) 1.0 uV or less (4 to 27.5MHz) Receiving system:Triple superheterodyne Intermediate frequencies:70.455MHz, 455kHz, 20.217kHz Selectivity: J3E6 dB bandwidth 2.4 to 3kHz, 66 dB bandwidth within ±2.1kHz F1B6 dB bandwidth 270 to 300Hz, 60 dB bandwidth within ±550Hz Spurious response:70 dB or more Clarifier range:±200 Hz (1Hz steps) AF output:5.0W max. 1W rated 3.3 DSC/NBDP MODEM (NCT-196N) DSC Protocol:ITU-R Recommendations 493 and 541 Emission: F1B/J2B 100 baud Modulator frequency: 1,700Hz ± 85Hz Output level:+10dBm maximum at 600 ohms, balanced Demodulator frequency: 1,700Hz ± 85Hz Input level:-20dBm to +10dBm at 600 ohms, balanced Processor code:10 units error detection specified by ITU-R Recommendation 493. File Memories: (Battery backup RAM) Call transmitting file: 11files General call receiving file: 20files Distress call receiving file: 20files WATCH-KEEPING RECEIVER Receiving frequencies:2187.5, 4207.5, 6312, 8414.5, 12577, and 16804.5kHz Scanning:(a) Scanning within two seconds of any frequencies selected from the following: 2187.5, 4207.5, 6312, 8414.5, 12577, and 16804.5kHz (b) Scanning stops on detection of 100 baud dot pattern. Receiving system:Double super heterodyne with the up-conversion system using a phase-locked digital frequency synthesizer. 1st IF:40.455MHz 2nd IF:455kHz Reception mode:F1B/J2B Sensitivity:The symbol error rate is 1×10 -2 or less. (RF input level = 1μV) Selectivity:6dB bandwidth: 270 to 300Hz 30dB bandwidth: within ±330Hz 60dB bandwidth: within ±550Hz Frequency stability:Within ±10Hz Interference rejection and Blocking immunity: The symbol error rate is 1×10 -2 or less. Wanted signal:input level =10μV, Unwanted signal: input level = 31.6mV, no modulation, variation range 9kHz to 2GHz (except wanted channel and its adjacent channel (±750Hz)) Adjacent channel selectivity: The symbol error rate is 1×10 -2 or less. Wanted signal:input level = 10μV Unwanted signal: input level = 1mV, no modulation, offset frequency = ±500Hz) Conducted spurious emission: The power emitted from the antenna terminal is 1nW or less. Antenna impedance:50 ohms, unbalanced NBDP Communications protocol:In conformity with ITU-RM.476, M.490, M.491, M.492, M.625 and ITU-T Rec. F130 Call codes5- and 9-digit with dual ship ID-code for individual and group call Code:7-bit code 4B/3Y ratio constant mark signal Clock:Within ±30ppm Modulation:Phase continuous AFSK Modulation speed:100 baud (ARQ, FEC mode) Mark frequency:1615 ±0.5Hz Space frequency:1785 ±0.5Hz Output level:0dBm (-20 to +10dBm variable/600 ohms balanced) Input frequency :1700 ±85Hz Input level :-25 to +10dBm (600-ohm balanced load) 3.4 ANTENNA TUNER (NFC-296) Frequency range:1.6 to 30MHz Power capabil…

Text truncated - open the document above for the full version.

2. TUNE UP PROCEDURE 2. 1 JSB-196GM RADIOTELEPHONE Periodic Maintenance The following procedures are recommended for performance at monthly intervals to minimize the possibility of equipment failure and to assure optimum performance. 1. Inspect the antenna system. Pay particular attention to the cleanliness of the antenna insulator(s), condition of electrical connections, coax transmission line and connections, antenna and lead-in, and ground strap and connections. 2. Check the condition of the DC13.6V power source. Make sure that all connections are clean, that the conductors have sufficient current capacity, and that the battery has sufficient capacity and high specific gravity. 3. Fuse ferrules are subject to corrosion which increases circuit resistance. Fuse should be removed from their holders, inspected, and cleaned of any free of corrosion, batteries should be in proper condition and clean, power cabling insulation should be in proper condition to prevent short circuits or corrosion of the conductors. 4. Plastic surfaces should be cleaned with lens tissue or soft nonabrasive cloth. Care should be exercised with any plastic surface to prevent scratching. Mild soap and water may be used in stubborn cases. DO NOT USE SOLVENTS. Test Equipment Interconnection The following block diagram shows hookup of test equipment for tune-up and troubleshooting procedures as outlined in the following pages. Figure 2-1 Test Equipment Interconnection The test equipments mentioned above are , for example, as follows. 1. DC Power Supply:DC13.6V, 40A Continuous D…
