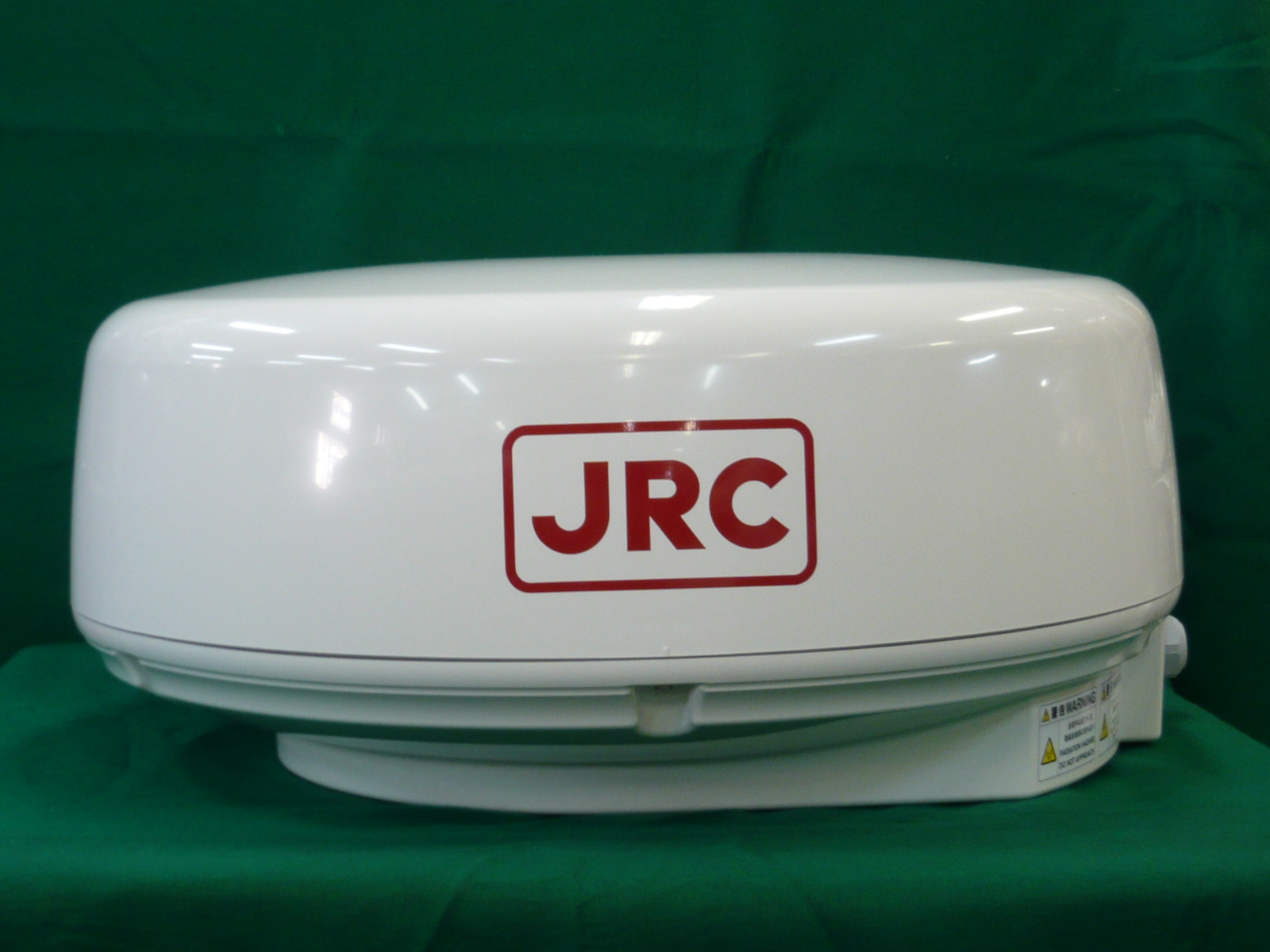

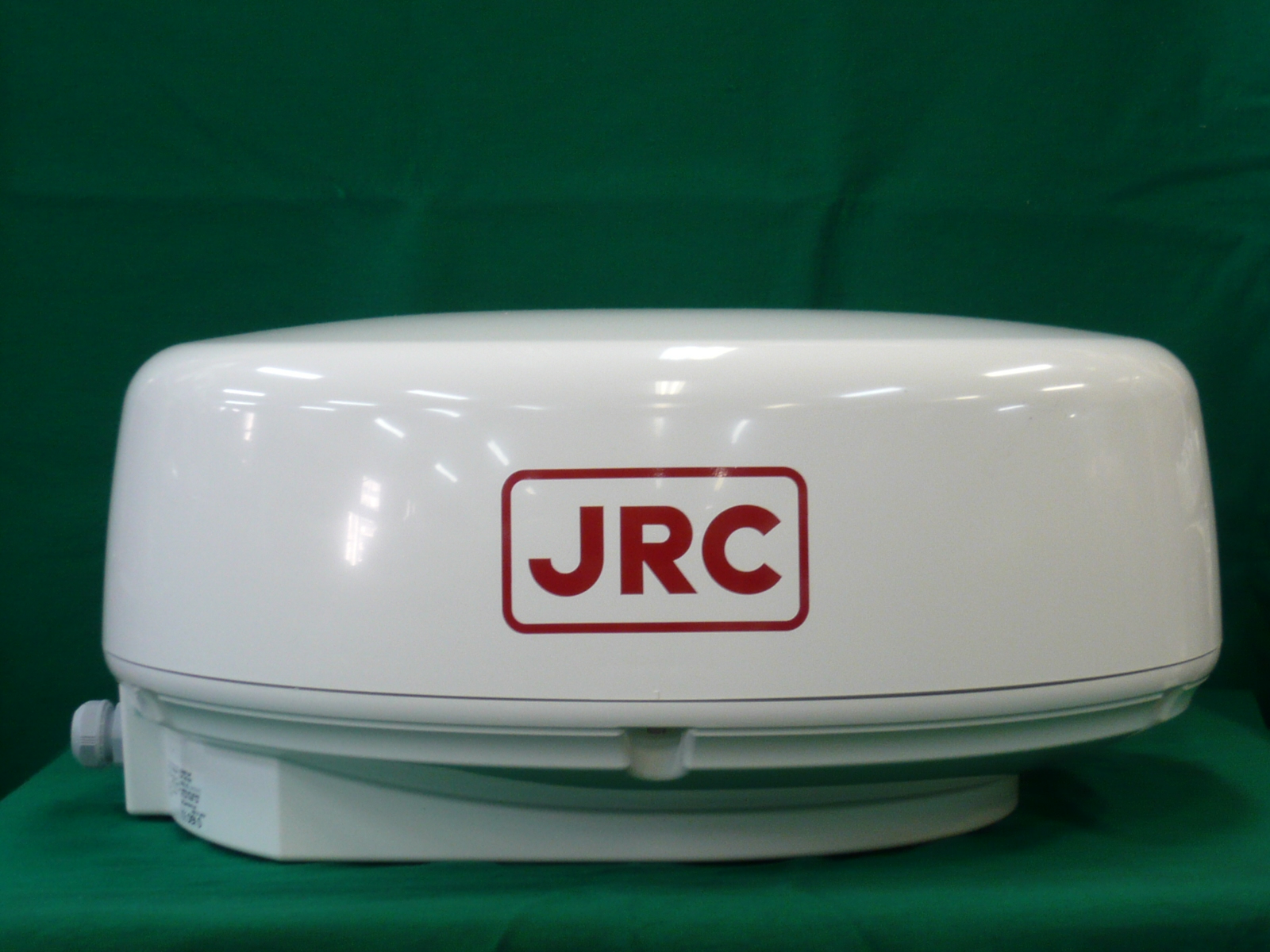

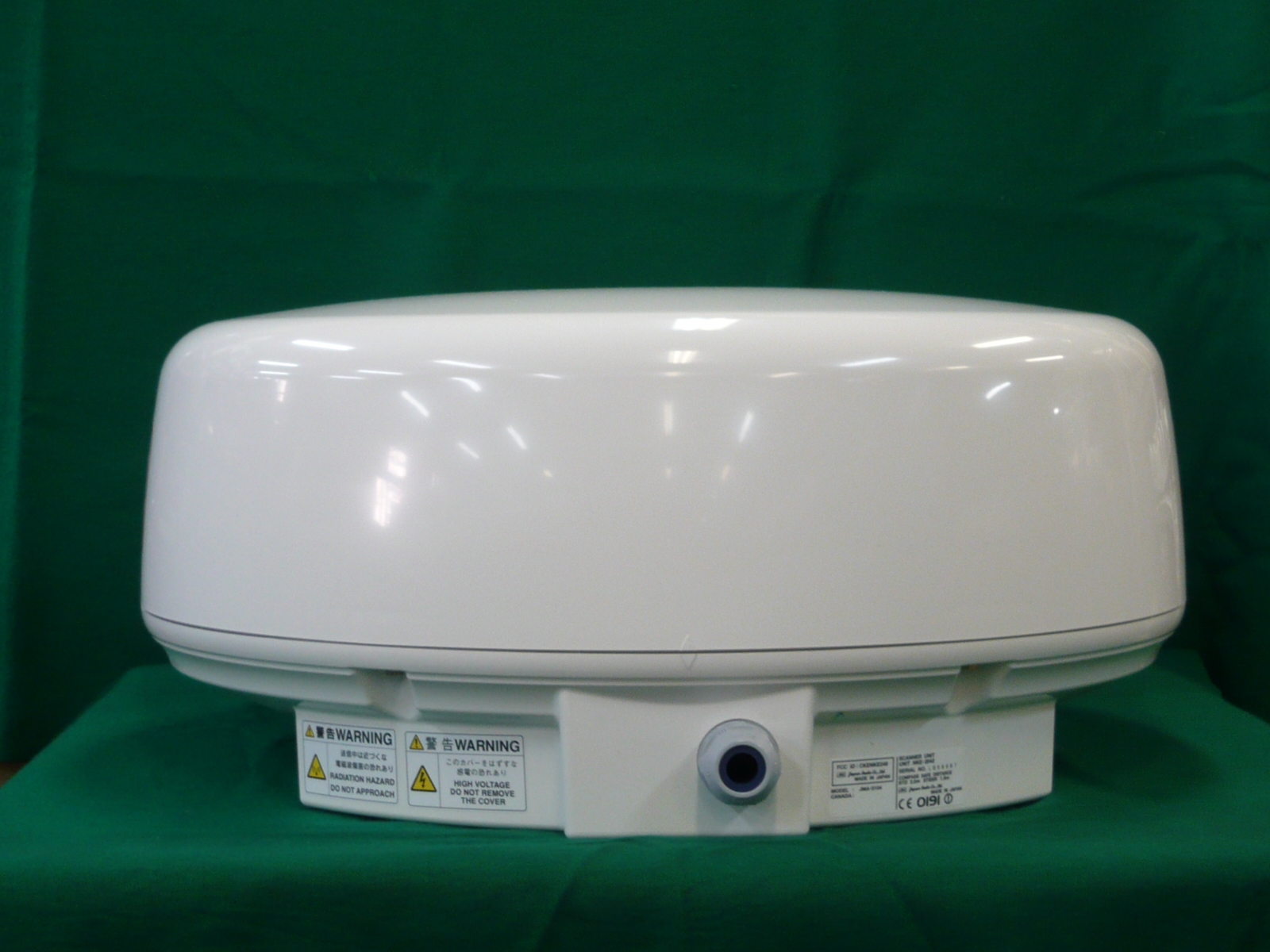

CKENKE2042MARINE RADAR

JMA-5104/5106/5110 MARINE RADAR EQUIPMENT INSTRUCTION MANUAL ──ABOUT YOUR SAFETY── Cautions for high voltage High voltages from hundreds volts to tens of thousands volts are to be applied to the electronic equipment such radio and radar devices. You do not face any danger during normal operation, but sufficient cares are required for maintenance, inspection and adjustment of their internal components. (Authorized maintenance personnel alone are permitted to implement maintenance, check-ups or adjustment of internal components.) High voltages of tens of thousands volts are so dangerous as to bring an instantaneous death from electric shock, but even voltages of hundreds volts may sometimes lead to a death from electric shock. To prevent such an accident, make it a rule to turn off the power button, discharge capacitors with a wire surely earthed on an end and make sure that internal parts are no longer charged before you touch any parts inside these devices. At the time, wearing dry cotton gloves ensures you further to prevent such danger. It is also a necessary caution to put one of your hands in the pocket and not to use your both hands at the same time. It is also important to select a stable foothold always to prevent additional injuries once you were shocked by electricity. If you were injured from electric shock, disinfect the burn sufficiently and get it taken care of promptly. What to do in case of electric shock When finding a victim of electric shock, turn off the power source and earth the circuit immediately. If it is impossible to turn off the circuit, move the victim away promptly using insulators such as dry wood plate and cloth without touching the victim directly. In case of electric shock, breathing may stop suddenly if current flows to the respiration center in the brain. If the shock is not so strong, artificial respiration may recover breathing. When shocked by electricity, the victim will come to look very bad with weak pulse or without beating, resulting in unconsciousness and rigidity. FIRST AID TREATMENTS ☆ ☆☆ ☆ First-aid treatments As far as the victim of electric shock is not in dangerous condition, do not move him and practice artificial respiration on him immediately. Once started, it should be continued rhythmically. （1） Do not touch the victim confusedly as a result of the accident, but the rescuer may also get an electric shock. （2） Turn off the power source calmly and certainly and move the victim away quietly from the electric line. （3） Call a physician or ambulance immediately or ask someone to call a doctor. （4） Lay the victim on his back and loosen his necktie, clothes, belt, etc. （5） a. Examine the victim's pulse. b. Examine his heartbeat bringing your ear close to his heart. c. Examine his breathing bringing the back of your hand or your face close d. Check the size of the pupils of his eyes （6） Open the victim's mouth and take out artificial teeth, cigarette or chewing gum if any. Keep his mouth open, stretch his tongue and insert a towel or the like in his mouth to prevent the tongue from suffocating. (If it is hard to open his mouth due to set teeth, open it with a screwdriver and insert a towel in this mouth.) （7） Then, wipe his mouth so that foaming mucus does not accumulate inside. ☆ ☆☆ ☆When pulse is beating but breathing has stopped (1) Tilt the victim's head back as far as this face looks back. (A pillow may be inserted under his neck.) (2) Push his jaw upward to open his throat wide (to spread his airway). (3) Pinch the victim's nostrils and take a deep breath, block his mouth completely with yours and blow into his mouth strongly. Take a deep breath again and blow into his mouth. Continue this 10 to 15 times a minute (blocking his nostrils). (4) Carefully watch that he has recovered his natural breathing and stop practicing artificial respiration. (5) If it is difficult to open the victim's mouth, insert a rubber or vinyl tube into one of his nostrils and blow into it blocking the other nostril and his mouth completely. (6) When the victim recovers consciousness, he may try to stand up suddenly, but let him lie calmly and serve him with a cup of hot coffee or tea to keep him warm and quiet. (Never give him alcoholic drinks.) Method of mouth-to-mouth respiration by raising head Fig.1 Mouth-to-mouth respiration ③ ② ① (1)Raise the victim's head. Support his forehead with one of your hand and his neck with the other hand. → ① When you tilt his head backward, the victim, in most cases, opens his mouth to the air. This makes mouth-to-mouth respiration easy. (2)Cover his mouth as widely as possible with yours and press your cheek against his nose → ② , or, pinch his nostrils with your fingers to prevent air from leaking. → ③ (3)Blow into his lungs. Continue blowing into his mouth until his breast swells. Blow into his mouth as quickly as possible for the first 10 times. ☆ ☆☆ ☆When both pulse and breathing have stopped When no pulse has come not to be felt, his pupils are open and no heartbeat is heard, cardiac arrest is supposed to have occurred and artificial respiration must be performed. (1) Place your both hands, one hand on the other, on the lower one third area of his breastbone and compress his breast with your elbows applying your weight on his breast so that it is dented about 2cm (repeat compressing his breast 50 times or so a minute). (Cardiac massage) (2) In case of one rescuer, Repeat cardiac massages about 15 times and blow into his mouth 2 times quickly, and repeat this combination. In case of two rescuers, One person repeats cardiac massages 15 times while the other person blows into his mouth twice, and they shall repeat this combination. (Cardiac massage and mouth-to-mouth respiration) (3) Examine his pupils and his pulse sometimes. When the both have returned to normal, stop the artificial respiration, serve him with a cup of coffee or tea and keep him warm and calm while watching him carefully. Commit the victim to a medial sp…

Text truncated - open the document above for the full version.

SEATTLE BRANCH 101 SW Klickitat Way, Suite 201B, · Seattle WA 98134 Tel: (206) 654-5644 · Fax: (206) 654-7030 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: CKENKE2042. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams Schematics Operational Description Tune Up Procedures Parts List CKENKE2042 BlkDia.pdf CKENKE2042 Schem.pdf CKENKE2042 OpDes.pdf CKENKE2042 TunPro.pdf CKENKE2042 PartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name External Photos Internal Photos CKENKE2042 ExtPho.pdf CKENKE2042 IntPho.pdf Sincerely, Eric D’Ancicco Service Manager Japan Radio Co., Ltd.

3. TEST RESULTS SUMMARY 3.1 Mechanical Tests Appearance and Structure Scanner Unit Good 3.2 Electrical Tests 3.2.1 Working of each operation unit Scanner Unit Good 3.2.2 Scanner VSWR frequency (MHz) VSWR 9380 1.02 9410 1.03 9440 1.04 Scanner Rotation Speed 27rpm 3.2.3 Transmitter Magnetron Ser. No. SJ1B/S9143C Operating Frequency (at 0.08 μs pulse, SP) 9423.5 MHz (at 0.25 μs pulse, MP1) 9422.2 MHz (at 0.5 μs pulse, MP2) 9420.2 MHz (at 1.0 μs pulse, LP) 9420.2 MHz RF power output (Mean power) (at 0.08 μs pulse, SP) 0.21 W (at 0.25 μs pulse, MP1) 1.29 W (at 0.5 μs pulse, MP2) 3.24 W (at 1.0 μs pulse, LP) 6.76 W Pulse Length (at 0.08 μs pulse, SP) 0.086 μs (at 0.25 μs pulse, MP1) 0.278 μs (at 0.5 μs pulse, MP2) 0.516 μs (at 1.0 μs pulse, LP) 1.000 μs Repetition Frequency (0.08μs) 2251 Hz (0.25μs) 1704 Hz (0.5 μs) 1205 Hz (1.0 μs) 651 Hz Spurious Emission at Antenna Terminal Good Field strength of spurious radiation Good Radiofrequency radiation exposure limits Good 3.2.4 Receiver MIC Front-end Ser. No. B0978A Diode limiter Ser. No. Z0454A IF Center Frequency 60 MHz IF Bandwidth 20/6/3 MHz 3.2.5 Input Voltage and Current(at 24NM-LP1) DC.24V 1.07A (25.68W) 3.3 Overall Tests Working Time of Timer 1min30sec Input Variation (21.6Vdc – 42Vdc) Good Overall Sensitivity Good Minimum Range Good Bearing Accuracy Good Mechanical Noise Good 4.1 RF Power Output 47 CFR sec. 2.1046 4.1.1 TEST SETUP 4.1.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO. SERIAL NO. CALIBRATION DATE CALIBLATION DUE DATE 1 Double Ridge Horn Antenna ETS LINDGREN 3117 00091928 NA NA 2 Adaptor HP X281A NA NA NA 3 Direction Coupler (30dB) SHIMADARIKA 5D363 R11421 NA NA 4 Dummy Load PASTERNACK PE6815 NA NA NA 5 High Power Dummy Load PASTERNACK PE6824 NA NA NA 6 Variable Attenuator HP X382A 1005-00684 May. 2010 May. 2011 7 Adaptor HP X281A NA NA NA 8 Coaxial Cable HUBER+SUHNER SUCOFLEX 104PA 5784 /4PA NA NA 9 Spectrum Analyzer Agilent E4448A MY46180420 Sep. 24. 2010 Sep. 2011 4.1.3 TEST PROCEDURES Reference to Section 2.2.17 Radiated Power Output on TIA-603-C. 4.1.4 EUT OPERATING CONDITIONS a. Placed the EUT on the testing table. b. Prepared other computer systems for controlling EUT and placed them outside of testing area. c. EUT can be transmitted four pulses are 0.08usec/2250Hz, 0.25usec/1700Hz, 0.5usec/1200Hz and 1.0usec/650Hz. 4.1.5 TEST RESULTS The radiated power output is calculated by the following: iatedaverageraddBmpower i i LOSSLVLi )108/1log(10 8 1 10 ∑ = = + = Pulse Length [usec] 0.08 0.25 0.5 1.0 PRF [Hz] 2250 1700 1200 650 averageradiated power [dBm] 23.3 31.1 35.1 38.3 i LVL [dBm] LVL + LOSS [dBm] LVL [dBm] LVL + LOSS [dBm] LVL [dBm] LVL + LOSS [dBm] LVL [dBm] LVL + LOSS [dBm] 1 -31.92 23.51 -24.34 31.09-20.04 35.39 -17.23 38.2 2 -31.82 23.61 -24.19 31.24-20.57 34.86 -16.90 38.53 3 -31.99 23.44 -24.20 31.23-20.41 35.02 -17.23 38.2 4 -32.18 23.25 -24.81 30.62-20.57 34.86 -17.27 38.16 5 -32.00 23.43 -24.35 31.08-20.24 35.19 -17.70 37.73 6 -32.55 22.88 -24.06 31.37-20.11 35.32 -16.99 38.44 7 -32.47 22.96 -24.43 31-20.25 35.18 -17.29 38.14 8 -32.20 23.23 -24.47 30.96-20.21 35.22 -16.84 38.59 *LOSS = 55.43dB 4.1.6 TEST CONDITIONS Tamb = 20°C to 25°C, RHamb = 40% ～ 60% EUT input = 24 VDC 4.1.7 STABILLIZATION EUT energized for 10 minutes minimum. 4.1.8 TEST EQUIPMENT JRC Original – Shielded Room Other equipment – see test set-ups. 4.1.9 DATE 11 th October, 2010 TESTED BY G. Higuchi 4.2 Spurious emission at antenna terminals 47 CFR sec. 2.1051 4.2.1.1 TEST SETUP for range 10kHz to 12.5GHz 4.2.1.2 TEST INSTRUMENT DESCRIPTION & MANUFACTURER MODEL NO. SERIAL NO. CALIBRATION DATE CALIBLATION DUE DATE 1 Direction Coupler (30dB) SHIMADARIKA 5D363 R11421 NA NA 2 Dummy Load PASTERNACK PE6815 NA NA NA 3 High Power Dummy Load PASTERNACK PE6824 NA NA NA 4 Variable Attenuator HP X382A 1005-00684 May. 2010 May. 2011 5 Adaptor HP X281A NA NA NA 6 Coaxial Cable HUBER+SUHNER SUCOFLEX 104PA 5784 /4PA NA NA 7 Spectrum Analyzer Agilent E4448A MY46180420 Sep. 24. 2010 Sep. 2011 Measurement Point : Antenna terminal Spectrum Analyzer setting: RBW = 10kHz less than 1GHz, 1MHz above 1GHz VBW = 300kH less than 1GHz, 3MHz above 1GHz Detector Mode = Positive Peak 4.2.1.3 TEST PROCEDURES a. Setup EUT as 4.2.1. b. Transmitted at most powerful pulse and adjusted attenuator for not exceeding the spectrum analyzer maximum rating. c. Transmitted at four pulses are 0.08usec/2250Hz, 0.25usec/1700Hz, 0.5usec/1200Hz and 1.0usec/650Hz, and capture the spectrum at 10kHz to 12.5GHz. 4.2.1.4 EUT OPERATING CONDITIONS a. Placed the EUT on the testing table. b. Prepared other computer systems for controlling EUT and placed them outside of testing area. 4.2.1.5 TEST RESULTS No spurious emissions observed above minimum standard. Test data is described at section 4.2.1.10 to 4.2.1.13 4.2.1.6 TEST CONDITIONS Tamb = 20°C to 25°C, RHamb = 40% ～ 60% EUT input = 24 VDC 4.2.1.7 STABILLIZATION EUT energized for 10 minutes minimum. 4.2.1.8 TEST EQUIPMENT JRC Original – Shielded Room Other equipment – see test set-ups. 4.2.1.9 DATE 11 th January, 2011 TESTED BY G.Higuchi 4.2.1.10 TEST RESULTS of 0.08usec/2250Hz pulse 10kHz to 100MHz 100MHz to 200MHz 200MHz to 300MHz 300MHz to 400MHz 400MHz to 500MHz 500MHz to 600MHz 600MHz to 700MHz 700MHz to 800MHz 800MHz to 900MHz 900MHz to 1GHz 1.0GHz to 2.9GHz 2.9GHz to 6.4GHz 6.4GHz to 12.5GHz Center 9423.5MHz, Span 400MHz 4.2.1.11 TEST RESULTS of 0.25usec/1700Hz pulse 10kHz to 100MHz 100MHz to 200MHz 200MHz to 300MHz 300MHz to 400MHz 400MHz to 500MHz 500MHz to 600MHz 600MHz to 700MHz 700MHz to 800MHz 800MHz to 900MHz 900MHz to 1.0GHz 1.0GHz to 2.9GHz 2.9GHz to 6.4GHz 6.4GHz to 12.5GHz Center 9422.2MHz, Span 400MHz 4.2.1.12 TEST RESULTS of 0.5usec/1200Hz pulse 10kHz to 100MHz 100MHz to 200MHz 200MHz to 300MHz 300MHz to 400MHz 400MHz to 500MHz 500MHz to 600MHz 600MHz to 700MHz 700MHz to 800MHz 800MHz to 900MHz 900MHz to 1GHz 1.0GHz to 2.9GHz 2.9GHz to 6.4GHz 6.4GHz to 12.5GHz Center 9420.2MHz, Span 400MHz 4.2.1.13 TEST RESULTS of 1.0usec…

Text truncated - open the document above for the full version.

Setup for Radiated Emission
